Hyundai Elantra 2006 Owner's Manual

6 DO-IT-YOURSELF MAINTENANCE
12
!
G040B03FC-GAT
Diesel Engine
KCHB01A
The engine oil and filter should be
changed at those intervals specified in the maintenance schedule in Sec- tion 5. If the car is being driven in severe conditions, more frequent oiland filter changes are required.
The procedure for changing the oil
and filter is as follows:
1. Park the car on level ground and
set the parking brake. Start the engine and let it warm up until the needle on the coolant temperature gauge moves above the lowestmark.
10. Shut off the engine and recheck
the oil level.
NOTE: Always dispose of used engine oil in an environmentally acceptable manner. It is suggested that it be placed in a sealed container andtaken to a service station for maybe reclaimation. Do not pour the oil on the ground or put it in with thehousehold trash.
6. Install a new oil filter in accordance
with the instructions on the cartonor on the filter itself. Do not over- tighten.
Oil filter tightening torque: 1.2~1.6kgf.m Be sure that the mounting surfaceon the engine is clean and that the old gasket is removed completely. Lubricate the new gasket on thefilter with clean engine oil before installation.
7. Remove the engine oil level dip- stick.
8. Refill the crankcase with the rec- ommended engine oil. Refer tothe specification in chapter 9 for engine oil capacity. WARNING:
Used motor oil may cause irrita-
tion or cancer of the skin if left incontact with the skin for prolonged periods of time. Wash your hands thoroughly with soap and warmwater as soon as possible after handling used oil.
Oil filler cap
Engine oil drain plug
! CAUTION:
Slowly pour the recommended oil into a funnel. Do not overfill not to damage the engine.
9. Start the engine and check to be sure no oil is leaking from the drain plug or oil filter.

6
DO-IT-YOURSELF MAINTENANCE
13
!
Turn the engine off and place the gear selector lever in "P" (auto-matic) or reverse gear (manual transaxle).
2. Open the hood and remove the engine oil filler cap.
3. Slide underneath the car and loosen the drain plug by turning it counter-clockwise with a wrench of the proper size. Be sure that a drainpan is in position to catch the oil as it drains out, then remove the drain plug.
WARNING:
Be very careful when draining theengine oil as it may be hot enoughto burn you!
4. When the oil has stopped draining, replace the drain plug using a newgasket and retighten by turning itclockwise. Drain plug tightening torque: 3.5 ~ 4.5 kgf.m 8. Install a new copper washer of the
oil filter drain plug by the side oflower case and retighten by turn- ing it clockwise.
Tightening torque : 0.8~1.0 kgf.m
9. After mounting a new oil filter ele- ment and O-ring to upper cap, install the upper cap to lower case and retighten by turning it clock- wise. Do not over-tighten.
Tightening torque : 2.3~2.5 kgf.m
NOTE: Be careful not to be the element upside down when mounting the element.
10.Remove the engine oil level dip- stick.
11.Refill the crankcase with the rec- ommended engine oil. Refer to the specification in chapter 9 forengine oil capacity.

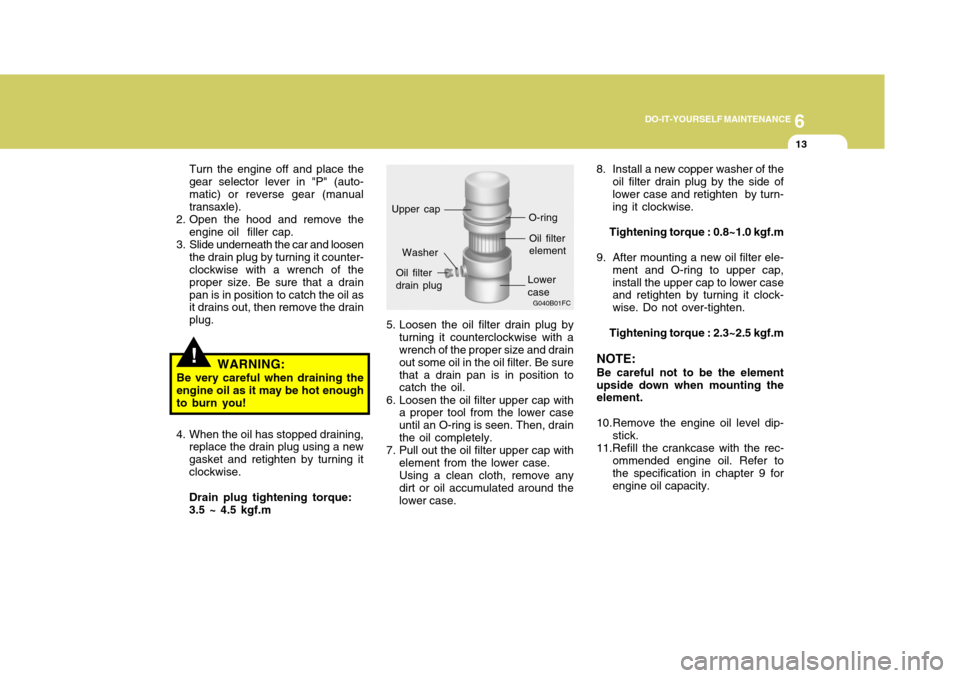

G040B01FC
5. Loosen the oil filter drain plug by turning it counterclockwise with a wrench of the proper size and drain out some oil in the oil filter. Be surethat a drain pan is in position to catch the oil.
6. Loosen the oil filter upper cap with a proper tool from the lower case until an O-ring is seen. Then, drainthe oil completely.
7. Pull out the oil filter upper cap with
element from the lower case.Using a clean cloth, remove anydirt or oil accumulated around thelower case.
Upper cap
Washer
Oil filter drain plug O-ring
Oil filter element
Lower case

6 DO-IT-YOURSELF MAINTENANCE
14
!!
CHECKING AND CHANGING THE ENGINE COOLANT
G050B01A-AAT
Recommended Engine Coolant
G050B01E
G050A01A-AAT
WARNING:
Do not remove the radiator cap when the engine is hot. When the engine is hot, the engine coolantis under pressure and may erupt through the opening if the cap is removed. You could be seriouslyburned if you do not observe this precaution. Do not remove the radiator cap until the radiator iscool to the touch.
WARNING:
Used motor oil may cause irrita- tion or cancer of the skin if left in contact with the skin for prolongedperiods of time. Wash your hands thoroughly with soap and warm water as soon as possible afterhandling used oil.
Gasoline engine
12. Start the engine and check to be
sure no oil is leaking from thedrain plug or oil filter.
13.Shut off the engine and recheck the oil level.
NOTE:
o It is recommended that the en- gine oil and filter should bechanged by an authorized Hyundai dealer.
o Always dispose of used engine oil in an environmentally accept- able manner. It is suggested thatit be placed in a sealed con- tainer and taken to a service station for maybe reclaimation.Do not pour the oil on the ground or put it in with the household trash.
! CAUTION:
Slowly pour the recommended oil into a funnel. Do not overfill not to damage the engine.

6
DO-IT-YOURSELF MAINTENANCE
15
Water
65% 60%50%40%
35%40%50%60%
Use a high quality ethylene-glycol coolant in a 50/50 mix with water. The engine coolant should be compatiblewith aluminum engine parts. Addi- tional corrosion inhibitors or additives should not be used. The cooling sys-tem must be maintained with the cor- rect concentration and type of engine coolant to prevent freezing and corro-sion. Never allow the concentration of antifreeze to exceed the 60% level or go below the 35% level, or damage tothe cooling system may result. For proper concentration when adding or replacing the engine coolant, refer tothe following table. G050C02E
Diesel engine
G050C01A-GAT

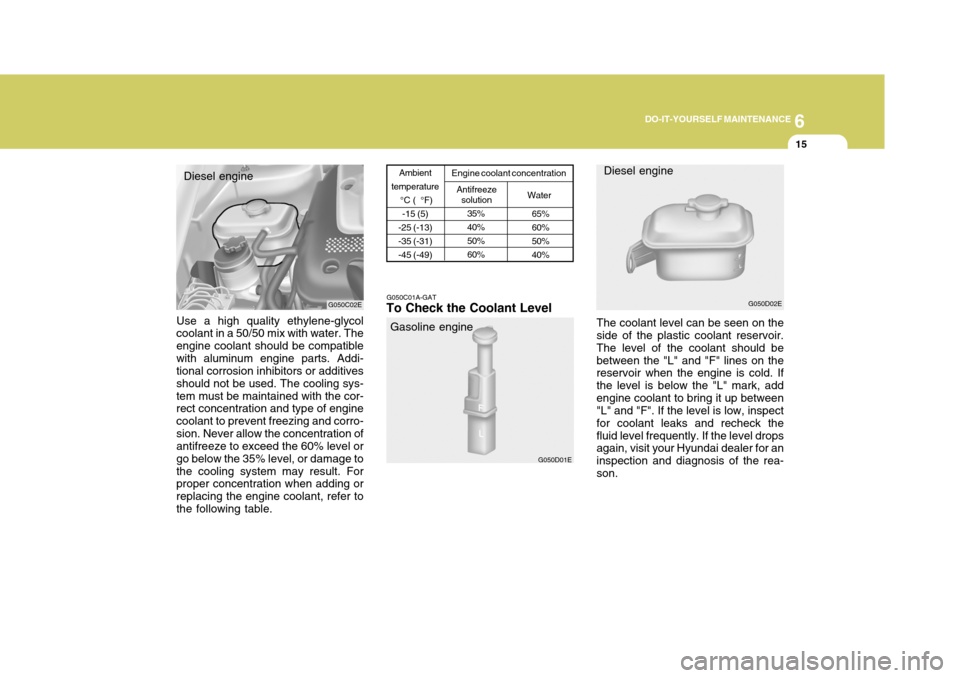

To Check the Coolant Level
The coolant level can be seen on the side of the plastic coolant reservoir. The level of the coolant should bebetween the "L" and "F" lines on the reservoir when the engine is cold. If the level is below the "L" mark, addengine coolant to bring it up between "L" and "F". If the level is low, inspect for coolant leaks and recheck thefluid level frequently. If the level drops again, visit your Hyundai dealer for an inspection and diagnosis of the rea-son.
G050D01E G050D02E
Gasoline engine Diesel engine
Ambient
temperature °C ( °F)-15 (5)
-25 (-13) -35 (-31)-45 (-49) Engine coolant concentration
Antifreezesolution

6 DO-IT-YOURSELF MAINTENANCE
16

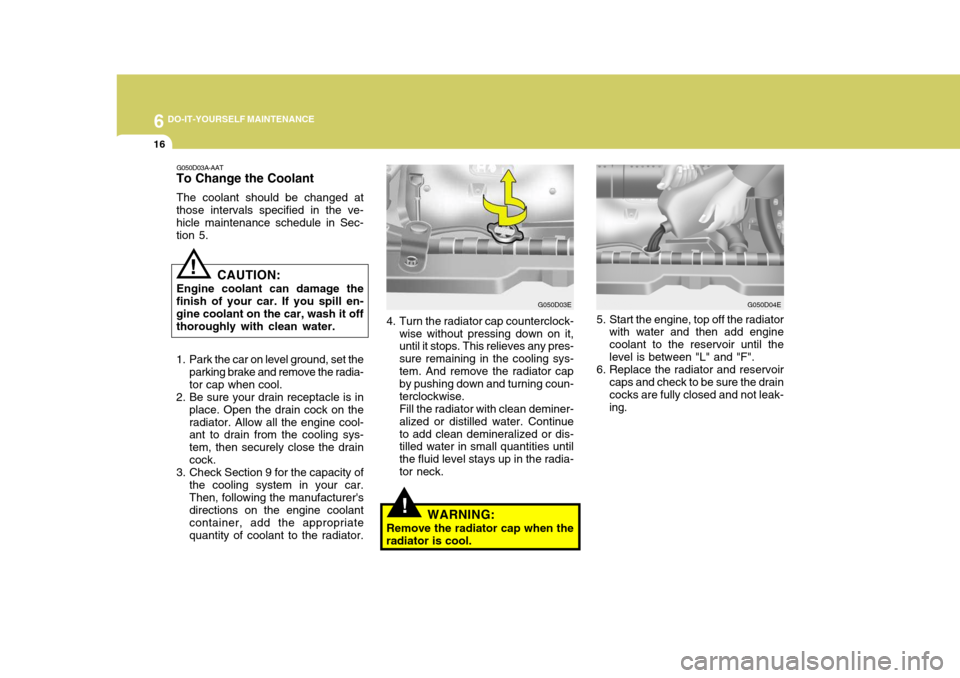

4. Turn the radiator cap counterclock-
wise without pressing down on it, until it stops. This relieves any pres- sure remaining in the cooling sys- tem. And remove the radiator cap by pushing down and turning coun-terclockwise.Fill the radiator with clean deminer-alized or distilled water. Continueto add clean demineralized or dis- tilled water in small quantities until the fluid level stays up in the radia-tor neck. G050D03E
G050D04E
G050D03A-AAT
To Change the Coolant
The coolant should be changed at
those intervals specified in the ve- hicle maintenance schedule in Sec- tion 5.
! CAUTION:
Engine coolant can damage the
finish of your car. If you spill en- gine coolant on the car, wash it off thoroughly with clean water.
1. Park the car on level ground, set the parking brake and remove the radia- tor cap when cool.
2. Be sure your drain receptacle is in
place. Open the drain cock on theradiator. Allow all the engine cool- ant to drain from the cooling sys- tem, then securely close the draincock.
3. Check Section 9 for the capacity of the cooling system in your car.Then, following the manufacturer's directions on the engine coolant container, add the appropriatequantity of coolant to the radiator.
!WARNING:
Remove the radiator cap when the
radiator is cool. 5. Start the engine, top off the radiator
with water and then add engine coolant to the reservoir until thelevel is between "L" and "F".
6. Replace the radiator and reservoir
caps and check to be sure the draincocks are fully closed and not leak- ing.

6
DO-IT-YOURSELF MAINTENANCE
17
!

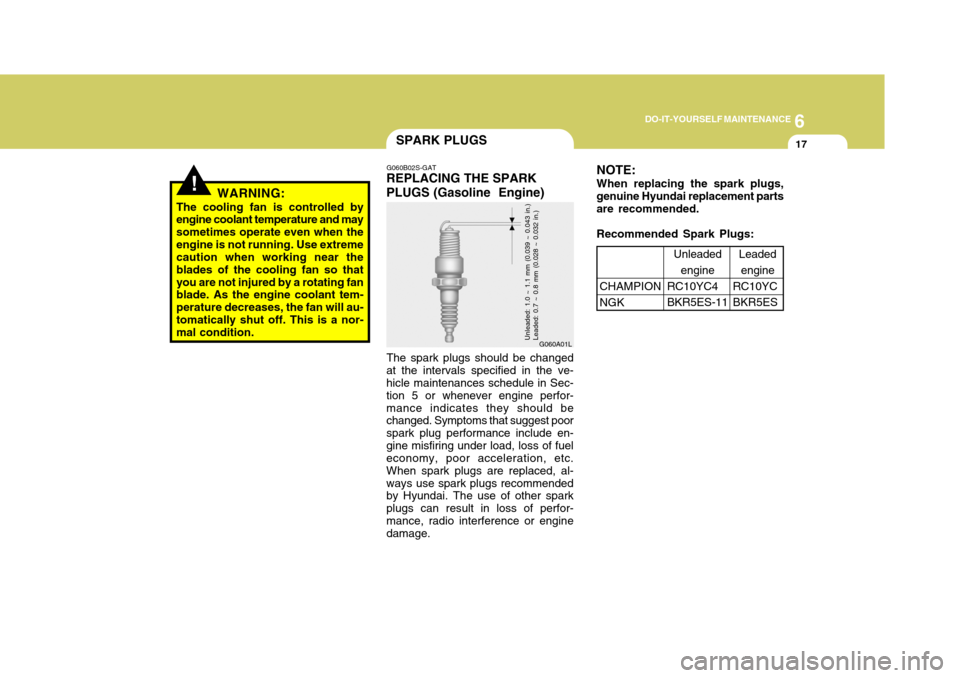

SPARK PLUGS
G060A01L
G060B02S-GAT
REPLACING THE SPARK PLUGS (Gasoline Engine)
The spark plugs should be changed
at the intervals specified in the ve- hicle maintenances schedule in Sec- tion 5 or whenever engine perfor-mance indicates they should be changed. Symptoms that suggest poor spark plug performance include en-gine misfiring under load, loss of fuel economy, poor acceleration, etc. When spark plugs are replaced, al-ways use spark plugs recommended by Hyundai. The use of other spark plugs can result in loss of perfor-mance, radio interference or engine damage.Unleaded: 1.0 ~ 1.1 mm (0.039 ~ 0.043 in.) Leaded: 0.7 ~ 0.8 mm (0.028 ~ 0.032 in.)
NOTE: When replacing the spark plugs, genuine Hyundai replacement partsare recommended. Recommended Spark Plugs:
CHAMPION NGK Leaded
engine
RC10YCBKR5ES
Unleaded
engine
RC10YC4BKR5ES-11
WARNING:
The cooling fan is controlled by engine coolant temperature and may sometimes operate even when theengine is not running. Use extreme caution when working near the blades of the cooling fan so thatyou are not injured by a rotating fan blade. As the engine coolant tem- perature decreases, the fan will au-tomatically shut off. This is a nor- mal condition.

6 DO-IT-YOURSELF MAINTENANCE
18
!WARNING:
It is recommended that the engine
be cool or cold when changing the spark plugs. If the engine is hot, you could burn yourself on theinsulated connector, the spark plugs or the engine itself. HGK2574. When preparing to remove the old

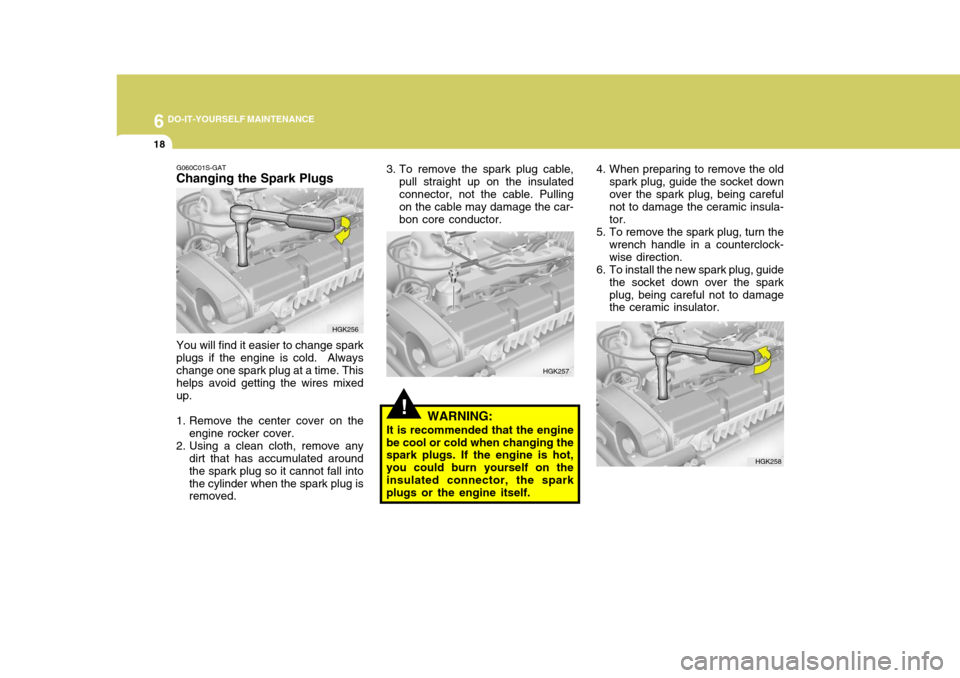

spark plug, guide the socket down over the spark plug, being careful not to damage the ceramic insula- tor.
5. To remove the spark plug, turn the wrench handle in a counterclock-wise direction.
6. To install the new spark plug, guide
the socket down over the sparkplug, being careful not to damage the ceramic insulator.
HGK258
3. To remove the spark plug cable,
pull straight up on the insulated connector, not the cable. Pulling on the cable may damage the car- bon core conductor.
G060C01S-GAT Changing the Spark Plugs You will find it easier to change spark plugs if the engine is cold. Always change one spark plug at a time. This helps avoid getting the wires mixedup.
1. Remove the center cover on the
engine rocker cover.
2. Using a clean cloth, remove any dirt that has accumulated around the spark plug so it cannot fall intothe cylinder when the spark plug is removed. HGK256

6
DO-IT-YOURSELF MAINTENANCE

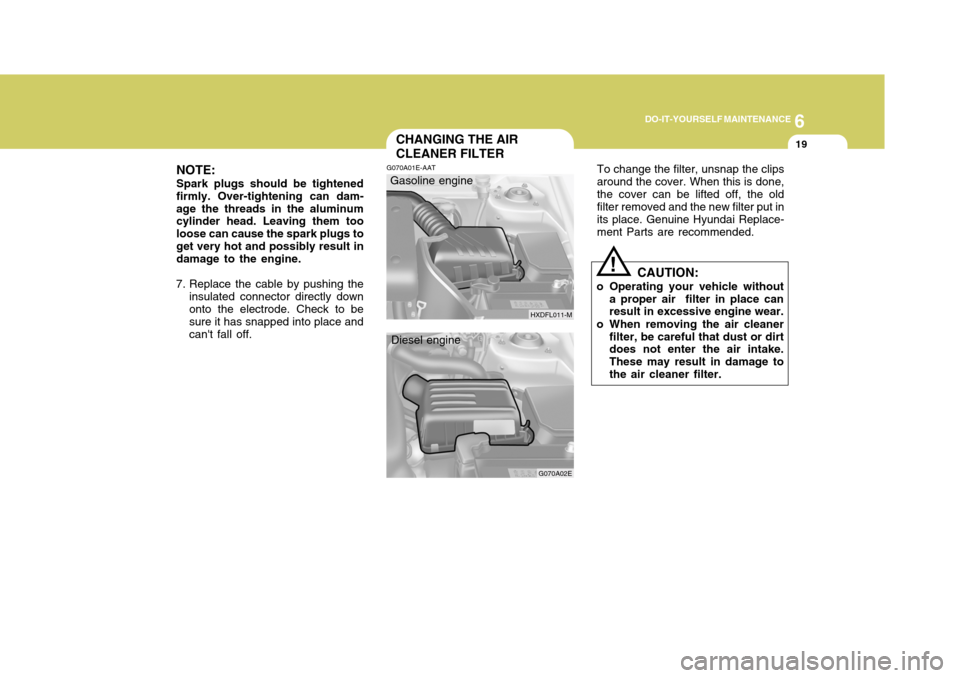

19CHANGING THE AIR CLEANER FILTER
NOTE: Spark plugs should be tightened firmly. Over-tightening can dam-age the threads in the aluminum cylinder head. Leaving them too loose can cause the spark plugs toget very hot and possibly result in damage to the engine.
7. Replace the cable by pushing the insulated connector directly down onto the electrode. Check to be sure it has snapped into place and can't fall off. G070A01E-AAT
HXDFL011-M
Gasoline engine
To change the filter, unsnap the clipsaround the cover. When this is done,the cover can be lifted off, the old filter removed and the new filter put in its place. Genuine Hyundai Replace-ment Parts are recommended.
!
G070A02E CAUTION:
o Operating your vehicle without a proper air filter in place can result in excessive engine wear.
o When removing the air cleaner filter, be careful that dust or dirtdoes not enter the air intake. These may result in damage tothe air cleaner filter.
Diesel engine

6 DO-IT-YOURSELF MAINTENANCE
20
!

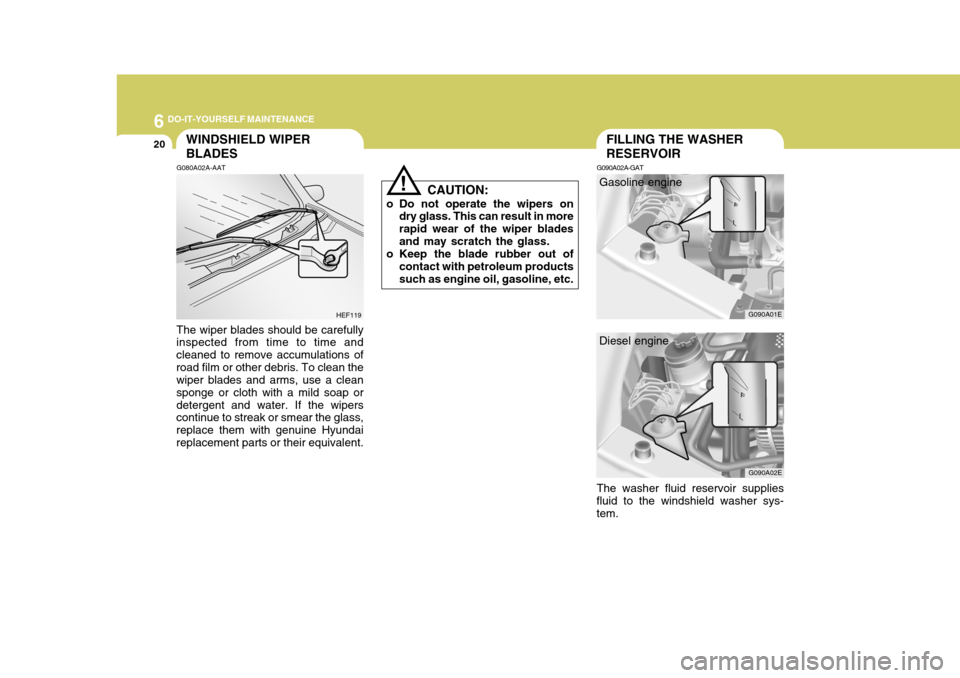

FILLING THE WASHER RESERVOIRWINDSHIELD WIPER BLADES
G090A02E
The washer fluid reservoir supplies
fluid to the windshield washer sys- tem. Diesel engine
G090A02A-GAT
G090A01E
CAUTION:
o Do not operate the wipers on dry glass. This can result in morerapid wear of the wiper bladesand may scratch the glass.
o Keep the blade rubber out of contact with petroleum products such as engine oil, gasoline, etc. Gasoline engine
G080A02A-AAT The wiper blades should be carefully
inspected from time to time and cleaned to remove accumulations ofroad film or other debris. To clean the wiper blades and arms, use a clean sponge or cloth with a mild soap ordetergent and water. If the wipers continue to streak or smear the glass, replace them with genuine Hyundaireplacement parts or their equivalent. HEF119

6
DO-IT-YOURSELF MAINTENANCE

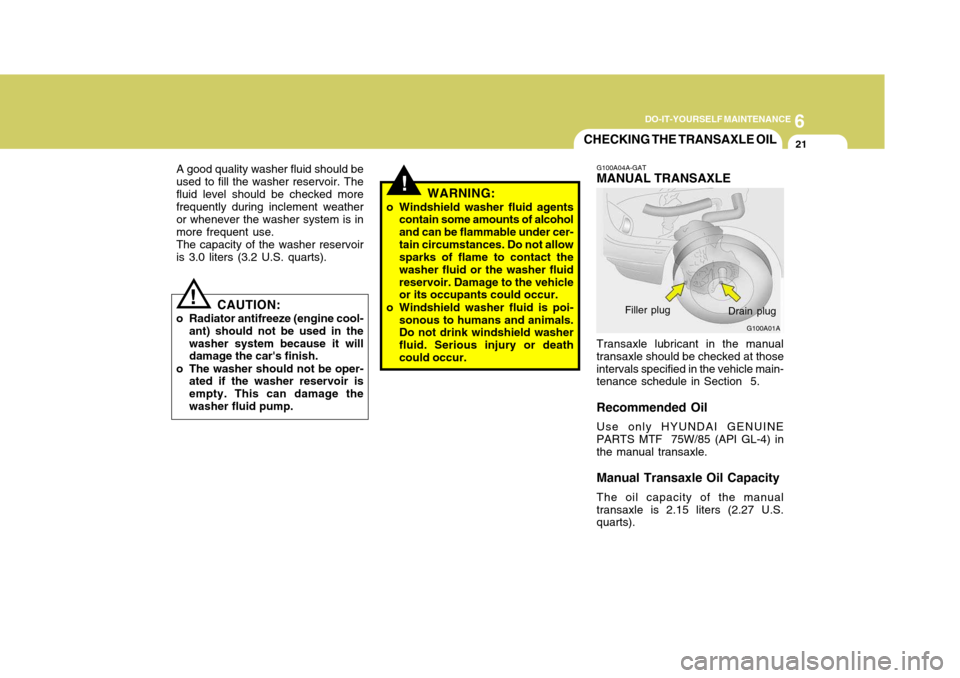

21CHECKING THE TRANSAXLE OIL
!
G100A01A
G100A04A-GAT MANUAL TRANSAXLE Transaxle lubricant in the manual transaxle should be checked at thoseintervals specified in the vehicle main- tenance schedule in Section 5. Recommended Oil Use only HYUNDAI GENUINE PARTS MTF 75W/85 (API GL-4) in the manual transaxle. Manual Transaxle Oil Capacity The oil capacity of the manual transaxle is 2.15 liters (2.27 U.S. quarts). Drain plug
Filler plug
!
A good quality washer fluid should be used to fill the washer reservoir. Thefluid level should be checked more frequently during inclement weather or whenever the washer system is inmore frequent use.The capacity of the washer reservoiris 3.0 liters (3.2 U.S. quarts).
CAUTION:
o Radiator antifreeze (engine cool- ant) should not be used in thewasher system because it will damage the car's finish.
o The washer should not be oper- ated if the washer reservoir is empty. This can damage thewasher fluid pump. WARNING:
o Windshield washer fluid agents contain some amounts of alcoholand can be flammable under cer-tain circumstances. Do not allow sparks of flame to contact the washer fluid or the washer fluidreservoir. Damage to the vehicle or its occupants could occur.
o Windshield washer fluid is poi- sonous to humans and animals.Do not drink windshield washer fluid. Serious injury or death could occur.
