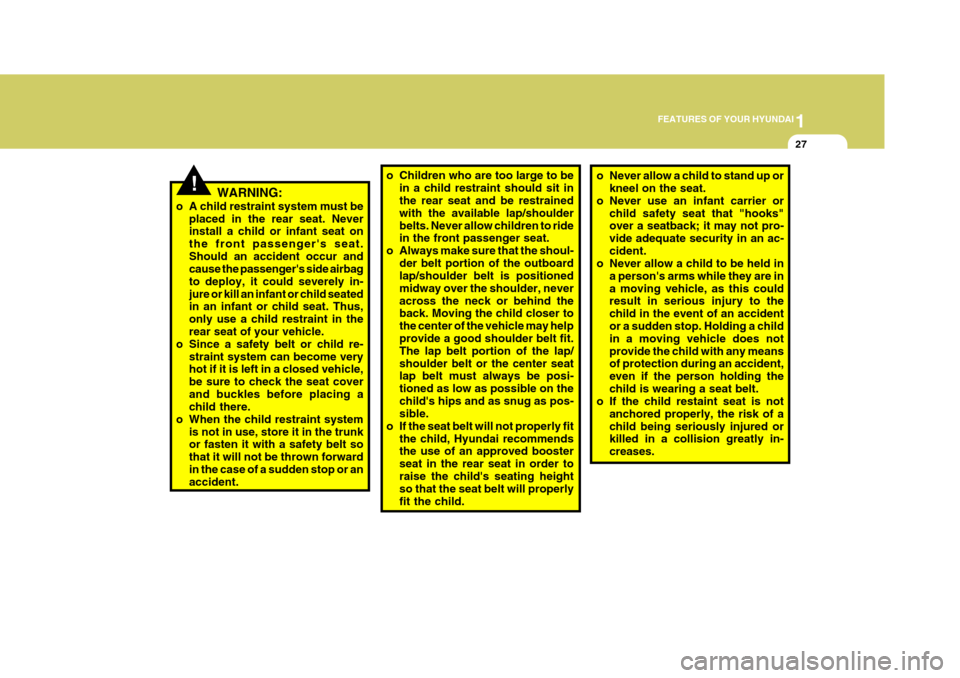

Page 41 of 277
1
FEATURES OF YOUR HYUNDAI
27
!WARNING:
o A child restraint system must be placed in the rear seat. Never install a child or infant seat on the front passenger's seat.Should an accident occur and cause the passenger's side airbag to deploy, it could severely in-jure or kill an infant or child seated in an infant or child seat. Thus, only use a child restraint in therear seat of your vehicle.
o Since a safety belt or child re-
straint system can become very hot if it is left in a closed vehicle, be sure to check the seat coverand buckles before placing a child there.
o When the child restraint system is not in use, store it in the trunkor fasten it with a safety belt so that it will not be thrown forwardin the case of a sudden stop or an accident.
o Children who are too large to be
in a child restraint should sit in the rear seat and be restrained with the available lap/shoulderbelts. Never allow children to ride in the front passenger seat.
o Always make sure that the shoul-
der belt portion of the outboardlap/shoulder belt is positioned midway over the shoulder, neveracross the neck or behind the back. Moving the child closer to the center of the vehicle may help provide a good shoulder belt fit. The lap belt portion of the lap/shoulder belt or the center seat lap belt must always be posi- tioned as low as possible on thechild's hips and as snug as pos- sible.
o If the seat belt will not properly fit
the child, Hyundai recommendsthe use of an approved booster seat in the rear seat in order toraise the child's seating height so that the seat belt will properly fit the child.o Never allow a child to stand up orkneel on the seat.
o Never use an infant carrier or
child safety seat that "hooks" over a seatback; it may not pro- vide adequate security in an ac-cident.
o Never allow a child to be held in
a person's arms while they are ina moving vehicle, as this could result in serious injury to the child in the event of an accidentor a sudden stop. Holding a child in a moving vehicle does not provide the child with any means of protection during an accident, even if the person holding thechild is wearing a seat belt.
o If the child restaint seat is not
anchored properly, the risk of achild being seriously injured or killed in a collision greatly in- creases.
Page 42 of 277
1FEATURES OF YOUR HYUNDAI
28

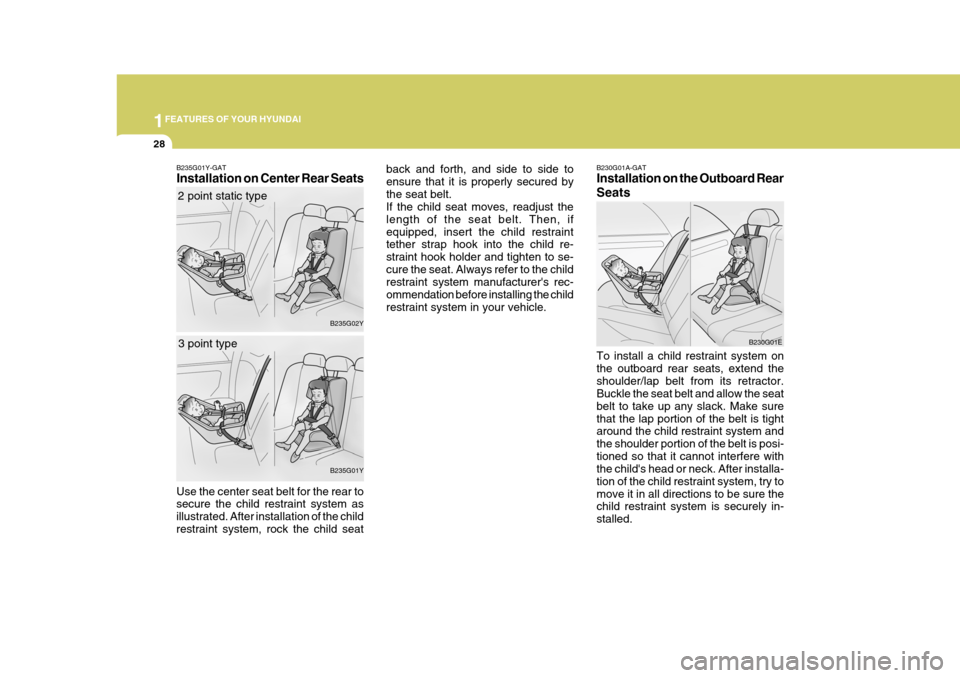

B230G01A-GAT Installation on the Outboard Rear Seats To install a child restraint system on the outboard rear seats, extend theshoulder/lap belt from its retractor. Buckle the seat belt and allow the seat belt to take up any slack. Make surethat the lap portion of the belt is tight around the child restraint system and the shoulder portion of the belt is posi-tioned so that it cannot interfere with the child's head or neck. After installa- tion of the child restraint system, try tomove it in all directions to be sure the child restraint system is securely in- stalled. B230G01Eback and forth, and side to side to ensure that it is properly secured bythe seat belt. If the child seat moves, readjust the length of the seat belt. Then, ifequipped, insert the child restraint tether strap hook into the child re- straint hook holder and tighten to se-cure the seat. Always refer to the child restraint system manufacturer's rec- ommendation before installing the childrestraint system in your vehicle.
B235G01Y-GAT Installation on Center Rear Seats
Use the center seat belt for the rear to secure the child restraint system as illustrated. After installation of the childrestraint system, rock the child seat 2 point static type
3 point type B235G02Y B235G01Y
Page 43 of 277
1
FEATURES OF YOUR HYUNDAI
29
!
If you need to tighten the belt, pull more webbing toward the retractor.When you unbuckle the seat belt and allow it to retract, the retractor will automatically revert back to its normalseated passenger emergency locking usage condition. NOTE:
o Before installing the child re-
straint system, read the instruc- tions supplied by the child re- straint system manufacturer.
o If the seat belt does not operate as described, have the systemchecked immediately by yourauthorized Hyundai dealer.
WARNING:
Do not install any child restraintsystem in the front passenger seat.Should an accident occur and cause the passenger's side airbag to de- ploy, it could severely injure or killan infant or child seated in an infant or child seat. Therefore, only use a child restraint system in the rearseat of your vehicle.

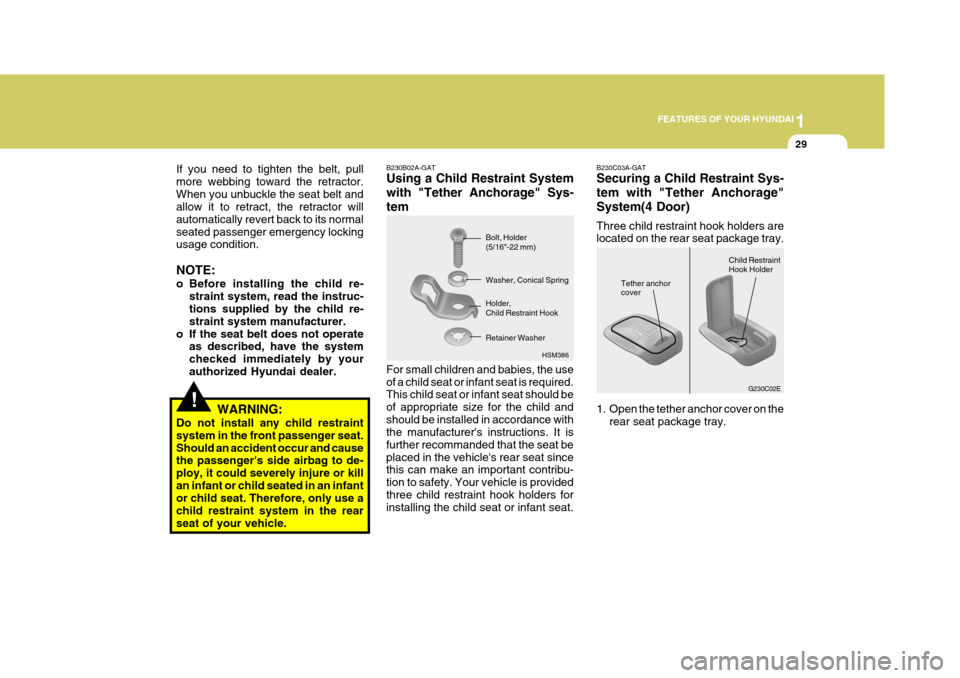

HSM386
Bolt, Holder (5/16"-22 mm) Washer, Conical Spring Holder, Child Restraint Hook
B230B02A-GAT Using a Child Restraint System with "Tether Anchorage" Sys-tem
For small children and babies, the use of a child seat or infant seat is required. This child seat or infant seat should be of appropriate size for the child andshould be installed in accordance with the manufacturer's instructions. It is further recommanded that the seat beplaced in the vehicle's rear seat since this can make an important contribu- tion to safety. Your vehicle is providedthree child restraint hook holders for installing the child seat or infant seat. Retainer WasherB230C03A-GAT Securing a Child Restraint Sys- tem with "Tether Anchorage"System(4 Door) Three child restraint hook holders are located on the rear seat package tray.
G230C02E
Tether anchor coverChild RestraintHook Holder
1. Open the tether anchor cover on the rear seat package tray.
Page 44 of 277
1FEATURES OF YOUR HYUNDAI
30

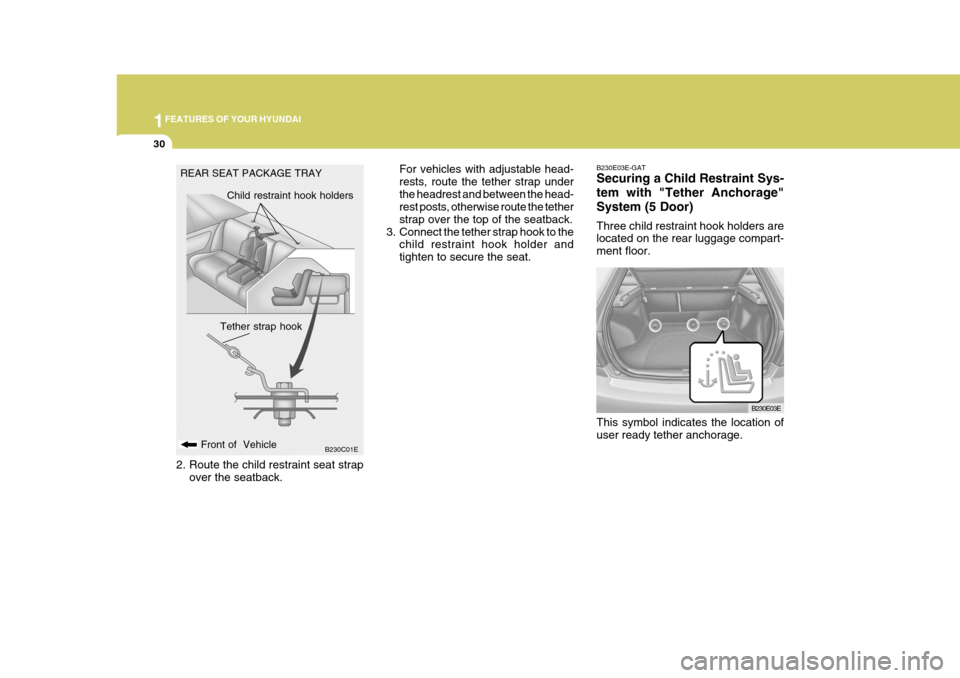

B230E03E-GAT Securing a Child Restraint Sys- tem with "Tether Anchorage"System (5 Door) Three child restraint hook holders are located on the rear luggage compart- ment floor. This symbol indicates the location of user ready tether anchorage. B230E03E
REAR SEAT PACKAGE TRAY
B230C01E
Front of Vehicle Child restraint hook holders
Tether strap hook
For vehicles with adjustable head- rests, route the tether strap underthe headrest and between the head- rest posts, otherwise route the tether strap over the top of the seatback.
3. Connect the tether strap hook to the child restraint hook holder andtighten to secure the seat.
2. Route the child restraint seat strap over the seatback.
Page 45 of 277
1
FEATURES OF YOUR HYUNDAI
31

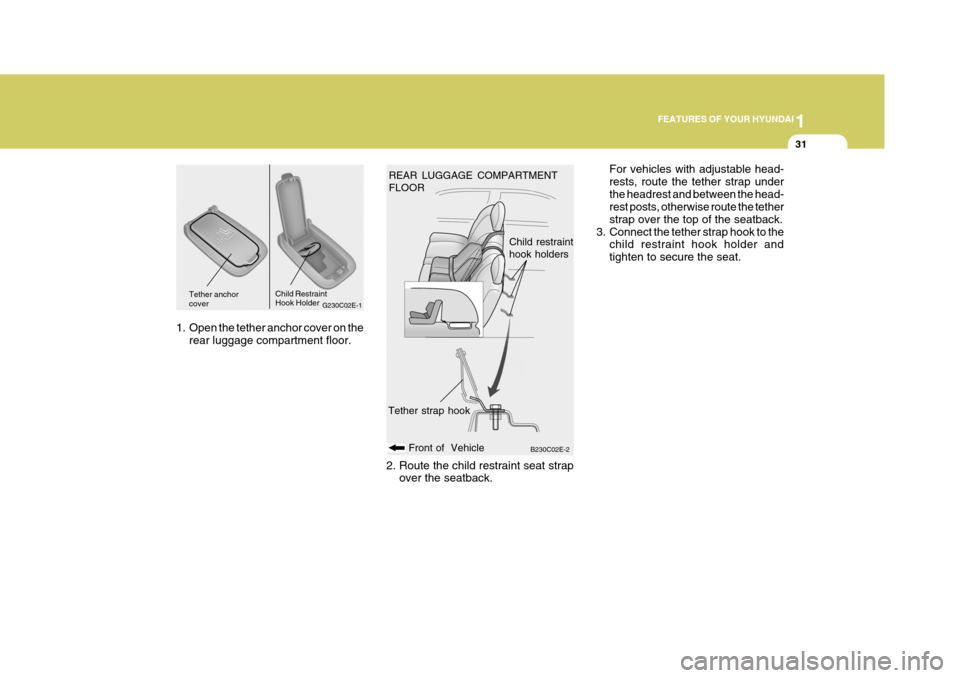

G230C02E-1Tether anchor cover Child RestraintHook Holder
1. Open the tether anchor cover on the rear luggage compartment floor.
B230C02E-2
Front of Vehicle
Tether strap hook
REAR LUGGAGE COMPARTMENT FLOOR
Child restrainthook holdersFor vehicles with adjustable head- rests, route the tether strap underthe headrest and between the head- rest posts, otherwise route the tether strap over the top of the seatback.
3. Connect the tether strap hook to the child restraint hook holder andtighten to secure the seat.
2. Route the child restraint seat strap over the seatback.
Page 46 of 277
1FEATURES OF YOUR HYUNDAI
32

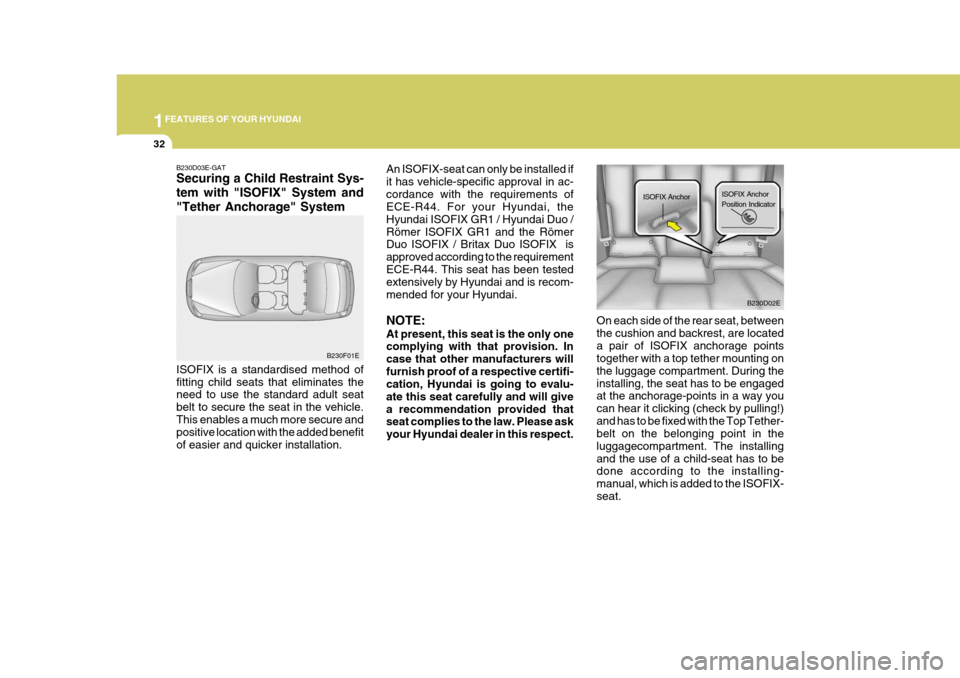

ISOFIX Anchor Position Indicator
ISOFIX Anchor
B230D02E
On each side of the rear seat, between the cushion and backrest, are locateda pair of ISOFIX anchorage points together with a top tether mounting on the luggage compartment. During theinstalling, the seat has to be engaged at the anchorage-points in a way you can hear it clicking (check by pulling!)and has to be fixed with the Top Tether- belt on the belonging point in the luggagecompartment. The installingand the use of a child-seat has to be done according to the installing- manual, which is added to the ISOFIX-seat.
B230D03E-GAT Securing a Child Restraint Sys- tem with "ISOFIX" System and"Tether Anchorage" System ISOFIX is a standardised method of fitting child seats that eliminates the need to use the standard adult seat belt to secure the seat in the vehicle.This enables a much more secure and positive location with the added benefit of easier and quicker installation. B230F01EAn ISOFIX-seat can only be installed ifit has vehicle-specific approval in ac-cordance with the requirements of ECE-R44. For your Hyundai, the Hyundai ISOFIX GR1 / Hyundai Duo /Römer ISOFIX GR1 and the Römer Duo ISOFIX / Britax Duo ISOFIX is approved according to the requirementECE-R44. This seat has been tested extensively by Hyundai and is recom- mended for your Hyundai. NOTE: At present, this seat is the only one complying with that provision. In case that other manufacturers willfurnish proof of a respective certifi- cation, Hyundai is going to evalu- ate this seat carefully and will givea recommendation provided that seat complies to the law. Please ask your Hyundai dealer in this respect.

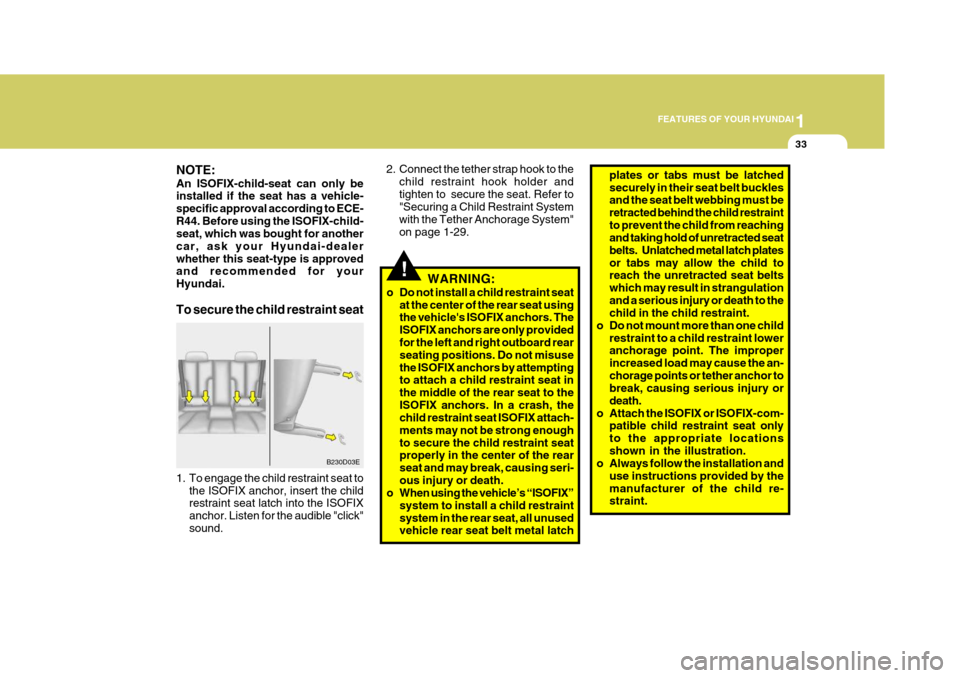

Page 47 of 277
1
FEATURES OF YOUR HYUNDAI
33
NOTE: An ISOFIX-child-seat can only be installed if the seat has a vehicle- specific approval according to ECE-R44. Before using the ISOFIX-child- seat, which was bought for another car, ask your Hyundai-dealerwhether this seat-type is approved and recommended for your Hyundai. To secure the child restraint seat
B230D03E
1. To engage the child restraint seat to the ISOFIX anchor, insert the child restraint seat latch into the ISOFIX anchor. Listen for the audible "click"sound.
!WARNING:
o Do not install a child restraint seat at the center of the rear seat using the vehicle's ISOFIX anchors. The ISOFIX anchors are only provided for the left and right outboard rear seating positions. Do not misusethe ISOFIX anchors by attempting to attach a child restraint seat in the middle of the rear seat to theISOFIX anchors. In a crash, the child restraint seat ISOFIX attach- ments may not be strong enoughto secure the child restraint seat properly in the center of the rear seat and may break, causing seri-ous injury or death.
o When using the vehicle’s “ISOFIX”
system to install a child restraintsystem in the rear seat, all unused vehicle rear seat belt metal latch
2. Connect the tether strap hook to the
child restraint hook holder and tighten to secure the seat. Refer to "Securing a Child Restraint System with the Tether Anchorage System"on page 1-29.
plates or tabs must be latched securely in their seat belt buckles and the seat belt webbing must be retracted behind the child restraintto prevent the child from reaching and taking hold of unretracted seat
belts. Unlatched metal latch platesor tabs may allow the child to reach the unretracted seat belts which may result in strangulationand a serious injury or death to the child in the child restraint.
o Do not mount more than one child restraint to a child restraint loweranchorage point. The improper increased load may cause the an-chorage points or tether anchor to break, causing serious injury or death.
o Attach the ISOFIX or ISOFIX-com- patible child restraint seat onlyto the appropriate locationsshown in the illustration.
o Always follow the installation and
use instructions provided by themanufacturer of the child re- straint.
Page 48 of 277
1FEATURES OF YOUR HYUNDAI
34

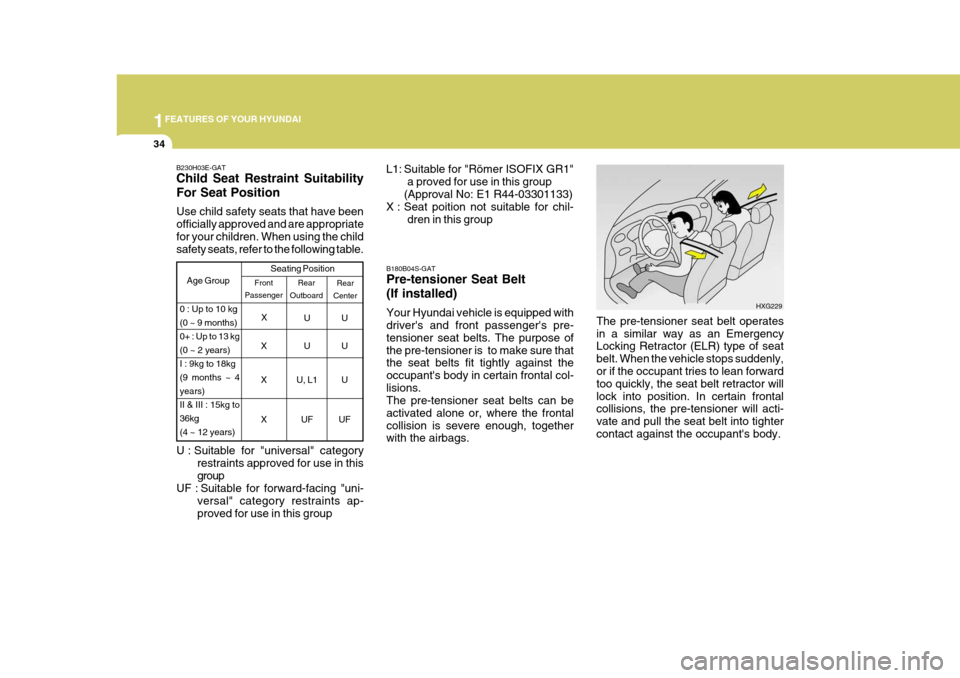

The pre-tensioner seat belt operates in a similar way as an Emergency Locking Retractor (ELR) type of seat belt. When the vehicle stops suddenly, or if the occupant tries to lean forward too quickly, the seat belt retractor willlock into position. In certain frontal collisions, the pre-tensioner will acti- vate and pull the seat belt into tightercontact against the occupant's body. HXG229
Rear
Center
Age Group Seating Position
UU
XUU
X U, L1 U XU FUF
Rear
Outboard
Front
Passenger
0 : Up to 10 kg (0 ~ 9 months)0+ : Up to 13 kg(0 ~ 2 years)I : 9kg to 18kg(9 months ~ 4years)II & III : 15kg to36kg(4 ~ 12 years) X
B230H03E-GAT Child Seat Restraint Suitability For Seat Position Use child safety seats that have been officially approved and are appropriatefor your children. When using the child safety seats, refer to the following table.
U : Suitable for "universal" category
restraints approved for use in this group
UF : Suitable for forward-facing "uni-
versal" category restraints ap-proved for use in this group L1: Suitable for "Römer ISOFIX GR1"
a proved for use in this group
(Approval No: E1 R44-03301133)
X : Seat poition not suitable for chil-
dren in this group
B180B04S-GAT Pre-tensioner Seat Belt (If installed) Your Hyundai vehicle is equipped with driver's and front passenger's pre- tensioner seat belts. The purpose ofthe pre-tensioner is to make sure that the seat belts fit tightly against the occupant's body in certain frontal col-lisions. The pre-tensioner seat belts can be activated alone or, where the frontalcollision is severe enough, together with the airbags.
Page 49 of 277
1
FEATURES OF YOUR HYUNDAI
35

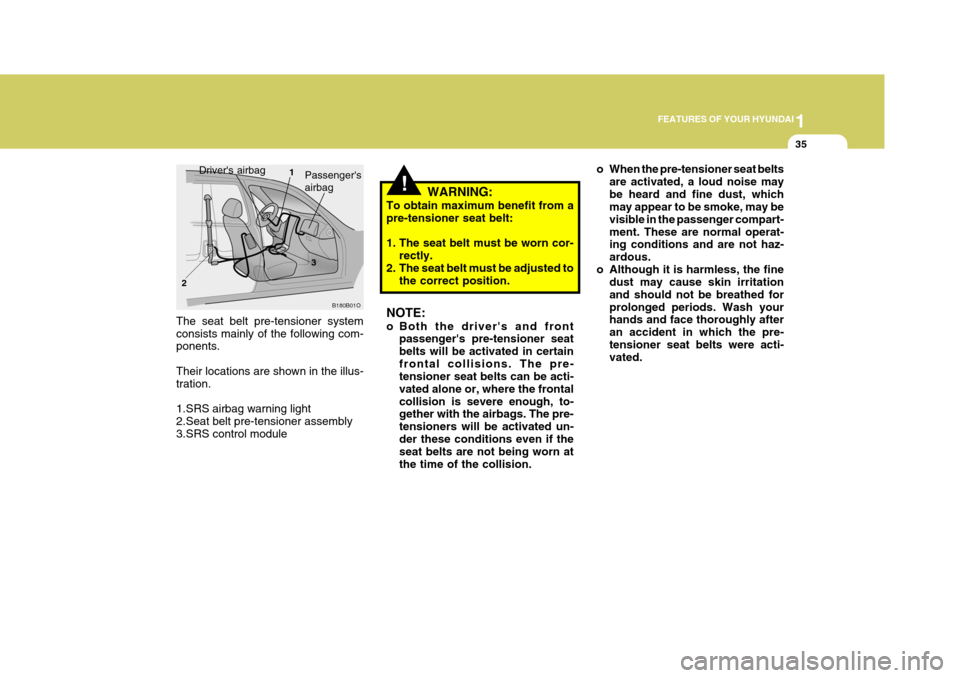

B180B01O
Driver's airbag1
2 3Passenger's airbag
The seat belt pre-tensioner system consists mainly of the following com- ponents. Their locations are shown in the illus- tration.
1.SRS airbag warning light
2.Seat belt pre-tensioner assembly
3.SRS control module
!
NOTE:
o Both the driver's and front passenger's pre-tensioner seat belts will be activated in certainfrontal collisions. The pre- tensioner seat belts can be acti- vated alone or, where the frontalcollision is severe enough, to- gether with the airbags. The pre- tensioners will be activated un-der these conditions even if the seat belts are not being worn at the time of the collision. WARNING:
To obtain maximum benefit from apre-tensioner seat belt:
1. The seat belt must be worn cor- rectly.
2. The seat belt must be adjusted to
the correct position. o When the pre-tensioner seat belts
are activated, a loud noise may be heard and fine dust, which may appear to be smoke, may be visible in the passenger compart-ment. These are normal operat- ing conditions and are not haz- ardous.
o Although it is harmless, the fine dust may cause skin irritationand should not be breathed forprolonged periods. Wash your hands and face thoroughly after an accident in which the pre-tensioner seat belts were acti- vated.
Page 50 of 277
1FEATURES OF YOUR HYUNDAI
36

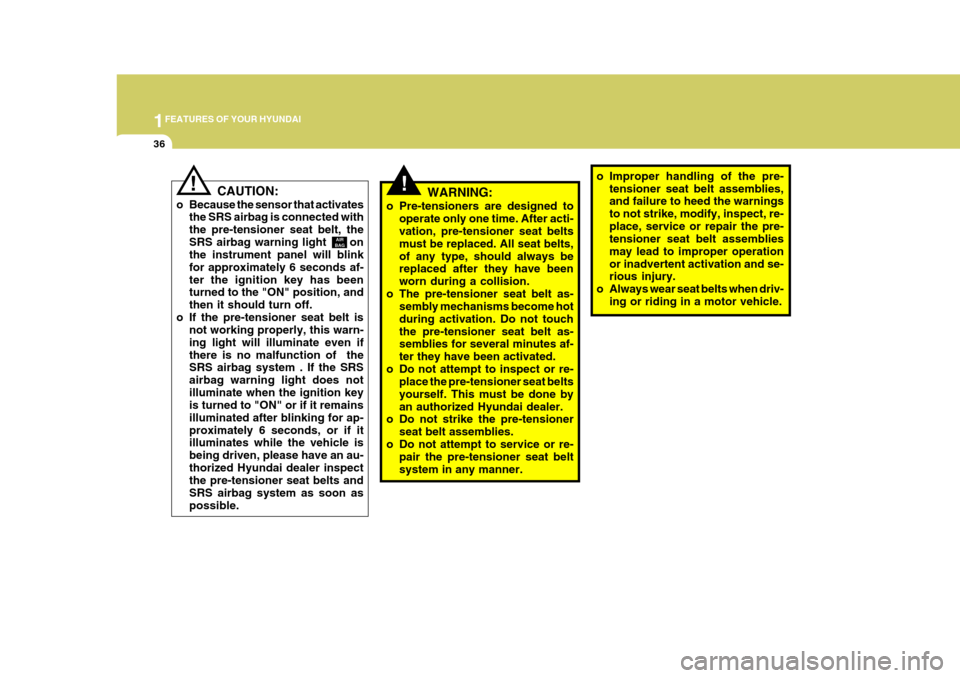

o Improper handling of the pre-
tensioner seat belt assemblies, and failure to heed the warnings to not strike, modify, inspect, re-place, service or repair the pre- tensioner seat belt assemblies may lead to improper operationor inadvertent activation and se- rious injury.
o Always wear seat belts when driv-
ing or riding in a motor vehicle.!CAUTION:
o Because the sensor that activates the SRS airbag is connected with the pre-tensioner seat belt, theSRS airbag warning light on the instrument panel will blink for approximately 6 seconds af-ter the ignition key has been turned to the "ON" position, and then it should turn off.
o If the pre-tensioner seat belt is not working properly, this warn-ing light will illuminate even ifthere is no malfunction of the SRS airbag system . If the SRS airbag warning light does notilluminate when the ignition key is turned to "ON" or if it remains illuminated after blinking for ap-proximately 6 seconds, or if it illuminates while the vehicle is being driven, please have an au-thorized Hyundai dealer inspect the pre-tensioner seat belts and SRS airbag system as soon aspossible.!
AIR
BAG
WARNING:
o Pre-tensioners are designed to operate only one time. After acti- vation, pre-tensioner seat belts must be replaced. All seat belts,of any type, should always be replaced after they have been worn during a collision.
o The pre-tensioner seat belt as- sembly mechanisms become hotduring activation. Do not touchthe pre-tensioner seat belt as- semblies for several minutes af- ter they have been activated.
o Do not attempt to inspect or re- place the pre-tensioner seat beltsyourself. This must be done byan authorized Hyundai dealer.
o Do not strike the pre-tensioner
seat belt assemblies.
o Do not attempt to service or re- pair the pre-tensioner seat beltsystem in any manner.
