FEATURES OF YOUR HYUNDAI

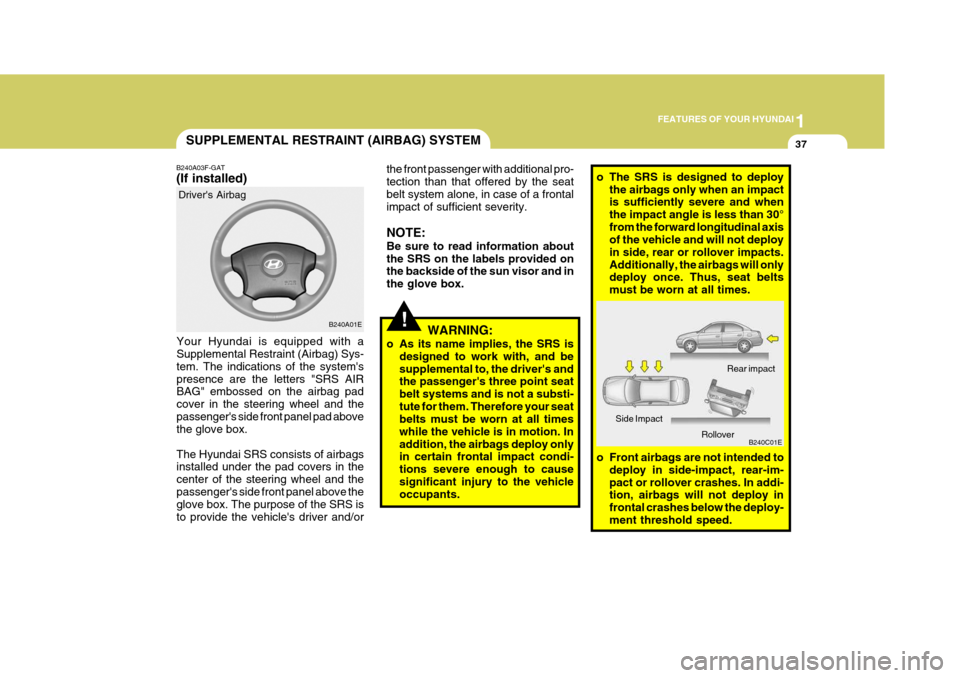

37SUPPLEMENTAL RESTRAINT (AIRBAG) SYSTEM
B240A03F-GAT (If installed)
Your Hyundai is equipped with a Supplemental Restraint (Airbag) Sys- tem. The indications of the system'spresence are the letters "SRS AIR BAG" embossed on the airbag pad cover in the steering wheel and thepassenger's side front panel pad above the glove box. The Hyundai SRS consists of airbags installed under the pad covers in the center of the steering wheel and thepassenger's side front panel above the glove box. The purpose of the SRS is to provide the vehicle's driver and/or B240A01E
Driver's Airbag
!
the front passenger with additional pro- tection than that offered by the seatbelt system alone, in case of a frontal impact of sufficient severity. NOTE: Be sure to read information about the SRS on the labels provided on the backside of the sun visor and in the glove box.
WARNING:
o As its name implies, the SRS is designed to work with, and besupplemental to, the driver's and the passenger's three point seat belt systems and is not a substi-tute for them. Therefore your seat belts must be worn at all times while the vehicle is in motion. Inaddition, the airbags deploy only in certain frontal impact condi- tions severe enough to causesignificant injury to the vehicle occupants.o The SRS is designed to deploythe airbags only when an impact is sufficiently severe and when the impact angle is less than 30°from the forward longitudinal axis of the vehicle and will not deploy in side, rear or rollover impacts.Additionally, the airbags will only deploy once. Thus, seat belts must be worn at all times.
B240C01E
Rear impact
Side Impact Rollover
o Front airbags are not intended to deploy in side-impact, rear-im-pact or rollover crashes. In addi- tion, airbags will not deploy in frontal crashes below the deploy-ment threshold speed.

1FEATURES OF YOUR HYUNDAI
38

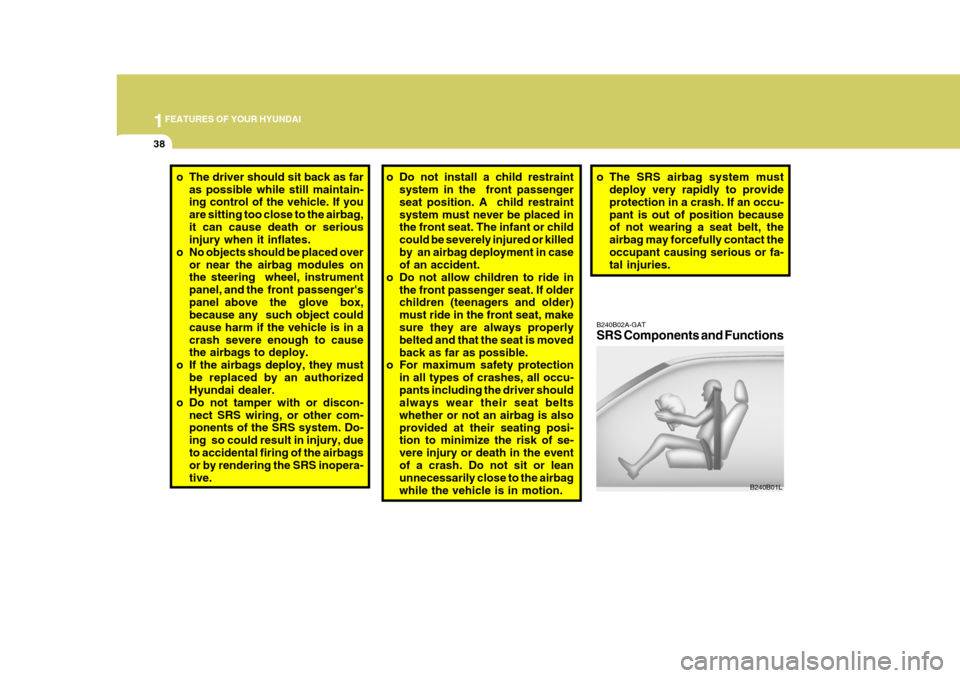

o The SRS airbag system must
deploy very rapidly to provide protection in a crash. If an occu-pant is out of position because of not wearing a seat belt, the airbag may forcefully contact theoccupant causing serious or fa- tal injuries.
B240B02A-GAT SRS Components and Functions
B240B01L
o The driver should sit back as faras possible while still maintain- ing control of the vehicle. If you are sitting too close to the airbag,it can cause death or serious injury when it inflates.
o No objects should be placed over or near the airbag modules onthe steering wheel, instrument panel, and the front passenger'spanel above the glove box, because any such object could cause harm if the vehicle is in acrash severe enough to cause the airbags to deploy.
o If the airbags deploy, they must be replaced by an authorizedHyundai dealer.
o Do not tamper with or discon- nect SRS wiring, or other com-ponents of the SRS system. Do- ing so could result in injury, dueto accidental firing of the airbags or by rendering the SRS inopera- tive. o Do not install a child restraint
system in the front passengerseat position. A child restraintsystem must never be placed in the front seat. The infant or child could be severely injured or killedby an airbag deployment in case of an accident.
o Do not allow children to ride in the front passenger seat. If olderchildren (teenagers and older) must ride in the front seat, makesure they are always properly belted and that the seat is moved back as far as possible.
o For maximum safety protection
in all types of crashes, all occu-pants including the driver should always wear their seat belts whether or not an airbag is alsoprovided at their seating posi- tion to minimize the risk of se- vere injury or death in the eventof a crash. Do not sit or lean unnecessarily close to the airbag while the vehicle is in motion.

1
FEATURES OF YOUR HYUNDAI
39

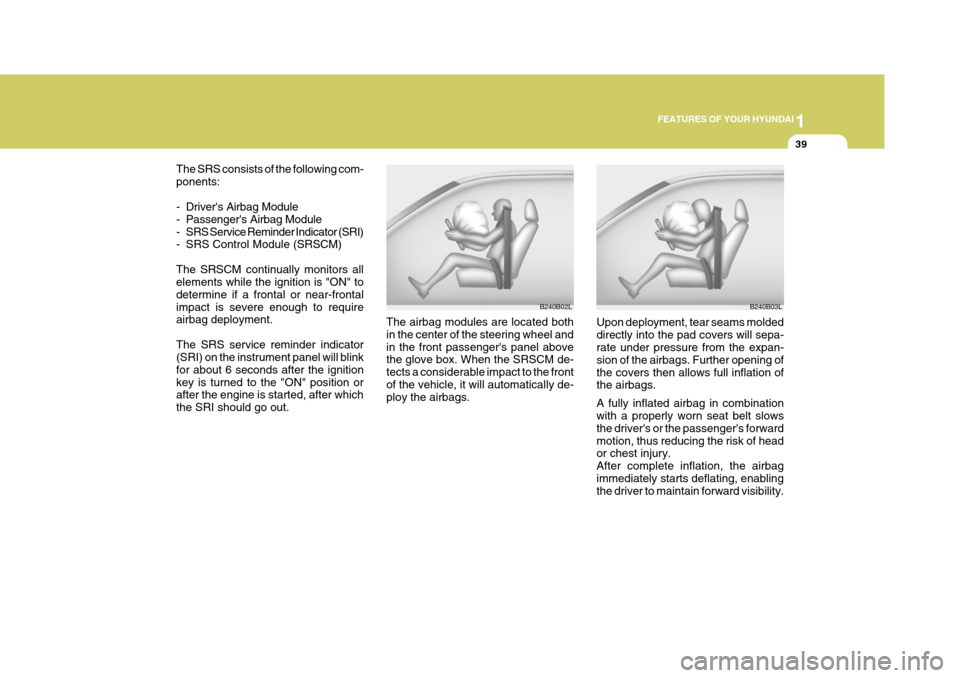

B240B03L
The airbag modules are located both in the center of the steering wheel and in the front passenger's panel above the glove box. When the SRSCM de- tects a considerable impact to the frontof the vehicle, it will automatically de- ploy the airbags. Upon deployment, tear seams molded directly into the pad covers will sepa- rate under pressure from the expan- sion of the airbags. Further opening ofthe covers then allows full inflation of the airbags. A fully inflated airbag in combination with a properly worn seat belt slows the driver's or the passenger's forwardmotion, thus reducing the risk of head or chest injury. After complete inflation, the airbagimmediately starts deflating, enabling the driver to maintain forward visibility.B240B02L
The SRS consists of the following com- ponents:
- Driver's Airbag Module
- Passenger's Airbag Module
- SRS Service Reminder Indicator (SRI)
- SRS Control Module (SRSCM) The SRSCM continually monitors all elements while the ignition is "ON" to determine if a frontal or near-frontalimpact is severe enough to require airbag deployment. The SRS service reminder indicator (SRI) on the instrument panel will blink for about 6 seconds after the ignitionkey is turned to the "ON" position or after the engine is started, after which the SRI should go out.

1FEATURES OF YOUR HYUNDAI
40

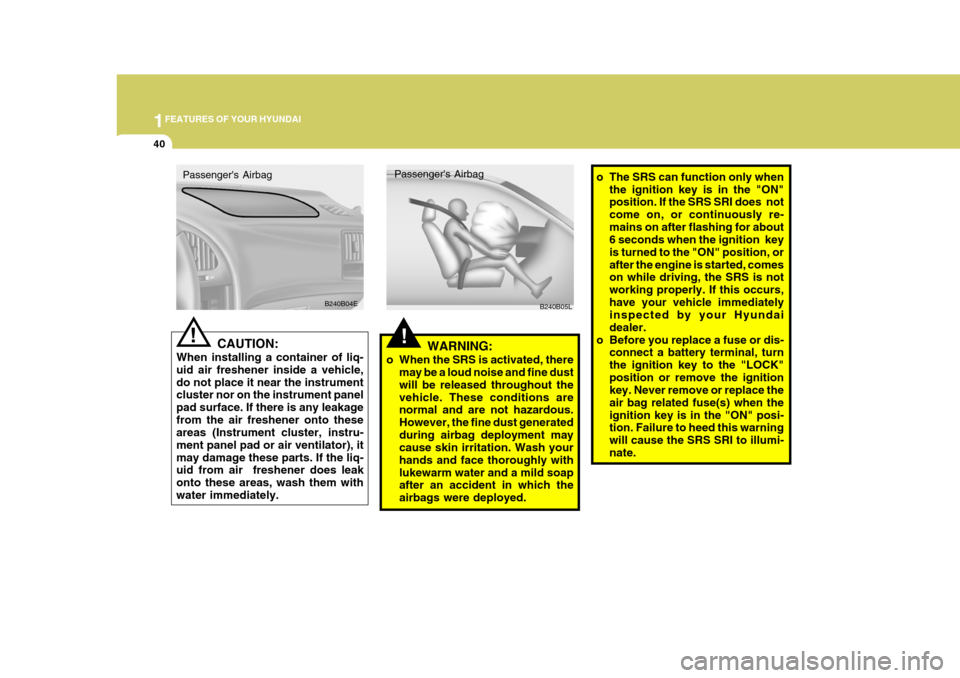

o The SRS can function only when
the ignition key is in the "ON" position. If the SRS SRI does not come on, or continuously re-mains on after flashing for about 6 seconds when the ignition key is turned to the "ON" position, orafter the engine is started, comes on while driving, the SRS is not working properly. If this occurs,have your vehicle immediately inspected by your Hyundai dealer.
o Before you replace a fuse or dis- connect a battery terminal, turnthe ignition key to the "LOCK"position or remove the ignition key. Never remove or replace the air bag related fuse(s) when theignition key is in the "ON" posi- tion. Failure to heed this warning will cause the SRS SRI to illumi-nate.
!CAUTION:
When installing a container of liq- uid air freshener inside a vehicle,do not place it near the instrument cluster nor on the instrument panel pad surface. If there is any leakagefrom the air freshener onto these areas (Instrument cluster, instru- ment panel pad or air ventilator), itmay damage these parts. If the liq- uid from air freshener does leak onto these areas, wash them withwater immediately.! WARNING:
o When the SRS is activated, there may be a loud noise and fine dust will be released throughout thevehicle. These conditions are normal and are not hazardous. However, the fine dust generatedduring airbag deployment may cause skin irritation. Wash your hands and face thoroughly withlukewarm water and a mild soap after an accident in which the airbags were deployed.
B240B04E
Passenger's Airbag
Passenger's Airbag
B240B05L

1
FEATURES OF YOUR HYUNDAI
41
!WARNING:

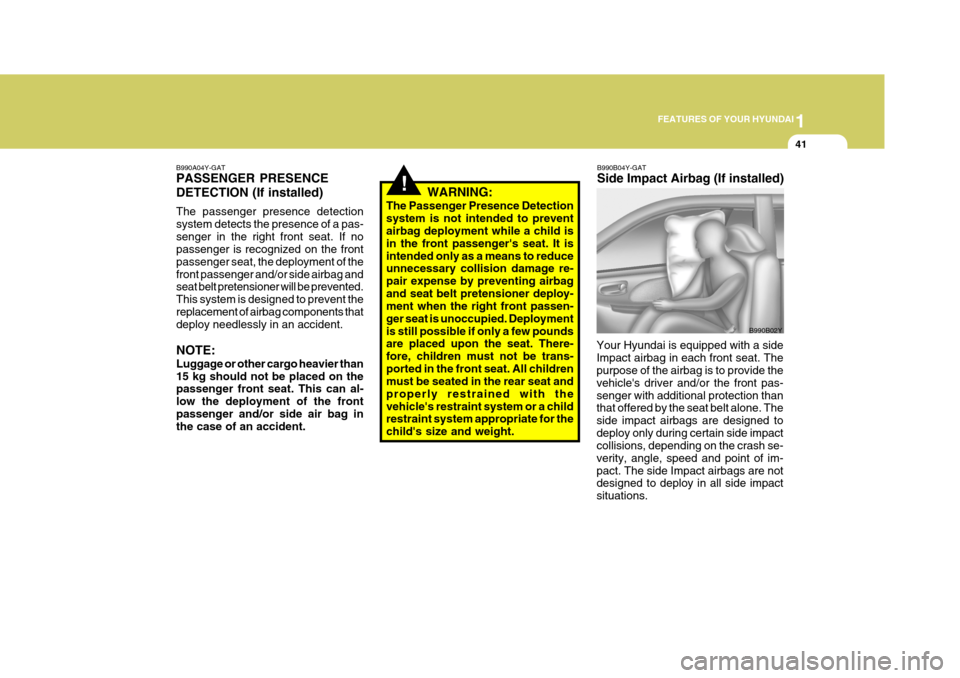

The Passenger Presence Detection system is not intended to prevent airbag deployment while a child is in the front passenger's seat. It isintended only as a means to reduce unnecessary collision damage re- pair expense by preventing airbagand seat belt pretensioner deploy- ment when the right front passen- ger seat is unoccupied. Deploymentis still possible if only a few pounds are placed upon the seat. There- fore, children must not be trans-ported in the front seat. All children must be seated in the rear seat and properly restrained with thevehicle's restraint system or a child restraint system appropriate for the child's size and weight.
B990A04Y-GAT PASSENGER PRESENCE DETECTION (If installed) The passenger presence detection system detects the presence of a pas-senger in the right front seat. If no passenger is recognized on the front passenger seat, the deployment of thefront passenger and/or side airbag and seat belt pretensioner will be prevented. This system is designed to prevent thereplacement of airbag components that deploy needlessly in an accident. NOTE: Luggage or other cargo heavier than 15 kg should not be placed on the passenger front seat. This can al- low the deployment of the frontpassenger and/or side air bag in the case of an accident.
B990B04Y-GAT Side Impact Airbag (If installed)
Your Hyundai is equipped with a side Impact airbag in each front seat. The purpose of the airbag is to provide the vehicle's driver and/or the front pas-senger with additional protection than that offered by the seat belt alone. The side impact airbags are designed todeploy only during certain side impact collisions, depending on the crash se- verity, angle, speed and point of im-pact. The side Impact airbags are not designed to deploy in all side impact situations. B990B02Y

1FEATURES OF YOUR HYUNDAI
42
B240C02Y-GAT SRS Care The SRS is virtually maintenance-free and there are no parts you can safelyservice by yourself. The entire SRS system must be inspected by an au- thorized Hyundai dealer 10 years afterthe date that the vehicle was manufac- tured. Any work on the SRS system, such as removing, installing, repairing, or any work on the steering wheel must beperformed by a qualified Hyundai tech- nician. Improper handling of the SRS system may result in serious personalinjury.
!WARNING:
o The side impact airbag is supple- mental to the driver's and the passenger's seat belt systems and is not a substitute for them.Your seat belts must be worn at all times while the vehicle is in mo- tion. The airbags deploy only incertain side impact conditions severe enough to cause signifi- cant injury to the vehicle occu-pants.
o For best protection from the side
Impact airbag system and toavoid being injured by the de- B990B01E
Side airbag sensor
ploying side airbag, both front seat occupants should sit in anupright position with the seat belt properly fastened. The driver's hands should be placedon the steering wheel at the 9:00 and 3:00 o'clock positions. The passenger's arms and handsshould be placed on their laps.
o Do not use any accessory seat
covers.
o Use of seat covers could reduce or prevent the effectiveness ofthe system.
o Do not install any accessories on the side or near the side Impactairbag.
o Do not use excessive force on the side of the seat.
o Do not place any objects over the airbag or between the airbag and yourself.
o Do not place any objects (an umbrella, bag, etc.) between thefront door and the front seat. Such objects may become dan-gerous projectiles and cause in- jury if the supplemental side Im- pact airbag deploy. o To prevent unexpected deploy-
ment of the side Impact airbagthat may result in personal in- jury, avoid impact to the side airbag sensor when the ignitionkey is on.

1
FEATURES OF YOUR HYUNDAI
43
!

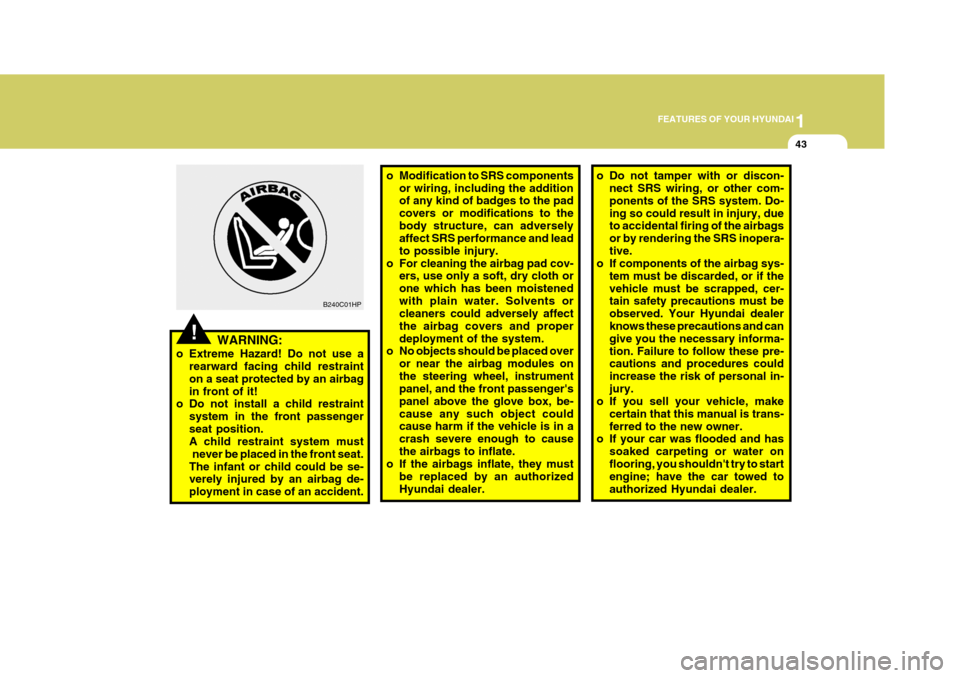

o Modification to SRS components
or wiring, including the addition of any kind of badges to the pad covers or modifications to thebody structure, can adversely affect SRS performance and lead to possible injury.
o For cleaning the airbag pad cov- ers, use only a soft, dry cloth orone which has been moistenedwith plain water. Solvents or cleaners could adversely affect the airbag covers and properdeployment of the system.
o No objects should be placed over
or near the airbag modules onthe steering wheel, instrument panel, and the front passenger's panel above the glove box, be-cause any such object could cause harm if the vehicle is in a crash severe enough to causethe airbags to inflate.
o If the airbags inflate, they must
be replaced by an authorizedHyundai dealer.
B240C01HP
WARNING:
o Extreme Hazard! Do not use a rearward facing child restrainton a seat protected by an airbagin front of it!
o Do not install a child restraint
system in the front passengerseat position. A child restraint system must
never be placed in the front seat.The infant or child could be se- verely injured by an airbag de- ployment in case of an accident.o Do not tamper with or discon-nect SRS wiring, or other com- ponents of the SRS system. Do-ing so could result in injury, due to accidental firing of the airbags or by rendering the SRS inopera-tive.
o If components of the airbag sys-
tem must be discarded, or if thevehicle must be scrapped, cer- tain safety precautions must be observed. Your Hyundai dealerknows these precautions and can give you the necessary informa- tion. Failure to follow these pre- cautions and procedures could increase the risk of personal in-jury.
o If you sell your vehicle, make
certain that this manual is trans-ferred to the new owner.
o If your car was flooded and has
soaked carpeting or water onflooring, you shouldn't try to start engine; have the car towed to authorized Hyundai dealer.

1FEATURES OF YOUR HYUNDAI
44
14 15 16 17 18 19 20 21 22 23

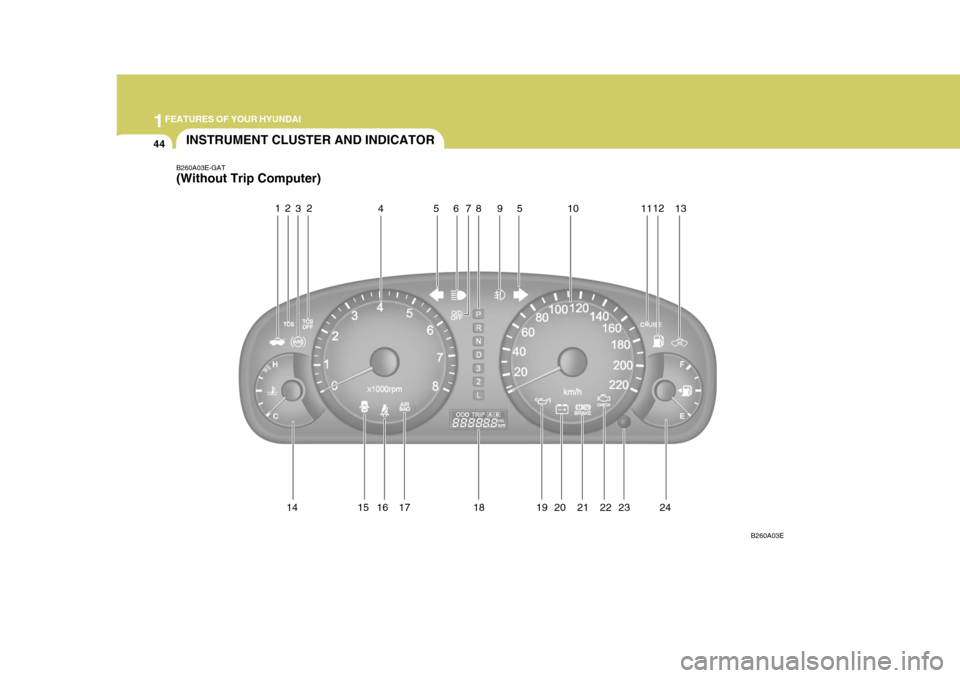

INSTRUMENT CLUSTER AND INDICATOR
B260A03E-GAT (Without Trip Computer)
B260A03E
12
34 567
2
8591 01112
13
24

1
FEATURES OF YOUR HYUNDAI
45
1. Trunk Lid (4 door)/Tail Gate (5 door) Open Warning Light
2. Traction Control Indicator Light (If installed)
3. ABS Warning Light (If installed)
4. Tachometer
5. Turn Signal Indicator Light
6. High Beam Indicator Light
7. Overdrive Off Indicator Light (1.6L Auto T/A only)/ Fuel Filter Warning Light (Diesel engine)
8. Automatic Transaxle Position Indicator Light (Auto T/A only)
9. Front Fog Indicator Light (If installed)
10. Speedometer
11. Cruise Indicator Light (If installed)/ Diesel pre-heat Indicator Light (Diesel engine) 12. Low Fuel Warning Light
13. Immobilizer Warning Indicator Light (If installed)
14. Temperature Gauge
15. Door Ajar Warning Light
16. Seat Belt Warning Light
17. SRS (Airbag) Warning Light (If installed)
18. Odometer/Trip Odometer
19. Low Oil Pressure Warning Light
20. Charging System Warning Light
21. Parking Brake/Low Brake Fluid Level Warning Light
22. Malfunction Indicator Light (MIL) (If installed)
23. Trip Odometer Reset Switch
24. Fuel Gauge

1FEATURES OF YOUR HYUNDAI
46
13 181920 22 23
17
14 1516 21

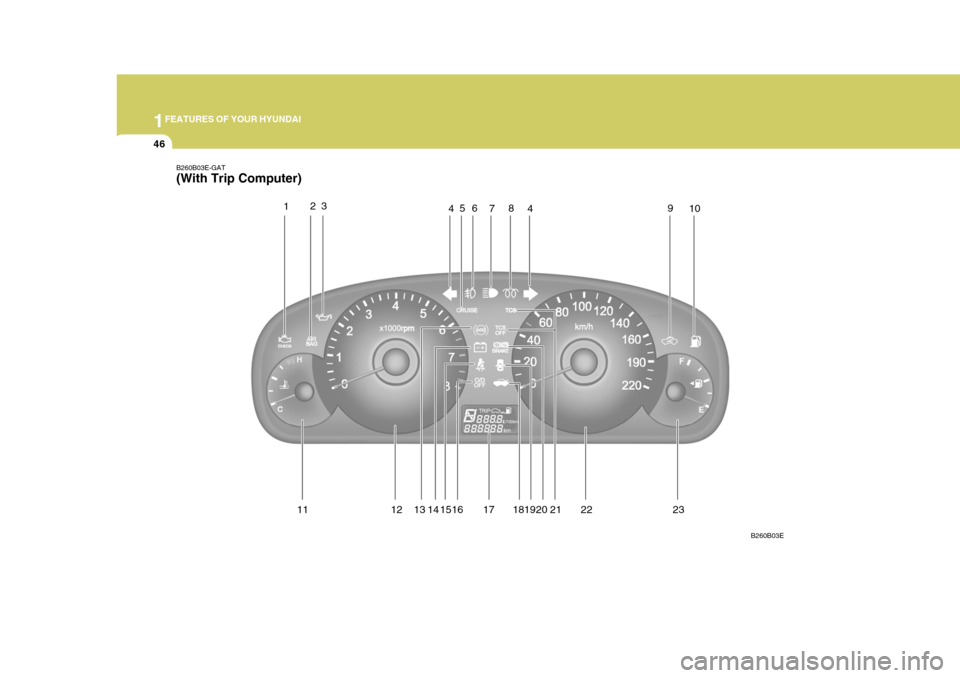

B260B03E-GAT (With Trip Computer)
B260B03E
1
2
456
11 12 7
89
10
3
4
