7ILLUMINATED IGNITION SWITCH
B030C01Y-AAT (If installed) Whenever a door is opened, the igni- tion switch will be illuminated for your convenience, provided the ignitionswitch is not in the "ON" position. The light will go off approximately 10 seconds after closing the door or whenthe ignition switch is turned on. B030C01E
NOTE: If the engine dies while driving after limp home procedure, you can start your engine within 8 seconds with-out limp home procedure again.
5. If the immobilizer indicator blinks for
five seconds, you have to try the limp home procedure again from the beginning.
After doing the limp home procedure,you have to consult with your autho-rized Hyundai dealer as soon as pos- sible.
! CAUTION:
o If you fail to try the limp home procedure with the sequence of three times, you have to wait for about one hour to do the limphome procedure again.
o If you cannot start your engine in
spite of limp home procedure,have your vehicle towed by an authorized Hyundai dealer.
!
DOOR
B040A02Y-AAT DOOR LOCKS
WARNING:
o Unlocked doors can be danger- ous. Before you drive away (es- pecially if there are children in the car), be sure that all the doorsare securely closed and locked so that the doors cannot be inad- vertently opened from the inside.This helps ensure that the doors will not be opened accidentally. Also, when combined with theproper use of seat belts, locking the doors helps keep occupants from being ejected from the carin case of an accident.
o Before opening the door, always
look for and avoid oncoming traf-fic.
o In case of accident, the door is
unlocked automatically (If in-stalled).
Page 22 of 277
1FEATURES OF YOUR HYUNDAI
8
B040D01S-AAT Locking From the Inside To lock the doors from the inside, simply close the door and push the lock switch to the "LOCK" position.When this is done, neither the outside nor the inside door handles can be used. NOTE: When the door is locked, the red mark on the switch is not visible. HXD530
LOCK
UNLOCK
UNLOCK
LOCK
HXDFL2003
B040B01A-AAT Locking and Unlocking Front Doors With a Key
o The door can be locked or unlocked
with a key.
o Lock the door by turning the key toward the front of the vehicle and unlock it by turning the key towardthe rear. B040C01E
B040C01S-AAT Locking From the Outside The doors can be locked without a key. To lock the doors first push the inside lock switch to the "LOCK" position sothat the red mark on the switch is not visible, then close the door. NOTE:
o When locking the door this way,
be careful not to lock the door with the ignition key left in the vehicle.
o To protect against theft, always remove the ignition key, close allwindows, and lock all doors whenleaving your vehicle unattended.
Page 23 of 277
1
FEATURES OF YOUR HYUNDAI
9
Your Hyundai is equipped with a "child- protector" rear door lock assembly. When the lock mechanism is engaged,the rear door cannot be opened from the inside. Its use is recommended whenever there are small children inthe rear seat. To engage the child-protector feature so that the door cannot be openedfrom the inside, move the child-protec- tor lever to the " " position and close the door. Move the lever to the " "position when normal door operation is desired. To open the door from the outside, pull the outside door handle. B040E01E
B040E04A-AAT Child-Protector Rear Door Lock
B040G01E-GATCentral Door Lock (If installed) The central door locking is operated by pushing the driver's door lock switch toward the front or rear of the vehicle.If the passenger and rear doors are open when the switch is pushed, the door will remain locked when closed.HXDOM012NOTE:
o When pushing the switch toward
the rear, all doors will unlock. When pushing the switch towardthe front, all doors will lock.
o When the door is unlocked, the
red mark on the switch is visible.
o The central door locking is oper- ated by turning the key (with theft-alarm system: driver's door andpassenger's door, without theft- alarm system: driver's door only) toward the front or rear of thevehicle.
Page 24 of 277
1FEATURES OF YOUR HYUNDAI
10THEFT-ALARM SYSTEM
B070A01A-AAT (If installed) This system is designed to provide protection from unauthorized entry intothe car. This system is operated in three stages: the first is the "Armed" stage, the second is the "Alarm" stage,and the third is the "Disarmed" stage. If triggered, the system provides an audible alarm with blinking of the turnsignal light. B070B01E-GAT Armed Stage
!
NOTE:
1) If any door, the trunk lid (4 door)/
tail gate (5 door) or hood remains open, the system will not be armed.
2) If this happens, rearm the system as described previous.
3) Once the system is armed, only the trunk lid (4 door) may be unlocked using the key without disarming the system.
Park the car and stop the engine. Arm the system as described below.
1) Remove the ignition key from the ignition switch.
2) Make sure that the engine hood and trunk lid(4 door)/ tail gate (5 door) are locked.
3) Lock the doors using the transmitter of the keyless entry system.
After completion of the steps above, the turn signal lights will blink once to indicate that the system is armed. CAUTION:
Do not arm the system until all pas-sengers have left the car. If the system is armed while apassenger(s) remains in the car, the alarm may be activated when the remaining passenger(s) leavesthe car.
HXD200
UNLOCK
LOCK
Page 25 of 277
1
FEATURES OF YOUR HYUNDAI
11
3A9BA21
B070D03E-AAT Disarmed Stage
B070C01E-GATAlarm Stage The alarm will be activated if any of the following occurs while the car is parked and the system is armed.
1) A door and tail gate (5 door) are
opened without using the transmit- ter.
2) The trunk lid (4 door) is opened
without using the key.
3) The hood is opened. The siren will sound and the turn signal light will blink continuously for 30 sec- onds (E.C only/Except E.C: 3 times). To turn off the system, unlock the dooror tail gate (5 door) with the transmit- ter. The system will be disarmed when thefollowing step is taken: The driver's or passenger's door is unlocked by depressing the "UNLOCK" button on the transmitter. After completion of the step above, the turn signal lights will blink twice toindicate that the system is disarmed.
!
CAUTION:
Avoid trying to start the engine while the system is armed. NOTE:
o Once the system has been dis-
armed, it can not be rearmed ex- cept by repeating the arming pro-cedures.
o When the system is disarmed
with the interior light switched to"DR" the interior light will illumi- nate for 30 seconds.
CAUTION:
Only the transmitter can disarm thearmed stage. If the transmitter does not disarm the system, it is neces- sary to take the following steps;
1. Unlock the door with the key, which will cause, the alarm to be activated.
2. Insert the key in the ignition key cylinder and turn the ignition keyto "ON" position.
3. Wait for 30 seconds. After completing the steps above, the system will be disarmed.
!
Page 26 of 277
1FEATURES OF YOUR HYUNDAI
12
MSO-0048-2
Battery
MSO-0048-1
Screwdriver Case
B070F01A-GAT Keyless Entry System (If installed)Locking doors
1. Close all doors.
2. Push the "LOCK" button on the trans-
mitter.
3. At the same time all doors lock, the turn signal lights will blink once to indicate that the system is armed.
Unlocking doors
1. Push the "UNLOCK" button on the transmitter.
2. At the same time all doors unlock,

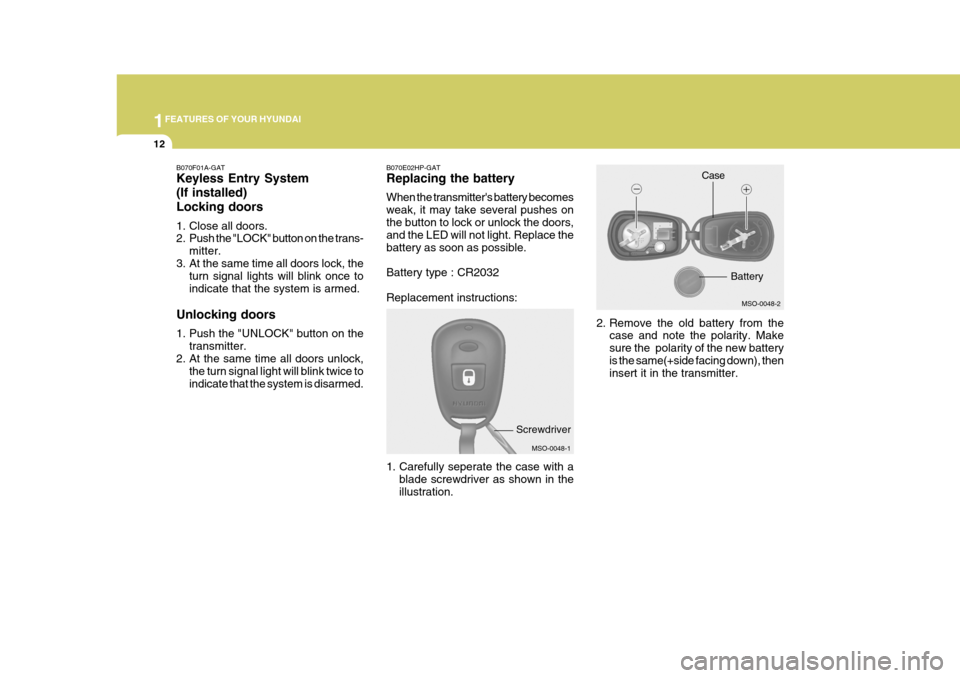

the turn signal light will blink twice to indicate that the system is disarmed. B070E02HP-GAT Replacing the battery When the transmitter's battery becomes weak, it may take several pushes onthe button to lock or unlock the doors, and the LED will not light. Replace the battery as soon as possible. Battery type : CR2032 Replacement instructions:
1. Carefully seperate the case with a
blade screwdriver as shown in the illustration. 2. Remove the old battery from the
case and note the polarity. Makesure the polarity of the new batteryis the same(+side facing down), then insert it in the transmitter.
Page 27 of 277
1
FEATURES OF YOUR HYUNDAI
13WINDOW
!

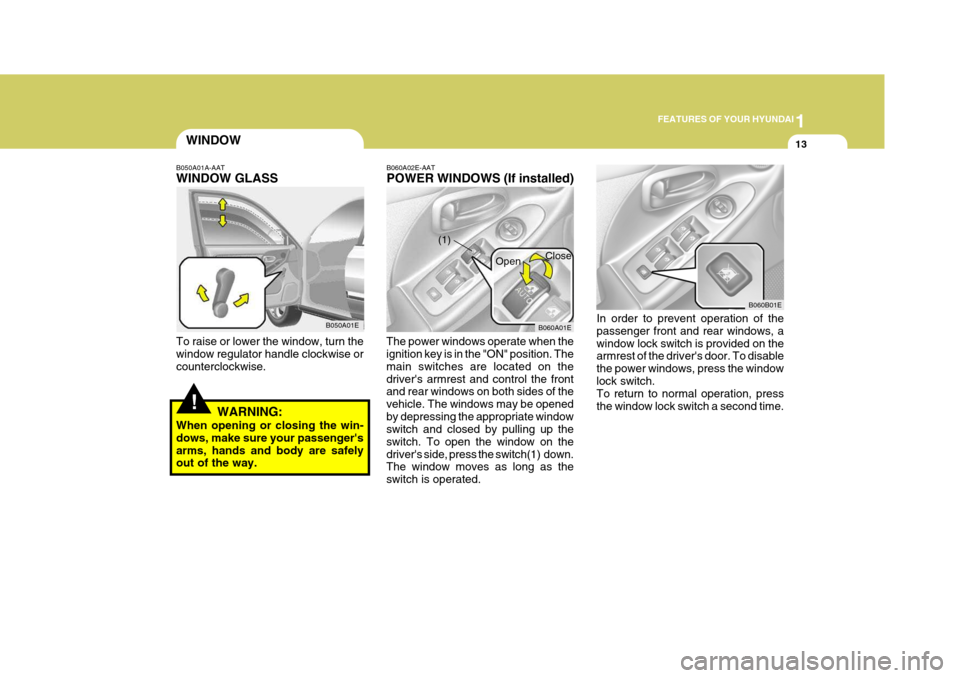

B050A01A-AAT WINDOW GLASS To raise or lower the window, turn the window regulator handle clockwise or counterclockwise.
WARNING:
When opening or closing the win-dows, make sure your passenger'sarms, hands and body are safely out of the way. B050A01EB060A02E-AAT POWER WINDOWS (If installed)
Close
The power windows operate when the ignition key is in the "ON" position. The main switches are located on thedriver's armrest and control the front and rear windows on both sides of the vehicle. The windows may be openedby depressing the appropriate window switch and closed by pulling up the switch. To open the window on thedriver's side, press the switch(1) down. The window moves as long as the switch is operated. B060A01E
(1)
Open
In order to prevent operation of the passenger front and rear windows, awindow lock switch is provided on the armrest of the driver's door. To disable the power windows, press the windowlock switch. To return to normal operation, press the window lock switch a second time. B060B01E
Page 28 of 277
1FEATURES OF YOUR HYUNDAI
14
!
!
SEAT
WARNING:
1) Be careful that someone's head, hands or body are not trapped by a closing window.
2) Never try to operate the main switch on the driver's door and the individual door windowswitch in opposing directions at the same time. If this is done, the window will stop and cannot beopened or closed.
3) Do not leave children alone in the
car. Always remove the ignitionkey for their safety. B080B01E

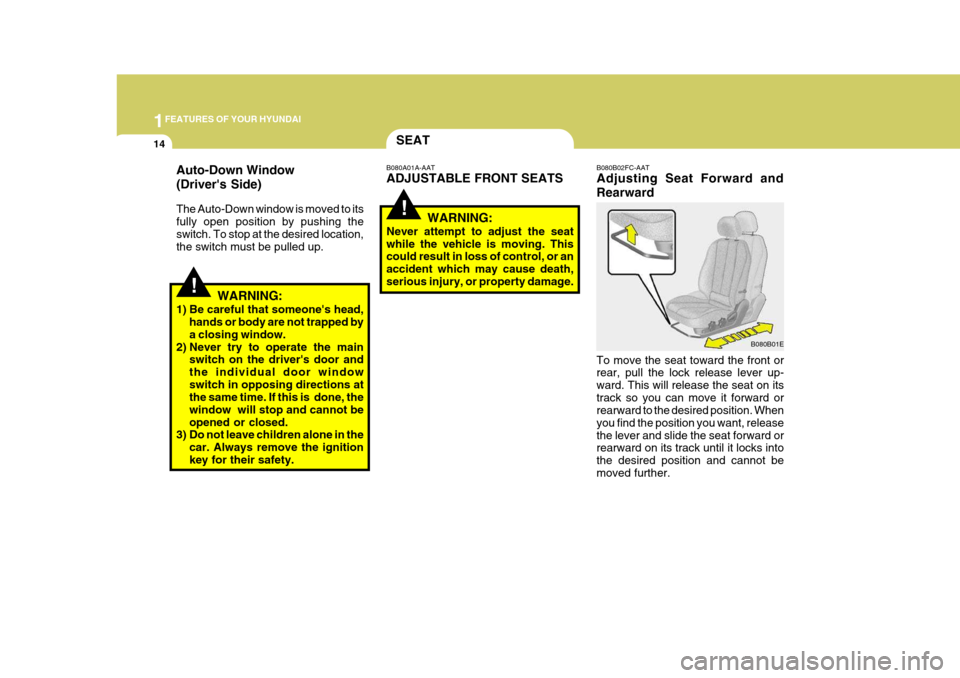

B080B02FC-AAT Adjusting Seat Forward and Rearward
B080A01A-AAT ADJUSTABLE FRONT SEATS
WARNING:
Never attempt to adjust the seat while the vehicle is moving. This could result in loss of control, or an accident which may cause death,serious injury, or property damage.
To move the seat toward the front or rear, pull the lock release lever up- ward. This will release the seat on itstrack so you can move it forward or rearward to the desired position. When you find the position you want, releasethe lever and slide the seat forward or rearward on its track until it locks into the desired position and cannot bemoved further.
Auto-Down Window (Driver's Side) The Auto-Down window is moved to its fully open position by pushing the switch. To stop at the desired location, the switch must be pulled up.
Page 29 of 277
1
FEATURES OF YOUR HYUNDAI
15
!
!WARNING:
To minimize risk of severe injury in the event of a collision or a sudden stop, both the driver and passen-ger seatbacks should always be in an upright position while the ve- hicle is in motion. The protectionprovided by the seat belts and airbags in a frontal collision may be reduced significantly when the seatbacks are reclined. There is greater risk that the driver and pas-senger will slide under the seat belt which may result in serious injury if a crash occurs when the seatbacksare reclined. The seat belt cannot provide full protection to an occu- pant if the seat back is reclined.

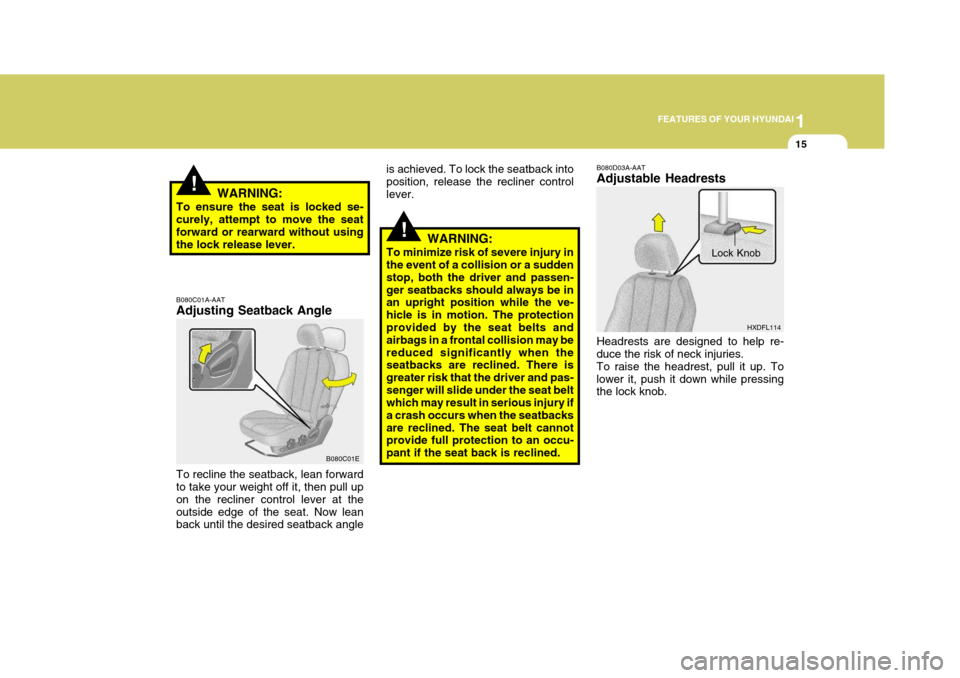

To recline the seatback, lean forward to take your weight off it, then pull up on the recliner control lever at theoutside edge of the seat. Now lean back until the desired seatback angle B080C01E
B080C01A-AAT Adjusting Seatback Angle
WARNING:
To ensure the seat is locked se- curely, attempt to move the seat forward or rearward without using the lock release lever. is achieved. To lock the seatback intoposition, release the recliner controllever.
Lock Knob
HXDFL114
B080D03A-AAT Adjustable Headrests Headrests are designed to help re- duce the risk of neck injuries. To raise the headrest, pull it up. Tolower it, push it down while pressing the lock knob.
Page 30 of 277
1FEATURES OF YOUR HYUNDAI
16
!
B080E01O-AAT Lumbar Support Control (Driver's seat only) (If installed) To adjust the lumbar support, turn the handle on the outboard or left side of the seat. To increase the amount of lumbar support, pull the lever forward.To decrease it, push the lever toward the rear.
1. Minimum support
2. Maximum support B080E01E
WARNING:
B080F01S-AAT Seat Cushion Height Adjustment (Driver's Seat Only) (If installed)
To raise or lower the front part of the seat cushion, turn the front knob for- ward or rearward. To raise or lower therear part of the seat cushion, turn the rear knob forward or rearward. B080F01E
1
2
o For maximum effectiveness in case of an accident, the headrest should be adjusted so the middle of theheadrest is at the same height as the top of the occupant's eyes. The use of a cushion that holds thebody away from the seatback is not recommended.
o Do not operate the vehicle with the headrests removed as severe in-jury to an occupant may occur in the event of an accident. Head-rests may provide protection against severe neck injuries when properly adjusted. B080D01JM
o Do not adjust the headrest hejght
while the vehicle is in motion.
