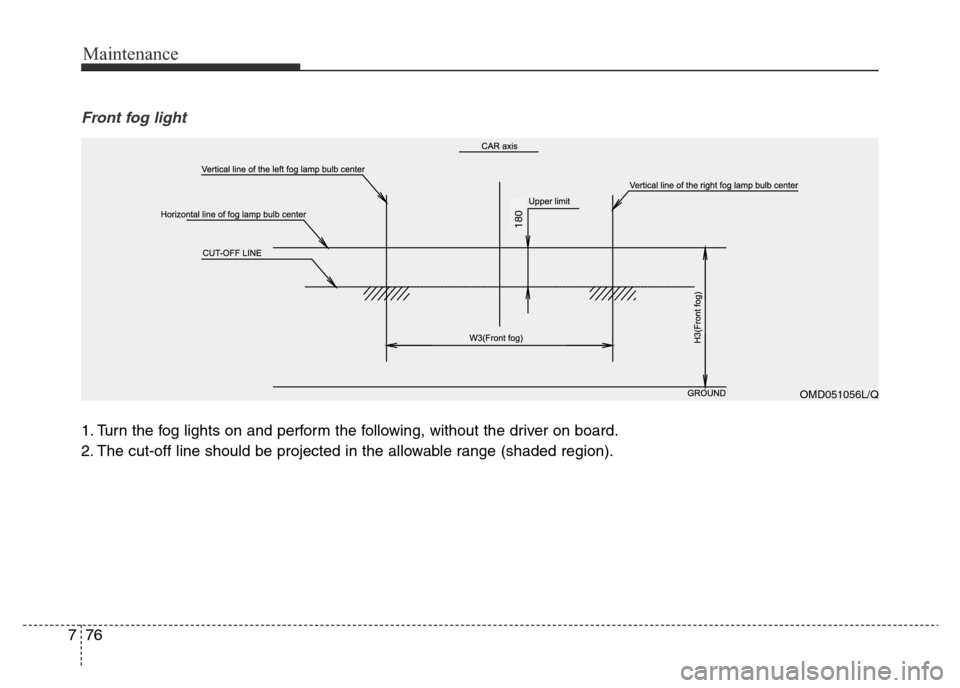

Front fog light
1. Turn the fog lights on and perform the following, without the driver on board.
2. The cut-off line should be projected in the allowable range (shaded region).
OMD051056L/Q
180

777
Maintenance
Side repeater light bulb
replacement (if equipped)
If the light bulb does not operate, we
recommend that the system be
checked by an authorised HYUNDAI
dealer.

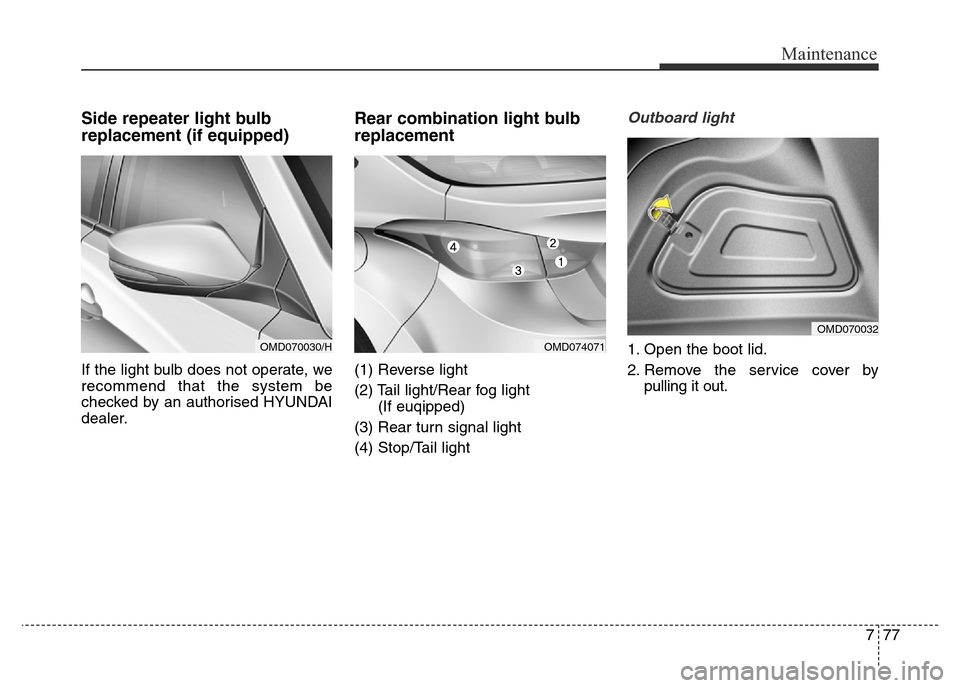

Rear combination light bulb
replacement
(1) Reverse light
(2) Tail light/Rear fog light
(If euqipped)
(3) Rear turn signal light
(4) Stop/Tail light
Outboard light
1. Open the boot lid.
2. Remove the service cover by
pulling it out.OMD070030/HOMD074071
OMD070032

Maintenance
78 7
3. Loosen the assembly retaining
nuts.4. Remove the rear combination light
assembly from the body of the
vehicle.
Stop/Tail light and turn signal light
5. Remove the socket from the
assembly by turning the socket
anticlockwise until the tabs on the
socket align with the slots on the
assembly.
6. Remove the bulb from the socket
by pressing it in and rotating it
anticlockwise until the tabs on the
bulb align with the slots in the
socket. Pull the bulb out of the
socket.
7. Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.
OMD070033
OMD070034
OMD074080

779
Maintenance
8. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.Tail light
5. Remove the socket from the
assembly by turning the socket
anticlockwise until the tabs on the
socket align with the slots on the
assembly.
6. Remove the bulb by pulling it out.
7. Inset a new bulb by insetring it into
the socket.
8. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly

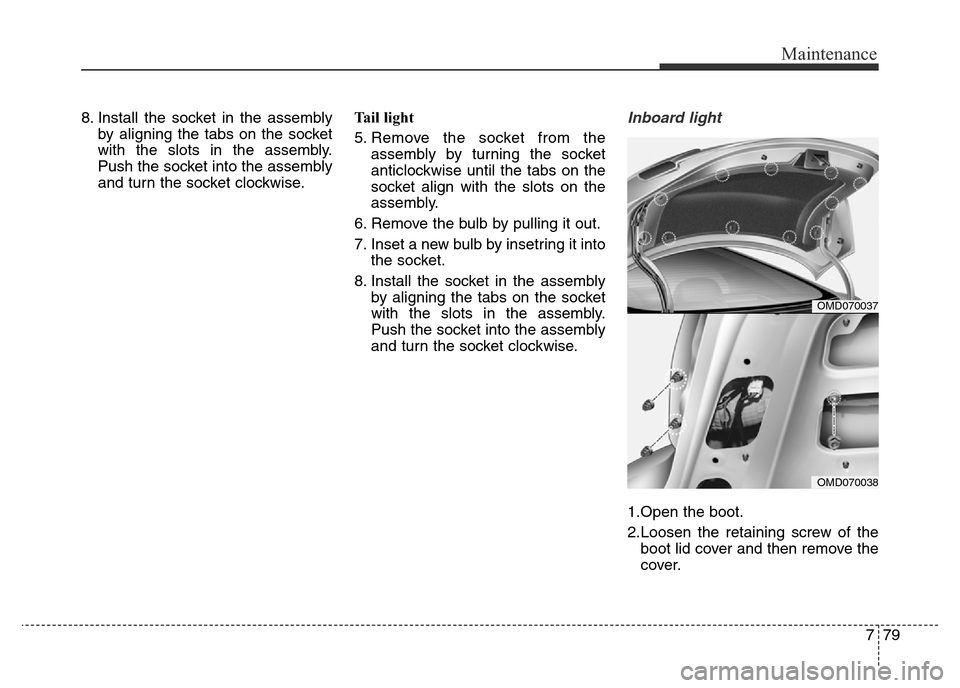

and turn the socket clockwise.Inboard light
1.Open the boot.
2.Loosen the retaining screw of the
boot lid cover and then remove the
cover.
OMD070037
OMD070038

Maintenance
80 7
3.Disconnect the connector and then
remove the nuts by turning the nuts
anticlockwise.

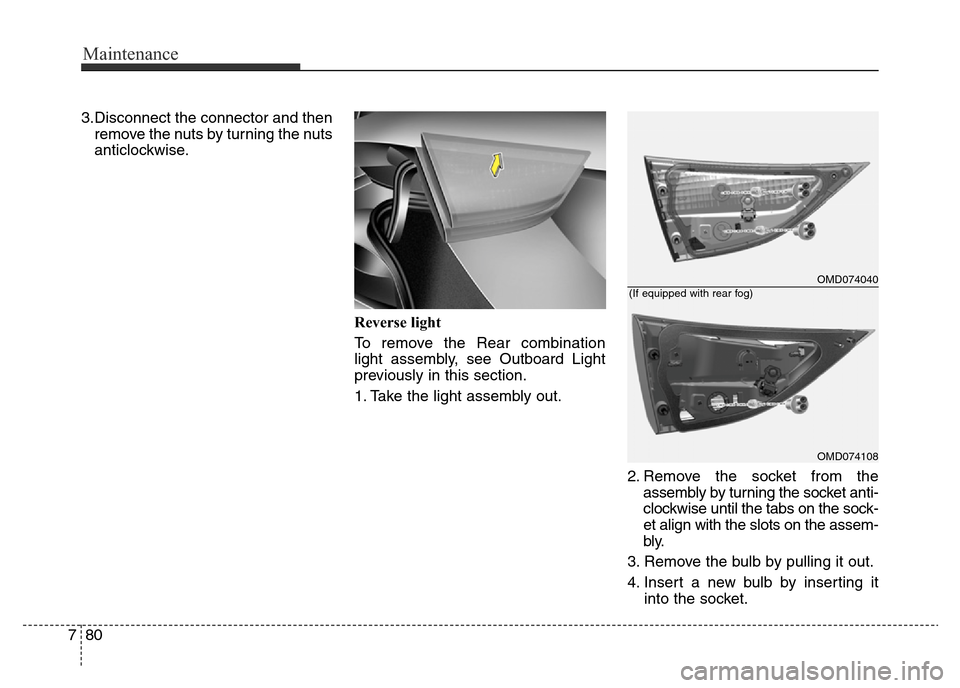

Reverse light
To remove the Rear combination
light assembly, see Outboard Light
previously in this section.
1. Take the light assembly out.
2. Remove the socket from the
assembly by turning the socket anti-
clockwise until the tabs on the sock-
et align with the slots on the assem-
bly.
3. Remove the bulb by pulling it out.
4. Insert a new bulb by inserting it
into the socket.
OMD074040
OMD074108 (If equipped with rear fog)

781
Maintenance

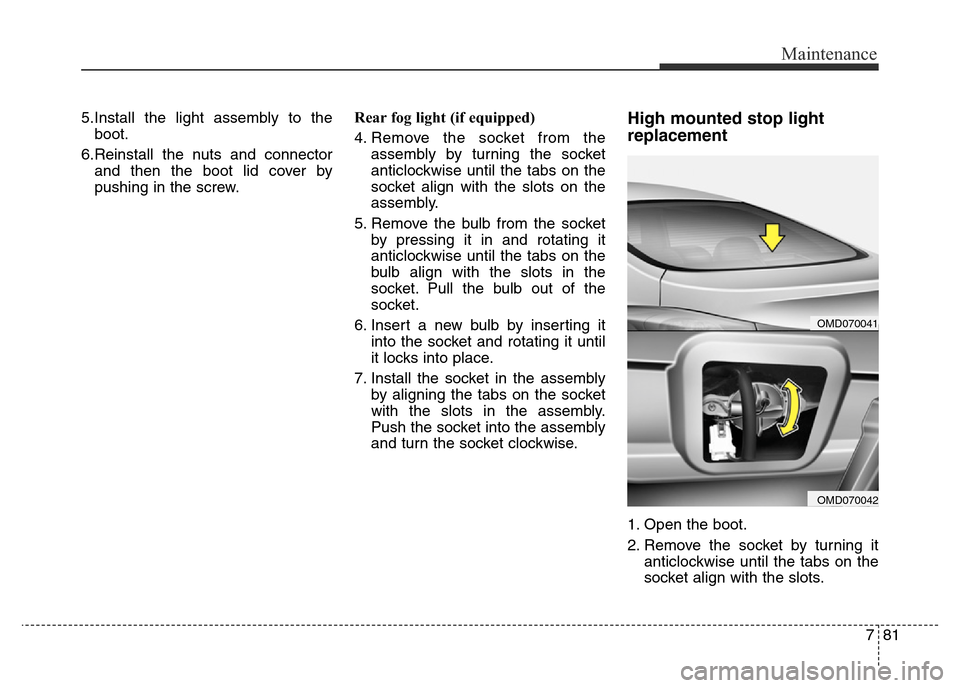

5.Install the light assembly to the
boot.
6.Reinstall the nuts and connector
and then the boot lid cover by
pushing in the screw.Rear fog light (if equipped)
4. Remove the socket from the
assembly by turning the socket
anticlockwise until the tabs on the
socket align with the slots on the
assembly.
5. Remove the bulb from the socket
by pressing it in and rotating it
anticlockwise until the tabs on the
bulb align with the slots in the
socket. Pull the bulb out of the
socket.
6. Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.
7. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.High mounted stop light
replacement
1. Open the boot.
2. Remove the socket by turning it
anticlockwise until the tabs on the
socket align with the slots.
OMD070041
OMD070042

Maintenance
82 7
3. Remove the bulb from the socket
by pressing it in and rotating it
anticlockwise until the tabs on the
bulb align with the slots in the
socket. Pull the bulb out of the
socket.
4. Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.
5. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly

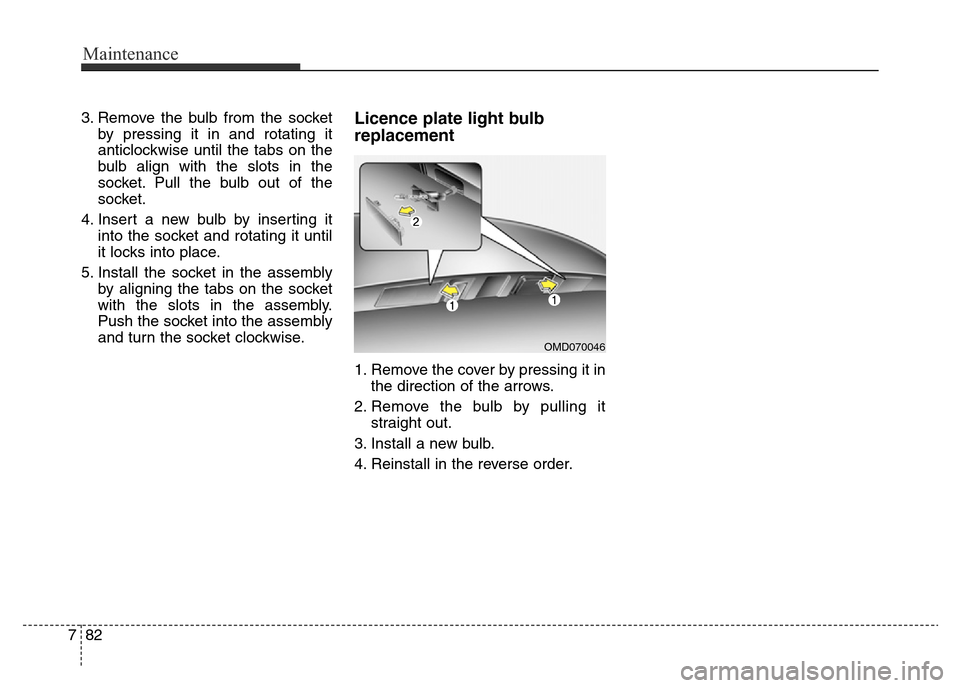

and turn the socket clockwise.Licence plate light bulb
replacement
1. Remove the cover by pressing it in
the direction of the arrows.
2. Remove the bulb by pulling it
straight out.
3. Install a new bulb.
4. Reinstall in the reverse order.
OMD070046

783
Maintenance

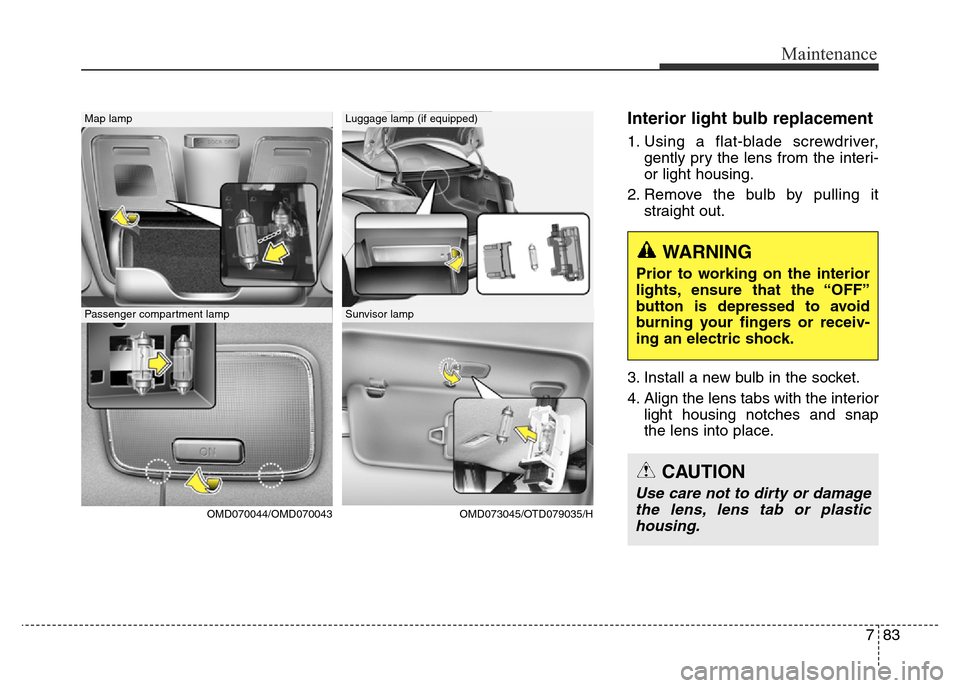

Interior light bulb replacement
1. Using a flat-blade screwdriver,
gently pry the lens from the interi-
or light housing.
2. Remove the bulb by pulling it
straight out.
3. Install a new bulb in the socket.
4. Align the lens tabs with the interior
light housing notches and snap
the lens into place.
Luggage lamp (if equipped)Map lamp
Sunvisor lamp Passenger compartment lamp
OMD070044/OMD070043 OMD073045/OTD079035/H
WARNING
Prior to working on the interior
lights, ensure that the “OFF”
button is depressed to avoid
burning your fingers or receiv-
ing an electric shock.
CAUTION
Use care not to dirty or damage
the lens, lens tab or plastic
housing.

Maintenance
84 7
APPEARANCE CARE
Exterior care
Exterior general caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning
and caution statements that appear
on the label.
Finish maintenance
Washing
To help protect your vehicle’s finish
from rust and deterioration, wash it
thoroughly and frequently at least
once a month with lukewarm or cold
water.
If you use your vehicle for off-road
driving, you should wash it after each
off-road trip. Pay special attention to
the removal of any accumulation of
salt, dirt, mud, and other foreign
materials. Make sure the drain holes
in the lower edges of the doors and
rocker panels are kept clear and
clean.
Insects, tar, tree sap, bird droppings,
industrial pollution and similar
deposits can damage your vehicle’s
finish if not removed immediately.
Even prompt washing with plain
water may not completely remove all
these deposits. A mild soap, safe for
use on painted surfaces, may be
used.
After washing, rinse the vehicle thor-
oughly with lukewarm or cold water.
Do not allow soap to dry on the fin-
ish.
WARNING - Wet brakes
After washing the vehicle, test
the brakes whilst driving slowly
to see if they have been affected
by water. If braking performance
is impaired, dry the brakes by
applying them lightly whilst
maintaining a slow forward
speed.
CAUTION
• Do not use strong soap, chem-
ical detergents or hot water,
and do not wash the vehicle in
direct sunlight or when the
body of the vehicle is warm.
• Be careful when washing the
side windows of your vehicle.
Especially, with high-pressure
water, water may leak through
the windows and wet the inte-
rior.
• To prevent damage to the
plastic parts and lamps, do
not clean with chemical sol-
vents or strong detergents.

785
Maintenance

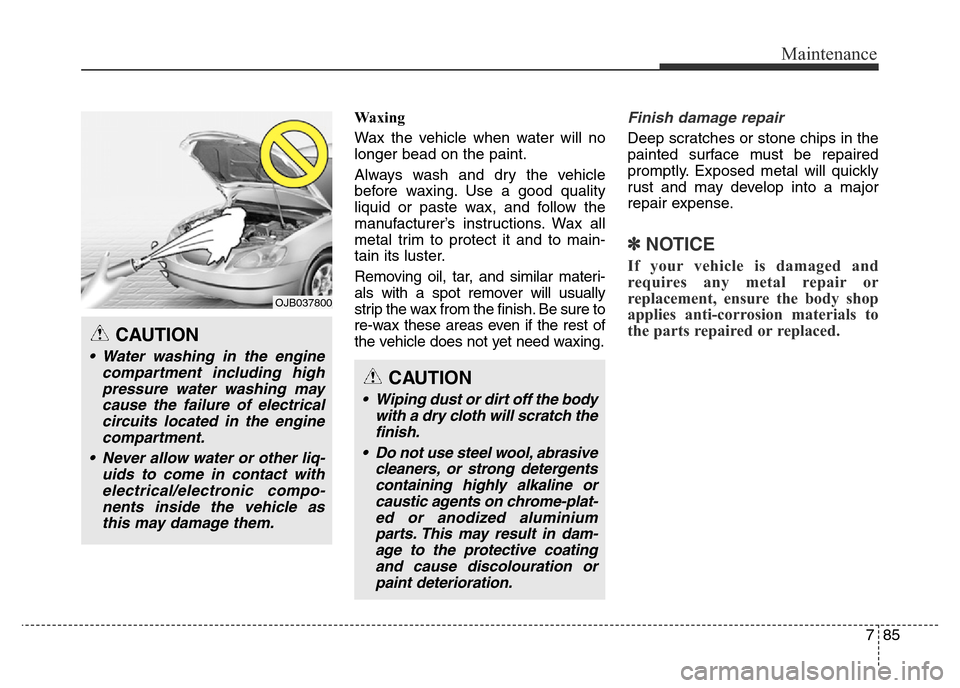

Waxing
Wax the vehicle when water will no
longer bead on the paint.
Always wash and dry the vehicle
before waxing. Use a good quality
liquid or paste wax, and follow the
manufacturer’s instructions. Wax all
metal trim to protect it and to main-
tain its luster.
Removing oil, tar, and similar materi-
als with a spot remover will usually
strip the wax from the finish. Be sure to
re-wax these areas even if the rest of
the vehicle does not yet need waxing.Finish damage repair
Deep scratches or stone chips in the
painted surface must be repaired
promptly. Exposed metal will quickly
rust and may develop into a major
repair expense.
✽NOTICE
If your vehicle is damaged and
requires any metal repair or
replacement, ensure the body shop
applies anti-corrosion materials to
the parts repaired or replaced.
CAUTION
• Wiping dust or dirt off the body
with a dry cloth will scratch the
finish.
• Do not use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or
caustic agents on chrome-plat-
ed or anodized aluminium
parts. This may result in dam-
age to the protective coating
and cause discolouration or
paint deterioration.
CAUTION
• Water washing in the engine
compartment including high
pressure water washing may
cause the failure of electrical
circuits located in the engine
compartment.
• Never allow water or other liq-
uids to come in contact with
electrical/electronic compo-
nents inside the vehicle as
this may damage them.
OJB037800
