Hyundai Elantra 2015 Owner's Manual - RHD (UK. Australia)

Maintenance
66 7

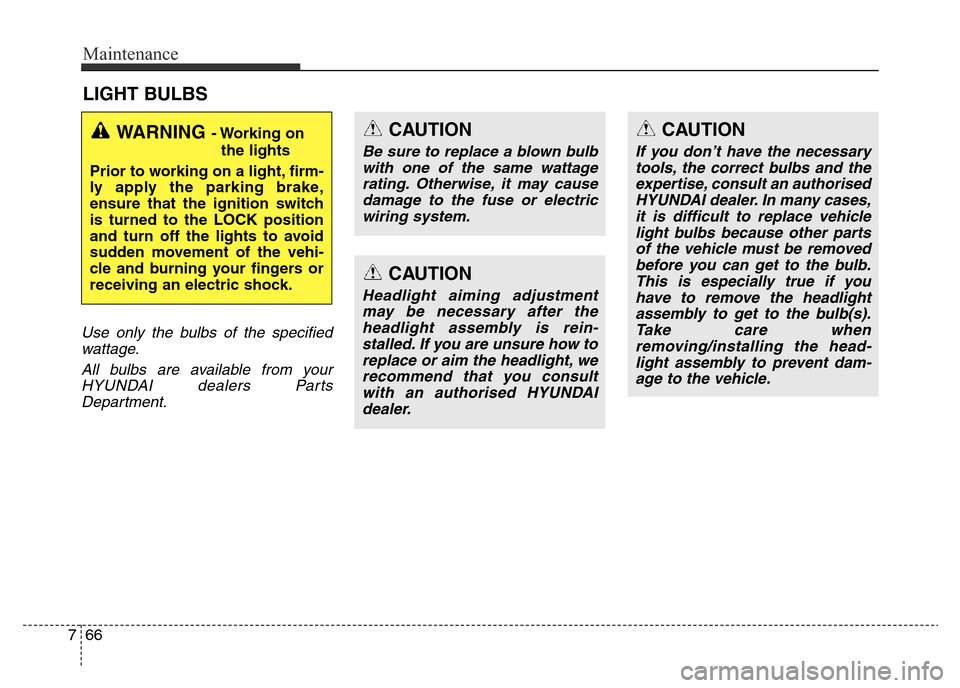

LIGHT BULBS
Use only the bulbs of the specified
wattage.
All bulbs are available from your
HYUNDAI dealers Parts
Department.
WARNING - Working on
the lights
Prior to working on a light, firm-
ly apply the parking brake,
ensure that the ignition switch
is turned to the LOCK position
and turn off the lights to avoid
sudden movement of the vehi-
cle and burning your fingers or
receiving an electric shock.CAUTION
Be sure to replace a blown bulb
with one of the same wattage
rating. Otherwise, it may cause
damage to the fuse or electric
wiring system.
CAUTION
Headlight aiming adjustment
may be necessary after the
headlight assembly is rein-
stalled. If you are unsure how to
replace or aim the headlight, we
recommend that you consult
with an authorised HYUNDAI
dealer.
CAUTION
If you don’t have the necessary
tools, the correct bulbs and the
expertise, consult an authorised
HYUNDAI dealer. In many cases,
it is difficult to replace vehicle
light bulbs because other parts
of the vehicle must be removed
before you can get to the bulb.
This is especially true if you
have to remove the headlight
assembly to get to the bulb(s).
Take care when
removing/installing the head-
light assembly to prevent dam-
age to the vehicle.

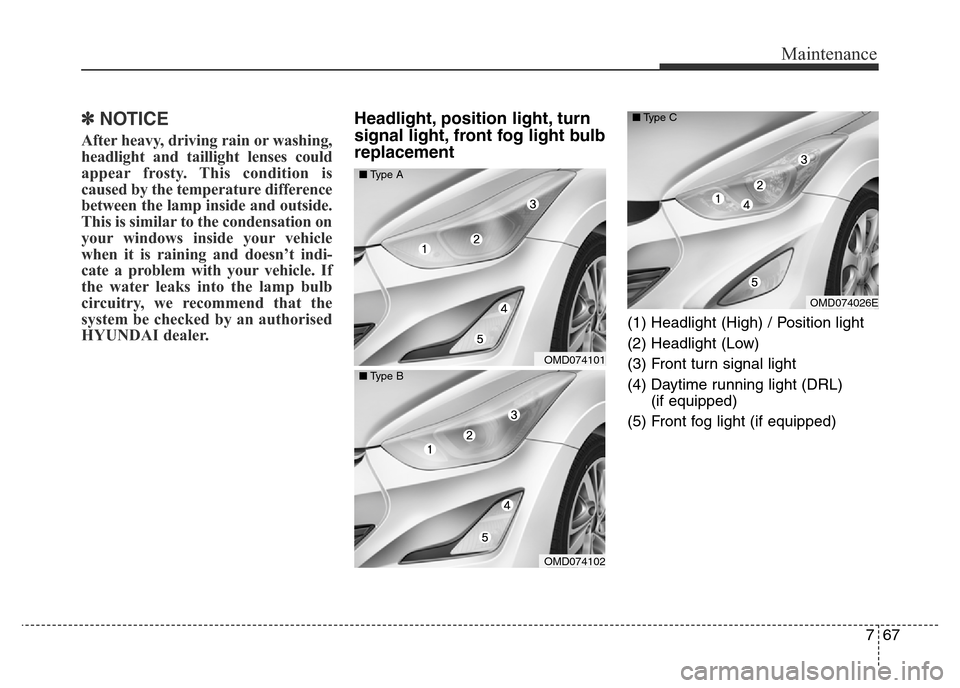

767
Maintenance
✽NOTICE
After heavy, driving rain or washing,
headlight and taillight lenses could
appear frosty. This condition is
caused by the temperature difference
between the lamp inside and outside.
This is similar to the condensation on
your windows inside your vehicle
when it is raining and doesn’t indi-
cate a problem with your vehicle. If
the water leaks into the lamp bulb
circuitry, we recommend that the
system be checked by an authorised
HYUNDAI dealer.
Headlight, position light, turn
signal light, front fog light bulb
replacement
(1) Headlight (High) / Position light
(2) Headlight (Low)
(3) Front turn signal light
(4) Daytime running light (DRL)
(if equipped)
(5) Front fog light (if equipped)
OMD074101 ■Type A
OMD074102 ■Type B
OMD074026E ■Type C

Maintenance

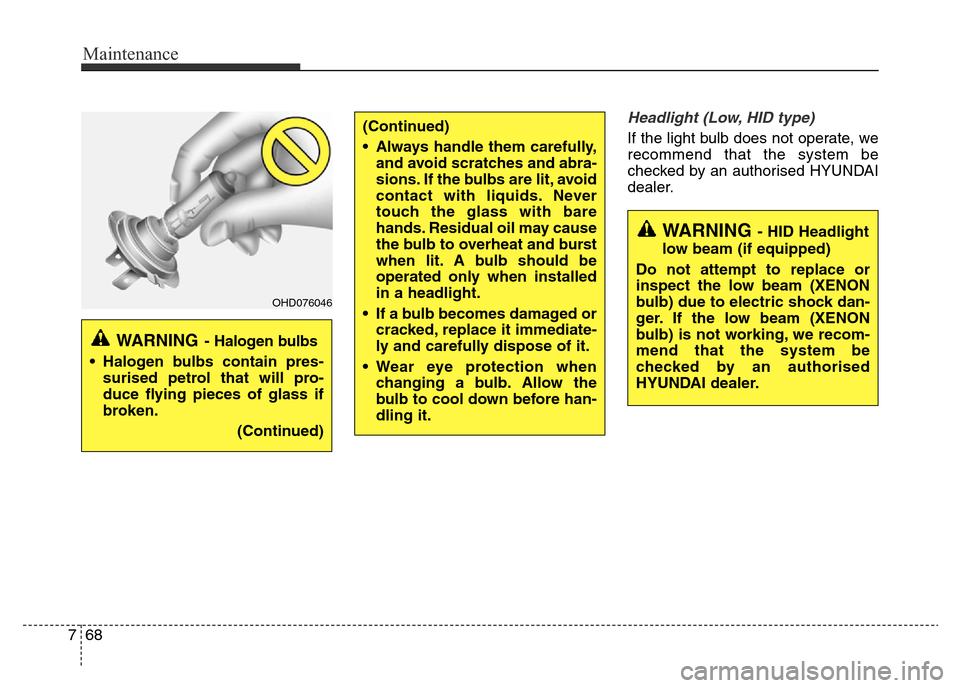

68 7
Headlight (Low, HID type)
If the light bulb does not operate, we
recommend that the system be
checked by an authorised HYUNDAI
dealer.(Continued)
• Always handle them carefully,
and avoid scratches and abra-
sions. If the bulbs are lit, avoid
contact with liquids. Never
touch the glass with bare
hands. Residual oil may cause
the bulb to overheat and burst
when lit. A bulb should be
operated only when installed
in a headlight.
• If a bulb becomes damaged or
cracked, replace it immediate-
ly and carefully dispose of it.
• Wear eye protection when
changing a bulb. Allow the
bulb to cool down before han-
dling it.
WARNING- Halogen bulbs
• Halogen bulbs contain pres-
surised petrol that will pro-
duce flying pieces of glass if
broken.
(Continued)
OHD076046
WARNING - HID Headlight
low beam (if equipped)
Do not attempt to replace or
inspect the low beam (XENON
bulb) due to electric shock dan-
ger. If the low beam (XENON
bulb) is not working, we recom-
mend that the system be
checked by an authorised
HYUNDAI dealer.

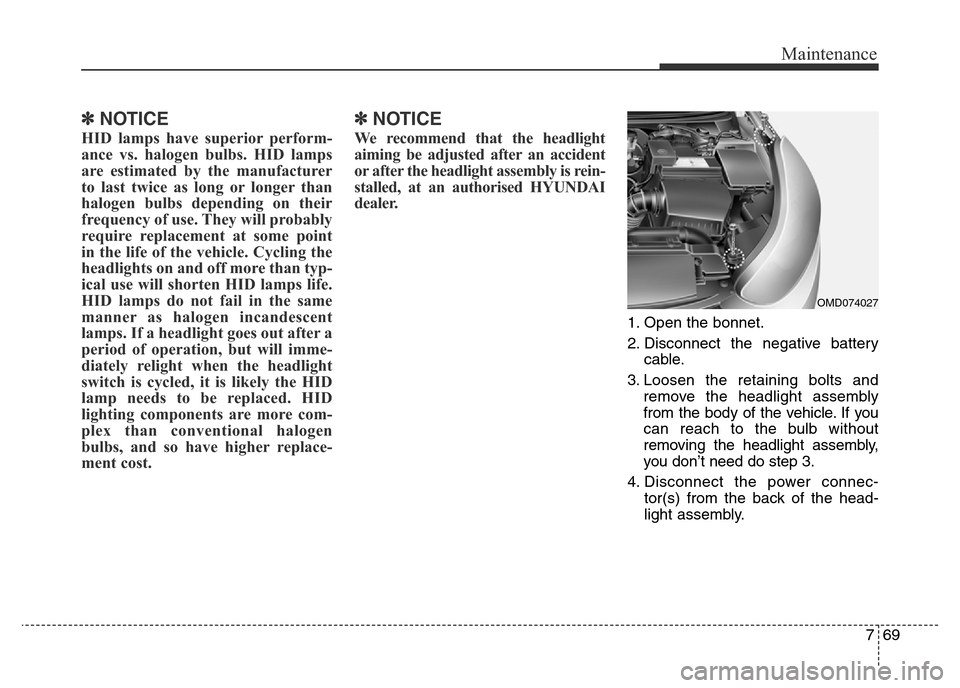

769
Maintenance
✽NOTICE
HID lamps have superior perform-
ance vs. halogen bulbs. HID lamps
are estimated by the manufacturer
to last twice as long or longer than
halogen bulbs depending on their
frequency of use. They will probably
require replacement at some point
in the life of the vehicle. Cycling the
headlights on and off more than typ-
ical use will shorten HID lamps life.
HID lamps do not fail in the same
manner as halogen incandescent
lamps. If a headlight goes out after a
period of operation, but will imme-
diately relight when the headlight
switch is cycled, it is likely the HID
lamp needs to be replaced. HID
lighting components are more com-
plex than conventional halogen
bulbs, and so have higher replace-
ment cost.
✽NOTICE
We recommend that the headlight
aiming be adjusted after an accident
or after the headlight assembly is rein-
stalled, at an authorised HYUNDAI
dealer.
1. Open the bonnet.
2. Disconnect the negative battery
cable.
3. Loosen the retaining bolts and
remove the headlight assembly
from the body of the vehicle. If you
can reach to the bulb without
removing the headlight assembly,
you don’t need do step 3.
4. Disconnect the power connec-
tor(s) from the back of the head-
light assembly.
OMD074027

Maintenance

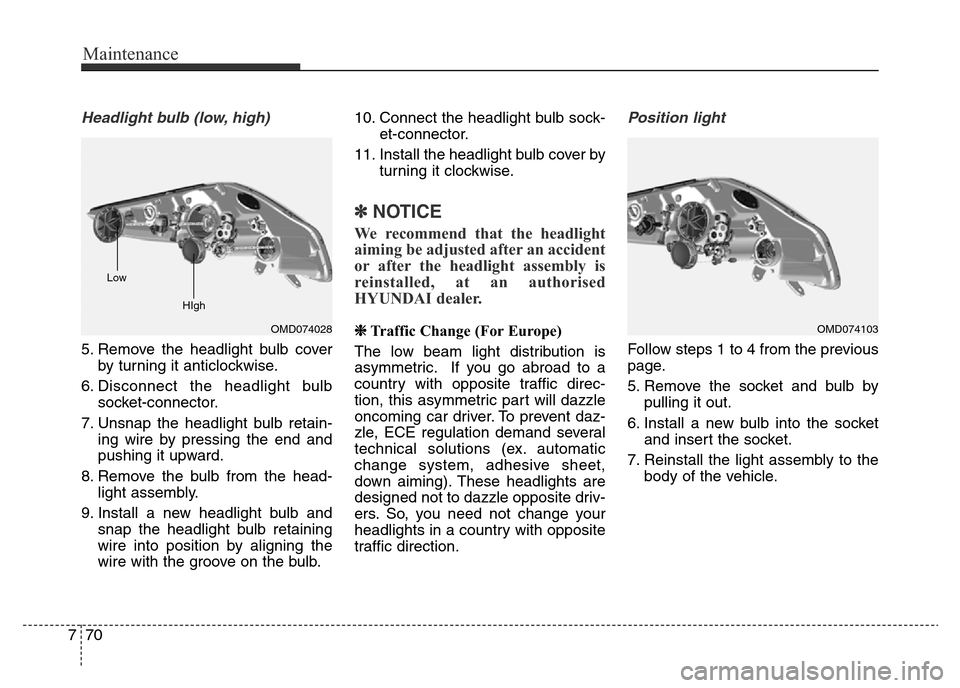

70 7
Headlight bulb (low, high)
5. Remove the headlight bulb cover
by turning it anticlockwise.
6. Disconnect the headlight bulb
socket-connector.
7. Unsnap the headlight bulb retain-
ing wire by pressing the end and
pushing it upward.
8. Remove the bulb from the head-
light assembly.
9. Install a new headlight bulb and
snap the headlight bulb retaining
wire into position by aligning the
wire with the groove on the bulb.10. Connect the headlight bulb sock-
et-connector.
11. Install the headlight bulb cover by
turning it clockwise.
✽NOTICE
We recommend that the headlight
aiming be adjusted after an accident
or after the headlight assembly is
reinstalled, at an authorised
HYUNDAI dealer.
❈Traffic Change (For Europe)
The low beam light distribution is
asymmetric. If you go abroad to a
country with opposite traffic direc-
tion, this asymmetric part will dazzle
oncoming car driver. To prevent daz-
zle, ECE regulation demand several
technical solutions (ex. automatic
change system, adhesive sheet,
down aiming). These headlights are
designed not to dazzle opposite driv-
ers. So, you need not change your
headlights in a country with opposite
traffic direction.
Position light
Follow steps 1 to 4 from the previous
page.
5. Remove the socket and bulb by
pulling it out.
6. Install a new bulb into the socket
and insert the socket.
7. Reinstall the light assembly to the
body of the vehicle.
OMD074103OMD074028 Low
HIgh

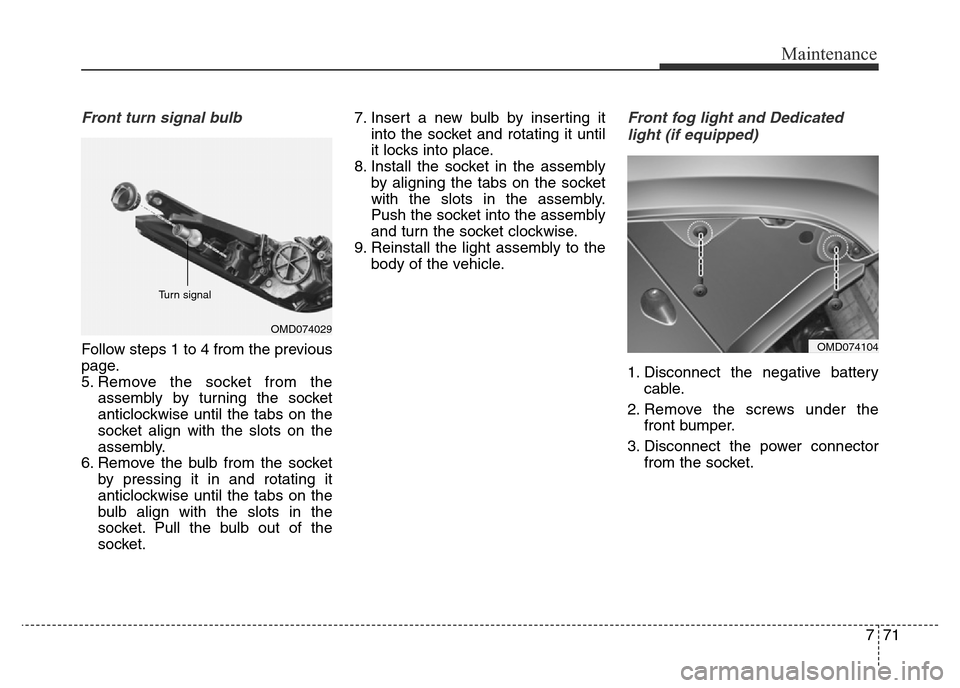

771
Maintenance
Front turn signal bulb
Follow steps 1 to 4 from the previous
page.
5. Remove the socket from the
assembly by turning the socket
anticlockwise until the tabs on the
socket align with the slots on the
assembly.
6. Remove the bulb from the socket
by pressing it in and rotating it
anticlockwise until the tabs on the
bulb align with the slots in the
socket. Pull the bulb out of the
socket.7. Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.
8. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
9. Reinstall the light assembly to the
body of the vehicle.
Front fog light and Dedicated
light (if equipped)
1. Disconnect the negative battery
cable.
2. Remove the screws under the
front bumper.
3. Disconnect the power connector
from the socket.
OMD074104
OMD074029 Turn signal

Maintenance

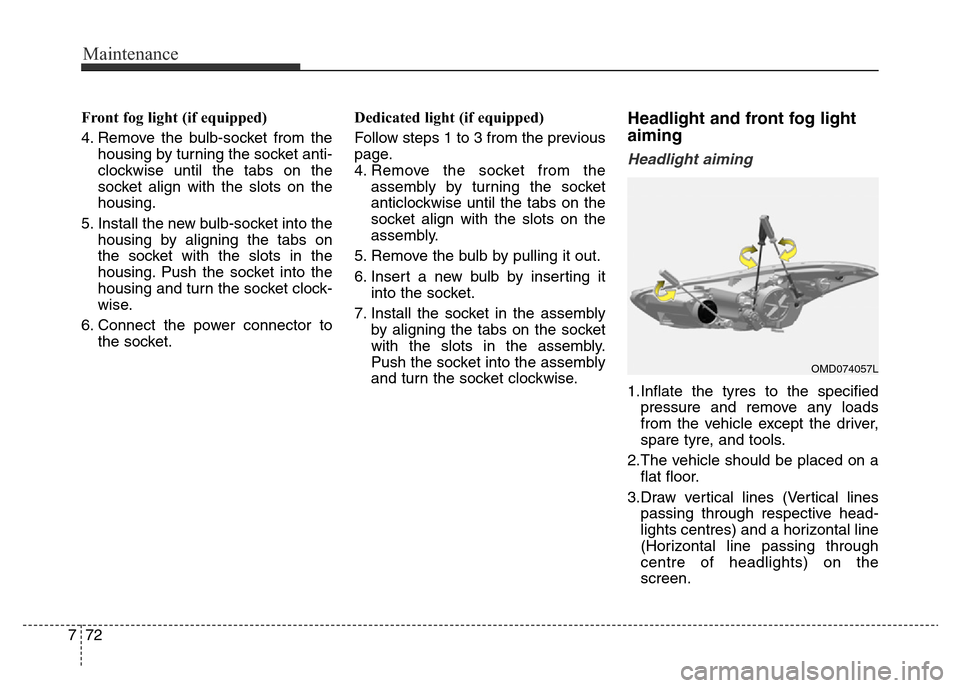

72 7
Front fog light (if equipped)
4. Remove the bulb-socket from the
housing by turning the socket anti-
clockwise until the tabs on the
socket align with the slots on the
housing.
5. Install the new bulb-socket into the
housing by aligning the tabs on
the socket with the slots in the
housing. Push the socket into the
housing and turn the socket clock-
wise.
6. Connect the power connector to
the socket.Dedicated light (if equipped)
Follow steps 1 to 3 from the previous
page.
4. Remove the socket from the
assembly by turning the socket
anticlockwise until the tabs on the
socket align with the slots on the
assembly.
5. Remove the bulb by pulling it out.
6. Insert a new bulb by inserting it
into the socket.
7. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.Headlight and front fog light
aiming
Headlight aiming
1.Inflate the tyres to the specified
pressure and remove any loads
from the vehicle except the driver,
spare tyre, and tools.
2.The vehicle should be placed on a
flat floor.
3.Draw vertical lines (Vertical lines
passing through respective head-
lights centres) and a horizontal line
(Horizontal line passing through
centre of headlights) on the
screen.
OMD074057L

773
Maintenance
4.With the headlight and battery in
normal condition, aim the head-
lights so the brightest portion falls
on the horizontal and vertical lines.
5.To aim the low beam left or right,
turn the driver clockwise or anti-
clockwise. To aim the low beam up
or down, turn the driver clockwise
or anticlockwise.
To aim the high beam up or down,
turn the driver clockwise or anti-
clockwise.Front fog light aiming
The front fog light can be aimed as
the same manner of the headlights
aiming.
With the front fog lights and battery
normal condition, aim the front fog
lights.
To aim the front fog light up or down,
turn the driver clockwise or anticlock-
wise.
OMD074061L

Maintenance

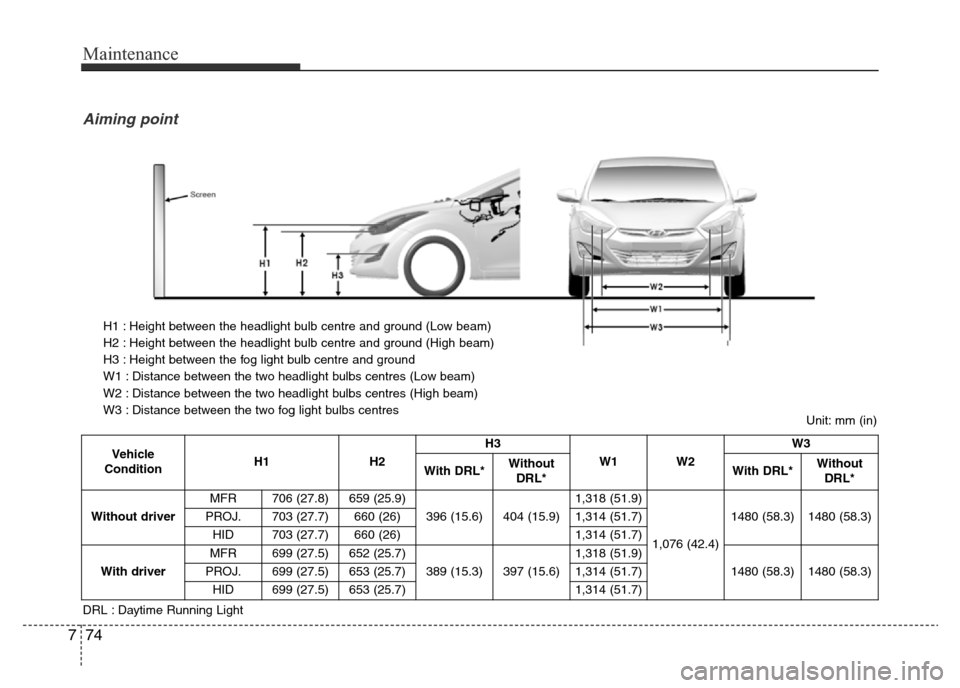

74 7
Vehicle
ConditionH1 H2H3
W1 W2W3
With DRL*Without
DRL*With DRL*Without
DRL*
Without driverMFR 706 (27.8) 659 (25.9)
396 (15.6)
404 (15.9)1,318 (51.9)
1,076 (42.4)1480 (58.3) 1480 (58.3) PROJ. 703 (27.7) 660 (26) 1,314 (51.7)
HID 703 (27.7) 660 (26) 1,314 (51.7)
With driverMFR 699 (27.5) 652 (25.7)
389 (15.3)
397 (15.6)1,318 (51.9)
1480 (58.3) 1480 (58.3) PROJ. 699 (27.5) 653 (25.7) 1,314 (51.7)
HID 699 (27.5) 653 (25.7) 1,314 (51.7)
DRL : Daytime Running LightUnit: mm (in)
Aiming point
H1 : Height between the headlight bulb centre and ground (Low beam)
H2 : Height between the headlight bulb centre and ground (High beam)
H3 : Height between the fog light bulb centre and ground
W1 : Distance between the two headlight bulbs centres (Low beam)
W2 : Distance between the two headlight bulbs centres (High beam)
W3 : Distance between the two fog light bulbs centres

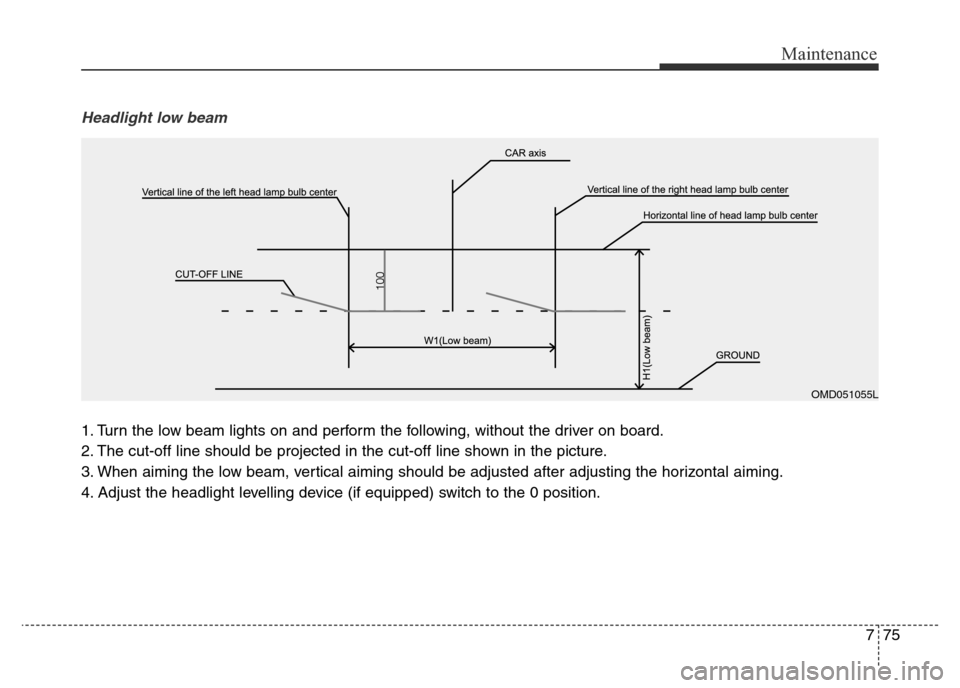

775
Maintenance
Headlight low beam
1. Turn the low beam lights on and perform the following, without the driver on board.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. Adjust the headlight levelling device (if equipped) switch to the 0 position.
OMD051055L
