Page 441 of 498

Hyundai Elantra 2015  Owners Manual - RHD (UK. Australia) Maintenance
46 7

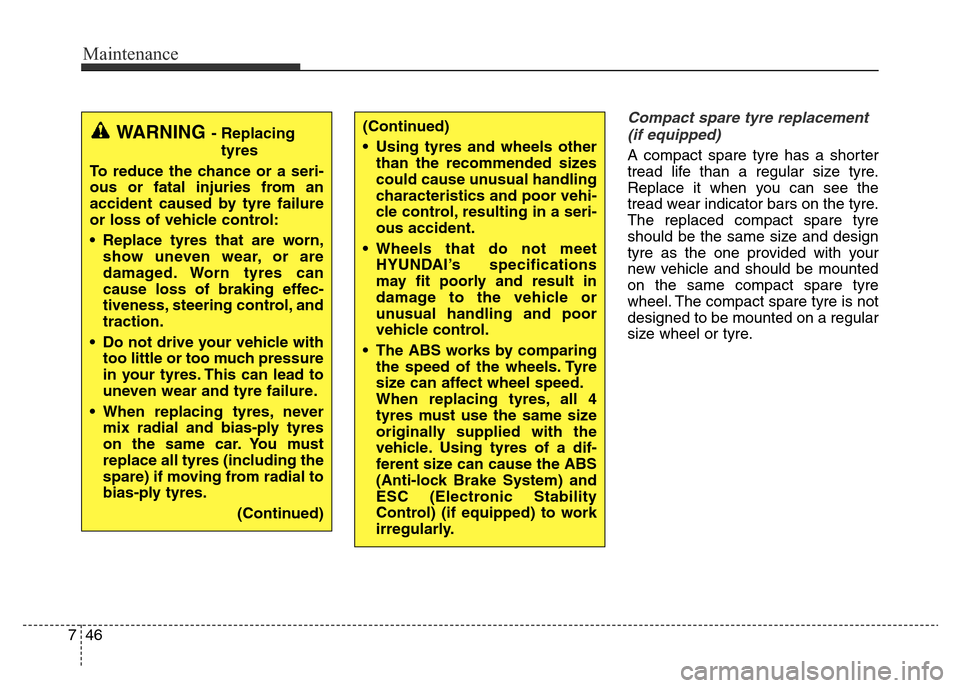

Compact spare tyre replacement
(if equipped)
A compact spare tyre has a shorter
tread life than a regular size tyre.
Replace it when you can see the
tread wear indicator bars on the

Page 442 of 498

Hyundai Elantra 2015  Owners Manual - RHD (UK. Australia) 747
Maintenance
Wheel replacement
When replacing the wheels for any
reason, make sure the new wheels
are equivalent to the original factory
units in diameter, rim width and off-
set.
Tyre traction
Ty

Page 443 of 498

Hyundai Elantra 2015  Owners Manual - RHD (UK. Australia) Maintenance
48 7

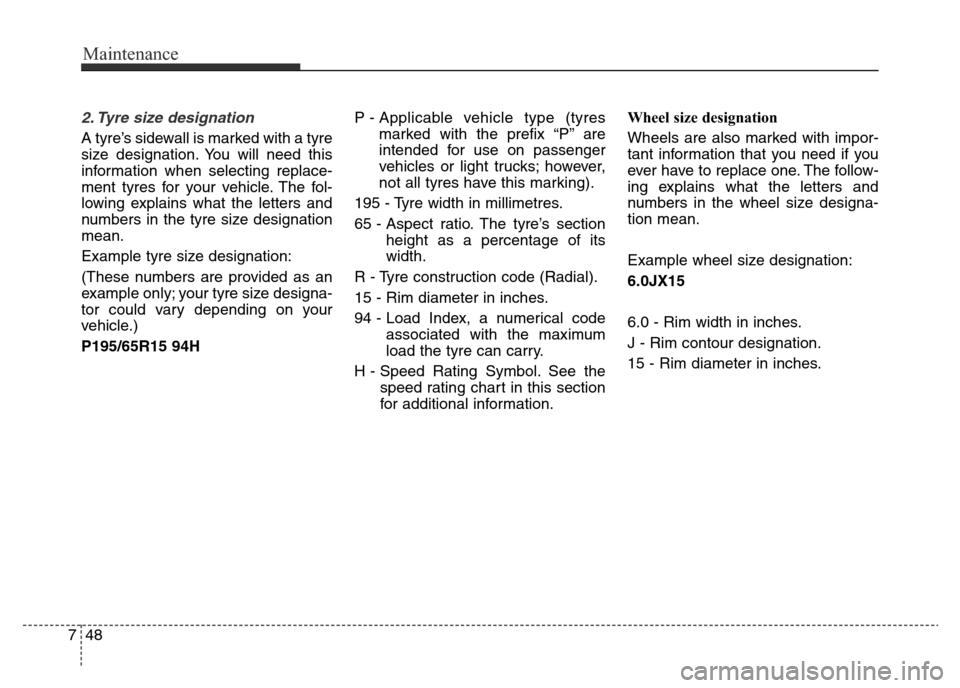

2. Tyre size designation
A tyre’s sidewall is marked with a tyre
size designation. You will need this
information when selecting replace-
ment tyres for your vehicle. The fol-
low

Page 444 of 498

Hyundai Elantra 2015  Owners Manual - RHD (UK. Australia) 749
Maintenance

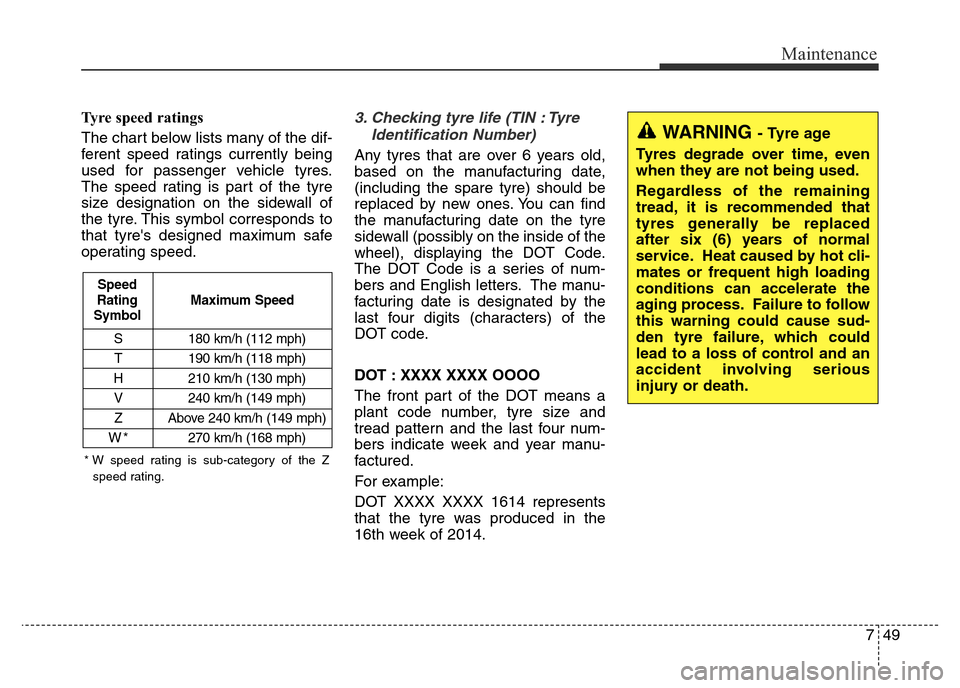

Tyre speed ratings
The chart below lists many of the dif-
ferent speed ratings currently being
used for passenger vehicle tyres.
The speed rating is part of the tyre
size designation

Page 445 of 498

Hyundai Elantra 2015  Owners Manual - RHD (UK. Australia) Maintenance
50 7

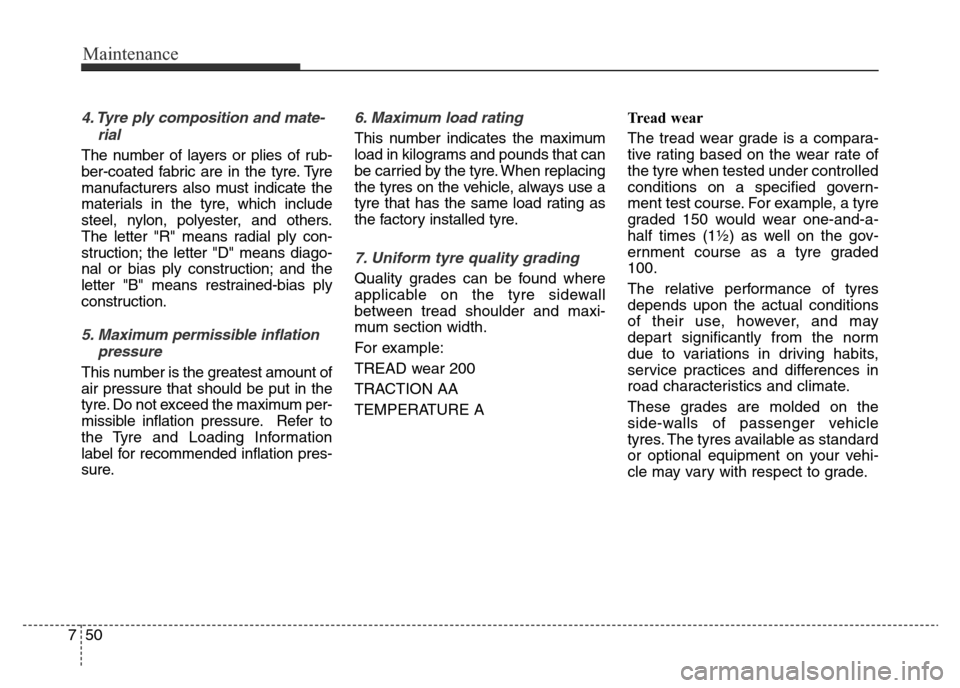

4. Tyre ply composition and mate-
rial
The number of layers or plies of rub-
ber-coated fabric are in the tyre. Tyre
manufacturers also must indicate the
materials in the tyre, which

Page 446 of 498

Hyundai Elantra 2015  Owners Manual - RHD (UK. Australia) 751
Maintenance

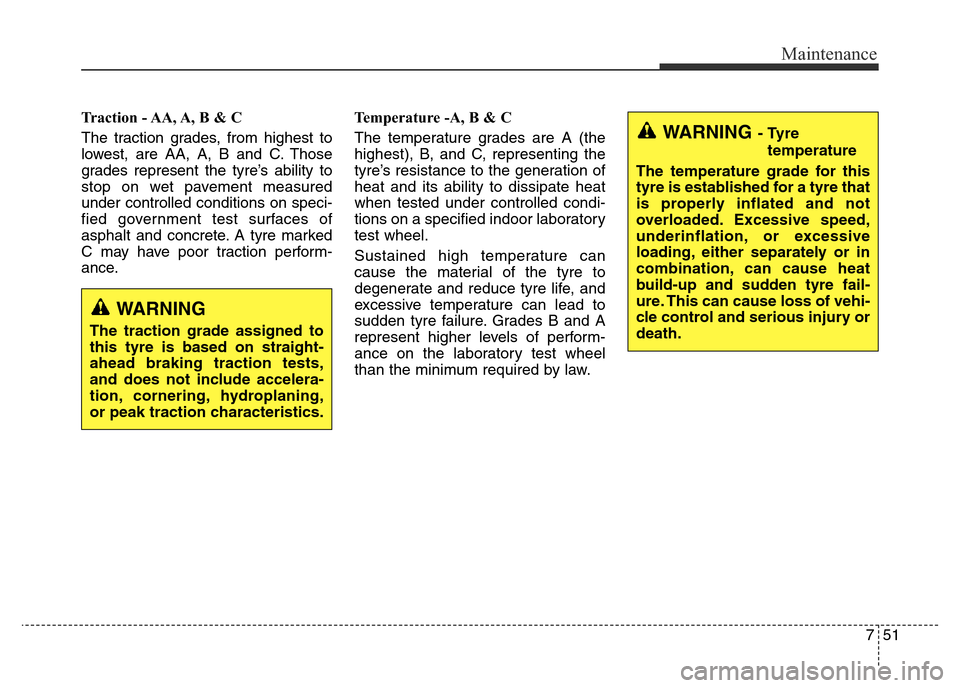

Traction - AA, A, B & C
The traction grades, from highest to
lowest, are AA, A, B and C. Those
grades represent the tyre’s ability to
stop on wet pavement measured
under controlled

Page 447 of 498

Hyundai Elantra 2015  Owners Manual - RHD (UK. Australia) Maintenance
52 7

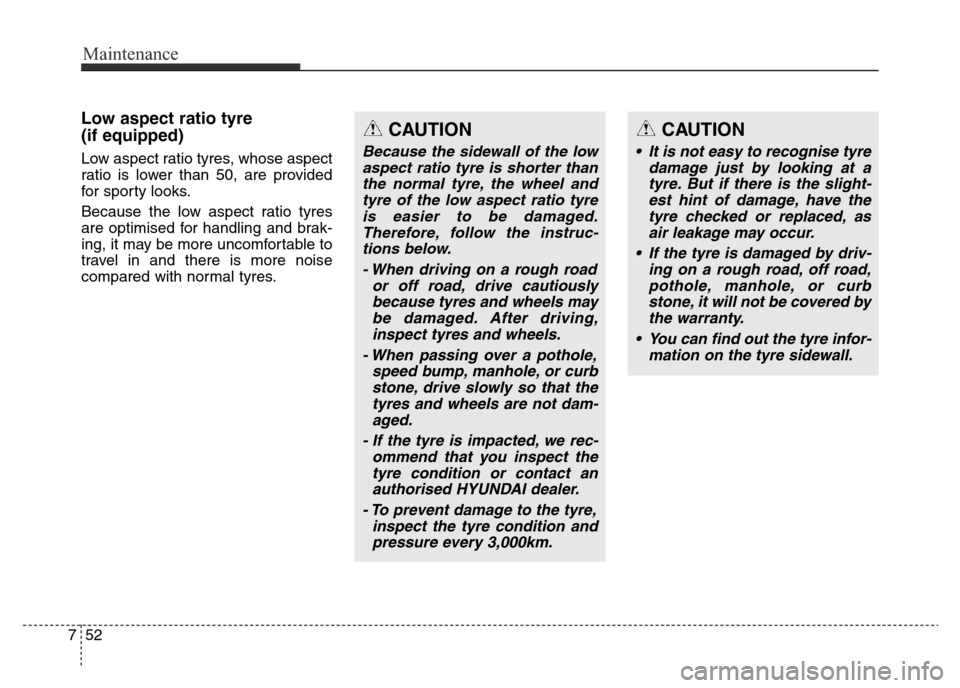

Low aspect ratio tyre
(if equipped)
Low aspect ratio tyres, whose aspect
ratio is lower than 50, are provided
for sporty looks.
Because the low aspect ratio tyres
are optimised for

Page 448 of 498

Hyundai Elantra 2015  Owners Manual - RHD (UK. Australia) 753
Maintenance

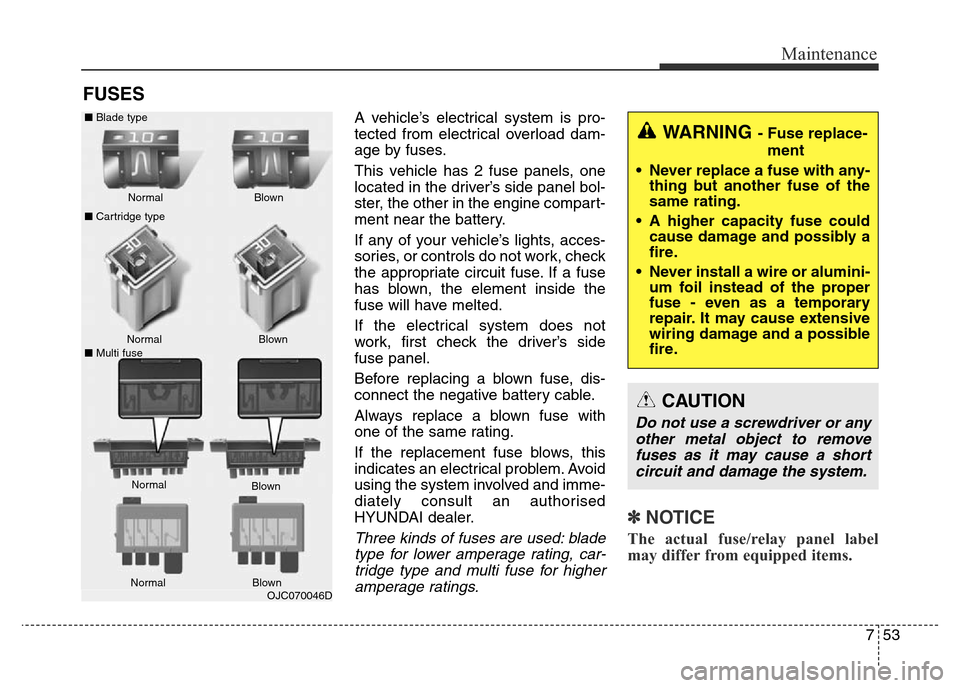

FUSES
A vehicle’s electrical system is pro-
tected from electrical overload dam-
age by fuses.
This vehicle has 2 fuse panels, one
located in the driver’s side panel bol-
ster, the

Page 449 of 498

Hyundai Elantra 2015  Owners Manual - RHD (UK. Australia) Maintenance
54 7

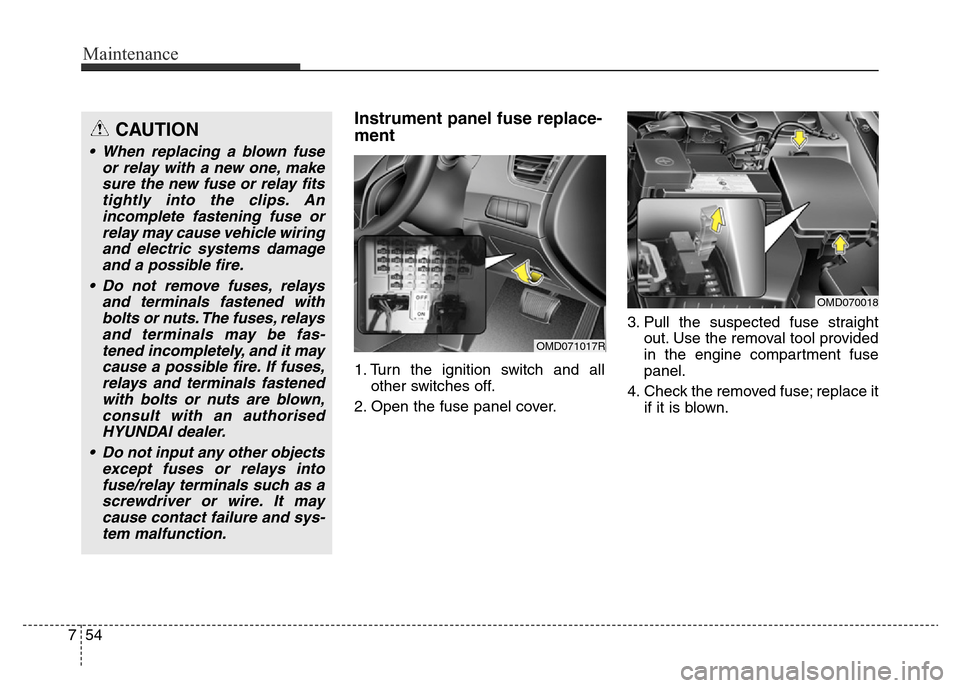

Instrument panel fuse replace-
ment
1. Turn the ignition switch and all
other switches off.
2. Open the fuse panel cover.3. Pull the suspected fuse straight
out. Use the removal tool

Page 450 of 498

Hyundai Elantra 2015  Owners Manual - RHD (UK. Australia) 755
Maintenance

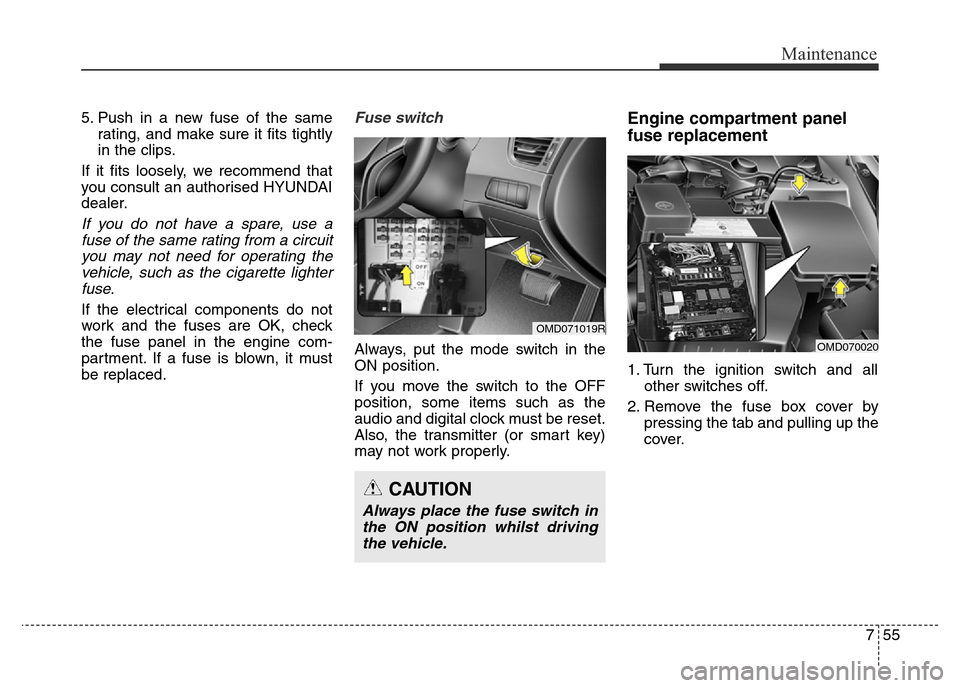

5. Push in a new fuse of the same
rating, and make sure it fits tightly
in the clips.
If it fits loosely, we recommend that
you consult an authorised HYUNDAI
dealer.
If you do not have
