Hyundai Elantra 2015 Owner's Manual - RHD (UK. Australia)

Maintenance
56 7

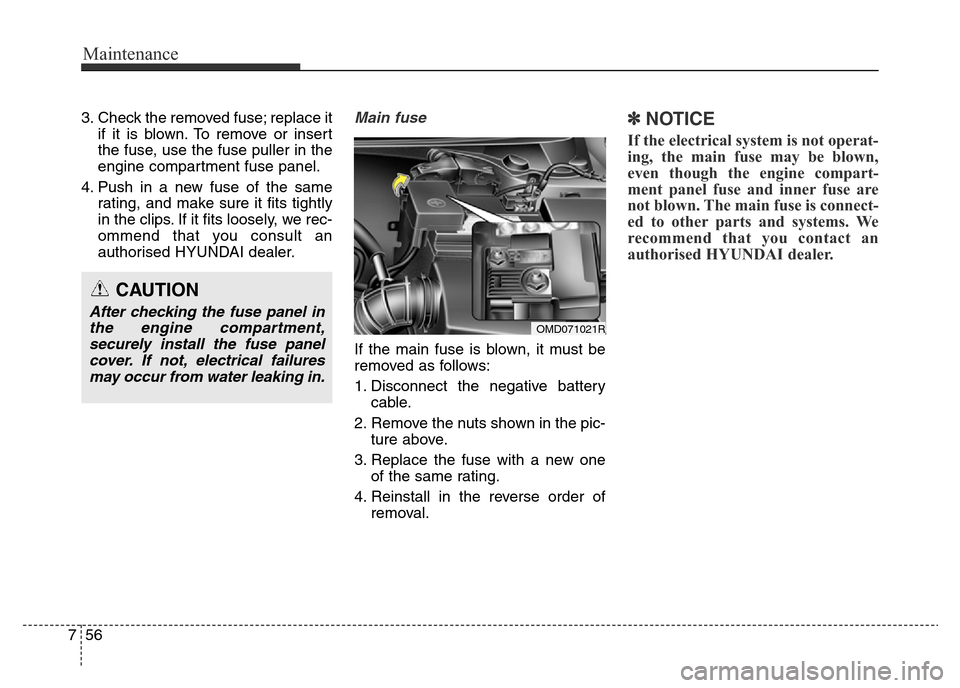

3. Check the removed fuse; replace it
if it is blown. To remove or insert
the fuse, use the fuse puller in the
engine compartment fuse panel.
4. Push in a new fuse of the same
rating, and make sure it fits tightly
in the clips. If it fits loosely, we rec-
ommend that you consult an
authorised HYUNDAI dealer.Main fuse
If the main fuse is blown, it must be
removed as follows:
1. Disconnect the negative battery
cable.
2. Remove the nuts shown in the pic-
ture above.
3. Replace the fuse with a new one
of the same rating.
4. Reinstall in the reverse order of
removal.
✽NOTICE
If the electrical system is not operat-
ing, the main fuse may be blown,
even though the engine compart-
ment panel fuse and inner fuse are
not blown. The main fuse is connect-
ed to other parts and systems. We
recommend that you contact an
authorised HYUNDAI dealer.
OMD071021R
CAUTION
After checking the fuse panel in
the engine compartment,
securely install the fuse panel
cover. If not, electrical failures
may occur from water leaking in.

757
Maintenance

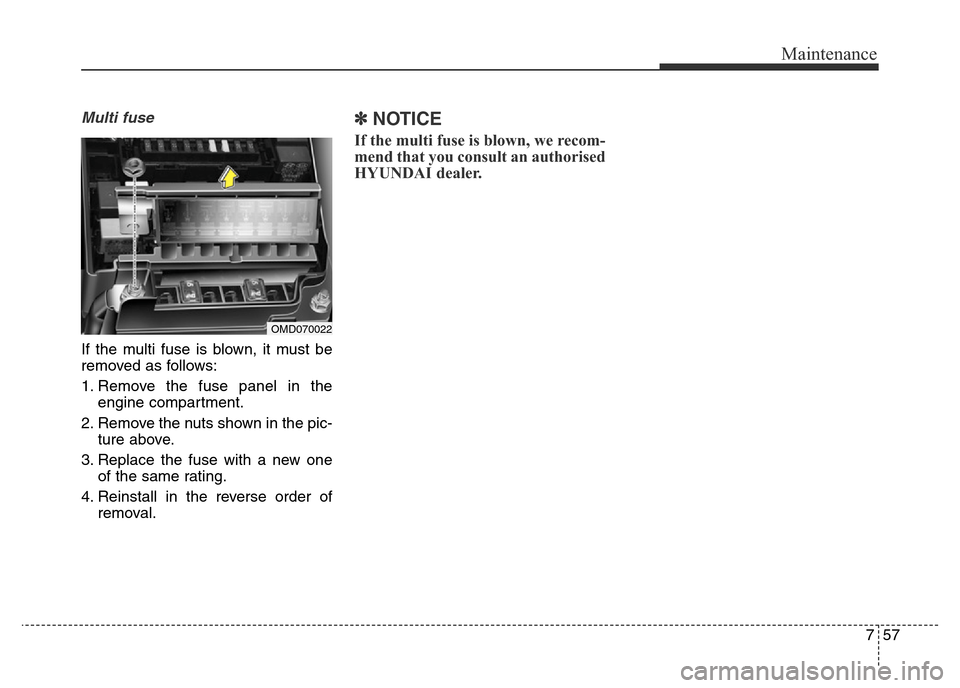

Multi fuse
If the multi fuse is blown, it must be
removed as follows:
1. Remove the fuse panel in the
engine compartment.
2. Remove the nuts shown in the pic-
ture above.
3. Replace the fuse with a new one
of the same rating.
4. Reinstall in the reverse order of
removal.
✽NOTICE
If the multi fuse is blown, we recom-
mend that you consult an authorised
HYUNDAI dealer.
OMD070022

Maintenance
58 7

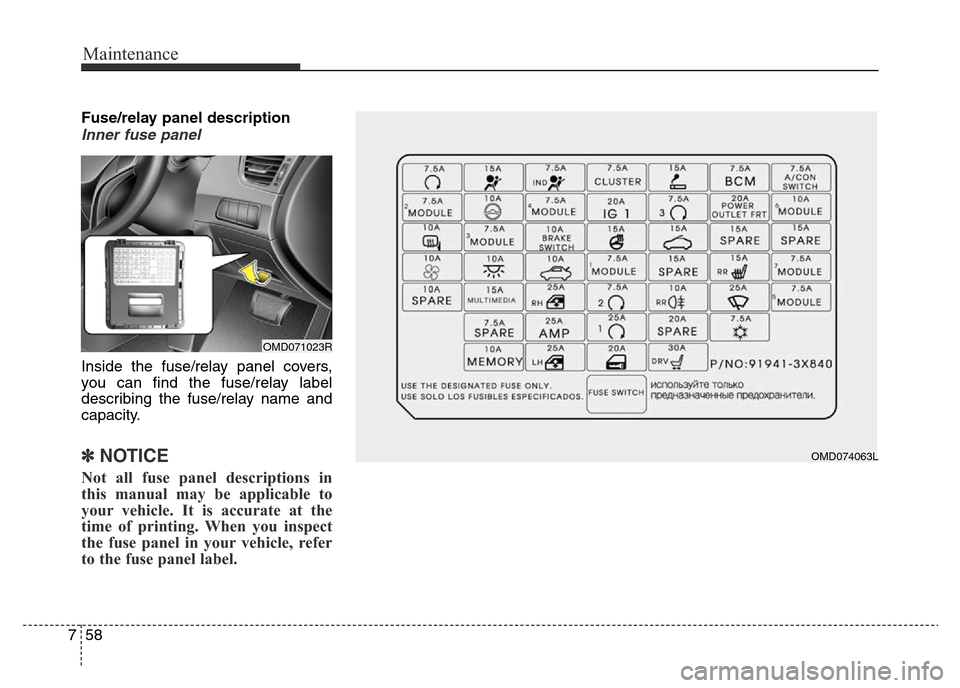

Fuse/relay panel description
Inner fuse panel
Inside the fuse/relay panel covers,
you can find the fuse/relay label
describing the fuse/relay name and
capacity.
✽NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse panel in your vehicle, refer
to the fuse panel label.
OMD071023R
OMD074063L

759
Maintenance

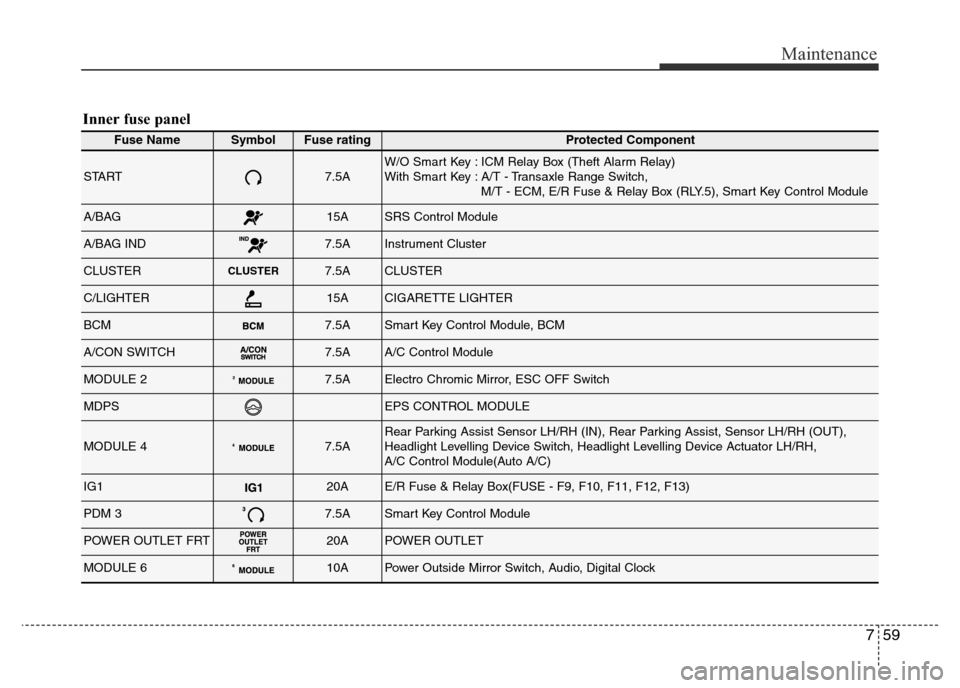

Inner fuse panel
Fuse NameSymbolFuse ratingProtected Component
START7.5AW/O Smart Key : ICM Relay Box (Theft Alarm Relay)
With Smart Key : A/T - Transaxle Range Switch,
M/T - ECM, E/R Fuse & Relay Box (RLY.5), Smart Key Control Module
A/BAG15ASRS Control Module
A/BAG IND7.5AInstrument Cluster
CLUSTERCLUSTER7.5ACLUSTER
C/LIGHTER15ACIGARETTE LIGHTER
BCM7.5ASmart Key Control Module, BCM
A/CON SWITCH7.5AA/C Control Module
MODULE 27.5AElectro Chromic Mirror, ESC OFF Switch
MDPSEPS CONTROL MODULE
MODULE 47.5ARear Parking Assist Sensor LH/RH (IN), Rear Parking Assist, Sensor LH/RH (OUT),
Headlight Levelling Device Switch, Headlight Levelling Device Actuator LH/RH,
A/C Control Module(Auto A/C)
IG120AE/R Fuse & Relay Box(FUSE - F9, F10, F11, F12, F13)
PDM 37.5ASmart Key Control Module
POWER OUTLET FRT20APOWER OUTLET
MODULE 610APower Outside Mirror Switch, Audio, Digital Clock

Maintenance
60 7

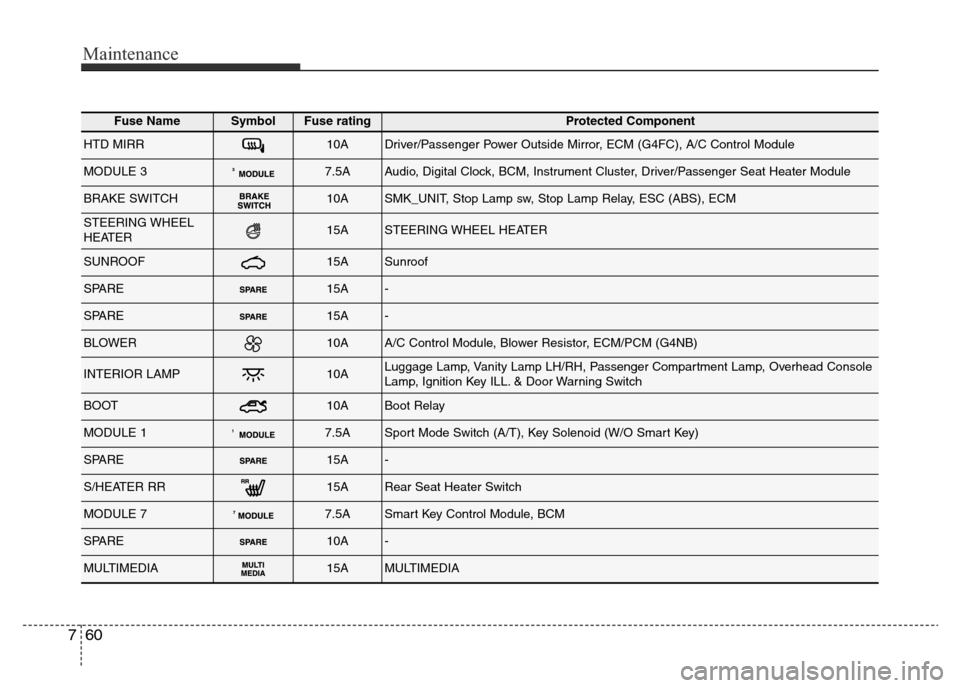

Fuse NameSymbolFuse ratingProtected Component
HTD MIRR10ADriver/Passenger Power Outside Mirror, ECM (G4FC), A/C Control Module
MODULE 37.5AAudio, Digital Clock, BCM, Instrument Cluster, Driver/Passenger Seat Heater Module
BRAKE SWITCH10ASMK_UNIT, Stop Lamp sw, Stop Lamp Relay, ESC (ABS), ECM
STEERING WHEEL
HEATER15ASTEERING WHEEL HEATER
SUNROOF15ASunroof
SPARE15A-
SPARE15A-
BLOWER10AA/C Control Module, Blower Resistor, ECM/PCM (G4NB)
INTERIOR LAMP10ALuggage Lamp, Vanity Lamp LH/RH, Passenger Compartment Lamp, Overhead Console
Lamp, Ignition Key ILL. & Door Warning Switch
BOOT10ABoot Relay
MODULE 17.5ASport Mode Switch (A/T), Key Solenoid (W/O Smart Key)
SPARE 15A-
S/HEATER RR15ARear Seat Heater Switch
MODULE 77.5ASmart Key Control Module, BCM
SPARE10A-
MULTIMEDIA15AMULTIMEDIA

761
Maintenance

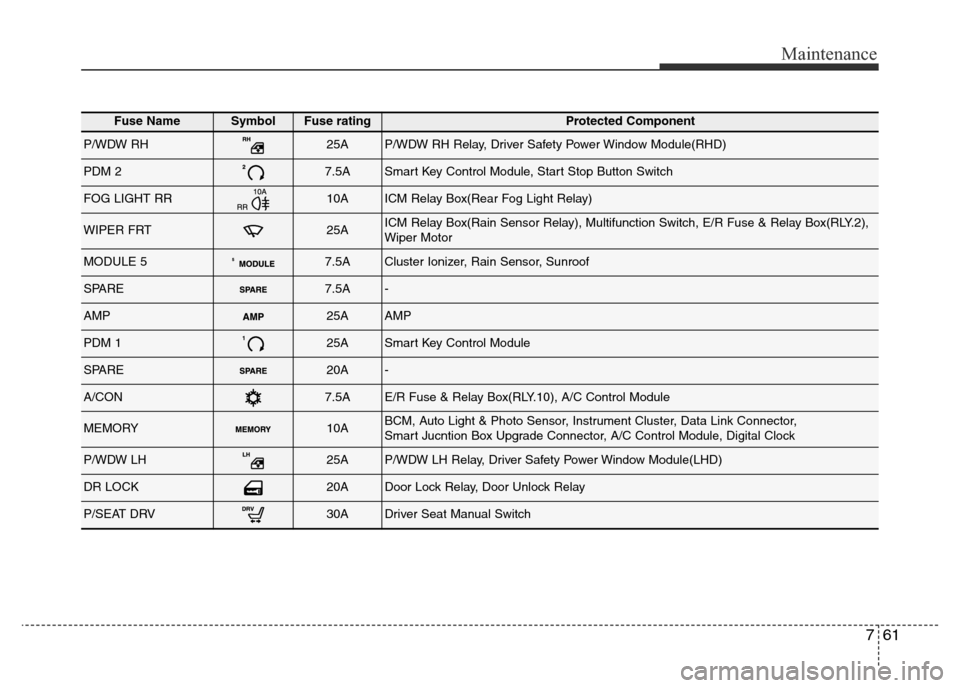

Fuse NameSymbolFuse ratingProtected Component
P/WDW RH25AP/WDW RH Relay, Driver Safety Power Window Module(RHD)
PDM 27.5ASmart Key Control Module, Start Stop Button Switch
FOG LIGHT RR10AICM Relay Box(Rear Fog Light Relay)
WIPER FRT25AICM Relay Box(Rain Sensor Relay), Multifunction Switch, E/R Fuse & Relay Box(RLY.2),
Wiper Motor
MODULE 57.5ACluster Ionizer, Rain Sensor, Sunroof
SPARE7.5A-
AMP25AAMP
PDM 125ASmart Key Control Module
SPARE20A-
A/CON7.5AE/R Fuse & Relay Box(RLY.10), A/C Control Module
MEMORY10ABCM, Auto Light & Photo Sensor, Instrument Cluster, Data Link Connector,
Smart Jucntion Box Upgrade Connector, A/C Control Module, Digital Clock
P/WDW LH25AP/WDW LH Relay, Driver Safety Power Window Module(LHD)
DR LOCK20ADoor Lock Relay, Door Unlock Relay
P/SEAT DRV30ADriver Seat Manual Switch

Maintenance
62 7

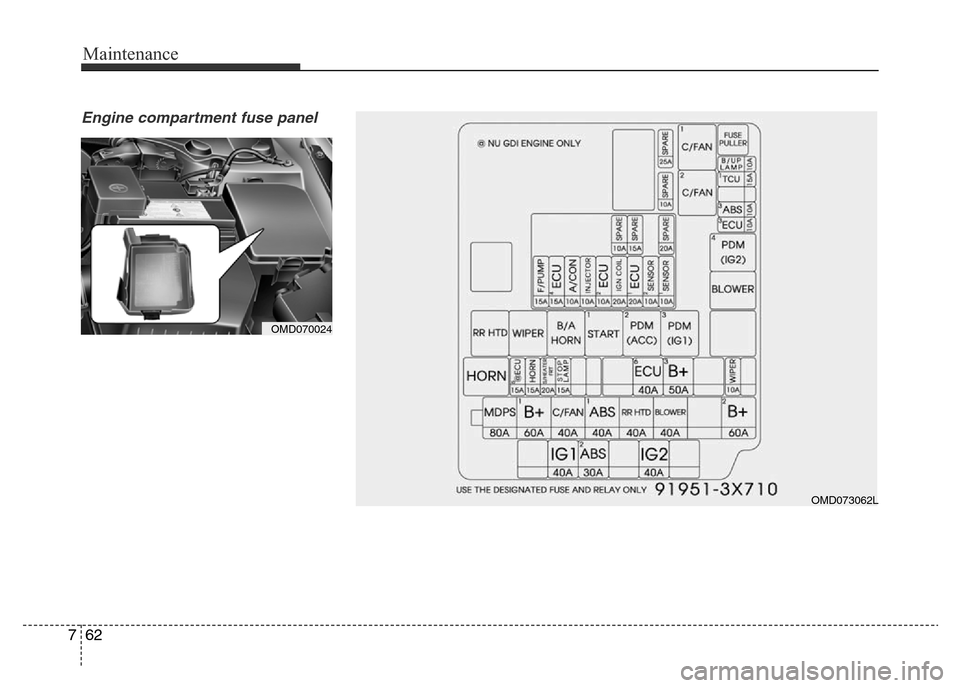

Engine compartment fuse panel
OMD070024
OMD073062L

763
Maintenance

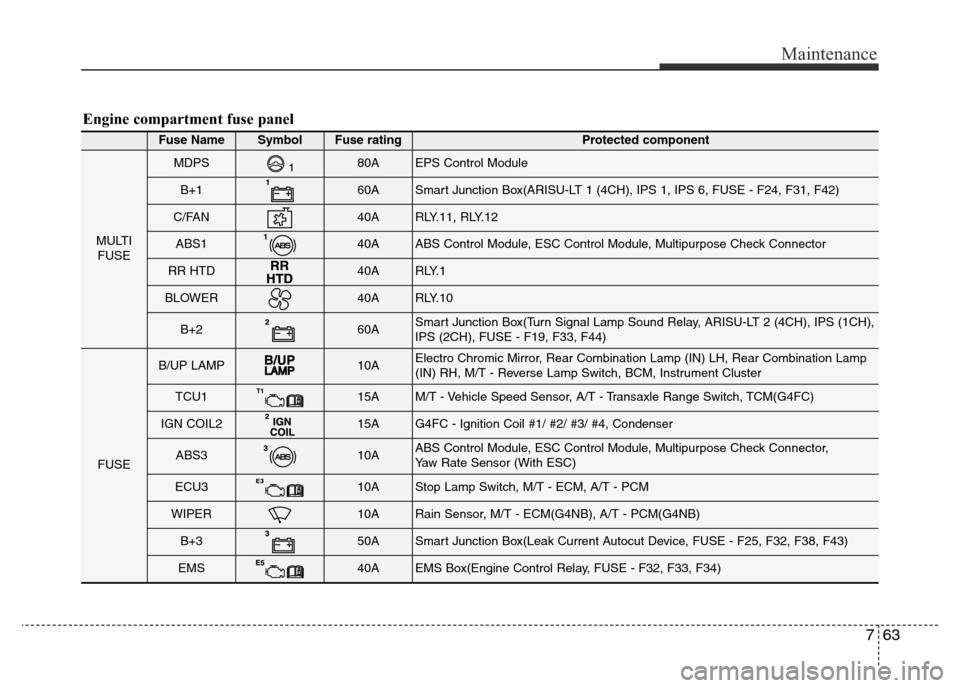

Engine compartment fuse panel
Fuse NameSymbol Fuse ratingProtected component
MULTI
FUSE
MDPS80AEPS Control Module
B+160ASmart Junction Box(ARISU-LT 1 (4CH), IPS 1, IPS 6, FUSE - F24, F31, F42)
C/FAN40ARLY.11, RLY.12
ABS140AABS Control Module, ESC Control Module, Multipurpose Check Connector
RR HTD40AR LY. 1
BLOWER40ARLY.10
B+260ASmart Junction Box(Turn Signal Lamp Sound Relay, ARISU-LT 2 (4CH), IPS (1CH),
IPS (2CH), FUSE - F19, F33, F44)
FUSE
B/UP LAMP10AElectro Chromic Mirror, Rear Combination Lamp (IN) LH, Rear Combination Lamp
(IN) RH, M/T - Reverse Lamp Switch, BCM, Instrument Cluster
TCU115AM/T - Vehicle Speed Sensor, A/T - Transaxle Range Switch, TCM(G4FC)
IGN COIL215AG4FC - Ignition Coil #1/ #2/ #3/ #4, Condenser
ABS310AABS Control Module, ESC Control Module, Multipurpose Check Connector,
Yaw Rate Sensor (With ESC)
ECU310AStop Lamp Switch, M/T - ECM, A/T - PCM
WIPER10ARain Sensor, M/T - ECM(G4NB), A/T - PCM(G4NB)
B+350ASmart Junction Box(Leak Current Autocut Device, FUSE - F25, F32, F38, F43)
EMS40AEMS Box(Engine Control Relay, FUSE - F32, F33, F34)

Maintenance
64 7

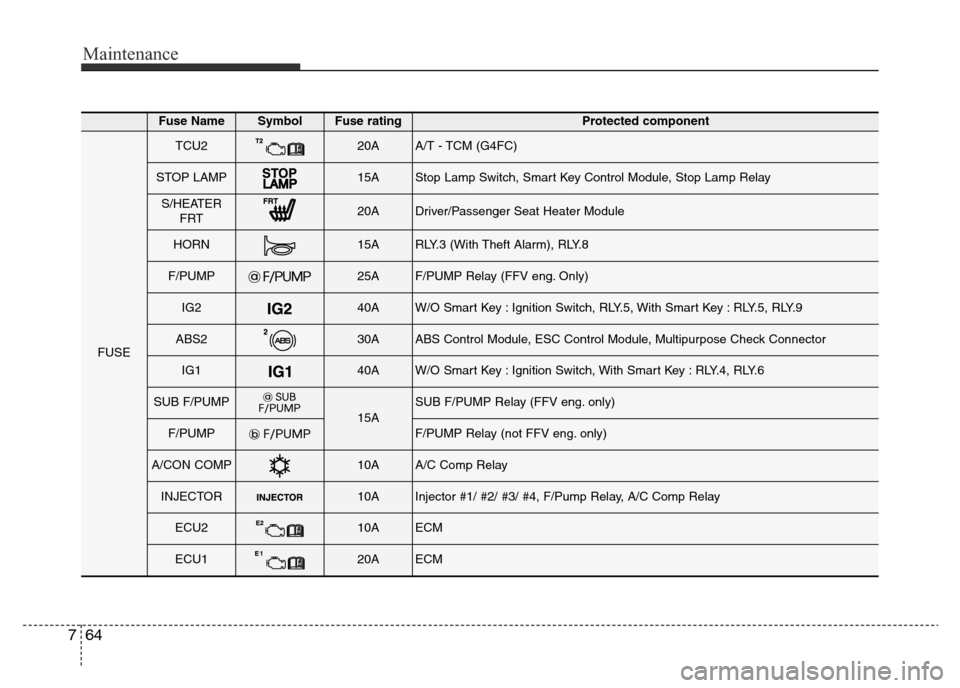

Fuse NameSymbol Fuse ratingProtected component
FUSE
TCU220AA/T - TCM (G4FC)
STOP LAMP15AStop Lamp Switch, Smart Key Control Module, Stop Lamp Relay
S/HEATER
FRT20ADriver/Passenger Seat Heater Module
HORN15ARLY.3 (With Theft Alarm), RLY.8
F/PUMP25AF/PUMP Relay (FFV eng. Only)
IG240AW/O Smart Key : Ignition Switch, RLY.5, With Smart Key : RLY.5, RLY.9
ABS230AABS Control Module, ESC Control Module, Multipurpose Check Connector
IG140AW/O Smart Key : Ignition Switch, With Smart Key : RLY.4, RLY.6
SUB F/PUMP
15A
SUB F/PUMP Relay (FFV eng. only)
F/PUMPF/PUMP Relay (not FFV eng. only)
A/CON COMP10AA/C Comp Relay
INJECTOR10AInjector #1/ #2/ #3/ #4, F/Pump Relay, A/C Comp Relay
ECU210AECM
ECU120AECM

765
Maintenance

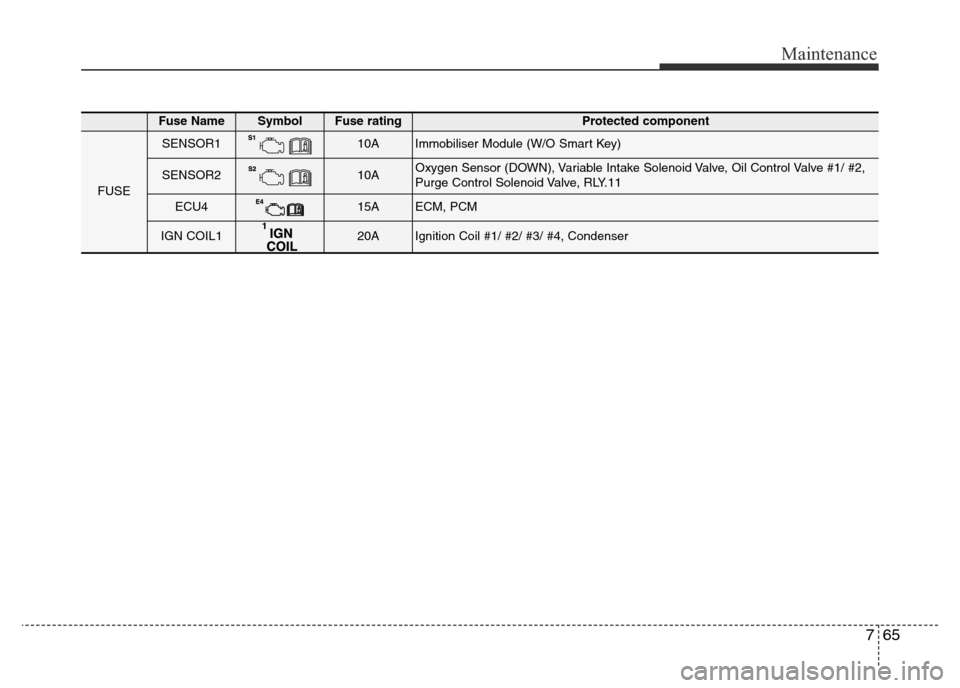

Fuse NameSymbol Fuse ratingProtected component
FUSE
SENSOR110AImmobiliser Module (W/O Smart Key)
SENSOR210AOxygen Sensor (DOWN), Variable Intake Solenoid Valve, Oil Control Valve #1/ #2,
Purge Control Solenoid Valve, RLY.11
ECU415AECM, PCM
IGN COIL120AIgnition Coil #1/ #2/ #3/ #4, Condenser
