Specifications & Consumer information
2 8

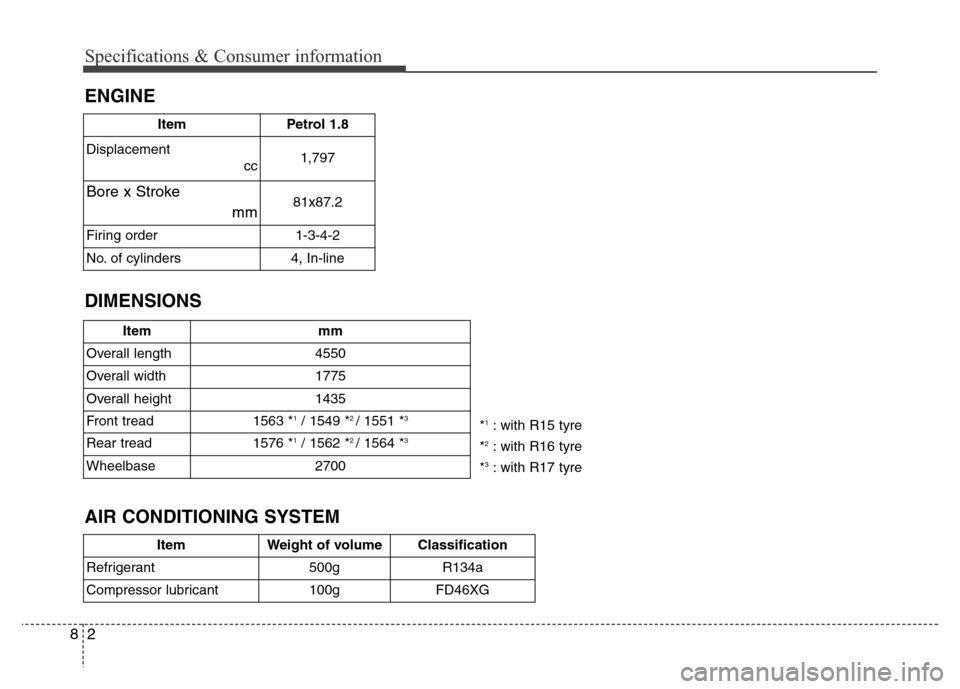

ENGINE
DIMENSIONS
Item Petrol 1.8
Displacement
cc1,797
Bore x Stroke
mm81x87.2
Firing order 1-3-4-2
No. of cylinders 4, In-line
Item mm
Overall length 4550
Overall width 1775
Overall height 1435
Front tread 1563 *
1/ 1549 *2 / 1551 *3
Rear tread1576 *1/ 1562 *2 / 1564 *3
Wheelbase2700
*1: with R15 tyre
*
2: with R16 tyre
*
3: with R17 tyre
AIR CONDITIONING SYSTEM
ItemWeight of volume Classification
Refrigerant
500g R134a
Compressor lubricant
100g FD46XG

83
Specifications & Consumer information

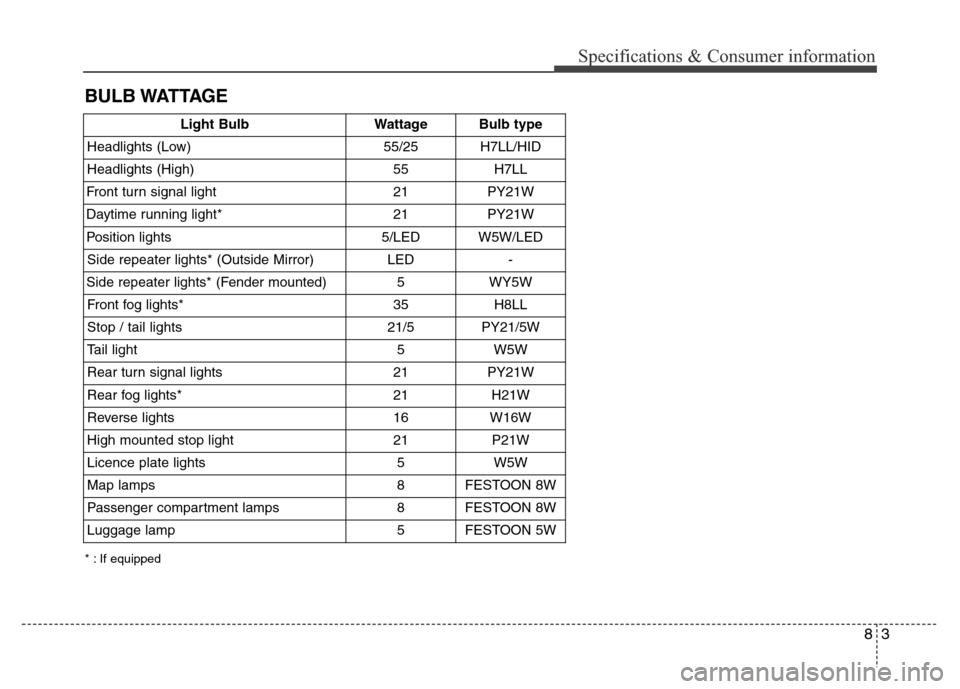

BULB WATTAGE
* : If equipped
Light BulbWattageBulb type
Headlights (Low)55/25H7LL/HID
Headlights (High)55H7LL
Front turn signal light21PY21W
Daytime running light*21PY21W
Position lights5/LEDW5W/LED
Side repeater lights* (Outside Mirror)LED-
Side repeater lights* (Fender mounted)5WY5W
Front fog lights*35H8LL
Stop / tail lights21/5PY21/5W
Tail light 5W5W
Rear turn signal lights 21PY21W
Rear fog lights*21H21W
Reverse lights16W16W
High mounted stop light21P21W
Licence plate lights5W5W
Map lamps8FESTOON 8W
Passenger compartment lamps8FESTOON 8W
Luggage lamp5FESTOON 5W

Specifications & Consumer information
4 8

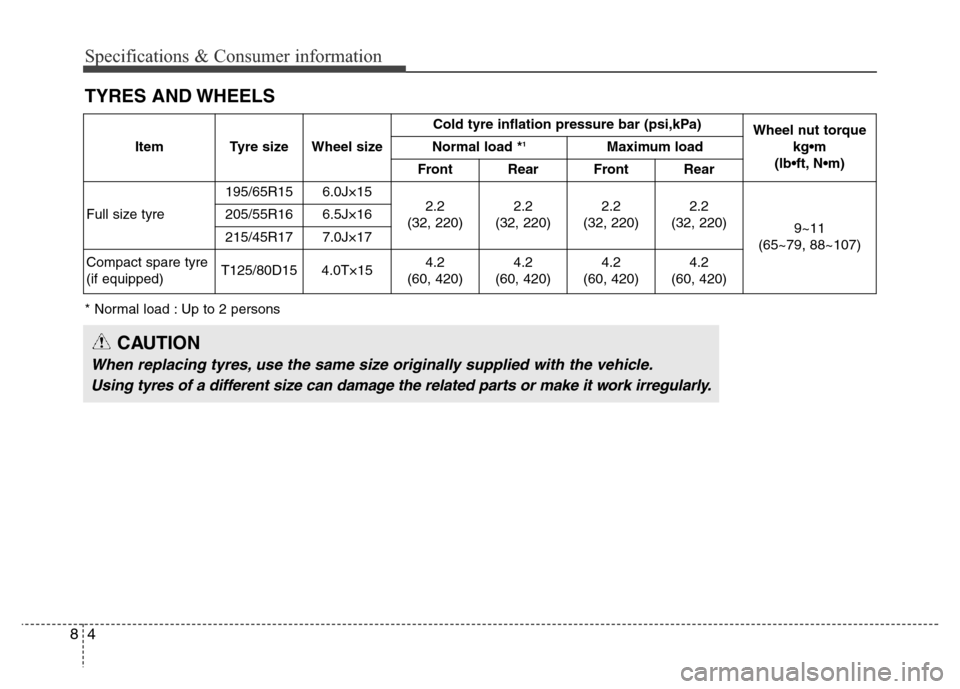

TYRES AND WHEELS
* Normal load : Up to 2 persons
CAUTION
When replacing tyres, use the same size originally supplied with the vehicle.
Using tyres of a different size can damage the related parts or make it work irregularly.
Item Tyre size Wheel sizeCold tyre inflation pressure bar (psi,kPa)
Wheel nut torque
kg•m
(lb•ft, N•m) Normal load *1Maximum load
Front Rear Front Rear
Full size tyre195/65R15 6.0J×15
2.2
(32, 220)2.2
(32, 220)2.2
(32, 220)2.2
(32, 220)
9~11
(65~79, 88~107) 205/55R16 6.5J×16
215/45R17 7.0J×17
Compact spare tyre
(if equipped)T125/80D15 4.0T×154.2
(60, 420)4.2
(60, 420)4.2
(60, 420)4.2
(60, 420)

85
Specifications & Consumer information

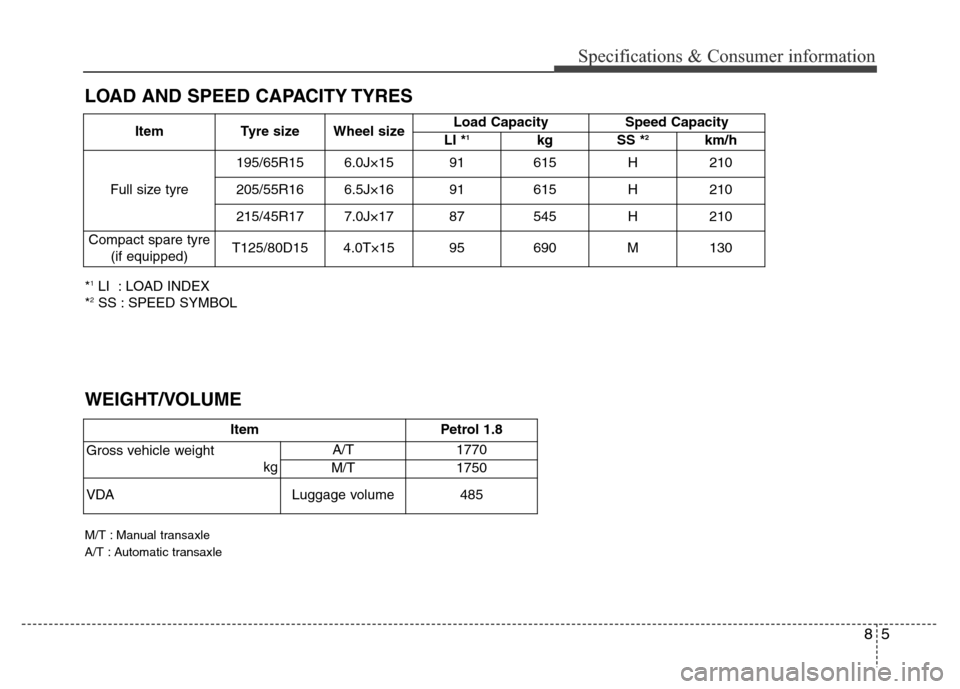

LOAD AND SPEED CAPACITY TYRES
WEIGHT/VOLUME
ItemPetrol 1.8
Gross vehicle weight
kgA/T
1770
M/T
1750
VDALuggage volume485
M/T : Manual transaxle
A/T : Automatic transaxle
*1LI : LOAD INDEX
*2SS : SPEED SYMBOLItem Tyre size Wheel sizeLoad Capacity Speed Capacity
LI *
1kg SS *2km/h
Full size tyre195/65R15 6.0J×15 91 615 H 210
205/55R16 6.5J×16 91 615 H 210
215/45R17 7.0J×1787545H210
Compact spare tyre
(if equipped)T125/80D154.0T×1595690M130

Specifications & Consumer information
6 8

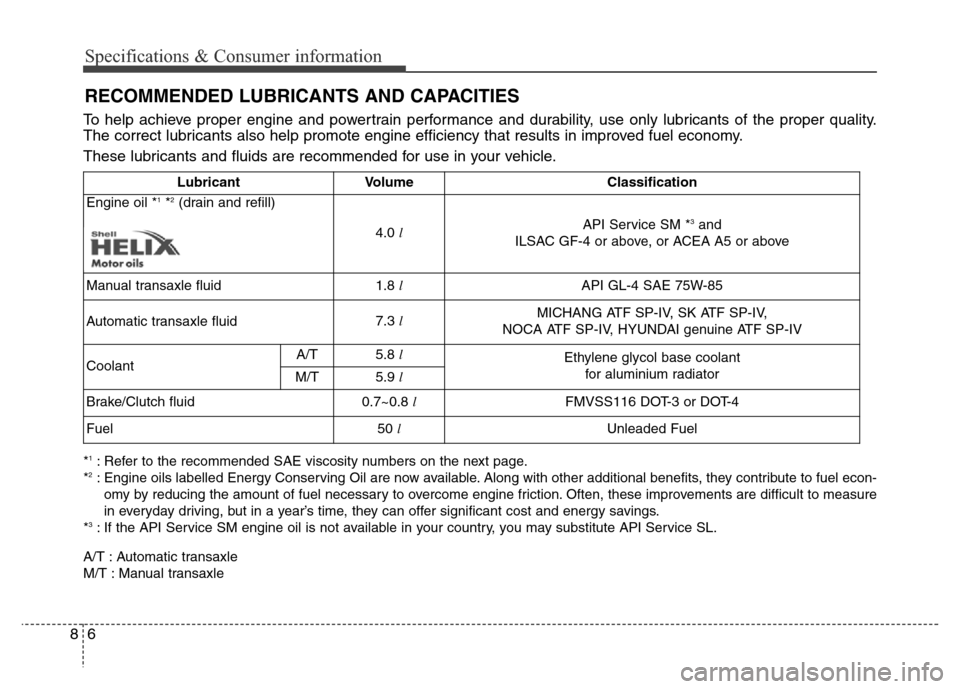

RECOMMENDED LUBRICANTS AND CAPACITIES
*1: Refer to the recommended SAE viscosity numbers on the next page.
*2: Engine oils labelled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ-
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*
3: If the API Service SM engine oil is not available in your country, you may substitute API Service SL.
A/T : Automatic transaxle
M/T : Manual transaxle
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Engine oil *1*2(drain and refill)
4.0 lAPI Service SM *3and
ILSAC GF-4 or above, or ACEA A5 or above
Manual transaxle fluid1.8 l
API GL-4 SAE 75W-85
Automatic transaxle fluid7.3 lMICHANG ATF SP-IV, SK ATF SP-IV,
NOCA ATF SP-IV, HYUNDAI genuine ATF SP-IV
CoolantA/T5.8 l
Ethylene glycol base coolant
for aluminium radiator
M/T5.9 l
Brake/Clutch fluid0.7~0.8 l
FMVSS116 DOT-3 or DOT-4
Fuel50 l
Unleaded Fuel

87
Specifications & Consumer information

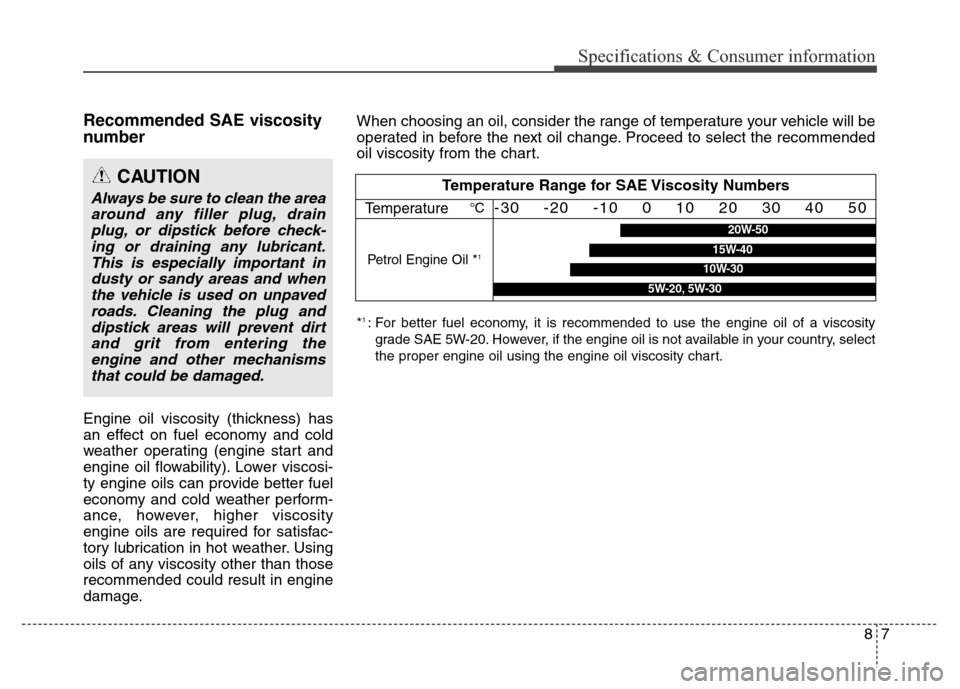

Recommended SAE viscosity
number
Engine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather. Using
oils of any viscosity other than those
recommended could result in engine
damage.
CAUTION
Always be sure to clean the area
around any filler plug, drain
plug, or dipstick before check-
ing or draining any lubricant.
This is especially important in
dusty or sandy areas and when
the vehicle is used on unpaved
roads. Cleaning the plug and
dipstick areas will prevent dirt
and grit from entering the
engine and other mechanisms
that could be damaged.
When choosing an oil, consider the range of temperature your vehicle will be
operated in before the next oil change. Proceed to select the recommended
oil viscosity from the chart.
Temperature Range for SAE Viscosity Numbers
Temperature°C-30 -20 -10 0 10 20 30 40 50
20W-50
10W-30
15W-40
5W-20, 5W-30
Petrol Engine Oil *1
*1 : For better fuel economy, it is recommended to use the engine oil of a viscosity
grade SAE 5W-20. However, if the engine oil is not available in your country, select
the proper engine oil using the engine oil viscosity chart.

Specifications & Consumer information
8 8

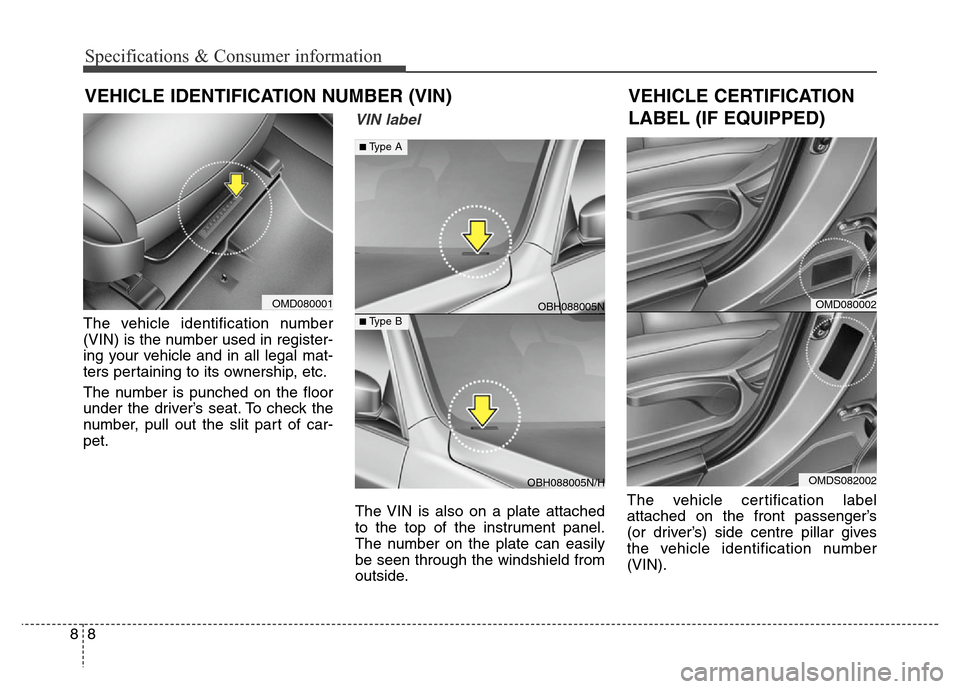

The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched on the floor
under the driver’s seat. To check the
number, pull out the slit part of car-
pet.
VIN label
The VIN is also on a plate attached
to the top of the instrument panel.
The number on the plate can easily
be seen through the windshield from
outside.The vehicle certification label
attached on the front passenger’s
(or driver’s) side centre pillar gives
the vehicle identification number
(VIN).
VEHICLE IDENTIFICATION NUMBER (VIN)
OMD080001OMD080002
OMDS082002
VEHICLE CERTIFICATION
LABEL (IF EQUIPPED)
OBH088005N
OBH088005N/H
■Type A
■Type B

89
Specifications & Consumer information

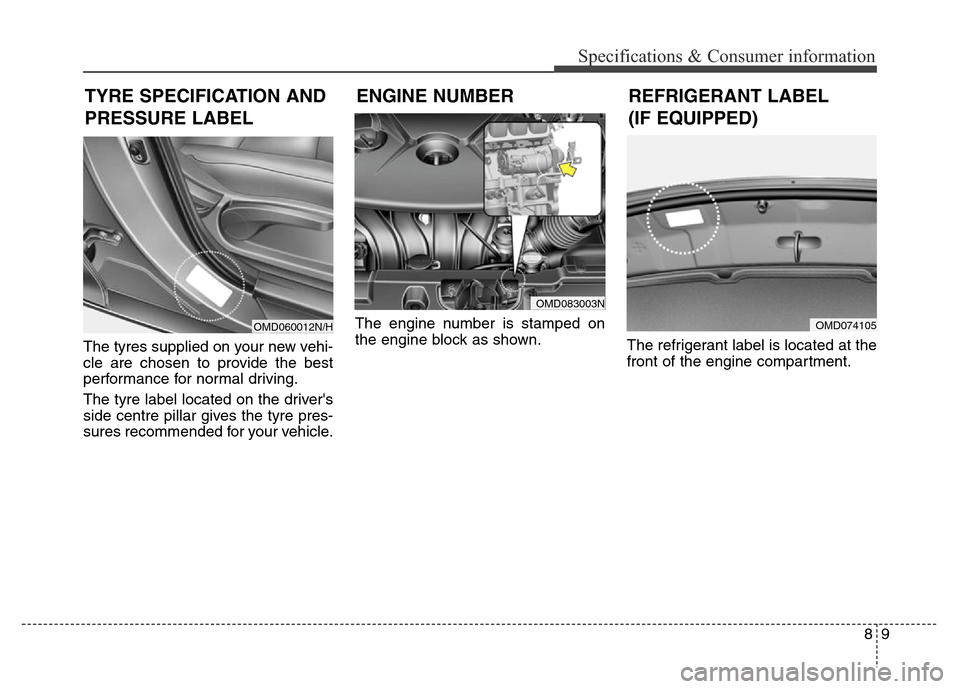

The tyres supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tyre label located on the driver's
side centre pillar gives the tyre pres-
sures recommended for your vehicle.The engine number is stamped on
the engine block as shown.
The refrigerant label is located at the
front of the engine compartment.
TYRE SPECIFICATION AND
PRESSURE LABEL
OMD060012N/H
OMD083003N
ENGINE NUMBER REFRIGERANT LABEL
(IF EQUIPPED)
OMD074105
