Hyundai Elantra 2018 Owner's Manual

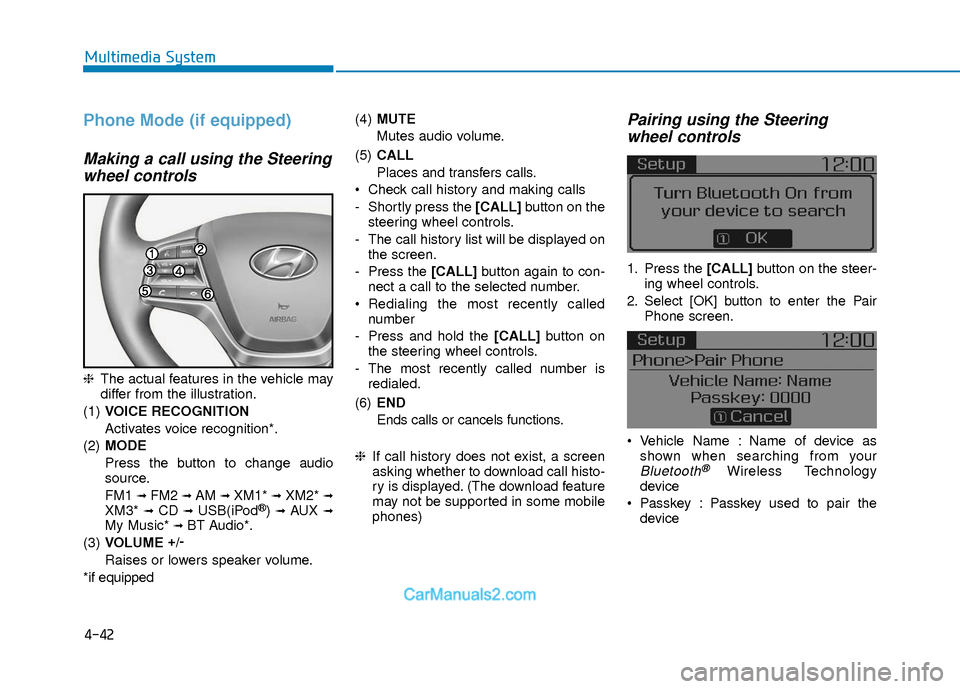

4-42
Multimedia System
Phone Mode (if equipped)
Making a call using the Steeringwheel controls
❈ The actual features in the vehicle may
differ from the illustration.
(1) VOICE RECOGNITION
Activates voice recognition*.
(2) MODE
Press the button to change audio
source.
FM1
➟ FM2 ➟ AM ➟ XM1*➟XM2*➟XM3*➟ CD ➟ USB(iPod®) ➟ AUX ➟My Music*➟ BT Audio*.
(3) VOLUME +
/-
Raises or lowers speaker volume.
*if equipped (4)
MUTE
Mutes audio volume.
(5) CALL
Places and transfers calls.
Check call history and making calls
- Shortly press the [CALL] button on the
steering wheel controls.
- The call history list will be displayed on the screen.
- Press the [CALL] button again to con-
nect a call to the selected number.
Redialing the most recently called number
- Press and hold the [CALL] button on
the steering wheel controls.
- The most recently called number is redialed.
(6) END
Ends calls or cancels functions.
❈ If call history does not exist, a screen
asking whether to download call histo-
ry is displayed. (The download feature
may not be supported in some mobile
phones)
Pairing using the Steering wheel controls
1. Press the [CALL] button on the steer-
ing wheel controls.
2. Select [OK] button to enter the Pair Phone screen.
Vehicle Name : Name of device as shown when searching from your
Bluetooth®Wireless Technology
device
Passkey : Passkey used to pair the device

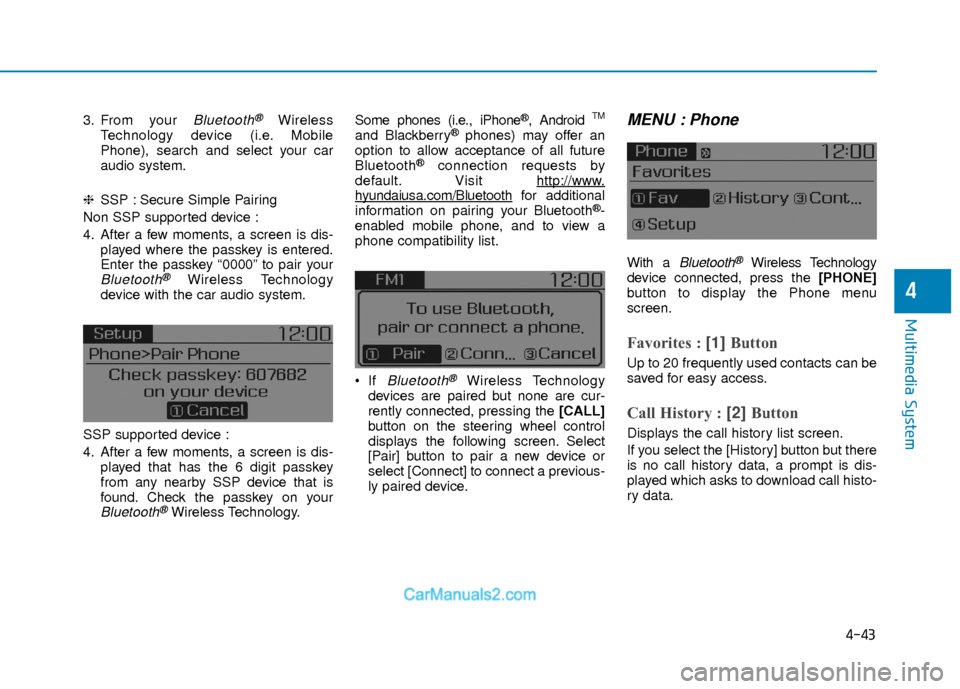

4-43
Multimedia System
4
3. From your Bluetooth®Wireless
Technology device (i.e. Mobile
Phone), search and select your car
audio system.
❈ SSP : Secure Simple Pairing
Non SSP supported device :
4. After a few moments, a screen is dis- played where the passkey is entered.
Enter the passkey “0000” to pair your
Bluetooth®Wireless Technology
device with the car audio system.
SSP supported device :
4. After a few moments, a screen is dis- played that has the 6 digit passkey
from any nearby SSP device that is
found. Check the passkey on your
Bluetooth®Wireless Technology. Some phones (i.e., iPhone
®, Android TM
and Blackberry®phones) may offer an
option to allow acceptance of all future
Bluetooth
®connection requests by
default. Visit http://www.hyundaiusa.com/Bluetoothfor additional
information on pairing your Bluetooth®-
enabled mobile phone, and to view a
phone compatibility list.
If
Bluetooth®Wireless Technology
devices are paired but none are cur-
rently connected, pressing the [CALL]
button on the steering wheel control
displays the following screen. Select
[Pair] button to pair a new device or
select [Connect] to connect a previous-
ly paired device.
MENU : Phone
With a Bluetooth®Wireless Technology
device connected, press the [PHONE]
button to display the Phone menu
screen.
Favorites : [1] Button
Up to 20 frequently used contacts can be
saved for easy access.
Call History : [2] Button
Displays the call history list screen.
If you select the [History] button but there
is no call history data, a prompt is dis-
played which asks to download call histo-
ry data.

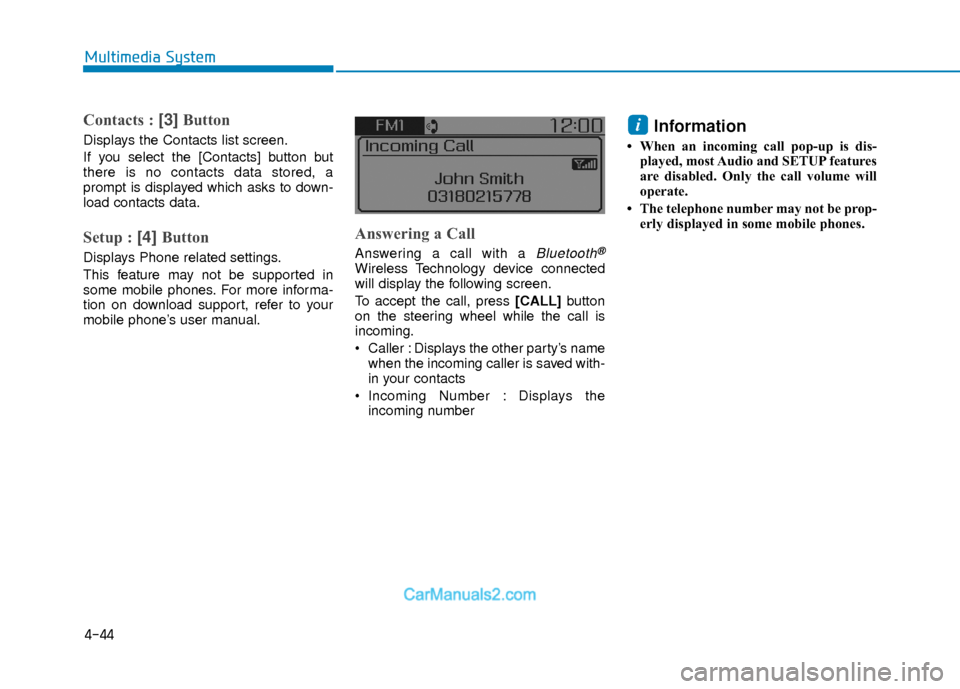

4-44
Multimedia System
Contacts : [3]Button
Displays the Contacts list screen.
If you select the [Contacts] button but
there is no contacts data stored, a
prompt is displayed which asks to down-
load contacts data.
Setup : [4] Button
Displays Phone related settings.
This feature may not be supported in
some mobile phones. For more informa-
tion on download support, refer to your
mobile phone’s user manual.
Answering a Call
Answering a call with a Bluetooth®
Wireless Technology device connected
will display the following screen.
To accept the call, press [CALL] button
on the steering wheel while the call is
incoming.
Caller : Displays the other party’s name when the incoming caller is saved with-
in your contacts
Incoming Number : Displays the incoming number
Information
• When an incoming call pop-up is dis-played, most Audio and SETUP features
are disabled. Only the call volume will
operate.
• The telephone number may not be prop- erly displayed in some mobile phones.
i

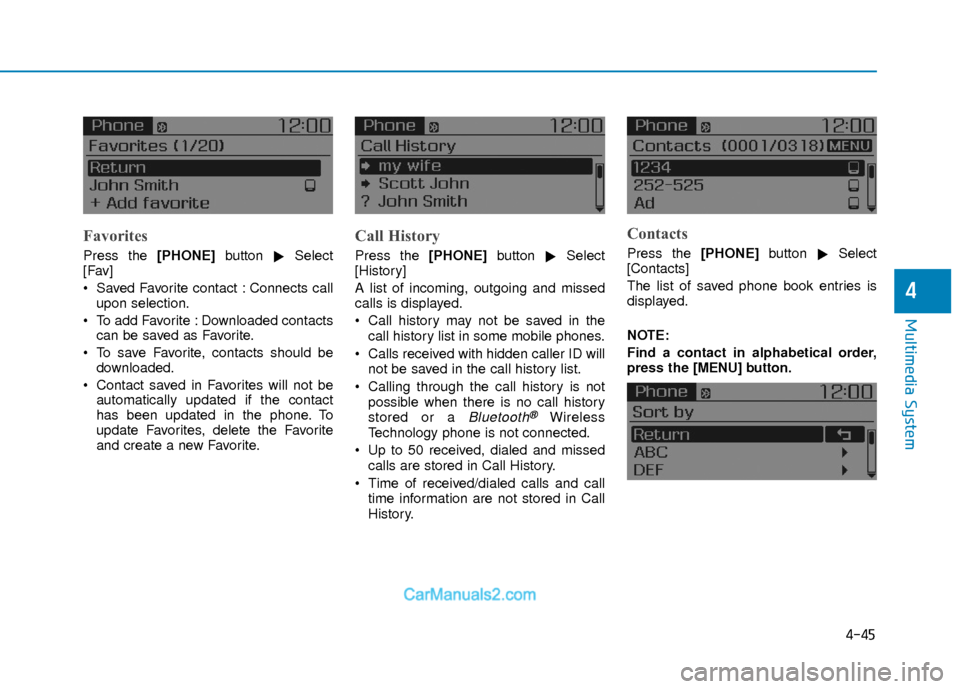

4-45
Multimedia System
4
Favorites
Press the [PHONE]button
Select
[Fav]
Saved Favorite contact : Connects call upon selection.
To add Favorite : Downloaded contacts can be saved as Favorite.
To save Favorite, contacts should be downloaded.
Contact saved in Favorites will not be automatically updated if the contact
has been updated in the phone. To
update Favorites, delete the Favorite
and create a new Favorite.
Call History
Press the [PHONE] button
Select
[History]
A list of incoming, outgoing and missed
calls is displayed.
Call history may not be saved in the
call history list in some mobile phones.
Calls received with hidden caller ID will not be saved in the call history list.
Calling through the call history is not possible when there is no call history
stored or a
Bluetooth®Wireless
Technology phone is not connected.
Up to 50 received, dialed and missed calls are stored in Call History.
Time of received/dialed calls and call time information are not stored in Call
History.
Contacts
Press the [PHONE] button
Select
[Contacts]
The list of saved phone book entries is
displayed.
NOTE:
Find a contact in alphabetical order,
press the [MENU] button.

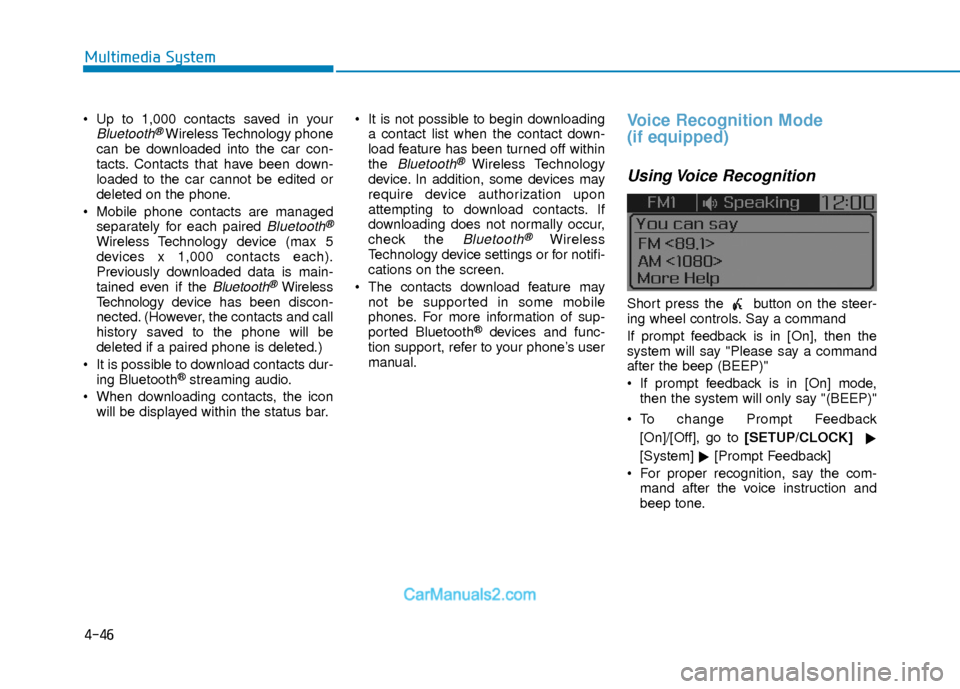

4-46
Multimedia System
Up to 1,000 contacts saved in yourBluetooth®Wireless Technology phone
can be downloaded into the car con-
tacts. Contacts that have been down-
loaded to the car cannot be edited or
deleted on the phone.
Mobile phone contacts are managed separately for each paired
Bluetooth®
Wireless Technology device (max 5
devices x 1,000 contacts each).
Previously downloaded data is main-
tained even if the
Bluetooth®Wireless
Technology de vice has been discon-
nected. (However, the contacts and call
history saved to the phone will be
deleted if a paired phone is deleted.)
It is possible to download contacts dur- ing Bluetooth
®streaming audio.
When downloading contacts, the icon will be displayed within the status bar. It is not possible to begin downloading
a contact list when the contact down-
load feature has been turned off within
the
Bluetooth® Wireless Technology
device. In addition, some devices may
require device authorization upon
attempting to download contacts. If
downloading does not normally occur,
check the
Bluetooth®Wireless
Technology device settings or for notifi-
cations on the screen.
The contacts download feature may not be supported in some mobile
phones. For more information of sup-
ported Bluetooth
®devices and func-
tion support, refer to your phone’s user
manual.
Voice Recognition Mode
(if equipped)
Using Voice Recognition
Short press the button on the steer-
ing wheel controls. Say a command
If prompt feedback is in [On], then the
system will say "Please say a command
after the beep (BEEP)"
If prompt feedback is in [On] mode, then the system will only say "(BEEP)"
To change Prompt Feedback [On]/[Off], go to [SETUP/CLOCK]

[System] [Prompt Feedback]
For proper recognition, say the com- mand after the voice instruction and
beep tone.

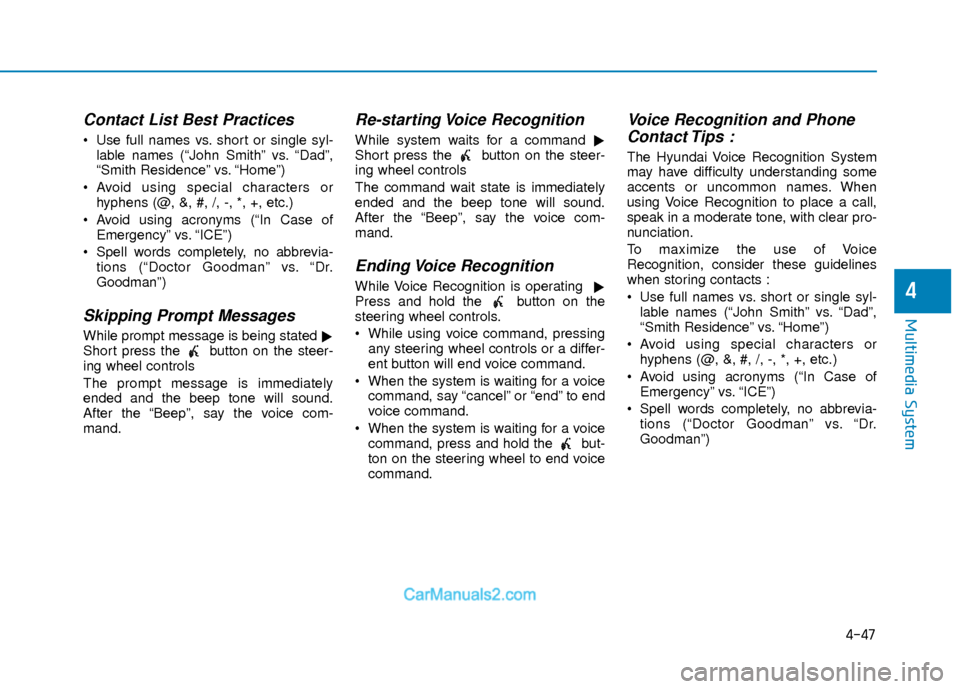

4-47
Multimedia System
4
Contact List Best Practices
Use full names vs. short or single syl-lable names (“John Smith” vs. “Dad”,
“Smith Residence” vs. “Home”)
Avoid using special characters or hyphens (@, &, #, /, -, *, +, etc.)
Avoid using acronyms (“In Case of Emergency” vs. “ICE”)
Spell words completely, no abbrevia- tions (“Doctor Goodman” vs. “Dr.
Goodman”)
Skipping Prompt Messages
While prompt message is being stated
Short press the button on the steer-
ing wheel controls
The prompt message is immediately
ended and the beep tone will sound.
After the “Beep”, say the voice com-
mand.
Re-starting Voice Recognition
While system waits for a command
Short press the button on the steer-
ing wheel controls
The command wait state is immediately
ended and the beep tone will sound.
After the “Beep”, say the voice com-
mand.
Ending Voice Recognition
While Voice Recognition is operating
Press and hold the button on the
steering wheel controls.
While using voice command, pressing
any steering wheel controls or a differ-
ent button will end voice command.
When the system is waiting for a voice command, say “cancel” or “end” to end
voice command.
When the system is waiting for a voice command, press and hold the but-
ton on the steering wheel to end voice
command.
Voice Recognition and PhoneContact Tips :
The Hyundai Voice Recognition System
may have difficulty understanding some
accents or uncommon names. When
using Voice Recognition to place a call,
speak in a moderate tone, with clear pro-
nunciation.
To maximize the use of Voice
Recognition, consider these guidelines
when storing contacts :
Use full names vs. short or single syl-
lable names (“John Smith” vs. “Dad”,
“Smith Residence” vs. “Home”)
Avoid using special characters or hyphens (@, &, #, /, -, *, +, etc.)
Avoid using acronyms (“In Case of Emergency” vs. “ICE”)
Spell words completely, no abbrevia- tions (“Doctor Goodman” vs. “Dr.
Goodman”)

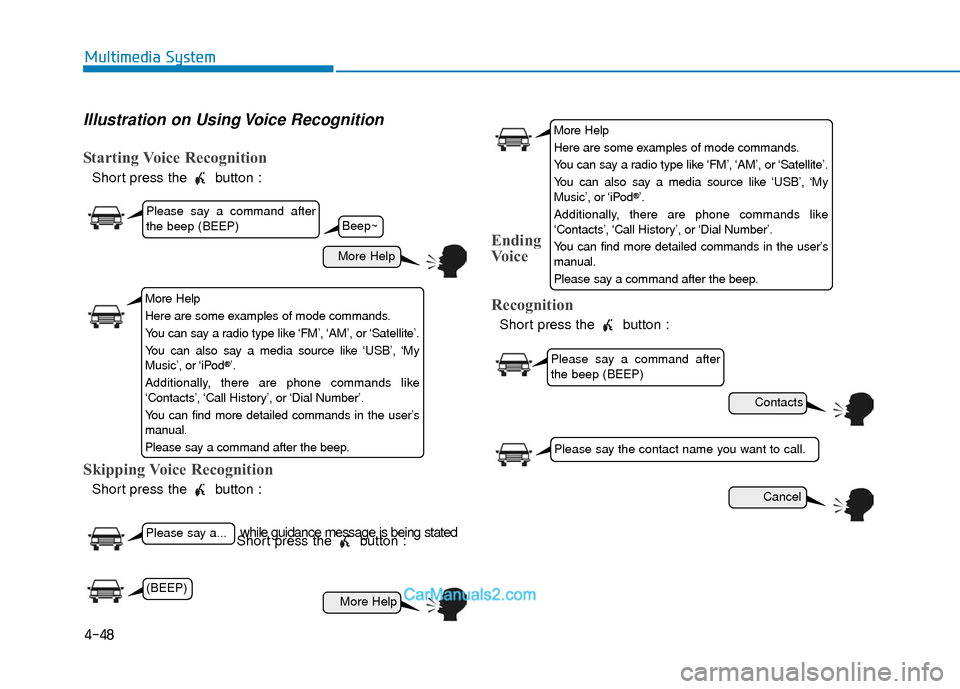

4-48
Multimedia System
Illustration on Using Voice Recognition
Starting Voice Recognition
Short press the button :
Skipping Voice Recognition
Short press the button :Short press the button :
Ending
Voice
Recognition
Short press the button :
while guidance message is being stated
More Help
Contacts
Cancel
More Help
Please say a command after
the beep (BEEP)
Please say a...
Please say the contact name you want to call.
Beep~
More Help
Here are some examples of mode commands.
You can say a radio type like ‘FM’, ‘AM’, or ‘Satellite’.
You can also say a media source like ‘USB’, ‘My
Music’, or ‘iPod
®’.
Additionally, there are phone commands like
‘Contacts’, ‘Call History’, or ‘Dial Number’.
You can find more detailed commands in the user’s
manual.
Please say a command after the beep.
More Help
Here are some examples of mode commands.
You can say a radio type like ‘FM’, ‘AM’, or ‘Satellite’.
You can also say a media source like ‘USB’, ‘My
Music’, or ‘iPod
®’.
Additionally, there are phone commands like
‘Contacts’, ‘Call History’, or ‘Dial Number’.
You can find more detailed commands in the user’s
manual.
Please say a command after the beep.
Please say a command after
the beep (BEEP)
(BEEP)

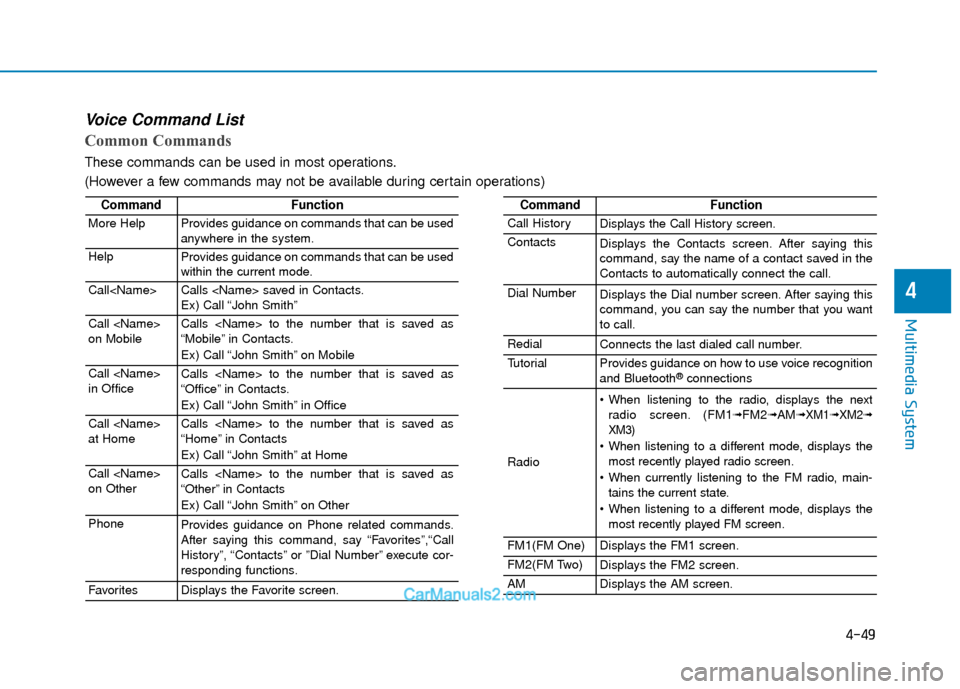

4-49
Multimedia System
4
Voice Command List
Common Commands
These commands can be used in most operations.
(However a few commands may not be available during certain operations)
CommandFunction
More HelpProvides guidance on commands that can be used
anywhere in the system.
HelpProvides guidance on commands that can be used
within the current mode.
CallCalls saved in Contacts.
Ex) Call “John Smith”
Call
on MobileCalls to the number that is saved as
“Mobile” in Contacts.
Ex) Call “John Smith” on Mobile
Call
in OfficeCalls to the number that is saved as
“Office” in Contacts.
Ex) Call “John Smith” in Office
Call
at HomeCalls to the number that is saved as
“Home” in Contacts
Ex) Call “John Smith” at Home
Call
on OtherCalls to the number that is saved as
“Other” in Contacts
Ex) Call “John Smith” on Other
PhoneProvides guidance on Phone related commands.
After saying this command, say “Favorites”,“Call
History”, “Contacts” or ”Dial Number” execute cor-
responding functions.
FavoritesDisplays the Favorite screen.
CommandFunction
Call HistoryDisplays the Call History screen.
ContactsDisplays the Contacts screen. After saying this
command, say the name of a contact saved in the
Contacts to automatically connect the call.
Dial NumberDisplays the Dial number screen. After saying this
command, you can say the number that you want
to call.
RedialConnects the last dialed call number.
TutorialProvides guidance on how to use voice recognition
and Bluetooth®connections
Radio
When listening to the radio, displays the nextradio screen. (FM1➟FM2➟AM➟ XM1➟ XM2➟
XM3)
When listening to a different mode, displays the most recently played radio screen.
When currently listening to the FM radio, main- tains the current state.
When listening to a different mode, displays the most recently played FM screen.
FM1(FM One)Displays the FM1 screen.
FM2(FM Two)Displays the FM2 screen.
AMDisplays the AM screen.

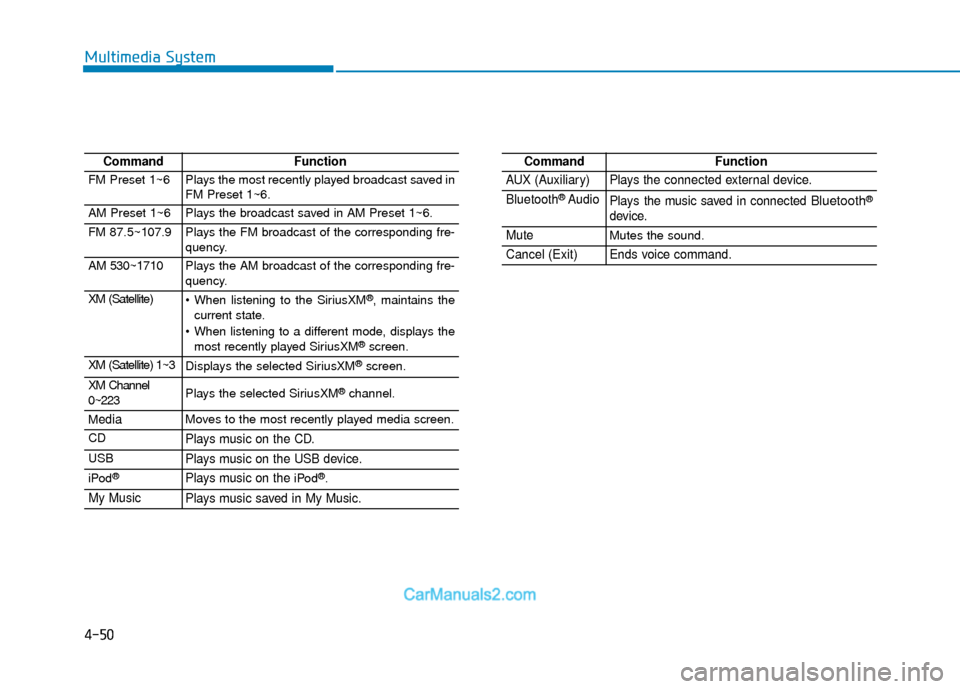

4-50
Multimedia System
CommandFunction
FM Preset 1~6Plays the most recently played broadcast saved in
FM Preset 1~6.
AM Preset 1~6Plays the broadcast saved in AM Preset 1~6.
FM 87.5~107.9Plays the FM broadcast of the corresponding fre-
quency.
AM 530~1710Plays the AM broadcast of the corresponding fre-
quency.
XM (Satellite) When listening to the SiriusXM®, maintains the
current state.
When listening to a different mode, displays the most recently played SiriusXM
®screen.
XM (Satellite) 1~3Displays the selected SiriusXM®screen.
XM Channel
0~223Plays the selected SiriusXM®channel.
MediaMoves to the most recently played media screen.
CDPlays music on the CD.
USBPlays music on the USB device.
iPod®Plays music on theiPod®.
My MusicPlays music saved in My Music.
CommandFunction
AUX (Auxiliary)Plays the connected external device.
Bluetooth®AudioPlays the music saved in connected Bluetooth®
device.
MuteMutes the sound.
Cancel (Exit)Ends voice command.

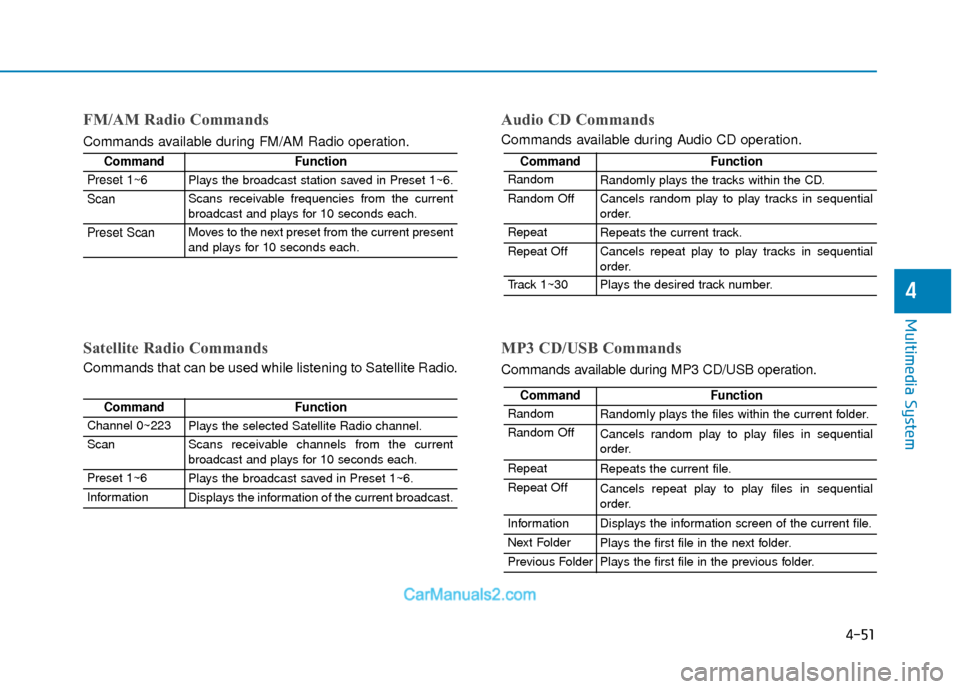

4-51
Multimedia System
4
CommandFunction
RandomRandomly plays the files within the current folder.
Random OffCancels random play to play files in sequential
order.
RepeatRepeats the current file.
Repeat OffCancels repeat play to play files in sequential
order.
InformationDisplays the information screen of the current file.
Next FolderPlays the first file in the next folder.
Previous FolderPlays the first file in the previous folder.
CommandFunction
RandomRandomly plays the tracks within the CD.
Random OffCancels random play to play tracks in sequential
order.
RepeatRepeats the current track.
Repeat OffCancels repeat play to play tracks in sequential
order.
Track 1~30Plays the desired track number.
FM/AM Radio Commands
Commands available during FM/AM Radio operation.
Audio CD Commands
Commands available during Audio CD operation.
CommandFunction
Preset 1~6Plays the broadcast station saved in Preset 1~6.
ScanScans receivable frequencies from the current
broadcast and plays for 10 seconds each.
Preset ScanMoves to the next preset from the current present
and plays for 10 seconds each.
Satellite Radio Commands
Commands that can be used while listening to Satellite Radio.
MP3 CD/USB Commands
Commands available during MP3 CD/USB operation.
CommandFunction
Channel 0~223Plays the selected Satellite Radio channel.
ScanScans receivable channels from the current
broadcast and plays for 10 seconds each.
Preset 1~6Plays the broadcast saved in Preset 1~6.
InformationDisplays the information of the current broadcast.
