Hyundai Elantra 2018 Owner's Manual

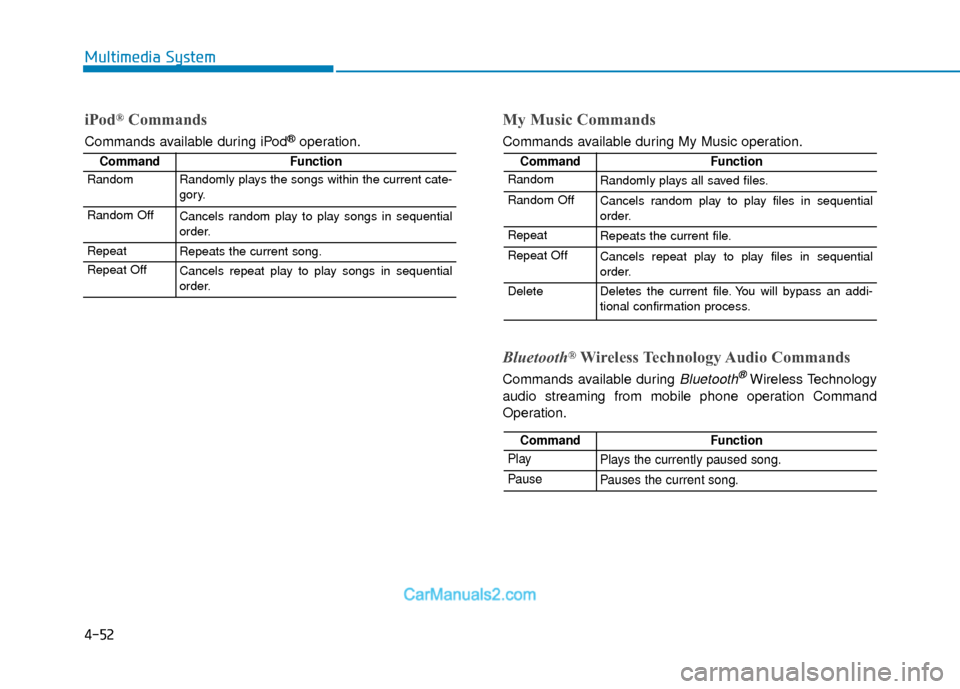

4-52
Multimedia System
iPod®Commands
Commands available during iPod®operation.
My Music Commands
Commands available during My Music operation.
Bluetooth®Wireless Technology Audio Commands
Commands available during Bluetooth®Wireless Technology
audio streaming from mobile phone operation Command
Operation.
CommandFunction
RandomRandomly plays all saved files.
Random OffCancels random play to play files in sequential
order.
RepeatRepeats the current file.
Repeat OffCancels repeat play to play files in sequential
order.
DeleteDeletes the current file. You will bypass an addi-
tional confirmation process.
CommandFunction
RandomRandomly plays the songs within the current cate-
gory.
Random OffCancels random play to play songs in sequential
order.
RepeatRepeats the current song.
Repeat OffCancels repeat play to play songs in sequential
order.
CommandFunction
PlayPlays the currently paused song.
PausePauses the current song.

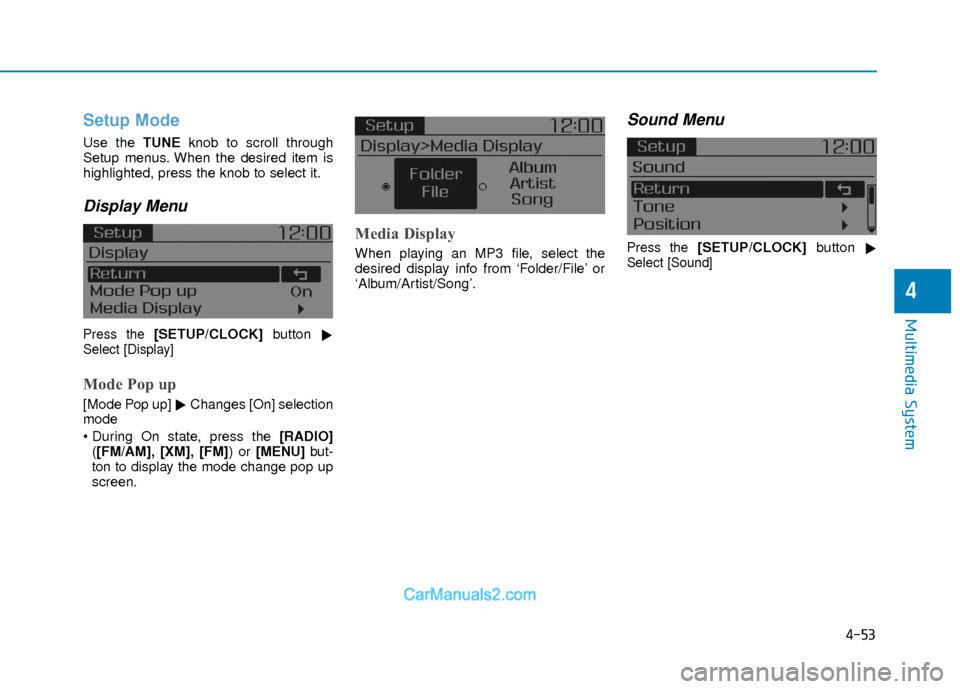

4-53
Multimedia System
4
Setup Mode
Use the TUNEknob to scroll through
Setup menus. When the desired item is
highlighted, press the knob to select it.
Display Menu
Press the [SETUP/CLOCK] button
Select [Display]
Mode Pop up
[Mode Pop up] Changes [On] selection
mode
During On state, press the [RADIO]
([FM/AM], [XM], [FM]) or [MENU] but-
ton to display the mode change pop up
screen.
Media Display
When playing an MP3 file, select the
desired display info from ‘Folder/File’ or
‘Album/Artist/Song’.
Sound Menu
Press the [SETUP/CLOCK] button
Select [Sound]

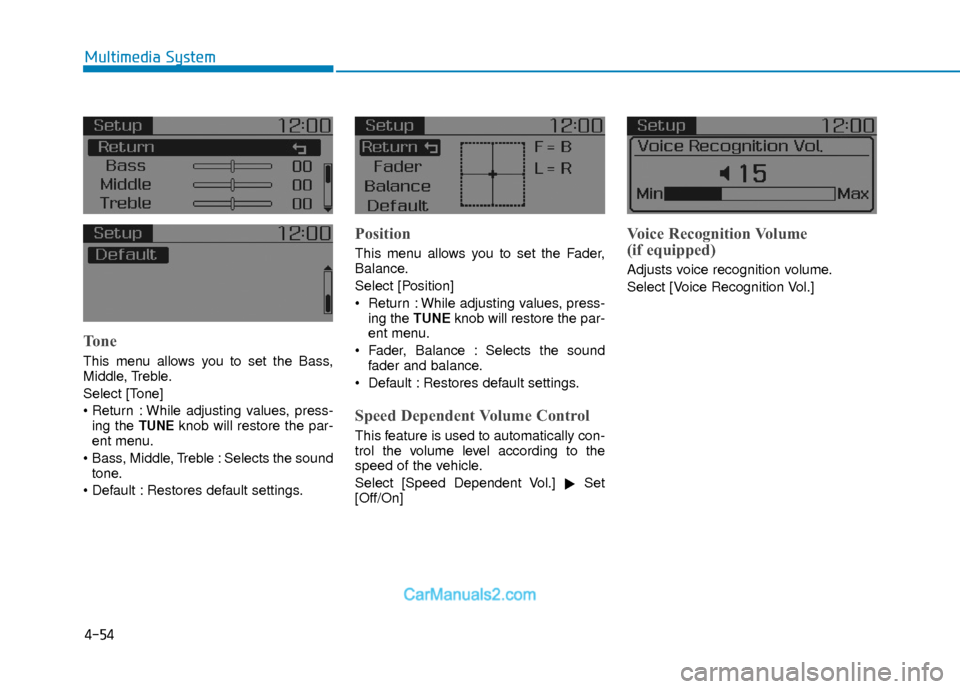

4-54
Multimedia System
Tone
This menu allows you to set the Bass,
Middle, Treble.
Select [Tone]
Return : While adjusting values, press-ing the
TUNEknob will restore the par-
ent menu.
Bass, Middle, Treble : Selects the sound tone.
Default : Restores default settings.
Position
This menu allows you to set the Fader,
Balance.
Select [Position]
Return : While adjusting values, press- ing the TUNE knob will restore the par-
ent menu.
Fader, Balance : Selects the sound fader and balance.
Default : Restores default settings.
Speed Dependent Volume Control
This feature is used to automatically con-
trol the volume level according to the
speed of the vehicle.
Select [Speed Dependent Vol.] Set
[Off/On]
Voice Recognition Volume
(if equipped)
Adjusts voice recognition volume.
Select [Voice Recognition Vol.]

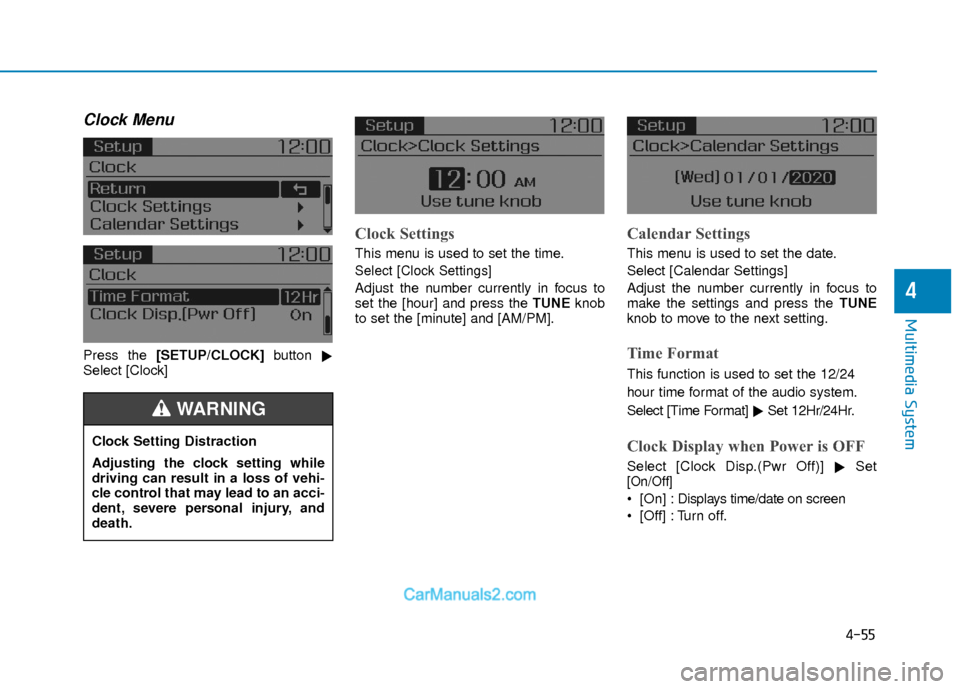

4-55
Multimedia System
4
Clock Menu
Press the [SETUP/CLOCK] button

Select [Clock]
Clock Settings
This menu is used to set the time.
Select [Clock Settings]
Adjust the number currently in focus to
set the [hour] and press the TUNE knob
to set the [minute] and [AM/PM].
Calendar Settings
This menu is used to set the date.
Select [Calendar Settings]
Adjust the number currently in focus to
make the settings and press the TUNE
knob to move to the next setting.
Time Format
This function is used to set the 12/24
hour time format of the audio system.
Select [Time Format] Set 12Hr/24Hr.
Clock Display when Power is OFF
Select [Clock Disp.(Pwr Off)]
Set[On/Off]
[On] :
Displays time/date on screen
[Off] : Turn off.
Clock Setting Distraction
Adjusting the clock setting while
driving can result in a loss of vehi-
cle control that may lead to an acci-
dent, severe personal injury, and
death.
WARNING

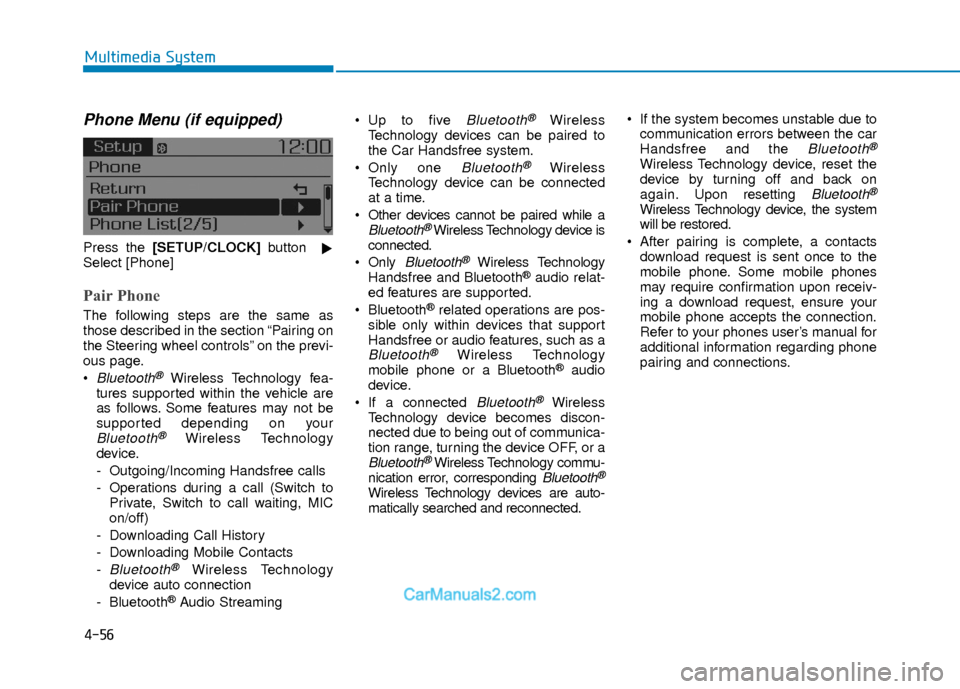

4-56
Multimedia System
Phone Menu (if equipped)
Press the [SETUP/CLOCK] button

Select [Phone]
Pair Phone
The following steps are the same as
those described in the section “Pairing on
the Steering wheel controls” on the previ-
ous page.

Bluetooth®Wireless Technology fea-
tures supported within the vehicle are
as follows. Some features may not be
supported depending on your
Bluetooth®Wireless Technology
device.
- Outgoing/Incoming Handsfree calls
- Operations during a call (Switch to Private, Switch to call waiting, MIC
on/off)
- Downloading Call History
- Downloading Mobile Contacts
-
Bluetooth®Wireless Technology
device auto connection
- Bluetooth
®Audio Streaming Up to five
Bluetooth®Wireless
Technology devices can be paired to
the Car Handsfree system.
Only one
Bluetooth®Wireless
Technology device can be connected
at a time.
Other devices cannot be paired while a
Bluetooth®Wireless Technology device is
connected.
Only
Bluetooth®Wireless Technology
Handsfree and Bluetooth®audio relat-
ed features are supported.
Bluetooth
®related operations are pos-
sible only within devices that support
Handsfree or audio features, such as a
Bluetooth®Wireless Technology
mobile phone or a Bluetooth®audio
device.
If a connected
Bluetooth®Wireless
Technology device becomes discon-
nected due to being out of communica-
tion range, turning the device OFF, or a
Bluetooth®Wireless Technology commu-
nication error, corresponding Bluetooth®
Wireless Technology devices are auto-
matically searched and reconnected. If the system becomes unstable due to
communication errors between the car
Handsfree and the
Bluetooth®
Wireless Technology device, reset the
device by turning off and back on
again. Upon resetting
Bluetooth®
Wireless Technology device, the system
will be restored.
After pairing is complete, a contacts download request is sent once to the
mobile phone. Some mobile phones
may require confirmation upon receiv-
ing a download request, ensure your
mobile phone accepts the connection.
Refer to your phones user’s manual for
additional information regarding phone
pairing and connections.

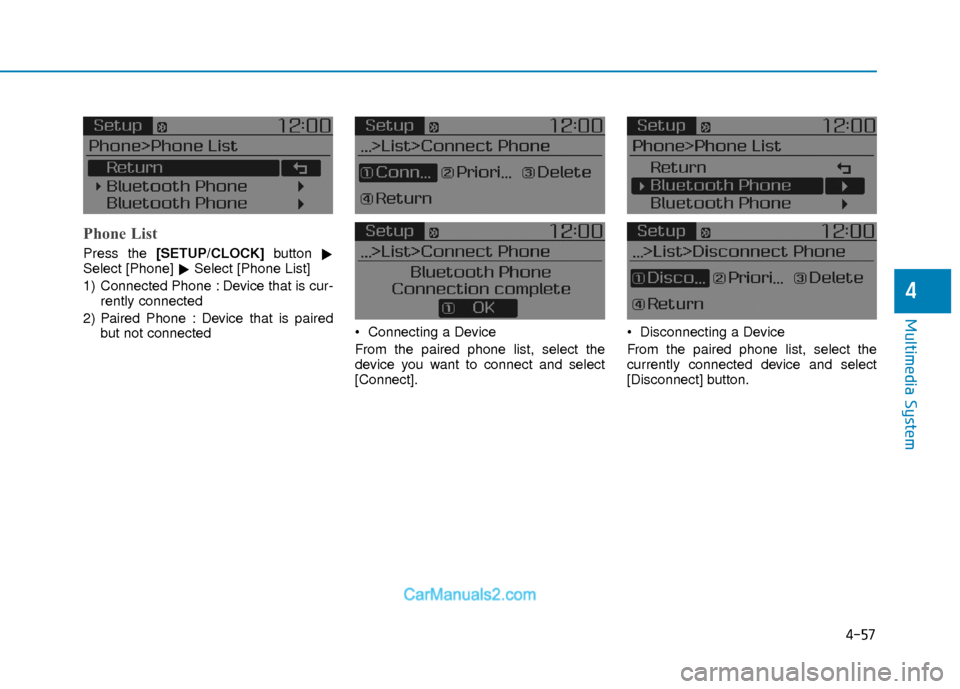

4-57
Multimedia System
4
Phone List
Press the [SETUP/CLOCK] button

Select [Phone] Select [Phone List]
1) Connected Phone : Device that is cur- rently connected
2) Paired Phone : Device that is paired but not connected Connecting a Device
From the paired phone list, select the
device you want to connect and select
[Connect]. Disconnecting a Device
From the paired phone list, select the
currently connected device and select
[Disconnect] button.

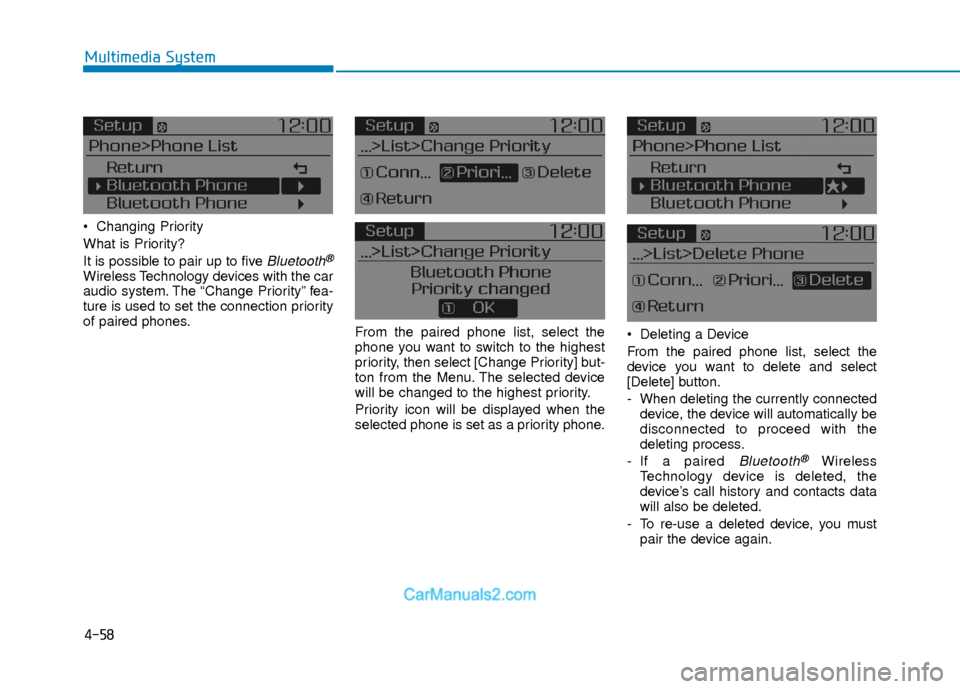

4-58
Multimedia System
Changing Priority
What is Priority?
It is possible to pair up to five
Bluetooth®
Wireless Technology devices with the car
audio system. The “Change Priority” fea-
ture is used to set the connection priority
of paired phones.From the paired phone list, select the
phone you want to switch to the highest
priority, then select [Change Priority] but-
ton from the Menu. The selected device
will be changed to the highest priority.
Priority icon will be displayed when the
selected phone is set as a priority phone. Deleting a Device
From the paired phone list, select the
device you want to delete and select
[Delete] button.
- When deleting the currently connected
device, the device will automatically be
disconnected to proceed with the
deleting process.
- If a paired
Bluetooth®Wireless
Technology device is deleted, the
device’s call history and contacts data
will also be deleted.
- To re-use a deleted device, you must pair the device again.

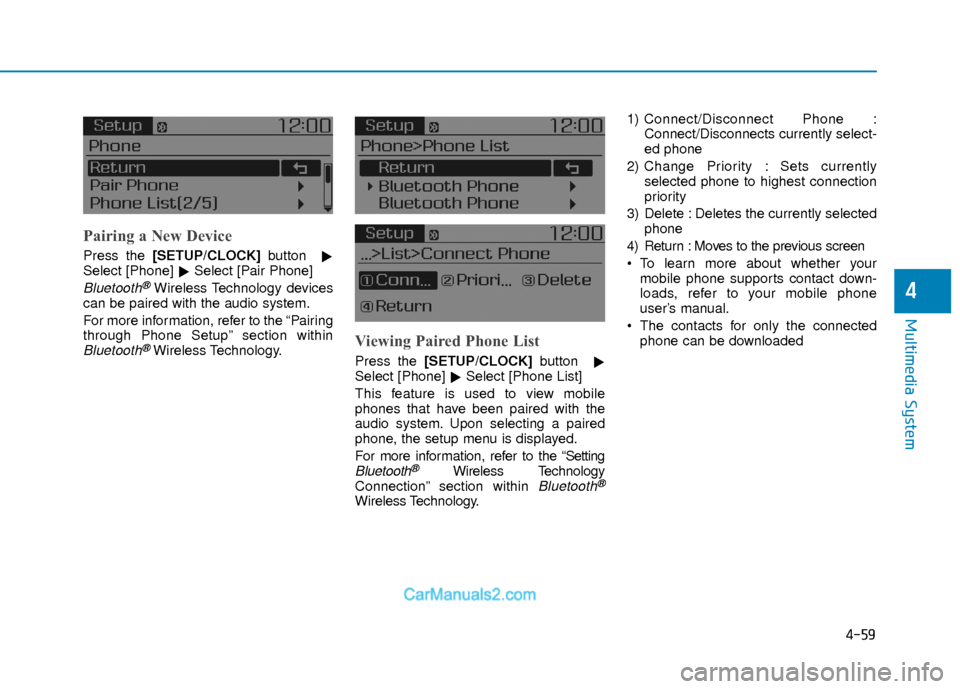

4-59
Multimedia System
4
Pairing a New Device
Press the [SETUP/CLOCK] button

Select [Phone] Select [Pair Phone]
Bluetooth®Wireless Technology devices
can be paired with the audio system.
For more information, refer to the “Pairing
through Phone Setup” section within
Bluetooth®Wireless Technology.Viewing Paired Phone List
Press the [SETUP/CLOCK] button

Select [Phone] Select [Phone List]
This feature is used to view mobile
phones that have been paired with the
audio system. Upon selecting a paired
phone, the setup menu is displayed.
For more information, refer to the “Setting
Bluetooth®Wireless Technology
Connection” section within Bluetooth®
Wireless Technology. 1) Connect/Disconnect Phone :
Connect/Disconnects currently select-
ed phone
2) Change Priority : Sets currently selected phone to highest connection
priority
3) Delete : Deletes the currently selected phone
4) Return : Moves to the previous screen
To learn more about whether your mobile phone supports contact down-
loads, refer to your mobile phone
user’s manual.
The contacts for only the connected phone can be downloaded

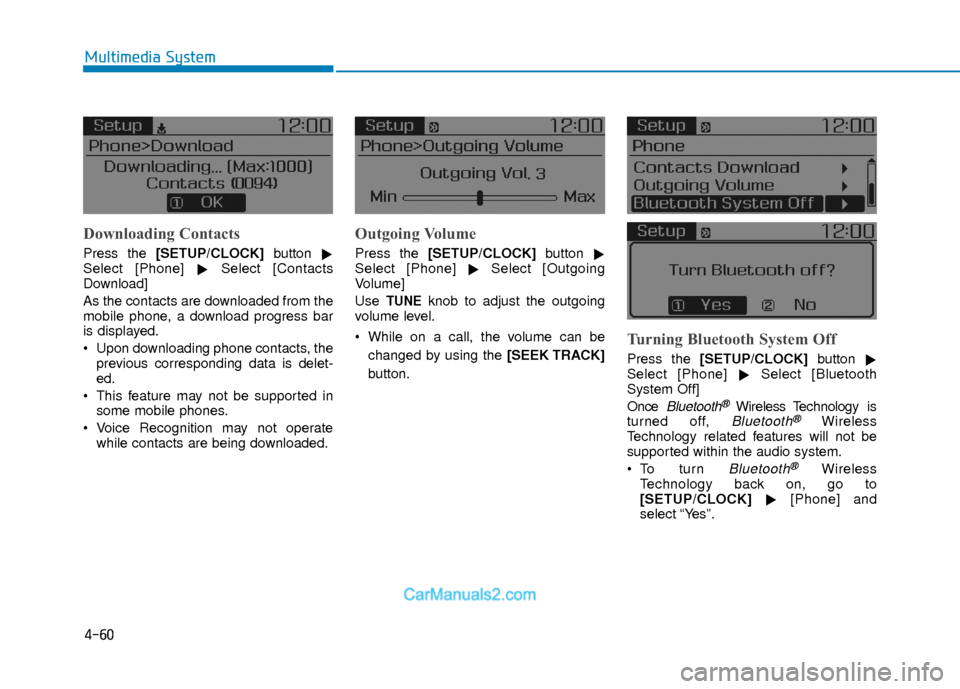

4-60
Multimedia System
Downloading Contacts
Press the [SETUP/CLOCK] button

Select [Phone] Select [Contacts
Download]
As the contacts are downloaded from the
mobile phone, a download progress bar
is displayed.
Upon downloading phone contacts, the previous corresponding data is delet-
ed.
This feature may not be supported in some mobile phones.
Voice Recognition may not operate while contacts are being downloaded.
Outgoing Volume
Press the [SETUP/CLOCK] button

Select [Phone] Select [Outgoing
Volume]
Use
TUNEknob to adjust the outgoing
volume level.
While on a call, the volume can be
changed by using the [SEEK TRACK]
button.
Turning Bluetooth System Off
Press the [SETUP/CLOCK] button

Select [Phone] Select [Bluetooth
System Off]
Once
Bluetooth®Wireless Technology is
turned off, Bluetooth®Wireless
Technology related features will not be
supported within the audio system.

Bluetooth®Wireless
Technology back on, go to
[SETUP/CLOCK] [Phone] and
select “Yes”.

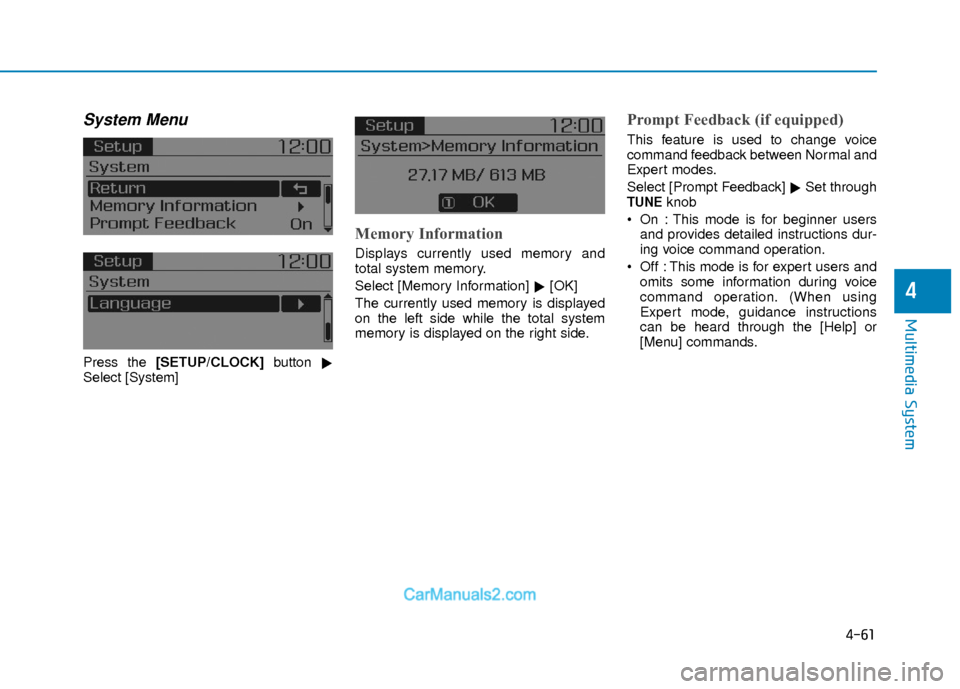

4-61
Multimedia System
4
System Menu
Press the [SETUP/CLOCK] button

Select [System]
Memory Information
Displays currently used memory and
total system memory.
Select [Memory Information] [OK]
The currently used memory is displayed
on the left side while the total system
memory is displayed on the right side.
Prompt Feedback (if equipped)
This feature is used to change voice
command feedback between Normal and
Expert modes.
Select [Prompt Feedback] Set through
TUNEknob
On : This mode is for beginner users and provides detailed instructions dur-
ing voice command operation.
Off : This mode is for expert users and omits some information during voice
command operation. (When using
Expert mode, guidance instructions
can be heard through the [Help] or
[Menu] commands.
