Hyundai Elantra 2018 Owner's Manual

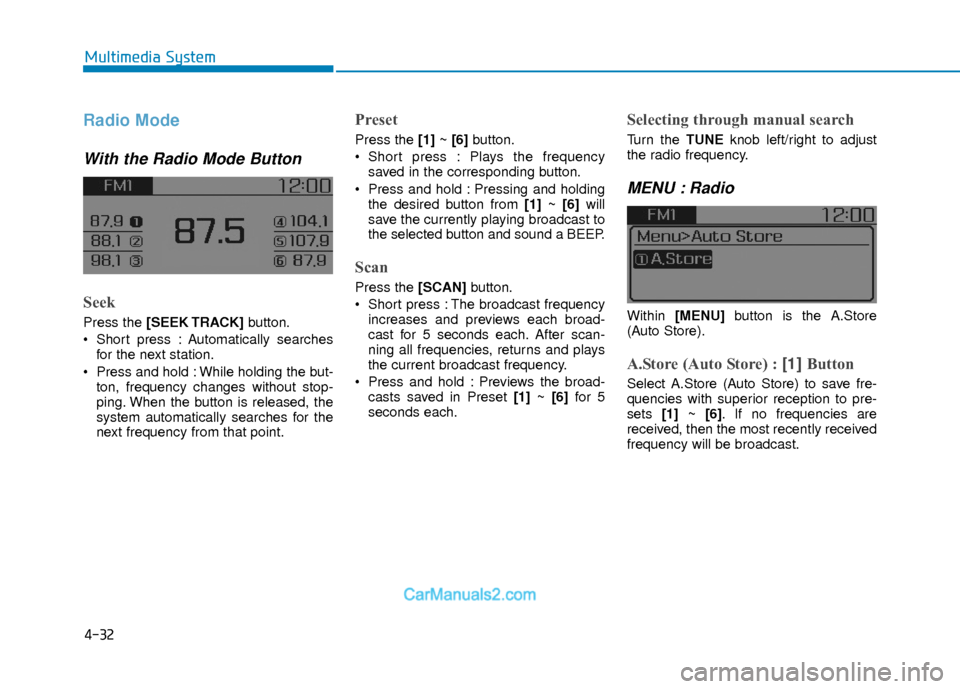

4-32
Multimedia System
Radio Mode
With the Radio Mode Button
Seek
Press the [SEEK TRACK]button.
Short press : Automatically searches for the next station.
Press and hold : While holding the but- ton, frequency changes without stop-
ping. When the button is released, the
system automatically searches for the
next frequency from that point.
Preset
Press the [1] ~ [6] button.
Short press : Plays the frequency saved in the corresponding button.
Press and hold : Pressing and holding the desired button from [1]~ [6] will
save the currently playing broadcast to
the selected button and sound a BEEP.
Scan
Press the [SCAN] button.
Short press : The broadcast frequency increases and previews each broad-
cast for 5 seconds each. After scan-
ning all frequencies, returns and plays
the current broadcast frequency.
Press and hold : Previews the broad- casts saved in Preset [1] ~ [6] for 5
seconds each.
Selecting through manual search
Turn the TUNE knob left/right to adjust
the radio frequency.
MENU : Radio
Within [MENU] button is the A.Store
(Auto Store).
A.Store (Auto Store) : [1] Button
Select A.Store (Auto Store) to save fre-
quencies with superior reception to pre-
sets [1]~ [6]. If no frequencies are
received, then the most recently received
frequency will be broadcast.

4-33
Multimedia System
4
SiriusXM®Satellite Radio
information (if equipped)
Satellite Radio channels :
Enjoy SiriusXM Satellite Radio with a 3-
month trial subscription to the SiriusXM
Select package. You’ll get over 140 chan-
nels, including commercial-free music,
plus all your favorite sports, exclusive
talk, entertainment, and a selection of
premium programming. For more infor-
mation and a complete list of SiriusXM
channels, visit siriusxm.com in the
United States, siriusxm.ca in Canada, or
call SiriusXM at 1-888-539-7474.
Satellite Radio reception factors :
To receive the satellite signal, your vehi-
cle has been equipped with a satellite
radio antenna located on the roof of your
vehicle. The vehicle roof provides the
best location for an unobstructed, open
view of the sky, a requirement of a satel-
lite radio system. Like AM/FM, there are
several factors that can affect satellite
radio reception performance :
Antenna obstructions : For optimal
reception performance, keep the
antenna clear of snow and ice build-up
and keep luggage and other material
as far away from the antenna as possi-
ble.
Terrain : Hills, mountains, tall buildings, bridges, tunnels, freeway overpasses,
parking garages, dense tree foliage
and thunderstorms can interfere with
your reception.
SiriusXM Satellite Radio service :
SiriusXM is a subscription-based satellite
radio service that broadcasts music,
sports, news and entertainment pro-
gramming to radio receivers, which are
available for installation in motor vehicles
or factory installed, as well as for the
home, portable and wireless devices,
and through an Internet connection on a
personal computer.
Vehicles that are equipped with a factory
installed SiriusXM Satellite Radio system
include :
Hardware and an introductory trial sub-scription term, which begins on the
date of sale or lease of the vehicle.
For a small upgrade fee, access to SiriusXM music channels, and other
select channels over the Internet using
any computer connected to the
Internet (U.S. customers only).
For information on extended subscrip-
tion terms, contact SiriusXM at 1-888-
539-7474.

4-34
Multimedia System

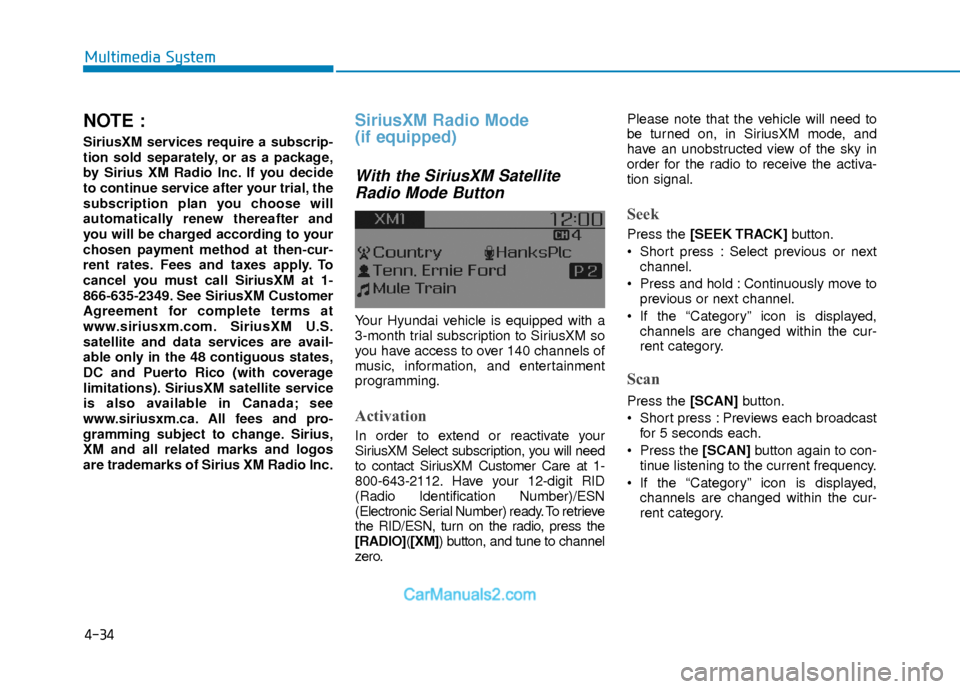

NOTE :
SiriusXM services require a subscrip-
tion sold separately, or as a package,
by Sirius XM Radio Inc. If you decide
to continue service after your trial, the
subscription plan you choose will
automatically renew thereafter and
you will be charged according to your
chosen payment method at then-cur-
rent rates. Fees and taxes apply. To
cancel you must call SiriusXM at 1-
866-635-2349. See SiriusXM Customer
Agreement for complete terms at
www.siriusxm.com. SiriusXM U.S.
satellite and data services are avail-
able only in the 48 contiguous states,
DC and Puerto Rico (with coverage
limitations). SiriusXM satellite service
is also available in Canada; see
www.siriusxm.ca. All fees and pro-
gramming subject to change. Sirius,
XM and all related marks and logos
are trademarks of Sirius XM Radio Inc.
SiriusXM Radio Mode
(if equipped)
With the SiriusXM SatelliteRadio Mode Button
Your Hyundai vehicle is equipped with a
3-month trial subscription to SiriusXM so
you have access to over 140 channels of
music, information, and entertainment
programming.
Activation
In order to extend or reactivate your
SiriusXM Select subscription, you will need
to contact SiriusXM Customer Care at 1-
800-643-2112. Have your 12-digit RID
(Radio Identification Number)/ESN
(Electronic Serial Number) ready. To retrieve
the RID/ESN, turn on the radio, press the
[RADIO]( [XM]) button, and tune to channel
zero. Please note that the vehicle will need to
be turned on, in SiriusXM mode, and
have an unobstructed view of the sky in
order for the radio to receive the activa-
tion signal.
Seek
Press the [SEEK TRACK]
button.
Short press : Select previous or next channel.
Press and hold : Continuously move to previous or next channel.
If the “Category” icon is displayed, channels are changed within the cur-
rent category.
Scan
Press the [SCAN] button.
Short press : Previews each broadcast for 5 seconds each.
Press the [SCAN] button again to con-
tinue listening to the current frequency.
If the “Category” icon is displayed, channels are changed within the cur-
rent category.

4-35
Multimedia System
4

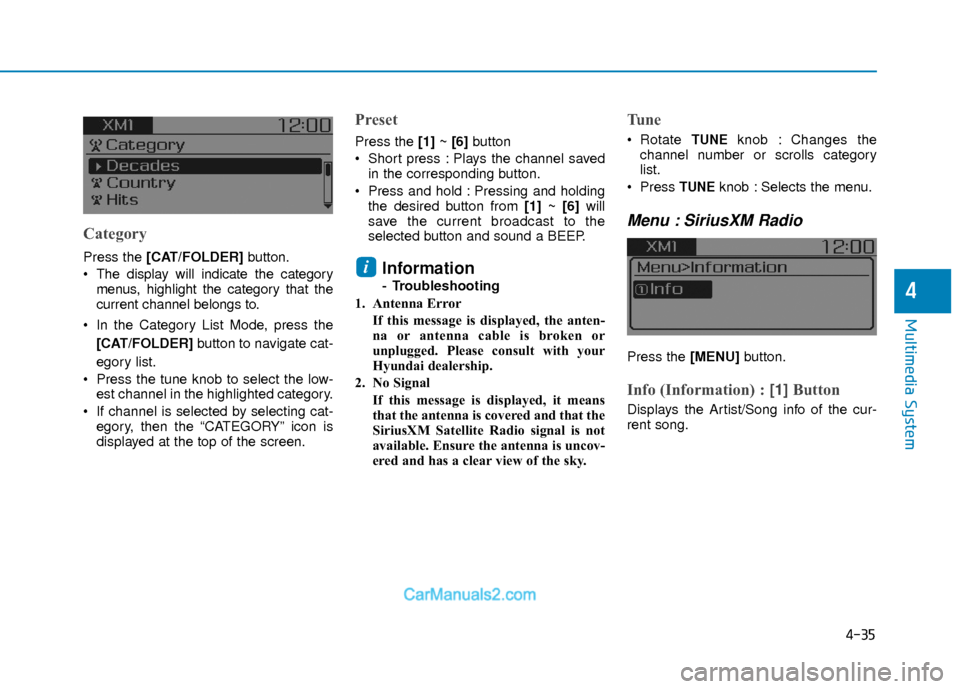

Category
Press the [CAT/FOLDER]button.
The display will indicate the category menus, highlight the category that the
current channel belongs to.
In the Category List Mode, press the [CAT/FOLDER] button to navigate cat-
egory list.
Press the tune knob to select the low- est channel in the highlighted category.
If channel is selected by selecting cat- egory, then the “CATEGORY” icon is
displayed at the top of the screen.
Preset
Press the [1] ~ [6] button
Short press : Plays the channel saved in the corresponding button.
Press and hold : Pressing and holding the desired button from [1]~ [6] will
save the current broadcast to the
selected button and sound a BEEP.
Information
- Troubleshooting
1. Antenna Error If this message is displayed, the anten-
na or antenna cable is broken or
unplugged. Please consult with your
Hyundai dealership.
2. No Signal If this message is displayed, it means
that the antenna is covered and that the
SiriusXM Satellite Radio signal is not
available. Ensure the antenna is uncov-
ered and has a clear view of the sky.
Tune
Rotate TUNEknob : Changes the
channel number or scrolls category
list.
Press
TUNEknob : Selects the menu.
Menu : SiriusXM Radio
Press the [MENU] button.
Info (Information) : [1]Button
Displays the Artist/Song info of the cur-
rent song.
i

4-36
Multimedia System

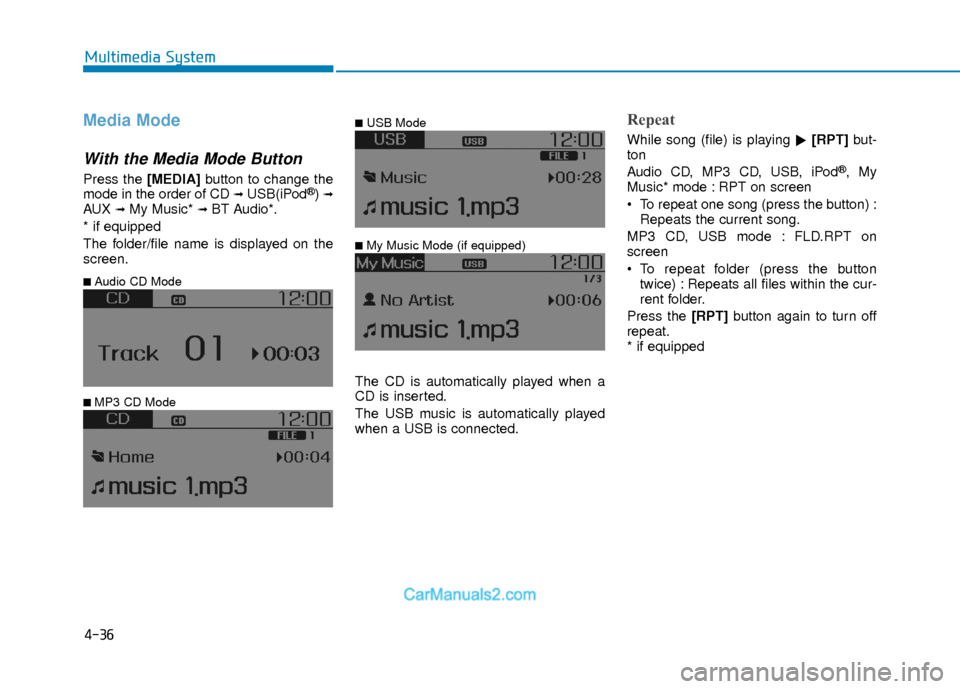

Media Mode
With the Media Mode Button
Press the [MEDIA]button to change the
mode in the order of CD ➟ USB(iPod®) ➟AUX ➟ My Music*➟ BT Audio*.
* if equipped
The folder/file name is displayed on the
screen.
The CD is automatically played when a
CD is inserted.
The USB music is automatically played
when a USB is connected.
Repeat
While song (file) is playing[RPT]
but-
ton
Audio CD, MP3 CD, USB, iPod
®, My
Music* mode : RPT on screen
To repeat one song (press the button) : Repeats the current song.
MP3 CD, USB mode : FLD.RPT on
screen
To repeat folder (press the button twice) : Repeats all files within the cur-
rent folder.
Press the [RPT] button again to turn off
repeat.
* if equipped
■ My Music Mode (if equipped)
■ USB Mode
■ MP3 CD Mode
■ Audio CD Mode

4-37
Multimedia System
4

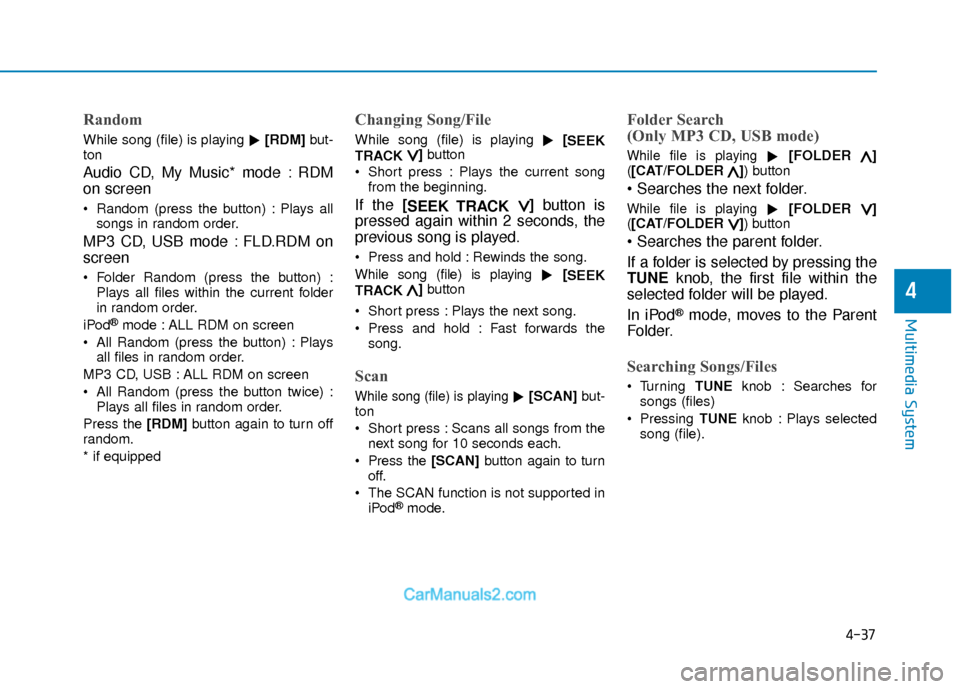

Random
While song (file) is playing[RDM]
but-
ton
Audio CD, My Music* mode : RDM
on screen
Random (press the button) : Plays all songs in random order.
MP3 CD, USB mode : FLD.RDM on
screen
Folder Random (press the button) :Plays all files within the current folder
in random order.
iPod
®mode : ALL RDM on screen
All Random (press the button) : Plays all files in random order.
MP3 CD, USB : ALL RDM on screen
All Random (press the button twice) : Plays all files in random order.
Press the [RDM] button again to turn off
random.
* if equipped
Changing Song/File
While song (file) is playing [
SEEK
TRACK
∨ ∨] button
Short press : Plays the current song from the beginning.
If the [ SEEK TRACK ∨
∨] button is
pressed again within 2 seconds, the
previous song is played.
Press and hold : Rewinds the song.
While song (file) is playing [
SEEK
TRACK
∧ ∧] button
Short press : Plays the next song.
Press and hold : Fast forwards the song.
Scan
While song (file) is playing  [SCAN]
but-
ton
Short press : Scans all songs from the next song for 10 seconds each.
Press the [SCAN] button again to turn
off.
The SCAN function is not supported in iPod
®mode.
Folder Search
(Only MP3 CD, USB mode)
While file is playing  [FOLDER ∧ ∧]
( [CAT/FOLDER
∧
∧]) button

While file is playing  [FOLDER ∨
∨]
( [CAT/FOLDER
∨
∨]) button

If a folder is selected by pressing the
TUNE knob, the first file within the
selected folder will be played.
In iPod
®mode, moves to the Parent
Folder.
Searching Songs/Files
Turning TUNEknob : Searches for
songs (files)
Pressing TUNEknob : Plays selected
song (file).

4-38
Multimedia System

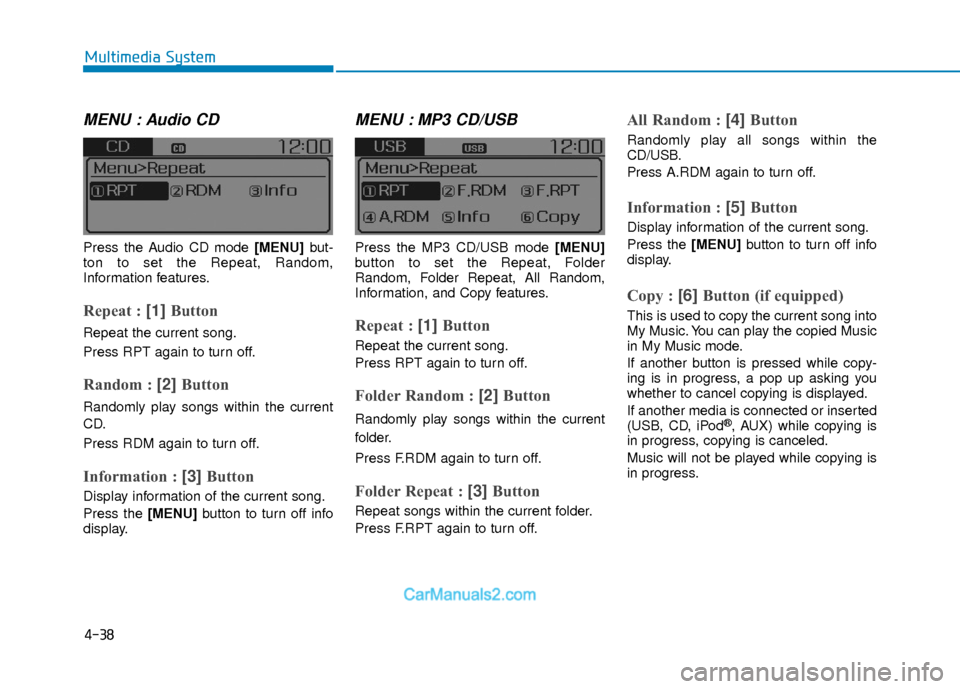

MENU : Audio CD
Press the Audio CD mode [MENU] but-
ton to set the Repeat, Random,
Information features.
Repeat : [1] Button
Repeat the current song.
Press RPT again to turn off.
Random : [2] Button
Randomly play songs within the current
CD.
Press RDM again to turn off.
Information : [3] Button
Display information of the current song.
Press the [MENU] button to turn off info
display.
MENU : MP3 CD/USB
Press the MP3 CD/USB mode [MENU]
button to set the Repeat, Folder
Random, Folder Repeat, All Random,
Information, and Copy features.
Repeat : [1] Button
Repeat the current song.
Press RPT again to turn off.
Folder Random : [2] Button
Randomly play songs within the current
folder.
Press F.RDM again to turn off.
Folder Repeat : [3] Button
Repeat songs within the current folder.
Press F.RPT again to turn off.
All Random : [4] Button
Randomly play all songs within the
CD/USB.
Press A.RDM again to turn off.
Information : [5] Button
Display information of the current song.
Press the [MENU] button to turn off info
display.
Copy : [6] Button (if equipped)
This is used to copy the current song into
My Music. You can play the copied Music
in My Music mode.
If another button is pressed while copy-
ing is in progress, a pop up asking you
whether to cancel copying is displayed.
If another media is connected or inserted
(USB, CD, iPod
®, AUX) while copying is
in progress, copying is canceled.
Music will not be played while copying is
in progress.

4-39
Multimedia System
4

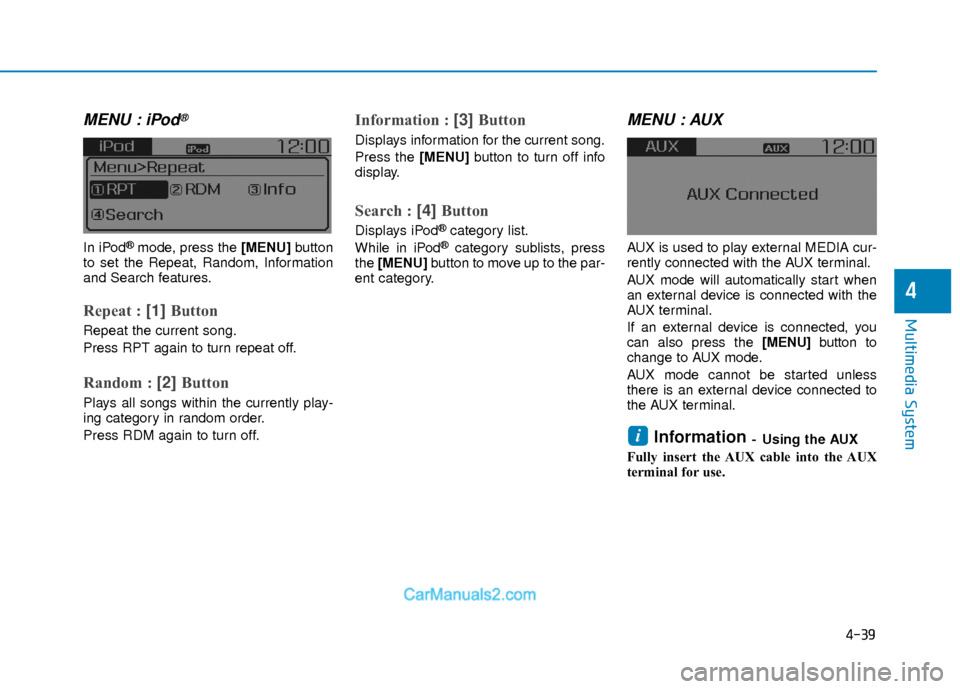

MENU : iPod®
In iPod®mode, press the [MENU]button
to set the Repeat, Random, Information
and Search features.
Repeat : [1] Button
Repeat the current song.
Press RPT again to turn repeat off.
Random : [2] Button
Plays all songs within the currently play-
ing category in random order.
Press RDM again to turn off.
Information : [3] Button
Displays information for the current song.
Press the [MENU] button to turn off info
display.
Search : [4] Button
Displays iPod®category list.
While in iPod®category sublists, press
the [MENU] button to move up to the par-
ent category.
MENU : AUX
AUX is used to play external MEDIA cur-
rently connected with the AUX terminal.
AUX mode will automatically start when
an external device is connected with the
AUX terminal.
If an external device is connected, you
can also press the [MENU] button to
change to AUX mode.
AUX mode cannot be started unless
there is an external device connected to
the AUX terminal.
Information - Using the AUX
Fully insert the AUX cable into the AUX
terminal for use.i

4-40
Multimedia System

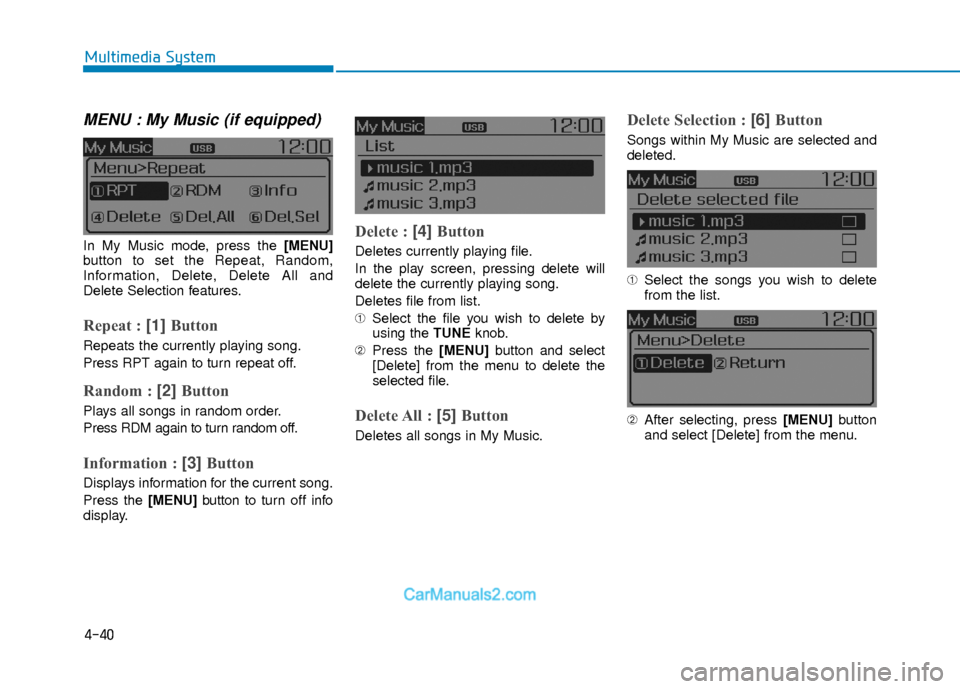

MENU : My Music (if equipped)
In My Music mode, press the [MENU]
button to set the Repeat, Random,
Information, Delete, Delete All and
Delete Selection features.
Repeat : [1] Button
Repeats the currently playing song.
Press RPT again to turn repeat off.
Random : [2] Button
Plays all songs in random order.
Press RDM again to turn random off.
Information : [3] Button
Displays information for the current song.
Press the [MENU] button to turn off info
display.
Delete : [4] Button
Deletes currently playing file.
In the play screen, pressing delete will
delete the currently playing song.
Deletes file from list.
➀Select the file you wish to delete by
using the TUNE knob.
➁ Press the [MENU] button and select
[Delete] from the menu to delete the
selected file.
Delete All : [5] Button
Deletes all songs in My Music.
Delete Selection : [6] Button
Songs within My Music are selected and
deleted.
➀Select the songs you wish to delete
from the list.
➁ After selecting, press [MENU] button
and select [Delete] from the menu.

4-41

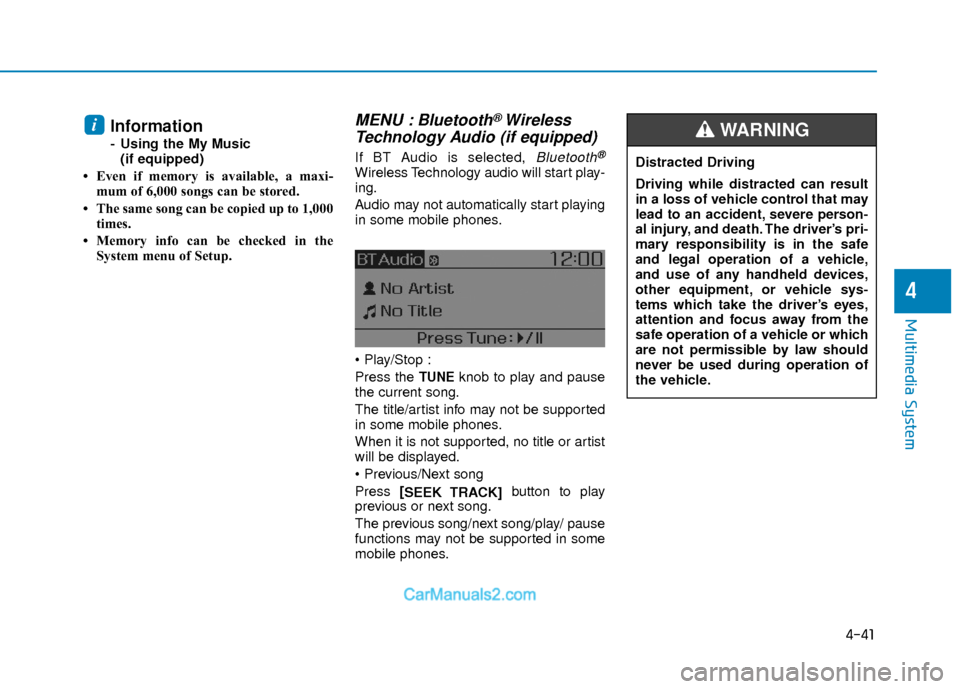

Multimedia System
4
Information
- Using the My Music(if equipped)
• Even if memory is available, a maxi- mum of 6,000 songs can be stored.
• The same song can be copied up to 1,000 times.
• Memory info can be checked in the System menu of Setup.
MENU : Bluetooth® Wireless
Technology Audio (if equipped)
If BT Audio is selected, Bluetooth®
Wireless Technology audio will start play-
ing.
Audio may not automatically start playing
in some mobile phones.

Press the
TUNEknob to play and pause
the current song.
The title/artist info may not be supported
in some mobile phones.
When it is not supported, no title or artist
will be displayed.

Press [
SEEK TRACK] button to play
previous or next song.
The previous song/next song/play/ pause
functions may not be supported in some
mobile phones.
i
Distracted Driving
Driving while distracted can result
in a loss of vehicle control that may
lead to an accident, severe person-
al injury, and death. The driver’s pri-
mary responsibility is in the safe
and legal operation of a vehicle,
and use of any handheld devices,
other equipment, or vehicle sys-
tems which take the driver’s eyes,
attention and focus away from the
safe operation of a vehicle or which
are not permissible by law should
never be used during operation of
the vehicle.
WARNING
