Features of your vehicle
ESP OFF indicator
The ESP OFF indicator will illuminate
when the engine start/stop button is
turned ON, but should go off after
approximately 3 seconds. To switch to
ESP OFF mode, press the ESP OFF but-
ton. The ESP OFF indicator will illumi-
nate indicating the ESP is deactivated.
VSM OFF indicator (if equipped)
To switch to VSM OFF mode, press the
VSM OFF button. The VSM OFF indica-
tor will illuminate indicating the VSM is
deactivated.
If this indicator stays on when VSM OFF
in not selected, the VSM may have mal-
functioned. Take your vehicle to an
authorized HYUNDAI dealer and have
the system checked.
Cruise indicator (if equipped)
CRUISE indicator
The indicator illuminates when the cruise
control system is enabled.
The cruise indicator in the instrument
cluster is illuminated when the cruise
control ON-OFF button on the steeringwheel is pressed.
The indicator light turns off when the
cruise control ON-OFF button is pressed
again. For more information about the
use of cruise control, refer to “Cruise
control system or Smart cruise control
system” in section 5.
Cruise SET indicator
The indicator illuminates when the cruise
function switch (SET- or RES+) is ON.
The cruise SET indicator light in the
instrument cluster or on the LCD screen
is illuminated when the cruise control
switch (SET- or RES+) is pushed. The
cruise SET indicator does not illuminate
when the cruise control switch (CAN-CEL) is pushed or the system is disen-gaged.
Smart cruise control warning light (if equipped)
SCC (Smart cruise control) malfunction
indicator
The warning light illuminates when the
vehicle to vehicle distance control sys-
tem is not operated normally.
Take your vehicle to an authorized
HYUNDAI dealer and have the system
checked.
VSM
OFF
SET
OVI049222

Features of your vehicle
64
4

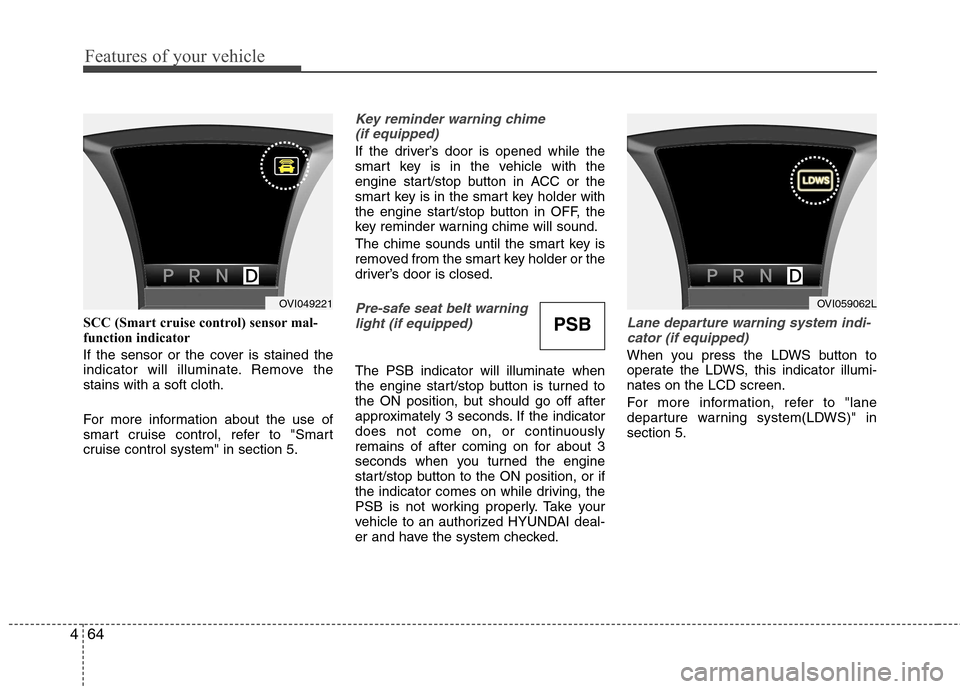

SCC (Smart cruise control) sensor mal-
function indicator
If the sensor or the cover is stained the
indicator will illuminate. Remove thestains with a soft cloth.
For more information about the use of
smart cruise control, refer to "Smart
cruise control system" in section 5.
Key reminder warning chime
(if equipped)
If the driver’s door is opened while the
smart key is in the vehicle with the
engine start/stop button in ACC or the
smart key is in the smart key holder with
the engine start/stop button in OFF, the
key reminder warning chime will sound.
The chime sounds until the smart key is
removed from the smart key holder or the
driver’s door is closed.
Pre-safe seat belt warninglight (if equipped)
The PSB indicator will illuminate when
the engine start/stop button is turned to
the ON position, but should go off after
approximately 3 seconds. If the indicator
does not come on, or continuously
remains of after coming on for about 3
seconds when you turned the engine
start/stop button to the ON position, or if
the indicator comes on while driving, the
PSB is not working properly. Take your
vehicle to an authorized HYUNDAI deal-
er and have the system checked.
Lane departure warning system indi-cator (if equipped)
When you press the LDWS button to
operate the LDWS, this indicator illumi-nates on the LCD screen.
For more information, refer to "lane
departure warning system(LDWS)" insection 5.
OVI049221
PSB
OVI059062L

465
Features of your vehicle

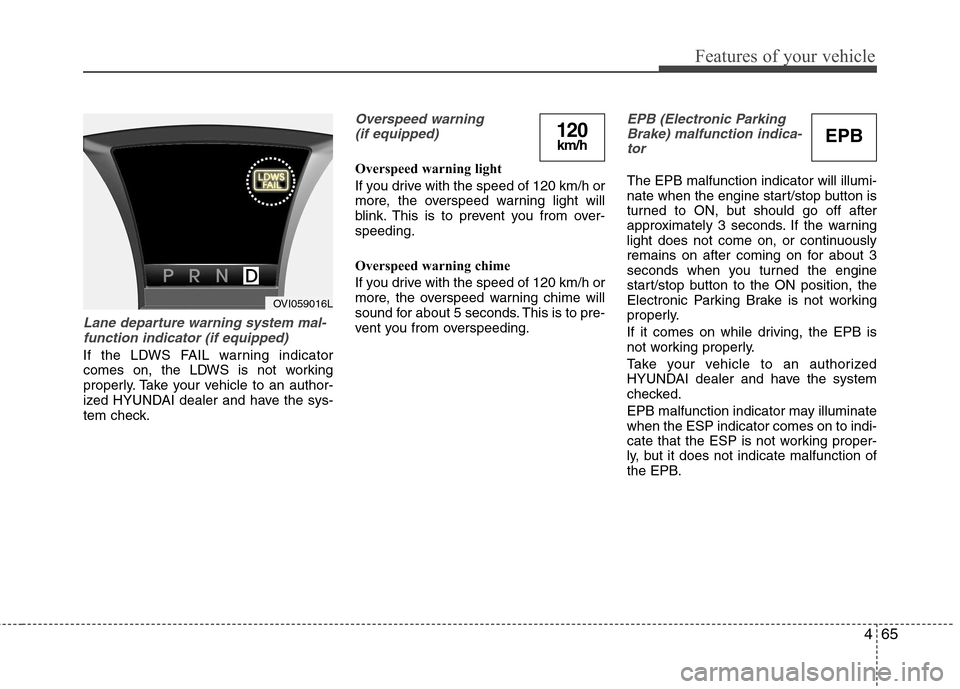

Lane departure warning system mal-function indicator (if equipped)
If the LDWS FAIL warning indicator
comes on, the LDWS is not working
properly. Take your vehicle to an author-
ized HYUNDAI dealer and have the sys-
tem check.
Overspeed warning (if equipped)
Overspeed warning light
If you drive with the speed of 120 km/h or
more, the overspeed warning light will
blink. This is to prevent you from over-speeding.
Overspeed warning chime
If you drive with the speed of 120 km/h or
more, the overspeed warning chime will
sound for about 5 seconds. This is to pre-
vent you from overspeeding.
EPB (Electronic ParkingBrake) malfunction indica-
tor
The EPB malfunction indicator will illumi-
nate when the engine start/stop button is
turned to ON, but should go off after
approximately 3 seconds. If the warning
light does not come on, or continuously
remains on after coming on for about 3
seconds when you turned the engine
start/stop button to the ON position, the
Electronic Parking Brake is not working
properly.
If it comes on while driving, the EPB is
not working properly.
Take your vehicle to an authorized
HYUNDAI dealer and have the system
checked.
EPB malfunction indicator may illuminate when the ESP indicator comes on to indi-
cate that the ESP is not working proper-
ly, but it does not indicate malfunction of
the EPB.
OVI059016L
EPB120km/h

Features of your vehicle
66
4

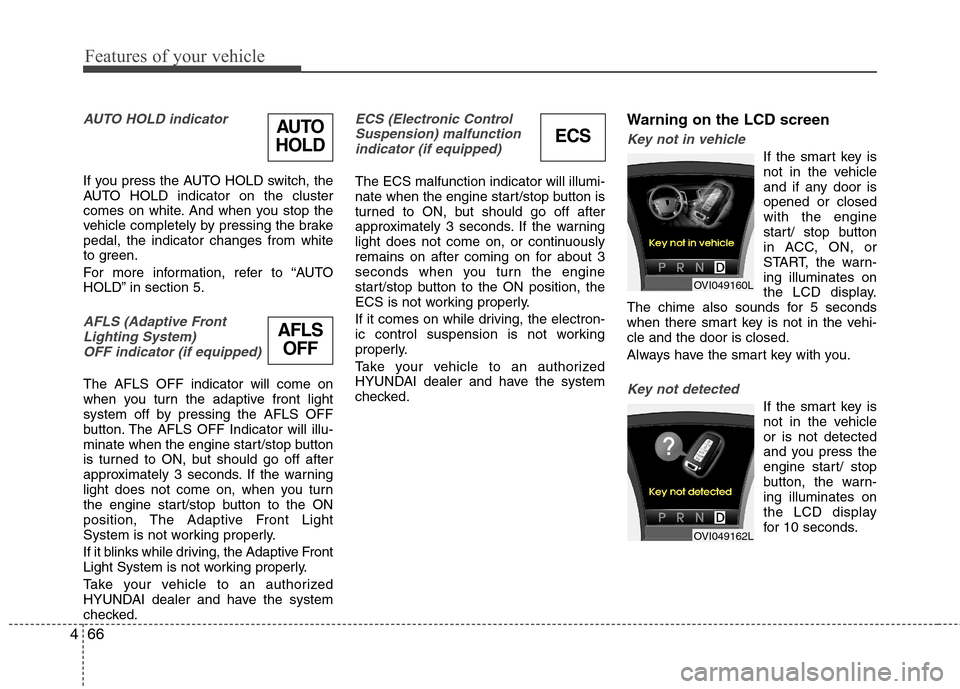

AUTO HOLD indicator
If you press the AUTO HOLD switch, the
AUTO HOLD indicator on the cluster
comes on white. And when you stop the
vehicle completely by pressing the brakepedal, the indicator changes from white
to green.
For more information, refer to “AUTO
HOLD” in section 5.
AFLS (Adaptive Front
Lighting System)
OFF indicator (if equipped)
The AFLS OFF indicator will come on
when you turn the adaptive front light
system off by pressing the AFLS OFF
button. The AFLS OFF Indicator will illu-
minate when the engine start/stop button
is turned to ON, but should go off after
approximately 3 seconds. If the warning
light does not come on, when you turn
the engine start/stop button to the ON
position, The Adaptive Front Light
System is not working properly.
If it blinks while driving, the Adaptive Front
Light System is not working properly.
Take your vehicle to an authorized
HYUNDAI dealer and have the system
checked.
ECS (Electronic ControlSuspension) malfunctionindicator (if equipped)
The ECS malfunction indicator will illumi-
nate when the engine start/stop button is
turned to ON, but should go off after
approximately 3 seconds. If the warning
light does not come on, or continuously
remains on after coming on for about 3
seconds when you turn the engine
start/stop button to the ON position, the
ECS is not working properly.
If it comes on while driving, the electron-
ic control suspension is not working
properly.
Take your vehicle to an authorized
HYUNDAI dealer and have the system
checked. Warning on the LCD screen
Key not in vehicle
If the smart key is
not in the vehicle
and if any door isopened or closedwith the engine
start/ stop button
in ACC, ON, or
START, the warn-ing illuminates on
the LCD display.
The chime also sounds for 5 seconds
when there smart key is not in the vehi-cle and the door is closed.
Always have the smart key with you.
Key not detected
If the smart key is
not in the vehicleor is not detected
and you press the
engine start/ stop
button, the warn-ing illuminates on
the LCD display
for 10 seconds.
AFLS
OFF
AUTO
HOLD
OVI049160L
OVI049162L
ECS

467
Features of your vehicle

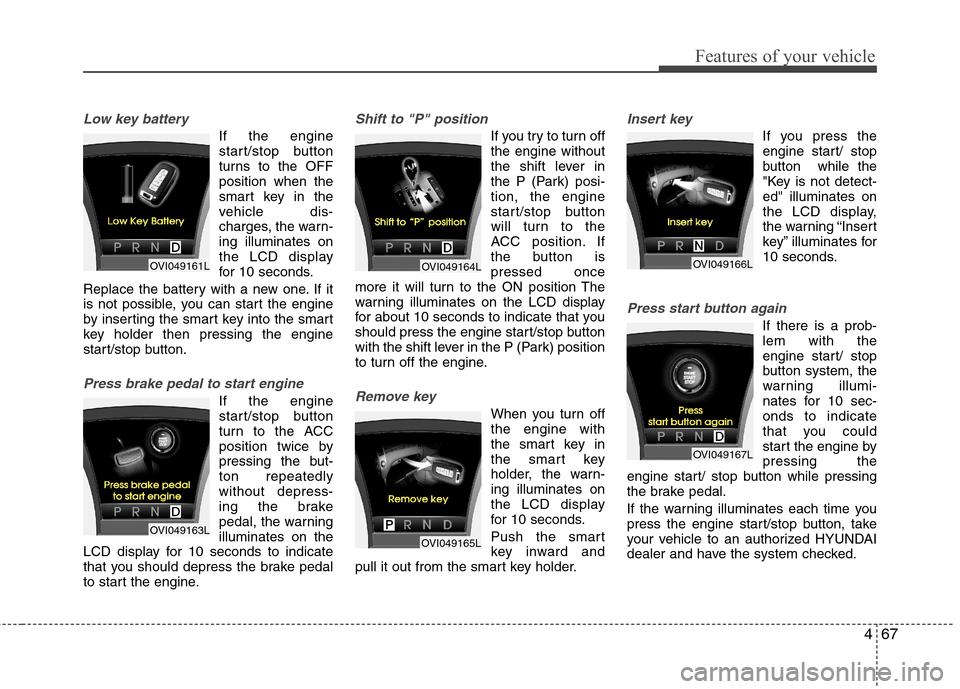

Low key battery
If the engine
start/stop button
turns to the OFFposition when the
smart key in the
vehicle dis-
charges, the warn-ing illuminates on
the LCD display
for 10 seconds.
Replace the battery with a new one. If it
is not possible, you can start the engine
by inserting the smart key into the smart
key holder then pressing the engine
start/stop button.
Press brake pedal to start engine
If the engine
start/stop button
turn to the ACC
position twice by
pressing the but-ton repeatedlywithout depress-
ing the brake
pedal, the warningilluminates on the
LCD display for 10 seconds to indicate
that you should depress the brake pedal
to start the engine.
Shift to "P" position
If you try to turn off the engine without
the shift lever in
the P (Park) posi-tion, the engine
start/stop button
will turn to the
ACC position. If
the button ispressed once
more it will turn to the ON position The
warning illuminates on the LCD display
for about 10 seconds to indicate that you
should press the engine start/stop button
with the shift lever in the P (Park) position
to turn off the engine.
Remove key
When you turn off the engine with
the smart key in
the smart key
holder, the warn-ing illuminates on
the LCD display
for 10 seconds.
Push the smart
key inward and
pull it out from the smart key holder.
Insert key
If you press the
engine start/ stop
button while the
"Key is not detect-ed" illuminates on
the LCD display,
the warning “Insert
key” illuminates for
10 seconds.
Press start button again
If there is a prob- lem with the
engine start/ stop
button system, the
warning illumi-
nates for 10 sec-onds to indicate
that you could
start the engine bypressing the
engine start/ stop button while pressing
the brake pedal.
If the warning illuminates each time you
press the engine start/stop button, take
your vehicle to an authorized HYUNDAI
dealer and have the system checked.
OVI049161L
OVI049163L
OVI049164L
OVI049165L
OVI049166L
OVI049167L

Features of your vehicle
68
4

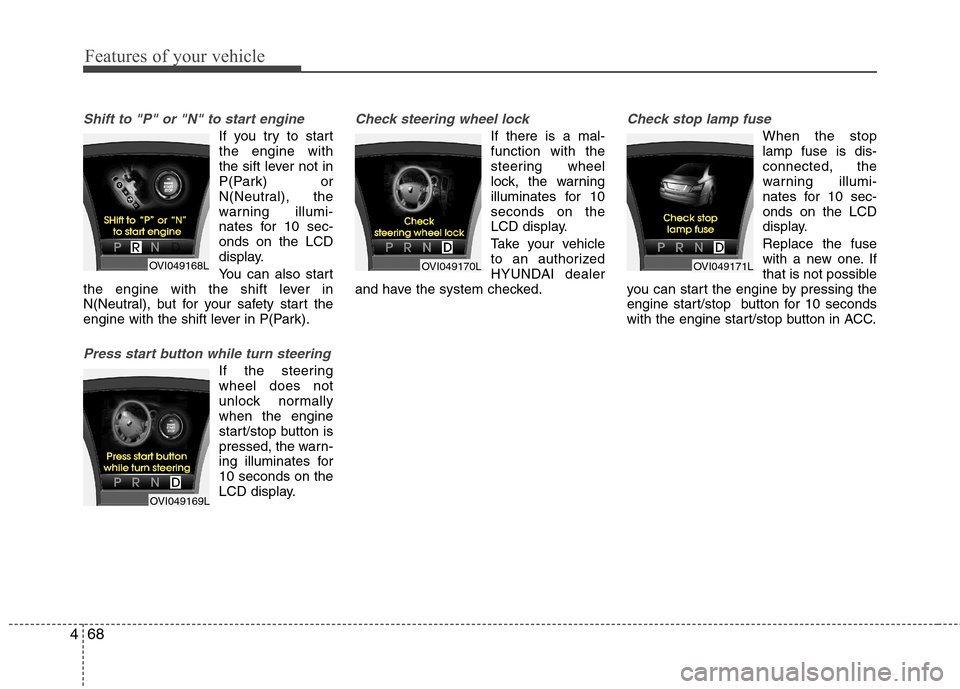

Shift to "P" or "N" to start engine
If you try to start the engine with
the sift lever not in
P(Park) or
N(Neutral), the
warning illumi-
nates for 10 sec-onds on the LCD
display.
You can also start
the engine with the shift lever in
N(Neutral), but for your safety start the
engine with the shift lever in P(Park).
Press start button while turn steering
If the steering wheel does not
unlock normallywhen the engine
start/stop button is
pressed, the warn-
ing illuminates for10 seconds on the
LCD display.
Check steering wheel lock
If there is a mal- function with the
steering wheel
lock, the warning
illuminates for 10seconds on the
LCD display.
Take your vehicle
to an authorized
HYUNDAI dealer
and have the system checked.
Check stop lamp fuse
When the stop lamp fuse is dis-connected, the
warning illumi-
nates for 10 sec-onds on the LCD
display. Replace the fuse
with a new one. If
that is not possible
you can start the engine by pressing the
engine start/stop button for 10 seconds
with the engine start/stop button in ACC.
OVI049168L
OVI049169L
OVI049170LOVI049171L

469
Features of your vehicle

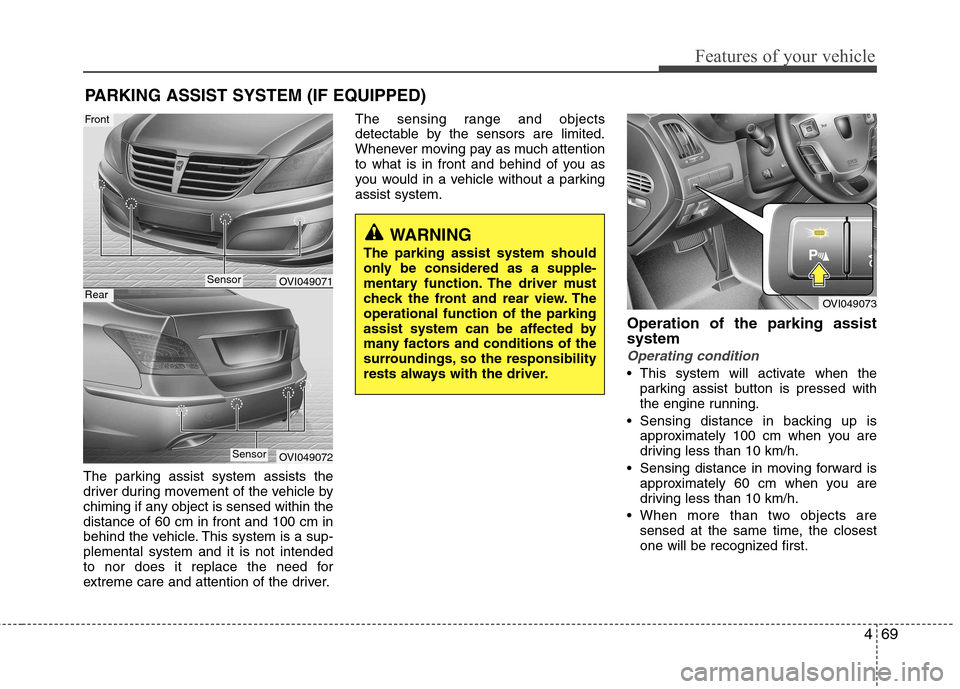

The parking assist system assists the
driver during movement of the vehicle by
chiming if any object is sensed within thedistance of 60 cm in front and 100 cm in
behind the vehicle. This system is a sup-plemental system and it is not intended
to nor does it replace the need for
extreme care and attention of the driver.The sensing range and objects
detectable by the sensors are limited.
Whenever moving pay as much attention
to what is in front and behind of you as
you would in a vehicle without a parkingassist system.
Operation of the parking assistsystem
Operating condition
This system will activate when theparking assist button is pressed with
the engine running.
Sensing distance in backing up is approximately 100 cm when you are
driving less than 10 km/h.
Sensing distance in moving forward is approximately 60 cm when you are
driving less than 10 km/h.
When more than two objects are sensed at the same time, the closest
one will be recognized first.
PARKING ASSIST SYSTEM (IF EQUIPPED)
OVI049071
OVI049072
WARNING
The parking assist system should
only be considered as a supple-
mentary function. The driver must
check the front and rear view. Theoperational function of the parking
assist system can be affected by
many factors and conditions of the
surroundings, so the responsibility
rests always with the driver.
OVI049073
Sensor
Front
Rear
Sensor

Features of your vehicle
70
4

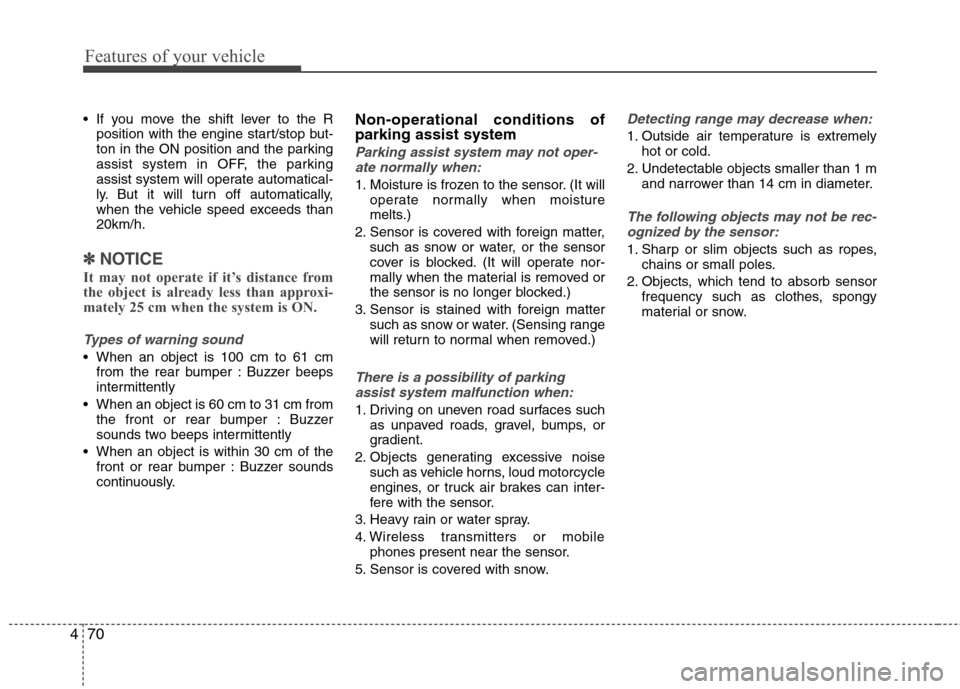

If you move the shift lever to the R
position with the engine start/stop but-
ton in the ON position and the parking
assist system in OFF, the parking
assist system will operate automatical-
ly. But it will turn off automatically,
when the vehicle speed exceeds than20km/h.

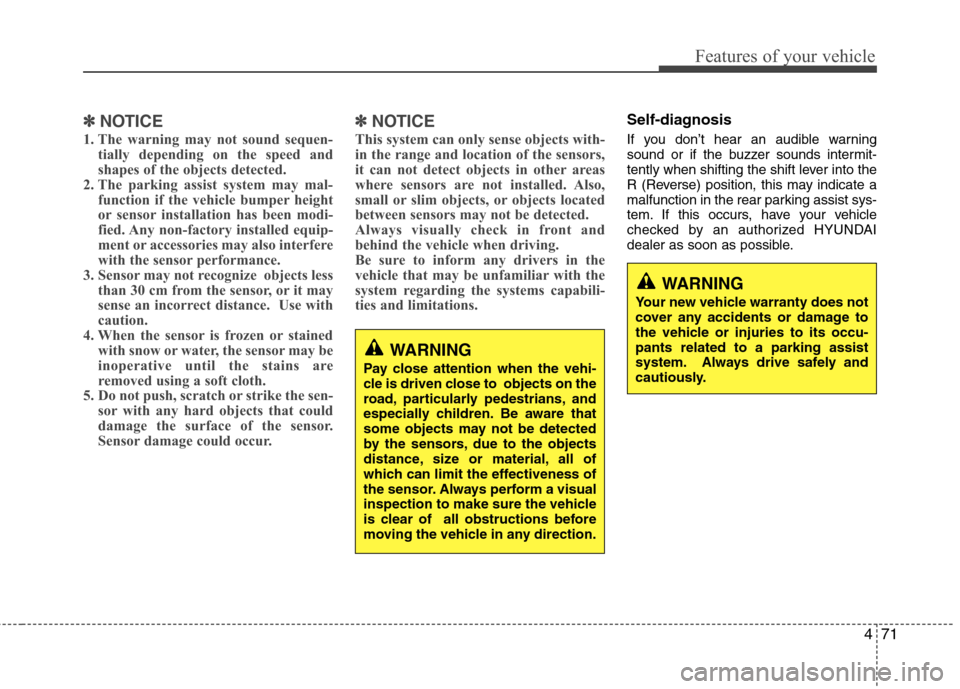

✽✽ NOTICE
It may not operate if it’s distance from
the object is already less than approxi-
mately 25 cm when the system is ON.
Types of warning sound
When an object is 100 cm to 61 cm from the rear bumper : Buzzer beeps
intermittently
When an object is 60 cm to 31 cm from the front or rear bumper : Buzzer
sounds two beeps intermittently
When an object is within 30 cm of the front or rear bumper : Buzzer sounds
continuously. Non-operational conditions ofparking assist system
Parking assist system may not oper-
ate normally when:
1. Moisture is frozen to the sensor. (It will operate normally when moisture
melts.)
2. Sensor is covered with foreign matter, such as snow or water, or the sensor
cover is blocked. (It will operate nor-
mally when the material is removed or
the sensor is no longer blocked.)
3. Sensor is stained with foreign matter such as snow or water. (Sensing range
will return to normal when removed.)
There is a possibility of parking
assist system malfunction when:
1. Driving on uneven road surfaces such as unpaved roads, gravel, bumps, or
gradient.
2. Objects generating excessive noise such as vehicle horns, loud motorcycle
engines, or truck air brakes can inter-
fere with the sensor.
3. Heavy rain or water spray.
4. Wireless transmitters or mobile phones present near the sensor.
5. Sensor is covered with snow.
Detecting range may decrease when:
1. Outside air temperature is extremely hot or cold.
2. Undetectable objects smaller than 1 m and narrower than 14 cm in diameter.
The following objects may not be rec-
ognized by the sensor:
1. Sharp or slim objects such as ropes, chains or small poles.
2. Objects, which tend to absorb sensor frequency such as clothes, spongy
material or snow.

471
Features of your vehicle
✽✽NOTICE
1. The warning may not sound sequen- tially depending on the speed and
shapes of the objects detected.
2. The parking assist system may mal-
function if the vehicle bumper height
or sensor installation has been modi-
fied. Any non-factory installed equip-
ment or accessories may also interfere
with the sensor performance.
3. Sensor may not recognize objects less
than 30 cm from the sensor, or it may
sense an incorrect distance. Use with
caution.
4. When the sensor is frozen or stained
with snow or water, the sensor may be
inoperative until the stains are
removed using a soft cloth.
5. Do not push, scratch or strike the sen-
sor with any hard objects that could
damage the surface of the sensor.
Sensor damage could occur. ✽✽
NOTICE
This system can only sense objects with-
in the range and location of the sensors,
it can not detect objects in other areas
where sensors are not installed. Also,
small or slim objects, or objects located
between sensors may not be detected.
Always visually check in front and
behind the vehicle when driving.
Be sure to inform any drivers in the
vehicle that may be unfamiliar with the
system regarding the systems capabili-
ties and limitations.Self-diagnosis
If you don’t hear an audible warning
sound or if the buzzer sounds intermit-
tently when shifting the shift lever into the
R (Reverse) position, this may indicate a
malfunction in the rear parking assist sys-
tem. If this occurs, have your vehicle
checked by an authorized HYUNDAI
dealer as soon as possible.
WARNING
Pay close attention when the vehi-
cle is driven close to objects on the
road, particularly pedestrians, and
especially children. Be aware that
some objects may not be detected
by the sensors, due to the objects
distance, size or material, all of
which can limit the effectiveness of
the sensor. Always perform a visual
inspection to make sure the vehicle
is clear of all obstructions before
moving the vehicle in any direction.
WARNING
Your new vehicle warranty does not
cover any accidents or damage to
the vehicle or injuries to its occu-pants related to a parking assist
system. Always drive safely and
cautiously.

Features of your vehicle
72
4
This function assists you when reverse
parking (back-in parking) or parallel park-ing.
The parking guide system is only avail-
able when the vehicle speed is less than10km/h. (1) Reverse parking (Back-in parking)
(2) Parallel parking
(3) Top view
Reverse parking
(Back-in parking)
1. Drive the vehicle to a proper place to
park.
2. Stop the vehicle and shift the trans- mission lever to the R position.
3. Select the reverse parking mode by touching the icon on the screen.
4. The parking guide line (1) show on the screen.

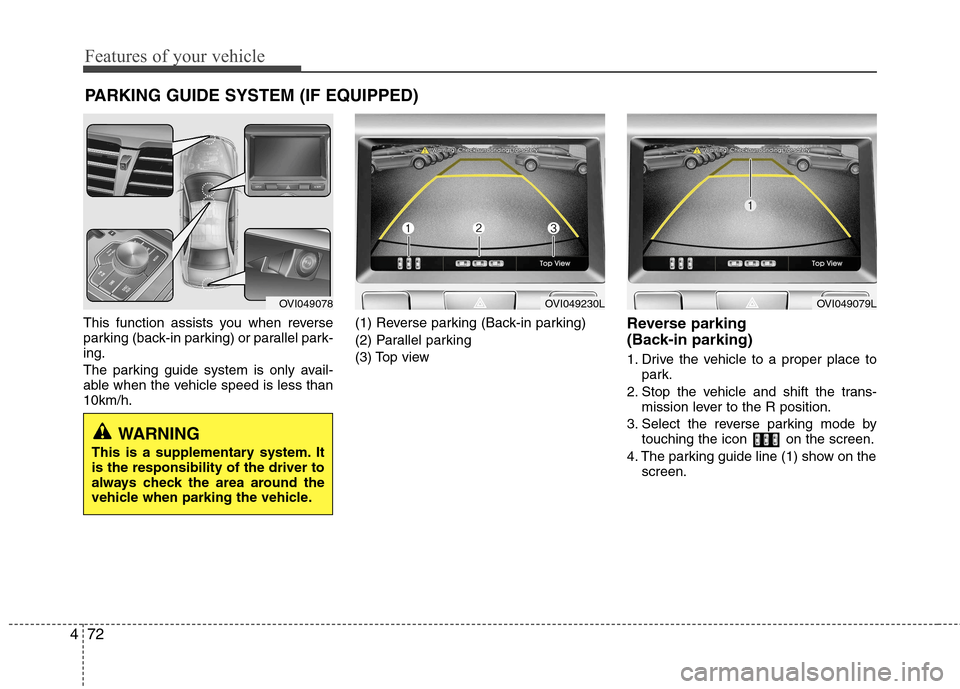

PARKING GUIDE SYSTEM (IF EQUIPPED)
WARNING
This is a supplementary system. It is the responsibility of the driver to
always check the area around the
vehicle when parking the vehicle.
OVI049078OVI049230LOVI049079L
