Hyundai Equus 2016 Owner's Manual

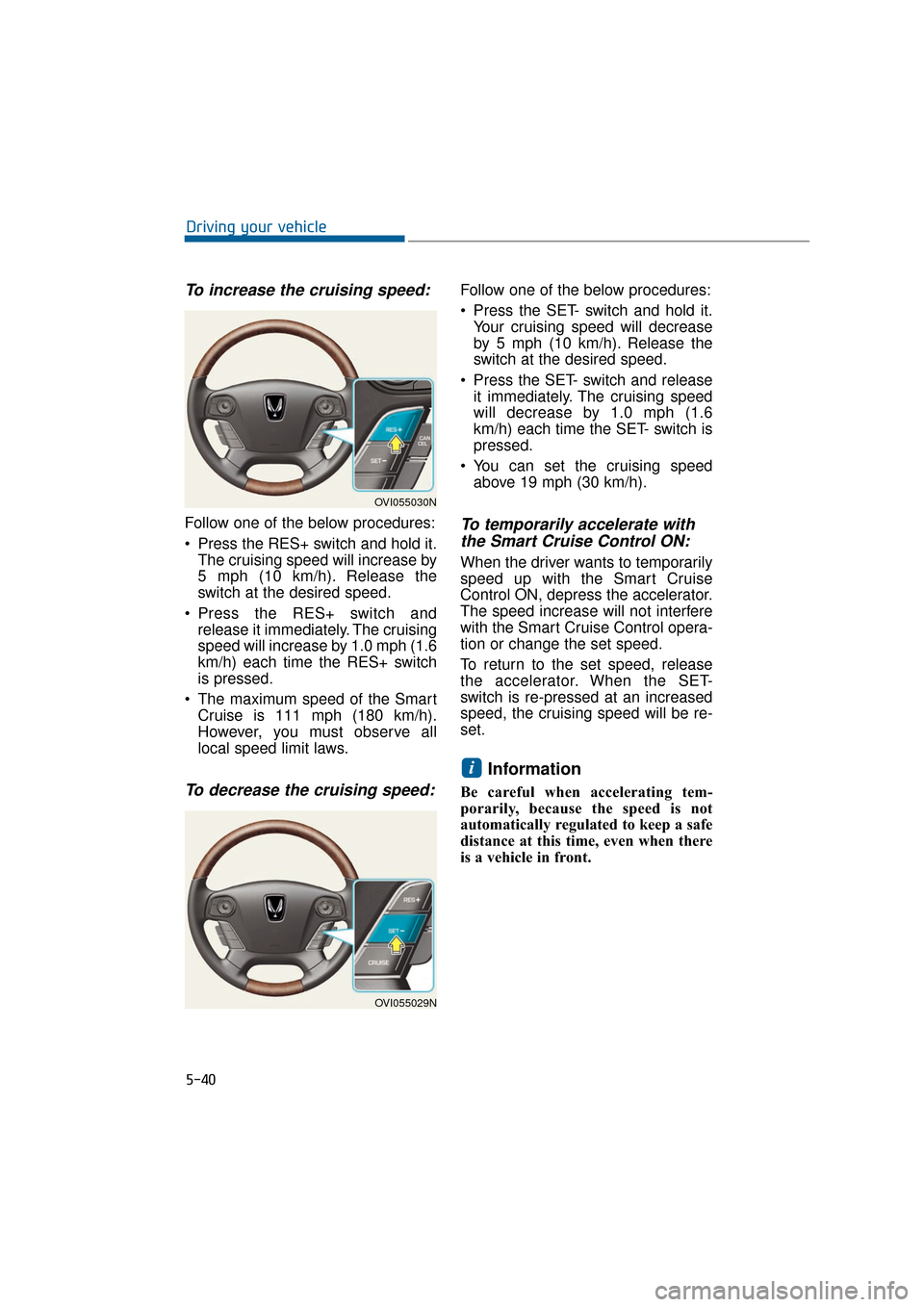

To increase the cruising speed:
Follow one of the below procedures:
Press the RES+ switch and hold it.The cruising speed will increase by
5 mph (10 km/h). Release the
switch at the desired speed.
Press the RES+ switch and release it immediately. The cruising
speed will increase by 1.0 mph (1.6
km/h) each time the RES+ switch
is pressed.
The maximum speed of the Smart Cruise is 111 mph (180 km/h).
However, you must observe all
local speed limit laws.
To decrease the cruising speed:
Follow one of the below procedures:
Press the SET- switch and hold it.Your cruising speed will decrease
by 5 mph (10 km/h). Release the
switch at the desired speed.
Press the SET- switch and release it immediately. The cruising speed
will decrease by 1.0 mph (1.6
km/h) each time the SET- switch is
pressed.
You can set the cruising speed above 19 mph (30 km/h).
To temporarily accelerate withthe Smart Cruise Control ON:
When the driver wants to temporarily
speed up with the Smart Cruise
Control ON, depress the accelerator.
The speed increase will not interfere
with the Smart Cruise Control opera-
tion or change the set speed.
To return to the set speed, release
the accelerator. When the SET-
switch is re-pressed at an increased
speed, the cruising speed will be re-
set.
Information
Be careful when accelerating tem-
porarily, because the speed is not
automatically regulated to keep a safe
distance at this time, even when there
is a vehicle in front.
i
5-40
Driving your vehicle
OVI055030N
OVI055029N

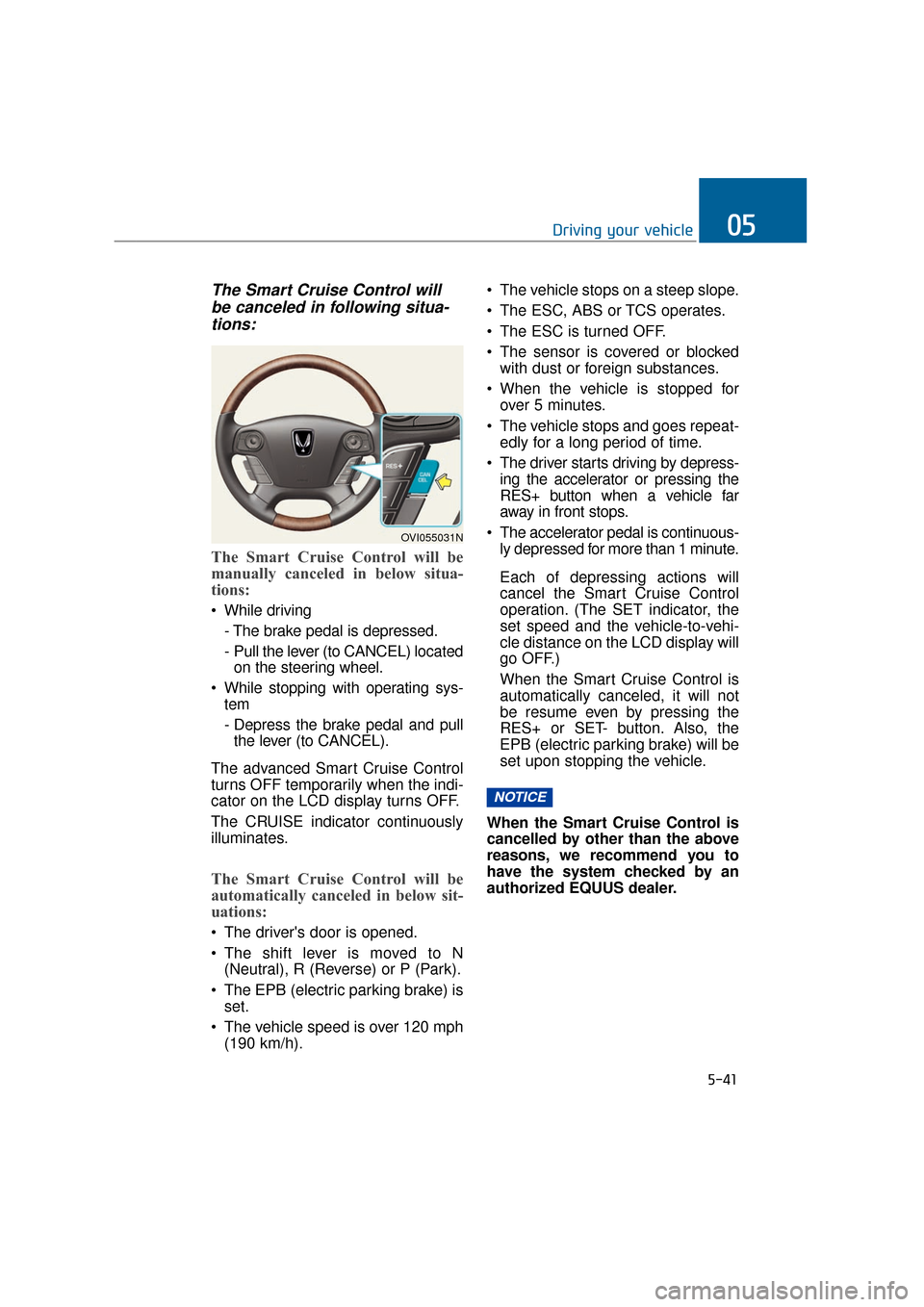

The Smart Cruise Control willbe canceled in following situa-tions:
The Smart Cruise Control will be
manually canceled in below situa-
tions:
While driving
- The brake pedal is depressed.
- Pull the lever (to CANCEL) locatedon the steering wheel.
While stopping with operating sys- tem
- Depress the brake pedal and pullthe lever (to CANCEL).
The advanced Smart Cruise Control
turns OFF temporarily when the indi-
cator on the LCD display turns OFF.
The CRUISE indicator continuously
illuminates.
The Smart Cruise Control will be
automatically canceled in below sit-
uations:
The driver's door is opened.
The shift lever is moved to N (Neutral), R (Reverse) or P (Park).
The EPB (electric parking brake) is set.
The vehicle speed is over 120 mph (190 km/h). The vehicle stops on a steep slope.
The ESC, ABS or TCS operates.
The ESC is turned OFF.
The sensor is covered or blocked
with dust or foreign substances.
When the vehicle is stopped for over 5 minutes.
The vehicle stops and goes repeat- edly for a long period of time.
The driver starts driving by depress- ing the accelerator or pressing the
RES+ button when a vehicle far
away in front stops.
The accelerator pedal is continuous- ly depressed for more than 1 minute.
Each of depressing actions will
cancel the Smart Cruise Control
operation. (The SET indicator, the
set speed and the vehicle-to-vehi-
cle distance on the LCD display will
go OFF.)
When the Smart Cruise Control is
automatically canceled, it will not
be resume even by pressing the
RES+ or SET- button. Also, the
EPB (electric parking brake) will be
set upon stopping the vehicle.
When the Smart Cruise Control is
cancelled by other than the above
reasons, we recommend you to
have the system checked by an
authorized EQUUS dealer.
NOTICE
5-41
Driving your vehicle05
OVI055031N

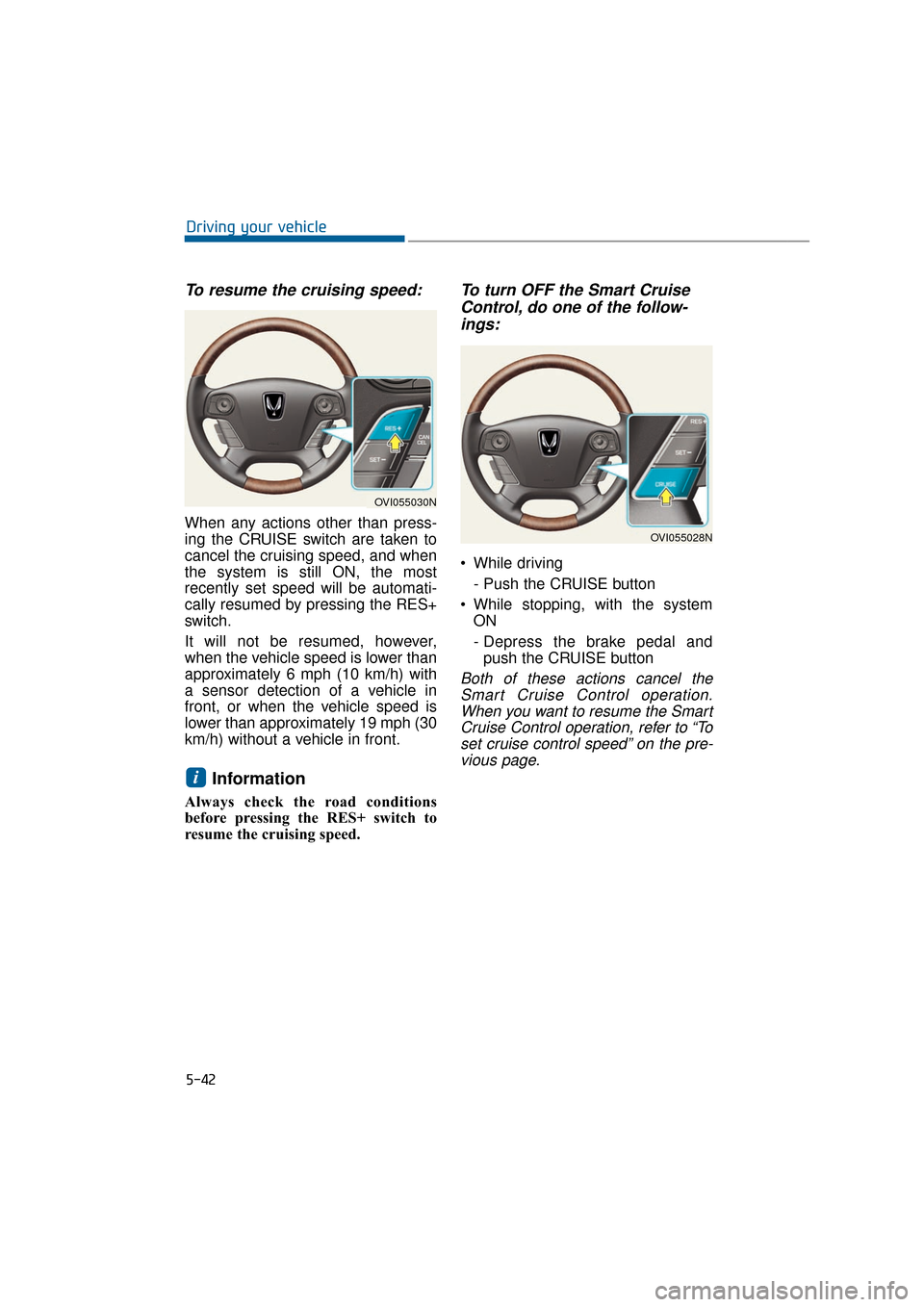

To resume the cruising speed:
When any actions other than press-
ing the CRUISE switch are taken to
cancel the cruising speed, and when
the system is still ON, the most
recently set speed will be automati-
cally resumed by pressing the RES+
switch.
It will not be resumed, however,
when the vehicle speed is lower than
approximately 6 mph (10 km/h) with
a sensor detection of a vehicle in
front, or when the vehicle speed is
lower than approximately 19 mph (30
km/h) without a vehicle in front.
Information
Always check the road conditions
before pressing the RES+ switch to
resume the cruising speed.
To turn OFF the Smart CruiseControl, do one of the follow-ings:
While driving
- Push the CRUISE button
While stopping, with the system ON
- Depress the brake pedal andpush the CRUISE button
Both of these actions cancel theSmart Cruise Control operation.When you want to resume the SmartCruise Control operation, refer to “Toset cruise control speed” on the pre-vious page.
i
5-42
Driving your vehicle
OVI055030N
OVI055028N

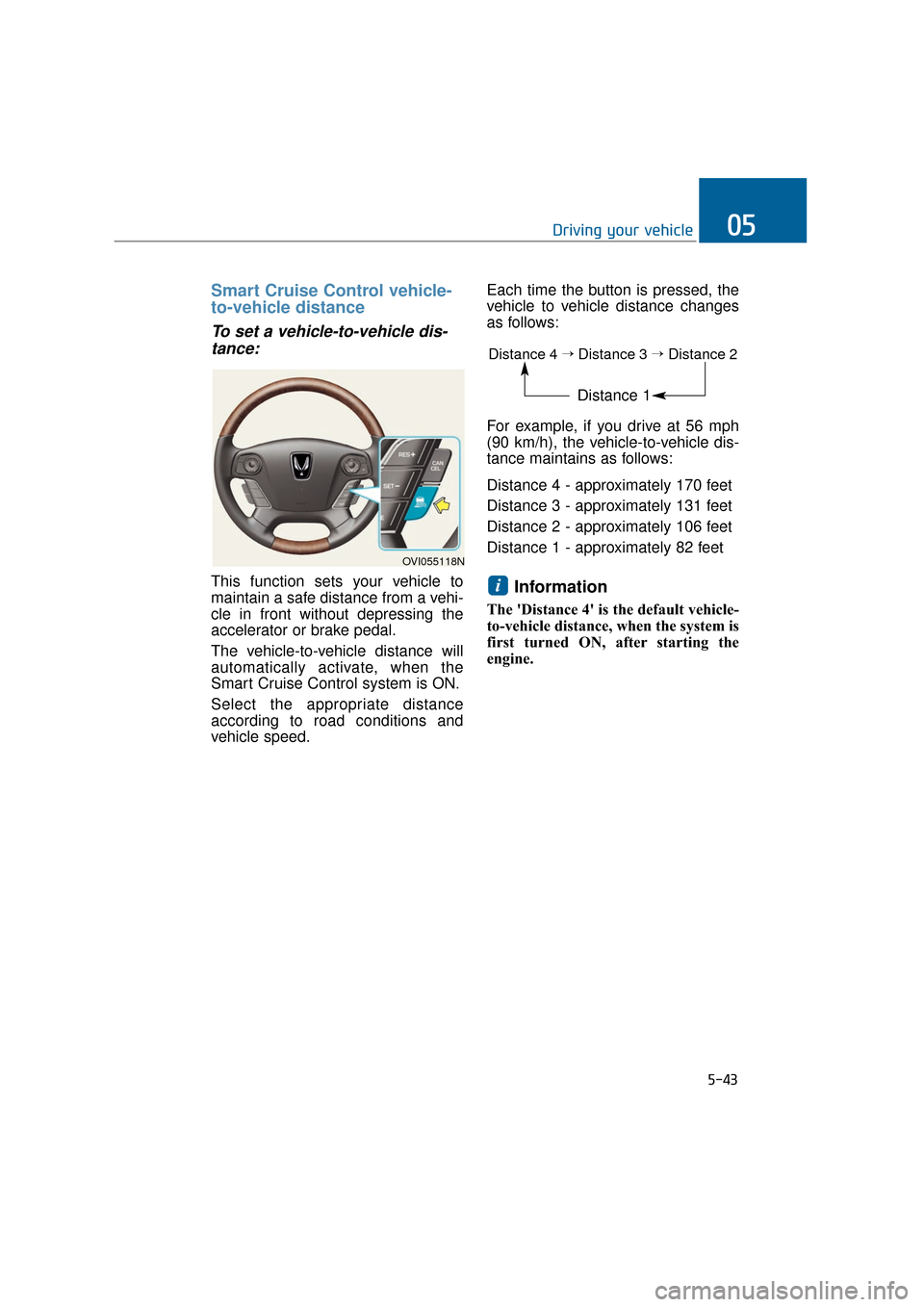

Smart Cruise Control vehicle-
to-vehicle distance
To set a vehicle-to-vehicle dis-tance:
This function sets your vehicle to
maintain a safe distance from a vehi-
cle in front without depressing the
accelerator or brake pedal.
The vehicle-to-vehicle distance will
automatically activate, when the
Smart Cruise Control system is ON.
Select the appropriate distance
according to road conditions and
vehicle speed. Each time the button is pressed, the
vehicle to vehicle distance changes
as follows:
For example, if you drive at 56 mph
(90 km/h), the vehicle-to-vehicle dis-
tance maintains as follows:
Distance 4 - approximately 170 feet
Distance 3 - approximately 131 feet
Distance 2 - approximately 106 feet
Distance 1 - approximately 82 feetInformation
The 'Distance 4' is the default vehicle-
to-vehicle distance, when the system is
first turned ON, after starting the
engine.
i
5-43
Driving your vehicle05
OVI055118N
Distance 4→Distance 3→Distance 2
Distance 1

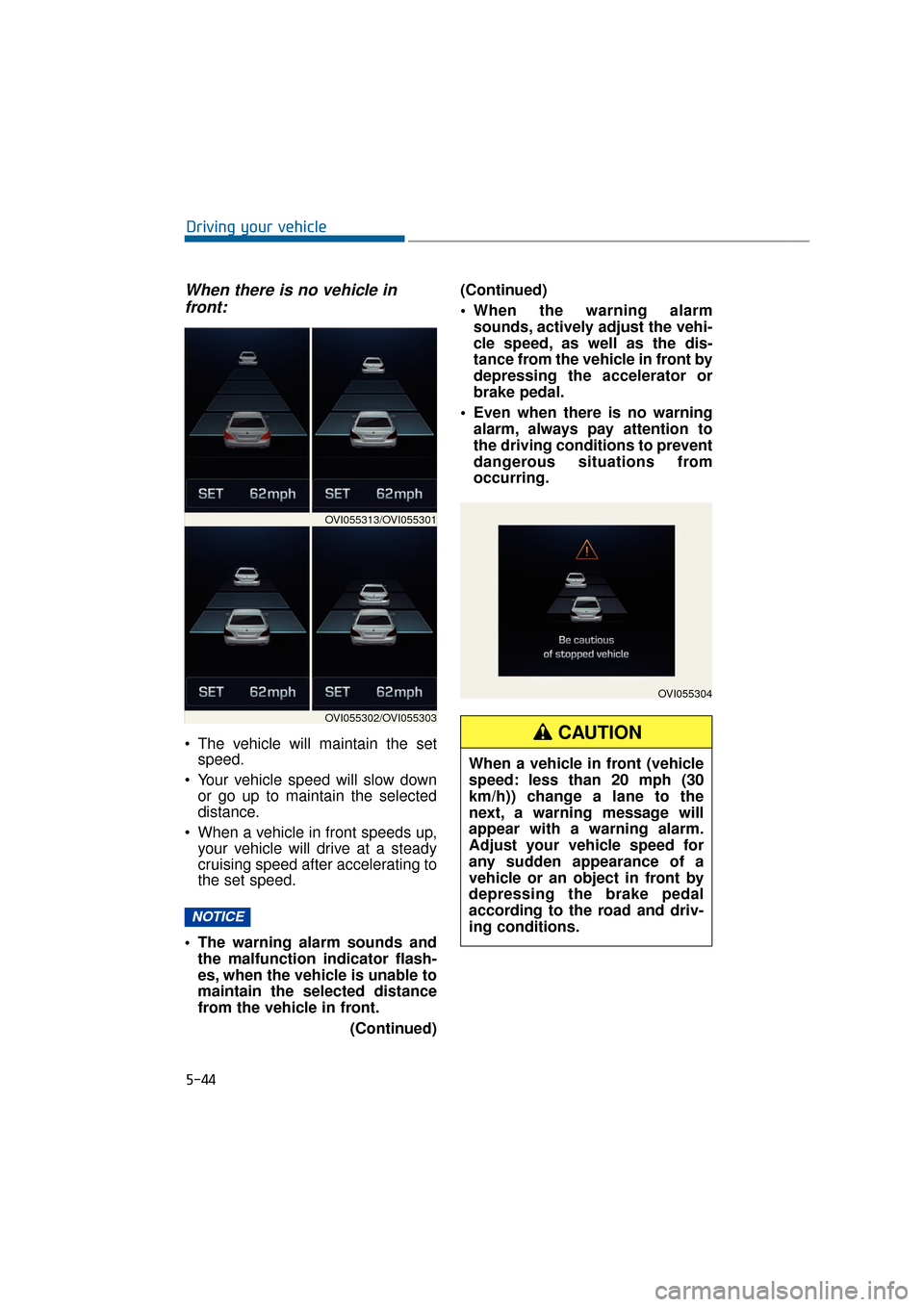

When there is no vehicle infront:
The vehicle will maintain the set speed.
Your vehicle speed will slow down or go up to maintain the selected
distance.
When a vehicle in front speeds up, your vehicle will drive at a steady
cruising speed after accelerating to
the set speed.
The warning alarm sounds and the malfunction indicator flash-
es, when the vehicle is unable to
maintain the selected distance
from the vehicle in front.
(Continued)(Continued)
When the warning alarm
sounds, actively adjust the vehi-
cle speed, as well as the dis-
tance from the vehicle in front by
depressing the accelerator or
brake pedal.
Even when there is no warning alarm, always pay attention to
the driving conditions to prevent
dangerous situations from
occurring.
NOTICE
5-44
Driving your vehicle
OVI055304
When a vehicle in front (vehicle
speed: less than 20 mph (30
km/h)) change a lane to the
next, a warning message will
appear with a warning alarm.
Adjust your vehicle speed for
any sudden appearance of a
vehicle or an object in front by
depressing the brake pedal
according to the road and driv-
ing conditions.
CAUTION
OVI055313/OVI055301
OVI055302/OVI055303

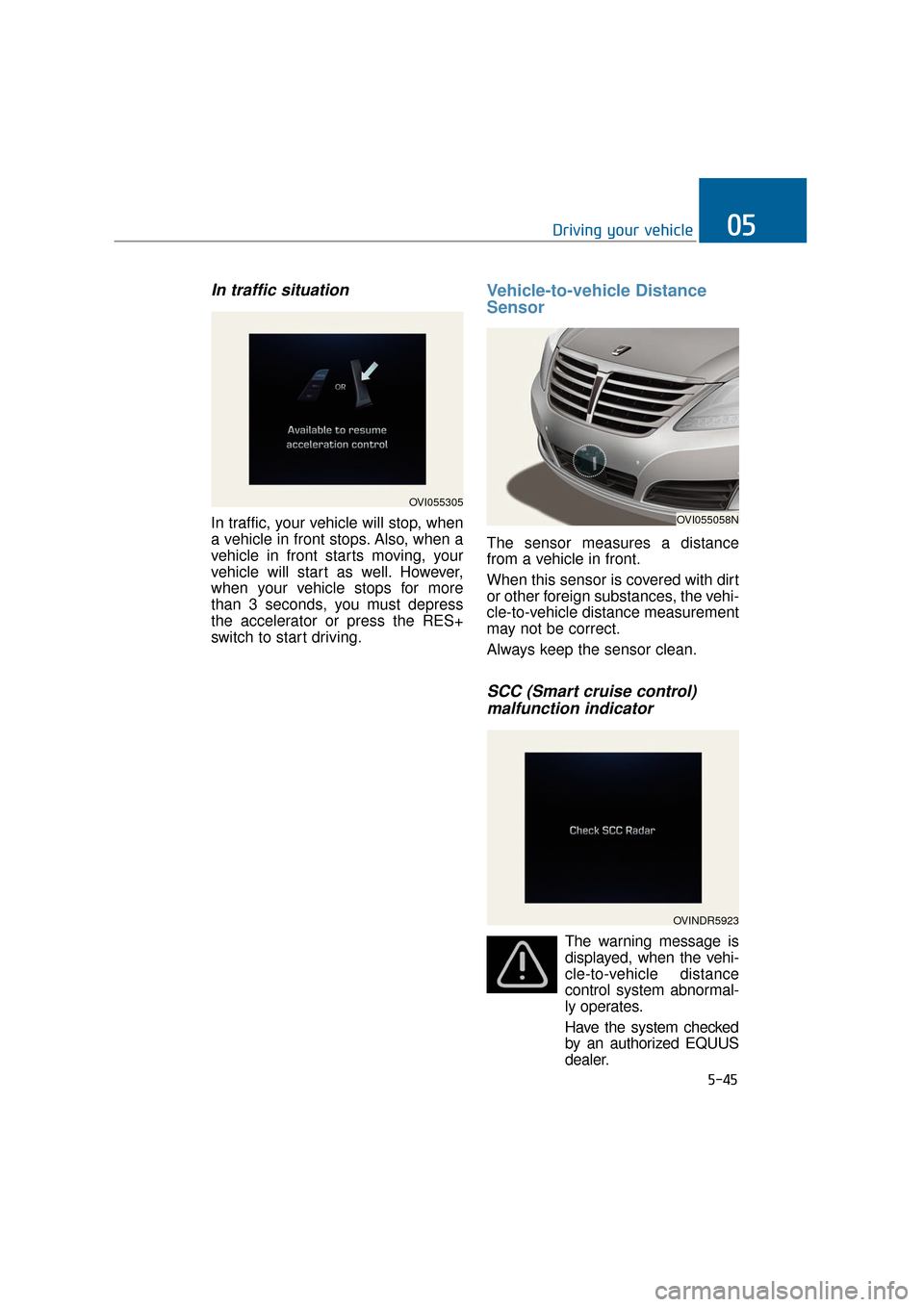

In traffic situation
In traffic, your vehicle will stop, when
a vehicle in front stops. Also, when a
vehicle in front starts moving, your
vehicle will start as well. However,
when your vehicle stops for more
than 3 seconds, you must depress
the accelerator or press the RES+
switch to start driving.
Vehicle-to-vehicle Distance
Sensor
The sensor measures a distance
from a vehicle in front.
When this sensor is covered with dirt
or other foreign substances, the vehi-
cle-to-vehicle distance measurement
may not be correct.
Always keep the sensor clean.
SCC (Smart cruise control) malfunction indicator
The warning message is
displayed, when the vehi-
cle-to-vehicle distance
control system abnormal-
ly operates.
Have the system checked by an authorized EQUUS
dealer.
5-45
Driving your vehicle05
OVI055305
OVI055058N
OVINDR5923

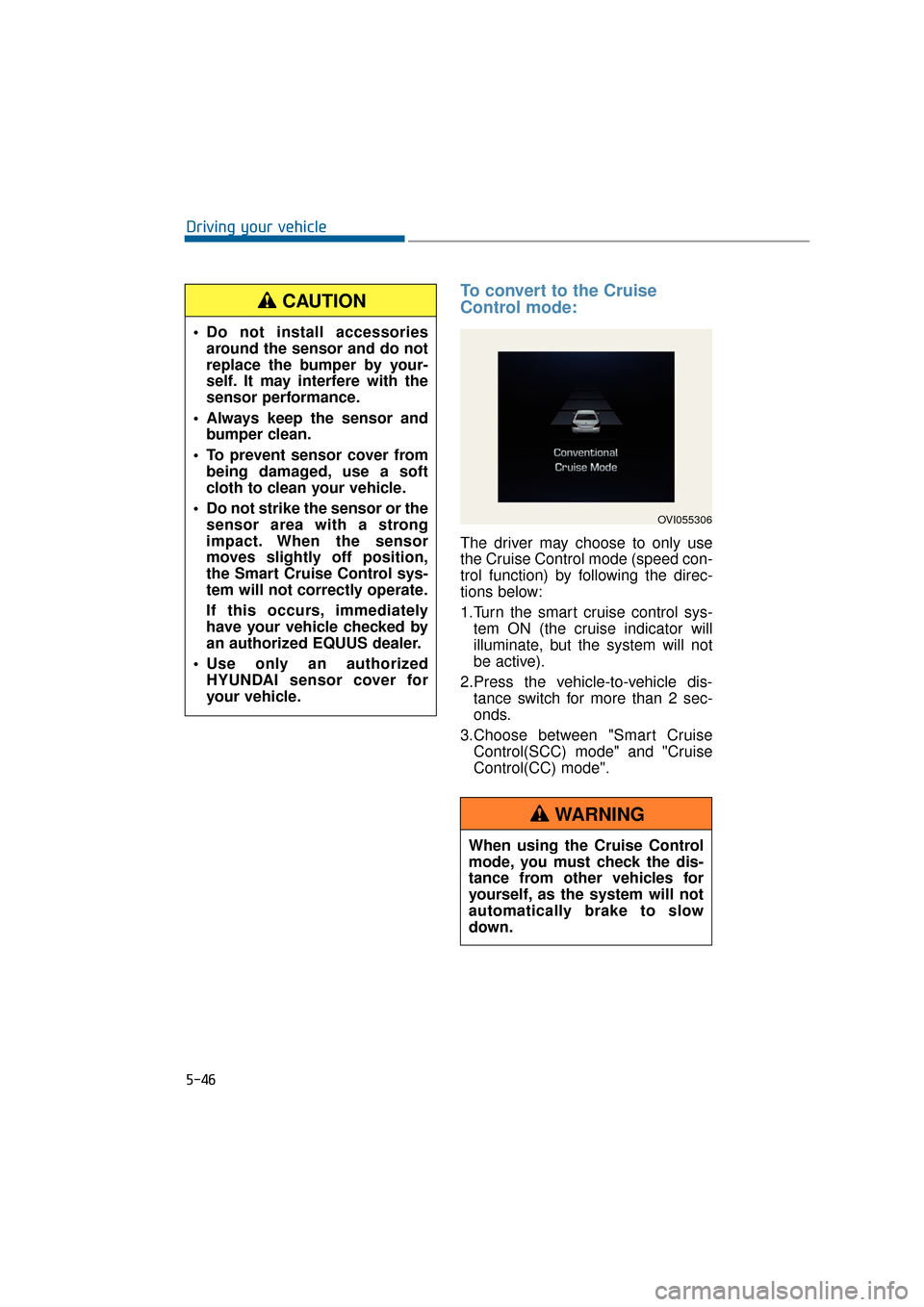

To convert to the Cruise
Control mode:
The driver may choose to only use
the Cruise Control mode (speed con-
trol function) by following the direc-
tions below:
1.Turn the smart cruise control sys-tem ON (the cruise indicator will
illuminate, but the system will not
be active).
2.Press the vehicle-to-vehicle dis- tance switch for more than 2 sec-
onds.
3.Choose between "Smart Cruise Control(SCC) mode" and "Cruise
Control(CC) mode".
5-46
Driving your vehicle
OVI055306
When using the Cruise Control
mode, you must check the dis-
tance from other vehicles for
yourself, as the system will not
automatically brake to slow
down.
WARNING
Do not install accessoriesaround the sensor and do not
replace the bumper by your-
self. It may interfere with the
sensor performance.
Always keep the sensor and bumper clean.
To prevent sensor cover from being damaged, use a soft
cloth to clean your vehicle.
Do not strike the sensor or the sensor area with a strong
impact. When the sensor
moves slightly off position,
the Smart Cruise Control sys-
tem will not correctly operate.
If this occurs, immediately
have your vehicle checked by
an authorized EQUUS dealer.
Use only an authorized HYUNDAI sensor cover for
your vehicle.
CAUTION

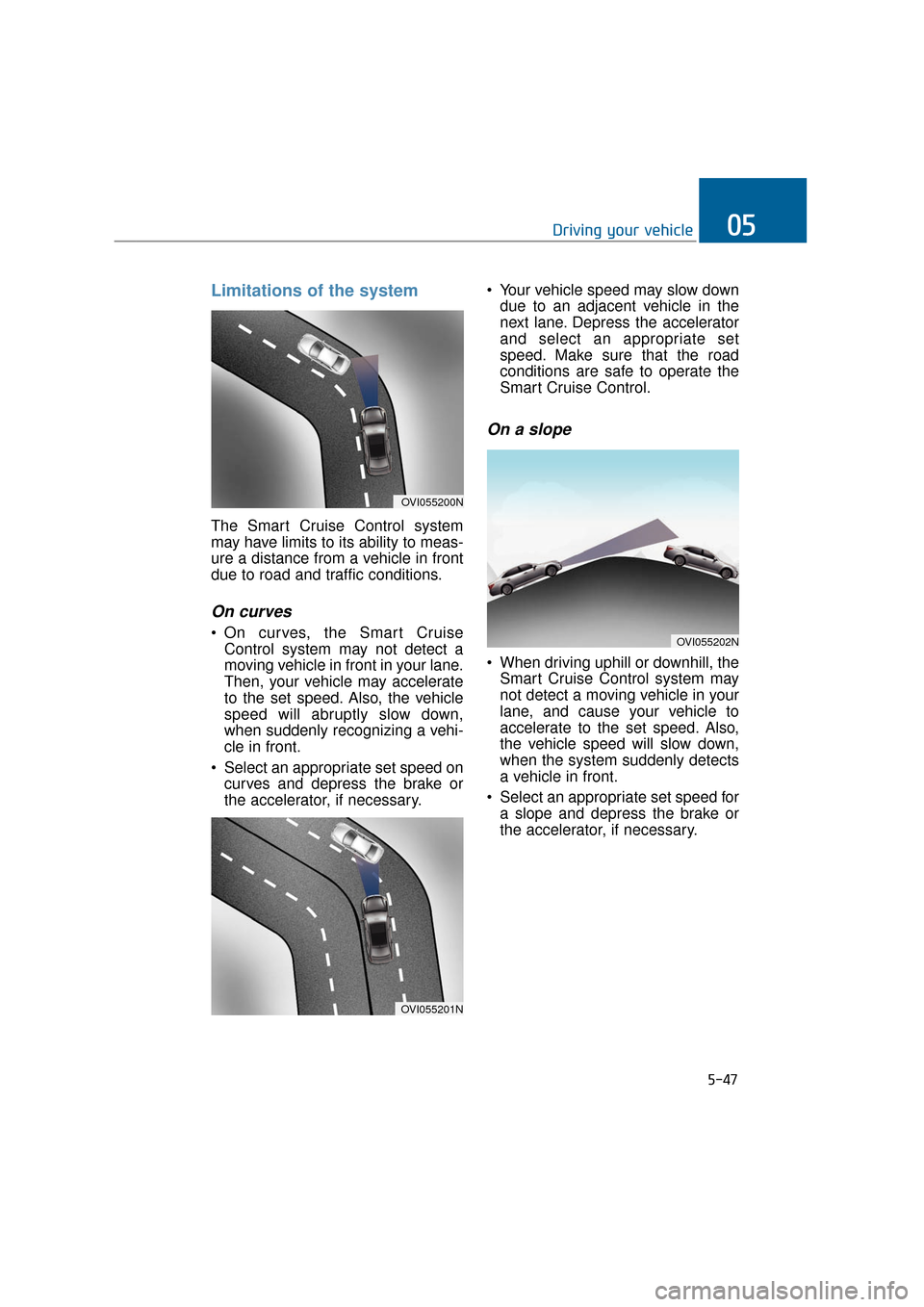

Limitations of the system
The Smart Cruise Control system
may have limits to its ability to meas-
ure a distance from a vehicle in front
due to road and traffic conditions.
On curves
On curves, the Smart CruiseControl system may not detect a
moving vehicle in front in your lane.
Then, your vehicle may accelerate
to the set speed. Also, the vehicle
speed will abruptly slow down,
when suddenly recognizing a vehi-
cle in front.
Select an appropriate set speed on curves and depress the brake or
the accelerator, if necessary. Your vehicle speed may slow down
due to an adjacent vehicle in the
next lane. Depress the accelerator
and select an appropriate set
speed. Make sure that the road
conditions are safe to operate the
Smart Cruise Control.
On a slope
When driving uphill or downhill, theSmart Cruise Control system may
not detect a moving vehicle in your
lane, and cause your vehicle to
accelerate to the set speed. Also,
the vehicle speed will slow down,
when the system suddenly detects
a vehicle in front.
Select an appropriate set speed for a slope and depress the brake or
the accelerator, if necessary.
5-47
Driving your vehicle05
OVI055200N
OVI055201N
OVI055202N

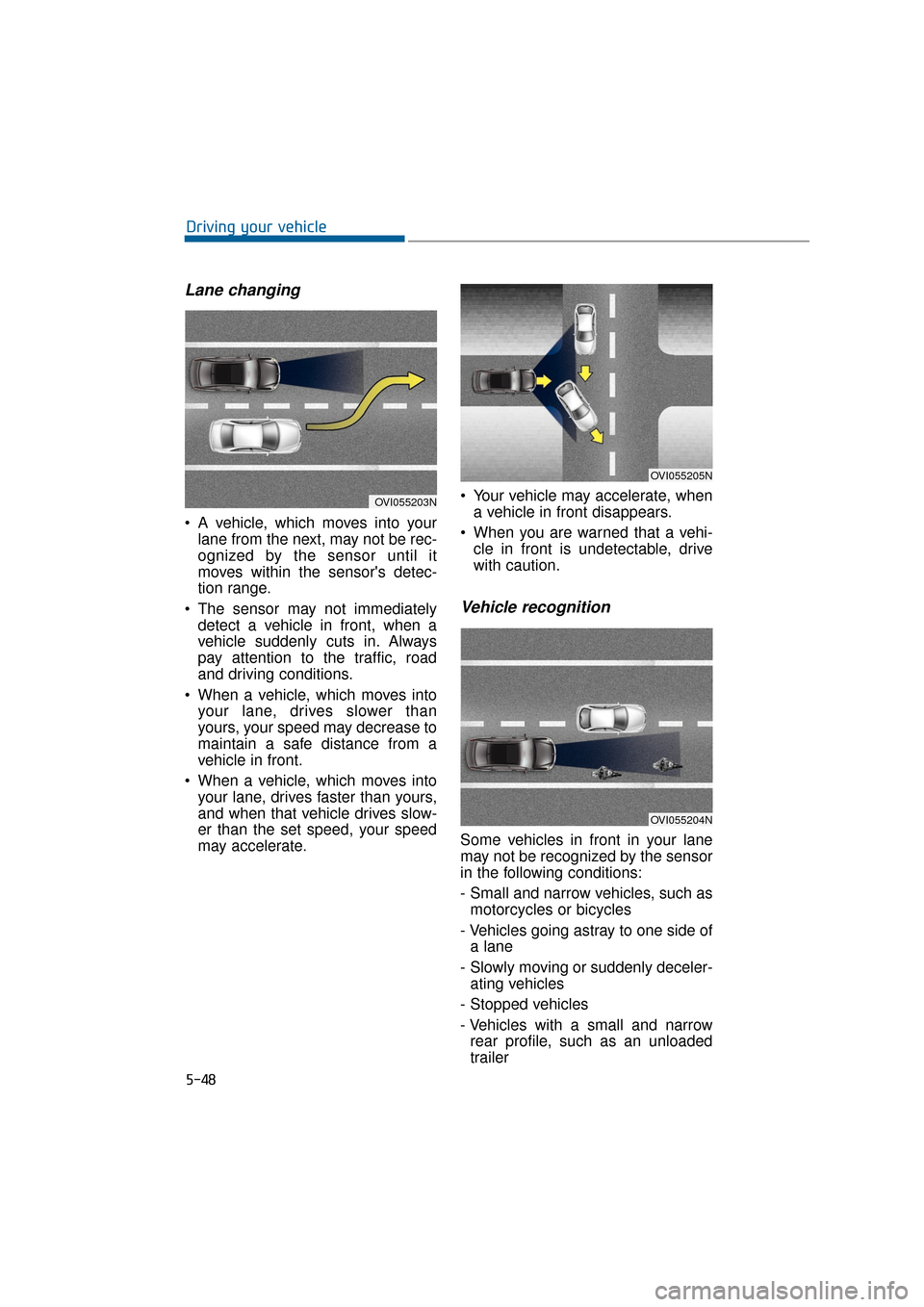

Lane changing
A vehicle, which moves into yourlane from the next, may not be rec-
ognized by the sensor until it
moves within the sensor's detec-
tion range.
The sensor may not immediately detect a vehicle in front, when a
vehicle suddenly cuts in. Always
pay attention to the traffic, road
and driving conditions.
When a vehicle, which moves into your lane, drives slower than
yours, your speed may decrease to
maintain a safe distance from a
vehicle in front.
When a vehicle, which moves into your lane, drives faster than yours,
and when that vehicle drives slow-
er than the set speed, your speed
may accelerate. Your vehicle may accelerate, when
a vehicle in front disappears.
When you are warned that a vehi- cle in front is undetectable, drive
with caution.
Vehicle recognition
Some vehicles in front in your lane
may not be recognized by the sensor
in the following conditions:
- Small and narrow vehicles, such asmotorcycles or bicycles
- Vehicles going astray to one side of a lane
- Slowly moving or suddenly deceler- ating vehicles
- Stopped vehicles
- Vehicles with a small and narrow rear profile, such as an unloaded
trailer
5-48
Driving your vehicle
OVI055205N
OVI055204N
OVI055203N

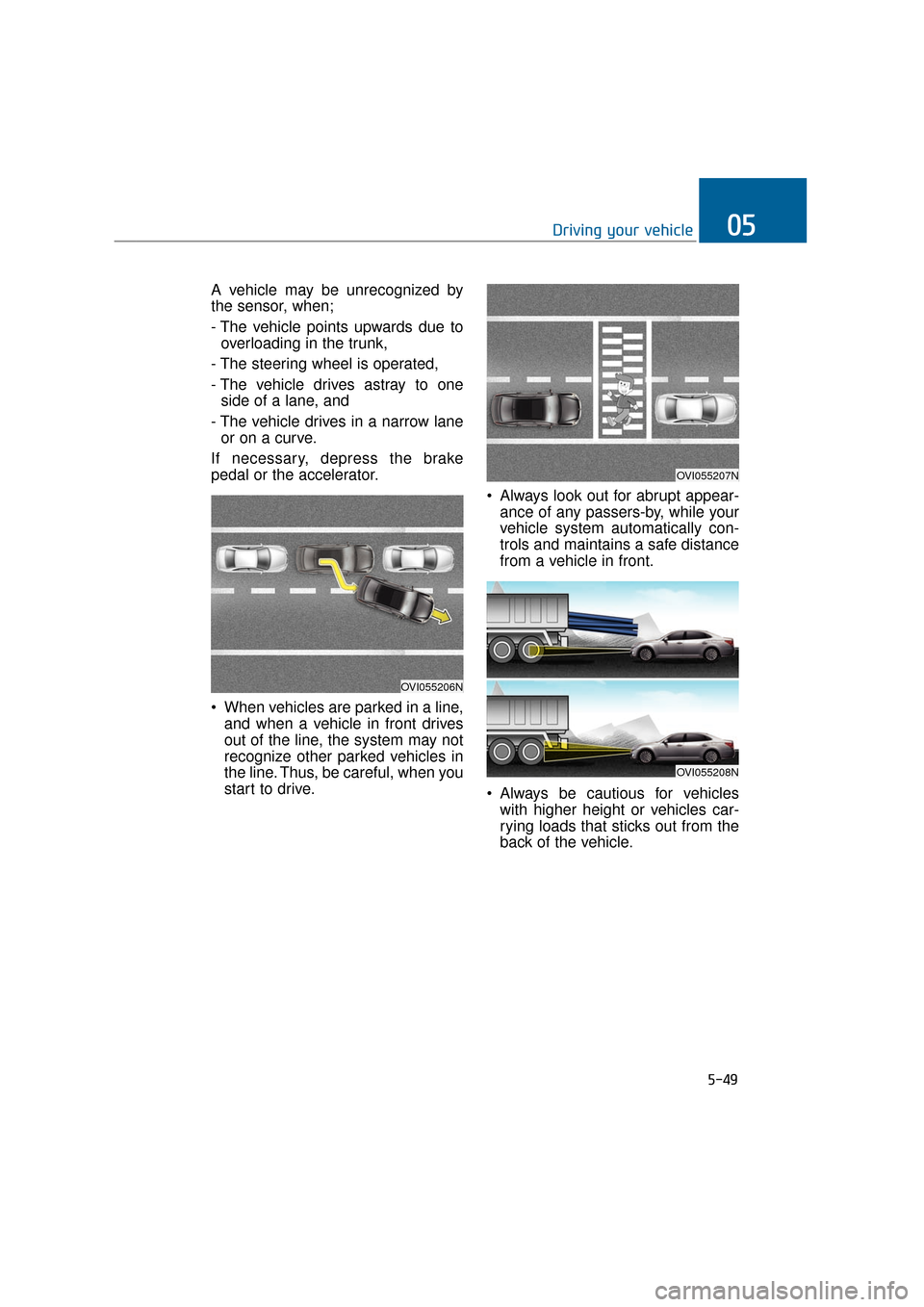

A vehicle may be unrecognized by
the sensor, when;
- The vehicle points upwards due tooverloading in the trunk,
- The steering wheel is operated,
- The vehicle drives astray to one side of a lane, and
- The vehicle drives in a narrow lane or on a curve.
If necessary, depress the brake
pedal or the accelerator.
When vehicles are parked in a line, and when a vehicle in front drives
out of the line, the system may not
recognize other parked vehicles in
the line. Thus, be careful, when you
start to drive. Always look out for abrupt appear-
ance of any passers-by, while your
vehicle system automatically con-
trols and maintains a safe distance
from a vehicle in front.
Always be cautious for vehicles with higher height or vehicles car-
rying loads that sticks out from the
back of the vehicle.
5-49
Driving your vehicle05
OVI055207N
OVI055206N
OVI055208N
