Hyundai Getz 2007 Owners Manual

FEATURES OF YOUR HYUNDAI 1- 79
B540A01FC-GAT TAIL GATE
HTB067
o Do not get back in the vehicle
while refueling. Do not operate anything that can produce static electricity. Static electricity dis-charge can ignite fuel vapors re- sulting in explosion.
o When using a portable fuel con-
tainer be sure to place the con-tainer on the ground while refuel- ing. Static electricity dischargefrom the container can ignite fuel vapors causing a fire. While start- ing refueling contact should bemaintained until the filling is com- plete.
o Do not use cellular phones around a gas station. The electric current or electronic interference fromcellular phones can ignite fuel vapors causing a fire.
o When refueling always shut the
engine off. Sparks by electricalequipment of the engine can ig- nite fuel vapors causing a fire.After refueling, check to make sure the fuel filler cap is securely closed, and then start the engine.
o Do not smoke or try to light ciga- rettes around a gas station. Auto-motive fuels are flammable. WARNING:
The tail gate should always be kept completely closed while the vehicle is in motion. If it is left open or ajar,poisonous exhaust gases may en- ter the car resulting in serious ill- ness or death to the occupants. Seeadditional warnings concerning ex- haust gases on page 2-2.
!
o The tail gate can be locked or un- locked with a key.
o The tail gate is opened by pulling the
outside handle up, raising the tail gate manually.
o To close, lower the tail gate, then
press down on it until it is closed. Tobe sure the tail gate is fully closed, always try to pull it up again without using the outside handle.

1- 80 FEATURES OF YOUR HYUNDAI
HTB2039
B545A01TB-GAT HOW TO USE LUGGAGE ROOM B650A01FC-GAT Cargo Area Cover (If installed)
Nothing should be carried on top of the luggage cover. Loose materials could result in injury to vehicle occupants during sudden braking.
!
B540B01TB-GAT SEAT POCKET (If installed) Seat side pocket is located on the front passenger seat to accept scratch pa-per and so on. There are seatback pockets on the backside of the front seats (If installed) HTB298
The seatback holder are fitted on the front passenger's seatback to hang ashopping bag and so on. When not in use, return it to the original position.
HTB279
B540A02TB-GAT SEATBACK HOLDER (If Installed)
!
CAUTION
o Do not hang a bag beyond 3 kg. It may cause damage to the seatback holder.
o Return it to the original position
after using the seatback holder. WARNING:
Do not use when the passenger (es-pecially the child) is in the rear seat,as the seatback holder could result in serious injury to the passenger in the event of an accident or suddenstop.

FEATURES OF YOUR HYUNDAI 1- 81
B545B01TB-GAT Luggage Under Tray (If installed) There is a multipurpose receipt space under the luggage room mat. HTB295
HTB296
Mat hanger
Luggage Side Trim
HTB2038
There are multipurpose receipts to ac- cept small commodities in the luggage side trim. Before use the luggage under tray,hang the luggage room mat to the mat hanger. Mat hanger is located beneath the center of the cargo area cover.
CAUTION:
Should install the luggage undertray on the spare tire. Unless, it maycause transformation of the luggage room mat.
!

1- 82 FEATURES OF YOUR HYUNDAI
!
B545C01TB-GAT Luggage Board (If installed)
HTB299
For greater convenience, your Hyundai can devide the cargo space with the luggage board. Fix the luggage boardto the luggage board supporter. Fold the board to pull the grip upward and push forward. Luggage Board SupporterB540D02FC-GAT Luggage Net (If Installed) Some objects can be kept in the net in the luggage compartment. Use the luggage net on the floor or atthe back of the luggage compartment to prevent objects from sliding.
HTB289
!WARNING:
Avoid eye injury. DO NOT over- stretch. ALWAYS keep face and body out of recoil path. DO NOT use when strap has visible signs of wear ordamage. CAUTION:
To prevent damage to the goods or the vehicle, care should be taken when carrying fragile or bulky ob-jects in the luggage compartment.

FEATURES OF YOUR HYUNDAI 1- 83
o To use the luggage board with
unfolding, fix it in the luggage board supporter. There will be an audible "Click" when the luggage board fixes in the supporter.
o The luggage board can be thrown out in the event of a sudden stopor an accident. Unfold the lug-gage board stablely to prevent cargo damage.
HTB302
HTB098
B580A01TB-GAT SUN VISOR
HTB148
A Type
B Type
CAUTION:
o When you want to enlarge the cargo space, remove the luggage board from the luggage board supporter after folding the rearseat.
o Do not load cargo beyond 30kg.
It may cause damage to the lug-gage board.
HTB301!

1- 84 FEATURES OF YOUR HYUNDAI
B610B01A-GAT HORN
Press the center hub of the steering wheel to sound the horn. B240B01TBB600A01A-AAT STEERING WHEEL TILT LEVER (If Installed)To Adjust the Steering Wheel:
B600A01TB
1. Push the lever downward to unlock.
2. Raise or lower the steering wheel to the desired position.
3. After adjustment, securely tighten the lever by pulling it upward.
!WARNING:
Do not attempt to adjust the steer- ing wheel while driving as this may result in loss of control of the ve-hicle which may cause serious in- jury or death.
Your Hyundai is equipped with sunvisors to give the driver and front pas- senger either frontal or side ward shade.The sun visors are fitted on both sides on all models. To reduce glare or to shut out direct rays of the sun, turn thesun visor down to block the annoy- ance. A ticket holder is provided on the back of the sun visor for the driver.Vanity mirrors are provided on the back of the sunvisor for the driver and the front passenger (If installed). NOTE: The Supplemental Restraint Sys- tem (SRS) label containing useful information can be found on the front of each sun visor.
WARNING:
Do not place the sun visor in sucha manner that it obscures visibilityof the roadway, traffic or other ob- jects.
!

FEATURES OF YOUR HYUNDAI 1- 85
Press the SEEK switch 1 sec. or more.
1. RADIO mode When the upper SEEK switch is pressed, the unit will automatically tune to the next higher frequency and when thelower SEEK switch is pressed, it will automatically tune to the next lower frequency.
MODE Switch Press the MODE switch to select Ra- dio, Tape, CD (Compact Disc). Each press of the switch changes the display as follows:
RADIO (FM1 FM2 AM) TAPE CD
SEEK Switch
B610A01TB-GAT AUDIO REMOTE CONTROL SWITCH(If Installed) The steering wheel audio remote con- trol switch is installed to promote safe driving. NOTE: Do not operate audio remote control switches simultaneously. B610A01TB

2. TAPE mode
o Pressing the upper SEEK switch will
play the beginning of the next music segment.
o Pressing the lower SEEK switch will
start replay at the beginning of themusic just listened to.
3. CD (Compact Disc) mode
o Press the upper SEEK switch once to skip forward to the beginning of the next track.
o Press the lower SEEK switch once to skip back to the beginning of thetrack.
VOL Switch
o Press the upper VOL switch to in- crease volume.
o Press the lower VOL switch to de-
cease volume.

1- 86 FEATURES OF YOUR HYUNDAI
B710A01TB-GAT
HEATING AND COOLING CONTROL (If Installed)
B710A01TB
1. Side defrost nozzle
2. Side Ventilator
3. Windshield Defrost Ventilator
4. Center Ventilator B710B01A-AAT Center Ventilator The center ventilators are located in the middle of the dashboard. To change the direction of the air flow, turn the control knob on the middle ofthe ventilator as desired.
B710A01S-AAT VENTILATION To operate the ventilation system:
o Set the air intake control to "Fresh"
mode( ).
o To direct all intake air to the dash-
board vents, set the air flow control to "Face".
o Adjust the fan speed control to the
desired speed.
o Set the temperature control between
"Cool" and "Warm".

FEATURES OF YOUR HYUNDAI 1- 87
HTB033
1
2 3
4 HTB034

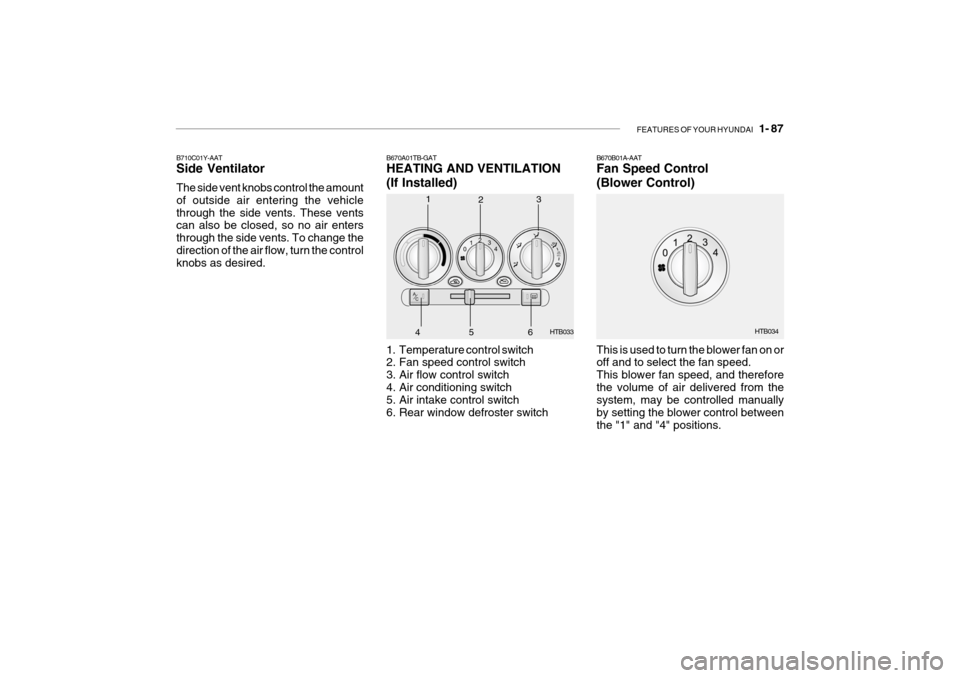

B670A01TB-GAT HEATING AND VENTILATION (If Installed)
1. Temperature control switch
2. Fan speed control switch
3. Air flow control switch
4. Air conditioning switch
5. Air intake control switch
6. Rear window defroster switch B670B01A-AAT Fan Speed Control (Blower Control) This is used to turn the blower fan on or off and to select the fan speed. This blower fan speed, and thereforethe volume of air delivered from the system, may be controlled manually by setting the blower control betweenthe "1" and "4" positions.
B710C01Y-AAT Side Ventilator The side vent knobs control the amount of outside air entering the vehiclethrough the side vents. These vents can also be closed, so no air enters through the side vents. To change thedirection of the air flow, turn the control knobs as desired.
56

1- 88 FEATURES OF YOUR HYUNDAI

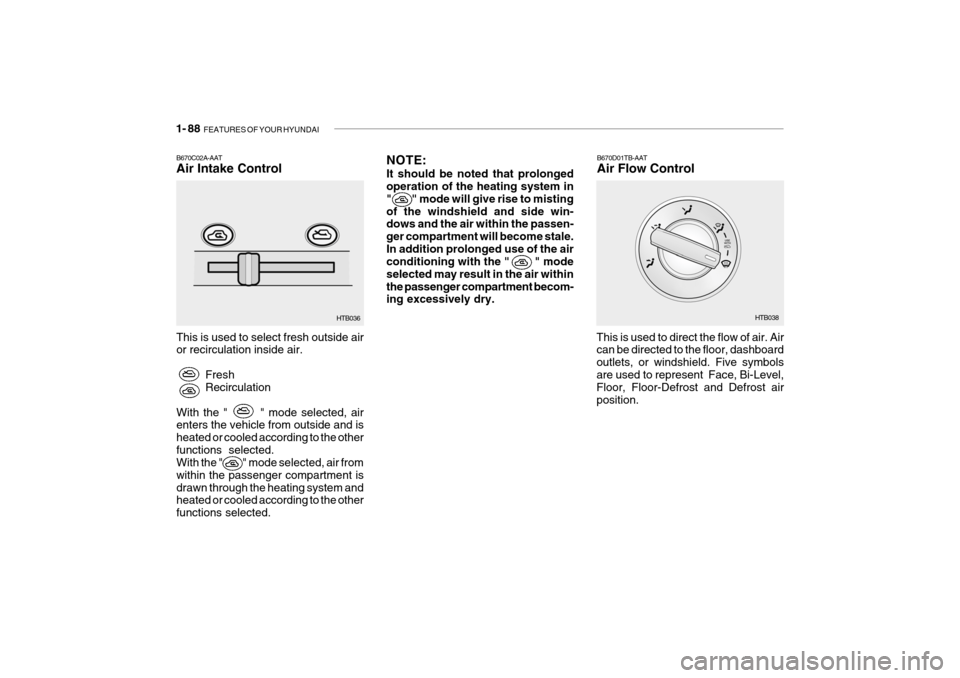

B670C02A-AAT Air Intake Control This is used to select fresh outside air or recirculation inside air.
FreshRecirculation
With the " " mode selected, airenters the vehicle from outside and is heated or cooled according to the otherfunctions selected. With the " " mode selected, air from within the passenger compartment isdrawn through the heating system and heated or cooled according to the other functions selected. HTB036
NOTE: It should be noted that prolonged operation of the heating system in " " mode will give rise to mistingof the windshield and side win- dows and the air within the passen- ger compartment will become stale.In addition prolonged use of the air conditioning with the " " mode selected may result in the air withinthe passenger compartment becom- ing excessively dry.B670D01TB-AAT Air Flow Control
This is used to direct the flow of air. Air can be directed to the floor, dashboard outlets, or windshield. Five symbolsare used to represent Face, Bi-Level, Floor, Floor-Defrost and Defrost air position. HTB038
