Hyundai H-1 (Grand Starex) 2008 Instruktionsbog (in Danish)

95

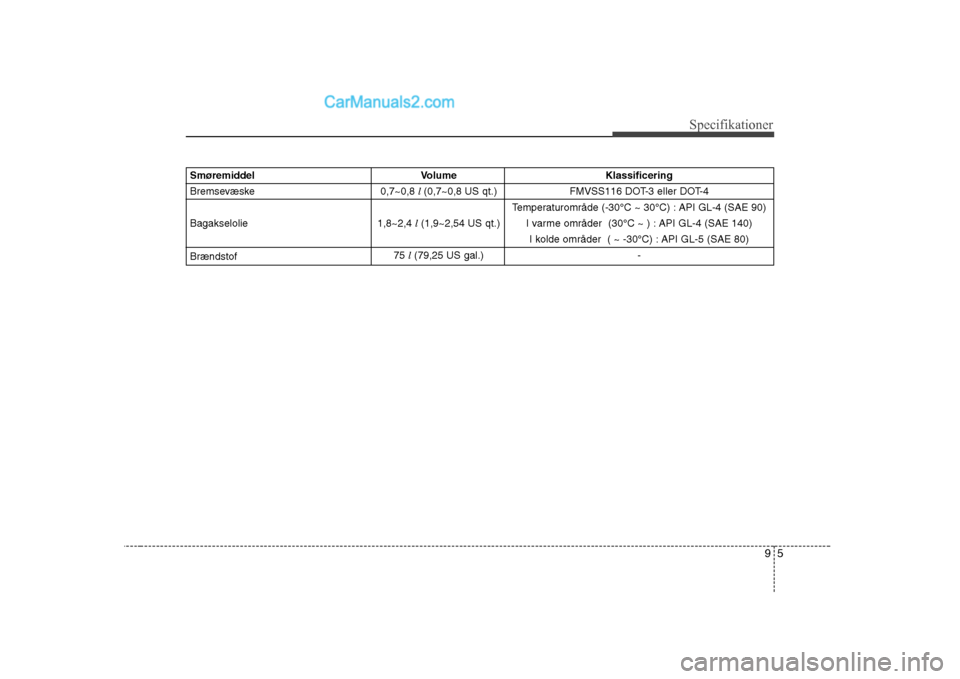

Specifikationer
Smøremiddel Volume Klassificering
Bremsevæske 0,7~0,8 l (0,7~0,8 US qt.) FMVSS116 DOT-3 eller DOT-4
Temperaturområde (-30°C ~ 30°C) : API GL-4 (SAE 90)
Bagakselolie 1,8~2,4 l(1,9~2,54 US qt.) I varme områder (30°C ~ ) : API GL-4 (SAE 140)
I kolde områder ( ~ -30°C) : API GL-5 (SAE 80)
Brændstof 75
l(79,25 US gal.) -

Specifikationer
6
9

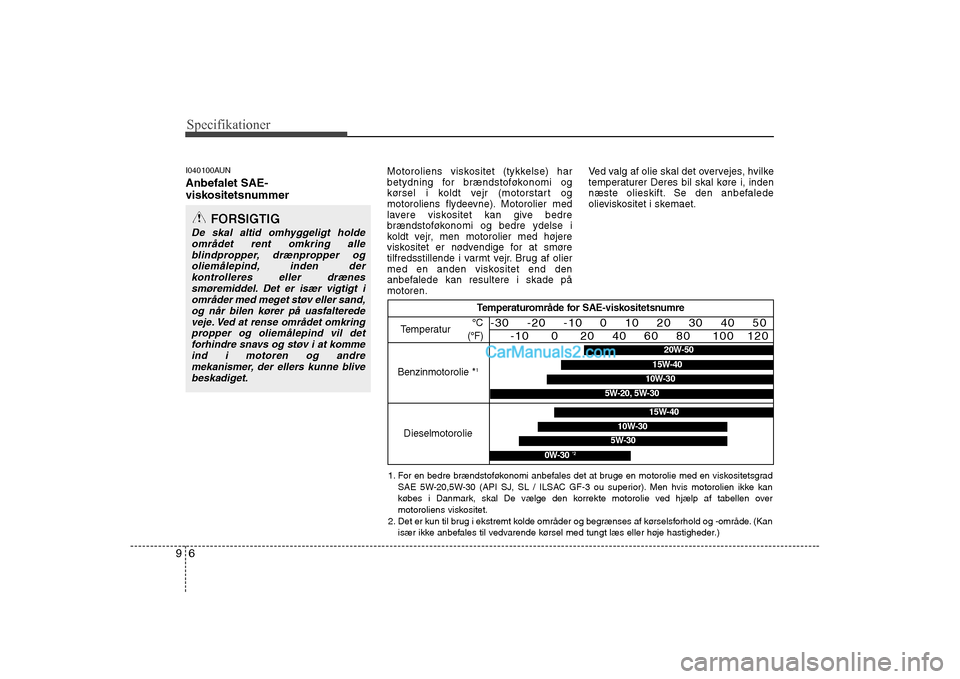

I040100AUN Anbefalet SAE-
viskositetsnummer Motoroliens viskositet (tykkelse) har
betydning for brændstoføkonomi og
kørsel i koldt vejr (motorstart og
motoroliens flydeevne). Motorolier med
lavere viskositet kan give bedre
brændstoføkonomi og bedre ydelse i
koldt vejr, men motorolier med højere
viskositet er nødvendige for at smøre
tilfredsstillende i varmt vejr. Brug af olier
med en anden viskositet end den
anbefalede kan resultere i skade påmotoren.Ved valg af olie skal det overvejes, hvilke
temperaturer Deres bil skal køre i, inden
næste olieskift. Se den anbefalede
olieviskositet i skemaet.
FORSIGTIG
De skal altid omhyggeligt holde
området rent omkring alleblindpropper, drænpropper og
oliemålepind, inden der kontrolleres eller drænessmøremiddel. Det er især vigtigt i områder med meget støv eller sand,
og når bilen kører på uasfalteredeveje. Ved at rense området omkring propper og oliemålepind vil det
forhindre snavs og støv i at kommeind i motoren og andremekanismer, der ellers kunne blive beskadiget.
Temperaturområde for SAE-viskositetsnumre
Temperatur
Benzinmotorolie *
1
°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Dieselmotorolie5W-30
15W-40
10W-30
0W-30 *2
1. For en bedre brændstoføkonomi anbefales det at bruge en motorolie med en viskositetsgrad
SAE 5W-20,5W-30 (API SJ, SL / ILSAC GF-3 ou superior). Men hvis motorolien ikke kan
købes i Danmark, skal De vælge den korrekte motorolie ved hjælp af tabellen over
motoroliens viskositet.
2. Det er kun til brug i ekstremt kolde områder og begrænses af kørselsforhold og -område. (Kan især ikke anbefales til vedvarende kørsel med tungt læs eller høje hastigheder.)
20W-50
10W-30
15W-40
5W-20, 5W-30

IIndeks

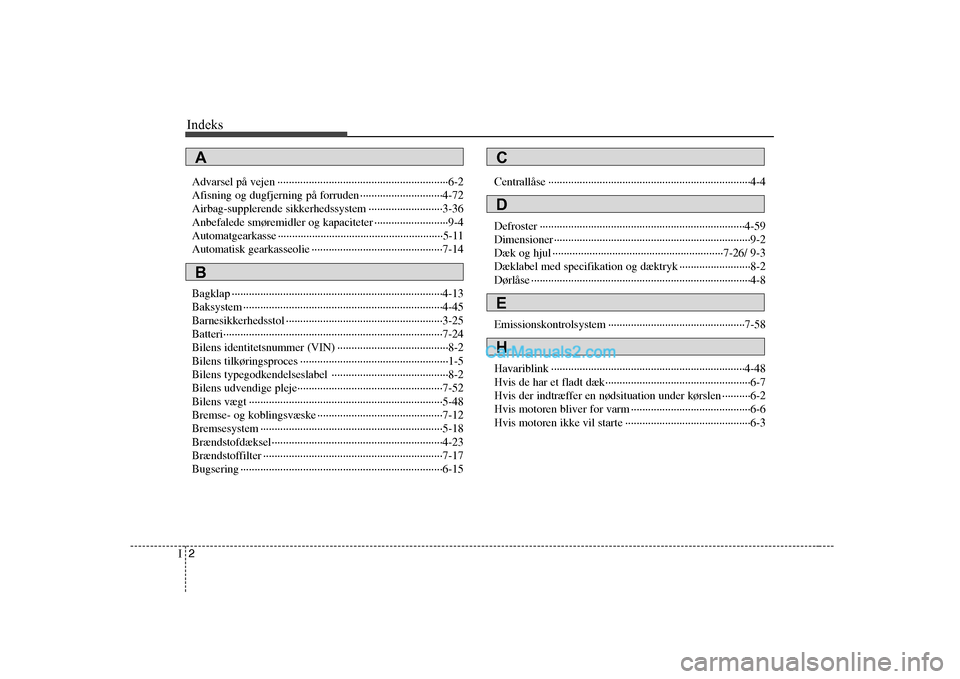

Indeks
2
I
Advarsel på vejen ····························································6-2
Afisning og dugfjerning på forruden ·····························4-72
Airbag-supplerende sikkerhedssystem ··························3-36
Anbefalede smøremidler og kapaciteter ··························9-4
Automatgearkasse ··························································5-11
Automatisk gearkasseolie ··············································7-14
Bagklap ··········································································4-13
Baksystem ······································································4-45
Barnesikkerhedsstol ·······················································3-25
Batteri·············································································7-24
Bilens identitetsnummer (VIN) ·······································8-2
Bilens tilkøringsproces ····················································1-5
Bilens typegodkendelseslabel ·········································8-2
Bilens udvendige pleje···················································7-52
Bilens vægt ····································································5-48
Bremse- og koblingsvæske ············································7-12
Bremsesystem ································································5-18
Brændstofdæksel····························································4-23
Brændstoffilter ·······························································7-17
Bugsering ·······································································6-15 Centrallåse ·······································································4-4
Defroster ········································································4-59
Dimensioner ·····································································9-2
Dæk og hjul ····························································7-26/ 9-3
Dæklabel med specifikation og dæktryk ·························8-2
Dørlåse ·············································································4-8
Emissionskontrolsystem ················································7-58
Havariblink ····································································4-48
Hvis de har et fladt dæk···················································6-7
Hvis der indtræffer en nødsituation under kørslen ··········6-2
Hvis motoren bliver for varm ··········································6-6
Hvis motoren ikke vil starte ············································6-3
A
B
C
D
E
H

I3

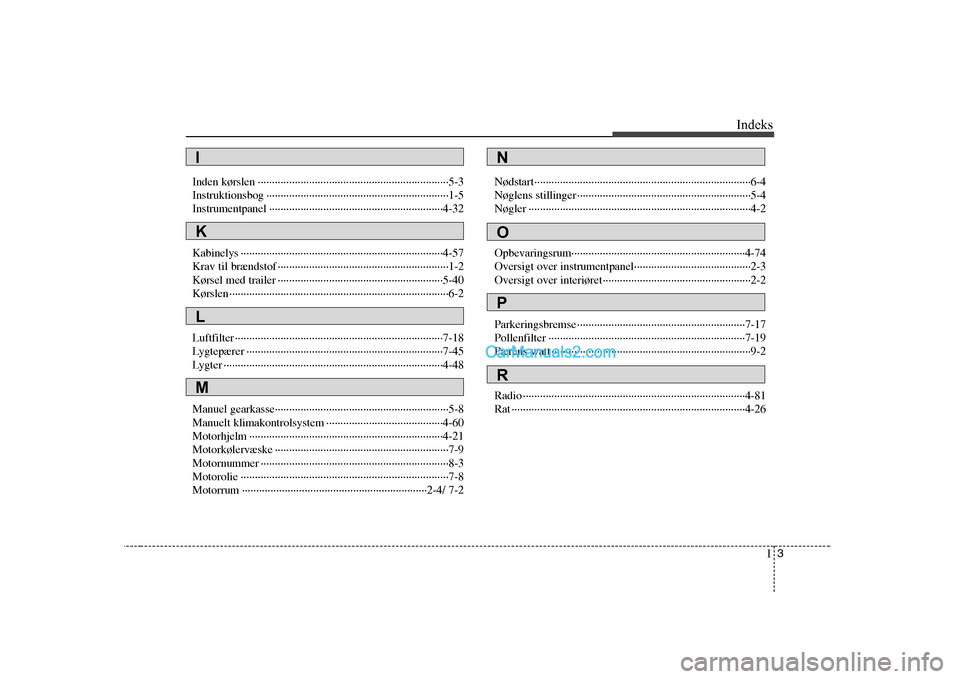

Indeks
Inden kørslen ···································································5-3
Instruktionsbog ································································1-5
Instrumentpanel ·····························································4-32
Kabinelys ·······································································4-57
Krav til brændstof ····························································1-2
Kørsel med trailer ··························································5-40
Kørslen ·············································································6-2
Luftfilter ·········································································7-18
Lygtepærer ·····································································7-45
Lygter ·············································································4-48
Manuel gearkasse·····························································5-8
Manuelt klimakontrolsystem ·········································4-60
Motorhjelm ····································································4-21
Motorkølervæske ·····························································7-9
Motornummer ··································································8-3
Motorolie ·········································································7-8
Motorrum ·································································2-4/ 7-2
Nødstart············································································6-4
Nøglens stillinger ·····························································5-4
Nøgler ··············································································4-2
Opbevaringsrum·····························································4-74
Oversigt over instrumentpanel·········································2-3
Oversigt over interiøret····················································2-2
Parkeringsbremse ···························································7-17
Pollenfilter ·····································································7-19
Pærens watt ······································································9-2
Radio ··············································································4-81
Rat ··················································································4-26
I
K
L
M
N
O
P
R

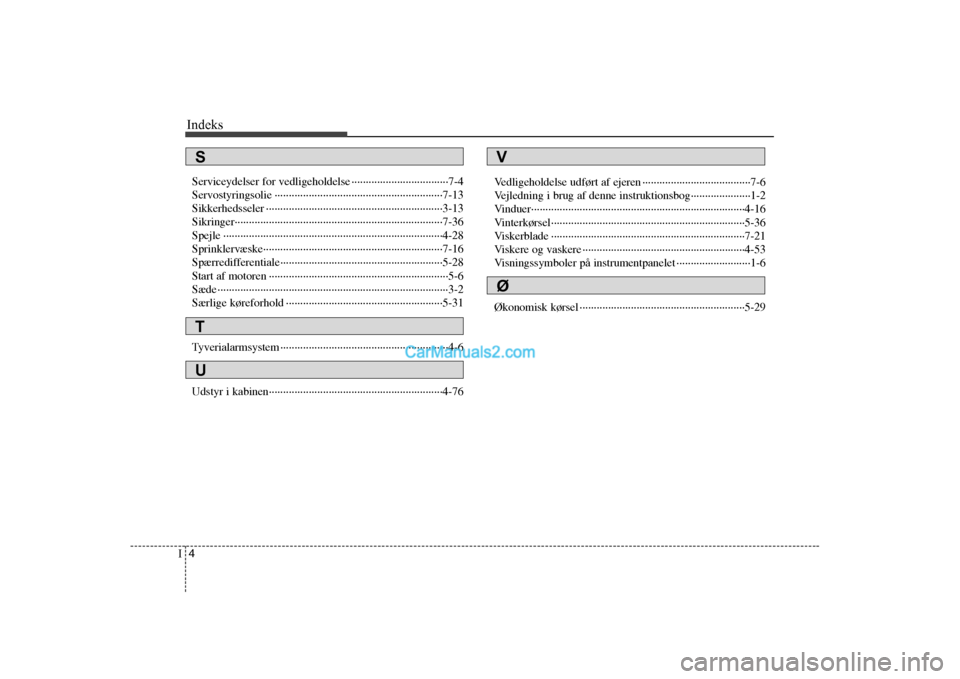

Indeks
4
I
Serviceydelser for vedligeholdelse ··································7-4
Servostyringsolie ···························································7-13
Sikkerhedsseler ······························································3-13
Sikringer·········································································7-36
Spejle ·············································································4-28
Sprinklervæske·······························································7-16
Spærredifferentiale·························································5-28
Start af motoren ·······························································5-6
Sæde ·················································································3-2
Særlige køreforhold ·······················································5-31
Tyverialarmsystem ···························································4-6
Udstyr i kabinen·····························································4-76 Vedligeholdelse udført af ejeren ······································7-6
Vejledning i brug af denne instruktionsbog·····················1-2
Vinduer···········································································4-16
Vinterkørsel····································································5-36
Viskerblade ····································································7-21
Viskere og vaskere ·························································4-53
Visningssymboler på instrumentpanelet ··························1-6
Økonomisk kørsel ··························································5-29
U
V
Ø
T
S
