Specifikationer
4
9

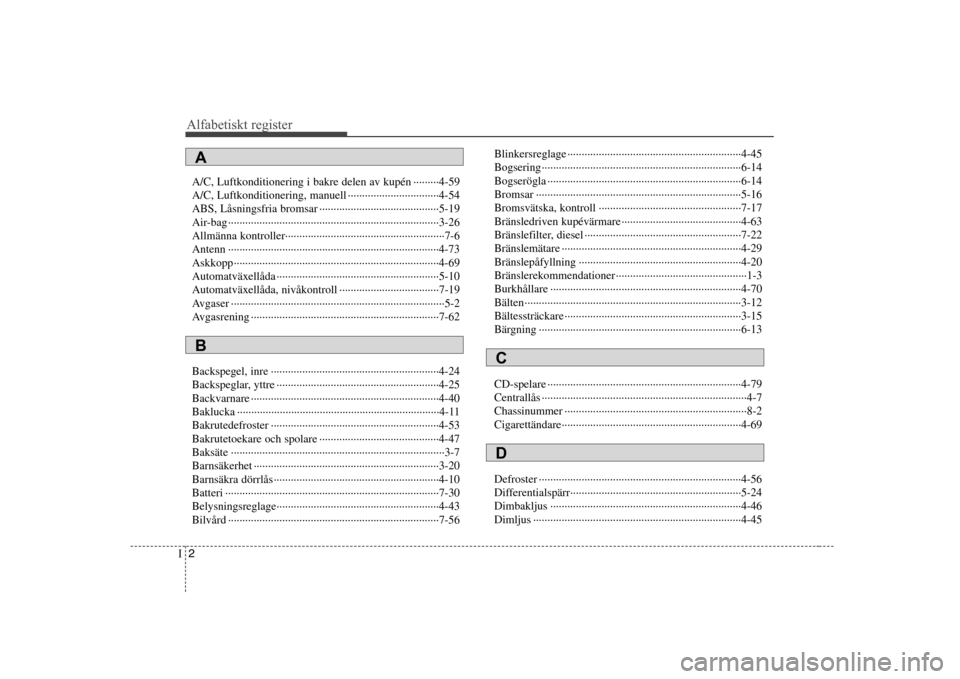

SPECIFIKATIONER OCH VOLYMER FÖR OLJOR OCH VÄTSKOR
I040000CTQ
Oljor och vätskor av hög kvalitet gör att motorn bibehåller sin prestanda och tillförlitlighet samt medverkar till god bränslee konomi.
Följ nedanstående rekommendationer.
* 1
Se sid. 9-6 för rekommenderade viskositetstal.
* 2
Motoroljor med beteckningen Energy Conserving Oil bidrar till god bränsleekonomi genom att de minimerar friktionen i motorn. Det är inget som
man direkt märker. Men på lång sikt bidrar sådana oljor till att hålla nere bränslekostnaderna.
* 3
VGT = Turbo med variabel geometri
* 4
WGT = Turbo
Smörjmedel eller vätska Volym Klassning
7.4 l
5.4 l API Service CF-4 eller högre, ACEA B2 eller B3
4.3 l API Service SL eller SM, ILSAC GF-3 eller högre
Manuell 3.2
l
växellåda 1.95 l API Service GL-4 SAE 75W/85
Automatisk 10.0
l APOLLOIL ATF RED-1
växellåda 8.0 l CASTLE AUTO FLUID T-IV, DIAMOND ATF SP-I
Styrservo 0.9~1.0 l PSF-3
13 l
Kylvätska 10.2
l
Blandning av etylenglykol och vatten
10 l
Motorolja i samband *1 *2
filterbyte
Wagon DieselmotorBensinmotor
Dieselmotor
Bensinmotor7.1
l
A2.5 Dieselmotor
4D56 Dieselmotor & Bensinmotor
Va n
A2.5 Dieselmotor
4D56 Dieselmotor & Bensinmotor
Diesel
motor
Bensinmotor A2.5
4D56
VGT* 3
: API Service CH-4 eller högre, ACEA B4
WGT* 4
: API Service CF-4 eller högre, ACEA B4

95

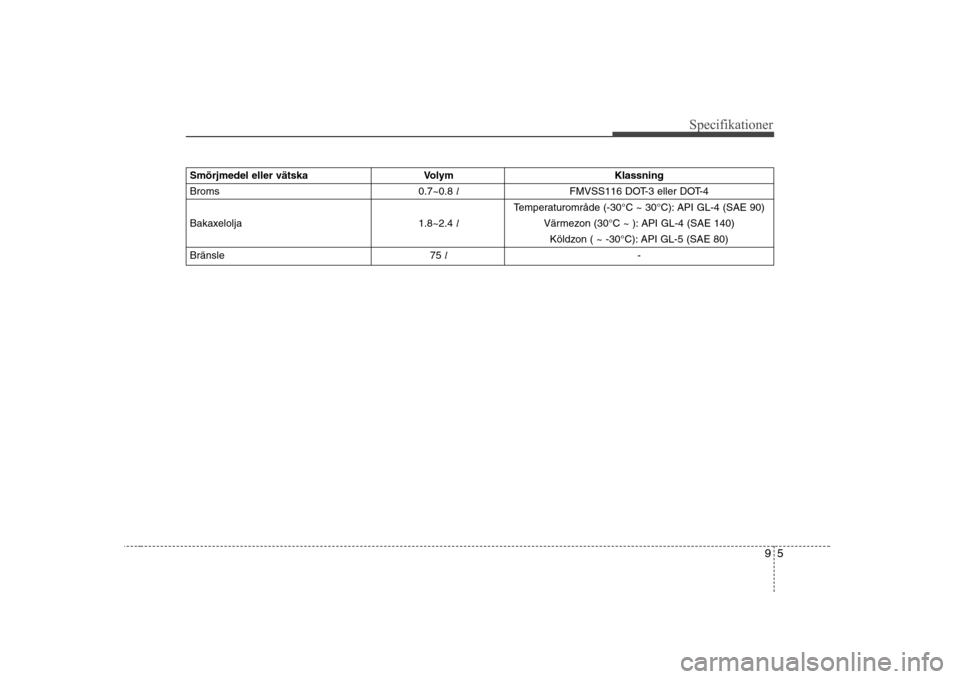

Specifikationer

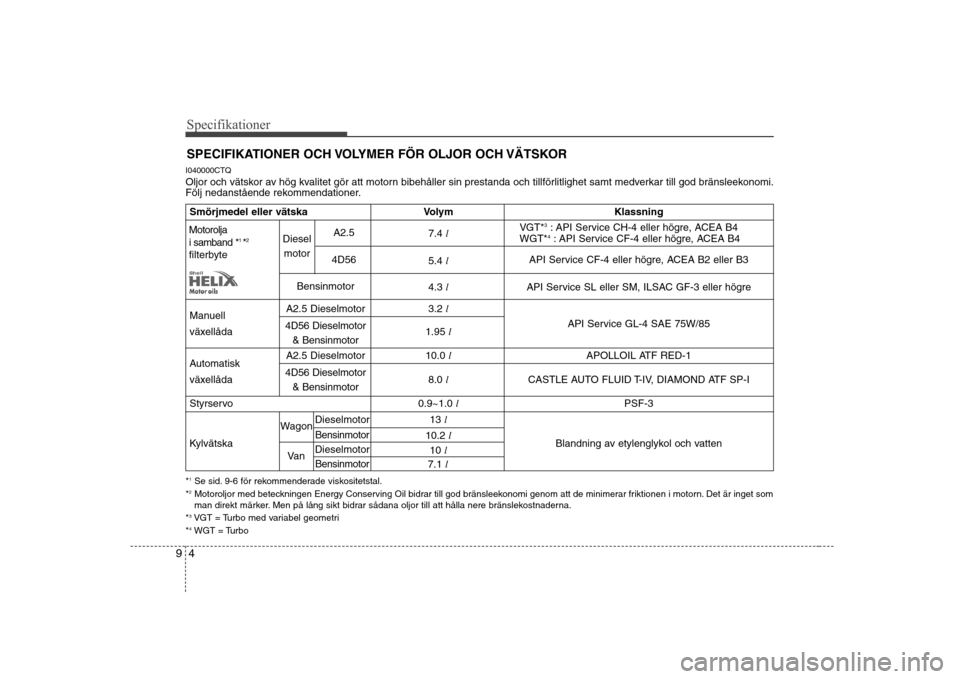

Smörjmedel eller vätska Volym Klassning Broms0.7~0.8 l FMVSS116 DOT-3 eller DOT-4
Temperaturområde (-30°C ~ 30°C): API GL-4 (SAE 90)
Bakaxelolja 1.8~2.4 l Värmezon (30°C ~ ): API GL-4 (SAE 140)
Köldzon ( ~ -30°C): API GL-5 (SAE 80)
Bränsle 75 l -

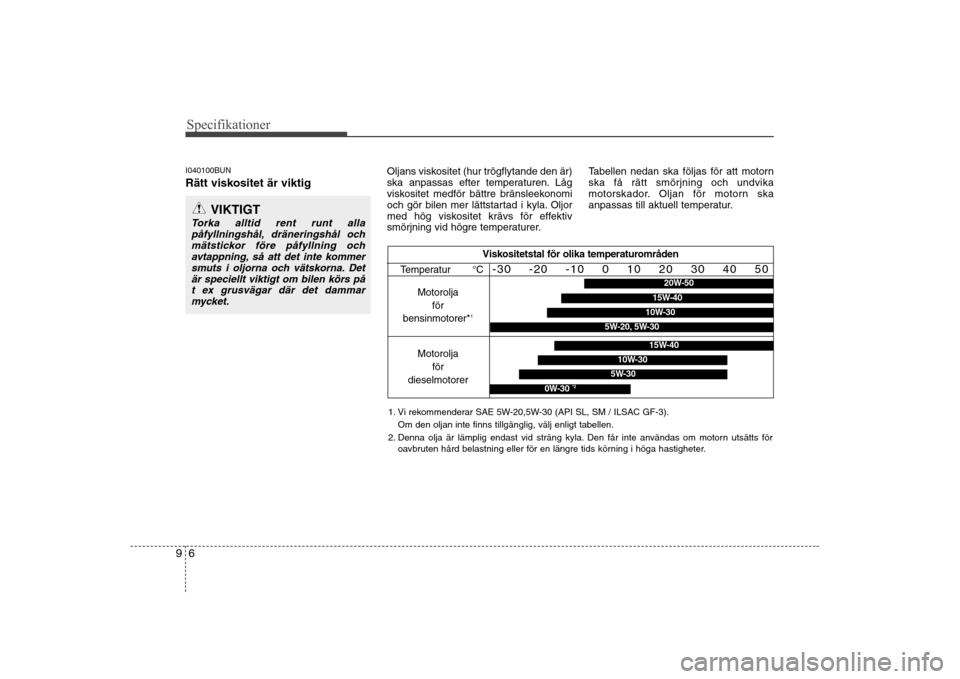

Specifikationer
6
9
I040100BUN
Rätt viskositet är viktig Oljans viskositet (hur trögflytande den är)
ska anpassas efter temperaturen. LÃ¥g
viskositet medför bättre bränsleekonomi
och gör bilen mer lättstartad i kyla. Oljor
med hög viskositet krävs för effektiv
smörjning vid högre temperaturer.Tabellen nedan ska följas för att motornska få rätt smörjning och undvika
motorskador. Oljan för motorn ska
anpassas till aktuell temperatur.
VIKTIGT
Torka alltid rent runt alla
påfyllningshål, dräneringshål ochmätstickor före påfyllning och
avtappning, så att det inte kommer smuts i oljorna och vätskorna. Detär speciellt viktigt om bilen körs påt ex grusvägar där det dammar
mycket.
Viskositetstal för olika temperaturområden
Temperatur
Motoroljaför
bensinmotorer*
1
°C-30 -20 -10 0 10 20 30 40 50
Motorolja
för
dieselmotorer
5W-30
15W-40
10W-30
0W-30 *2
1. Vi rekommenderar SAE 5W-20,5W-30 (API SL, SM / ILSAC GF-3).
Om den oljan inte finns tillgänglig, välj enligt tabellen.
2. Denna olja är lämplig endast vid sträng kyla. Den får inte användas om motorn utsätts för oavbruten hård belastning eller för en längre tids körning i höga hastigheter.
20W-50
10W-30
15W-40
5W-20, 5W-30

IAlfabetiskt register

Alfabetiskt register
2
I
A/C, Luftkonditionering i bakre delen av kupén ·········4-59
A/C, Luftkonditionering, manuell ································4-54
ABS, Låsningsfria bromsar ··········································5-19
Air-bag ··········································································3-26Allmänna kontroller························································7-6
Antenn ··········································································4-73
Askkopp ········································································4-69
Automatväxellåda ·························································5-10
Automatväxellåda, nivåkontroll ···································7-19
Avgaser ···········································································5-2
Avgasrening ··································································7-62
Backspegel, inre ···························································4-24
Backspeglar, yttre ·························································4-25
Backvarnare ··································································4-40
Baklucka ·······································································4-11
Bakrutedefroster ···························································4-53
Bakrutetoekare och spolare ··········································4-47
Baksäte ···········································································3-7
Barnsäkerhet ·································································3-20
Barnsäkra dörrlås ··························································4-10
Batteri ···········································································7-30
Belysningsreglage·························································4-43
Bilvård ··········································································7-56 Blinkersreglage ·····························································4-45
Bogsering ······································································6-14
Bogserögla ····································································6-14
Bromsar ········································································5-16
Bromsvätska, kontroll ··················································7-17
Bränsledriven kupévärmare ··········································4-63
Bränslefilter, diesel ·······················································7-22
Bränslemätare ·······························································4-29
Bränslepåfyllning ·························································4-20
Bränslerekommendationer ··············································1-3
Burkhållare ···································································4-70
Bälten ············································································3-12
Bältessträckare ······························································3-15
Bärgning ·······································································6-13
CD-spelare ····································································4-79
Centrallås ········································································4-7
Chassinummer ································································8-2
Cigarettändare·······························································4-69
Defroster ·······································································4-56
Differentialspärr····························································5-24
Dimbakljus ···································································4-46
Dimljus ·········································································4-45
A
B
C
D

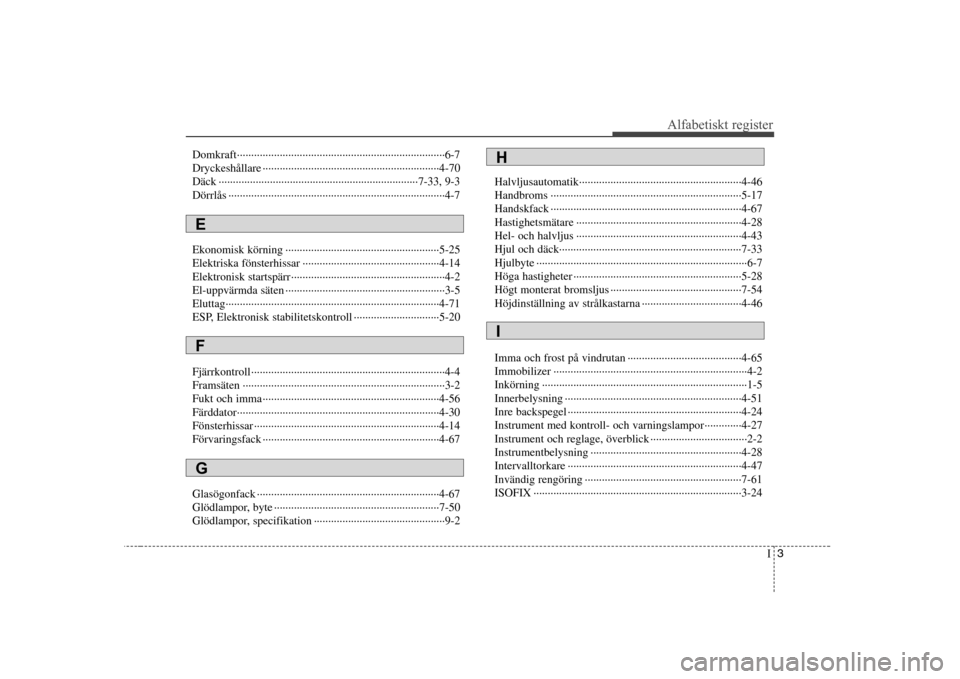

I3
Alfabetiskt register
Domkraft·········································································6-7
Dryckeshållare ······························································4-70
Däck ······································································7-33, 9-3
Dörrlås ············································································4-7
Ekonomisk körning ······················································5-25
Elektriska fönsterhissar ················································4-14
Elektronisk startspärr ······················································4-2
El-uppvärmda säten ························································3-5
Eluttag···········································································4-71
ESP, Elektronisk stabilitetskontroll ······························5-20
Fjärrkontroll ····································································4-4
Framsäten ·······································································3-2
Fukt och imma ······························································4-56
Färddator·······································································4-30
Fönsterhissar ·································································4-14
Förvaringsfack ······························································4-67
Glasögonfack ································································4-67
Glödlampor, byte ··························································7-50
Glödlampor, specifikation ··············································9-2 Halvljusautomatik·························································4-46
Handbroms ···································································5-17
Handskfack ···································································4-67
Hastighetsmätare ··························································4-28
Hel- och halvljus ··························································4-43Hjul och däck································································7-33
Hjulbyte ··········································································6-7
Höga hastigheter ···························································5-28
Högt monterat bromsljus ··············································7-54
Höjdinställning av strålkastarna ···································4-46
Imma och frost på vindrutan ········································4-65
Immobilizer ····································································4-2
Inkörning ········································································1-5
Innerbelysning ······························································4-51
Inre backspegel ·····························································4-24
Instrument med kontroll- och varningslampor·············4-27
Instrument och reglage, överblick ··································2-2
Instrumentbelysning ·····················································4-28
Intervalltorkare ·····························································4-47
Invändig rengöring ·······················································7-61
ISOFIX ·········································································3-24
I
E
F
G
H

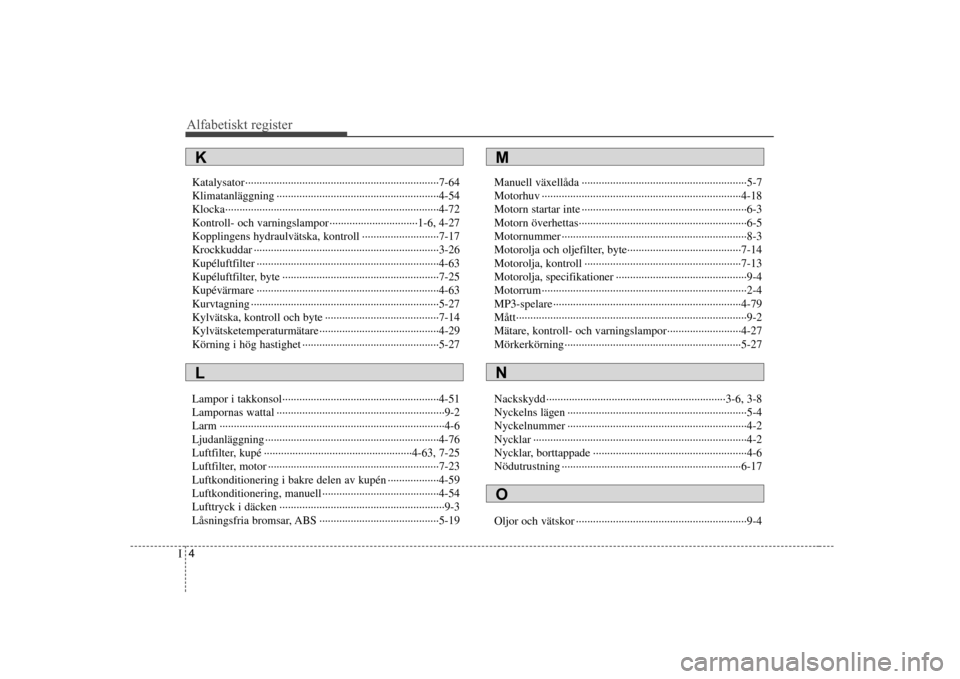

Alfabetiskt register
4
I
Katalysator ····································································7-64
Klimatanläggning ·························································4-54
Klocka···········································································4-72
Kontroll- och varningslampor ·······························1-6, 4-27
Kopplingens hydraulvätska, kontroll ···························7-17
Krockkuddar ·································································3-26
Kupéluftfilter ································································4-63
Kupéluftfilter, byte ·······················································7-25
Kupévärmare ································································4-63
Kurvtagning ··································································5-27
Kylvätska, kontroll och byte ········································7-14
Kylvätsketemperaturmätare ··········································4-29
Körning i hög hastighet ················································5-27
Lampor i takkonsol·······················································4-51
Lampornas wattal ···························································9-2
Larm ···············································································4-6
Ljudanläggning ·····························································4-76
Luftfilter, kupé ····················································4-63, 7-25
Luftfilter, motor ····························································7-23
Luftkonditionering i bakre delen av kupén ··················4-59
Luftkonditionering, manuell ·········································4-54
Lufttryck i däcken ··························································9-3
Låsningsfria bromsar, ABS ··········································5-19 Manuell växellåda ··························································5-7
Motorhuv ······································································4-18
Motorn startar inte ··························································6-3
Motorn överhettas···························································6-5
Motornummer ·································································8-3
Motorolja och oljefilter, byte········································7-14
Motorolja, kontroll ·······················································7-13
Motorolja, specifikationer ··············································9-4
Motorrum ········································································2-4
MP3-spelare ··································································4-79
Mått·················································································9-2
Mätare, kontroll- och varningslampor··························4-27
Mörkerkörning ······························································5-27
Nackskydd ·······························································3-6, 3-8
Nyckelns lägen ·······························································5-4
Nyckelnummer ·······························································4-2
Nycklar ···········································································4-2
Nycklar, borttappade ······················································4-6
Nödutrustning ·······························································6-17
Oljor och vätskor ····························································9-4
K
L
M
N
O

I5
Alfabetiskt register
Parkeringsbroms··················································5-17, 7-21
Parkeringshjälp/backvarnare ········································4-40
Parkeringsljus ·······························································4-43
Problem under körning ···················································6-2
Punktering·······································································6-7
Radio·············································································4-76
Radiomottagning ··························································4-74
Ratt, inställning ····························································4-22
Rattlås ·············································································5-4
Reglage för blinkers och yttre belysning ·····················4-43
Rengöring, invändigt ····················································7-61
Rengöring, utvändigt ····················································7-56
Reservhjul och verktyg···················································6-8
Rostskydd ·····································································7-59
Serviceanvisningar ·························································7-4
Serviceprogram·······························································7-8
Sidorutor ·······································································4-14
Signalhorn·····································································4-23
Släp ···············································································5-34
Snökedjor ······································································5-31
Solskydd ·······································································4-71 Spolarvätska ·································································7-21
Stabilitetskontroll, ESP·················································5-20
Starta motorn ··································································5-5
Start av dieselmotor ························································5-6
Starthjälp·········································································6-4
Startspärr·········································································4-2
Strålkastare, höjdinställning ·········································4-46
Strömuttag ····································································4-71
Styrservovätska, nivåkontroll ·······································7-18
Stöldlarm ········································································4-6
Stöldskydd ······································································4-2
Säkerhetsbälten ·····························································3-12
Säkringar, förteckning ··················································7-46
Säkringar, kontroll och byte ·········································7-41
Säten ···············································································3-2
Tanklucka······································································4-20
Torkarblad·····································································7-27
Trippmätare···································································4-29
Tvättning och vaxning ··················································7-56
Typgodkännande·····························································8-2
Tändningslås ···································································5-4
Tömning av vatten i bränslefiltret (diesel) ···················7-22
Underhåll, gör det själv ··················································7-6
P
R
S
T
U

Alfabetiskt register
6
I
Underhållsservice ···························································7-4
Varningsblinkers····················································4-42, 6-2
Varningslampor ·····················································1-6, 4-27
Varvräknare···································································4-28
Vatten i bränslefiltert (diesel) ·······································7-22
Ventilation·····································································4-54
Verktyg ···········································································6-7
Vikter ············································································5-41
Vindrutetorkarblad ························································7-27
Vindrutetorkare och spolare ·········································4-47
Vinterdäck·····································································5-30
Vinterkörning ································································5-30
Vägmätare·····································································4-29
Värme och ventilation ··················································4-54
Växellåda automatisk ···················································5-10
Växellåda automatisk, nivåkontroll······························7-19
Växellåda, manuell ·························································5-7
Yttre backspeglar ··························································4-25
Yttre belysning ·····························································4-43 Ägarunderhåll ·································································7-6 Överhettning av motor····················································6-5
Överväxel ·····································································5-13
V
Y
Ä
Ö

INSTRUKTIONSBOK funktioner
Service och underhållSpecifikationer
Uppgifterna i boken bygger på information som fanns tillgänglig när den
trycktes. P g a löpande produktutveckling förbehåller sig Hyundai rätten att
när som helst införa ändringar i specifikationer och utförande.
Boken beskriver all utrustning som kan förekomma i bilen. Det betyder att
det kan finnas information om utrustningsdetaljer som inte finns i den bildu köpt.
