Page 111 of 400
) '
# 1 0 * 3 0 - 3 0 . 2 + 3 % . , / 3 ( 2 1 + 2 " 1 , / 2 * 3 ! - $ & 3

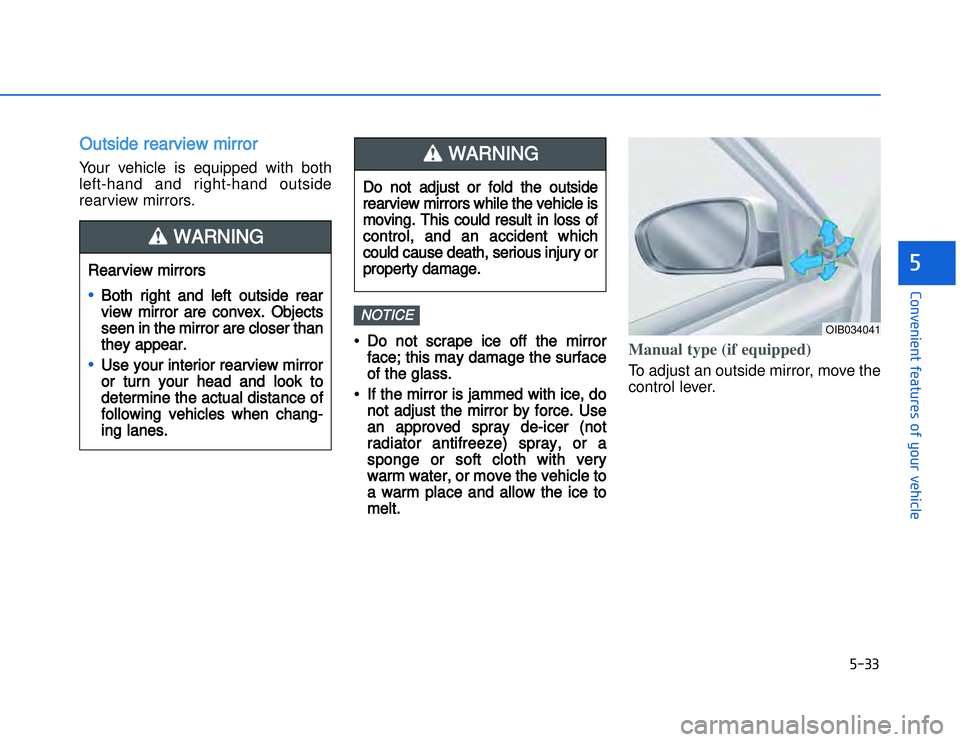

OOutside rearview mirror Your vehicle is equipped with both
left-hand and right-hand outside
rearview mirrors.
• Do not scrape ice off the mirror
face; this may damage the surface
of the glass.
• If the mirror is jammed with ice, do not adjust the mirror by force. Use
an approved spray de-icer (not
radiator antifreeze) spray, or a
sponge or soft cloth with very
warm water, or move the vehicle to
a warm place and allow the ice to
melt.
Manual type (if equipped) To adjust an outside mirror, move the
control lever.
NOTICE
OIB034041
Do not adjust or fold the outside
rearview mirrors while the vehicle is
moving. This could result in loss of
control, and an accident which
could cause death, serious injury or
property damage.
WARNING
Rearview mirrors•
Both right and left outside rear
view mirror are convex. Objects
seen in the mirror are closer than
they appear.
•
Use your interior rearview mirror
or turn your head and look to
determine the actual distance of
following vehicles when chang-
ing lanes.
WARNING
Page 112 of 400

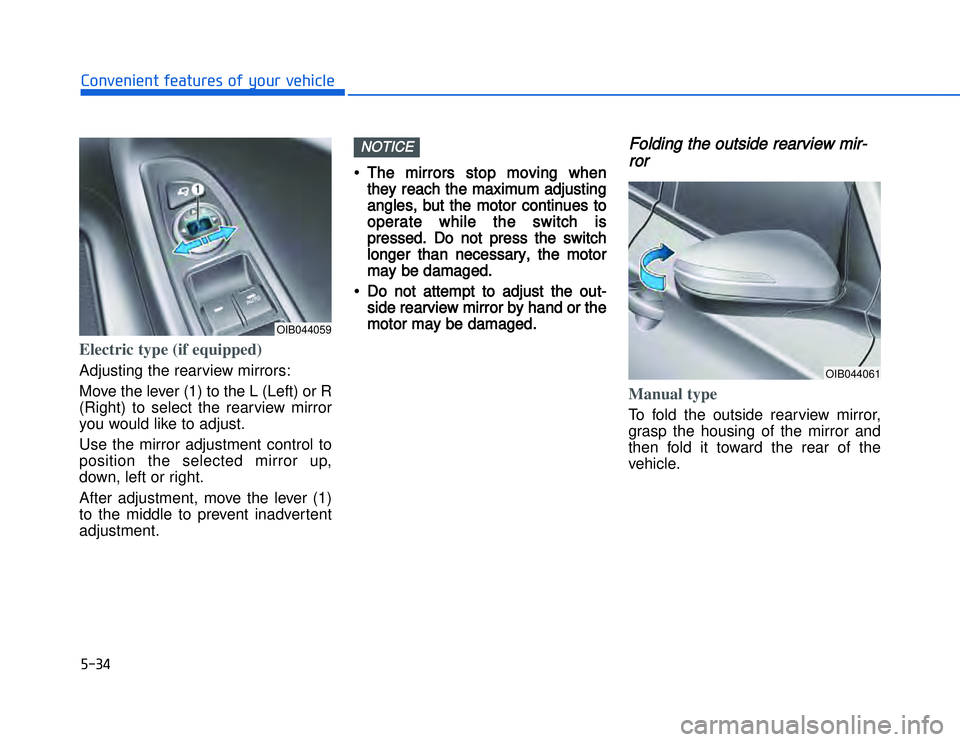

) ' # 1 0 * 3 0 - 3 0 . 2 + 3 % . , / 3 ( 2 1 + 2 " 1 , / 2 * 3 ! - $ & 3Electric type (if equipped)Adjusting the rearview mirrors:
Move the lever (1) to the L (Left) or R
(Right) to select the rearview mirror
you would like to adjust.
Use the mirror adjustment control to
position the selected mirror up,
down, left or right.
After adjustment, move the lever (1)
to the middle to prevent inadvertent
adjustment.•
•
The mirrors stop moving when
they reach the maximum adjusting
angles, but the motor continues to
operate while the switch is
pressed. Do not press the switch
longer than necessary, the motor
may be damaged.
• Do not attempt to adjust the out- side rearview mirror by hand or the
motor may be damaged.
Folding the outside rearview mir-rorManual typeTo fold the outside rearview mirror,
grasp the housing of the mirror and
then fold it toward the rear of the
vehicle.
NOTICE
OIB044061
OIB044059
Page 113 of 400
) ' )
# 1 0 * 3 0 - 3 0 . 2 + 3 % . , / 3 ( 2 1 + 2 " 1 , / 2 * 3 ! - $ & 3

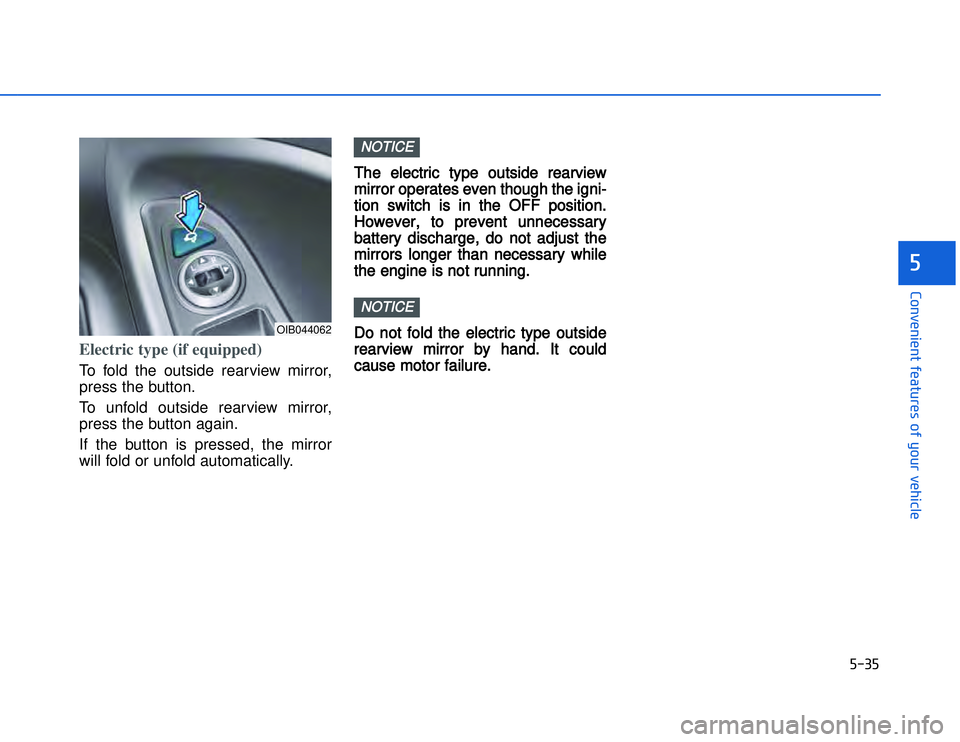

Electric type (if equipped)To fold the outside rearview mirror,
press the button.
To unfold outside rearview mirror,
press the button again.
If the button is pressed, the mirror
will fold or unfold automatically. T
T
he electric type outside rearview
mirror operates even though the igni-
tion switch is in the OFF position.
However, to prevent unnecessary
battery discharge, do not adjust the
mirrors longer than necessary while
the engine is not running.
Do not fold the electric type outside
rearview mirror by hand. It could
cause motor failure.NOTICENOTICE
OIB044062
Page 114 of 400
) ' # 1 0 * 3 0 - 3 0 . 2 + 3 % . , / 3 ( 2 1 + 2 " 1 , / 2 * 3 ! - $ & 3 ' ' # ( ) * " ! + # ) % " ( ) + *

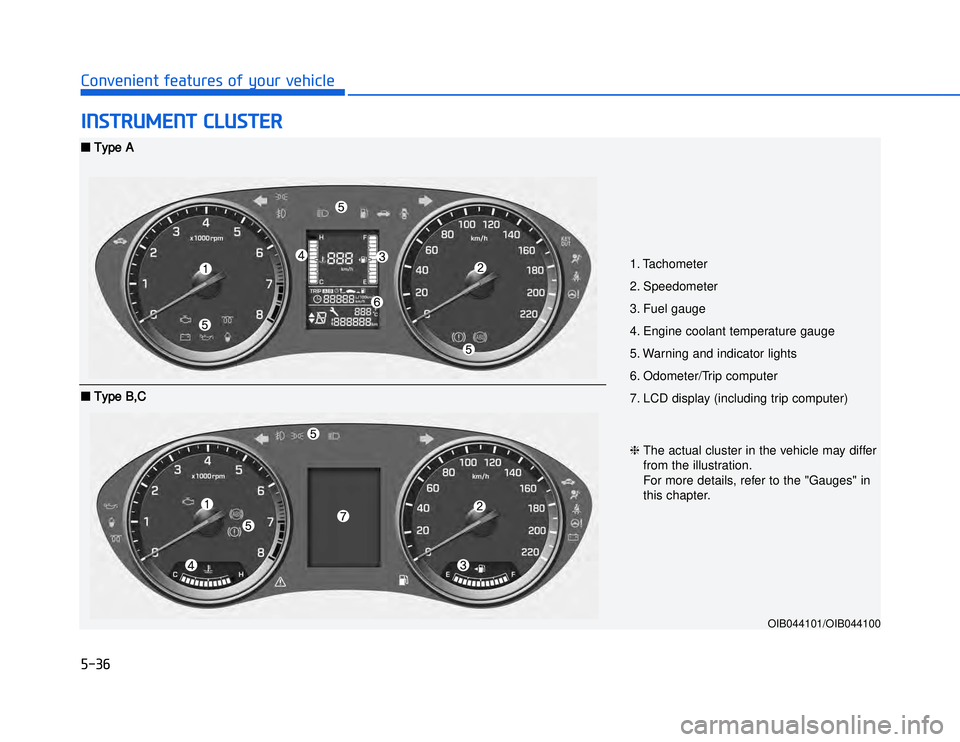

1. Tachometer
2. Speedometer
3. Fuel gauge
4. Engine coolant temperature gauge
5. Warning and indicator lights
6. Odometer/Trip computer
7. LCD display (including trip computer)
OIB044101/OIB044100
■ Type A
❈ The actual cluster in the vehicle may differ
from the illustration.
For more details, refer to the "Gauges" in
this chapter.
■Type B,C
Page 115 of 400
) '
# 1 0 * 3 0 - 3 0 . 2 + 3 % . , / 3 ( 2 1 + 2 " 1 , / 2 * 3 ! - $ & 3

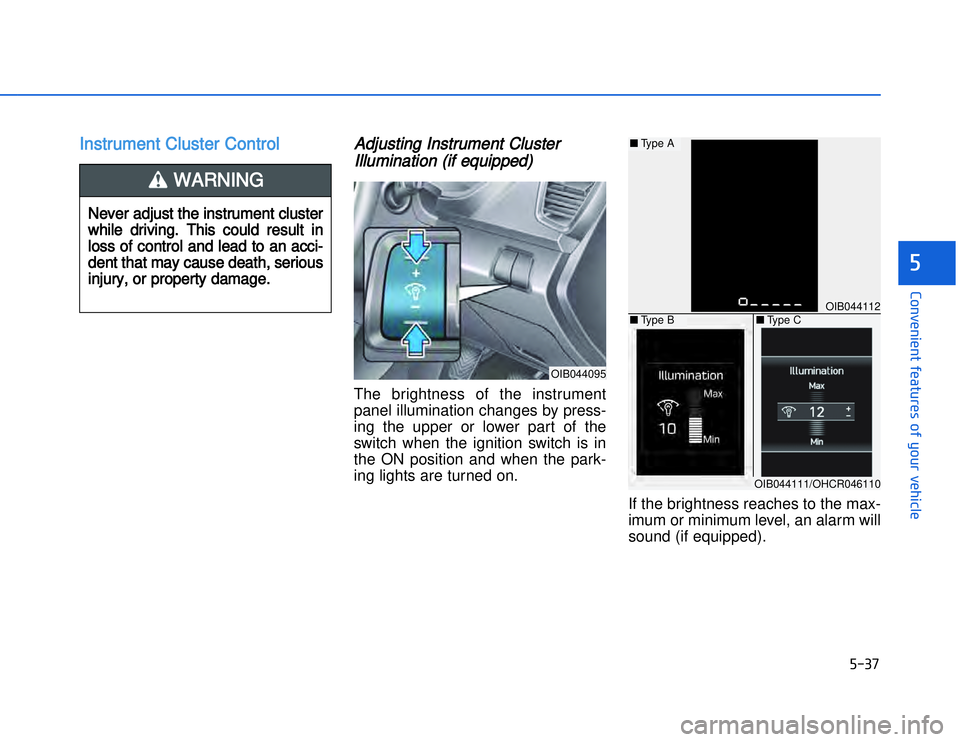

IInstrument Cluster Control
Adjusting Instrument Cluster
Illumination (if equipped)The brightness of the instrument
panel illumination changes by press-
ing the upper or lower part of the
switch when the ignition switch is in
the ON position and when the park-
ing lights are turned on.
If the brightness reaches to the max-
imum or minimum level, an alarm will
sound (if equipped).
Never adjust the instrument cluster
while driving. This could result in
loss of control and lead to an acci-
dent that may cause death, serious
injury, or property damage.
WARNING
OIB044095
OIB044112
■Ty p e A■Ty p e B
■Ty p e COIB044111/OHCR046110
Page 116 of 400

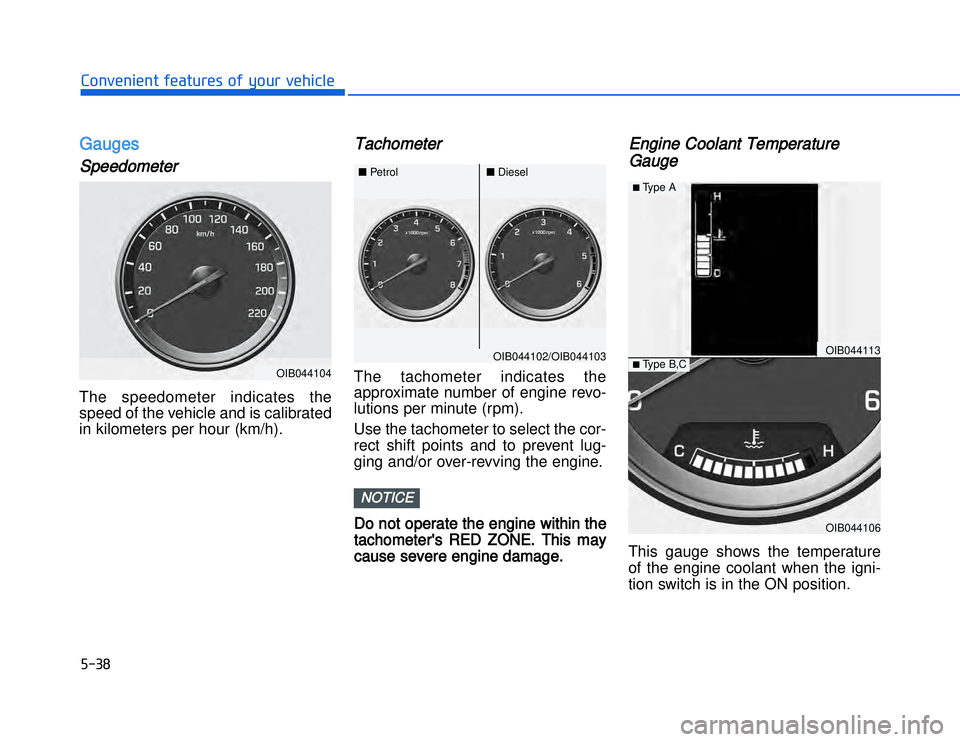

) ' # 1 0 * 3 0 - 3 0 . 2 + 3 % . , / 3 ( 2 1 + 2 " 1 , / 2 * 3 ! - $ & 3GGaugesSpeedometerThe speedometer indicates the
speed of the vehicle and is calibrated
in kilometers per hour (km/h).
TachometerThe tachometer indicates the
approximate number of engine revo-
lutions per minute (rpm).
Use the tachometer to select the cor-
rect shift points and to prevent lug-
ging and/or over-revving the engine.Do not operate the engine within the
tachometer's RED ZONE. This may
cause severe engine damage.
Engine Coolant Temperature
GaugeThis gauge shows the temperature
of the engine coolant when the igni-
tion switch is in the ON position.
NOTICE
OIB044104
OIB044102/OIB044103
■
Diesel
■Petrol
OIB044113OIB044106
■Ty p e A■Ty p e B , C
Page 117 of 400
) '
# 1 0 * 3 0 - 3 0 . 2 + 3 % . , / 3 ( 2 1 + 2 " 1 , / 2 * 3 ! - $ & 3

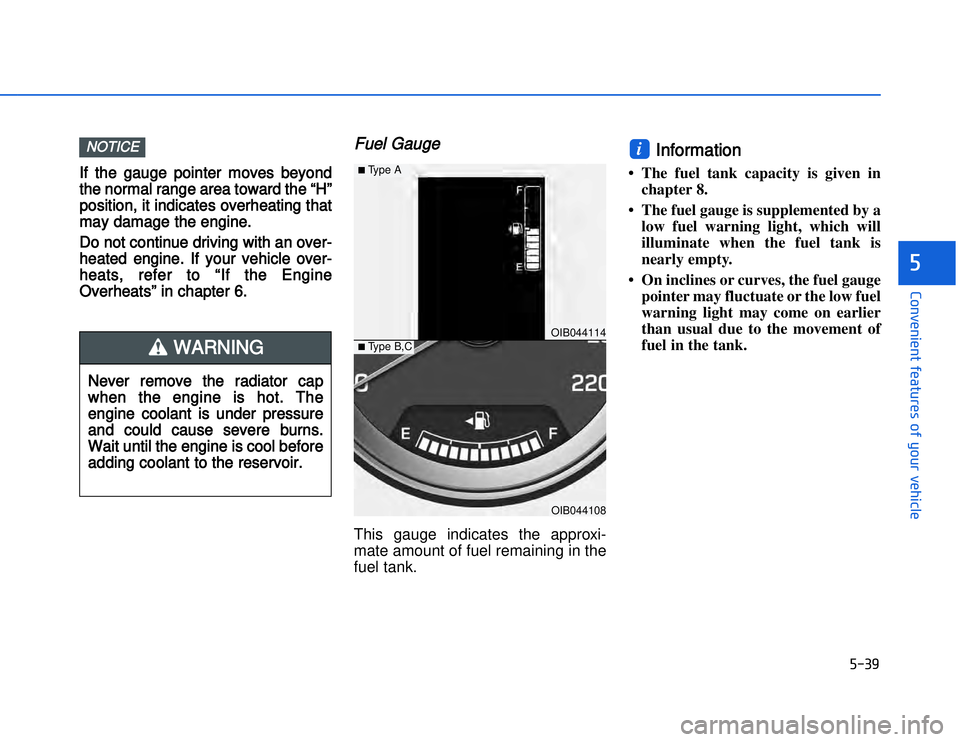

IIf the gauge pointer moves beyond
the normal range area toward the “H”
position, it indicates overheating that
may damage the engine.
Do not continue driving with an over-
heated engine. If your vehicle over-
heats, refer to “If the Engine
Overheats” in chapter 6.
Fuel GaugeThis gauge indicates the approxi-
mate amount of fuel remaining in the
fuel tank.
Information
The fuel tank capacity is given in chapter 8.
The fuel gauge is supplemented by a low fuel warning light, which will
illuminate when the fuel tank is
nearly empty.
On inclines or curves, the fuel gauge pointer may fluctuate or the low fuel
warning light may come on earlier
than usual due to the movement of
fuel in the tank.i
NOTICENever remove the radiator cap
when the engine is hot. The
engine coolant is under pressure
and could cause severe burns.
Wait until the engine is cool before
adding coolant to the reservoir.
WARNING
OIB044114OIB044108
■Ty p e A■Ty p e B , C
Page 118 of 400
) ' # 1 0 * 3 0 - 3 0 . 2 + 3 % . , / 3 ( 2 1 + 2 " 1 , / 2 * 3 ! - $ & 3

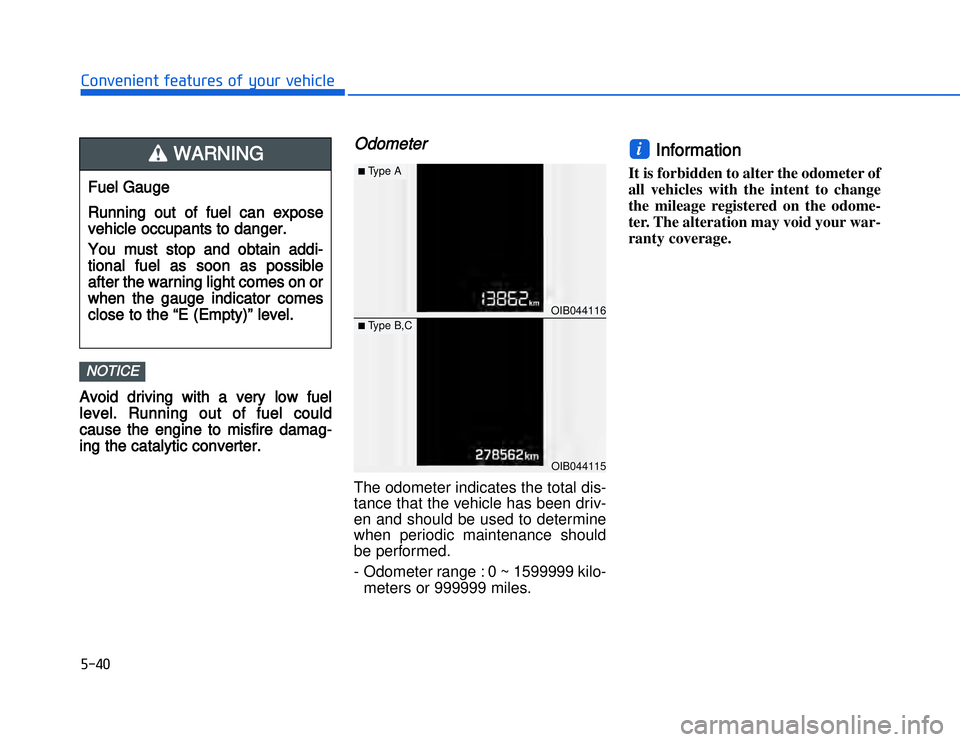

AA void driving with a very low fuel
level. Running out of fuel could
cause the engine to misfire damag-
ing the catalytic converter.
OdometerThe odometer indicates the total dis-
tance that the vehicle has been driv-
en and should be used to determine
when periodic maintenance should
be performed.
- Odometer range : 0 ~ 1599999 kilo- meters or 999999 miles.
Information
It is forbidden to alter the odometer of
all vehicles with the intent to change
the mileage registered on the odome-
ter. The alteration may void your war-
ranty coverage.i
NOTICEFuel Gauge
Running out of fuel can expose
vehicle occupants to danger.
You must stop and obtain addi-
tional fuel as soon as possible
after the warning light comes on or
when the gauge indicator comes
close to the “E (Empty)” level.
WARNING
OIB044116OIB044115
■Ty p e A■Ty p e B , C
Page 119 of 400
) '
# 1 0 * 3 0 - 3 0 . 2 + 3 % . , / 3 ( 2 1 + 2 " 1 , / 2 * 3 ! - $ & 3

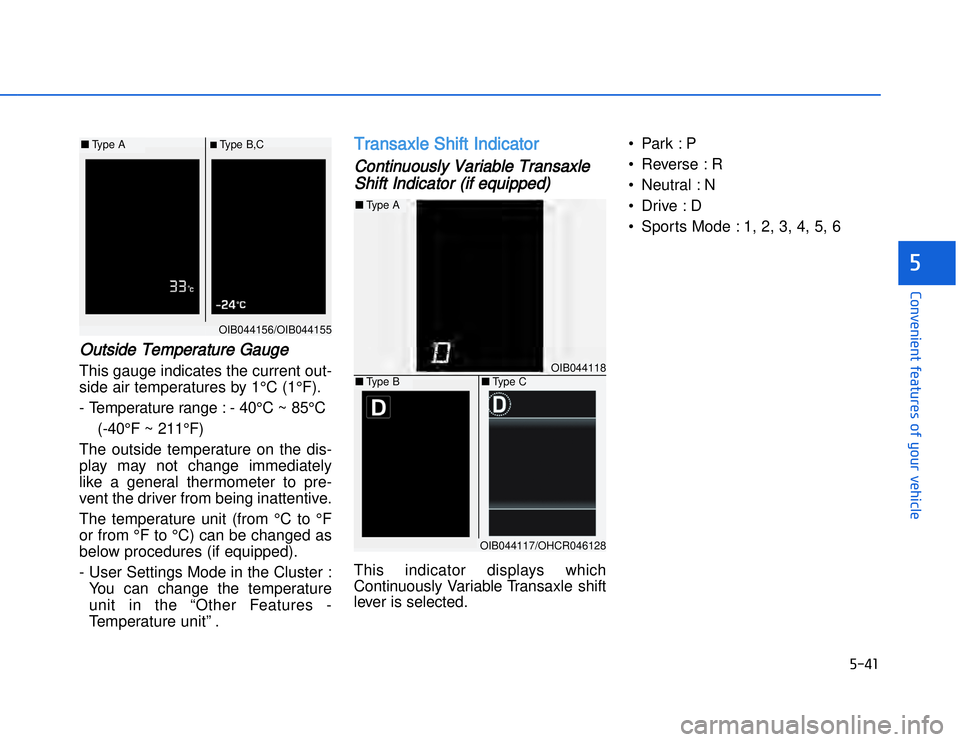

OOutside Temperature GaugeThis gauge indicates the current out-
side air temperatures by 1°C (1°F).
- Temperature range : - 40°C ~ 85°C
(-40°F ~ 211°F)
The outside temperature on the dis-
play may not change immediately
like a general thermometer to pre-
vent the driver from being inattentive.
The temperature unit (from °C to °F
or from °F to °C) can be changed as
below procedures (if equipped).
- User Settings Mode in the Cluster : You can change the temperature
unit in the “Other Features -
Temperature unit” .
Transaxle Shift IndicatorContinuously Variable TransaxleShift Indicator (if equipped)This indicator displays which
Continuously Variable Transaxle shift
lever is selected. • Park : P
• Reverse : R
• Neutral : N
•Drive : D
• Sports Mode : 1, 2, 3, 4, 5, 6
OIB044156/OIB044155
■
Type A
■Type B,C
OIB044118
■Type A■Type B
■Type COIB044117/OHCR046128
Page 120 of 400

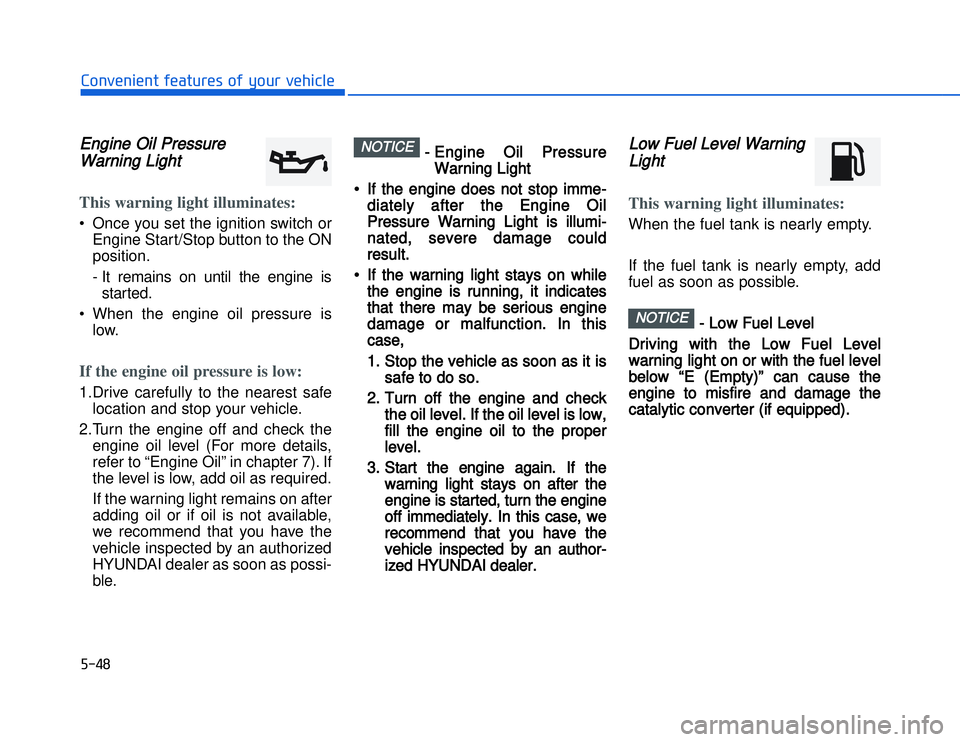

EEngine Oil PressureWarning LightThis warning light illuminates:• Once you set the ignition switch or
Engine Start/Stop button to the ON
position.
- It remains on until the engine isstarted.
• When the engine oil pressure is low.If the engine oil pressure is low:1.Drive carefully to the nearest safelocation and stop your vehicle.
2.Turn the engine off and check the engine oil level (For more details,
refer to “Engine Oil” in chapter 7). If
the level is low, add oil as required.
If the warning light remains on after
adding oil or if oil is not available,
we recommend that you have the
vehicle inspected by an authorized
HYUNDAI dealer as soon as possi-
ble.
- Engine Oil Pressure Warning Light
• If the engine does not stop imme- diately after the Engine Oil
Pressure Warning Light is illumi-
nated, severe damage could
result.
• If the warning light stays on while the engine is running, it indicates
that there may be serious engine
damage or malfunction. In this
case,
1. Stop the vehicle as soon as it is safe to do so.
2. Turn off the en gine and check
the oil level. If the oil level is low,
fill the engine oil to the proper
level.
3. Start the engine again. If the warning light stays on after the
engine is started, turn the engine
off immediately. In this case, we
recommend that you have the
vehicle inspected by an author-
ized HYUNDAI dealer.
Low Fuel Level WarningLightThis warning light illuminates:When the fuel tank is nearly empty.
If the fuel tank is nearly empty, add
fuel as soon as possible.
- Low Fuel Level
Driving with the Low Fuel Level
warning light on or with the fuel level
below “E (Empty)” can cause the
engine to misfire and damage the
catalytic converter (if equipped).
NOTICE
NOTICE
