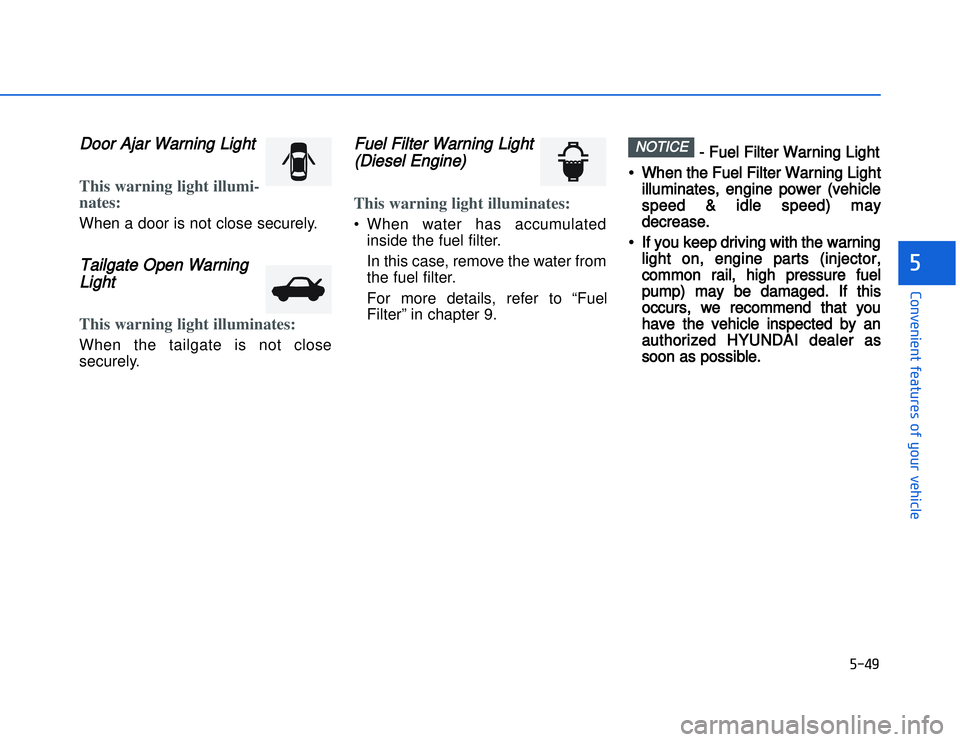

DDoor Ajar Warning LightThis warning light illumi-
nates:When a door is not close securely.Tailgate Open Warning
LightThis warning light illuminates:When the tailgate is not close
securely.
Fuel Filter Warning Light(Diesel Engine)This warning light illuminates:• When water has accumulated
inside the fuel filter.
In this case, remove the water from
the fuel filter.
For more details, refer to “Fuel
Filter” in chapter .
- Fuel Filter Warning Light
• When the Fuel Filter Warning Light illuminates, engine power (vehicle
speed & idle speed) may
decrease.
• If you keep driving with the warning light on, engine parts (injector,
common rail, high pressure fuel
pump) may be damaged. If this
occurs, we recommend that you
have the vehicle inspect ed by an
authorized HYUNDAI dealer as
soon as possible.
NOTICE
)'
#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3

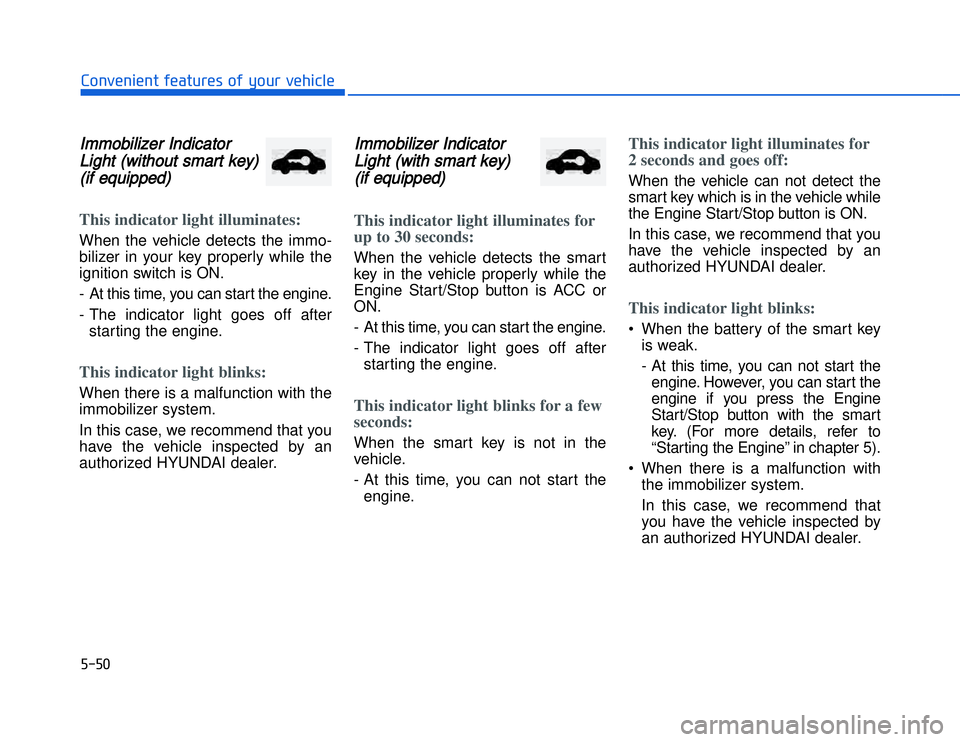

IImmobilizer Indicator
Light (without smart key) (if equipped)This indicator light illuminates:When the vehicle detects the immo-
bilizer in your key properly while the
ignition switch is ON.
- At this time, you can start the engine.
- The indicator light goes off after
starting the engine.This indicator light blinks:When there is a malfunction with the
immobilizer system.
In this case, we recommend that you
have the vehicle inspected by an
authorized HYUNDAI dealer.
Immobilizer IndicatorLight (with smart key) (if equipped)This indicator light illuminates for
up to 30 seconds:When the vehicle detects the smart
key in the vehicle properly while the
Engine Start/Stop button is ACC or
ON.
- At this time, you can start the engine.
- The indicator light goes off after starting the engine.This indicator light blinks for a few
seconds:When the smart key is not in the
vehicle.
- At this time, you can not start theengine.
This indicator light illuminates for
2 seconds and goes off:When the vehicle can not detect the
smart key which is in the vehicle while
the Engine Start/Stop button is ON.
In this case, we recommend that you
have the vehicle inspected by an
authorized HYUNDAI dealer.This indicator light blinks:• When the battery of the smart key is weak.
- At this time, you can not start theengine. However, you can start the
engine if you press the Engine
Start/Stop button with the smart
key. (For more details, refer to
“Starting the Engine” in chapter 5).
• When there is a malfunction with the immobilizer system.
In this case, we recommend that
you have the vehicle inspected by
an authorized HYUNDAI dealer.
)')#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3

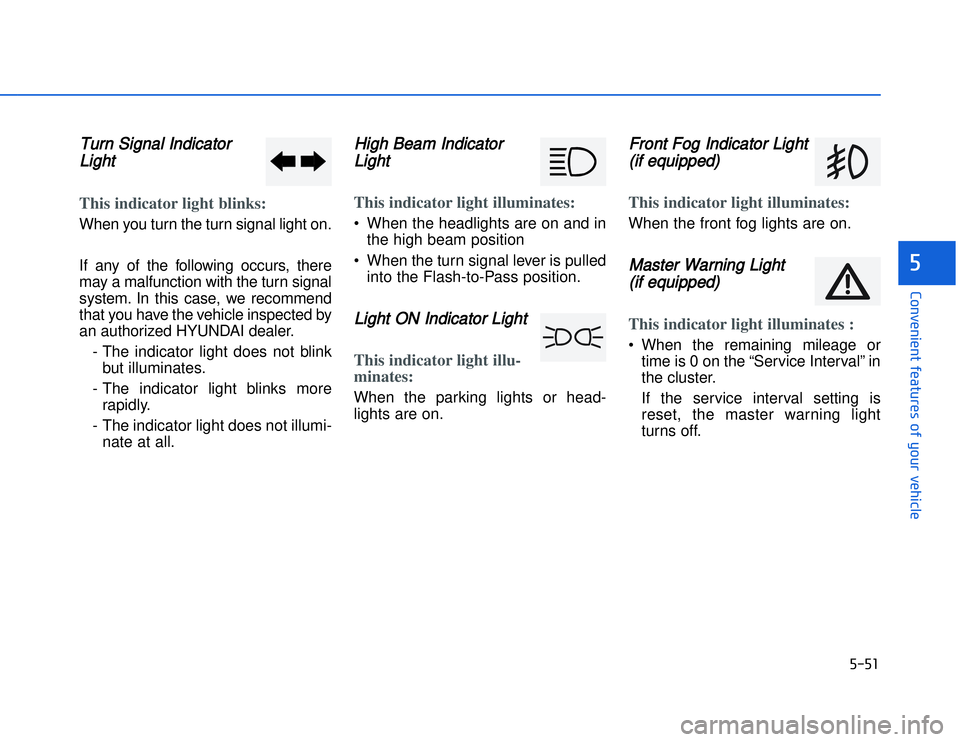

TTurn Signal Indicator
LightThis indicator light blinks:When you turn the turn signal light on.
If any of the following occurs, there
may a malfunction with the turn signal
system. In this case, we recommend
that you have the vehicle inspected by
an authorized HYUNDAI dealer.
- The indicator light does not blinkbut illuminates.
- The indicator light blinks more rapidly.
- The indicator light does not illumi- nate at all.
High Beam IndicatorLightThis indicator light illuminates:• When the headlights are on and in
the high beam position
• When the turn signal lever is pulled into the Flash-to-Pass position.Light ON Indicator LightThis indicator light illu-
minates:When the parking lights or head-
lights are on.
Front Fog Indicator Light(if equipped)This indicator light illuminates:When the front fog lights are on.Master Warning Light (if equipped)This indicator light illuminates :• When the remaining mileage or
time is 0 on the “Service Interval” in
the cluster.
If the service interval setting is
reset, the master warning light
turns off.
)')
#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3

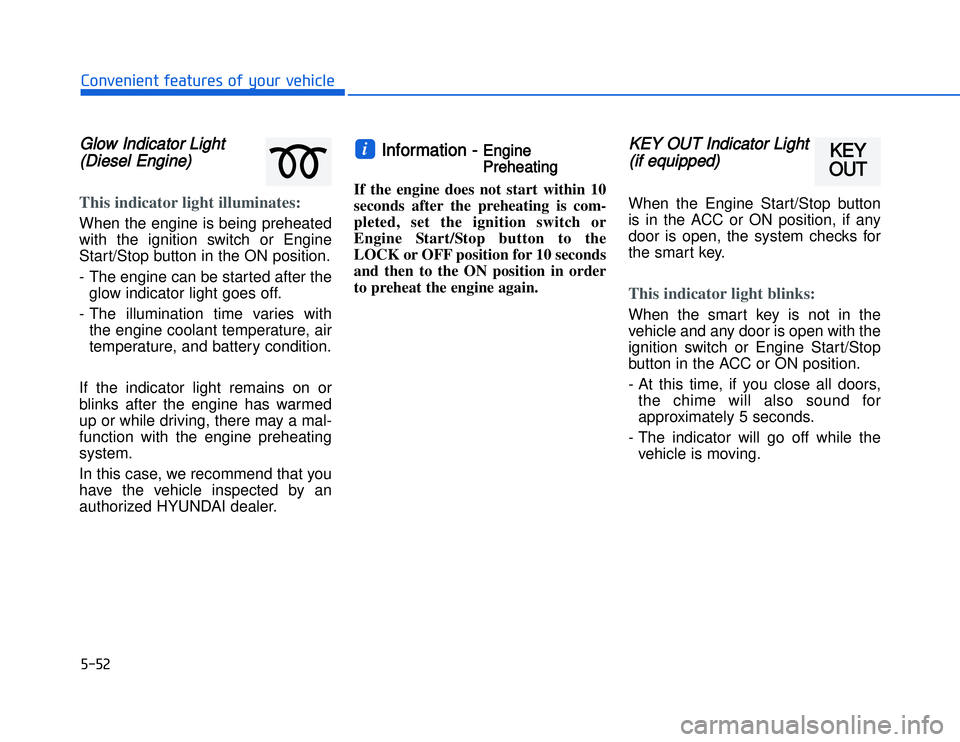

GGlow Indicator Light
(Diesel Engine)This indicator light illuminates:When the engine is being preheated
with the ignition switch or Engine
Start/Stop button in the ON position.
- The engine can be started after the
glow indicator light goes off.
- The illumination time varies with the engine coolant temperature, air
temperature, and battery condition.
If the indicator light remains on or
blinks after the engine has warmed
up or while driving, there may a mal-
function with the engine preheating
system.
In this case, we recommend that you
have the vehicle inspected by an
authorized HYUNDAI dealer.
Information -
Engine
Preheating
If the engine does not start within 10
seconds after the preheating is com-
pleted, set the ignition switch or
Engine Start/Stop button to the
LOCK or OFF position for 10 seconds
and then to the ON position in order
to preheat the engine again.
KEY OUT Indicator Light (if equipped)When the Engine Start/Stop button
is in the ACC or ON position, if any
door is open, the system checks for
the smart key.This indicator light blinks:When the smart key is not in the
vehicle and any door is open with the
ignition switch or Engine Start/Stop
button in the ACC or ON position.
- At this time, if you close all doors,
the chime will also sound for
approximately 5 seconds.
- The indicator will go off while the vehicle is moving.
i
)')#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3
KEY
OUT

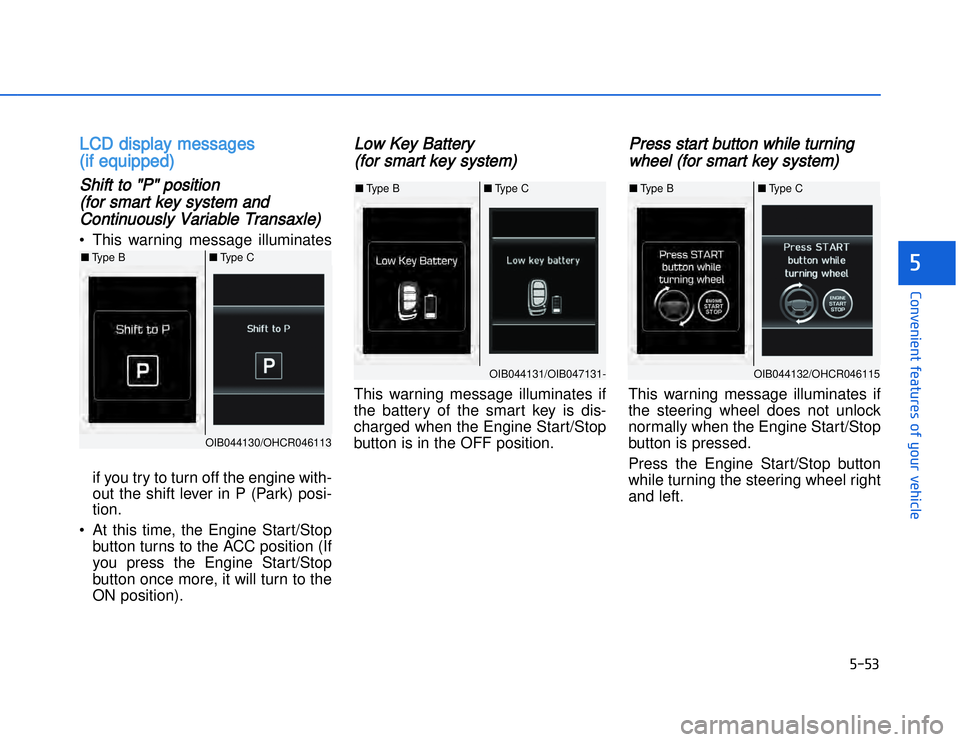

LLCD display messages
(if equipped)Shift to "P" position
(for smart key system and Continuously Variable Transaxle)• This warning message illuminates
if you try to turn off the engine with-
out the shift lever in P (Park) posi-
tion.
• At this time, the Engine Start/Stop button turns to the ACC position (If
you press the Engine Start/Stop
button once more, it will turn to the
ON position).
Low Key Battery (for smart key system)This warning message illuminates if
the battery of the smart key is dis-
charged when the Engine Start/Stop
button is in the OFF position.
Press start button while turningwheel (for smart key system)This warning message illuminates if
the steering wheel does not unlock
normally when the Engine Start/Stop
button is pressed.
Press the Engine Start/Stop button
while turning the steering wheel right
and left.
)')
#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3
OIB044130/OHCR046113
■
Type B ■Type C
OIB044131/OIB047131-
■
Type B ■Type C
OIB044132/OHCR046115
■
Ty p e B ■Type C

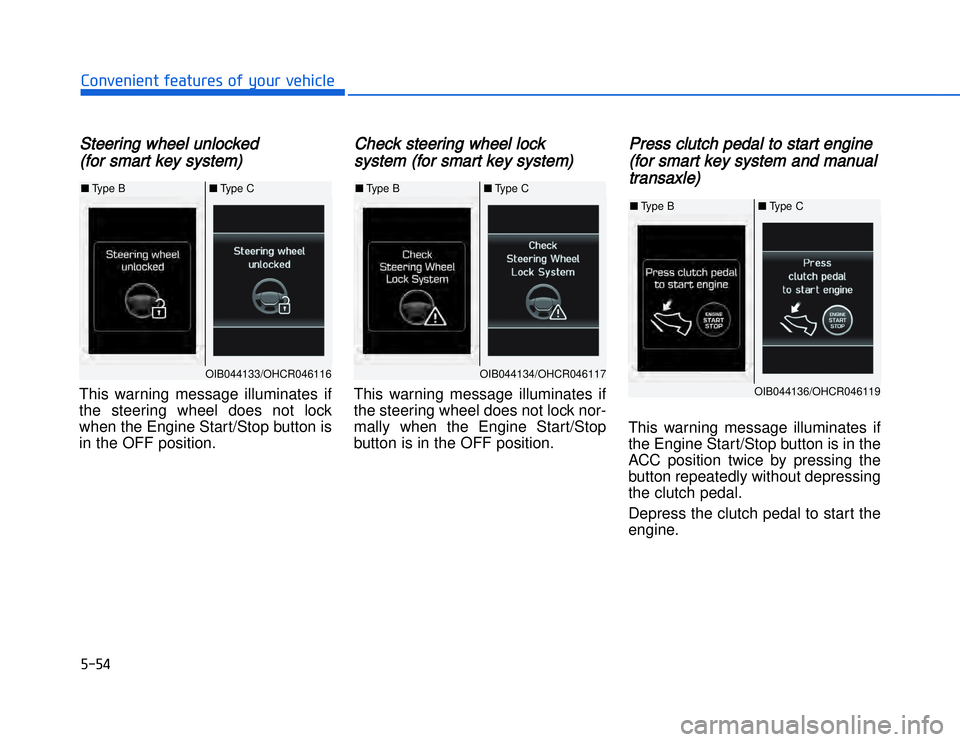

SSteering wheel unlocked (for smart key system)This warning message illuminates if
the steering wheel does not lock
when the Engine Start/Stop button is
in the OFF position.
Check steering wheel lock system (for smart key system)This warning message illuminates if
the steering wheel does not lock nor-
mally when the Engine Start/Stop
button is in the OFF position.
Press clutch pedal to start engine (for smart key system and manualtransaxle) This warning message illuminates if
the Engine Start/Stop button is in the
ACC position twice by pressing the
button repeatedly without depressing
the clutch pedal.
Depress the clutch pedal to start the
engine.
)')#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3
OIB044133/OHCR046116
■
Ty p e B ■Type C
OIB044134/OHCR046117
■
Type B ■Ty p e C
OIB044136/OHCR046119
■
Ty p e B ■Ty p e C

)'
#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3

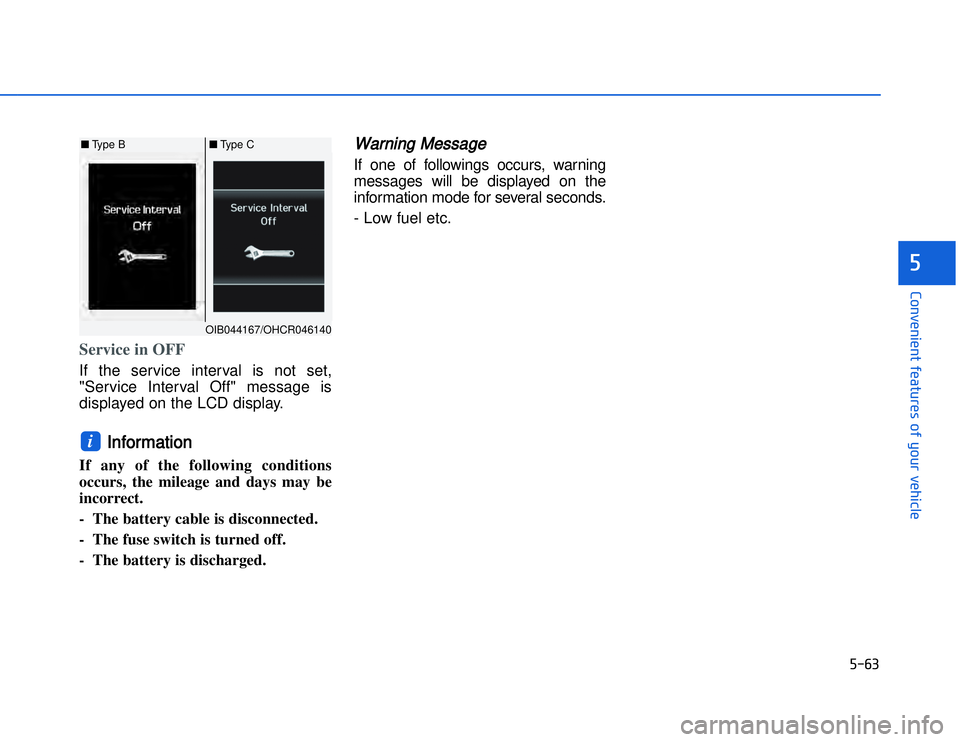

Service in OFFIf the service interval is not set,
"Service Interval Off" message is
displayed on the LCD display.
IInformation
If any of the following conditions
occurs, the mileage and days may be
incorrect.
- The battery cable is disconnected.
- The fuse switch is turned off.
- The battery is discharged.
Warning MessageIf one of followings occurs, warning
messages will be displayed on the
information mode for several seconds.
- Low fuel etc.
i
OIB044167/OHCR046140
■
Type B ■Type C

)'#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3

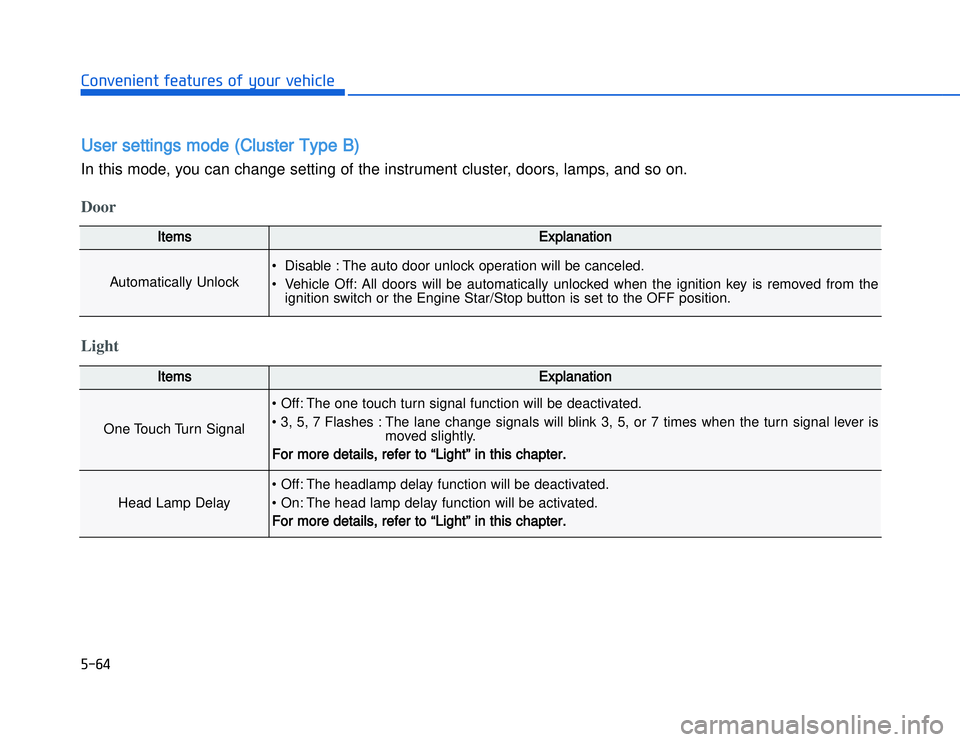

IItems
Explanation
Automatically Unlock
• Disable : The auto door unlock operation will be canceled.
• Vehicle Off: All doors will be automatically unlocked when the ignition key is removed from theignition switch or the Engine Star/Stop button is set to the OFF position.
Door
Light
Items
Explanation
One Touch Turn Signal
• Off: The one touch turn signal function will be deactivated.
• 3, 5, 7 Flashes : The lane change signals will blink 3, 5, or 7 times when the turn signal lever is moved slightly.For more details, refer to “Light” in this chapter.
Head Lamp Delay
• Off: The headlamp delay function will be deactivated.
• On: The head lamp delay function will be activated.For more details, refer to “Light” in this chapter.
User settings mode (Cluster Type B)In this mode, you can change setting of the instrument cluster, doors, lamps, and so on.

)')
#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3

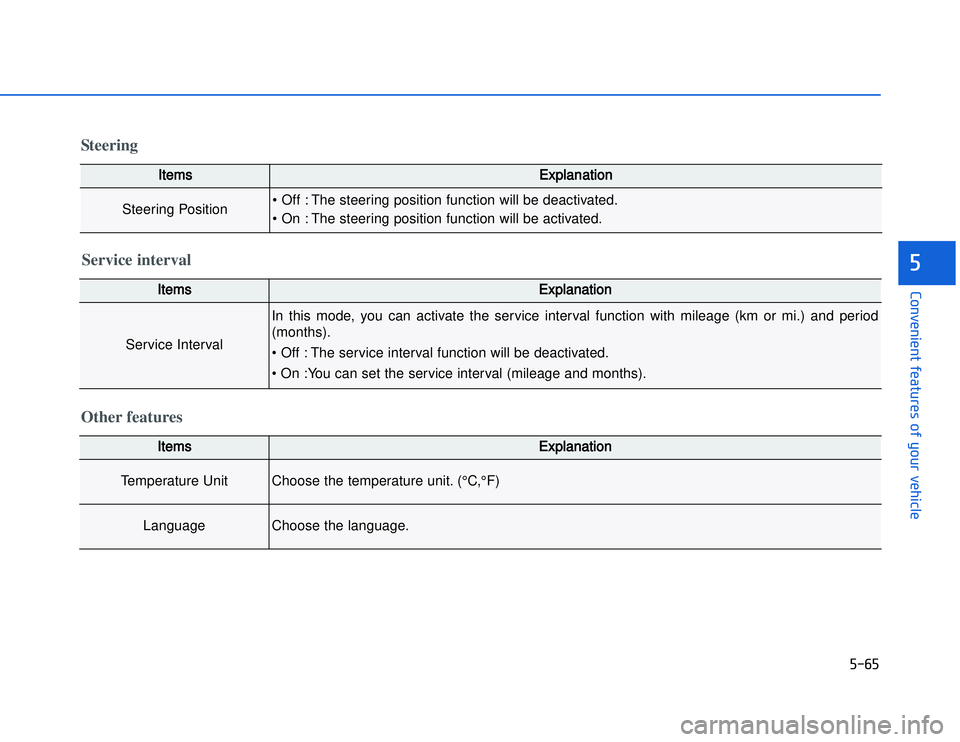

IItems
Explanation
Steering Position
• Off : The steering position function will be deactivated.
• On : The steering position function will be activated.
Items
Explanation
Service Interval
In this mode, you can activate the service interval function with mileage (km or mi.) and period
(months).
• Off : The service interval function will be deactivated.
• On :You can set the service interval (mileage and months).
Service interval
Other features Steering
Items
Explanation
Temperature Unit
Choose the temperature unit. (°C,°F)
Language
Choose the language.

)'#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3

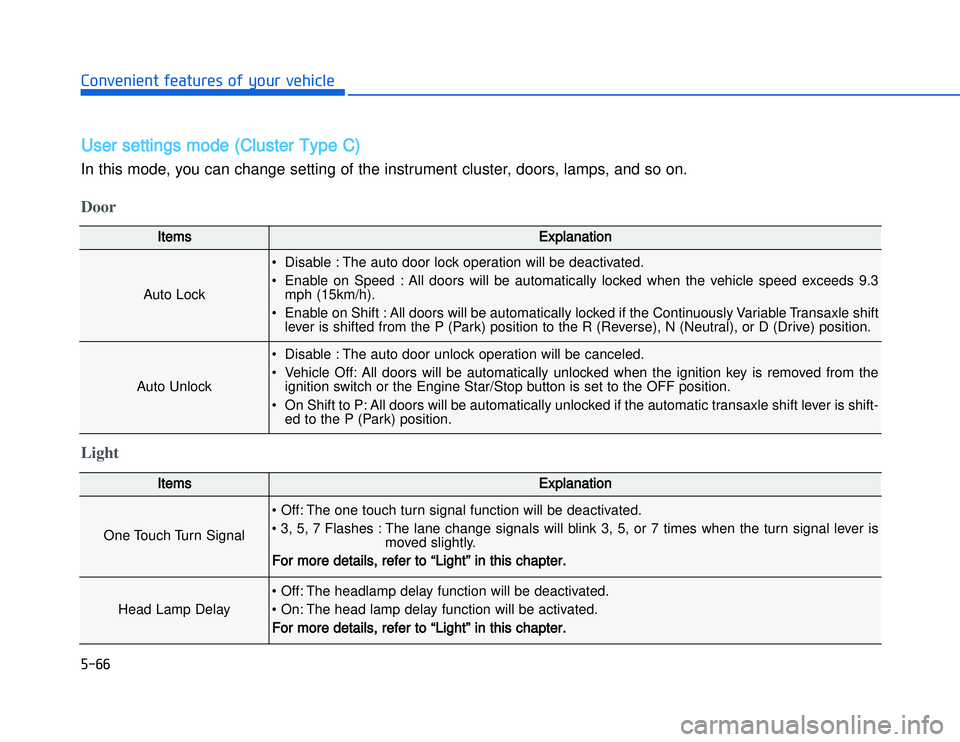

IItems
Explanation
Auto Lock
• Disable : The auto door lock operation will be deactivated.
• Enable on Speed : All doors will be automatically locked when the vehicle speed exceeds 9.3mph (15km/h).
• Enable on Shift : All doors will be automatically locked if the Continuously Variable Transaxle shift lever is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position.
Auto Unlock
• Disable : The auto door unlock operation will be canceled.
• Vehicle Off: All doors will be automatically unlocked when the ignition key is removed from the ignition switch or the Engine Star/Stop button is set to the OFF position.
• On Shift to P: All doors will be automatically unlocked if the automatic transaxle shift lever is shift- ed to the P (Park) position.
Door
Light
Items
Explanation
One Touch Turn Signal
• Off: The one touch turn signal function will be deactivated.
• 3, 5, 7 Flashes : The lane change signals will blink 3, 5, or 7 times when the turn signal lever is moved slightly.For more details, refer to “Light” in this chapter.
Head Lamp Delay
• Off: The headlamp delay function will be deactivated.
• On: The head lamp delay function will be activated.For more details, refer to “Light” in this chapter.
User settings mode (Cluster Type C)In this mode, you can change setting of the instrument cluster, doors, lamps, and so on.
