Page 131 of 400
) '
# 1 0 * 3 0 - 3 0 . 2 + 3 % . , / 3 ( 2 1 + 2 " 1 , / 2 * 3 ! - $ & 3

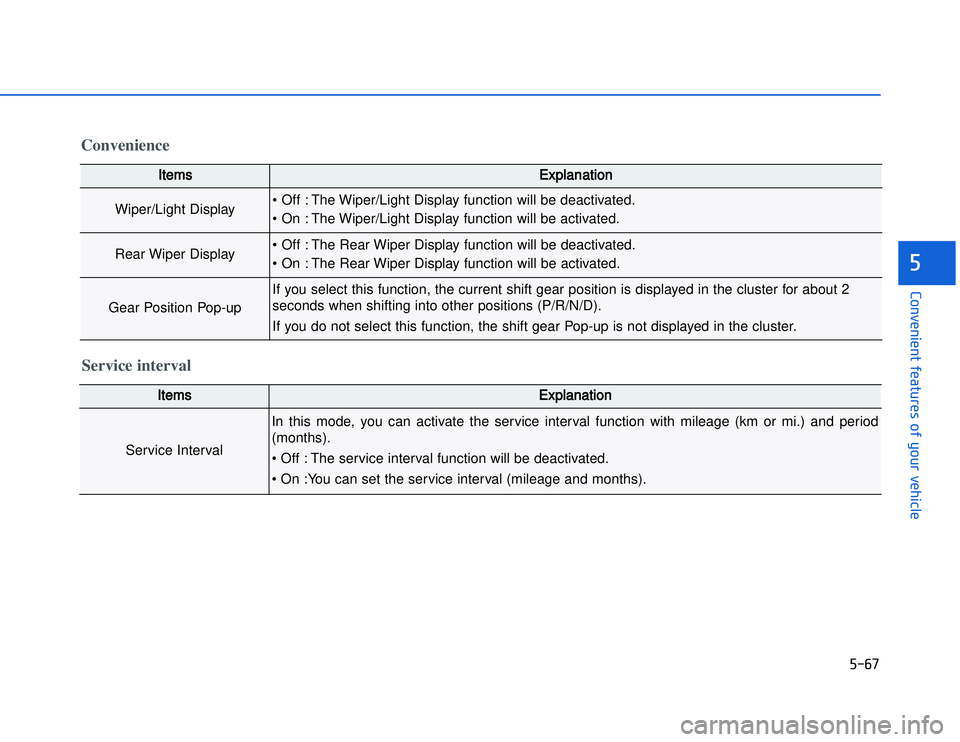

IItems
Explanation
Wiper/Light Display
• Off : The Wiper/Light Display function will be deactivated.
• On : The Wiper/Light Display function will be activated.
Rear Wiper Display
• Off : The Rear Wiper Display function will be deactivated.
• On : The Rear Wiper Display function will be activated.
Gear Position Pop-up
If you select this function, the current shift gear position is displayed in the cluster for about 2
seconds when shifting into other positions (P/R/N/D).
If you do not select this function, the shift gear Pop-up is not displayed in the cluster.
Convenience
Items
Explanation
Service Interval
In this mode, you can activate the service interval function with mileage (km or mi.) and period
(months).
• Off : The service interval function will be deactivated.
• On :You can set the service interval (mileage and months).
Service interval
Page 132 of 400
) ' # 1 0 * 3 0 - 3 0 . 2 + 3 % . , / 3 ( 2 1 + 2 " 1 , / 2 * 3 ! - $ & 3Other features

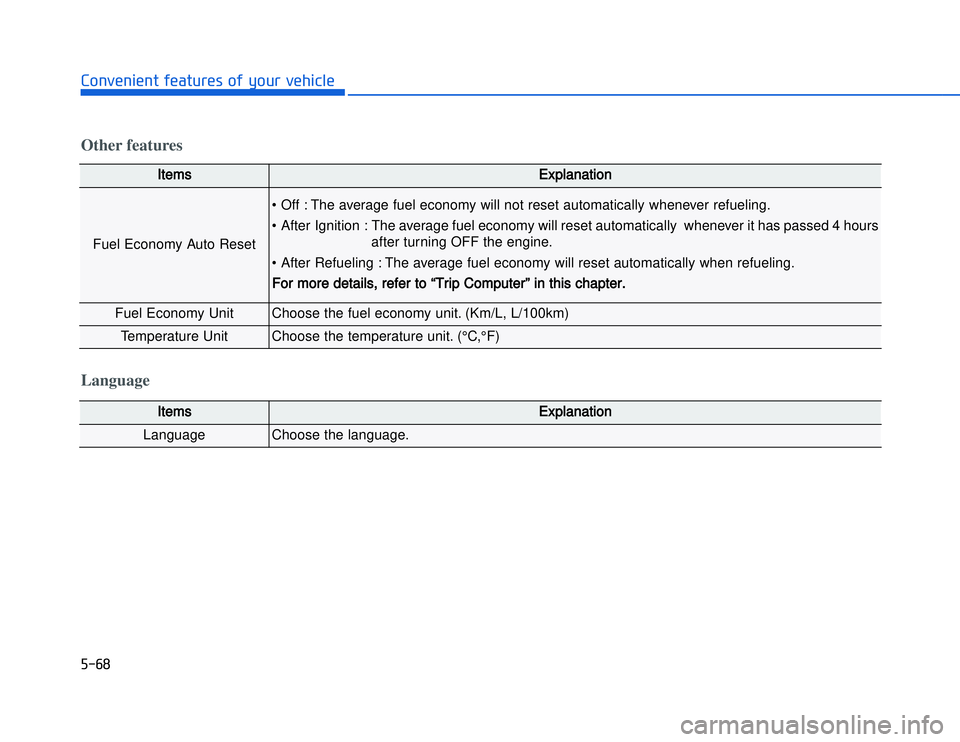

IItems
Explanation
Fuel Economy Auto Reset
• Off : The average fuel economy will not reset automatically whenever refueling.
• After Ignition : The average fuel economy will reset automatically whenever it has passed 4 hoursafter turning OFF the engine.
• After Refueling : The average fuel economy will reset automatically when refueling.For more details, refer to “Trip Computer” in this chapter.
Fuel Economy Unit
Choose the fuel economy unit. (Km/L, L/100km)
Temperature Unit
Choose the temperature unit. (°C,°F)
Language
Items
Explanation
Language
Choose the language.
Page 133 of 400
) ) * ' & ! " ) + *
) '
# 1 0 * 3 0 - 3 0 . 2 + 3 % . , / 3 ( 2 1 + 2 " 1 , / 2 * 3 ! - $ & 3

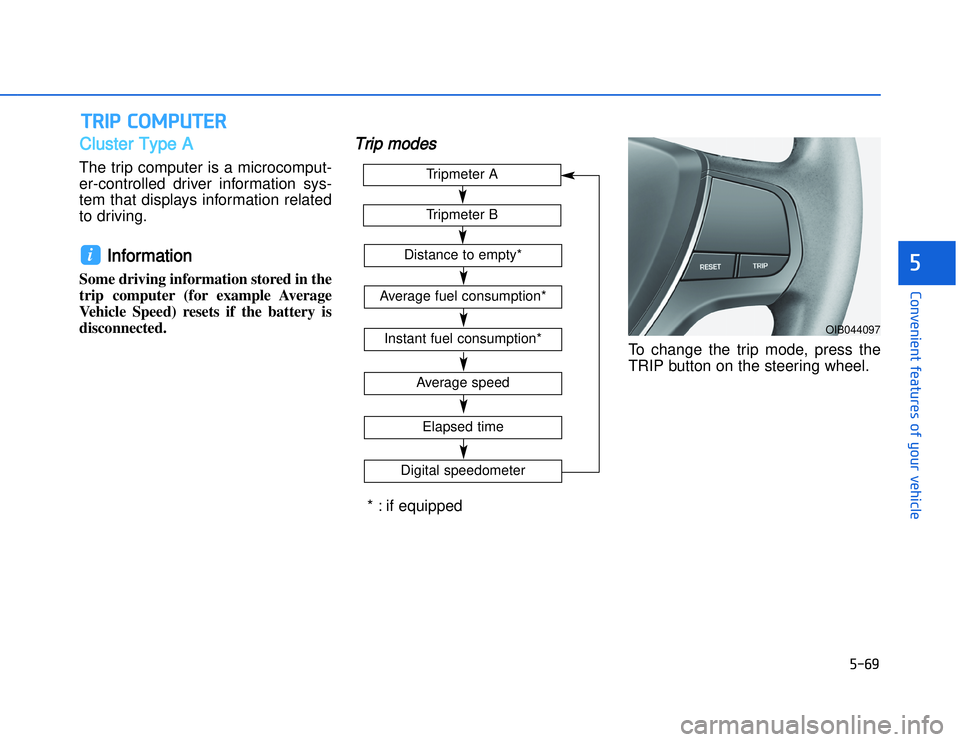

Cluster Type AThe trip computer is a microcomput-
er-controlled driver information sys-
tem that displays information related
to driving.
Information
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is
disconnected.
Trip modes
To change the trip mode, press the
TRIP button on the steering wheel.
i
Tripmeter BTripmeter A
Average fuel consumption*Instant fuel consumption*
Average speedElapsed time
Digital speedometerDistance to empty*
* : if equipped
OIB044097
Page 134 of 400
) ' # 1 0 * 3 0 - 3 0 . 2 + 3 % . , / 3 ( 2 1 + 2 " 1 , / 2 * 3 ! - $ & 3DDistance To Empty (1)

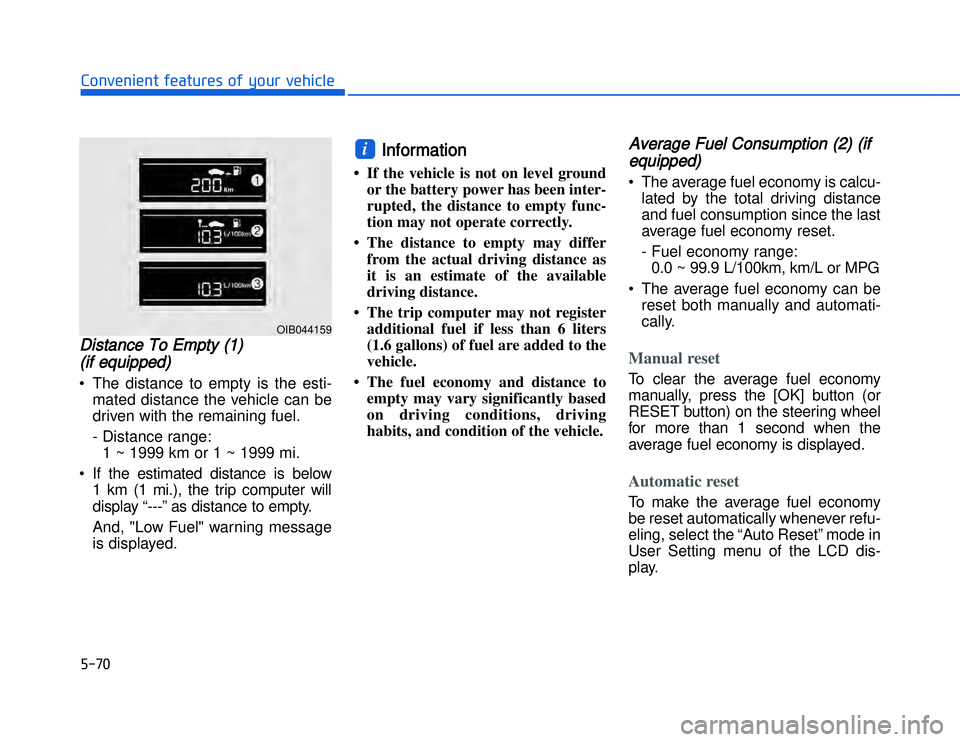

(if equipped)• The distance to empty is the esti-
mated distance the vehicle can be
driven with the remaining fuel.
- Distance range: 1 ~ 1999 km or 1 ~ 1999 mi.
• If the estimated distance is below 1 km (1 mi.), the trip computer will
display “---” as distance to empty.
And, "Low Fuel" warning message
is displayed.
Information
If the vehicle is not on level ground or the battery power has been inter-
rupted, the distance to empty func-
tion may not operate correctly.
The distance to empty may differ from the actual driving distance as
it is an estimate of the available
driving distance.
The trip computer may not register additional fuel if less than 6 liters
(1.6 gallons) of fuel are added to the
vehicle.
The fuel economy and distance to empty may vary significantly based
on driving conditions, driving
habits, and condition of the vehicle.
Average Fuel Consumption (2) (ifequipped)• The average fuel economy is calcu-
lated by the total driving distance
and fuel consumption since the last
average fuel economy reset.
- Fuel economy range: 0.0 ~ 99.9 L/100km, km/L or MPG
• The average fuel economy can be reset both manually and automati-
cally.Manual resetTo clear the average fuel economy
manually, press the [OK] button (or
RESET button) on the steering wheel
for more than 1 second when the
average fuel economy is displayed.Automatic resetTo make the average fuel economy
be reset automatically whenever refu-
eling, select the “Auto Reset” mode in
User Setting menu of the LCD dis-
play.
i
OIB044159

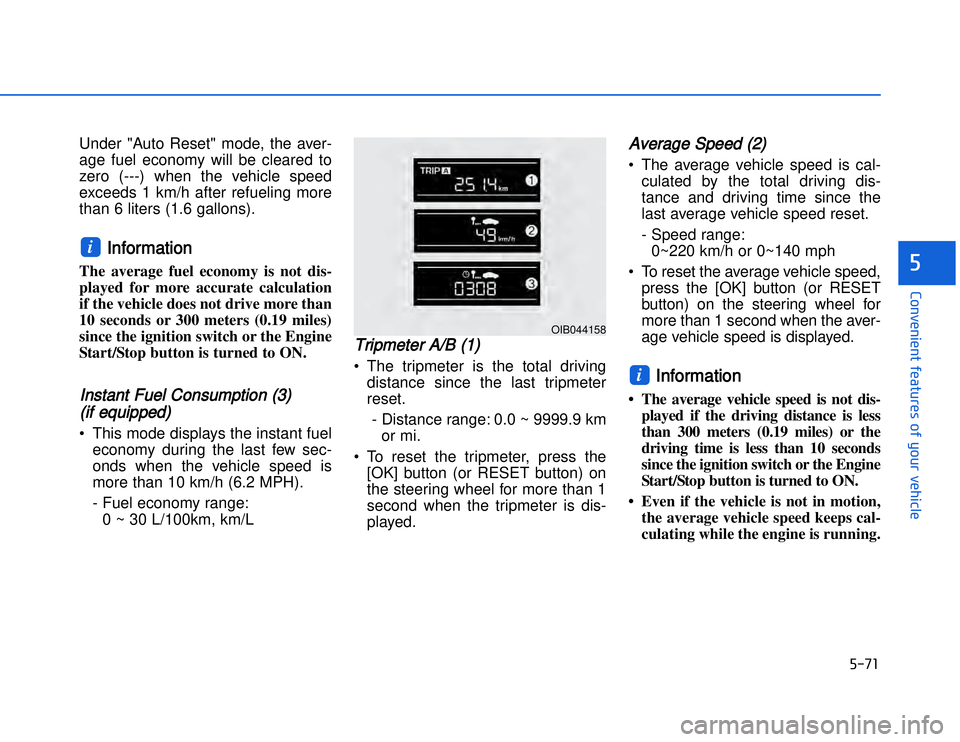

Page 135 of 400
) '
# 1 0 * 3 0 - 3 0 . 2 + 3 % . , / 3 ( 2 1 + 2 " 1 , / 2 * 3 ! - $ & 3
Under "Auto Reset" mode, the aver-
age fuel economy will be cleared to
zero (---) when the vehicle speed
exceeds 1 km/h after refueling more
than 6 liters (1.6 gallons).
IInformation
The average fuel economy is not dis-
played for more accurate calculation
if the vehicle does not drive more than
10 seconds or 300 meters (0.19 miles)
since the ignition switch or the Engine
Start/Stop button is turned to ON.Instant Fuel Consumption (3)
(if equipped)• This mode displays the instant fuel
economy during the last few sec-
onds when the vehicle speed is
more than 10 km/h (6.2 MPH).
- Fuel economy range:0 ~ 30 L/100km, km/L
Tripmeter A/B (1)• The tripmeter is the total driving distance since the last tripmeter
reset.
- Distance range: 0.0 ~ 9999.9 km or mi.
• To reset the tripmeter, press the [OK] button (or RESET button) on
the steering wheel for more than 1
second when the tripmeter is dis-
played.
Average Speed (2)• The average vehicle speed is cal-culated by the total driving dis-
tance and driving time since the
last average vehicle speed reset.
- Speed range:0~220 km/h or 0~140 mph
• To reset the average vehicle speed, press the [OK] button (or RESET
button) on the steering wheel for
more than 1 second when the aver-
age vehicle speed is displayed.
Information
The average vehicle speed is not dis-played if the driving distance is less
than 300 meters (0.19 miles) or the
driving time is less than 10 seconds
since the ignition switch or the Engine
Start/Stop button is turned to ON.
Even if the vehicle is not in motion, the average vehicle speed keeps cal-
culating while the engine is running.i
i
OIB044158
Page 136 of 400
) ' # 1 0 * 3 0 - 3 0 . 2 + 3 % . , / 3 ( 2 1 + 2 " 1 , / 2 * 3 ! - $ & 3EElapsed Time (3)• The elapsed time is the total driv-ing time since the last elapsed time

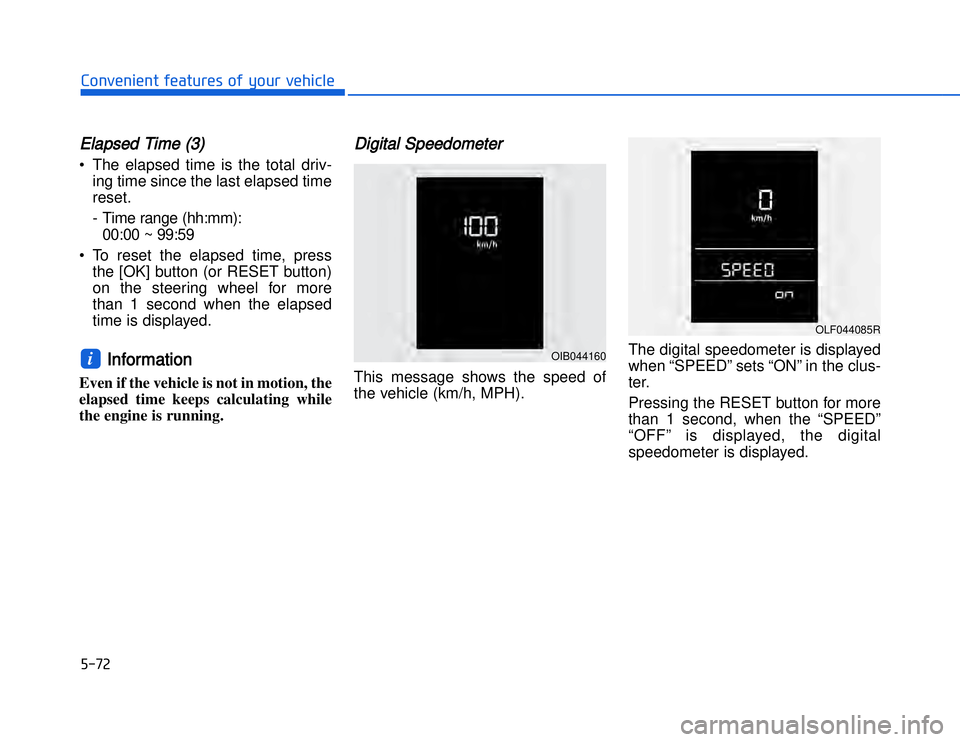

reset.
- Time range (hh:mm): 00:00 ~ 99:59
• To reset the elapsed time, press the [OK] button (or RESET button)
on the steering wheel for more
than 1 second when the elapsed
time is displayed.
Information
Even if the vehicle is not in motion, the
elapsed time keeps calculating while
the engine is running.
Digital Speedometer This message shows the speed of
the vehicle (km/h, MPH). The digital speedometer is displayed
when “SPEED” sets “ON” in the clus-
ter.
Pressing the RESET button for more
than 1 second, when the “SPEED”
“OFF” is displayed, the digital
speedometer is displayed.
i
OIB044160
OLF044085R
Page 137 of 400
) '
# 1 0 * 3 0 - 3 0 . 2 + 3 % . , / 3 ( 2 1 + 2 " 1 , / 2 * 3 ! - $ & 3

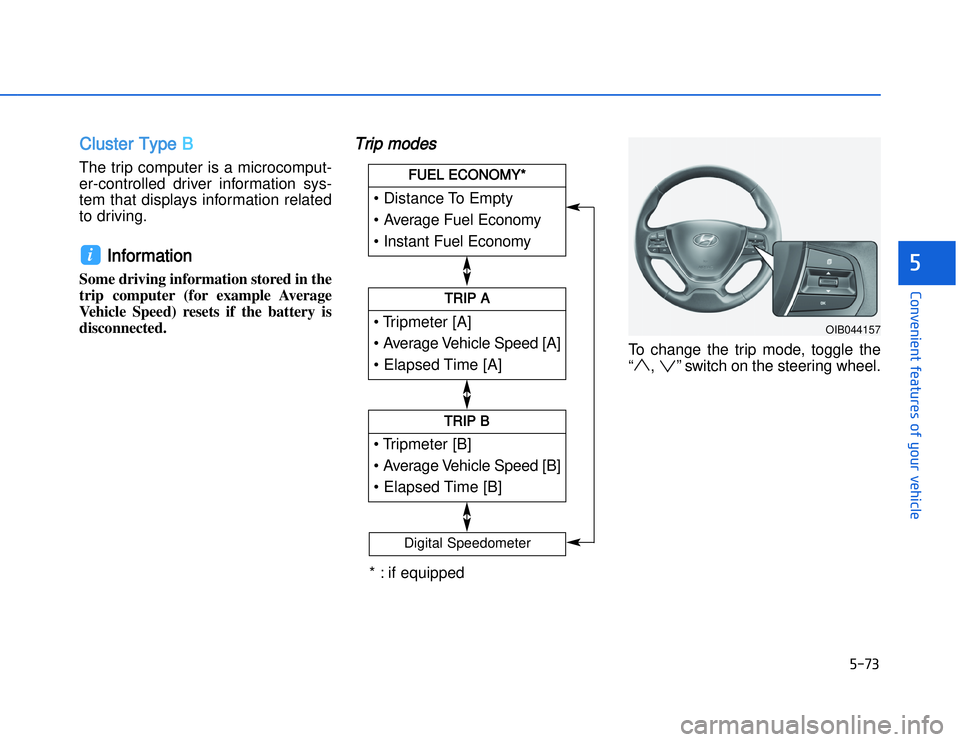

CCluster Type B The trip computer is a microcomput-
er-controlled driver information sys-
tem that displays information related
to driving.
Information
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is
disconnected.
Trip modes
To change the trip mode, toggle the
“ , ” switch on the steering wheel.
i
• Tripmeter [A]
• Average Vehicle Speed [A]
• Elapsed Time [A]
TRIP A
• Tripmeter [B]
• Average Vehicle Speed [B]
• Elapsed Time [B]
TRIP B
• Distance To Empty
• Average Fuel Economy
• Instant Fuel Economy
FUEL ECONOMY*Digital Speedometer
* : if equipped
OIB044157
Page 138 of 400
) ' # 1 0 * 3 0 - 3 0 . 2 + 3 % . , / 3 ( 2 1 + 2 " 1 , / 2 * 3 ! - $ & 3FFuel Economy
(km or mile, L/100km, km/L or MPG) (if equipped)Distance To Empty (1)• The distance to empty is the esti-
mated distance the vehicle can be
driven with the remaining fuel.
- Distance range: 1 ~ 1999 km or 1 ~ 1999 mi.
• If the estimated distance is below 1 km (1 mi.), the trip computer will
display “---” as distance to empty.
And, "Low Fuel" warning message
is displayed.
Information
If the vehicle is not on level ground or the battery power has been inter-
rupted, the distance to empty func-
tion may not operate correctly.
The distance to empty may differ from the actual driving distance as
it is an estimate of the available
driving distance.
The trip computer may not register additional fuel if less than 6 liters
(1.6 gallons) of fuel are added to the
vehicle.
The fuel economy and distance to empty may vary significantly based
on driving conditions, driving
habits, and condition of the vehicle.
Average Fuel Economy (2)• The average fuel economy is calcu-lated by the total driving distance
and fuel consumption since the last
average fuel economy reset.
- Fuel economy range: 0.0 ~ 99.9 L/100km, km/L or MPG
• The average fuel economy can be reset both manually and automati-
cally.Manual resetTo clear the average fuel economy
manually, press the [OK] button (or
RESET button) on the steering wheel
for more than 1 second when the
average fuel economy is displayed.Automatic resetTo make the average fuel economy
be reset automatically whenever refu-
eling, select the “Auto Reset” mode in
User Setting menu of the LCD dis-
play.
Under "Auto Reset" mode, the aver-
age fuel economy will be cleared to
zero (---) when the vehicle speed
exceeds 1 km/h after refueling more
than 6 liters (1.6 gallons).
i
OIB044123
Page 139 of 400
) ' )
# 1 0 * 3 0 - 3 0 . 2 + 3 % . , / 3 ( 2 1 + 2 " 1 , / 2 * 3 ! - $ & 3

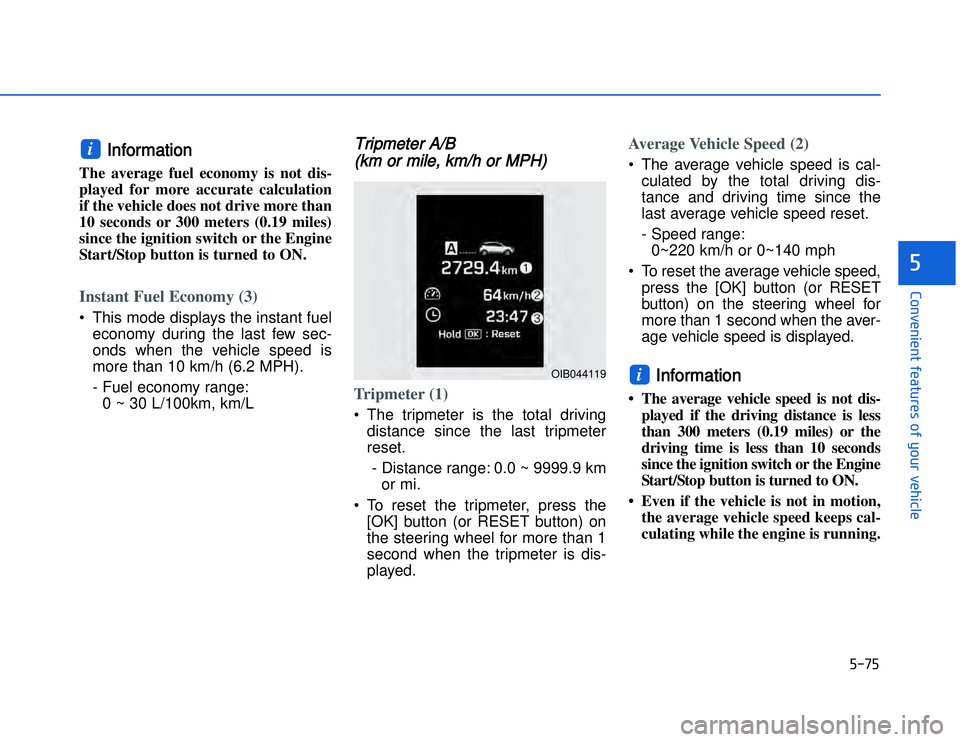

IInformation
The average fuel economy is not dis-
played for more accurate calculation
if the vehicle does not drive more than
10 seconds or 300 meters (0.19 miles)
since the ignition switch or the Engine
Start/Stop button is turned to ON.Instant Fuel Economy (3)• This mode displays the instant fuel
economy during the last few sec-
onds when the vehicle speed is
more than 10 km/h (6.2 MPH).
- Fuel economy range:0 ~ 30 L/100km, km/L
Tripmeter A/B (km or mile, km/h or MPH)Tripmeter (1)• The tripmeter is the total driving
distance since the last tripmeter
reset.
- Distance range: 0.0 ~ 9999.9 km or mi.
• To reset the tripmeter, press the [OK] button (or RESET button) on
the steering wheel for more than 1
second when the tripmeter is dis-
played.
Average Vehicle Speed (2)• The average vehicle speed is cal-culated by the total driving dis-
tance and driving time since the
last average vehicle speed reset.
- Speed range:0~220 km/h or 0~140 mph
• To reset the average vehicle speed, press the [OK] button (or RESET
button) on the steering wheel for
more than 1 second when the aver-
age vehicle speed is displayed.
Information
The average vehicle speed is not dis-played if the driving distance is less
than 300 meters (0.19 miles) or the
driving time is less than 10 seconds
since the ignition switch or the Engine
Start/Stop button is turned to ON.
Even if the vehicle is not in motion, the average vehicle speed keeps cal-
culating while the engine is running.i
i
OIB044119
Page 140 of 400
![HYUNDAI I20 2014 Owners Manual Elapsed Time (3)• The elapsed time is the total driv-ing time since the last elapsed time
reset.
- Time range (hh:mm): 00:00 ~ 99:59
• To reset the elapsed time, press the [OK] button (or RESET bu](/img/35/56137/w960_56137-139.png "HYUNDAI I20 2014 Owners Manual Elapsed Time (3)• The elapsed time is the total driv-ing time since the last elapsed time
reset.
- Time range (hh:mm): 00:00 ~ 99:59
• To reset the elapsed time, press the [OK] button (or RESET bu")

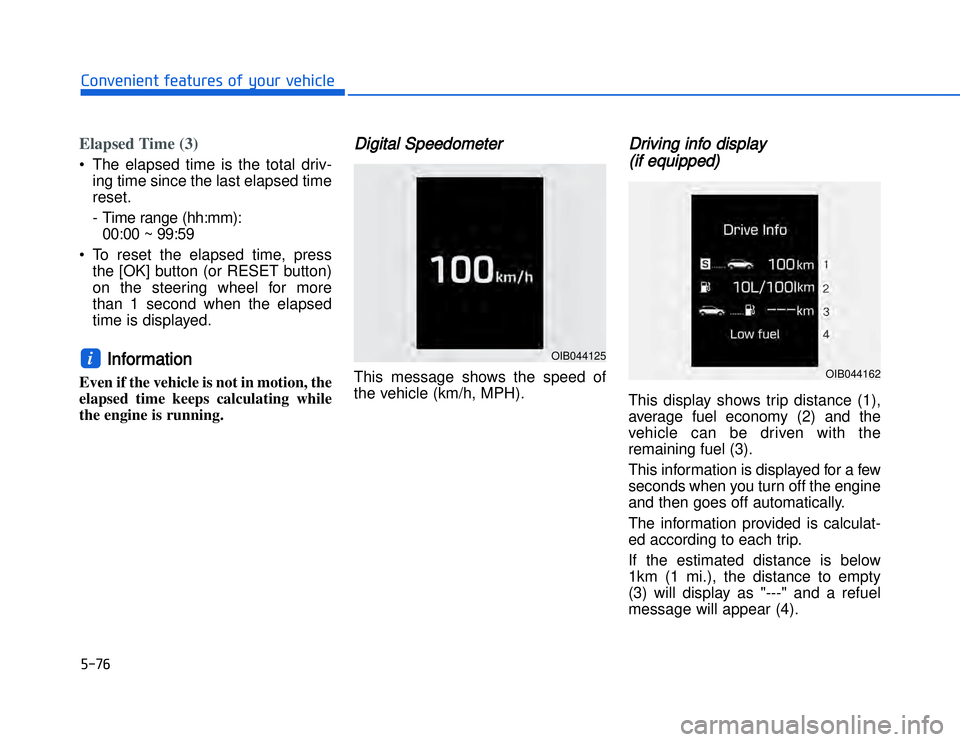

Elapsed Time (3)• The elapsed time is the total driv-ing time since the last elapsed time
reset.
- Time range (hh:mm): 00:00 ~ 99:59
• To reset the elapsed time, press the [OK] button (or RESET button)
on the steering wheel for more
than 1 second when the elapsed
time is displayed.
IInformation
Even if the vehicle is not in motion, the
elapsed time keeps calculating while
the engine is running.
Digital Speedometer This message shows the speed of
the vehicle (km/h, MPH).
Driving info display
(if equipped)This display shows trip distance (1),
average fuel economy (2) and the
vehicle can be driven with the
remaining fuel (3).
This information is displayed for a few
seconds when you turn off the engine
and then goes off automatically.
The information provided is calculat-
ed according to each trip.
If the estimated distance is below
1km (1 mi.), the distance to empty
(3) will display as "---" and a refuel
message will appear (4).
i ) ' # 1 0 * 3 0 - 3 0 . 2 + 3 % . , / 3 ( 2 1 + 2 " 1 , / 2 * 3 ! - $ & 3
OIB044125
OIB044162
