HYUNDAI I20 2014 Owners Manual

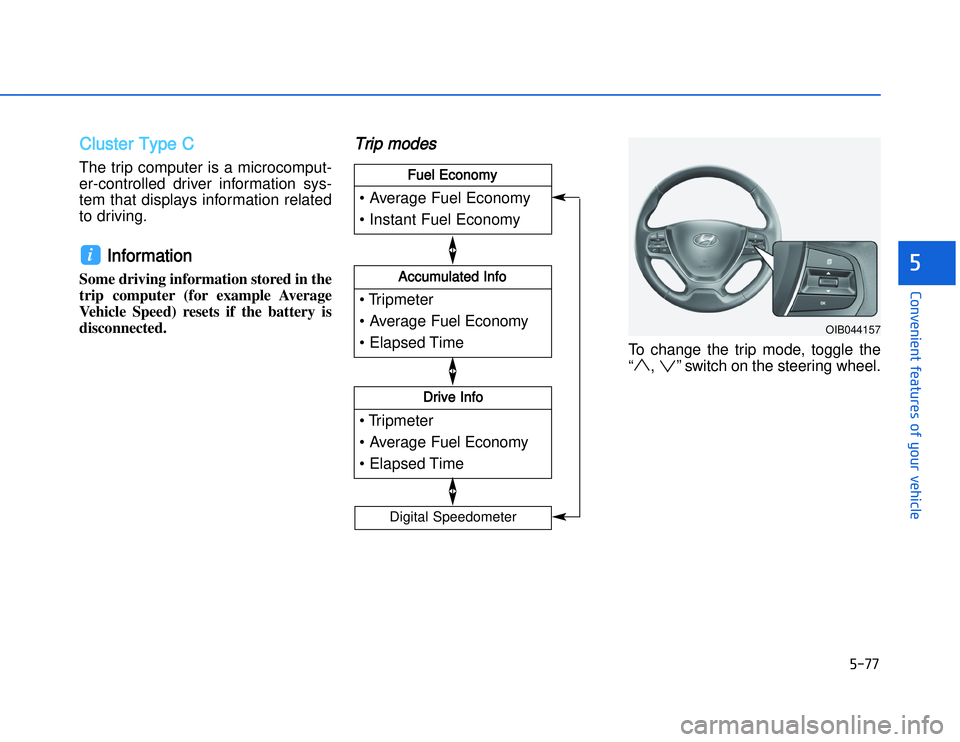

CCluster Type C The trip computer is a microcomput-
er-controlled driver information sys-
tem that displays information related
to driving.
Information
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is
disconnected.
Trip modes
To change the trip mode, toggle the
“ , ” switch on the steering wheel.
i
)'
#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3
OIB044157
• Tripmeter
• Average F uel Economy
• Elapsed Time
Drive Info
• Tripmeter
• Average F uel Economy
• Elapsed Time
Accumulated Info
• Average Fuel Economy
• Instant Fuel Economy
Fuel Economy
Digital Speedometer

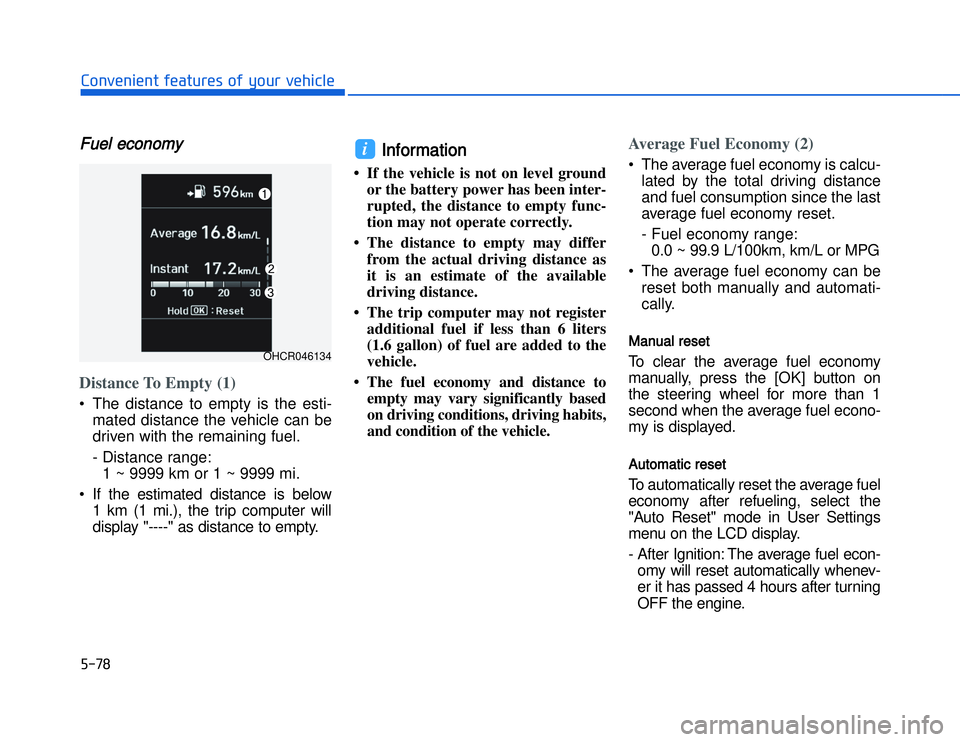

FFuel economy Distance To Empty (1)• The distance to empty is the esti-
mated distance the vehicle can be
driven with the remaining fuel.
- Distance range: 1 ~ 9999 km or 1 ~ 9999 mi.
• If the estimated distance is below 1 km (1 mi.), the trip computer will
display "----" as distance to empty.
Information
If the vehicle is not on level groundor the battery power has been inter-
rupted, the distance to empty func-
tion may not operate correctly.
The distance to empty may differ from the actual driving distance as
it is an estimate of the available
driving distance.
The trip computer may not register additional fuel if less than 6 liters
(1.6 gallon) of fuel are added to the
vehicle.
The fuel economy and distance to empty may vary significantly based
on driving conditions, driving habits,
and condition of the vehicle.
Average Fuel Economy (2)• The average fuel economy is calcu-lated by the total driving distance
and fuel consumption since the last
average fuel economy reset.
- Fuel economy range: 0.0 ~ 99.9 L/100km, km/L or MPG
• The average fuel economy can be reset both manually and automati-
cally.Manual resetTo clear the average fuel economy
manually, press the [OK] button on
the steering wheel for more than 1
second when the average fuel econo-
my is displayed.Automatic resetTo automatically reset the average fuel
economy after refueling, select the
"Auto Reset" mode in User Settings
menu on the LCD display.
- After Ignition: The average fuel econ-omy will reset automatically whenev-
er it has passed 4 hours after turning
OFF the engine.
i
)'#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3
OHCR046134

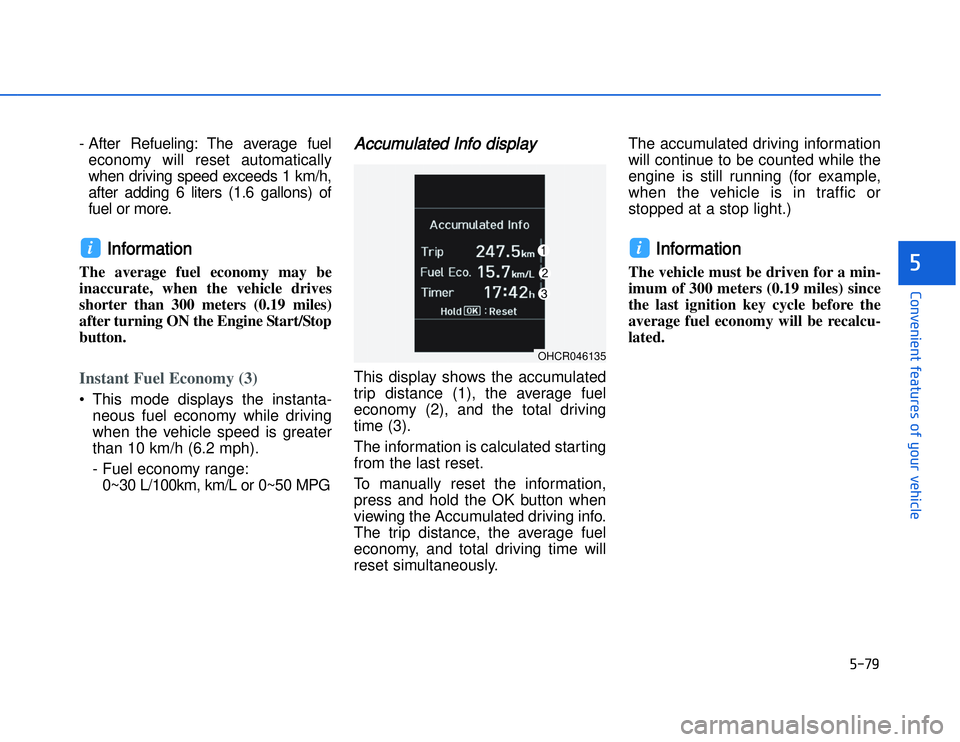

- After Refueling: The average fueleconomy will reset automatically
when driving speed exceeds 1 km/h,
after adding 6 liters (1.6 gallons) of
fuel or more.
IInformation
The average fuel economy may be
inaccurate, when the vehicle drives
shorter than 300 meters (0.19 miles)
after turning ON the Engine Start/Stop
button.Instant Fuel Economy (3)• This mode displays the instanta-
neous fuel economy while driving
when the vehicle speed is greater
than 10 km/h (6.2 mph).
- Fuel economy range: 0~30 L/100km, km/L or 0~50 MPG
Accumulated Info display This display shows the accumulated
trip distance (1), the average fuel
economy (2), and the total driving
time (3).
The information is calculated starting
from the last reset.
To manually reset the information,
press and hold the OK button when
viewing the Accumulated driving info.
The trip distance, the average fuel
economy, and total driving time will
reset simultaneously. The accumulated driving information
will continue to be counted while the
engine is still running (for example,
when the vehicle is in traffic or
stopped at a stop light.)
Information
The vehicle must be driven for a min-
imum of 300 meters (0.19 miles) since
the last ignition key cycle before the
average fuel economy will be recalcu-
lated.i
i
)'
#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3
OHCR046135

DDriving Info displayThis display shows the trip distance
(1), the average fuel economy (2),
and the total driving time (3).
The information is calculated for each
ignition cycle. The driving information
data gets initialized, when it has
passed 4 hours after turning OFF the
engine. In other words, the last driv-
ing information is available 4 hours
after you have turned on the engine. To manually reset the information,
press and hold the OK button when
viewing the Driving info. The trip dis-
tance, the average fuel economy, and
total driving time will reset simultane-
ously.
The driving information will continue
to be counted while the engine is still
running (for example, when the vehi-
cle is in traffic or stopped at a stop
light.)
Information
The vehicle must be driven for a min-
imum of 300 meters (0.19 miles) since
the last ignition key cycle before the
average fuel economy will be recalcu-
lated.
Digital speedometer This message shows the speed of
the vehicle (km/h, MPH).
i
)'#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3
OHCR046137
OHCR046136

)'
#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3

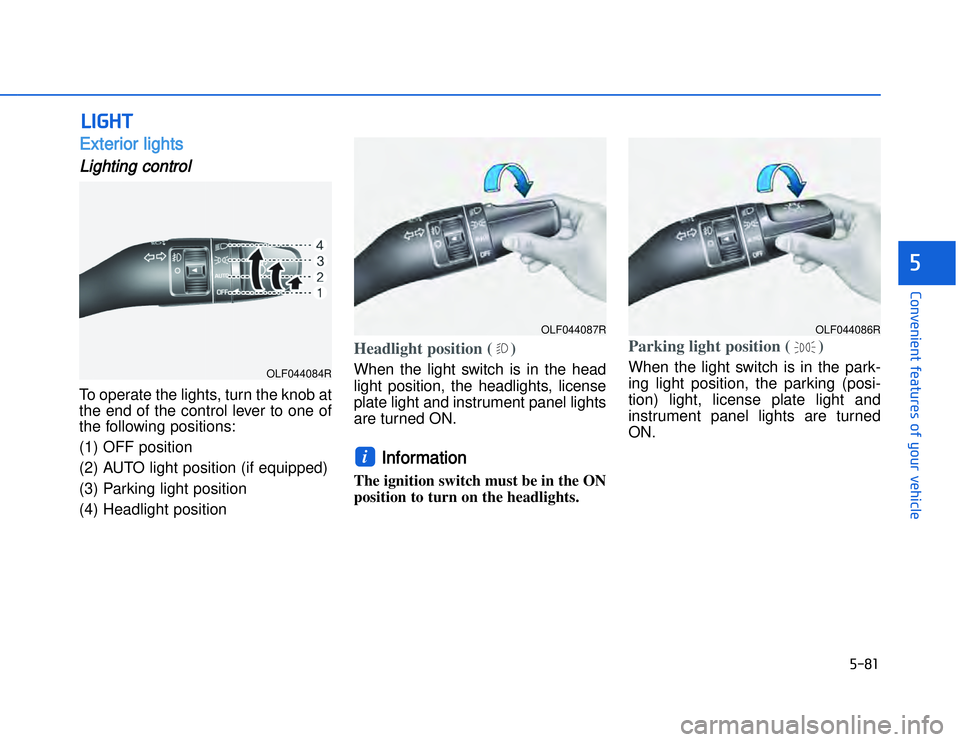

%%')Exterior lightsLighting controlTo operate the lights, turn the knob at
the end of the control lever to one of
the following positions:
(1) OFF position
(2) AUTO light position (if equipped)
(3) Parking light position
(4) Headlight position
Headlight position ( )When the light switch is in the head
light position, the headlights, license
plate light and instrument panel lightsare turned ON.
Information
The ignition switch must be in the ON
position to turn on the headlights.
Parking light position ( )When the light switch is in the park-
ing light position, the parking (posi-
tion) light, license plate light and
instrument panel lights are turned
ON.
i
OLF044084R
OLF044086R
OLF044087R

)'#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3AUTO light position (if equipped)When the light switch is in the AUTO
position, the parking (position) light
and headlights will be turned ON or
OFF automatically depending on the
amount of light outside the vehicle.
Even with the AUTO light feature in
operation, it is recommended to
manually turn ON the lights when
driving at night or in a fog, or when
you enter dark areas, such as tun-
nels and parking facilities. •
•
Do not cover or spill anything on
the sensor (1) located on the
instrument panel.
• Do not clean the sensor using a win- dow cleaner, the cleanser may
leave a light film which could inter-
fere with sensor operation.
• If your vehicle has window tint or other types of metallic coating on
the front windshield, the AUTO
light system may not work proper-
ly.
High beam operationTo turn on the high beam headlamp,
push the lever away from you. The
lever will return to its original position.
The high beam indicator will light
when the headlamp high beams are
switched on.
To turn off the high beam headlamp,
pull the lever towards you. The low
beams will turn on.
NOTICE
OLF044192R
OLF044085R
Do not use high beam when there
are other vehicles approaching you.
Using high beam could obstruct the
other driver's vision.
WARNING

)'
#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3
To flash the high beam headlights,
pull the lever towards you, then
release the lever. The high beams
will remain ON as long as you hold
the lever towards you.
TT urn signals and lane change sig-
nalsTo signal a turn, push down on the
lever for a right turn or up for a left
turn in position (A). To signal a lane
change, move the turn signal lever
slightly and hold it in position (B). The
lever will return to the OFF position
when released or when the turn is
completed.
If an indicator stays on and does not flash or if it flashes abnormally, one ofthe turn signal bulbs may be burned
out and will require replacement.
One-touch lane change function
(if equipped)To activate an One-Touch Lane
Change function, move the turn sig-
nal lever slightly and then release it.
The lane change signals will blink 3,
5 or 7 times.
You can activate/deactivate the One
Touch Turn Signal function or choose
the number of blinking (3, 5, or 7)
from the User Settings Mode on the
LCD display.For more details, refer to "LCD
Display" in this chapter.
If the turn signal indicator stays on
and does not flash, or if it flashes
abnormally, a bulb may be burned
out or have a poor electrical connec-
tion in the circuit. The bulb may
require replacement.NOTICE
OLF044088R
OLF044091R

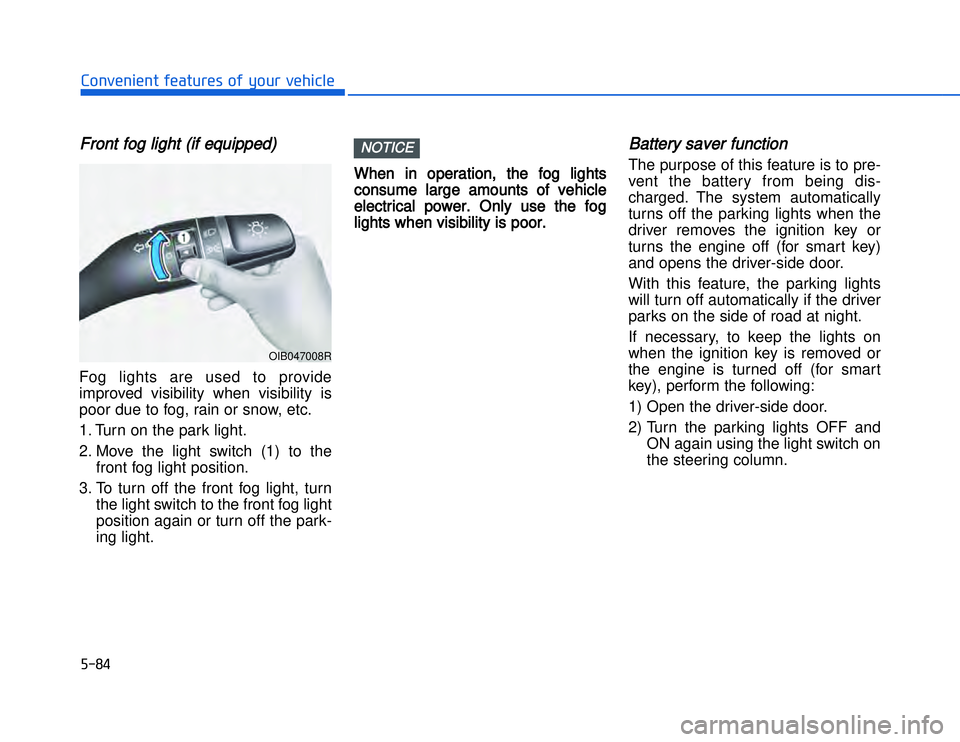

)'#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3FFront fog light (if equipped) Fog lights are used to provide
improved visibility when visibility is
poor due to fog, rain or snow, etc.
1. Turn on the park light.
2. Move the light switch (1) to the
front fog light position.
3. To turn off the front fog light, turn the light switch to the front fog light
position again or turn off the park-
ing light.
When in operation, the fog lights
consume large amounts of vehicle
electrical power. Only use the fog
lights when visibility is poor.
Battery saver functionThe purpose of this feature is to pre-
vent the battery from being dis-
charged. The system automatically
turns off the parking lights when the
driver removes the ignition key or
turns the engine off (for smart key)
and opens the driver-side door.
With this feature, the parking lights
will turn off automatically if the driver
parks on the side of road at night.
If necessary, to keep the lights on
when the ignition key is removed or
the engine is turned off (for smart
key), perform the following:
1) Open the driver-side door.
2) Turn the parking lights OFF and ON again using the light switch on
the steering column.
NOTICE
OIB047008R

)')
#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3

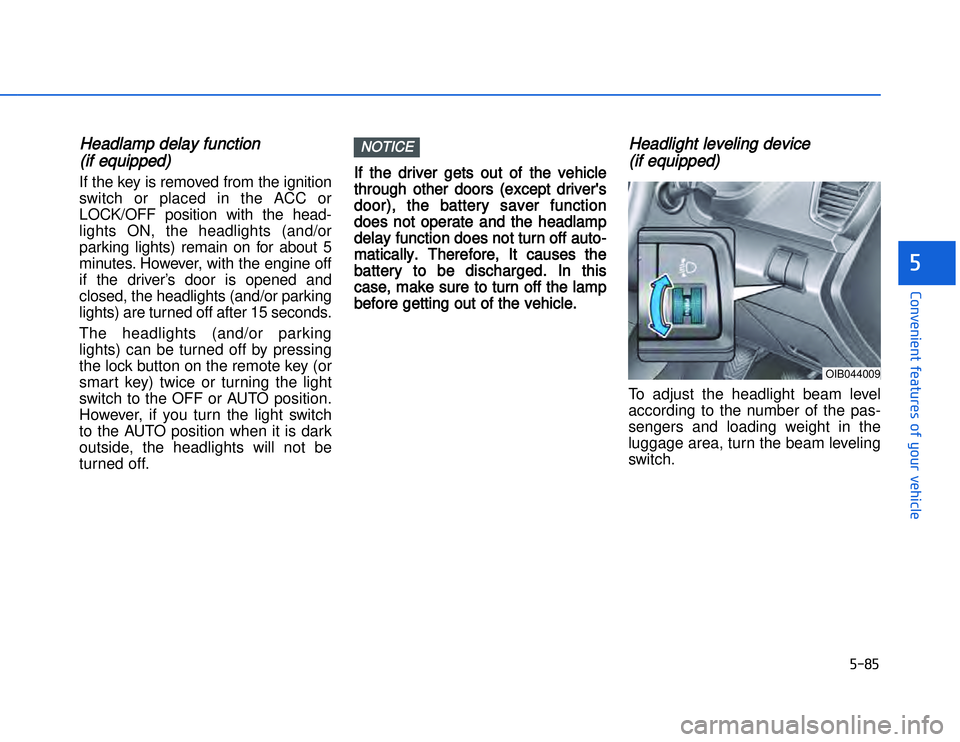

HHeadlamp delay function
(if equipped)If the key is removed from the ignition
switch or placed in the ACC or
LOCK/OFF position with the head-
lights ON, the headlights (and/or
parking lights) remain on for about 5
minutes. However, with the engine off
if the driver’s door is opened and
closed, the headlights (and/or parking
lights) are turned off after 15 seconds.
The headlights (and/or parking
lights) can be turned off by pressing
the lock button on the remote key (or
smart key) twice or turning the light
switch to the OFF or AUTO position.
However, if you turn the light switch
to the AUTO position when it is dark
outside, the headlights will not be
turned off.
If the driver gets out of the vehicle
through other doors (except driver's
door), the battery saver function
does not operate and the headlamp
delay function does not turn off auto-
matically. Therefore, It causes the
battery to be discharged. In this
case, make sure to turn off the lamp before getting out of the vehicle.
Headlight leveling device (if equipped)To adjust the headlight beam level
according to the number of the pas-
sengers and loading weight in the
luggage area, turn the beam leveling
switch.
NOTICE
OIB044009

)'#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3

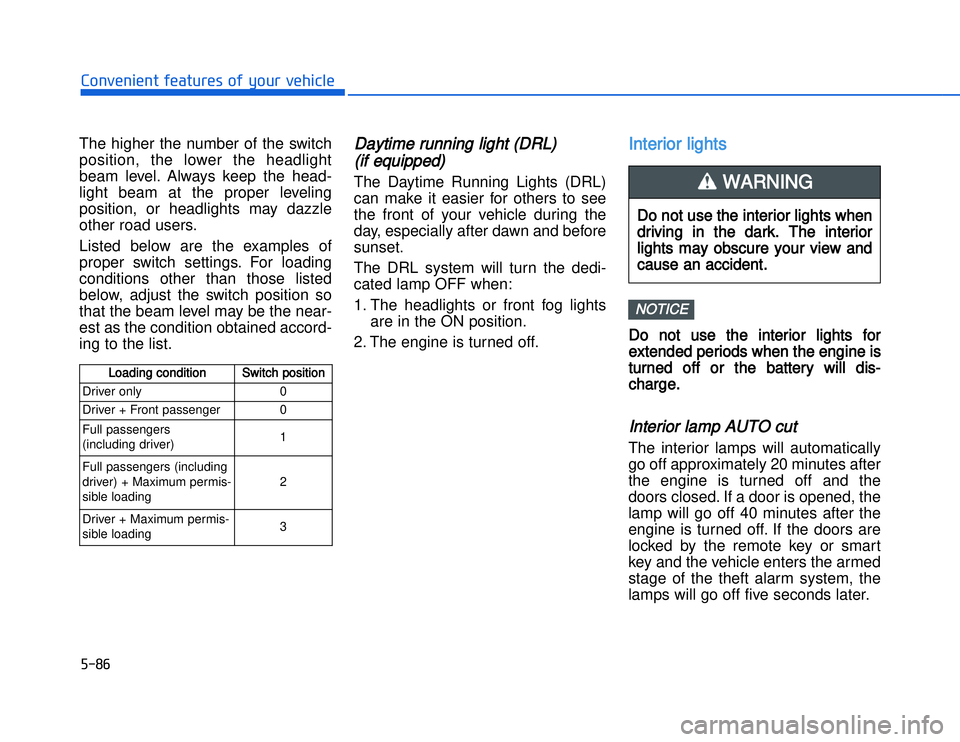

The higher the number of the switch
position, the low er the headlight
beam level. Always keep the head-
light beam at the proper leveling
position, or headlights may dazzle
other road users.
Listed below are the examples of
proper switch settings. For loading
conditions other than those listed
below, adjust the switch position so
that the beam level may be the near-
est as the condition obtained accord-
ing to the list.
DD aytime running light (DRL)
(if equipped)The Daytime Running Lights (DRL)
can make it easier for others to see
the front of your vehicle during the
day, especially after dawn and before
sunset.
The DRL system will turn the dedi-
cated lamp OFF when:
1. The headlights or front fog lights
are in the ON position.
2. The engine is turned off.
Interior lightsDo not use the interior lights for
extended periods when the engine is
turned off or the battery will dis-
charge.Interior lamp AUTO cutThe interior lamps will automatically
go off approximately 20 minutes after
the engine is turned off and the
doors closed. If a door is opened, the
lamp will go off 40 minutes after the
engine is turned off. If the doors are
locked by the remote key or smart
key and the vehicle enters the armed
stage of the theft alarm system, the
lamps will go off five seconds later.NOTICEDo not use the interior lights when
driving in the dark. The interior
lights may obscure your view and
cause an accident.
WARNING
Loading condition Switch position
Driver only 0
Driver + Front passenger 0
Full passengers
(including driver) 1
Full passengers (including
driver) + Maximum permis-
sible loading 2
Driver + Maximum permis-
sible loading 3
