HYUNDAI I20 2014 Owners Manual

#
!'%$&%" '&$

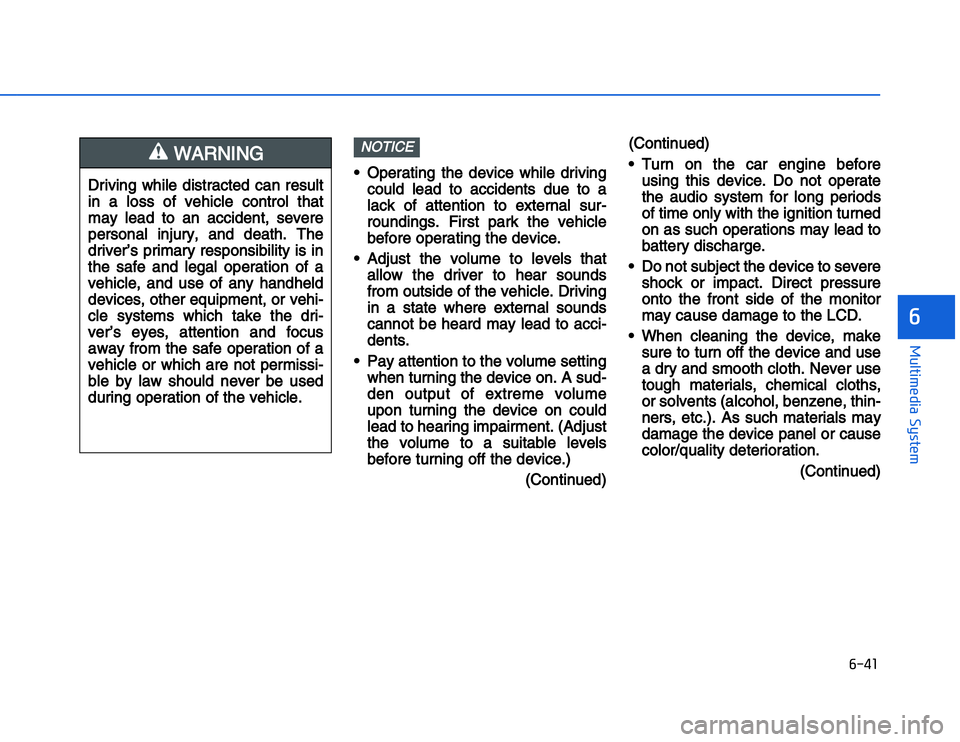

••Operating the device while driving
could lead to accidents due to a
lack of attention to external sur-
roundings. First park the vehicle
before operating the device.
• Adjust the volume to levels that allow t he driver to hear sounds
from outside of the vehicle. Driving
in a state where external sounds
cannot be heard may lead to acci-
dents.
• Pay attention to the volume setting when turning the device on. A sud-
d en output of extreme volume
upon turning the device on could
lead to hearing impairment. (Adjust
the vol ume to a suitable levels
before turning off the device.)
(Continued)(Continued)
• Turn on the car engine
before
using this device. Do not operate
the audio system for long periods
of time only with the ignitio n turned
on as such operations may lead to
battery discharge.
• Do not subject the device to severe shock or impact. Direct pressure
onto the front side of the monitor
may cause damage to the LCD.
• When cleaning the device, make sure to turn off the device and usea dry and smooth cloth. Never use
tough materials , chemical cloths,
or solvents (alcohol, benzene, thin-
ners, etc.). As such materials may
damage the de vice panel or cause
color/quality deterioration.
(Continued)NOTICE
Driving while distracted can result
in a loss of vehicle control that
may lead to an accident, severe
pe rsonal injury, and death. The
driver’s primary responsibility is in
the safe and legal operation of a
ve hicle, and use of any handheld
devices, other equipment, or vehi-
cle systems which take the dri-
ver’s eyes, attention and focus
away from the safe operation of a
vehicle or which are not permissi-
ble by la w should never be used
during operation of the vehicle.
WARNING

#!'%$&%" '&$

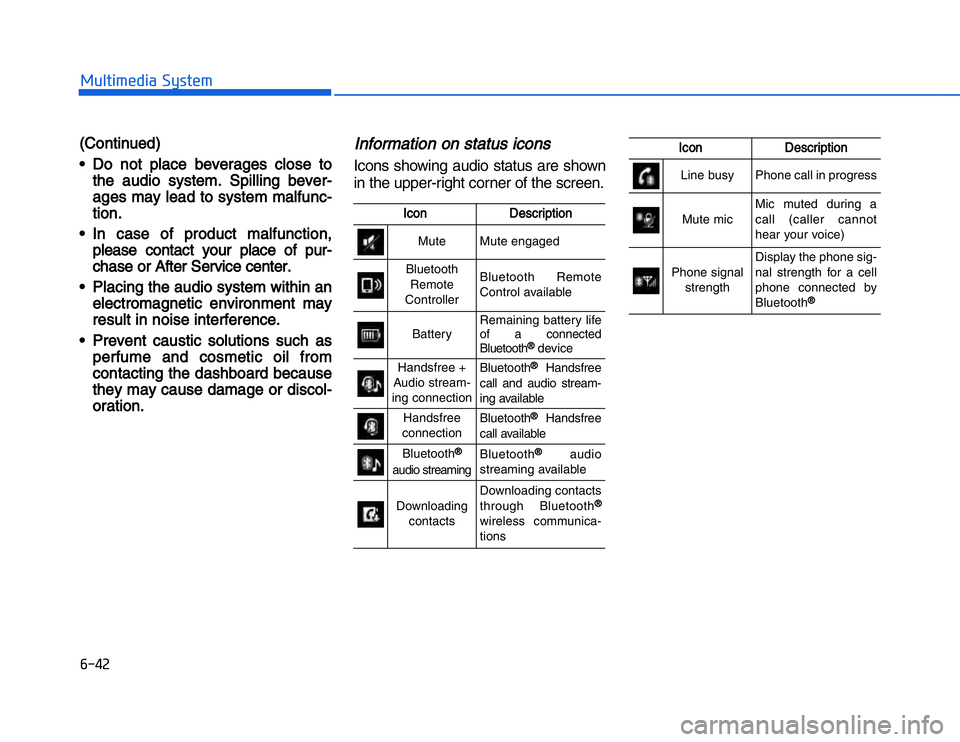

(( Continued)
• Do not place beverages close to the audio system. Spilling bever-
ages may lead to system m alfunc-
tion.
• In case of product malfunction, please contact your place of pur-
chase or After Service c enter.
• Placing the audio system within an electromagnetic environment may
result in noise interference.
• Prevent caustic solutions such as perfume and cosmetic oil from
contacting the dashboard because
they may cause damage or discol-
oration.
Information on status iconsIcons showing audio status are shown
in the upper-right corner of the screen.
Icon
Description
Mute
Mute engaged
Bluetooth
Remote
Controller
Bluetooth Remote
Control available
Battery
Remaining battery life
of a connected
Bluetooth
®device
Handsfree +
Audio stream-
ing connection
Bluetooth
®
Handsfree
call and audio stream-
ing available
Handsfree
connection
Bluetooth
®
Handsfree
call available
Bluetooth
®
audio streaming
Bluetooth
®
audio
streaming available
Downloading contacts
Downloading contacts
through Bluetooth
®
wireless communica-
tions
Icon
Description
Line busy
Phone call in progress
Mute mic
Mic muted during a
call (caller cannot
hear your voice)
Phone signal strength
Display the phone sig-
nal strength for a cell
phone connected by
Bluetooth
®

#
!'%$&%" '&$

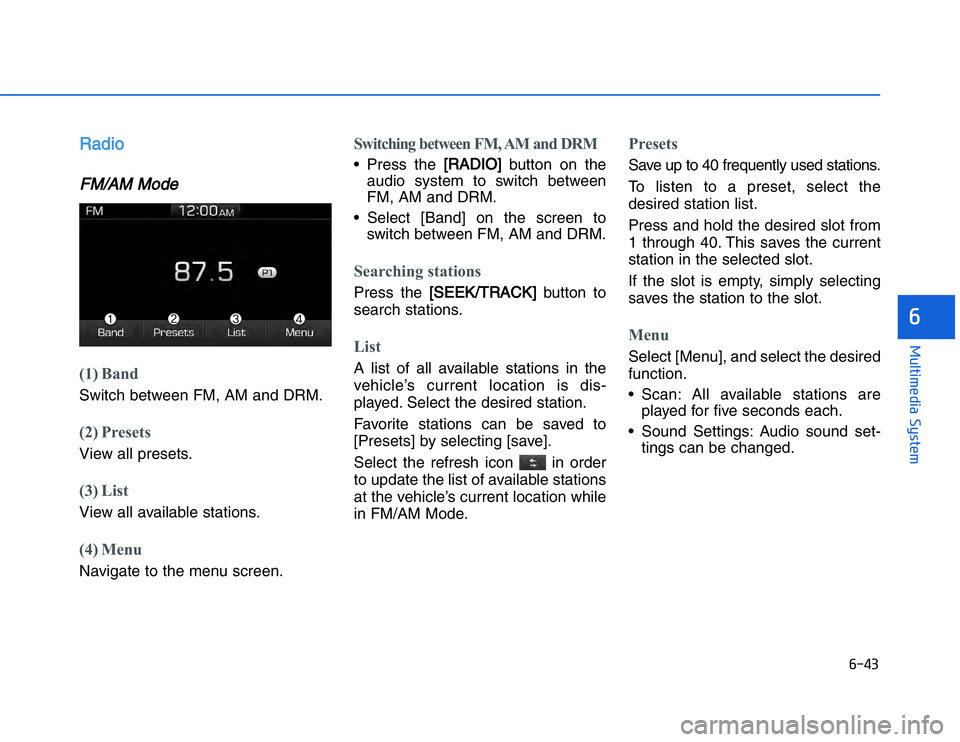

RRadio FM/AM Mode(1) BandSwitch between FM, AM and DRM.(2) PresetsView all presets.(3) ListView all available stations.(4) MenuNavigate to the menu screen.
Switching between FM, AM and DRM• Press the
[RADIO]
button on the
audio system to switch between
FM, AM and DRM.
• Select [Band] on the screen to switch between FM, AM and DRM.
Searching stationsPress the
[SEEK/TRACK]
button to
search stations.
ListA list of all available stations in the
vehicle’s current location is dis-
played. Select the desired station.
Favorite stations can be saved to
[Presets] by selecting [save].
Select the refresh icon in order
to update the list of available stations
at the vehicle’s current location while
in FM/AM Mode.
PresetsSave up to 40 frequently used stations.
To listen to a preset, select the
desired station list.
Press and hold the desired slot from
1 through 40. This saves the current
station in the selected slot.
If the slot is empty, simply selecting
saves the station to the slot.MenuSelect [Menu], and select the desired
function.
• Scan: All available stations are played for five seconds each.
• Sound Settings: Audio sound set- tings can be changed.

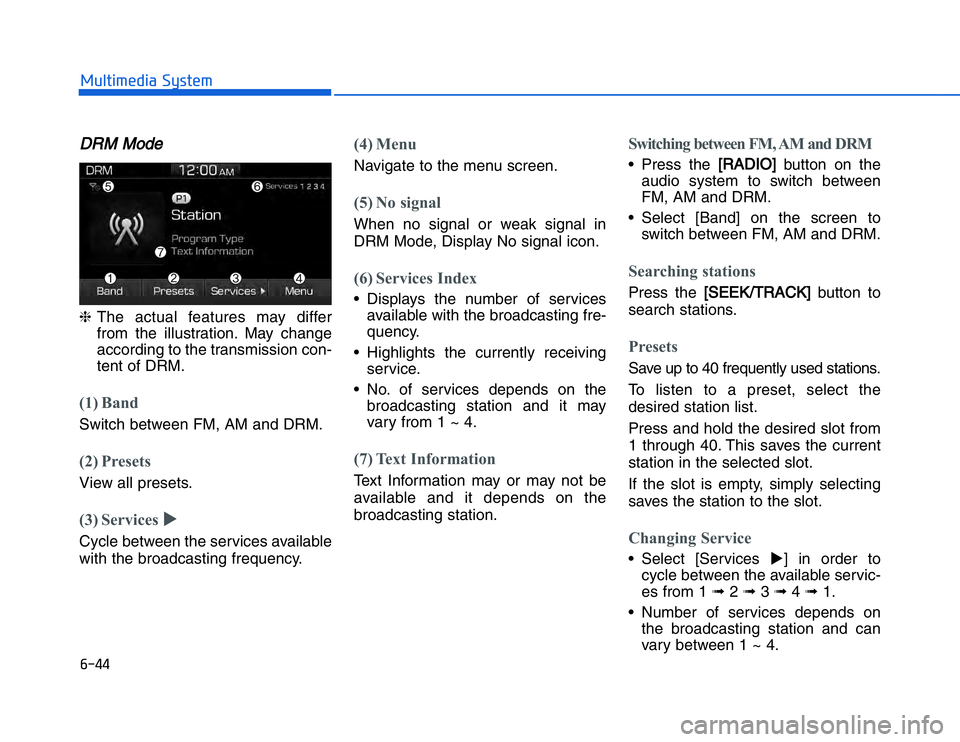

#!'%$&%" '&$DDRM Mode❈ The actual features may differ
from the illustration. May change
according to the transmission con-
tent of DRM.(1) BandSwitch between FM, AM and DRM.(2) PresetsView all presets.(3) Services

Cycle between the services available
with the broadcasting frequency.
(4) MenuNavigate to the menu screen.(5) No signalWhen no signal or weak signal in
DRM Mode, Display No signal icon.(6) Services Index• Displays the number of services available with the broadcasting fre-
quency.
• Highlights the currently receiving service.
• No. of services depends on the broadcasting station and it may
vary from 1 ~ 4.(7) Text InformationText Information may or may not be
available and it depends on the
broadcasting station.
Switching between FM, AM and DRM• Press the
[RADIO]
button on the
audio system to switch between
FM, AM and DRM.
• Select [Band] on the screen to switch between FM, AM and DRM.
Searching stationsPress the
[SEEK/TRACK]
button to
search stations.
PresetsSave up to 40 frequently used stations.
To listen to a preset, select the
desired station list.
Press and hold the desired slot from
1 through 40. This saves the current
station in the selected slot.
If the slot is empty, simply selecting
saves the station to the slot.Changing Service• Select [Services ] in order to
cycle between the available servic-
es from 1 ➟ 2 ➟ 3 ➟ 4 ➟ 1.
• Number of services depends on the broadcasting station and can
vary between 1 ~ 4.

#
!'%$&%" '&$

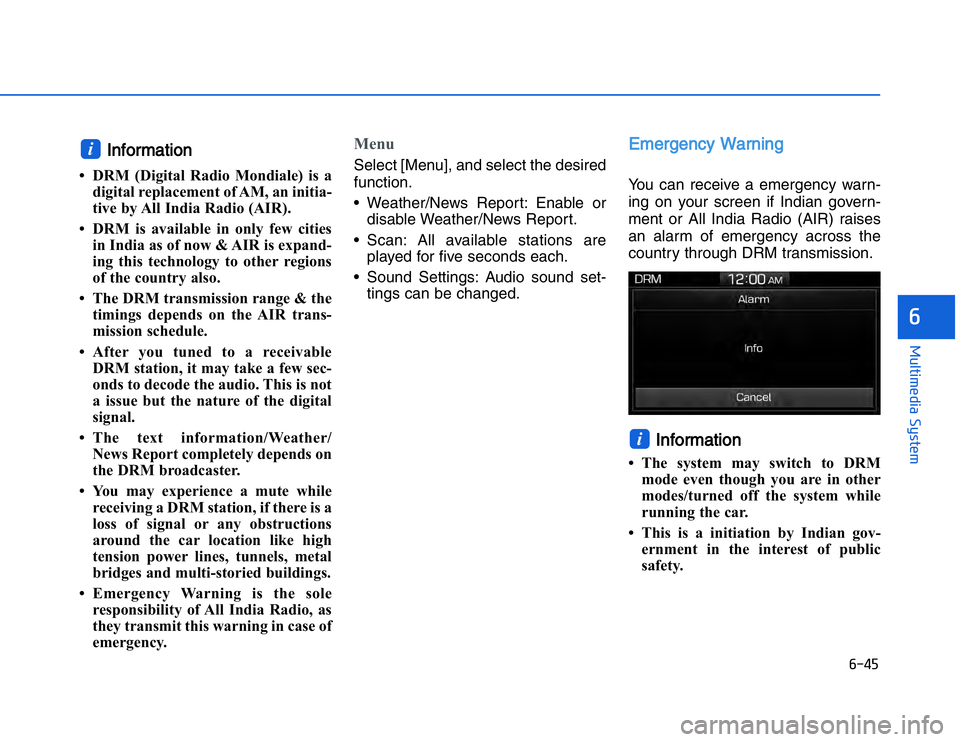

IInformation
• DRM (Digital Radio Mondiale) is a
digital replacement of AM, an initia-
tive by All India Radio (AIR).
• DRM is available in only few cities in India as of now & AIR is expand-
ing this technology to other regions
of the country also.
• The DRM transmission range & the timings depends on the AIR trans-
mission schedule.
• After you tuned to a receivable DRM station, it may take a few sec-
onds to decode the audio. This is not
a issue but the nature of the digital
signal.
• The text information/Weather/ News Report completely depends on
the DRM broadcaster.
• You may experience a mute while receiving a DRM station, if there is a
loss of signal or any obstructions
around the car location like high
tension power lines, tunnels, metal
bridges and multi-storied buildings.
• Emergency Warning is the sole responsibility of All India Radio, as
they transmit this warning in case of
emergency.
MenuSelect [Menu], and select the desired
function.
• Weather/News Report: Enable or disable Weather/News Report.
• Scan: All available stations are played for five seconds each.
• Sound Settings: Audio sound set- tings can be changed.
Emergency WarningYou can receive a emergency warn-
ing on your screen if Indian govern-
ment or All India Radio (AIR) raises
an alarm of emergency across the
country through DRM transmission.
Information
• The system may switch to DRMmode even though you are in other
modes/turned off the system while
running the car.
• This is a initiation by Indian gov- ernment in the interest of public
safety.i
i

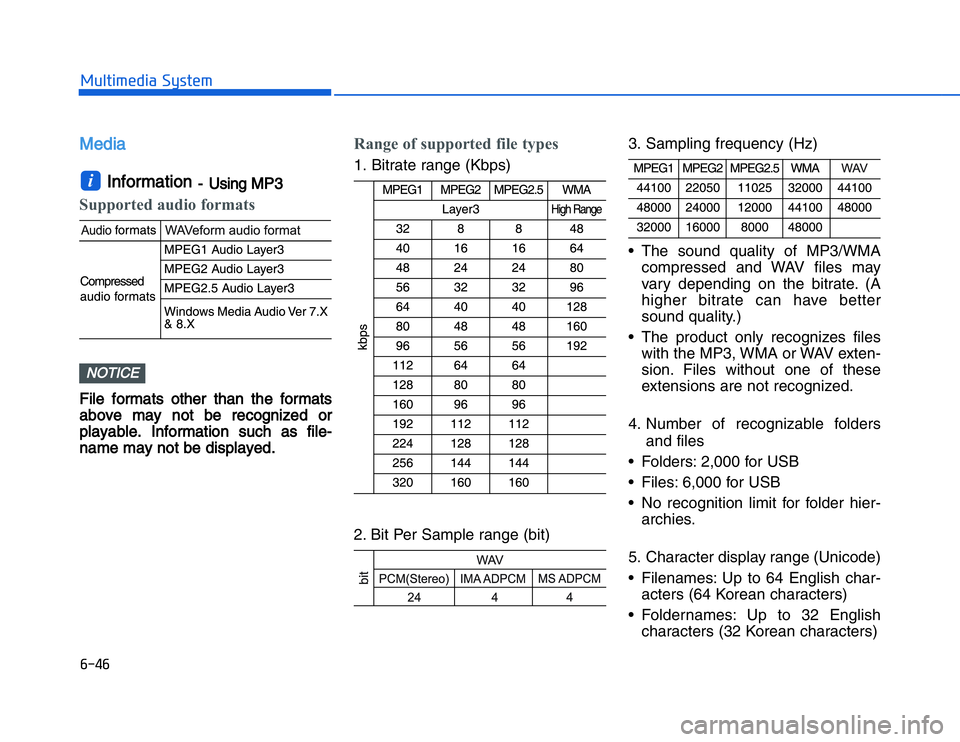

##!'%$&%" '&$MMedia
Information
- Using MP3
Supported audio formatsFile formats other than the formats
above may not be recognized or
playable. Information such as file-
n ame may not be displayed.
Range of supported file types1. Bitrate range (Kbps)
2. Bit Per Sample range (bit) 3. Sampling frequency (Hz)
• The sound quality of MP3/WMA
compressed and WAV files may
vary depending on the bitrate. (A
higher bitrate can have better
sound quality.)
• The product only recognizes files with the MP3, WMA or WAV exten-
sion. Files without one of these
extensions are not recognized.
4. Number of recognizable folders and files
• Folders: 2,000 for USB
• Files: 6,000 for USB
• No recognition limit for folder hier- archies.
5. Character display range (Unicode)
• Filenames: Up to 64 English char- acters (64 Korean characters)
• Foldernames: Up to 32 English characters (32 Korean characters)
NOTICEi

#
!'%$&%" '&$
TT he scroll feature can be used to dis-
play file and folder names that are
too long to display on the s creen.Languages supported (Unicode sup-
port)• Korean: 2,604 characters
• English: 94 characters
• Common Chinese characters:
4,888 characters
• Special symbols: 986 charactersJapanese/Simplified Chinese charac-
ters are not supported.
Information- Using the USB Devices
• Starting the vehicle while a USB device is connected can damage the
device. Please disconnect USB
devices before starting the vehicle.
• Starting the vehicle or stopping the engine while an external USB device
is connected can result in failure of
the external USB device to operate.
• Be cautious of static electricity when connecting/disconnecting external
USB devices.
• An encrypted MP3 player is not rec- ognized when connected as an exter-
nal device.
• External USB devices may not be recognized, depending on the state
of the external USB device.
• Only products with byte/sectors for- matted at 4 KB or lower are recog-nized.
• Only USB devices in FAT12/16/32 format are recognized; NTFS and
ExFAT file systems are not recog-
nized.
• Some USB devices are not recog- nized due to compatibility issues.
(Continued)(Continued)
• Do not touch the USB connections.
• Connecting and disconnecting USB
devices rapidly over a short period
of time can cause equipment failure.
• Abnormal sounds may be audible when the USB device is disconnect-
ed.
• Turn the audio off before connecting or disconnecting external USB
devices.
• Recognition may take longer depending on the type, capacity or
file format of the external USB
device. This is not a product mal-
function.
• Use of USB devices for purposes other than playing music files is pro-
hibited.
• Image display and video playback are not supported.
• Use of USB accessories, including charge and heat through the USB
interface, can lead to reduced prod-
uct performance or malfunctions.
Do not use USB devices or acces-
sories for these purposes.
(Continued)
NOTICENOTICE
i

#
!'%$&%" '&$
(Continued)
• Use of aftermarket USB hubs and
extension cables can result in the
vehicle’s audio system failing to rec-
ognize your USB device. Connect
the USB device directly to the multi-
media port of your vehicle.
• When using high-capacity USB devices with logical drive divisions,
only files saved on the highest level
logical drive can be played.
If applications are loaded on a USB
drive, file playback may fail.
• Some MP3 players, cell phones, dig- ital cameras, etc. (USB devices that
are not recognized as mobile stor-
age) may not operate normally
when connected.
• USB charging may not be supported by some mobile devices.
• Operation is guaranteed only for standard (Metal Cover Type) USB
Memory drives.
• Operation of HDD, CF, SD and memory stick devices is not guaran-
teed.
(Continued)(Continued)
• DRM (Digital Rights Management)
files cannot be played.
• SD-type USB memory, CF-type USB memory, and other USB mem-
ory devices that require adapters
for connection are not supported.
• Proper operation of USB HDDs or USB drives with connectors that
loosen due to vehicle vibrations is
not guaranteed. (iStick, etc.)
• USB products that are used as key chains or
cell phone accessories
may damage the USB
jack and affect proper
file playback. Please refrain from
use. Use only products with plug
connectors, as shown in the follow-
ing illustration.
• When MP3 devices or cell phones are connected simultaneously
through AUX, BT Audio and USB
modes, a popping noise or malfunc-
tion may occur.
• Use USB 2.0 devices for better com- patibility. Maximum device size
supported is 32 GB.
UU SB(1) RepeatEnable/disable repeat mode.(2) ShuffleEnable/disable shuffle mode.(3) ListView a list of all categories. (4) MenuNavigate to the menu screen.

#
!'%$&%" '&$

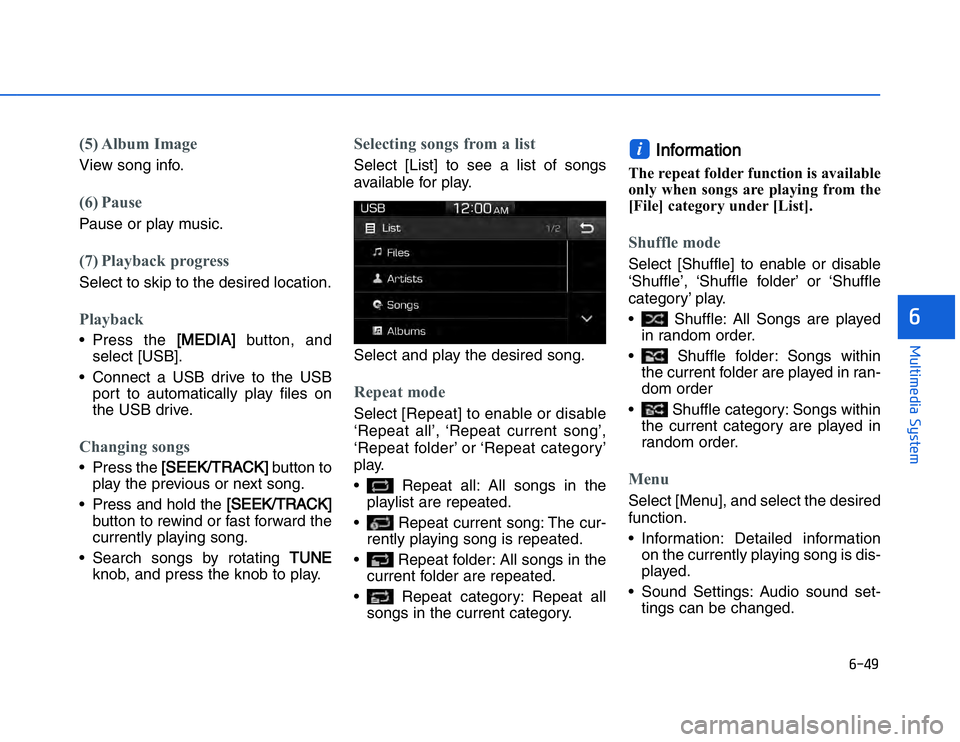

(5) Album ImageView song info.(6) PausePause or play music.(7) Playback progressSelect to skip to the desired location.Playback• Press the [
[
MEDIA]
button, and
select [USB].
• Connect a USB drive to the USB port to automatically play files on
the USB drive.
Changing songs• Press the
[SEEK/TRACK]
button to
play the previous or next song.
• Press and hold the
[SEEK/TRACK]
button to rewind or fast forward the
currently playing song.
• Search songs by rotating
TUNE
knob, and press the knob to play.
Selecting songs from a listSelect [List] to see a list of songs
available for play.
Select and play the desired song.Repeat modeSelect [Repeat] to enable or disable
‘Repeat all’, ‘Repeat current song’,
‘Repeat folder’ or ‘Repeat category’
play.
• Repeat all: All songs in the playlist are repeated.
• Repeat current song: The cur- rently playing song is repeated.
• Repeat folder: All songs in the current folder are repeated.
• Repeat category: Repeat all songs in the current category.
Information
The repeat folder function is available
only when songs are playing from the
[File] category under [List].Shuffle modeSelect [Shuffle] to enable or disable
‘Shuffle’, ‘Shuffle folder’ or ‘Shuffle
category’ play.
• Shuffle: All Songs are playedin random order.
• Shuffle folder: Songs within the current folder are played in ran-
dom order
• Shuffle category: Songs within the current category are played in
random order.MenuSelect [Menu], and select the desired
function.
• Information: Detailed informationon the currently playing song is dis-
played.
• Sound Settings: Audio sound set- tings can be changed.i

#!'%$&%" '&$

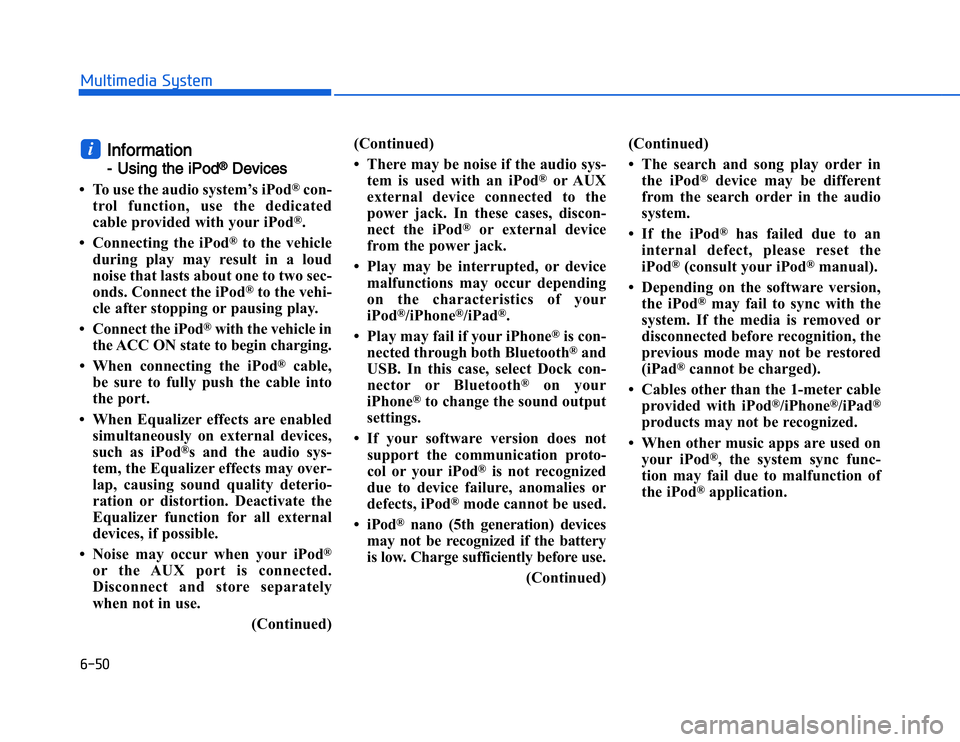

IInformation- Using the iPod
®
Devices
• To use the audio system’s iPod
®con-
trol function, use the dedicated
cable provided with your iPod®.
• Connecting the iPod
®
to the vehicle
during play may result in a loud
noise that lasts about one to two sec-
onds. Connect the iPod®to the vehi-
cle after stopping or pausing play.
• Connect the iPod
®with the vehicle in
the ACC ON state to begin charging.
• When connecting the iPod
®
cable,
be sure to fully push the cable into
the port.
• When Equalizer effects are enabled simultaneously on external devices,
such as iPod
®s and the audio sys-
tem, the Equalizer effects may over-
lap, causing sound quality deterio-
ration or distortion. Deactivate the
Equalizer function for all external
devices, if possible.
• Noise may occur when your iPod
®
or the AUX port is connected.
Disconnect and store separately
when not in use.
(Continued)(Continued)
• There may be noise if the audio sys-
tem is used with an iPod
®
or AUX
external device connected to the
power jack. In these cases, discon-
nect the iPod
®
or external device
from the power jack.
• Play may be interrupted, or device malfunctions may occur depending
on the characteristics of your
iPod
®/iPhone
®/iPad
®.
• Play may fail if your iPhone
®is con-
nected through both Bluetooth®and
USB. In this case, select Dock con- nector or Bluetooth
®
on your
iPhone
®
to change the sound output
settings.
• If your software version does not support the communication proto-
col or your iPod
®
is not recognized
due to device failure, anomalies or
defects, iPod
®
mode cannot be used.
•iPod
®
nano (5th generation) devices
may not be recognized if the battery
is low. Charge sufficiently before use.
(Continued)(Continued)
• The search and song play order in
the iPod
®
device may be different
from the search order in the audio
system.
• If the iPod®
has failed due to an
internal defect, please reset the
iPod
®
(consult your iPod
®
manual).
• Depending on the software version, the iPod
®
may fail to sync with the
system. If the media is removed or
disconnected before recognition, the
previous mode may not be restored
(iPad
®
cannot be charged).
• Cables other than the 1-meter cable provided with iPod
®/iPhone
®/iPad
®
products may not be recognized.
• When other music apps are used on your iPod
®, the system sync func-
tion may fail due to malfunction of
the iPod
®
application.
i
