HYUNDAI I20 2014 Owners Manual

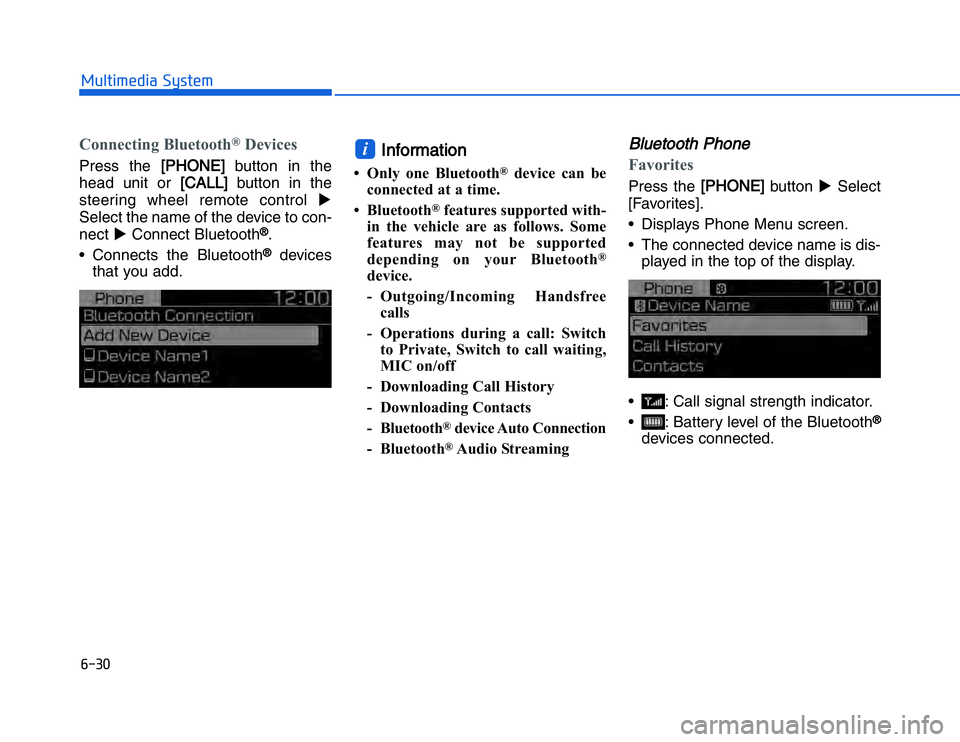

#!'%$&%" '&$Connecting Bluetooth
®
Devices
Press the [
[
PHONE]
button in the
head unit or
[CALL]
button in the
steering wheel remote control
Select the name of the device to con-
nect Connect Bluetooth
®.
• Connects the Bluetooth®
devices
that you add.
Information
• Only one Bluetooth
®
device can be
connected at a time.
• Bluetooth
®features supported with-
in the vehicle are as follows. Some
features may not be supported
depending on your Bluetooth
®
device.
- Outgoing/Incoming Handsfree calls
- Operations during a call: Switch to Private, Switch to call waiting,
MIC on/off
- Downloading Call History
- Downloading Contacts
- Bluetooth
®device Auto Connection
- Bluetooth®Audio Streaming
Bluetooth PhoneFavoritesPress the
[PHONE]
button Select
[Favorites].
• Displays Phone Menu screen.
• The connected device name is dis- played in the top of the display.
• : Call signal strength indicator.
• : Battery level of the Bluetooth
®
devices connected.
i

#
!'%$&%" '&$

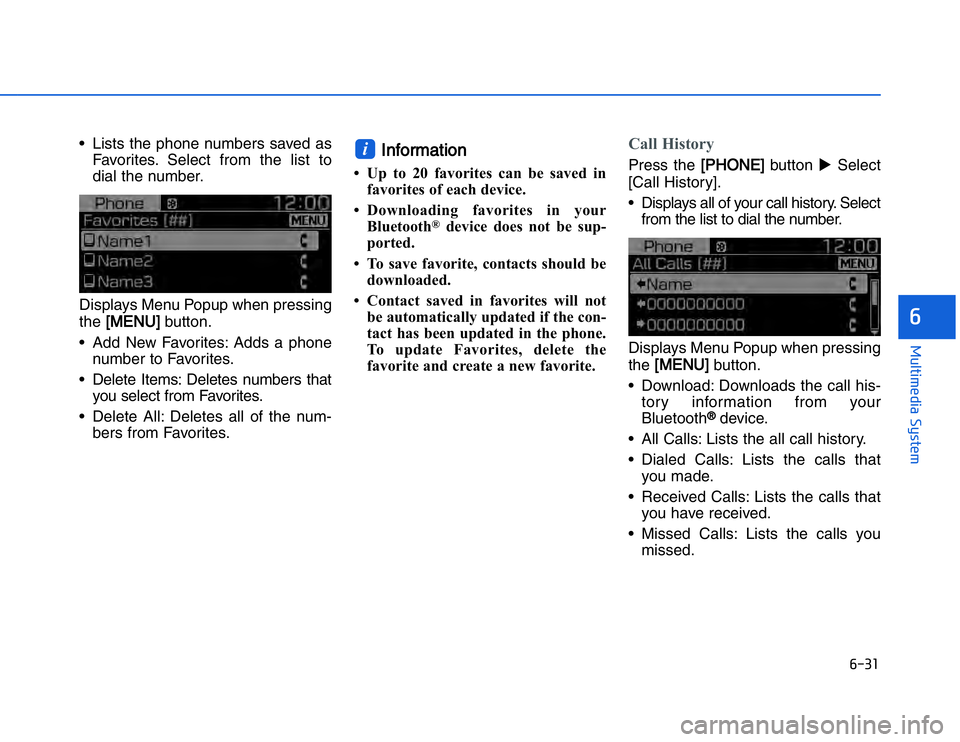

• Lists the phone numbers saved asFavorites. Select from the list to
dial the number.
Displays Menu Popup when pressing
the [
[
MENU]
button.
• Add New Favorites: Adds a phone number to Favorites.
• Delete Items: Deletes numbers that you select from Favorites.
• Delete All: Deletes all of the num- bers from Favorites.
Information
• Up to 20 favorites can be saved infavorites of each device.
• Downloading favorites in your Bluetooth
®
device does not be sup-
ported.
• To save favorite, contacts should be downloaded.
• Contact saved in favorites will not be automatically updated if the con-
tact has been updated in the phone.
To update Favorites, delete the
favorite and create a new favorite.
Call HistoryPress the
[PHONE]
button Select
[Call History].
• Displays all of your call history. Select from the list to dial the number.
Displays Menu Popup when pressing
the
[MENU]
button.
• Download: Downloads the call his- tory information from your
Bluetooth®
device.
• All Calls: Lists the all call history.
• Dialed Calls: Lists the calls that you made.
• Received Calls: Lists the calls that you have received.
• Missed Calls: Lists the calls you missed.

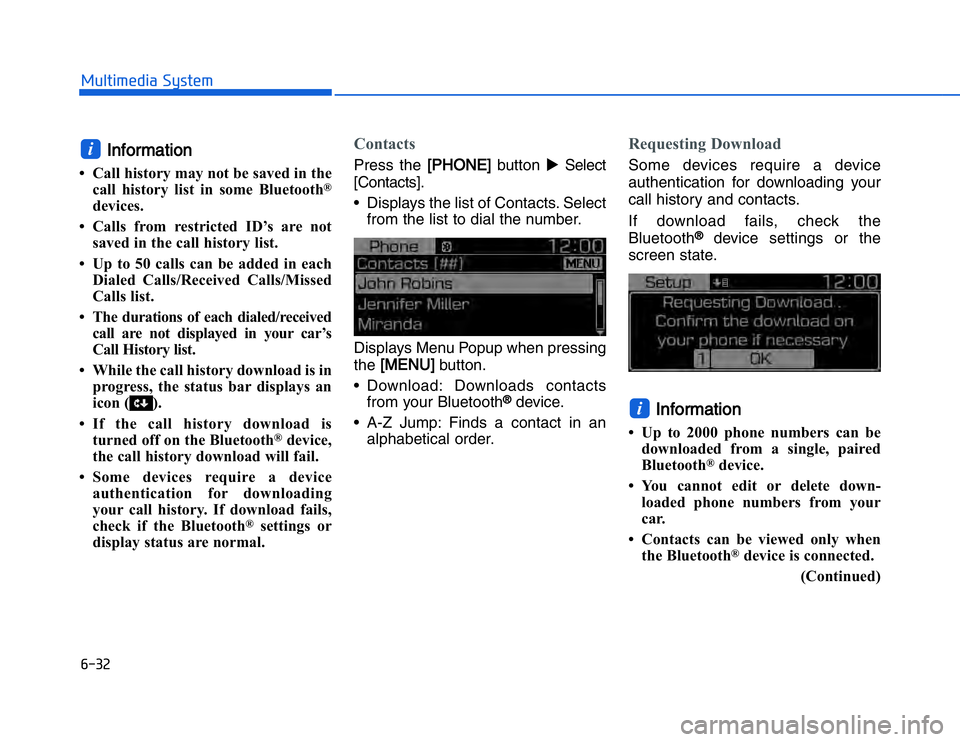

i

#!'%$&%" '&$
IInformation
• Call history may not be saved in the
call history list in some Bluetooth
®
devices.
• Calls from restricted ID’s are not saved in the call history list.
• Up to 50 calls can be added in each Dialed Calls/Received Calls/Missed
Calls list.
• The durations of each dialed/received call are not displayed in your car’s
Call History list.
• While the call history download is in progress, the status bar displays an
icon ( ).
• If the call history download is turned off on the Bluetooth
®
device,
the call history download will fail.
• Some devices require a device authentication for downloading
your call history. If download fails,
check if the Bluetooth
®
settings or
display status are normal.
ContactsPress the
[PHONE]
button Select
[Contacts].
• Displays the list of Contacts. Select from the list to dial the number.
Displays Menu Popup when pressing
the
[MENU]
button.
• Download: Downloads contacts from your Bluetooth
®
device.
• A-Z Jump: Finds a contact in an alphabetical order.
Requesting DownloadSome devices require a device
authentication for downloading your
call history and contacts.
If download fails, check the
Bluetooth
®
device settings or the
screen state.
Information
• Up to 2000 phone numbers can be downloaded from a single, paired
Bluetooth
®
device.
• You cannot edit or delete down- loaded phone numbers from your
car.
• Contacts can be viewed only when the Bluetooth
®
device is connected.
(Continued)
i
i

#
!'%$&%" '&$

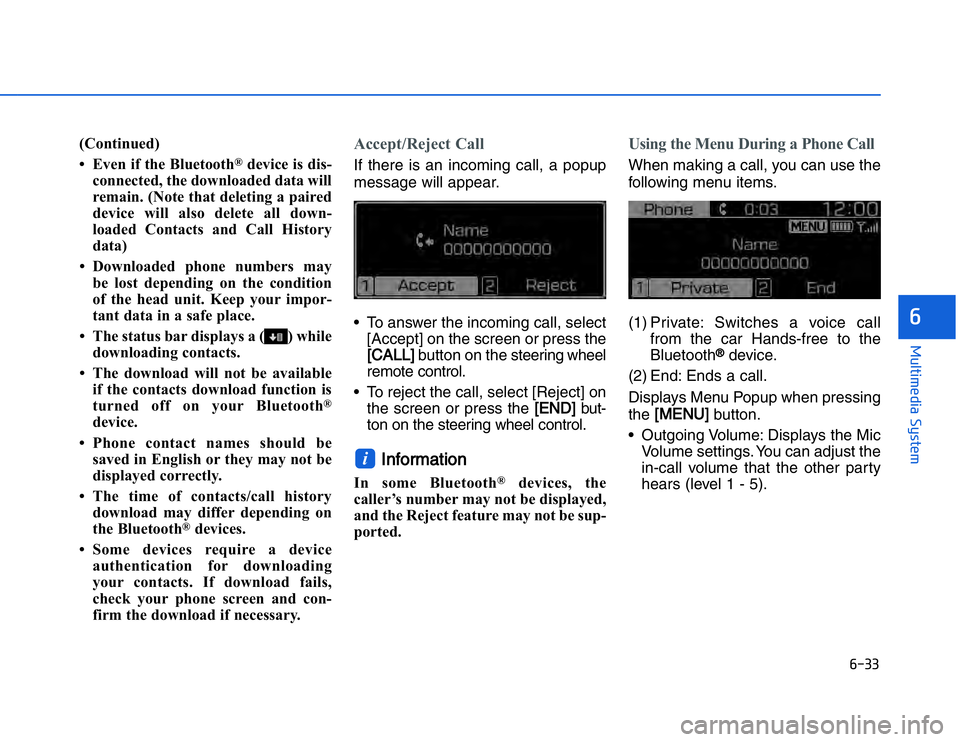

(Continued)
• Even if the Bluetooth
®
device is dis-
connected, the downloaded data will
remain. (Note that deleting a paired
device will also delete all down-
loaded Contacts and Call History
data)
• Downloaded phone numbers may be lost depending on the condition
of the head unit. Keep your impor-
tant data in a safe place.
• The status bar displays a ( ) while downloading contacts.
• The download will not be available if the contacts download function is
turned off on your Bluetooth
®
device.
• Phone contact names should be saved in English or they may not be
displayed correctly.
• The time of contacts/call history download may differ depending on
the Bluetooth
®
devices.
• Some devices require a device authentication for downloading
your contacts. If download fails,
check your phone screen and con-
firm the download if necessary.
Accept/Reject CallIf there is an incoming call, a popup
message will appear.
• To answer the incoming call, select [Accept] on the screen or press the[
[ CALL]
button on the steering wheel
remote control.
• To reject the call, select [Reject] on the screen or press the
[END]
but-
ton on the steering wheel control.
Information
In some Bluetooth
®
devices, the
caller’s number may not be displayed,
and the Reject feature may not be sup-
ported.
Using the Menu During a Phone CallWhen making a call, you can use the
following menu items.
(1) Private: Switches a voice call from the car Hands-free to the
Bluetooth
®
device.
(2) End: Ends a call.
Displays Menu Popup when pressing
the
[MENU]
button.
• Outgoing Volume: Displays the Mic
Volume settings. You can adjust the
in-call volume that the other party
hears (level 1 - 5).
i

#!'%$&%" '&$

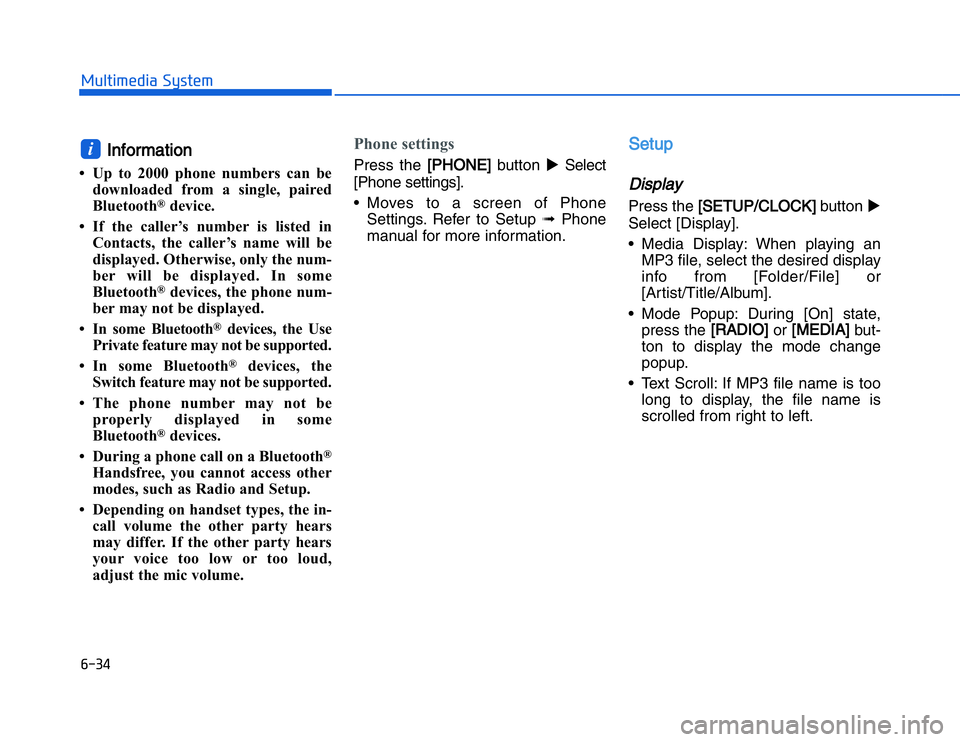

IInformation
• Up to 2000 phone numbers can be
downloaded from a single, paired
Bluetooth
®
device.
• If the caller’s number is listed in Contacts, the caller’s name will be
displayed. Otherwise, only the num-
ber will be displayed. In some
Bluetooth
®
devices, the phone num-
ber may not be displayed.
• In some Bluetooth
®
devices, the Use
Private feature may not be supported.
• In some Bluetooth®
devices, the
Switch feature may not be supported.
• The phone number may not be properly displayed in some
Bluetooth
®
devices.
• During a phone call on a Bluetooth
®
Handsfree, you cannot access other
modes, such as Radio and Setup.
• Depending on handset types, the in- call volume the other party hears
may differ. If the other party hears
your voice too low or too loud,
adjust the mic volume.
Phone settingsPress the
[PHONE]
button Select
[Phone settings].
• Moves to a screen of Phone Settings. Refer to Setup ➟ Phone
manual for more information.
SetupDisplayPress the
[SETUP/CLOCK]
button
Select [Display].
• Media Display: When playing an MP3 file, select the desired display
info from [Folder/File] or
[Artist/Title/Album].
• Mode Popup: During [On] state, press the
[RADIO]
or
[MEDIA]
but-
ton to display the mode change
popup.
• Text Scroll: If MP3 file name is too long to display, the file name is
scrolled from right to left.
i

#
!'%$&%" '&$

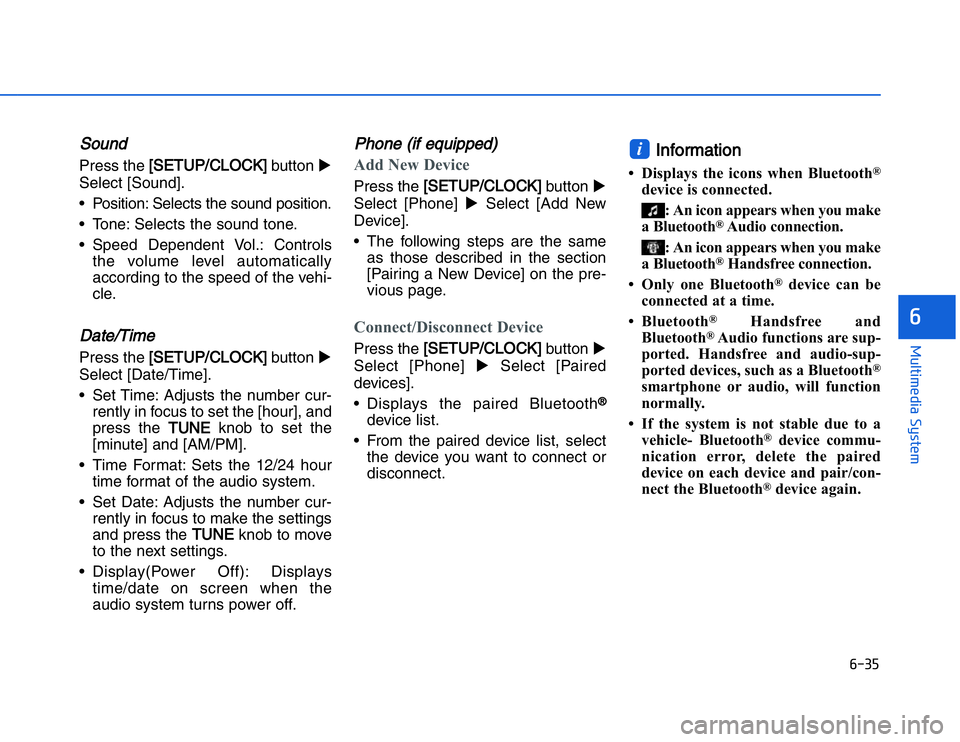

SSoundPress the
[SETUP/CLOCK]
button
Select [Sound].
• Position: Selects the sound position.
• Tone: Selects the sound tone.
• Speed Dependent Vol.: Controls the volume level automatically
according to the speed of the vehi-
cle.
Date/TimePress the
[SETUP/CLOCK]
button
Select [Date/Time].
• Set Time: Adjusts the number cur- rently in focus to set the [hour], and
press the
TUNE
knob to set the
[minute] and [AM/PM].
• Time Format: Sets the 12/24 hour time format of the audio system.
• Set Date: Adjusts the number cur- rently in focus to make the settings
and press the
TUNE
knob to move
to the next settings.
• Display(Power Off): Displays time/date on screen when the
audio system turns power off.
Phone (if equipped)Add New DevicePress the
[SETUP/CLOCK]
button
Select [Phone]  Select [Add New
Device].
• The following steps are the same as those described in the section
[Pairing a New Device] on the pre-
vious page.
Connect/Disconnect DevicePress the
[SETUP/CLOCK]
button
Select [Phone]  Select [Paired
devices].
• Displays the paired Bluetooth
®
device list.
• From the paired device list, select the device you want to connect or
disconnect.
Information
• Displays the icons when Bluetooth
®
device is connected.
: An icon appears when you make
a Bluetooth
®Audio connection.
: An icon appears when you make
a Bluetooth®Handsfree connection.
• Only one Bluetooth
®
device can be
connected at a time.
• Bluetooth
®
Handsfree and
Bluetooth
®Audio functions are sup-
ported. Handsfree and audio-sup-
ported devices, such as a Bluetooth
®
smartphone or audio, will function
normally.
• If the system is not stable due to a vehicle- Bluetooth
®
device commu-
nication error, delete the paired
device on each device and pair/con-
nect the Bluetooth
®
device again.
i

##!'%$&%" '&$Delete DevicesPress the [
[
SETUP/CLOCK]
button
Select [Phone]  Select [Delete
Devices].
• Displays the paired Bluetooth
®
device list.
• When selecting from the list, the device is deleted.
Information
• When you delete a paired device, theCall History and Contacts stored in
the head unit are also deleted.
• To re-use a deleted device, you must pair the device again.Connection PriorityPress the
[SETUP/CLOCK]
button
Select [Phone]  Select [Connection
Priority].
• Select the device to want to set the connection priority of paired
devices.
• If “None” is chosen, the Bluetooth
®
system will try to connect to the
last connected device, then to all
paired devices.
Information
• When the engine is running, the selected Bluetooth
®
device is auto-
matically connected. If you fail to
connect the selected device, the pre-
viously-connected device is auto-
matically connected, and if it also
fails, then it tries to connect all
paired devices sequentially.
• Depending on auto connection pri- ority, connection to a device may
take time.
• If a Bluetooth
®
device becomes dis-
connected due to being out of com-
munication range, turning the
device OFF, or a Bluetooth
®
com-
munication error, corresponding
Bluetooth
®
devices are automatical-
ly searched and reconnected.
• Even if you are outside, the Bluetooth
®
device will be automatically connected
once you are in the vicinity of the vehi- cle. If you do not want to automatical-
ly connect your Bluetooth
®
device,
turn off the Bluetooth
®feature in your
Bluetooth
®device.
(Continued) (Continued)
• In some Bluetooth
®devices, starting
the ignition while talking through
Bluetooth
®
enabled handsfree call
will result in the call becoming dis-
connected due to car handsfree call
transfer. If you use your phone out-
side the vehicle, turn off the
Bluetooth
®
feature in your phone.
LanguagePress the
[SETUP/CLOCK]
button
Select [Language].
• Changes the display language.
Display OffPress the
[SETUP/CLOCK]
button
Select [Display Off].
• Audio operation is maintained and only the screen will be turned Off.
In the Screen Off state, press any
button to turn the Screen On again.
i
i

#
!'%$&%" '&$
%%&$('


* "
"

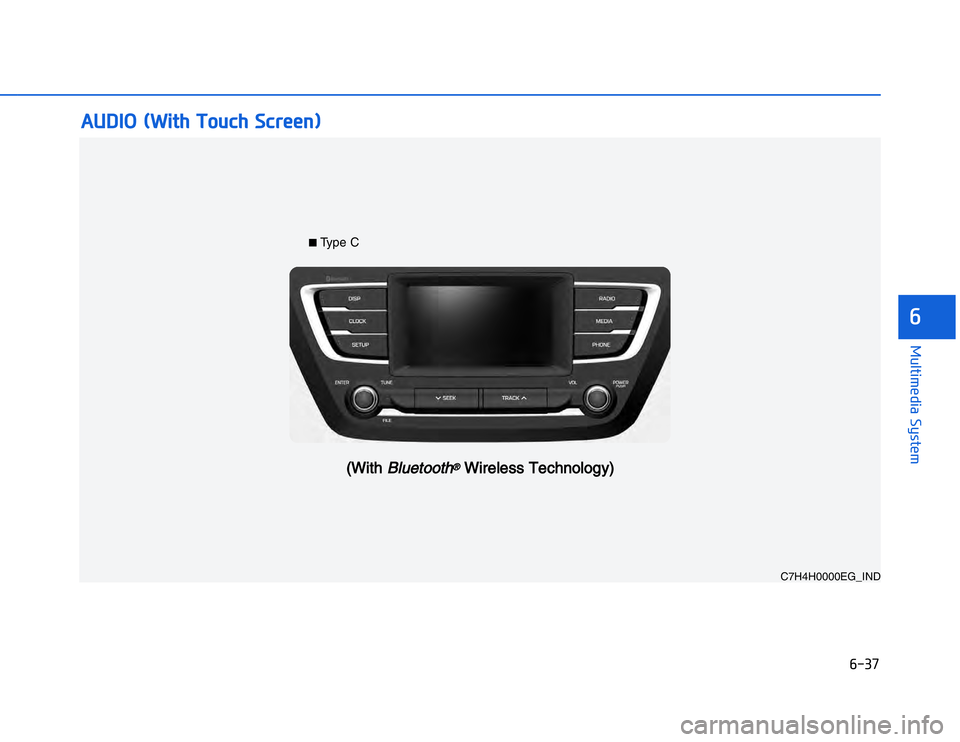

C7H4H0000EG_IND
■Type C
(With
Bluetooth
®Wireless Technology)


#
!'%$&%" '&$

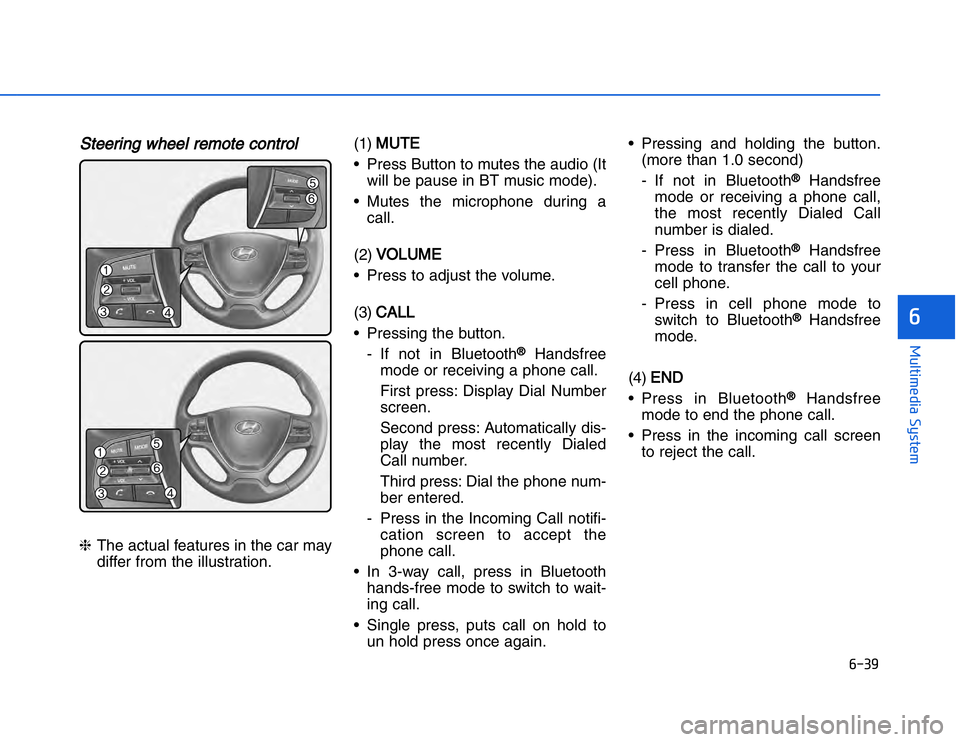

SSteering wheel remote control❈The actual features in the car may
differ from the illustration. (1)
MUTE
• Press Button to mutes the audio (It
will be pause in BT music mode).
• Mutes the microphone during a call.
(2)
VOLUME
• Press to adjust the volume.
(3)
CALL
• Pressing the button. - If not in Bluetooth
®
Handsfree
mode or receiving a phone call.
First press: Display Dial Number
screen.
Second press: Automatically dis-
play the most recently Dialed
Call number.
Third press: Dial the phone num-
ber entered.
- Press in the Incoming Call notifi- cation screen to accept the
phone call.
• In 3-way call, press in Bluetooth hands-free mode to switch to wait-
ing call.
• Single press, puts call on hold to un hold press once again. • Pressing and holding the button.
(more than 1.0 second)
- If not in Bluetooth
®
Handsfree
mode or receiving a phone call,
the most recently Dialed Call
number is dialed.
- Press in Bluetooth
®
Handsfree
mode to transfer the call to your
cell phone.
- Press in cell phone mode to switch to Bluetooth
®
Handsfree
mode.
(4)
END
• Press in Bluetooth
®
Handsfree
mode to end the phone call.
• Press in the incoming call screen to reject the call.

#!'%$&%" '&$

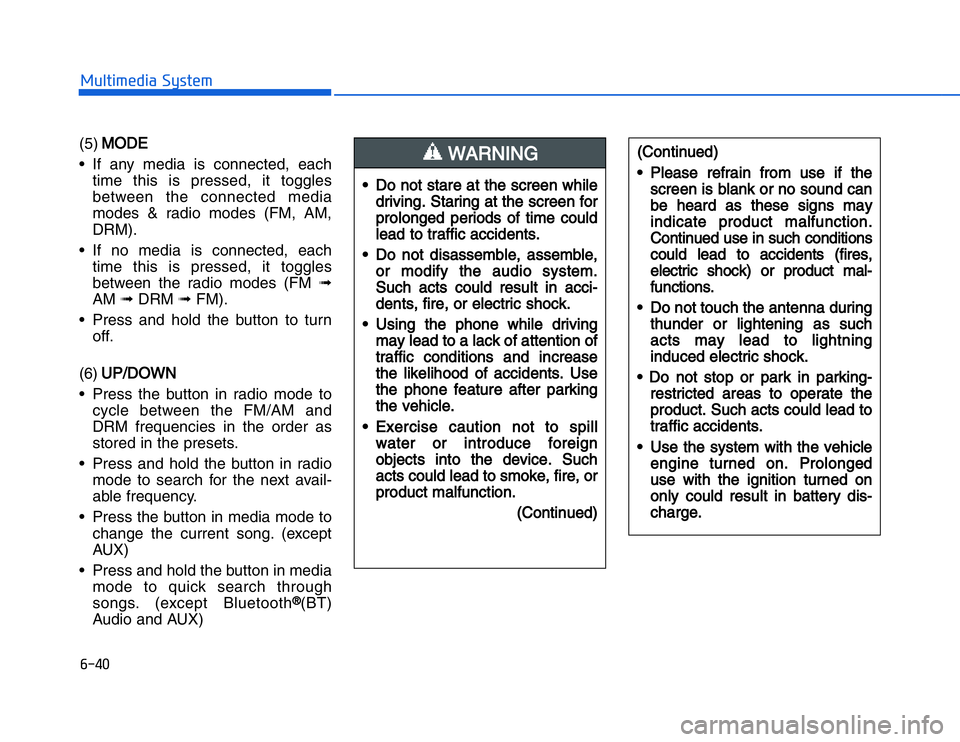

(5) M
M
ODE
• If any media is connected, each
time this is pressed, it toggles
between the connected media
modes & radio modes (FM, AM,
DRM).
• If no media is connected, each time this is pressed, it toggles
between the radio modes (FM ➟
AM ➟DRM ➟FM).
• Press and hold the button to turn off.
(6)
UP/DOWN
• Press the button in radio mode to cycle between the FM/AM and
DRM frequencies in the order as
stored in the presets.
• Press and hold the button in radio mode to search for the next avail-
able frequency.
• Press the button in media mode to change the current song. (except
AUX)
• Press and hold the button in media mode to quick search through
songs. (except Bluetooth
®(BT)
Audio and AUX)
• Do not stare at the screen while driving. Staring at the screen for
prolonged periods of time could
lea d to traffic accidents.
• Do not disassemble, assemble, or modify the audio system.
Such acts could resul t in acci-
dents, fire, or electric shock.
• Using the phone while driving may lead to a lack of attention of
traffic conditions and increase
the likelihood of accidents. Use
the phone feature after parking
the vehicle.
• Exercise caution not to spill water or introduce foreign
objects into the device. Such
acts co uld lead to smoke, fire, or
product malfunction.
(Continued)
WARNING
(Continued)
• Please refrain from use if the screen is blank or no sound can
be heard as these signs may
i ndicate product malfunction.
Continued use in such conditions
could lead to accidents (fires,
electric s hock) or product mal-
functions.
• Do not touch the antenna during thunder or lightening as such
acts may lead to lightning
induced electric shock.
• Do not stop or park in parking- restricted areas to operate the
product. Such acts could lead to
traffic accidents.
• Use the system with the vehicle engine turned o n. Prolonged
use with the ignition turned on
only could result in battery dis-
charge.
