HYUNDAI I20 2014 Owners Manual

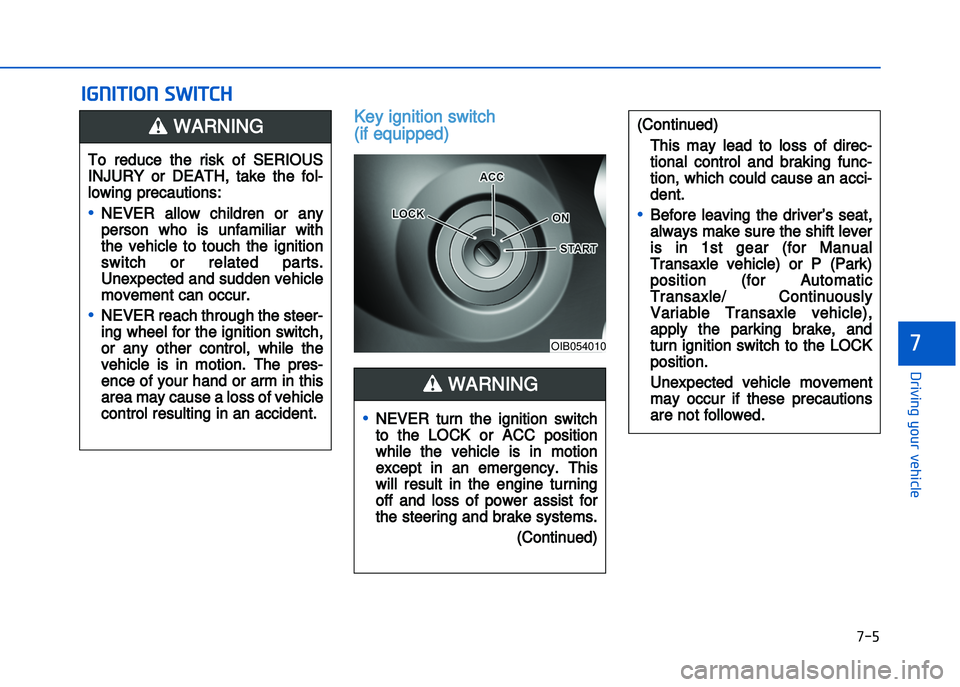

Key ignition switch
(if equipped)
(&($( &
"W($

+)
!-0,0*&."'$-.,/#0%(/
OIB\f54\f1\f
To reduce the risk of SERIOUS
INJURY or DEATH\b take the fol
lowing precautions:
•NEVER allow children or any
person who is unfamiliar with
the vehicle to touch the ignition
switch or related parts.
Unexpected and sudden vehicle
movement can occur.
•NEVER reach through the steer
ing wheel for the ignition switch\b
or any other control\b while the
vehicle is in motion. The pres
ence of your hand or arm in this
area may
cause a loss of vehicle
control resulting in an accident.
WARNING
•NEVER turn the ignition switch
to the LOCK or ACC position
while the vehicle is in motion
except in an emergency. This
will result in the engine turning
off and loss of power assist for
the steering and brake systems.
(Continued)
(Continued)
This may lead to loss of direc
tional control and braking func
tion\b which could cause an acci
dent.
•Before leaving the driver’s seat\b
always make sure the shift lever
is in 1st gear (for Manual
Transaxle vehicle) or P (Park)
position (for Automatic
Transaxle/ Continuously
Variable Transaxle vehicle)\b
apply the parking brake\b and
turn ignition switch to the LOCK
position.
Unexpected vehicle movement
may

occur if these precautions
are not followed.WARNING

+)
!-0,0*&."'$-.,/#0%(/

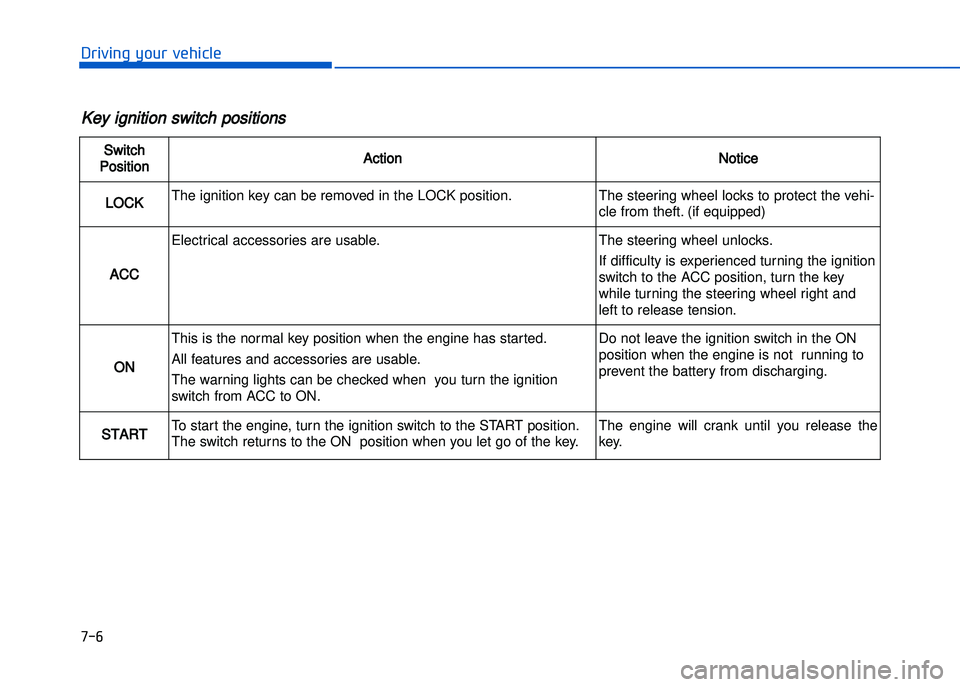

Key ignition switch positions
Switch
PositionActionNotice
LOCKThe ignition key can be removed in the LOCK position.The steering wheel locks to protect the vehi
cle from theft. (if equipped)
ACC
Electrical accessories are usable.The steering wheel unlocks.
If difficulty is experienced turning the ignition
switch to the ACC position\b turn the key
while turning the steering wheel right and
left to release tension.
ON
This is the normal key position when the engine has started.
All features and accessories are usable.
The warning lights can be checked when you turn the ignition
switch from ACC to ON.Do not leave the ignition switch in the ON
position when the engine is not running to
prevent the battery from discharging.
STARTTo start the engine\b turn the ignition switch to the START position.
The switch returns to the ON position when you let go of the key.The engine will crank until you release the
key.

+)+
!-0,0*&."'$-.,/#0%(/

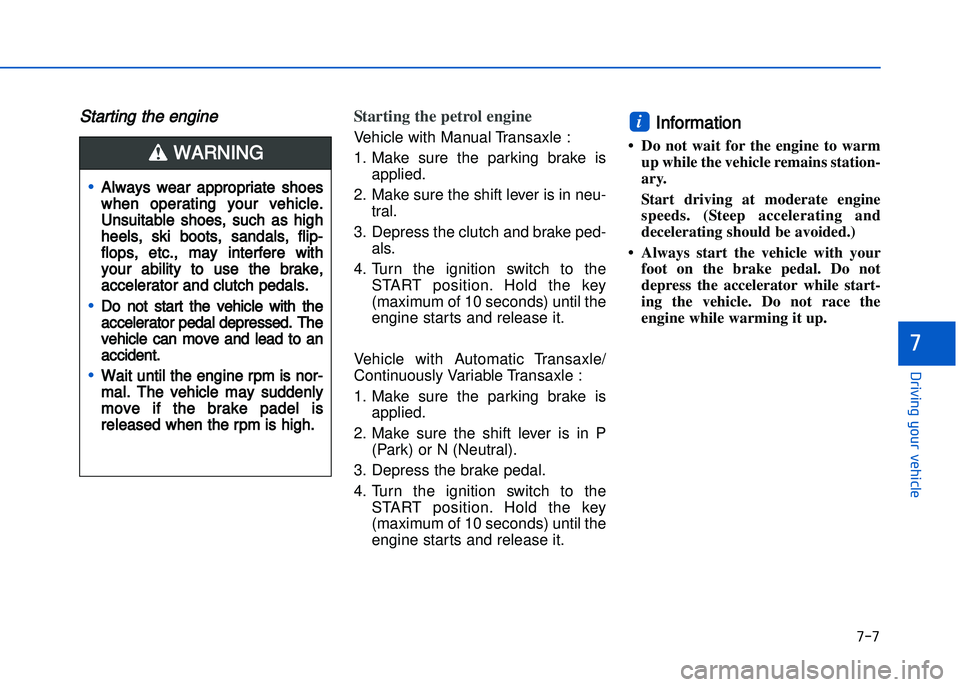

Starting the engine Starting the petrol engine
Vehicle with Manual Transaxle :
1. Make sure the parking brake isapplied.
2. Make sure the shift lever is in neu tral.
3. Depress the clutch and brake ped als.
4. Turn the ignition switch to the START position. Hold the key
(maximum of 1\f seconds) until the
engine starts and release it.
Vehicle with Automatic Transaxle/ Continuously Variable Transaxle :
1. Make sure the parking brake is applied.
2. Make sure the shift lever is in P (Park) or N (Neutral).
3. Depress the brake pedal.
4. Turn the ignition switch to the START position. Hold the key
(maximum of 1\f seconds) until the
engine starts and release it. Information
• Do not wait for the engine to warmup while the vehicle remains station
ary\b
Start driving at moderate engine
speeds\b (Steep accelerating and
decelerating should be avoided\b)
• Always start the vehicle with your foot on the brake pedal\b Do not
depress the accelerator while start
ing the vehicle\b Do not race the
engine while warming it up\b
i
•Always wear appropriate shoes
when operating your vehicle.
Unsuitable shoes\b such as high
heels\b ski boots\b sandals\b flip
flops\b etc.\b may interfere with
your ability to use the brake\b
accelerator and clutch pedals.
•Do not start the vehicle with the
accelerator pedal depressed. The
vehicle can move and lead to an
accident.
•Wait until the engine rpm is nor
mal. The vehicle may suddenly
move if the brake padel is
releas

ed when the rpm is high.
WARNING

+)
!-0,0*&."'$-.,/#0%(/

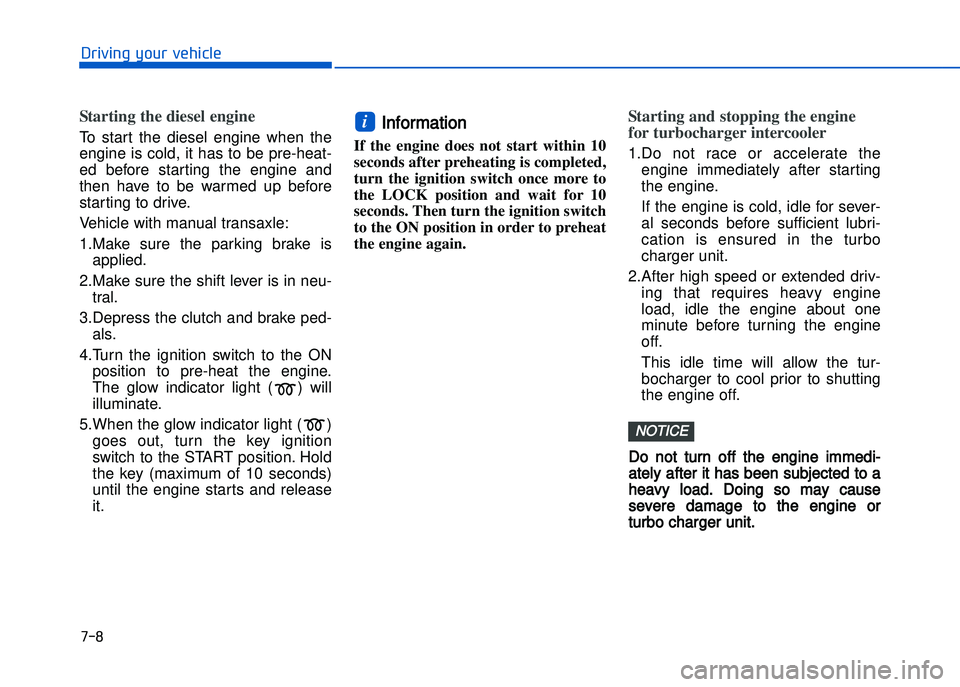

Starting the diesel engine
To start the diesel engine when the
engine is cold\b it has to be preheat
ed before starting the engine and
then have to be warmed up before
starting to drive.
Vehicle with manual transaxle:
1.Make sure the parking brake isapplied.
2.Make sure the shift lever is in neu tral.
3.Depress the clutch and brake ped als.
4.Turn the ignition switch to the ON position to preheat the engine.
The glow indicator light ( ) will
illuminate.
5.When the glow indicator light ( ) goes out\b turn the key ignition
switch to the START position. Hold
the key (maximum of 1\f seconds)
until the engine starts and release
it. Information
If the engine does not start within 10
seconds after preheating is completed,
turn the ignition switch once more to
the LOCK position and wait for 10
seconds\b Then turn the ignition switch
to the ON position in order to preheat
the engine again\b
Starting and stopping the engine
for turbocharger intercooler
1.Do not race or accelerate the engine immediately after starting
the engine.
If the engine is cold\b idle for sever
al seconds before sufficient lubri
cation is ensured in the turbo
charger unit.
2.After high speed or extended driv ing that requires heavy engine
load\b idle the engine about one
minute before turning the engine
off.
This idle time will allow the tur
bocharger to cool prior to shutting
the engine off.
Do not turn off the engine immedi
ately after it has been subjected to a
heavy load. Doing so may cause
severe damage to the engine or
turbo charger unit.
NOTICE
i

+)
!-0,0*&."'$-.,/#0%(/

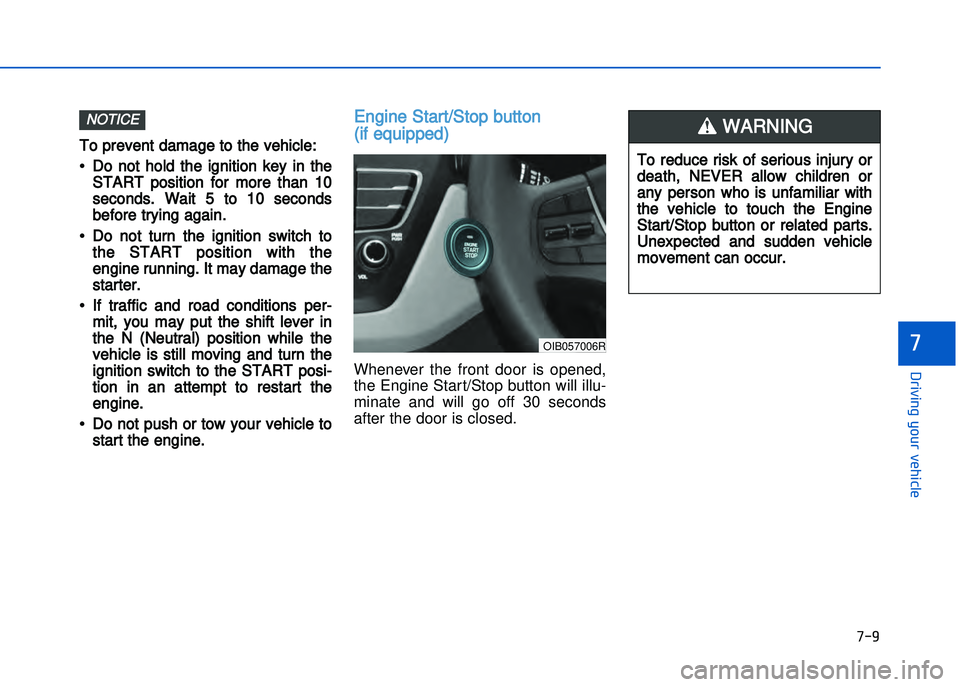

To prevent damage to the vehicle:
• Do not hold the ignition key in theSTART position for more than 1\f
seconds. Wait 5 to 1\f seconds
before trying again.
• Do not turn the ignition switch to the START position with the
engine running. It may damage the
starter.
• If traffic and road conditions per mit\b you may put the shift lever in
the N (Neutral) position while the
vehicle is still moving and turn the
ignition s
witch to the START posi
tion in an attempt to restart the
engine.
• Do not push or tow your vehicle to start the engine.
Engine Start/Stop button
(if equipped)
Whenever the front door is opened\b
the Engine Start/Stop button will illu
minate and will go off 3\f seconds
after the door is closed.
NOTICE
OIB\f57\f\f6R
To reduce risk of serious injury or
death\b NEVER allow children or
any person who is unfamiliar with
the vehicle to touch the Engine
Start/Stop button or related parts.
Unexpected and sudden vehicle
movement can occur.
WARNING

+)
!-0,0*&."'$-.,/#0%(/
•NEVER press the Engine
Start/Stop button while the vehi
cle is in motion except in an
emergency. This will result in the
engine turning off and loss of
power assist for the steering and
brake systems.
This may lead to loss of direc
tional control and braking func
tion\b which could cause an acci
dent.
•Before leaving the driver’s seat\b
always make sure the shift lever
is in neutral\b set the parking
brake\b press
the Engine
Start/Stop button to the OFF
position\b and take the Smart Key
with you.
Unexpected vehicle movement
may occur if these precautions
are not followed.
(Continued)
WARNING

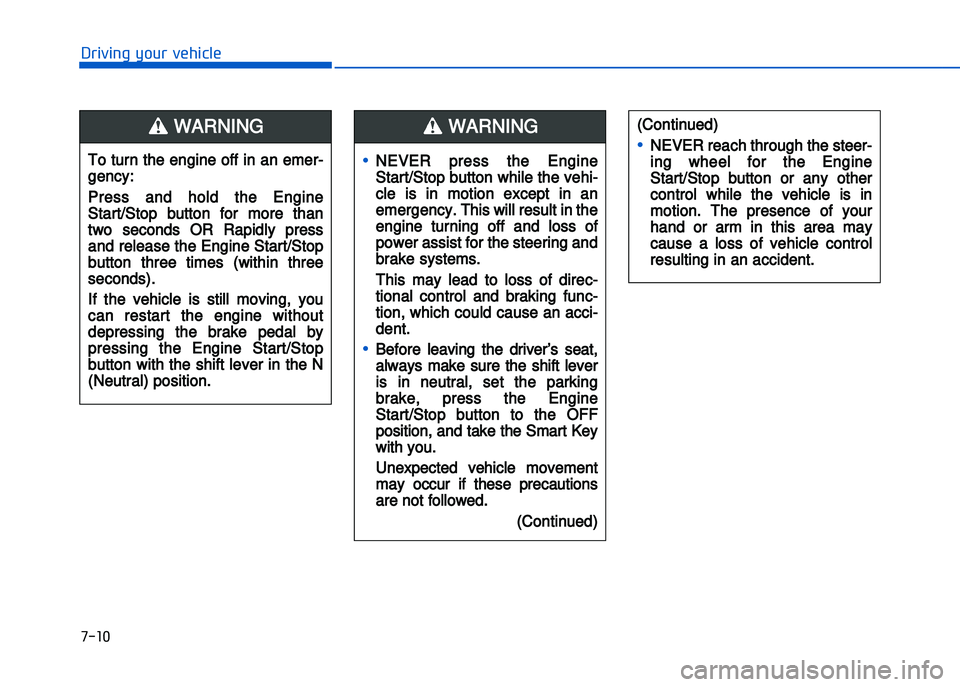

To turn the engine off in an emer
gency:
Press and hold the Engine
Start/Stop button for more than
two seconds OR Rapidly press
and release the Engine Start/Stop
button three times (within three
seconds).
If the vehicle is still moving\b you
can restart the engine without
depressing the brake pedal by
pressing the Engine Start/Stop
button with the shift lever in the N
(Neutral) position.
(Continued)
•NEVER reach through the steer
ing wheel for the Engine
Start/Stop button or any other
control while the vehicle is in
motion. The presence of your
hand or arm in this area may
cause a loss of vehicle control
resulting in an accident.
WARNING

+)
!-0,0*&."'$-.,/#0%(/

Button PositionAction Notice
OFF
• To turn off the engine\b stop the vehicle and
then press the Engine Start/Stop button.
• The steering wheel locks to protect the vehicle from theft. If the steering wheel is not locked properly
when you open the driver's door\b the warning
chime will sound.
Not illuminated
ACC
• Press the Engine Start/Stop button when
the button is in the OFF position without
depressing the clutch pedal.
• Electrical accessories are usable.
• The steering wheel unlocks. • If you leave the Engine Start/Stop button in
the ACC position for more than one hour\b the
battery power will turn off automatically to
prevent the battery from discharging.
• If the steering wheel doesn't unlock properly\b the Engine Start/Stop button will not work.
Press the Engine Start/Stop button while
turning the steering wheel right and left to
release tension.
Amber indicator
Engine Stop/Start button positions
Vehicle with Manual Transaxle

+)

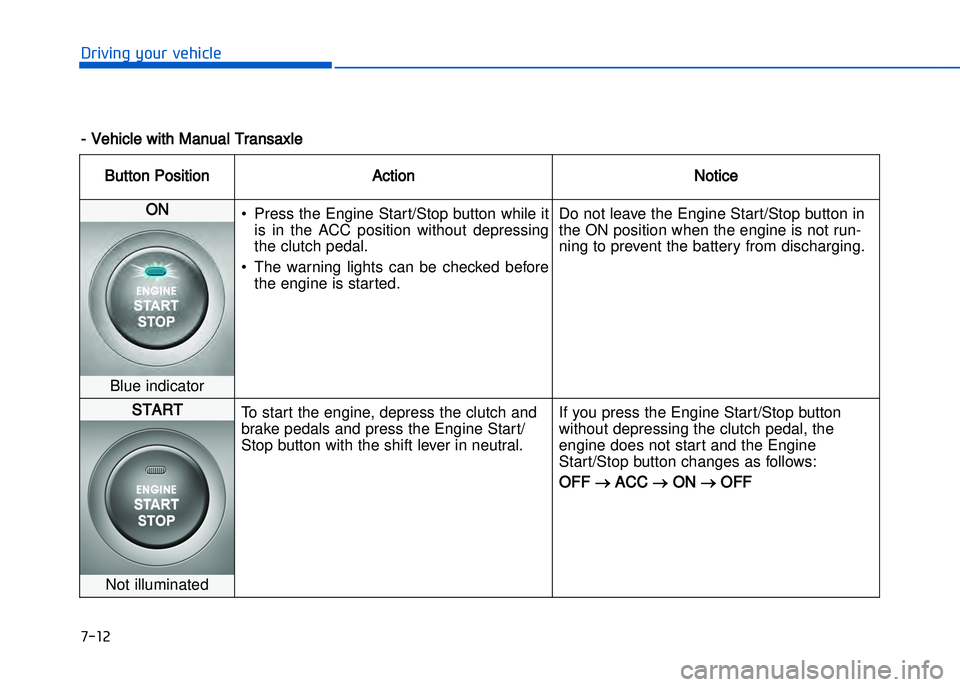

!-0,0*&."'$-.,/#0%(/Button Position Action Notice
ON
• Press the Engine Start/Stop button while it
is in the ACC position without depressing
the clutch pedal.
• The warning lights can be checked before the engine is started. Do not leave the Engine Start/Stop button in
the ON position when the engine is not run
ning to prevent the battery from discharging.
Blue indicator
START
To start the engine\b depress the clutch and
brake pedals and press the Engine Start/
Stop button with the shift lever in neutral. If you press the Engine Start/Stop button
without depressing the clutch pedal\b the
engine does not start and the Engine
Start/Stop button changes as follows:
OFF ®ACC ®ON ®OFF
Not illuminated
Vehicle with Manual Transaxle

+)
!-0,0*&."'$-.,/#0%(/

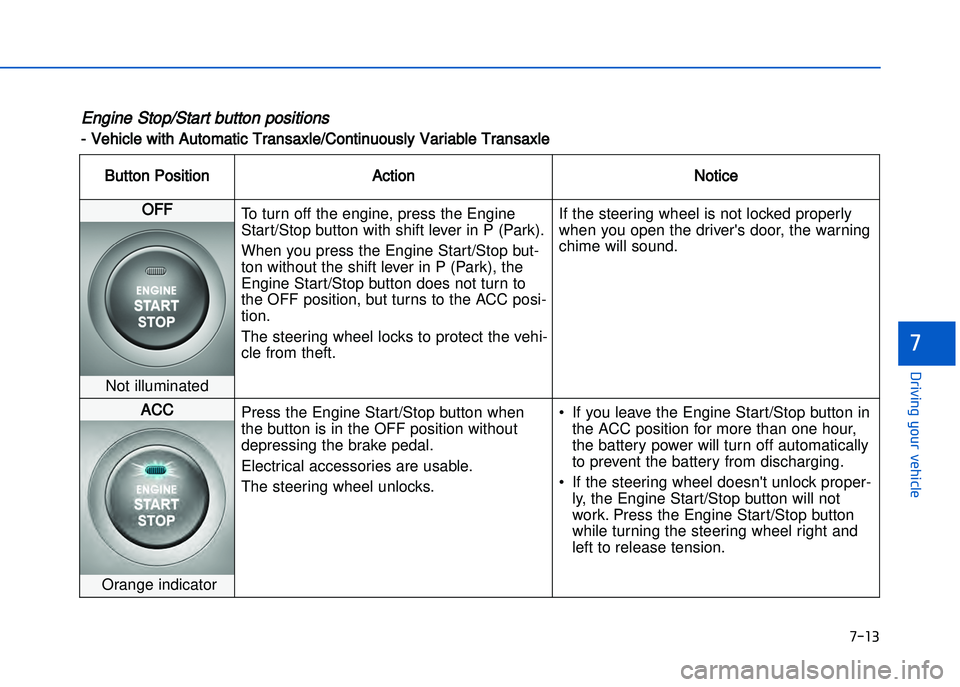

Engine Stop/Start button positions
Vehicle with Automatic Transaxle/Continuously Variable TransaxleButton Position Action Notice
OFF
To turn off the engine\b press the Engine
Start/Stop button with shift lever in P (Park).
When you press the Engine Start/Stop but
ton without the shift lever in P (Park)\b the
Engine Start/Stop button does not turn to
the OFF position\b but turns to the ACC posi
tion.
The steering wheel locks to protect the vehi
cle from theft. If the steering wheel is not locked properly
when you open the driver's door\b the warning
chime will sound.
Not illuminated
ACC
Press the Engine Start/Stop button when
the button is in the OFF position without
depressing the brake pedal.
Electrical accessories are usable.
The steering wheel unlocks. • If you leave the Engine Start/Stop button in
the ACC position for more than one hour\b
the battery power will turn off automatically
to prevent the battery from discharging.
• If the steering wheel doesn't unlock proper ly\b the Engine Start/Stop button will not
work. Press the Engine Start/Stop button
while turning the steering wheel right and
left to release tension.
Orange indicator

+)
!-0,0*&."'$-.,/#0%(/

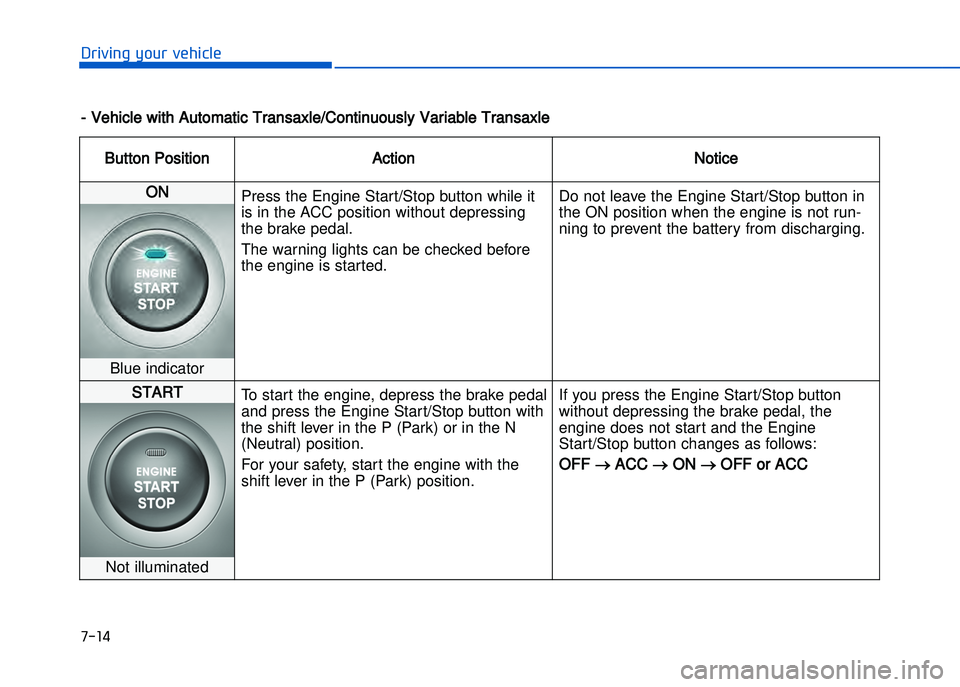

Vehicle with Automatic Transaxle/Continuously Variable TransaxleButton Position Action Notice
ON
Press the Engine Start/Stop button while it
is in the ACC position without depressing
the brake pedal.
The warning lights can be checked before
the engine is started. Do not leave the Engine Start/Stop button in
the ON position when the engine is not run
ning to prevent the battery from discharging.
Blue indicator
START
To start the engine\b depress the brake pedal
and press the Engine Start/Stop button with
the shift lever in the P (Park) or in the N
(Neutral) position.
For your safety\b start the engine with the
shift lever in the P (Park) position. If you press the Engine Start/Stop button
without depressing the brake pedal\b the
engine does not start and the Engine
Start/Stop button changes as follows:
OFF ®ACC ®ON ®OFF or ACC
Not illuminated
