HYUNDAI I20 2014 Owners Manual
Manufacturer: HYUNDAI, Model Year: 2014, Model line: I20, Model: HYUNDAI I20 2014Pages: 400, PDF Size: 7.02 MB
Page 231 of 400
# #
! ' % $ & % " ' & $

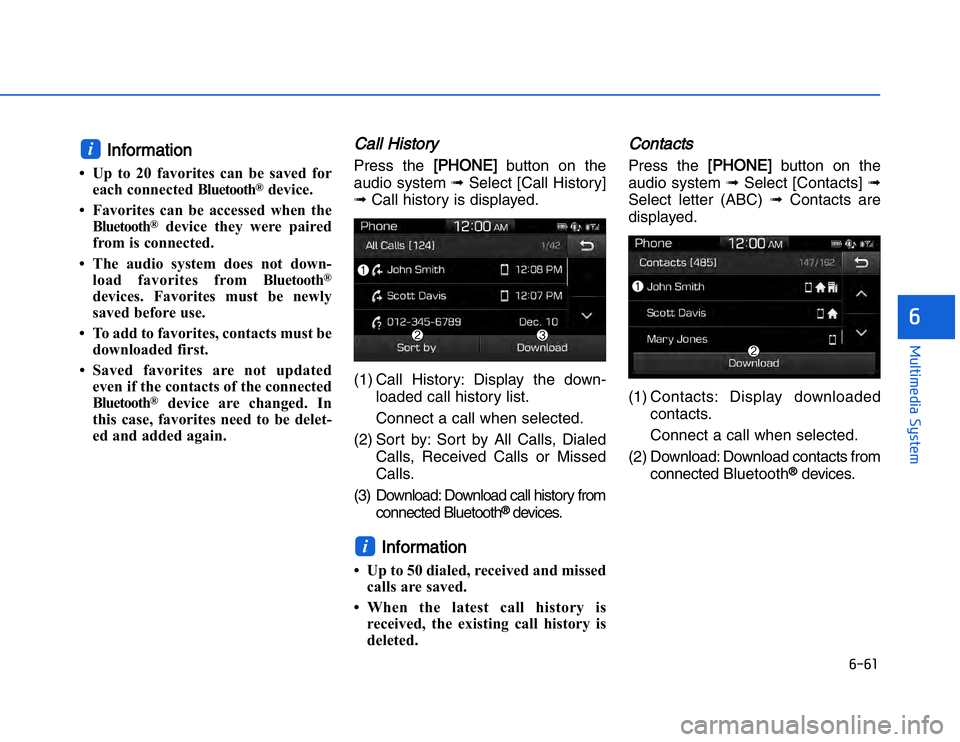

IInformation
• Up to 20 favorites can be saved for
each connected Bluetooth
®
device.
• Favorites can be accessed when the Bluetooth
®
device they were paired
from is connected.
• The audio system does not down- load favorites from Blu etooth
®
devices. Favorites must be newly
saved before use.
• To add to favorites, contacts must be downloaded first.
• Saved favorites are not updated even if the contacts of the connected
Bluetooth
®
device are changed. In
this case, favorites need to be delet-
ed and added again.
Call HistoryPress the
[PHONE]
button on the
audio system ➟ Select [Call History]
➟ Call history is displayed.
(1) Call History: Display the down- loaded call history list.
Connect a call when selected.
(2) Sort by: Sort by All Calls, Dialed Calls, Received Calls or Missed
Calls.
(3) Download: Download call history from connected Bluetooth®devices.
Information
• Up to 50 dialed, received and missedcalls are saved.
• When the latest call history is received, the existing call history is
deleted.
ContactsPress the
[PHONE]
button on the
audio system ➟ Select [Contacts] ➟
Select letter (ABC) ➟ Contacts are
displayed.
(1) Contacts: Display downloaded contacts.
Connect a call when selected.
(2) Download: Download contacts from connected Bluetooth®
devices.
i
i
Page 232 of 400
# # ! ' % $ & % " ' & $
IInformation
• Only supported contacts format can
be downloaded and displayed from
the Bluetooth
®
device, contacts from
some applications will not be included.
• Up to 2,000 contacts can be saved.
• In some cases, additional confirmation from your Bluetooth
®
device is neces-
sary when downloading contacts. If
downloading of contacts unsuccessful,
consult your device’s settings or the
audio screen to approve the download.
• Contacts without phone numbers are not displayed.
DialPress the
[PHONE]
button on the
audio system ➟ Select [Dial].
(1) Phone number entry window: The phone number entered using the
keypad is displayed.
(2) Clear - Shortly press to delete individualdigits.
- Press and hold to delete the entire phone number.
(3) Keypad: Enter phone number.
(4) Bluetooth
®
Phone name
- The name of the connected Bluetooth®
device is displayed.
- Contacts matching the keypad number/letter input are displayed. (5) Call
- Enter and select a phone num-ber to call.
- Select without entering a phone number to see the most recent
dialed call.
SettingsPress the
[PHONE]
button on the
audio system ➟ Select [Settings].
- For more details, refer to Setup ➟
Bluetooth page.
i
Page 233 of 400

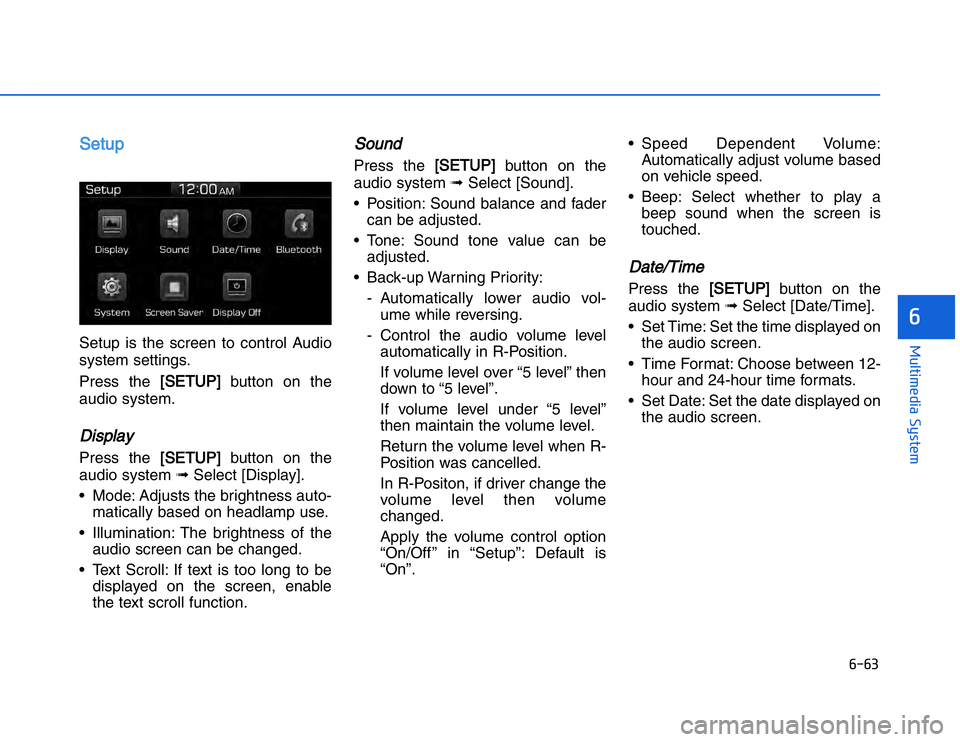

![HYUNDAI I20 2014 Owners Manual # #
! % $ & % " & $
SSetupSetup is the screen to control Audio
system settings.
Press the
[SETUP]
button on the
audio system.
Display Press the
[SETUP]
button on the
audio](/img/35/56137/w960_56137-232.png "HYUNDAI I20 2014 Owners Manual # #
! % $ & % \" & $
SSetupSetup is the screen to control Audio
system settings.
Press the
[SETUP]
button on the
audio system.
Display Press the
[SETUP]
button on the
audio")
# #
! ' % $ & % " ' & $
SSetupSetup is the screen to control Audio
system settings.
Press the
[SETUP]
button on the
audio system.
Display Press the
[SETUP]
button on the
audio system ➟ Select [Display].
• Mode: Adjusts the brightness auto- matically based on headlamp use.
• Illumination: The brightness of the audio screen can be changed.
• Text Scroll: If text is too long to be displayed on the screen, enable
the text scroll function.
Sound Press the
[SETUP]
button on the
audio system ➟ Select [Sound].
• Position: Sound balance and fader can be adjusted.
• Tone: Sound tone value can be adjusted.
• Back-up Warning Priority: - Automatically lower audio vol-ume while reversing.
- Control the audio volume level automatically in R-Position.
If volume level over “5 level” then
down to “5 level”.
If volume level under “5 level”
then maintain the volume level.
Return the volume level when R-
Position was cancelled.
In R-Positon, if driver change the
volume level then volume
changed.
Apply the volume control option
“On/Off ” in “Setup”: Default is
“On”. • Speed Dependent Volume:
Automatically adjust volume based
on vehicle speed.
• Beep: Select whether to play a beep sound when the screen is
touched.
Date/TimePress the
[SETUP]
button on the
audio system ➟ Select [Date/Time].
• Set Time: Set the time displayed on the audio screen.
• Time Format: Choose between 12- hour and 24-hour time formats.
• Set Date: Set the date displayed on the audio screen.
Page 234 of 400

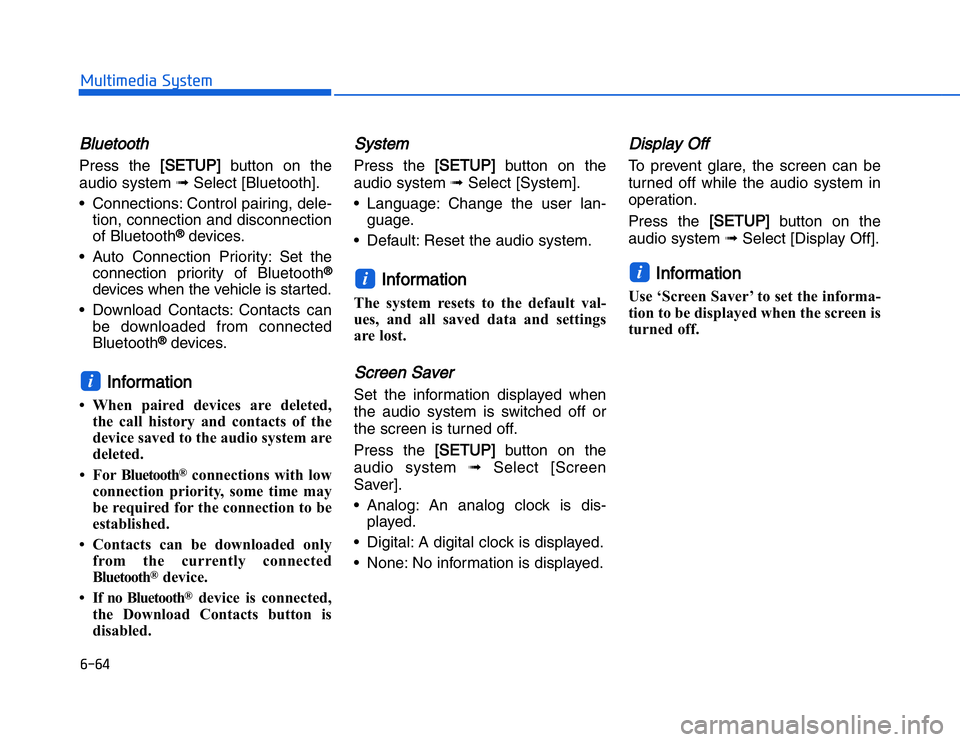

![HYUNDAI I20 2014 Owners Manual # # ! % $ & % " & $BBluetoothPress the
[SETUP]
button on the
audio system ➟ Select [Bluetooth].
• Connections: Control pairing, dele- tion, connection and disconnection
of](/img/35/56137/w960_56137-233.png "HYUNDAI I20 2014 Owners Manual # # ! % $ & % \" & $BBluetoothPress the
[SETUP]
button on the
audio system ➟ Select [Bluetooth].
• Connections: Control pairing, dele- tion, connection and disconnection
of")
# # ! ' % $ & % " ' & $BBluetoothPress the
[SETUP]
button on the
audio system ➟ Select [Bluetooth].
• Connections: Control pairing, dele- tion, connection and disconnection
of Bluetooth
®
devices.
• Auto Connection Priority: Set the connection priority of B luetooth
®
devices when the vehicle is started.
• Download Contacts: Contacts can be downloaded from connectedBluetooth
®
devices.
Information
• When paired devices are deleted, the call history and contacts of the
device saved to the audio system are
deleted.
• For Bluetooth
®
connections with low
connection priority, some time may
be required for the connection to be
established.
• Contacts can be downloaded only from the currently connected
Bluetooth
®
device.
• If no Bluetooth
®
device is connected,
the Download Contacts button is
disabled.
SystemPress the
[SETUP]
button on the
audio system ➟ Select [System].
• Language: Change the user lan- guage.
• Default: Reset the audio system.
Information
The system resets to the default val-
ues, and all saved data and settings
are lost.Screen SaverSet the information displayed when
the audio system is switched off or
the screen is turned off.
Press the
[SETUP]
button on the
audio system ➟ Select [Screen
Saver].
• Analog: An analog clock is dis- played.
• Digital: A digital clock is displayed.
• None: No information is displayed.
Display OffTo prevent glare, the screen can be
turned off while the audio system in
operation.
Press the
[SETUP]
button on the
audio system ➟ Select [Display Off].
Information
Use ‘Screen Saver’ to set the informa-
tion to be displayed when the screen is
turned off.i
i
i
Page 235 of 400
# #
! ' % $ & % " ' & $
Hyundai iblue is a smart phone
remote control Application which
allows passengers to control car info-
tainment system functions such as
Radio, Media, Sound via BluetoothSS ystem requirements
:
Application name : Hyundai iblue
Available OS : Android
App Availability : Play store
Supported Mobiles : Android
mobiles with Version 4.4(Kitkat) &
above.
Main Features
:
Selection & Control of Media
Change of Radio stations with
Seek/Track buttons
Switch between different Media
sources: USB, iPod, Aux and
Bluetooth Audio etc
Standard media player functions:
Play/Pause track, Next/Previous
track
Control the volume: Increase,
decrease & mute
Change Sound Settings
Control of USB Video (if Infotainment
supports video feature)
Ensure that Bluetooth of mobile
device is ON before using application
For Remote Application working,
Infotainment System should be
paired with smart phone & connect-
ed to Hyundai iblue application.
(please note that remote control con-
nection establishment is different
from pairing the device)
The compatibility and features of this app may vary with vehicle variants.
Infotainment system can be con-
trolled by one mobile (via Hyundai
iblue application) at a time
Note that application doesn’t work
during Connectivity mode.
If connection is lost due to abnormal
conditions while a Remote control is
connected (communication range
exceeded, device power OFF, com-
munication errors, etc.), we need to
Establish the Connection again.
For Better experience, pair the
Mobile device with the Infotainment
system before using the application.
Don'ts
:
Please Don’t turn off mobile
Bluetooth while using Application
NOTICE
# & ) * ' ' * ) ' * ) ' * ' # * ) & $ % (
# & ) % ! ! # ( % * ( ' ( ) & ( ! ! ) $
Page 236 of 400

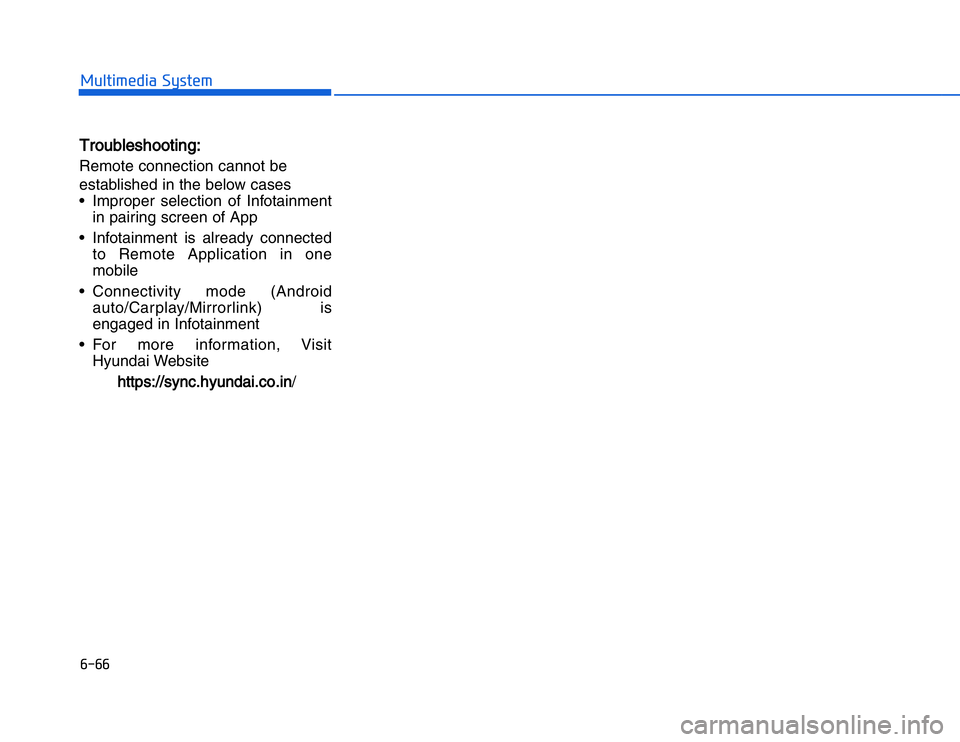

# # # ! ' % $ & % " ' & $TTroubleshooting:Remote connection cannot be
established in the below cases
• Improper selection of Infotainment
in pairing screen of App
• Infotainment is already connected to Remote Application in one
mobile
• Connectivity mode (Android auto/Carplay/Mirrorlink) is
engaged in Infotainment
• For more information, Visit Hyundai Website
https://sync.hyundai.co.in
/
Page 237 of 400
n g
o
h
B / ' - / . - 0 , 0 * & + )
4 3 6 4 7 4 5 1 4 6 8 5 , 7 1 " 4 7 & 4 " 8 . ' 4 + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + 0 / $
4 3 6 4 7 - 1 2 6 1 8 5 , + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + 0 / $
& * 0 0 ' * . w 0 % # + )
4 7 8 , 5 8 1 8 3 5 7 - 8 1 . " + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + 0 /
5 , 8 5 4 7 1 2 6 1 1 3 % 7 ! # 1 1 3 5 + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + 0 /
* $ ( . - * x ( / + )
2 5 # 2 ' 7 1 6 2 5 - 2 ' 4 7 3 % 4 6 2 1 8 3 5 + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + 0 /
3 3 * 7 * 6 8 & 8 5 , 7 % 6 2 . 1 8 . 4 - + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + 0 /
' * 0 * $ ' $ ( " . , - 0 ( / . - * x ( / . ( ) + )
3 5 1 8 5 # 3 # - ' 7 2 6 8 2 ! ' 4 7 6 2 5 - 2 ' 4 7 ( ) 7 3 % 4 6 2 1 8 3 5 + + 0 / $
2 6 ( 8 5 , + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + 0 / 0
3 3 * 7 * 6 8 & 8 5 , 7 % 6 2 . 1 8 . 4 - + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + 0 /
A $ ' 0 % . - * x ( / + )
# 1 3 2 1 8 . 7 1 6 2 5 - 2 ' 4 7 3 % 4 6 2 1 8 3 5 7 % 2 6 ( 8 5 , + + + + + + + + + + + + + + + + + + + + + 0 / $
3 3 * 7 * 6 8 & 8 5 , 7 % 6 2 . 1 8 . 4 - + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + 0 / $
B - 0 * & . " / + ) +
3 4 6 7 ! 6 2 ( 4 - + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + 0 / $ 0
8 - . 7 ! 6 2 ( 4 - 7 4 2 6 7 8 5 * 8 . 2 1 3 6 + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + 0 / $
4 2 6 7 * 6 # 7 ! 6 2 ( 4 - + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + 0 / $
2 6 ( 8 5 , 7 ! 6 2 ( 4 + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + 0 / $
5 1 8 / ' 3 . ( 7 6 2 ( 4 7 - 1 4 7 ( ) + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + 0 / )
3 3 * 7 ! 6 2 ( 8 5 , 7 % 6 2 . 1 8 . 4 - + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + 0 / ) $
/ % 0 ( . - 0 , 0 * & . % ' * 0 0 ' * + )
2 2 6 * 3 # - 7 * 6 8 & 8 5 , 7 . 3 5 * 8 1 8 3 5 - + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + 0 / ) )
3 . ( 8 5 , 7 1 " 4 7 & 4 " 8 . ' 4 + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + 0 / ) )
3 3 1 " 7 . 3 6 5 4 6 8 5 , + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + 0 / )
6 8 & 8 5 , 7 2 1 7 5 8 , " 1 + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + 0 / )
6 8 & 8 5 , 7 8 5 7 1 " 4 7 6 2 8 5 + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + 0 / )
6 8 & 8 5 , 7 8 5 7 ' 3 3 * 4 * 7 2 6 4 2 - + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + 0 / )
0 * / - . - 0 , 0 * & + ) +
5 3 7 3 6 7 8 . 7 . 3 5 * 8 1 8 3 5 - + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + 0 / ) 0
8 5 1 4 6 7 % 6 4 . 2 # 1 8 3 5 - + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + 0 / )
/ # 0 % ( / . w / 0 & # + )
& 4 6 ' 3 2 * 8 5 , + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + 0 /
Page 238 of 400
+ )

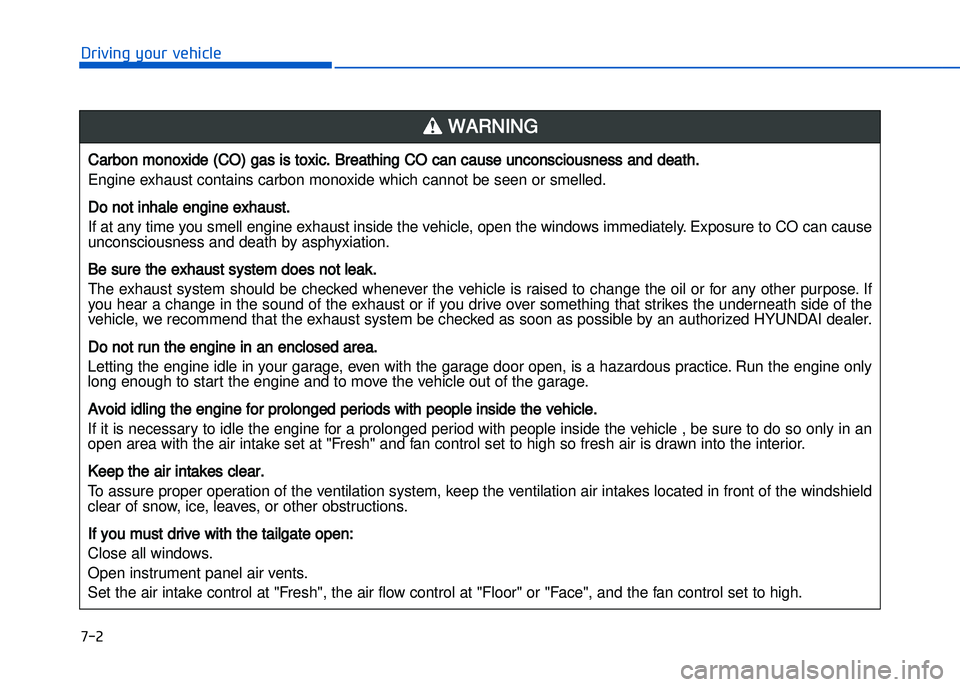

! - 0 , 0 * & . " ' $ - . , / # 0 % ( /
Carbon monoxide (CO) gas is toxic. Breathing CO can cause unconsciousness and death.
Engine exhaust contains carbon monoxide which cannot be seen or smelled.
Do not inhale engine exhaust.
If at any time you smell engine exhaust inside the vehicle\b open the windows immediately. Exposure to CO can cause
unconsciousness and death by asphyxiation.
Be sure the exhaust system does not leak.
The exhaust system should be checked whenever the vehicle is raised to change the oil or for any other purpose. If
you hear a change in the sound of the exhaust or if you drive over something that strikes the underneath side of the
vehicle\b we recommend that the exhaust system be checked as soon as possible by an authorized HYUNDAI dealer.
Do not run the engine in an enclosed area.
Letting the engine idle in your garage\b even with the garage door open\b is a hazardous practice. Run the engine only
long enough to start the engine and to move the vehicle out of the garage.
Avoid idling the engine for prolonged periods with people inside the vehicle.
If it is necessary to idle the engine for a prolonged period with people inside the vehicle \b be sure to do so only in an open area with the air intake set at "Fresh" and fan control set to high so fresh air is drawn into the interior.
Keep the air intakes clear.
To assure proper operation of the ventilation system\b keep the ventilation air intakes located in front of the windshield
clear of snow\b ice\b leaves\b or other obstructions.
If you must drive with the tailgate open:
Close all windows.
Open instrument panel air vents.
Set the air intake control at "Fresh"\b the air flow control at "Floor" or "Face"\b and the fan control set to high.
WARNING
Page 239 of 400

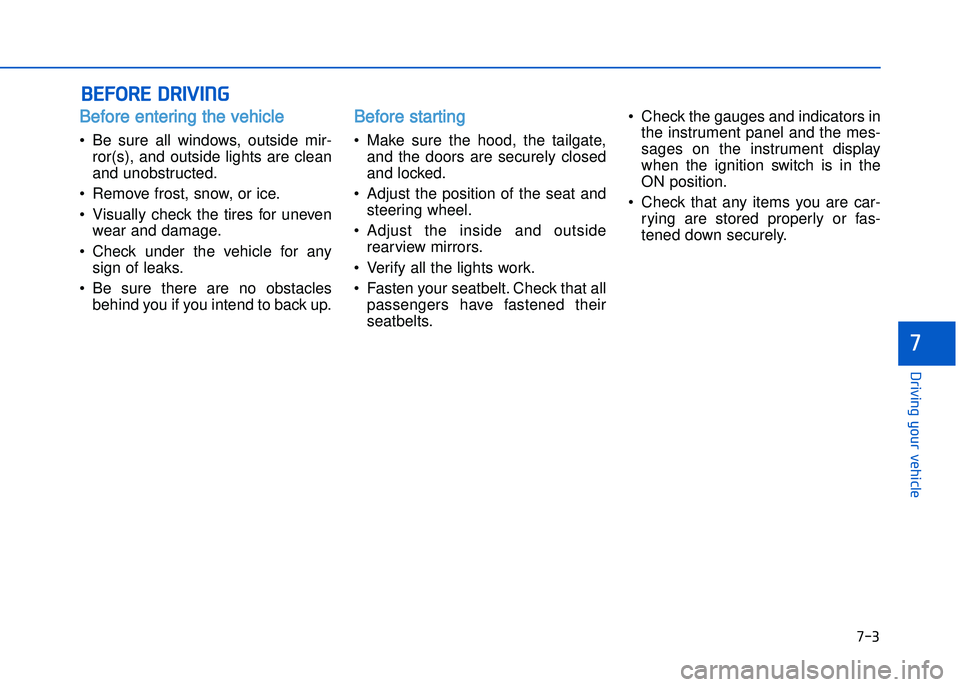

Before entering the vehicle
• Be sure all windows\b outside mir ror(s)\b and outside lights are clean
and unobstructed.
• Remove frost\b snow\b or ice.
• Visually check the tires for uneven wear and damage.
• Check under the vehicle for any sign of leaks.
• Be sure there are no obstacles behind you if you intend to back up.
Before starting
• Make sure the hood\b the tailgate\band the doors are securely closed
and locked.
• Adjust the position of the seat and steering wheel.
• Adjust the inside and outside rearview mirrors.
• Verify all the lights work.
• Fasten your seatbelt. Check that all passengers have fastened their
seatbelts. • Check the gauges and indicators in
the instrument panel and the mes
sages on the instrument display
when the ignition switch is in the
ON position.
• Check that any items you are car rying are stored properly or fas
tened down securely.
' # '
# ( V ( &
+ )
! - 0 , 0 * & . " ' $ - . , / # 0 % ( /
Page 240 of 400
+ )
! - 0 , 0 * & . " ' $ - . , / # 0 % ( /

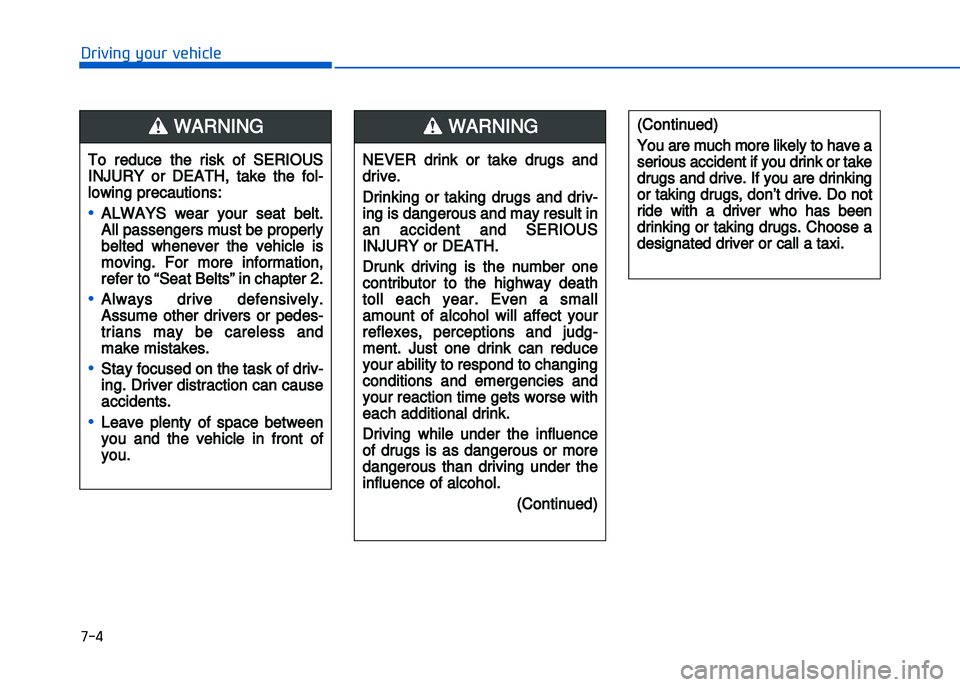

To reduce the risk of SERIOUS
INJURY or DEATH\b take the fol
lowing precautions:
•ALWAYS wear your seat belt.
All passengers must be properly
belted whenever the vehicle is
moving. For more information\b
refer to “Seat Belts” in chapter 2.
•Always drive defensively.
Assume other drivers or pedes
trians may be careless and
make mistakes.
•Stay focused on the task of driv
ing. Driver distraction can cause
accidents
.
•Leave plenty of space between
you and the vehicle in front of
you.
WARNING
NEVER drink or take drugs and
drive.
Drinking or taking drugs and driv
ing is dangerous and may result in
an accident and SERIOUS
INJURY or DEATH.
Drunk driving is the number one
contributor to the highway death
toll each year. Even a small
amount of alcohol will affect your
reflexes\b perceptions and judg
ment. Just one drink can reduce
your ability to respond to changing
conditions and emergencies and
your reac
tion time gets worse with
each additional drink.
Driving while under the influence
of drugs is as dangerous or more
dangerous than driving under the
influence of alcohol.
(Continued)
(Continued)
You are much more likely to have a
serious accident if you drink or take
drugs and drive. If you are drinking
or taking drugs\b don’t drive. Do not
ride with a driver who has been
drinking or taking drugs. Choose a
designated driver or call a taxi.WARNING
