HYUNDAI IONIQ 6 2023 Owners Manual

2
2-17

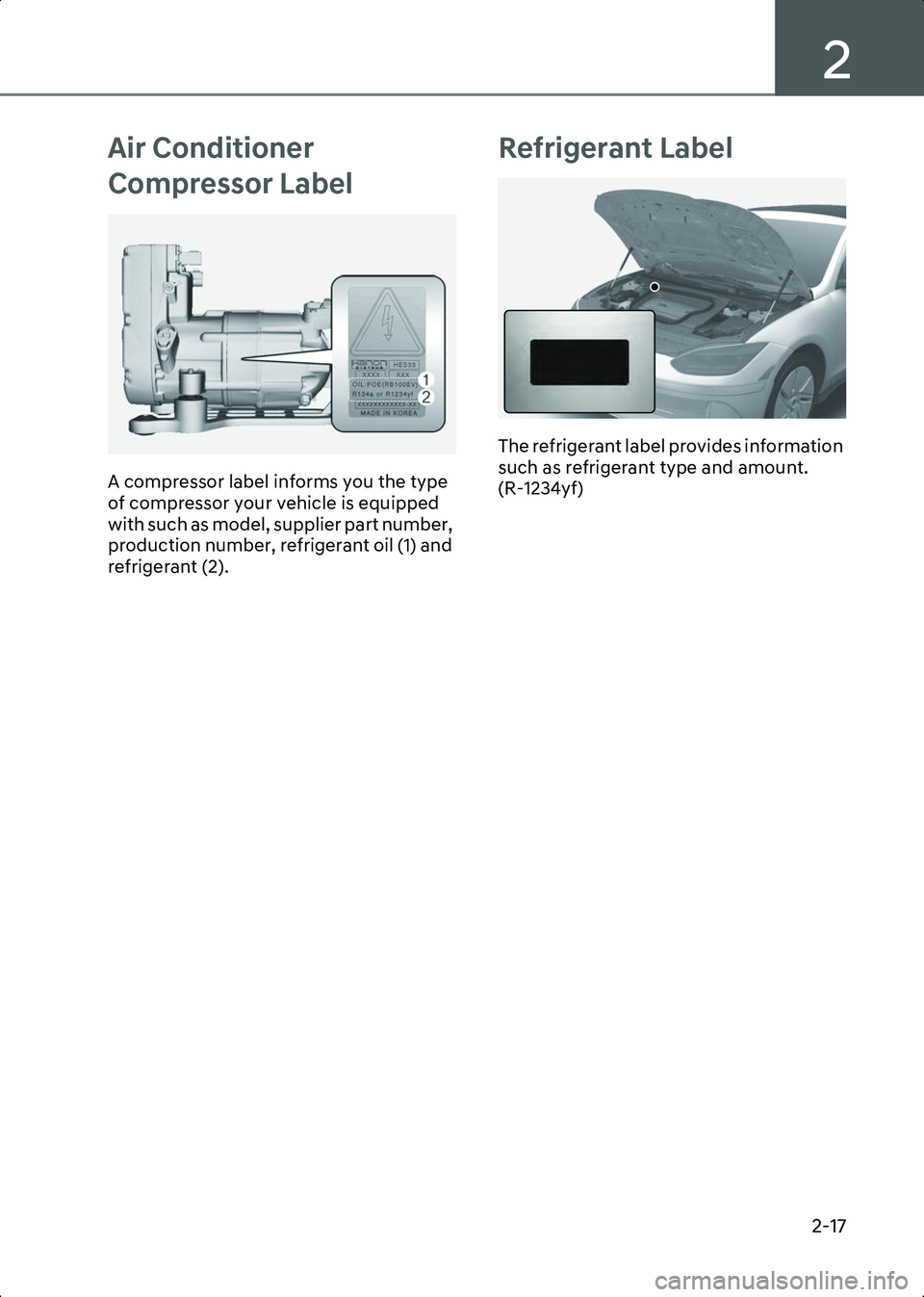

Air Conditioner
Compressor Label
ONE1011026L
A compressor label informs you the type
of compressor your vehicle is equipped
with such as model, supplier part number,
production number, refrigerant oil (1) and
refrigerant (2).
Refrigerant Label
B5020201
The refrigerant label provides information
such as refrigerant type and amount.
(R-1234yf)
Hyundai_CE_en_US.book Page 17

Vehicle Information, Consumer Information, and Reporting Safety Defects
2-18

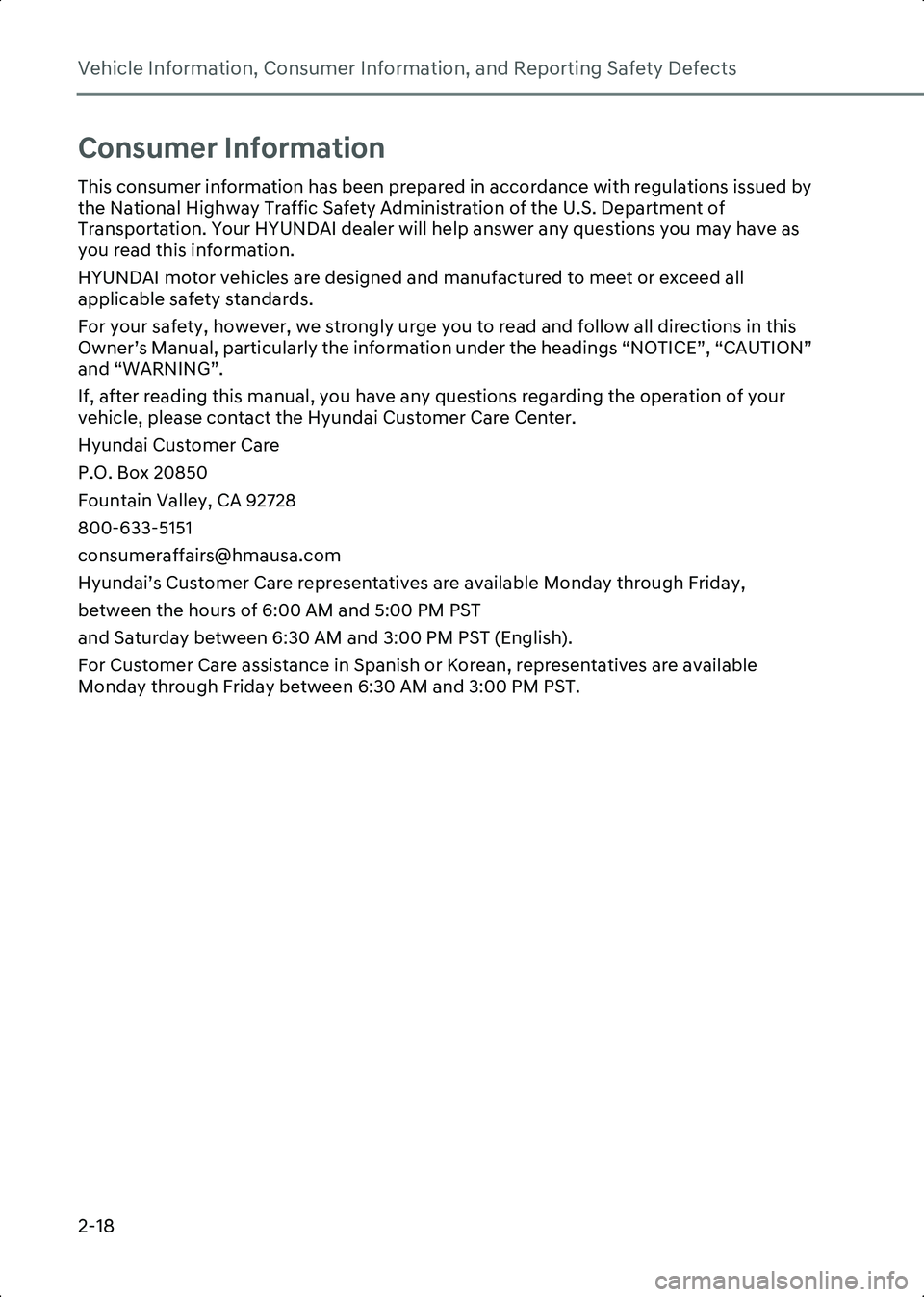

Consumer Information
This consumer information has been prepared in accordance with regulations issued by
the National Highway Traffic Safety Administration of the U.S. Department of
Transportation. Your HYUNDAI dealer will help answer any questions you may have as
you read this information.
HYUNDAI motor vehicles are designed and manufactured to meet or exceed all
applicable safety standards.
For your safety, however, we strongly urge you to read and follow all directions in this
Owner’s Manual, particularly the information under the headings “NOTICE”, “CAUTION”
and “WARNING”.
If, after reading this manual, you have any questions regarding the operation of your
vehicle, please contact the Hyundai Customer Care Center.
Hyundai Customer Care
P.O. Box 20850
Fountain Valley, CA 92728
800-633-5151
[email protected]
Hyundai’s Customer Care representatives are available Monday through Friday,
between the hours of 6:00 AM and 5:00 PM PST
and Saturday between 6:30 AM and 3:00 PM PST (English).
For Customer Care assistance in Spanish or Korean, representatives are available
Monday through Friday between 6:30 AM and 3:00 PM PST.
Hyundai_CE_en_US.book Page 18

2
2-19
Reporting Safety Defects
If you believe that your vehicle has a defect which could cause a crash or could
cause injury or death, you should immediately inform the National Highway
Traffic Safety Administration (NHTSA) in addition to notifying HYUNDAI MOTOR
AMERICA.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-9153);
go to http://www.safercar.gov;
download the SaferCar mobile application;
or write to:
Administrator, NHTSA1200 New Jersey Ave, SE,West Building Washington, D.C.
20590.
You can also obtain other information about motor vehicle safety from
http://www.safercar.gov.
If NHTSA receives similar complaints, it may open an investigation, and if it finds
that a safety defect exists in a group of vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot become involved in individual problems
between you, your dealer, or HYUNDAI MOTOR AMERICA.
Hyundai_CE_en_US.book Page 19

Vehicle Information, Consumer Information, and Reporting Safety Defects
2-20

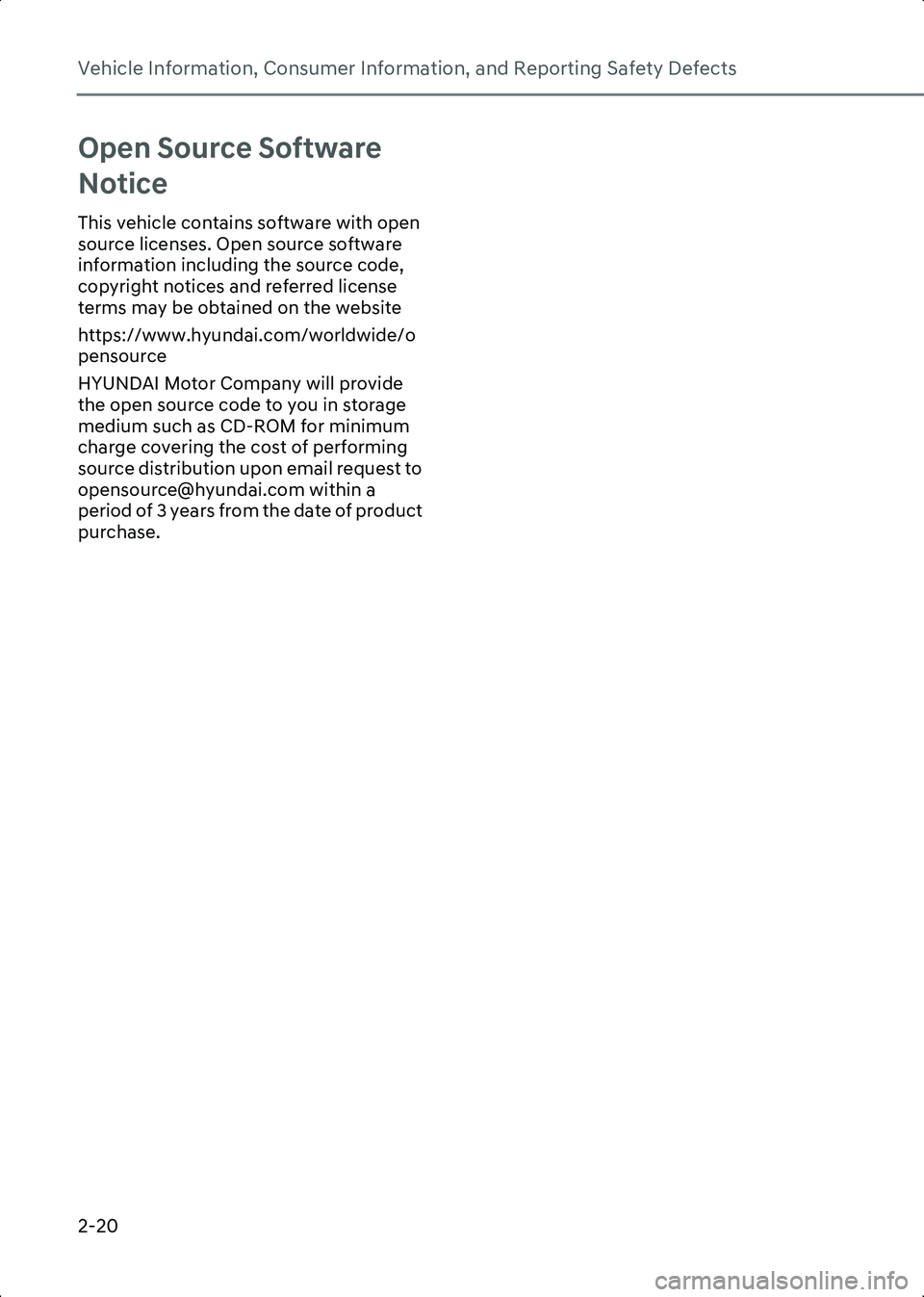

Open Source Software
Notice
This vehicle contains software with open
source licenses. Open source software
information including the source code,
copyright notices and referred license
terms may be obtained on the website
https://www.hyundai.com/worldwide/o
pensource
HYUNDAI Motor Company will provide
the open source code to you in storage
medium such as CD-ROM for minimum
charge covering the cost of performing
source distribution upon email request to
[email protected] within a
period of 3 years from the date of product
purchase.
Hyundai_CE_en_US.book Page 20

3

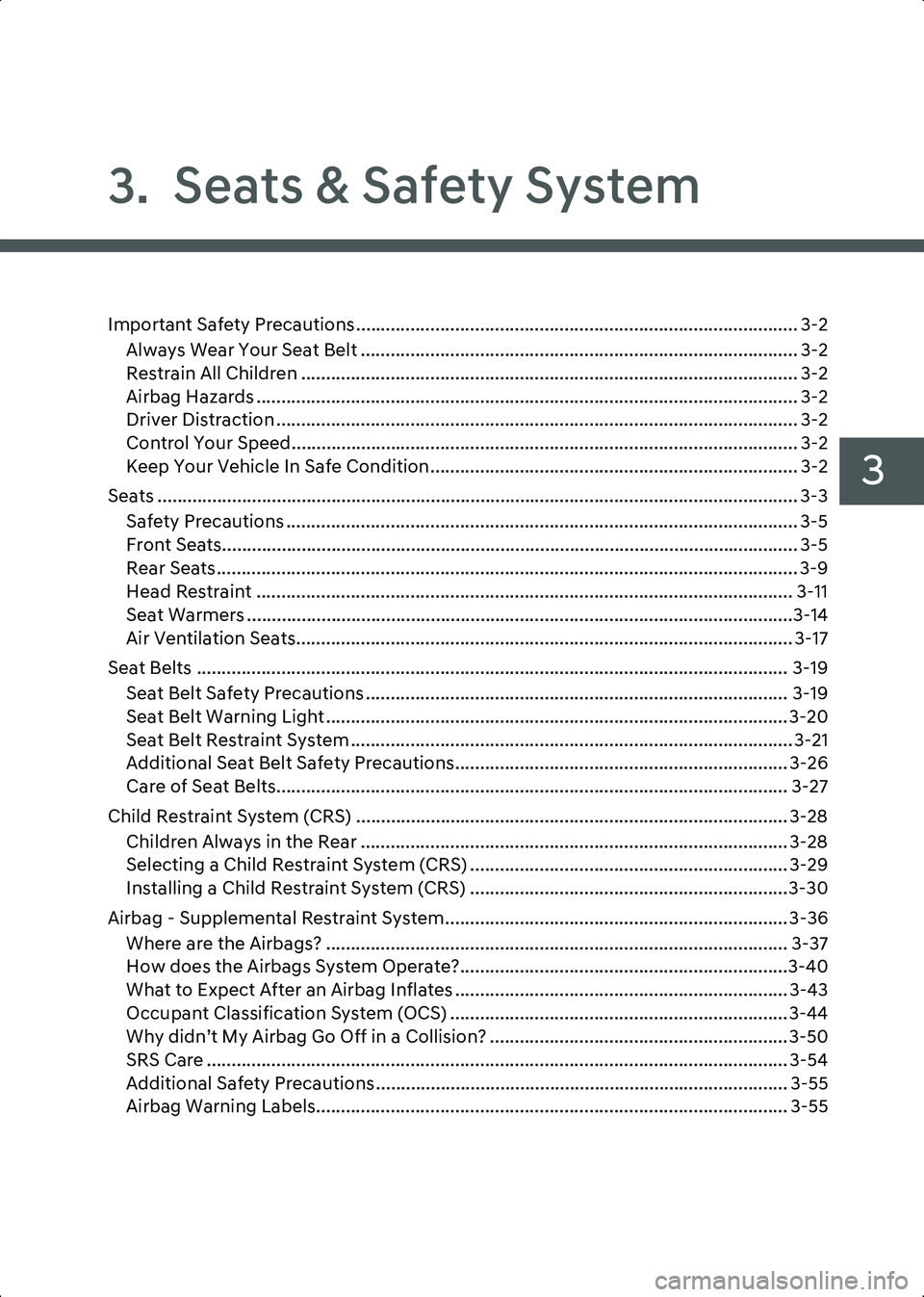

3. Seats & Safety System
Important Safety Precautions......................................................................................... 3-2Always Wear Your Seat Belt ........................................................................................ 3-2Restrain All Children .................................................................................................... 3-2
Airbag Hazards ............................................................................................................. 3-2
Driver Distraction ......................................................................................................... 3-2Control Your Speed...................................................................................................... 3-2Keep Your Vehicle In Safe Condition .......................................................................... 3-2
Seats ................................................................................................................................. 3-3 Safety Precautions ....................................................................................................... 3-5
Front Seats.................................................................................................................... 3-5Rear Seats ..................................................................................................................... 3-9
Head Restraint ............................................................................................................ 3-11
Seat Warmers ..............................................................................................................3-14
Air Ventilation Seats.................................................................................................... 3-17
Seat Belts ....................................................................................................................... 3-19 Seat Belt Safety Precautions ..................................................................................... 3-19
Seat Belt Warning Light ............................................................................................. 3-20
Seat Belt Restraint System ......................................................................................... 3-21
Additional Seat Belt Safety Precautions................................................................... 3-26
Care of Seat Belts....................................................................................................... 3-27
Child Restraint System (CRS) ....................................................................................... 3-28 Children Always in the Rear ...................................................................................... 3-28Selecting a Child Restraint System (CRS) ................................................................ 3-29
Installing a Child Restraint System (CRS) ................................................................3-30
Airbag - Supplemental Restraint System..................................................................... 3-36 Where are the Airbags? ............................................................................................. 3-37
How does the Airbags System Operate?..................................................................3-40
What to Expect After an Airbag Inflates ................................................................... 3-43
Occupant Classification System (OCS) .................................................................... 3-44
Why didn’t My Airbag Go Off in a Collision? ............................................................3-50
SRS Care ..................................................................................................................... 3-54
Additional Safety Precautions ................................................................................... 3-55
Airbag Warning Labels............................................................................................... 3-55
Hyundai_CE_en_US.book Page 1

Seats & Safety System
3-2
Important Safety
Precautions
You will find many safety precautions and
recommendations throughout this
section, and throughout this manual. The
safety precautions in this section are
among the most important.
Always Wear Your Seat Belt
A seat belt is your best protection in all
types of accidents. Airbags are designed
to supplement seat belts, not to replace
them. So even though your vehicle is
equipped with airbags, always make sure
you and your passengers wear your seat
belts, and wear them properly.
Restrain All Children
All children under age 13 should ride in
your vehicle properly restrained in a rear
seat, not the front seat. Infants and small
children should be restrained in an
appropriate child restraint system. Larger
children should use a booster seat with
the lap/shoulder belt until they can use
the seat belt properly without a booster
seat.
Airbag Hazards
While airbags can save lives, they can also
cause serious or fatal injuries to
occupants who sit too close to them, or
who are not properly restrained. Infants,
young children, and short adults are at the
greatest risk of being injured by an
inflating airbag. Follow all instructions
and warnings in this manual.
Driver Distraction
Driver distraction presents a serious and
potentially deadly danger, especially for
inexperienced drivers. Safety should be
the primary concern when behind the
wheel and drivers need to be aware of the wide array of potential distractions, such
as drowsiness, reaching for objects,
eating, personal grooming, other
passengers, and using mobile phones.
Drivers can become distracted when they
take their eyes and attention off the road
or their hands off the wheel to focus on
activities other than driving. To reduce
your risk of distraction and an accident:
• Set up your mobile devices (for
example, mp3 players, phones,
navigation units, etc.) only when your
vehicle is parked or safely stopped.
• Only use your mobile device when allowed by laws and conditions permit
safe use. Never text or email while
driving. Most countries have laws
prohibiting drivers from texting. Some
countries and cities also prohibit
drivers from using handheld phones.
• Never let the use of a mobile device distract you from driving. You have a
responsibility to your passengers and
others on the road to always drive
safely with your hands on the wheel as
well as your eyes and attention on the
road.
Control Your Speed
Excessive speed is a major factor in crash
injuries and deaths. Generally, the higher
the speed the greater the risk, but serious
injuries can also occur at lower speeds.
Never drive faster than is safe for current
conditions regardless of the maximum
speed posted.
Keep Your Vehicle In Safe
Condition
Having a tire blowout or a mechanical
failure can be extremely hazardous. To
reduce the possibility of such problems,
check your tire pressures and condition
frequently and perform all regularly
scheduled maintenance.
Hyundai_CE_en_US.book Page 2

3
3-3

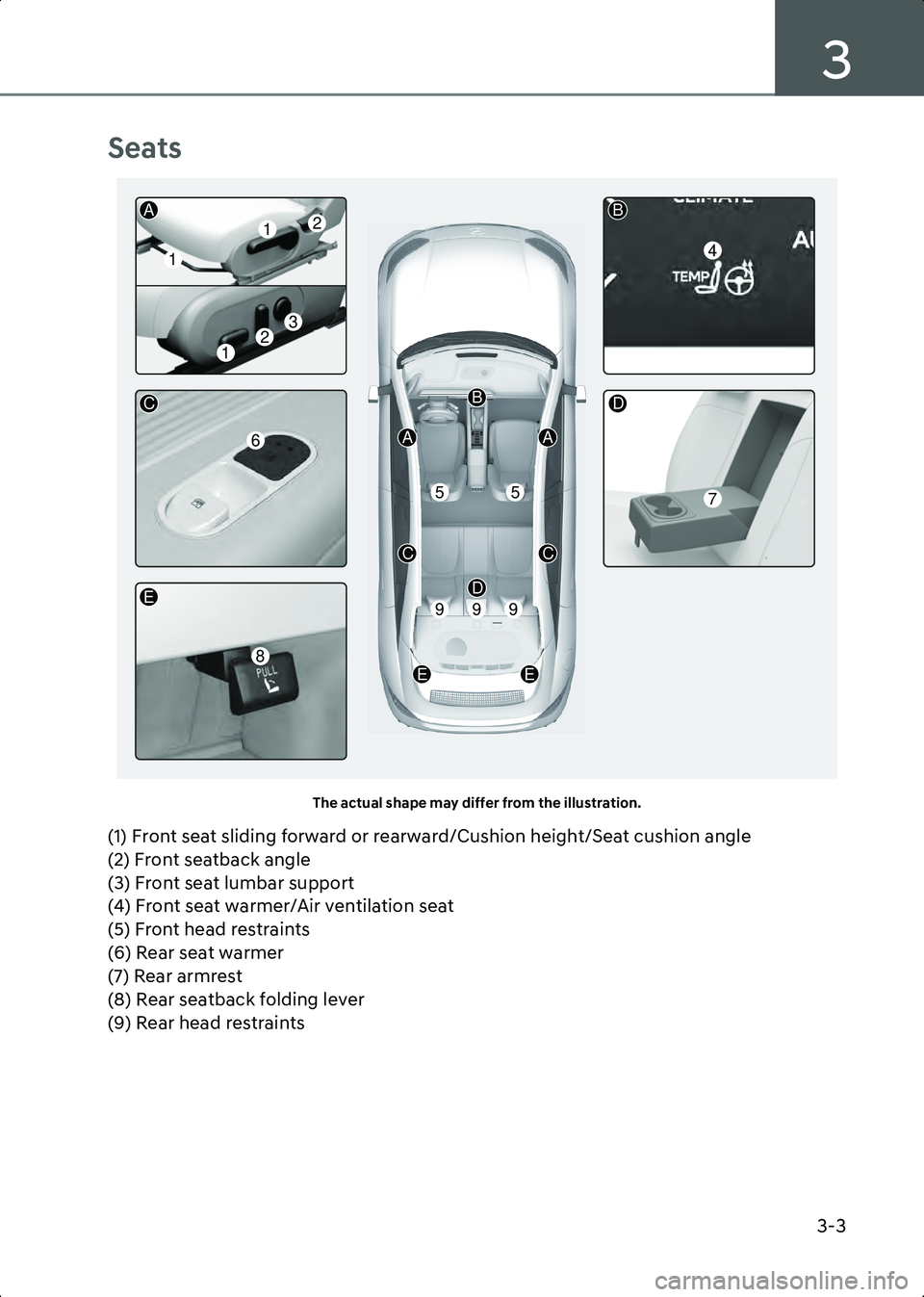

Seats
A3000101The actual shape may differ from the illustration.
(1) Front seat sliding forward or rearward/Cushion height/Seat cushion angle
(2) Front seatback angle
(3) Front seat lumbar support
(4) Front seat warmer/Air ventilation seat
(5) Front head restraints
(6) Rear seat warmer
(7) Rear armrest
(8) Rear seatback folding lever
(9) Rear head restraints
1
1
1
2
23
8
A
AA
CC
C
B
BD
E
EE
D
6
5
999
5
4
7
Hyundai_CE_en_US.book Page 3

Seats & Safety System
3-4
ONE1031077L
Infotainment system
Select Setup > Vehicle > Seat from the Settings menu in the infotainment system, you
may use various convenience functions.
• Seat Position Change Alert: When the seat position changes, details of the change are shown with a seat image.
• Heated/Ventilated Features - Auto. Controls That Use Climate Control Settings (for driver’s seat): The seat temperature is automatically controlled.
• Seating Easy Access - Driver Seat Easy Access: The distance (Normal/Extended/Off) the seat automatically moves when the driver enters or leaves the vehicle may be selected.
Information • The information provided may differ depending on which functions are applicable to your vehicle.
• The infotainment system may change after software updates. For more information, refer to the user's manual provided in the infotainment system and the quick reference guide.

Hyundai_CE_en_US.book Page 4

3
3-5
Safety Precautions
Adjusting the seats so that you are sitting
in a safe and comfortable position plays
an important role for the safety of the
driver and passengers as much as seat
belts and airbags when in an accident.
WARNING Do not use a cushion that reduces friction
between the seat and the passenger. The
passenger’s hips may slide under the lap
portion of the seat belt during an accident
or a sudden stop.
Serious or fatal internal injuries could
result because the seat belt cannot
operate properly.

Airbags
You can take steps to reduce the risk of
being injured by an inflating airbag.
Sitting too close to an airbag greatly
increases the risk of injury in the event the
airbag inflates. Move your seat as far back
as possible from front airbags while still
maintaining control of the vehicle.
WARNING To reduce the risk of serious injury or
death from an inflating airbag, take the
following precautions:
• Adjust the driver’s seat as far to the rear as possible while maintaining the ability
to control the vehicle.
• Adjust the front passenger seat as far to the rear as possible.
• Hold the steering wheel by the rim with your hands at the 9 o’clock and 3
o’clock positions to minimize the risk of
injuries to your hands and arms.
• NEVER place anything or anyone between you and the airbag.
• Do not allow the front passenger to place feet or legs on the dashboard to
minimize the risk of leg injuries.

Seat belts
Always fasten your seat belt before
starting any trip. At all times, passengers
should sit upright and be properly
restrained. Infants and small children
must be restrained in appropriate Child
Restraint Systems. Children who have
outgrown a booster seat and adults must
be restrained using the seat belts.
WARNING Take the following precautions when
adjusting your seat belt:
• NEVER use one seat belt for more than one occupant.
• Always position the seatback upright with the lap portion of the seat belt
snug and low across the hips.
• NEVER allow children or small infants, or pets to ride on a passenger’s lap.
• Do not route the seat belt across your neck, across sharp edges, or reroute
the shoulder strap away from your
body.
• Do not allow the seat belt to become caught or jammed.

Front Seats
WARNING Take the following precautions when
adjusting your seat:
• NEVER attempt to adjust the seat while the vehicle is moving. The seat could
respond with unexpected movement
and may cause loss of vehicle control
resulting in an accident.
• Do not place anything under the front seats. Loose objects in the driver’s foot
area could interfere with the operation
of the foot pedals, causing an accident.
Hyundai_CE_en_US.book Page 5

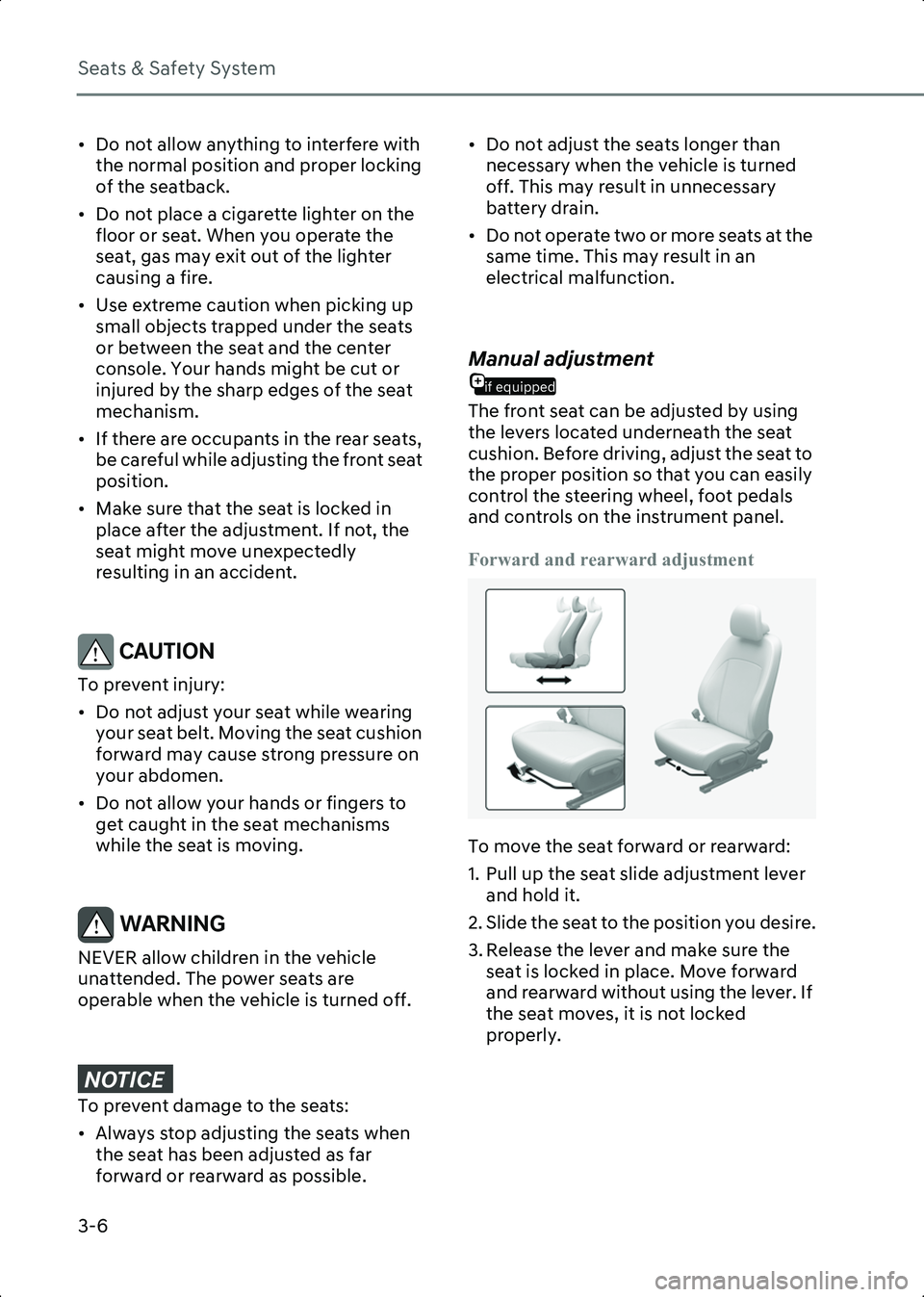

Seats & Safety System
3-6
• Do not allow anything to interfere with the normal position and proper locking
of the seatback.
• Do not place a cigarette lighter on the floor or seat. When you operate the
seat, gas may exit out of the lighter
causing a fire.
• Use extreme caution when picking up small objects trapped under the seats
or between the seat and the center
console. Your hands might be cut or
injured by the sharp edges of the seat
mechanism.
• If there are occupants in the rear seats, be careful while adjusting the front seat
position.
• Make sure that the seat is locked in place after the adjustment. If not, the
seat might move unexpectedly
resulting in an accident.

CAUTION To prevent injury:
• Do not adjust your seat while wearing your seat belt. Moving the seat cushion
forward may cause strong pressure on
your abdomen.
• Do not allow your hands or fingers to get caught in the seat mechanisms
while the seat is moving.

WARNING NEVER allow children in the vehicle
unattended. The power seats are
operable when the vehicle is turned off.

NOTICE7RSUHYHQWGDPDJHWRWKHVHDWV

[ $OZD\VVWRSDGMXVWLQJWKHVHDWVZKHQ WKHVHDWKDVEHHQDGMXVWHGDVIDU
IRUZDUGRUUHDUZDUGDVSRVVLEOH
[ 'RQRWDGMXVWWKHVHDWVORQJHUWKDQ
QHFHVVDU\ZKHQWKHYHKLFOHLVWXUQHG
RII7KLVPD\UHVXOWLQXQQHFHVVDU\
EDWWHU\GUDLQ

[ 'RQRWRSHUDWHWZRRUPRUHVHDWVDWWKH VDPHWLPH7KLVPD\UHVXOWLQDQ
HOHFWULFDOPDOIXQFWLRQ

if equipped
Manual adjustment
The front seat can be adjusted by using
the levers located underneath the seat
cushion. Before driving, adjust the seat to
the proper position so that you can easily
control the steering wheel, foot pedals
and controls on the instrument panel.
Forward and rearward adjustment
B3000201
To move the seat forward or rearward:
1. Pull up the seat slide adjustment lever and hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place. Move forward
and rearward without using the lever. If
the seat moves, it is not locked
properly.
Hyundai_CE_en_US.book Page 6
