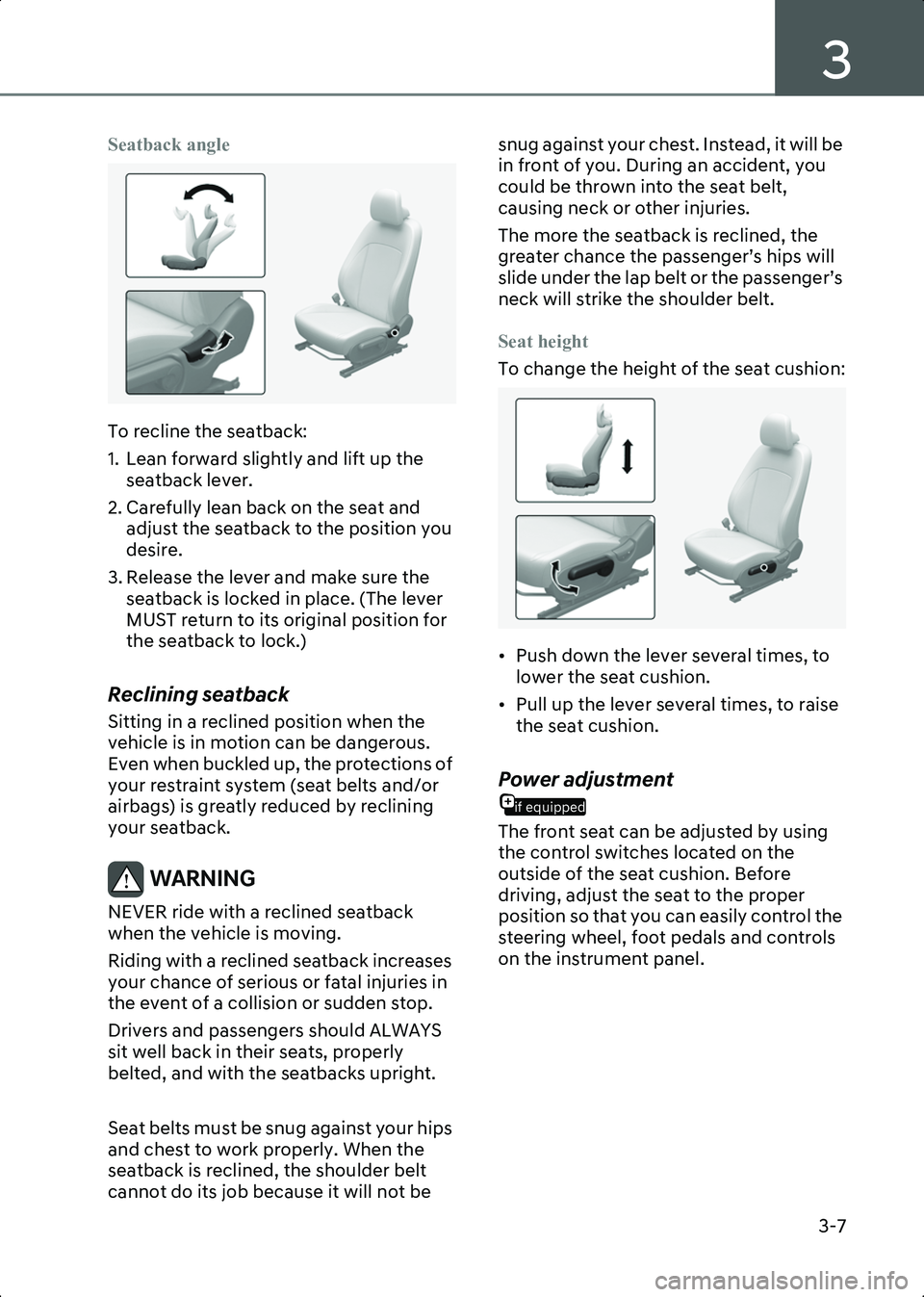

Page 101 of 582
3
3-7
Seatback angle
B3000202
To recline the seatback:
1. Lean forward slightly and lift up the seatback lever.
2. Carefully lean back on the seat and adjust the seatback to the position you
desire.
3. Release the lever and make sure the seatback is locked in place. (The lever
MUST return to its original position for
the seatback to lock.)
Reclining seatback
Sitting in a reclined position when the
vehicle is in motion can be dangerous.
Even when buckled up, the protections of
your restraint system (seat belts and/or
airbags) is greatly reduced by reclining
your seatback.
WARNING NEVER ride with a reclined seatback
when the vehicle is moving.
Riding with a reclined seatback increases
your chance of serious or fatal injuries in
the event of a collision or sudden stop.
Drivers and passengers should ALWAYS
sit well back in their seats, properly
belted, and with the seatbacks upright.
Seat belts must be snug against your hips
and chest to work properly. When the
seatback is reclined, the shoulder belt
cannot do its job because it will not be snug against your chest. Instead, it will be
in front of you. During an accident, you
could be thrown into the seat belt,
causing neck or other injuries.
The more the seatback is reclined, the
greater chance the passenger’s hips will
slide under the lap belt or the passenger’s
neck will strike the shoulder belt.
Seat height
To change the height of the seat cushion:
B3000203
• Push down the lever several times, to
lower the seat cushion.
• Pull up the lever several times, to raise the seat cushion.
if equipped
Power adjustment
The front seat can be adjusted by using
the control switches located on the
outside of the seat cushion. Before
driving, adjust the seat to the proper
position so that you can easily control the
steering wheel, foot pedals and controls
on the instrument panel.
Hyundai_CE_en_US.book Page 7

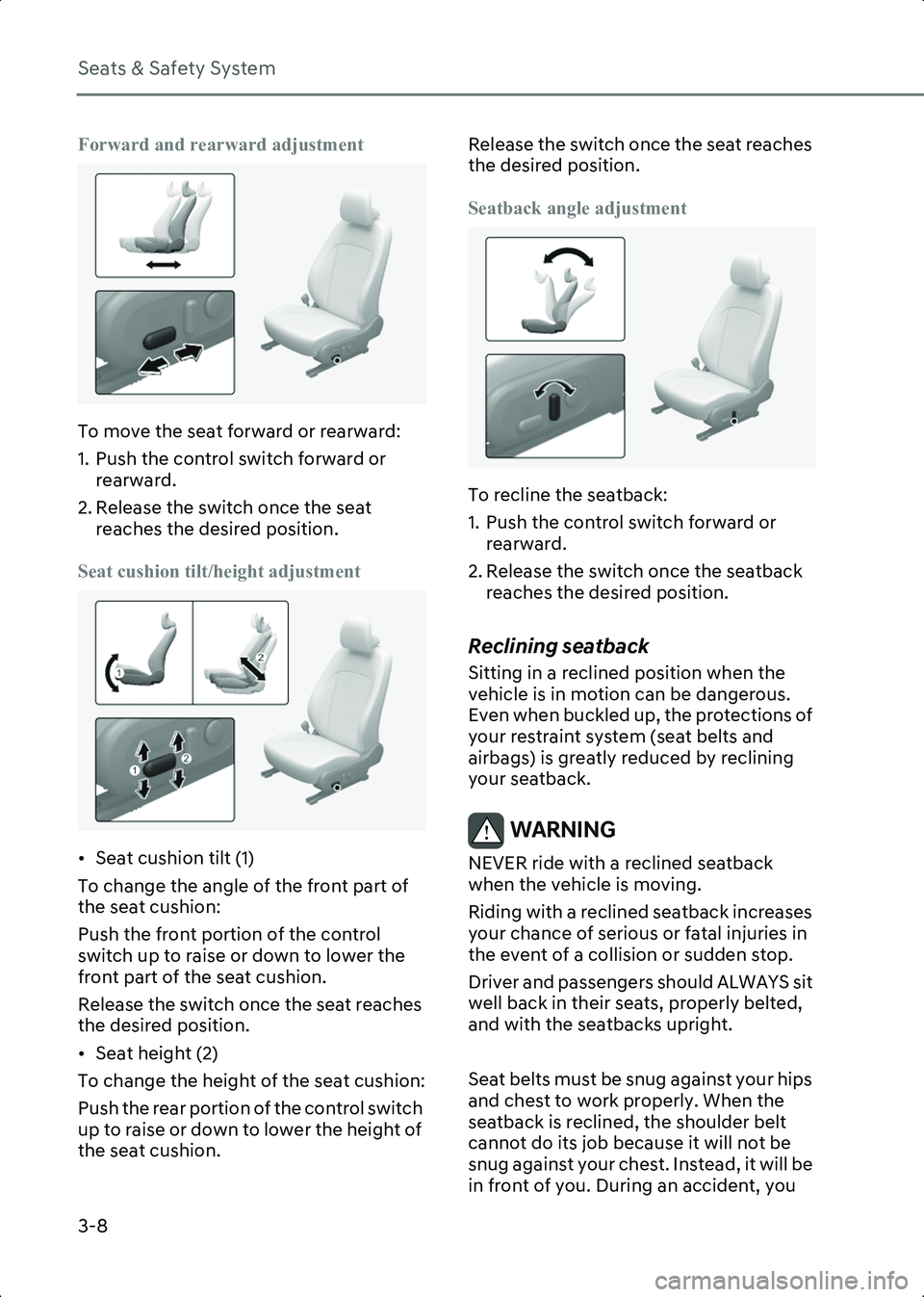

Page 102 of 582
Seats & Safety System
3-8
Forward and rearward adjustment
B3000204
To move the seat forward or rearward:
1. Push the control switch forward or rearward.
2. Release the switch once the seat reaches the desired position.
Seat cushion tilt/height adjustment
B3000206
• Seat cushion tilt (1)
To change the angle of the front part of
the seat cushion:
Push the front portion of the control
switch up to raise or down to lower the
front part of the seat cushion.
Release the switch once the seat reaches
the desired position.
• Seat height (2)
To change the height of the seat cushion:
Push the rear portion of the control switch
up to raise or down to lower the height of
the seat cushion. Release the switch once the seat reaches
the desired position.
Seatback angle adjustment
B3000205
To recline the seatback:
1. Push the control switch forward or
rearward.
2. Release the switch once the seatback reaches the desired position.
Reclining seatback
Sitting in a reclined position when the
vehicle is in motion can be dangerous.
Even when buckled up, the protections of
your restraint system (seat belts and
airbags) is greatly reduced by reclining
your seatback.
WARNING NEVER ride with a reclined seatback
when the vehicle is moving.
Riding with a reclined seatback increases
your chance of serious or fatal injuries in
the event of a collision or sudden stop.
Driver and passengers should ALWAYS sit
well back in their seats, properly belted,
and with the seatbacks upright.
Seat belts must be snug against your hips
and chest to work properly. When the
seatback is reclined, the shoulder belt
cannot do its job because it will not be
snug against your chest. Instead, it will be
in front of you. During an accident, you
Hyundai_CE_en_US.book Page 8

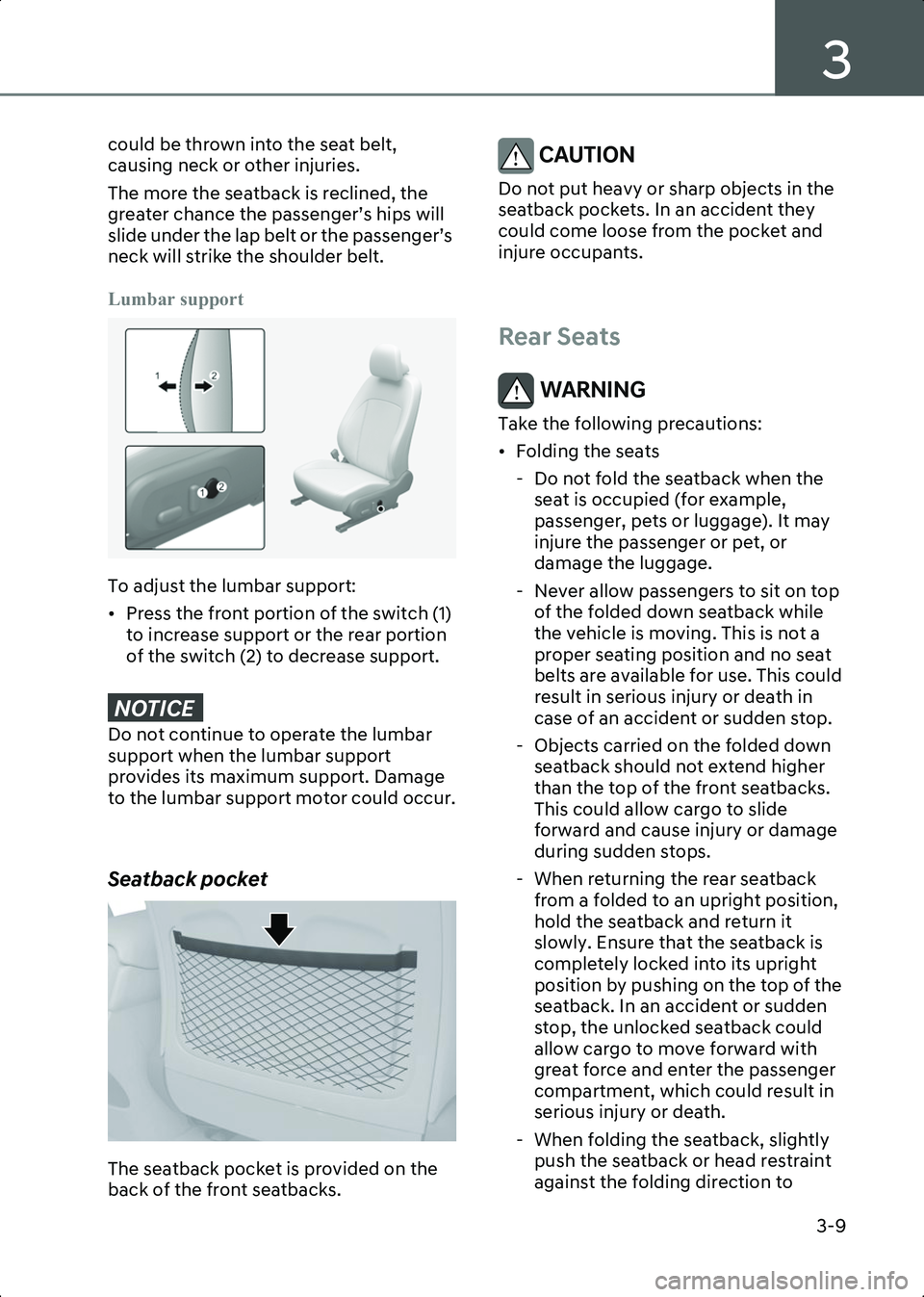

Page 103 of 582
3
3-9
could be thrown into the seat belt,
causing neck or other injuries.
The more the seatback is reclined, the
greater chance the passenger’s hips will
slide under the lap belt or the passenger’s
neck will strike the shoulder belt.
Lumbar support
B3000207
To adjust the lumbar support:
• Press the front portion of the switch (1) to increase support or the rear portion
of the switch (2) to decrease support.
NOTICE ' R Q R W F R Q W L Q X H W R R S H U D W H W K H O X P E D U
V X S S R U W Z K H Q W K H O X P E D U V X S S R U W
S U R Y L G H V L W V P D [ L P X P V X S S R U W ' D P D J H
W R W K H O X P E D U V X S S R U W P R W R U F R X O G R F F X U
Seatback pocket
B3000222
The seatback pocket is provided on the
back of the front seatbacks.
CAUTION Do not put heavy or sharp objects in the
seatback pockets. In an accident they
could come loose from the pocket and
injure occupants.
Rear Seats
WARNING Take the following precautions:
• Folding the seats
- Do not fold the seatback when the seat is occupied (for example,
passenger, pets or luggage). It may
injure the passenger or pet, or
damage the luggage.
- Never allow passengers to sit on top of the folded down seatback while
the vehicle is moving. This is not a
proper seating position and no seat
belts are available for use. This could
result in serious injury or death in
case of an accident or sudden stop.
- Objects carried on the folded down seatback should not extend higher
than the top of the front seatbacks.
This could allow cargo to slide
forward and cause injury or damage
during sudden stops.
- When returning the rear seatback from a folded to an upright position,
hold the seatback and return it
slowly. Ensure that the seatback is
completely locked into its upright
position by pushing on the top of the
seatback. In an accident or sudden
stop, the unlocked seatback could
allow cargo to move forward with
great force and enter the passenger
compartment, which could result in
serious injury or death.
- When folding the seatback, slightly push the seatback or head restraint
against the folding direction to
Hyundai_CE_en_US.book Page 9

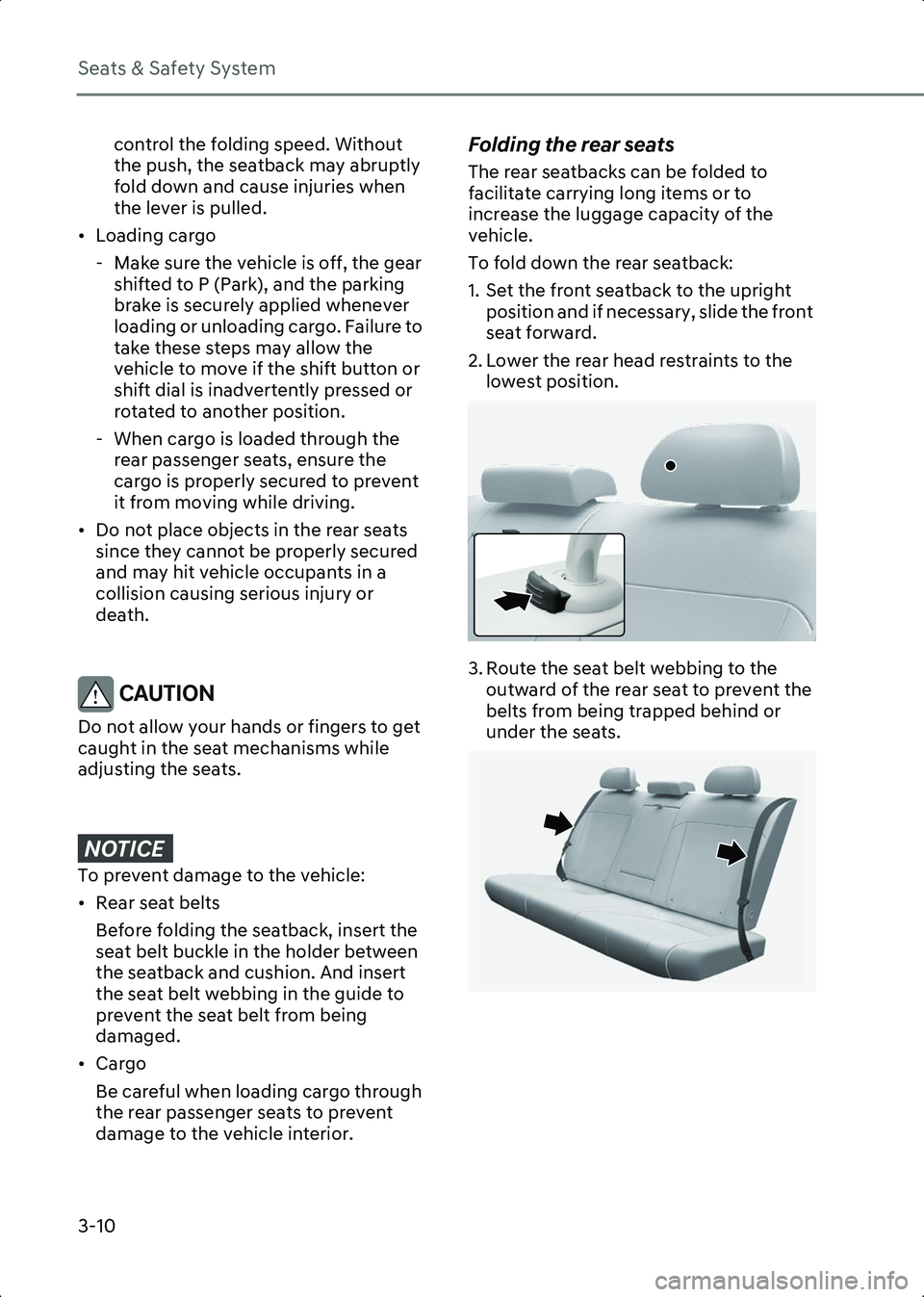

Page 104 of 582
Seats & Safety System
3-10
control the folding speed. Without
the push, the seatback may abruptly
fold down and cause injuries when
the lever is pulled.
• Loading cargo - Make sure the vehicle is off, the gear shifted to P (Park), and the parking
brake is securely applied whenever
loading or unloading cargo. Failure to
take these steps may allow the
vehicle to move if the shift button or
shift dial is inadvertently pressed or
rotated to another position.
- When cargo is loaded through the rear passenger seats, ensure the
cargo is properly secured to prevent
it from moving while driving.
• Do not place objects in the rear seats since they cannot be properly secured
and may hit vehicle occupants in a
collision causing serious injury or
death.
CAUTION Do not allow your hands or fingers to get
caught in the seat mechanisms while
adjusting the seats.
NOTICE 7 R S U H Y H Q W G D P D J H W R W K H Y H K L F O H
[ 5 H D U V H D W E H O W V % H I R U H I R O G L Q J W K H V H D W E D F N L Q V H U W W K H
V H D W E H O W E X F N O H L Q W K H K R O G H U E H W Z H H Q
W K H V H D W E D F N D Q G F X V K L R Q $ Q G L Q V H U W
W K H V H D W E H O W Z H E E L Q J L Q W K H J X L G H W R
S U H Y H Q W W K H V H D W E H O W I U R P E H L Q J
G D P D J H G
[ & D U J R % H F D U H I X O Z K H Q O R D G L Q J F D U J R W K U R X J K
W K H U H D U S D V V H Q J H U V H D W V W R S U H Y H Q W
G D P D J H W R W K H Y H K L F O H L Q W H U L R U
Folding the rear seats
The rear seatbacks can be folded to
facilitate carrying long items or to
increase the luggage capacity of the
vehicle.
To fold down the rear seatback:
1. Set the front seatback to the upright position and if necessary, slide the front
seat forward.
2. Lower the rear head restraints to the lowest position.
B3000301
3. Route the seat belt webbing to the outward of the rear seat to prevent the
belts from being trapped behind or
under the seats.
B3000302
Hyundai_CE_en_US.book Page 10

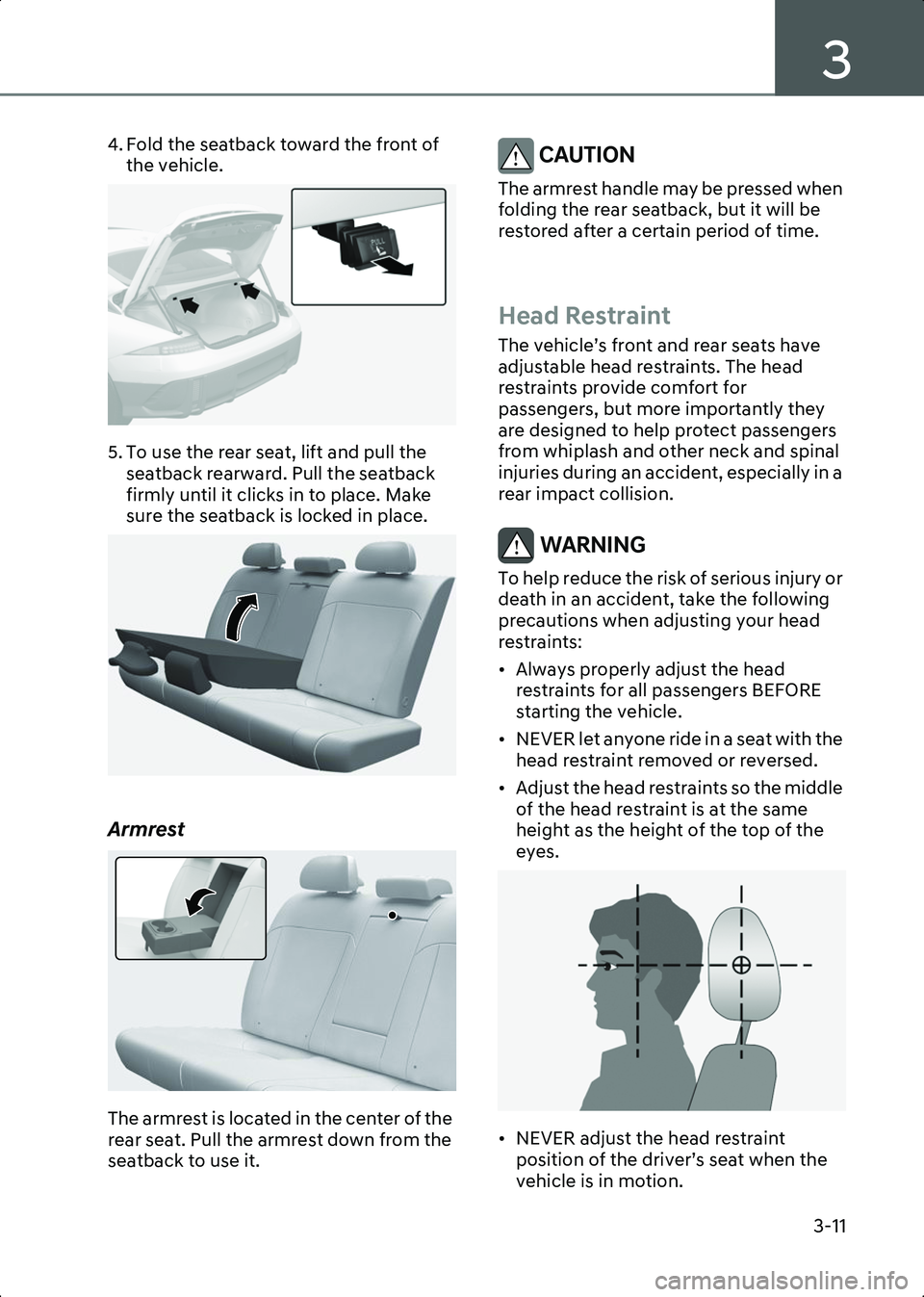

Page 105 of 582
3
3-11
4. Fold the seatback toward the front of the vehicle.
B3000303
5. To use the rear seat, lift and pull the seatback rearward. Pull the seatback
firmly until it clicks in to place. Make
sure the seatback is locked in place.
B3000305
Armrest
B3000311
The armrest is located in the center of the
rear seat. Pull the armrest down from the
seatback to use it.
CAUTION The armrest handle may be pressed when
folding the rear seatback, but it will be
restored after a certain period of time.
Head Restraint
The vehicle’s front and rear seats have
adjustable head restraints. The head
restraints provide comfort for
passengers, but more importantly they
are designed to help protect passengers
from whiplash and other neck and spinal
injuries during an accident, especially in a
rear impact collision.
WARNING To help reduce the risk of serious injury or
death in an accident, take the following
precautions when adjusting your head
restraints:
• Always properly adjust the head restraints for all passengers BEFORE
starting the vehicle.
• NEVER let anyone ride in a seat with the head restraint removed or reversed.
• Adjust the head restraints so the middle of the head restraint is at the same
height as the height of the top of the
eyes.
OHI039190N
• NEVER adjust the head restraint position of the driver’s seat when the
vehicle is in motion.
Hyundai_CE_en_US.book Page 11

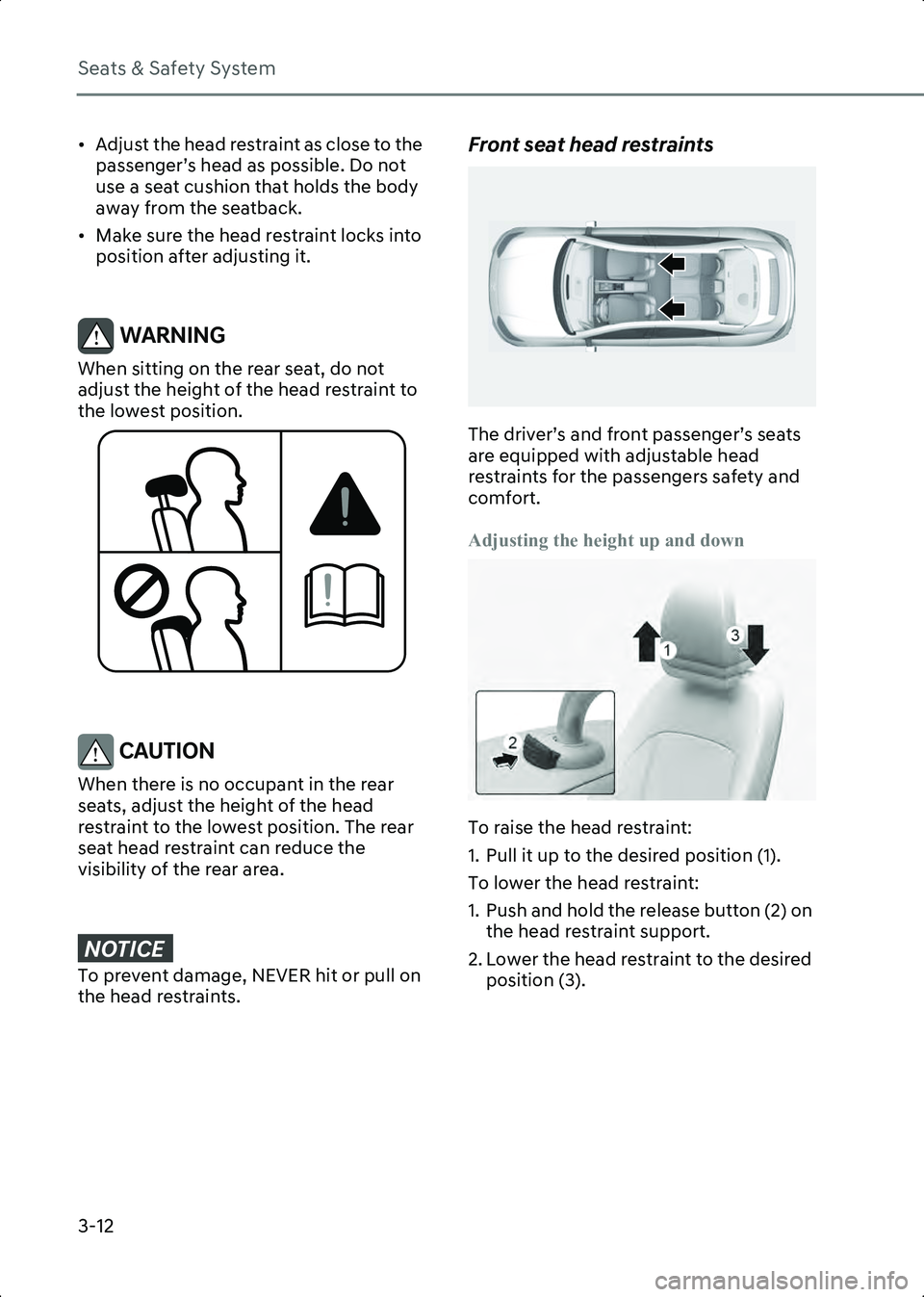

Page 106 of 582
Seats & Safety System
3-12
• Adjust the head restraint as close to the passenger’s head as possible. Do not
use a seat cushion that holds the body
away from the seatback.
• Make sure the head restraint locks into position after adjusting it.
WARNING When sitting on the rear seat, do not
adjust the height of the head restraint to
the lowest position.
B3000310
CAUTION When there is no occupant in the rear
seats, adjust the height of the head
restraint to the lowest position. The rear
seat head restraint can reduce the
visibility of the rear area.
NOTICE 7 R S U H Y H Q W G D P D J H 1 ( 9 ( 5 K L W R U S X O O R Q
W K H K H D G U H V W U D L Q W V
Front seat head restraints
B3000213
The driver’s and front passenger’s seats
are equipped with adjustable head
restraints for the passengers safety and
comfort.
Adjusting the height up and down
B3000216
To raise the head restraint:
1. Pull it up to the desired position (1).
To lower the head restraint:
1. Push and hold the release button (2) on the head restraint support.
2. Lower the head restraint to the desired position (3).
Hyundai_CE_en_US.book Page 12
Page 107 of 582
3
3-13

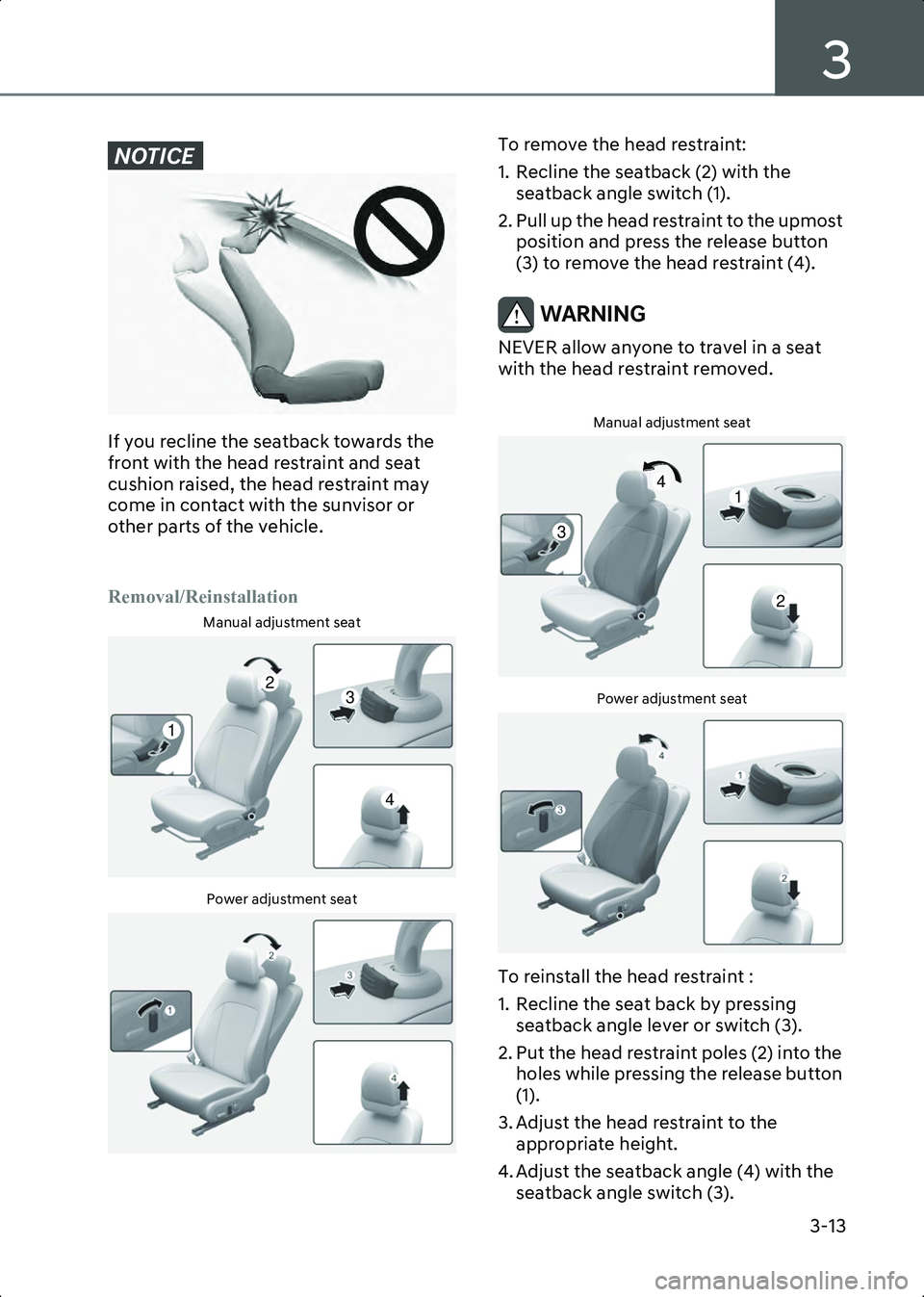

NOTICE
%
, I \ R X U H F O L Q H W K H V H D W E D F N W R Z D U G V W K H
I U R Q W Z L W K W K H K H D G U H V W U D L Q W D Q G V H D W
F X V K L R Q U D L V H G W K H K H D G U H V W U D L Q W P D \
F R P H L Q F R Q W D F W Z L W K W K H V X Q Y L V R U R U
R W K H U S D U W V R I W K H Y H K L F O H
Removal/Reinstallation
Manual adjustment seat
B3000217Power adjustment seat
B3000218
To remove the head restraint:
1. Recline the seatback (2) with the seatback angle switch (1).
2. Pull up the head restraint to the upmost position and press the release button
(3) to remove the head restraint (4).
WARNING NEVER allow anyone to travel in a seat
with the head restraint removed.
Manual adjustment seat
B3000219Power adjustment seat
B3000218_1
To reinstall the head restraint :
1. Recline the seat back by pressing seatback angle lever or switch (3).
2. Put the head restraint poles (2) into the holes while pressing the release button
(1).
3. Adjust the head restraint to the appropriate height.
4. Adjust the seatback angle (4) with the seatback angle switch (3).
1
23
4
3
1
2
4
Hyundai_CE_en_US.book Page 13
Page 108 of 582

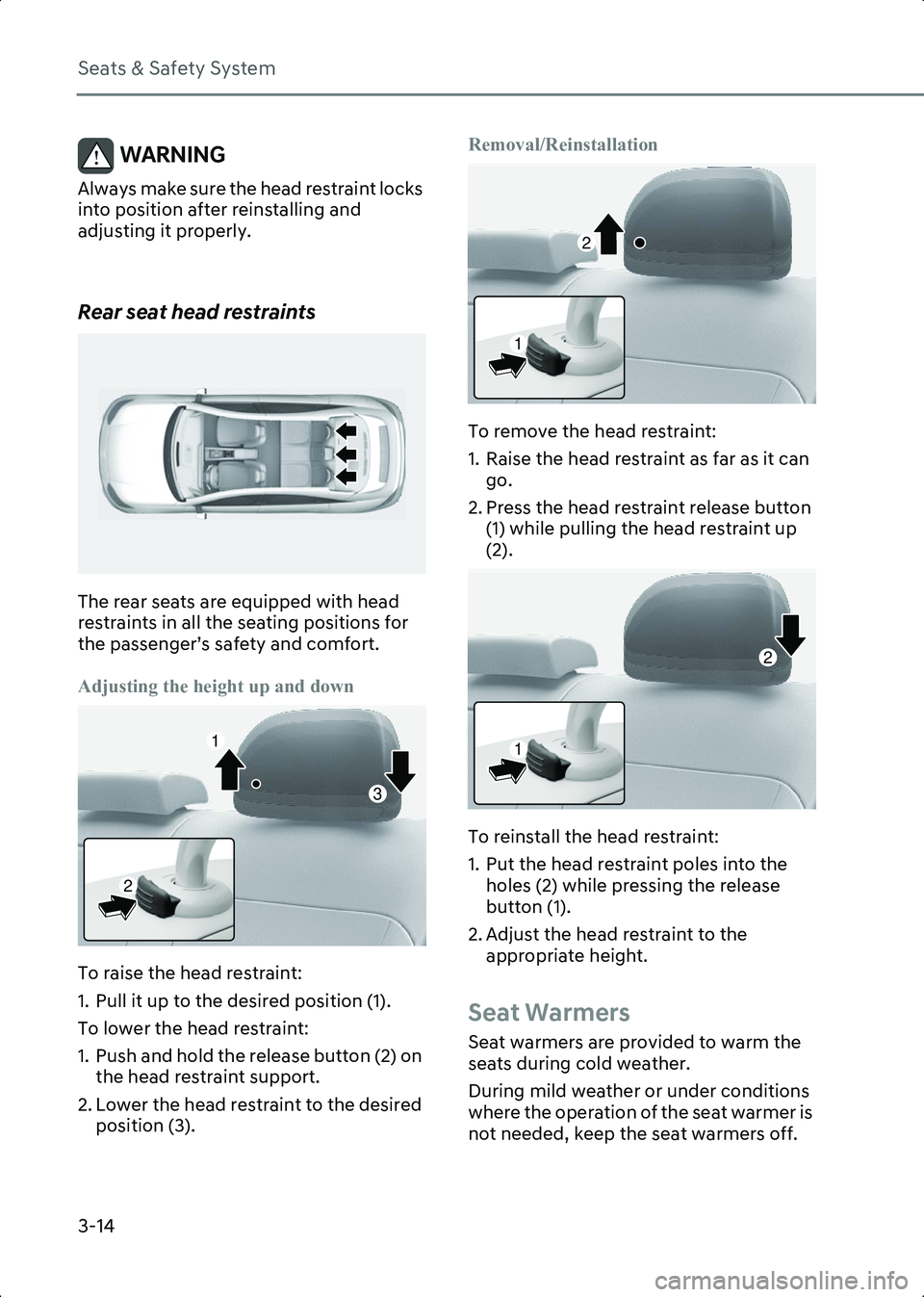

Seats & Safety System
3-14
WARNING Always make sure the head restraint locks
into position after reinstalling and
adjusting it properly.
Rear seat head restraints
B3000306
The rear seats are equipped with head
restraints in all the seating positions for
the passenger’s safety and comfort.
Adjusting the height up and down
B3000307
To raise the head restraint:
1. Pull it up to the desired position (1).
To lower the head restraint:
1. Push and hold the release button (2) on the head restraint support.
2. Lower the head restraint to the desired position (3). Removal/Reinstallation
B3000308
To remove the head restraint:
1. Raise the head restraint as far as it can
go.
2. Press the head restraint release button (1) while pulling the head restraint up
(2).
B3000309
To reinstall the head restraint:
1. Put the head restraint poles into the holes (2) while pressing the release
button (1).
2. Adjust the head restraint to the appropriate height.
Seat Warmers
Seat warmers are provided to warm the
seats during cold weather.
During mild weather or under conditions
where the operation of the seat warmer is
not needed, keep the seat warmers off.
2
3
1
1
2
1
2
Hyundai_CE_en_US.book Page 14
Page 109 of 582
3

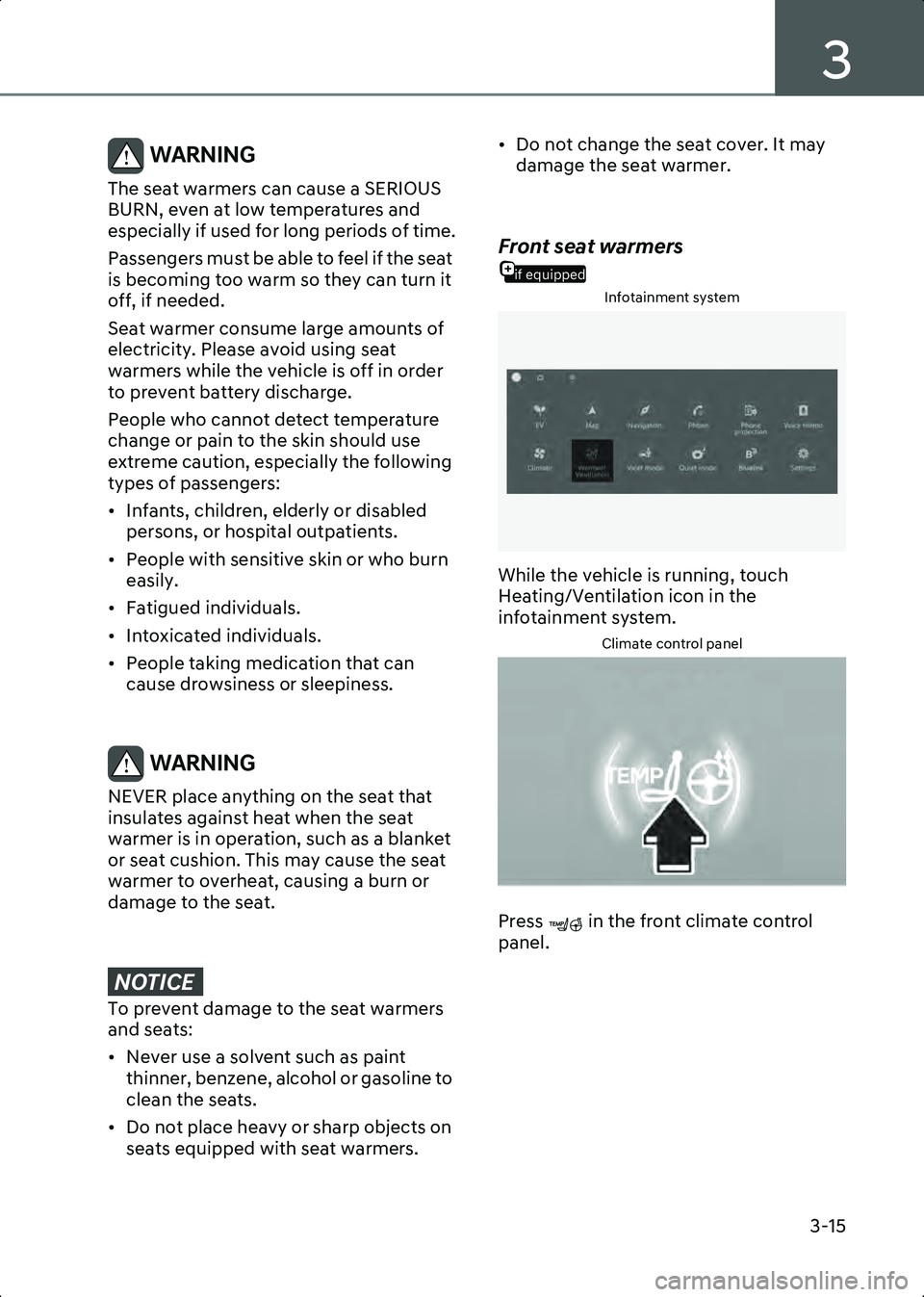

3-15
WARNING The seat warmers can cause a SERIOUS
BURN, even at low temperatures and
especially if used for long periods of time.
Passengers must be able to feel if the seat
is becoming too warm so they can turn it
off, if needed.
Seat warmer consume large amounts of
electricity. Please avoid using seat
warmers while the vehicle is off in order
to prevent battery discharge.
People who cannot detect temperature
change or pain to the skin should use
extreme caution, especially the following
types of passengers:
• Infants, children, elderly or disabled persons, or hospital outpatients.
• People with sensitive skin or who burn easily.
• Fatigued individuals.
• Intoxicated individuals.
• People taking medication that can cause drowsiness or sleepiness.
WARNING NEVER place anything on the seat that
insulates against heat when the seat
warmer is in operation, such as a blanket
or seat cushion. This may cause the seat
warmer to overheat, causing a burn or
damage to the seat.
NOTICE 7 R S U H Y H Q W G D P D J H W R W K H V H D W Z D U P H U V
D Q G V H D W V
[ 1 H Y H U X V H D V R O Y H Q W V X F K D V S D L Q W W K L Q Q H U E H Q ] H Q H D O F R K R O R U J D V R O L Q H W R
F O H D Q W K H V H D W V
[ ' R Q R W S O D F H K H D Y \ R U V K D U S R E M H F W V R Q V H D W V H T X L S S H G Z L W K V H D W Z D U P H U V [ ' R Q R W F K D Q J H W K H V H D W F R Y H U , W P D \
G D P D J H W K H V H D W Z D U P H U
if equipped
Front seat warmers
Infotainment system
ONE1031085L
While the vehicle is running, touch
Heating/Ventilation icon in the
infotainment system.
Climate control panel
B3000602
Press in the front climate control
panel.
Hyundai_CE_en_US.book Page 15
Page 110 of 582
Seats & Safety System
3-16

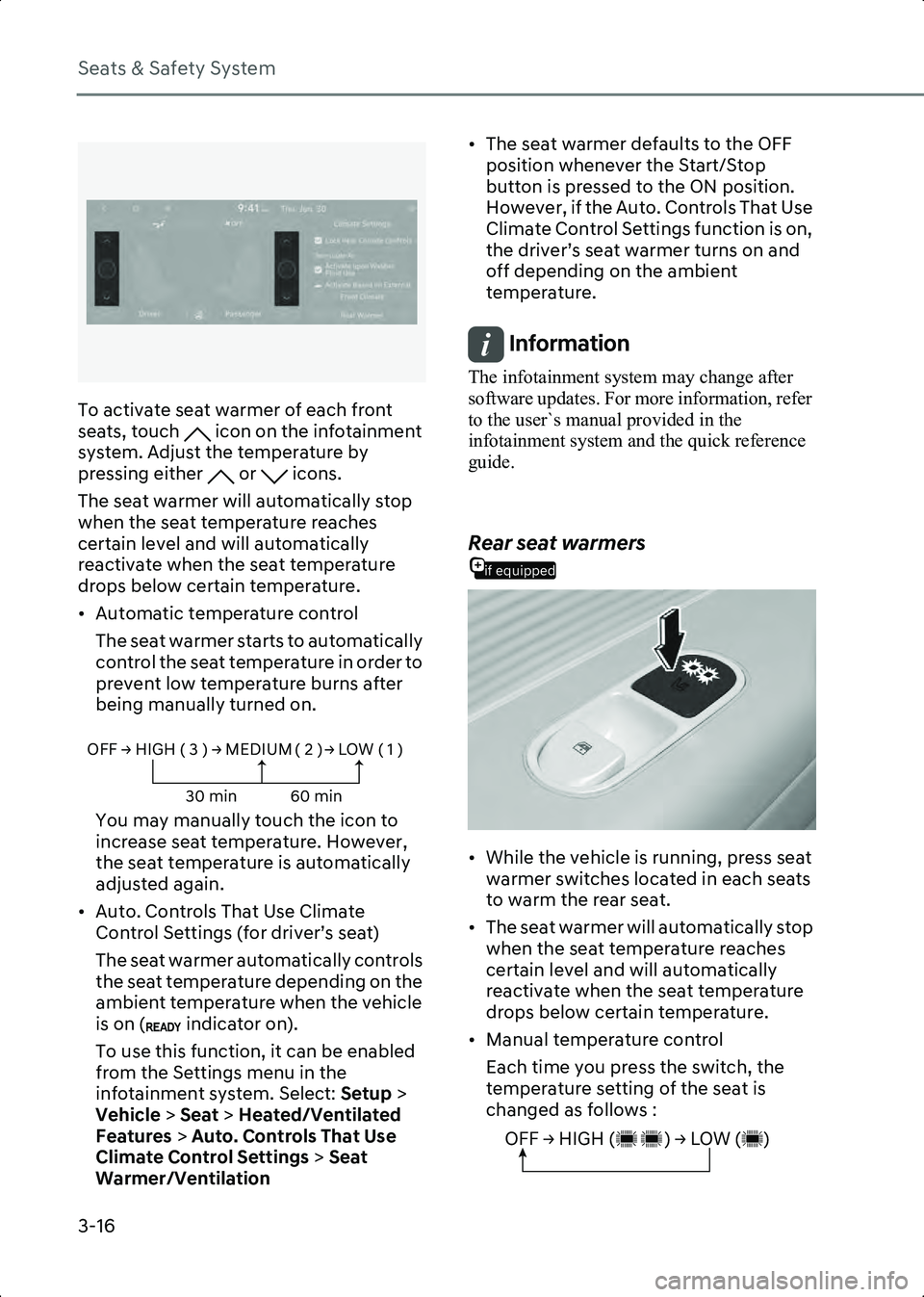

ONE1031080L
To activate seat warmer of each front
seats, touch icon on the infotainment
system. Adjust the temperature by
pressing either or icons.
The seat warmer will automatically stop
when the seat temperature reaches
certain level and will automatically
reactivate when the seat temperature
drops below certain temperature.
• Automatic temperature controlThe seat warmer starts to automatically
control the seat temperature in order to
prevent low temperature burns after
being manually turned on.
You may manually touch the icon to
increase seat temperature. However,
the seat temperature is automatically
adjusted again.
• Auto. Controls That Use Climate Control Settings (for driver’s seat)
The seat warmer automatically controls
the seat temperature depending on the
ambient temperature when the vehicle
is on ( indicator on).
To use this function, it can be enabled
from the Settings menu in the
infotainment system. Select: Setup >
Vehicle > Seat > Heated/Ventilated
Features > Auto. Controls That Use
Climate Control Settings > Seat
Warmer/Ventilation • The seat warmer defaults to the OFF
position whenever the Start/Stop
button is pressed to the ON position.
However, if the Auto. Controls That Use
Climate Control Settings function is on,
the driver’s seat warmer turns on and
off depending on the ambient
temperature.
Information The infotainment system may change after
software updates. For more information, refer
to the user`s manual provided in the
infotainment system and the quick reference
guide.
if equipped
Rear seat warmers
B3000604
• While the vehicle is running, press seat warmer switches located in each seats
to warm the rear seat.
• The seat warmer will automatically stop when the seat temperature reaches
certain level and will automatically
reactivate when the seat temperature
drops below certain temperature.
• Manual temperature control Each time you press the switch, the
temperature setting of the seat is
changed as follows :
OFF → HIGH ( 3 ) → MEDIUM ( 2 ) → LOW ( 1 )
30 min 60 min
OFF → HIGH ( ) → LOW ( )
Hyundai_CE_en_US.book Page 16
