1
1-55

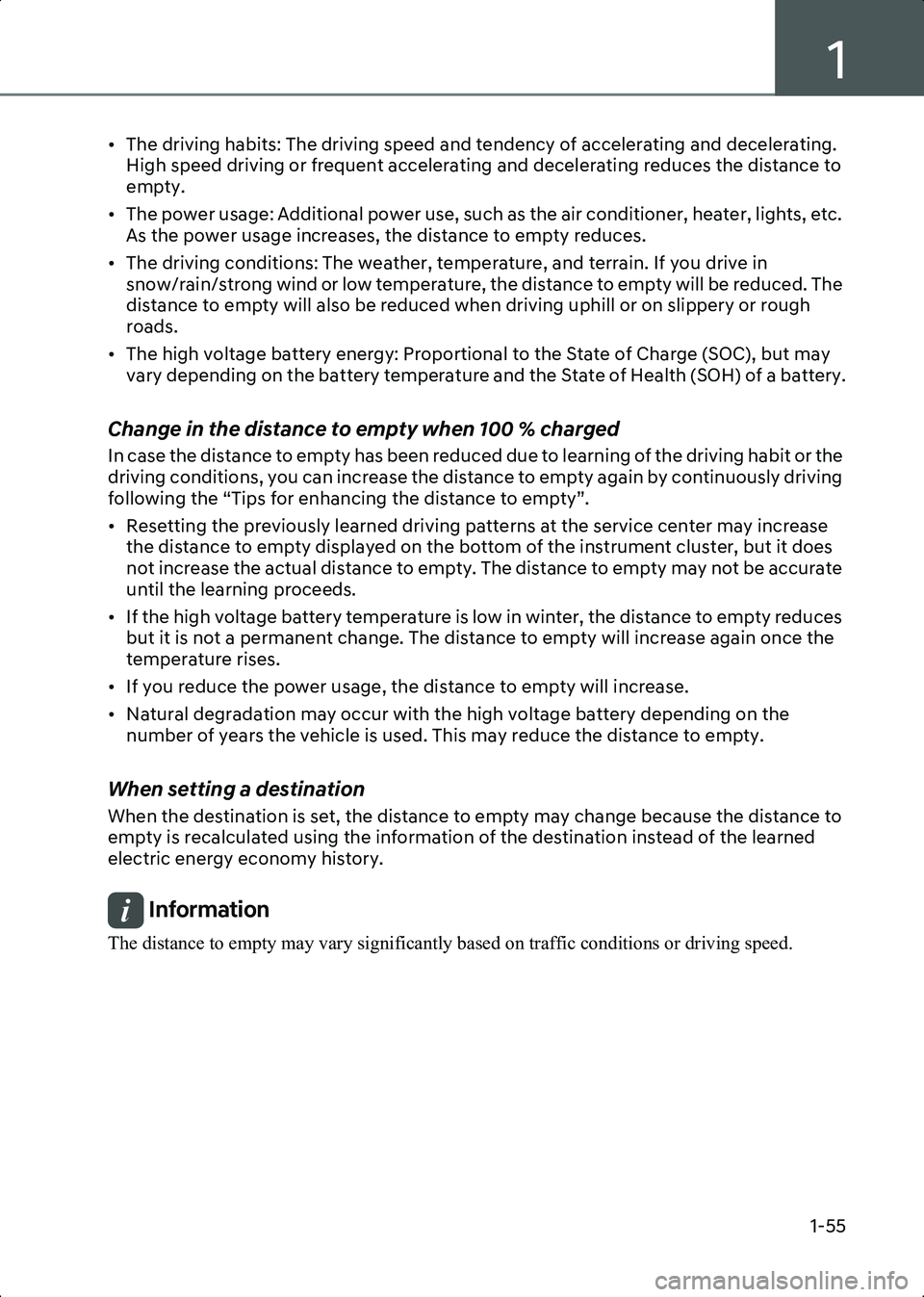

• The driving habits: The driving speed and tendency of accelerating and decelerating. High speed driving or frequent accelerating and decelerating reduces the distance to
empty.
• The power usage: Additional power use, such as the air conditioner, heater, lights, etc. As the power usage increases, the distance to empty reduces.
• The driving conditions: The weather, temperature, and terrain. If you drive in snow/rain/strong wind or low temperature, the distance to empty will be reduced. The
distance to empty will also be reduced when driving uphill or on slippery or rough
roads.
• The high voltage battery energy: Proportional to the State of Charge (SOC), but may vary depending on the battery temperature and the State of Health (SOH) of a battery.
Change in the distance to empty when 100 % charged
In case the distance to empty has been reduced due to learning of the driving habit or the
driving conditions, you can increase the distance to empty again by continuously driving
following the “Tips for enhancing the distance to empty”.
• Resetting the previously learned driving patterns at the service center may increase the distance to empty displayed on the bottom of the instrument cluster, but it does
not increase the actual distance to empty. The distance to empty may not be accurate
until the learning proceeds.
• If the high voltage battery temperature is low in winter, the distance to empty reduces but it is not a permanent change. The distance to empty will increase again once the
temperature rises.
• If you reduce the power usage, the distance to empty will increase.
• Natural degradation may occur with the high voltage battery depending on the number of years the vehicle is used. This may reduce the distance to empty.
When setting a destination
When the destination is set, the distance to empty may change because the distance to
empty is recalculated using the information of the destination instead of the learned
electric energy economy history.
Information The distance to empty may vary significantly based on traffic conditions or driving speed.
Hyundai_CE_en_US.book Page 55
Page 62 of 582
Introduction/Getting Started with Your Electric Vehicle
1-56

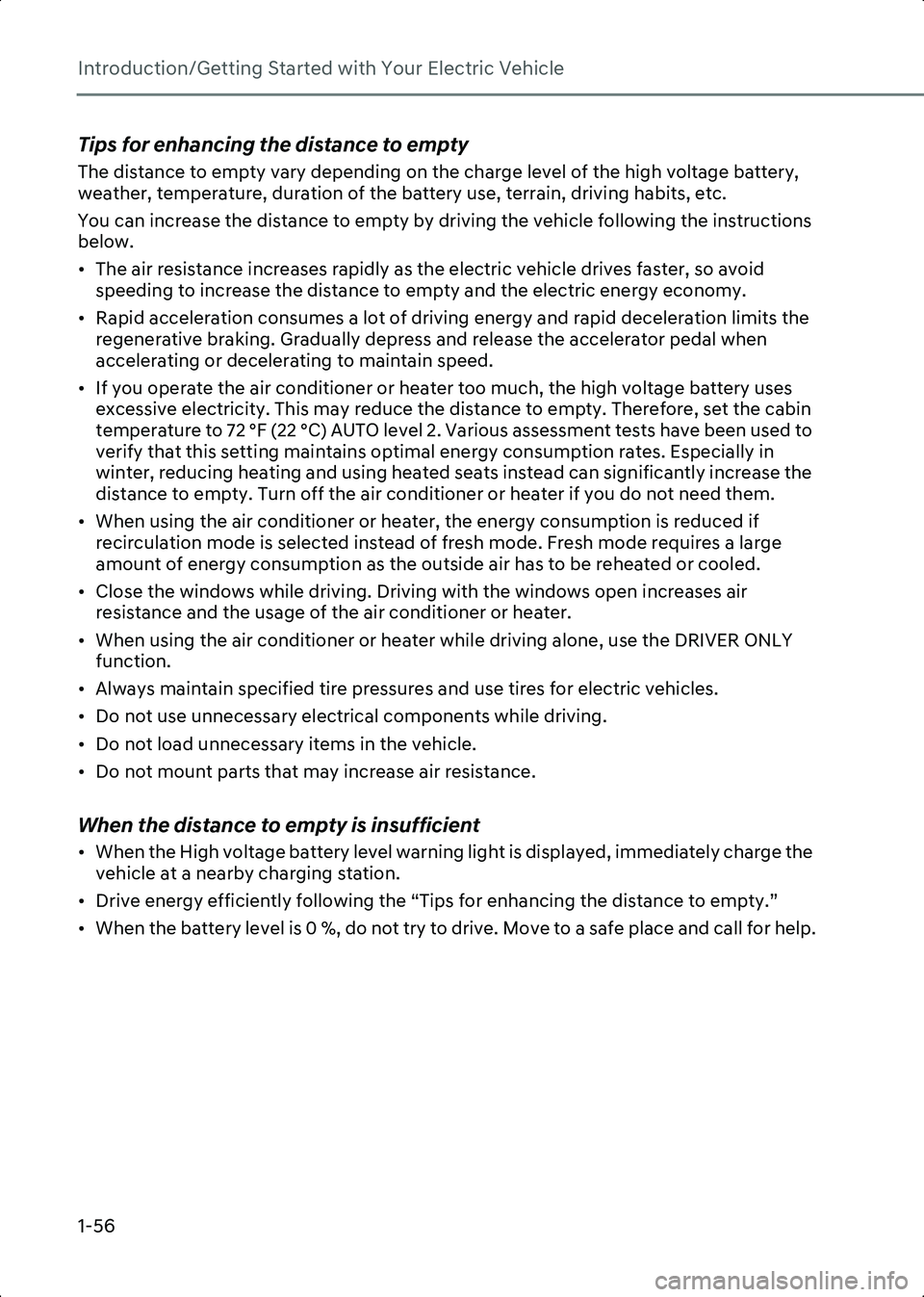

Tips for enhancing the distance to empty
The distance to empty vary depending on the charge level of the high voltage battery,
weather, temperature, duration of the battery use, terrain, driving habits, etc.
You can increase the distance to empty by driving the vehicle following the instructions
below.
• The air resistance increases rapidly as the electric vehicle drives faster, so avoid speeding to increase the distance to empty and the electric energy economy.
• Rapid acceleration consumes a lot of driving energy and rapid deceleration limits the regenerative braking. Gradually depress and release the accelerator pedal when
accelerating or decelerating to maintain speed.
• If you operate the air conditioner or heater too much, the high voltage battery uses excessive electricity. This may reduce the distance to empty. Therefore, set the cabin
temperature to 72 °F (22 °C) AUTO level 2. Various assessment tests have been used to
verify that this setting maintains optimal energy consumption rates. Especially in
winter, reducing heating and using heated seats instead can significantly increase the
distance to empty. Turn off the air conditioner or heater if you do not need them.
• When using the air conditioner or heater, the energy consumption is reduced if recirculation mode is selected instead of fresh mode. Fresh mode requires a large
amount of energy consumption as the outside air has to be reheated or cooled.
• Close the windows while driving. Driving with the windows open increases air resistance and the usage of the air conditioner or heater.
• When using the air conditioner or heater while driving alone, use the DRIVER ONLY function.
• Always maintain specified tire pressures and use tires for electric vehicles.
• Do not use unnecessary electrical components while driving.
• Do not load unnecessary items in the vehicle.
• Do not mount parts that may increase air resistance.
When the distance to empty is insufficient
• When the High voltage battery level warning light is displayed, immediately charge the vehicle at a nearby charging station.
• Drive energy efficiently following the “Tips for enhancing the distance to empty.”
• When the battery level is 0 %, do not try to drive. Move to a safe place and call for help.
Hyundai_CE_en_US.book Page 56
Page 63 of 582
1
1-57
Checking the real time energy status (CHARGE/POWER gauge)
The CHARGE/POWER gauge displays the charging and discharging status of the electric
energy produced by the regenerative braking and the energy consumption of the electric
motor.
B0002902
•CHARGE : Shows the charging status of the electric motor when vehicle is decelerating
or driving on a downhill road (being charged by the regenerative brakes). The more
electric energy is charged, the lower the gauge level.
• POWER : Shows discharging status of the electric motor when vehicle is accelerating or
driving on an uphill road. The more electric energy is discharged (used), the higher the
gauge level.
Checking the State of Charge (SOC)
The SOC indicator is displayed at the bottom of the CHARGE/POWER gauge and shows
the charge level of the high voltage battery as a percentage. The lower the number, the
more the vehicle needs to be charged, and 100 % indicates a full charge.
B0002903
Hyundai_CE_en_US.book Page 57
Page 64 of 582
Introduction/Getting Started with Your Electric Vehicle
1-58

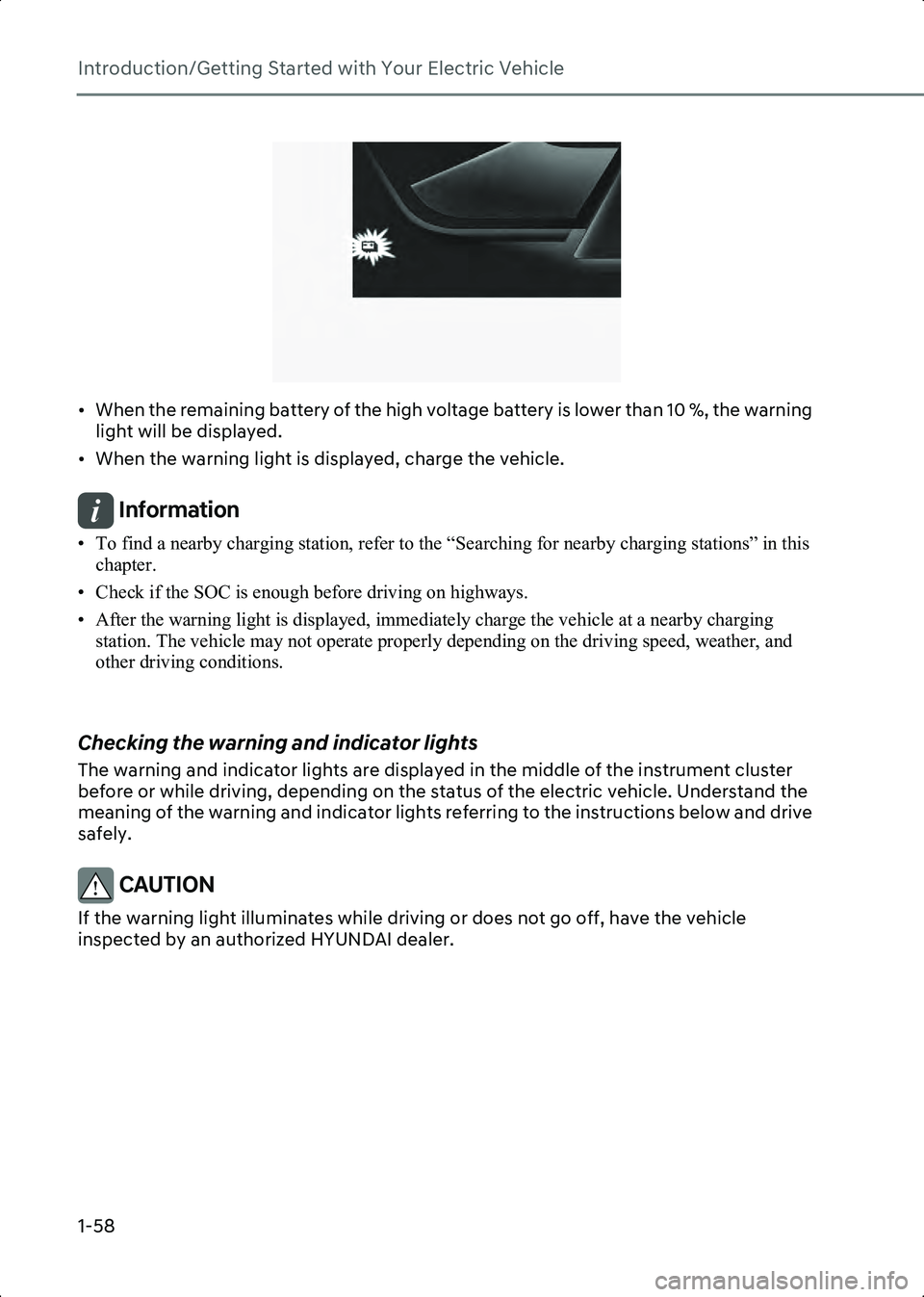

B0002904
• When the remaining battery of the high voltage battery is lower than 10 %, the warning light will be displayed.
• When the warning light is displayed, charge the vehicle.
Information • To find a nearby charging station, refer to the “Searching for nearby charging stations” in this chapter.
• Check if the SOC is enough before driving on highways.
• After the warning light is displayed, immediately charge the vehicle at a nearby charging station. The vehicle may not operate properly depending on the driving speed, weather, and
other driving conditions.
Checking the warning and indicator lights
The warning and indicator lights are displayed in the middle of the instrument cluster
before or while driving, depending on the status of the electric vehicle. Understand the
meaning of the warning and indicator lights referring to the instructions below and drive
safely.
CAUTION If the warning light illuminates while driving or does not go off, have the vehicle
inspected by an authorized HYUNDAI dealer.
Hyundai_CE_en_US.book Page 58
Page 65 of 582
1
1-59

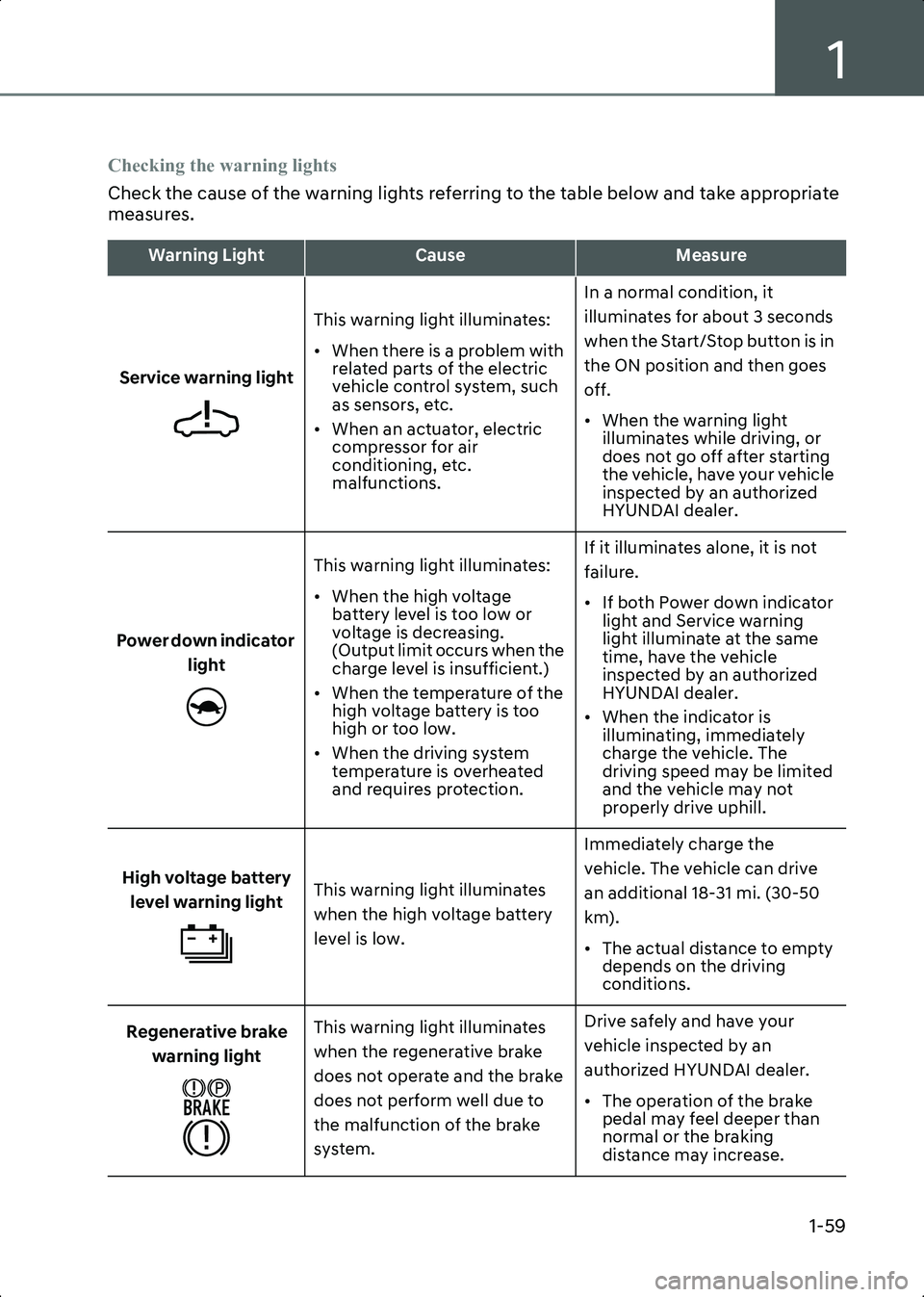

Checking the warning lights
Check the cause of the warning lights referring to the table below and take appropriate
measures.
Warning LightCauseMeasure
Service warning light This warning light illuminates:
• When there is a problem with
related parts of the electric
vehicle control system, such
as sensors, etc.
• When an actuator, electric compressor for air
conditioning, etc.
malfunctions. In a normal condition, it
illuminates for about 3 seconds
when the Start/Stop button is in
the ON position and then goes
off.
• When the warning light
illuminates while driving, or
does not go off after starting
the vehicle, have your vehicle
inspected by an authorized
HYUNDAI dealer.
Power down indicator light This warning light illuminates:
• When the high voltage
battery level is too low or
voltage is decreasing.
(Output limit occurs when the
charge level is insufficient.)
• When the temperature of the high voltage battery is too
high or too low.
• When the driving system temperature is overheated
and requires protection. If it illuminates alone, it is not
failure.
• If both Power down indicator
light and Service warning
light illuminate at the same
time, have the vehicle
inspected by an authorized
HYUNDAI dealer.
• When the indicator is illuminating, immediately
charge the vehicle. The
driving speed may be limited
and the vehicle may not
properly drive uphill.
High voltage battery level warning light This warning light illuminates
when the high voltage battery
level is low. Immediately charge the
vehicle. The vehicle can drive
an additional 18-31 mi. (30-50
km).
• The actual distance to empty
depends on the driving
conditions.
Regenerative brake warning light This warning light illuminates
when the regenerative brake
does not operate and the brake
does not perform well due to
the malfunction of the brake
system. Drive safely and have your
vehicle inspected by an
authorized HYUNDAI dealer.
• The operation of the brake
pedal may feel deeper than
normal or the braking
distance may increase.
Hyundai_CE_en_US.book Page 59
Page 66 of 582
Introduction/Getting Started with Your Electric Vehicle
1-60

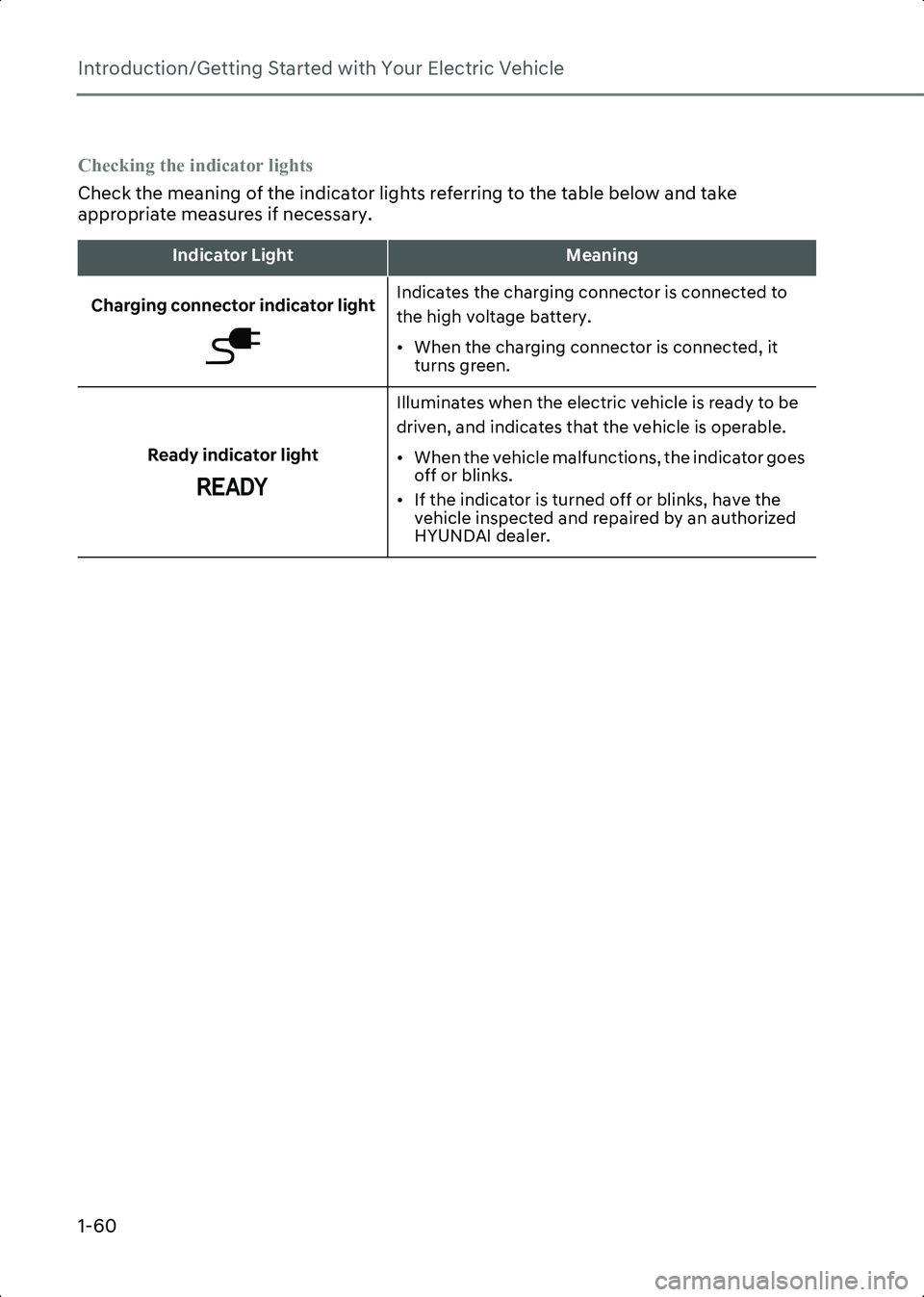

Checking the indicator lights
Check the meaning of the indicator lights referring to the table below and take
appropriate measures if necessary.
Indicator LightMeaning
Charging connector indicator light Indicates the charging connector is connected to
the high voltage battery.
• When the charging connector is connected, it
turns green.
Ready indicator light Illuminates when the electric vehicle is ready to be
driven, and indicates that the vehicle is operable.
• When the vehicle malfunctions, the indicator goes
off or blinks.
• If the indicator is turned off or blinks, have the vehicle inspected and repaired by an authorized
HYUNDAI dealer.
Hyundai_CE_en_US.book Page 60
Page 67 of 582
1
1-61

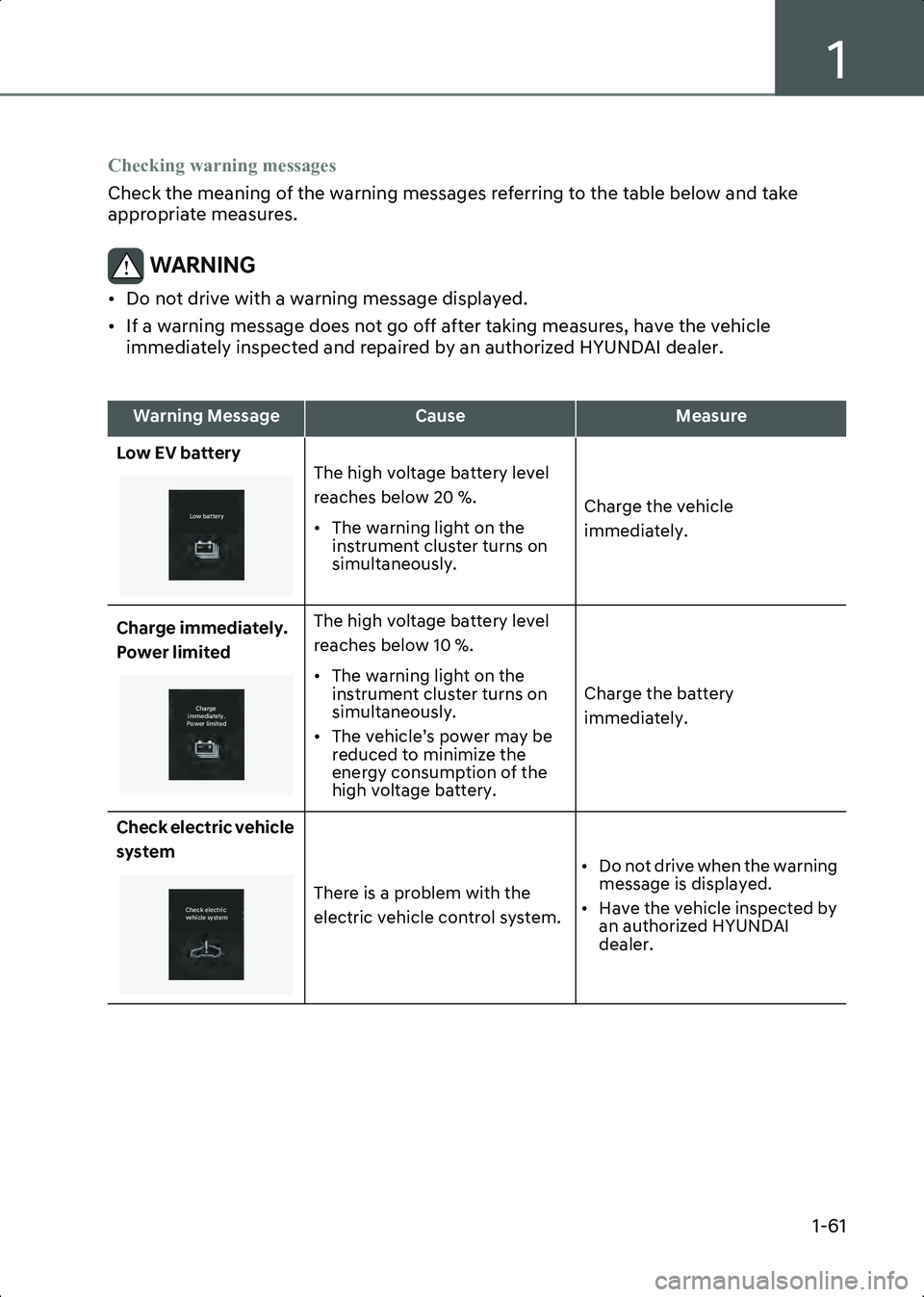

Checking warning messages
Check the meaning of the warning messages referring to the table below and take
appropriate measures.
WARNING • Do not drive with a warning message displayed.
• If a warning message does not go off after taking measures, have the vehicle immediately inspected and repaired by an authorized HYUNDAI dealer.
Warning MessageCauseMeasure
Low EV battery The high voltage battery level
reaches below 20 %.
• The warning light on the instrument cluster turns on
simultaneously. Charge the vehicle
immediately.
Charge immediately.
Power limited The high voltage battery level
reaches below 10 %.
• The warning light on the
instrument cluster turns on
simultaneously.
• The vehicle’s power may be reduced to minimize the
energy consumption of the
high voltage battery. Charge the battery
immediately.
Check electric vehicle
system There is a problem with the
electric vehicle control system. • Do not drive when the warning
message is displayed.
• Have the vehicle inspected by an authorized HYUNDAI
dealer.
- P X C B U U F S Z
$ I B S H F
J N N F E J B U F M Z
1 P X F S M J N J U F E
$ I F D L F M F D U S J D W F I J D M F T Z T U F N
Hyundai_CE_en_US.book Page 61
Page 68 of 582
Introduction/Getting Started with Your Electric Vehicle
1-62

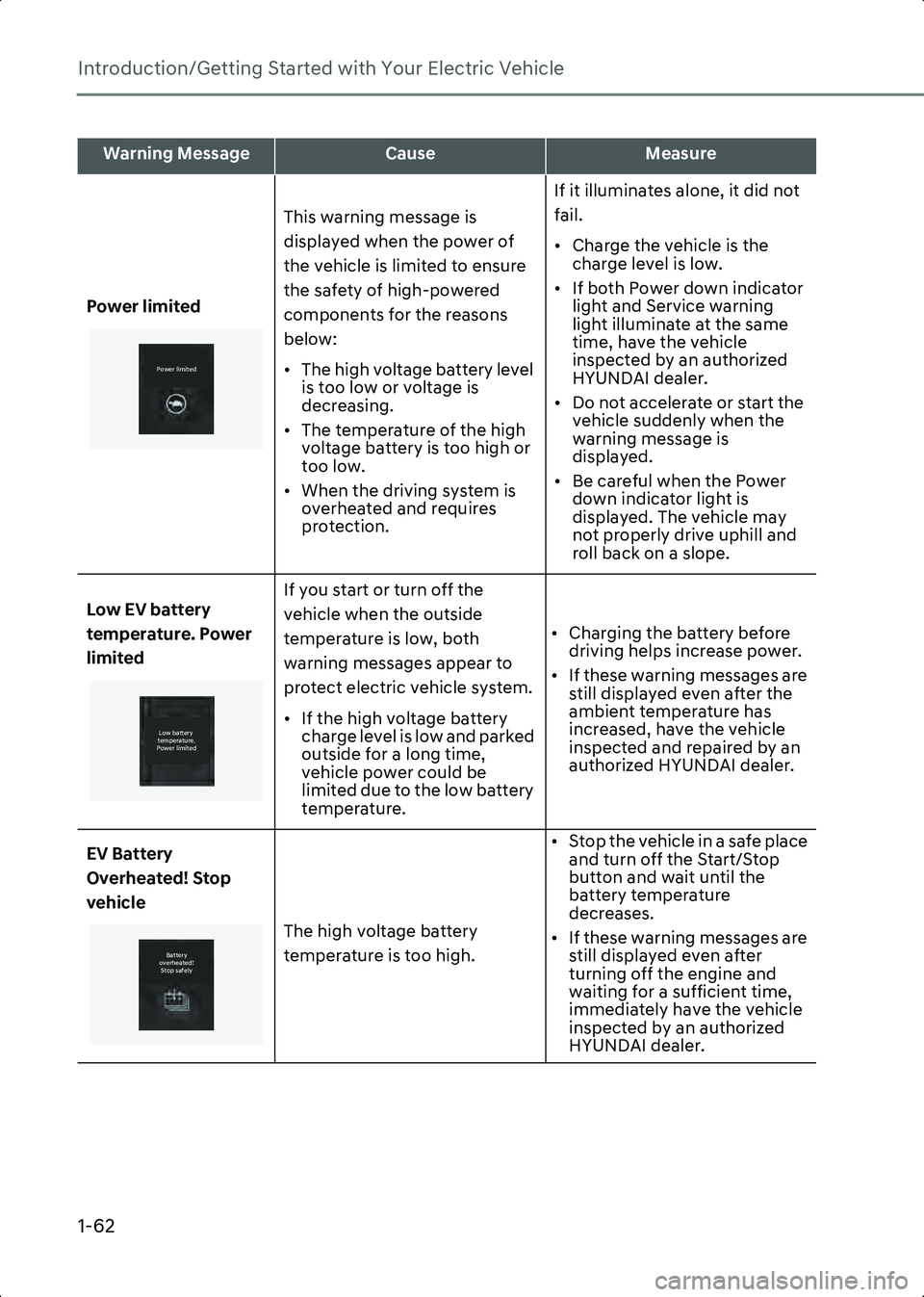

Power limitedThis warning message is
displayed when the power of
the vehicle is limited to ensure
the safety of high-powered
components for the reasons
below:
• The high voltage battery level
is too low or voltage is
decreasing.
• The temperature of the high voltage battery is too high or
too low.
• When the driving system is overheated and requires
protection. If it illuminates alone, it did not
fail.
• Charge the vehicle is the
charge level is low.
• If both Power down indicator light and Service warning
light illuminate at the same
time, have the vehicle
inspected by an authorized
HYUNDAI dealer.
• Do not accelerate or start the vehicle suddenly when the
warning message is
displayed.
• Be careful when the Power down indicator light is
displayed. The vehicle may
not properly drive uphill and
roll back on a slope.
Low EV battery
temperature. Power
limited If you start or turn off the
vehicle when the outside
temperature is low, both
warning messages appear to
protect electric vehicle system.
• If the high voltage battery
charge level is low and parked
outside for a long time,
vehicle power could be
limited due to the low battery
temperature. • Charging the battery before
driving helps increase power.
• If these warning messages are still displayed even after the
ambient temperature has
increased, have the vehicle
inspected and repaired by an
authorized HYUNDAI dealer.
EV Battery
Overheated! Stop
vehicle The high voltage battery
temperature is too high. • Stop the vehicle in a safe place
and turn off the Start/Stop
button and wait until the
battery temperature
decreases.
• If these warning messages are still displayed even after
turning off the engine and
waiting for a sufficient time,
immediately have the vehicle
inspected by an authorized
HYUNDAI dealer.
Warning MessageCauseMeasure
1 P X F S M J N J U F E
- P X C B U U F S Z
U F N Q F S B U V S F
1 P X F S M J N J U F E
# B U U F S Z
P W F S I F B U F E 4 U P Q T B G F M Z
Hyundai_CE_en_US.book Page 62
Page 69 of 582
1
1-63

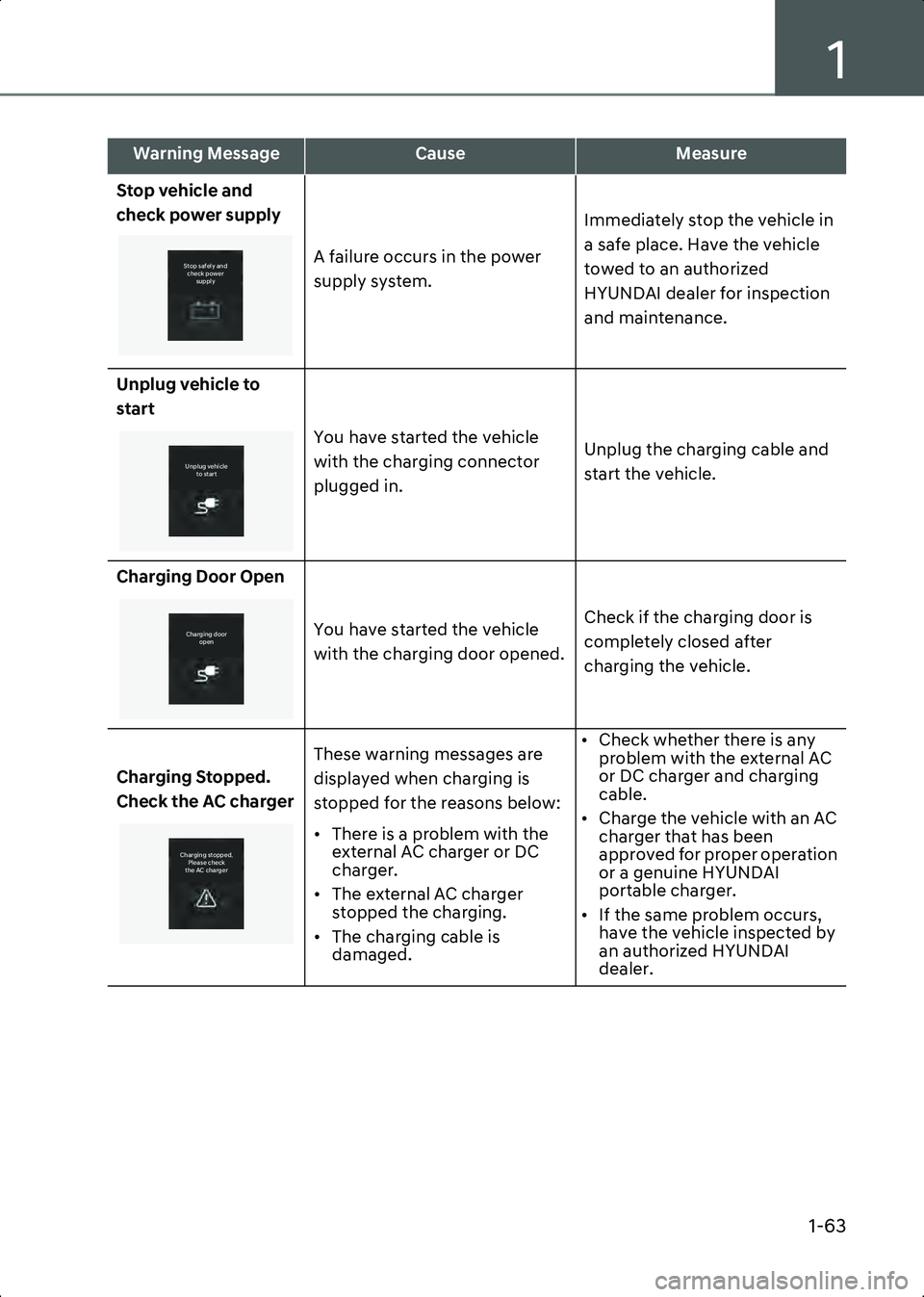

Stop vehicle and
check power supplyA failure occurs in the power
supply system. Immediately stop the vehicle in
a safe place. Have the vehicle
towed to an authorized
HYUNDAI dealer for inspection
and maintenance.
Unplug vehicle to
start You have started the vehicle
with the charging connector
plugged in. Unplug the charging cable and
start the vehicle.
Charging Door Open You have started the vehicle
with the charging door opened. Check if the charging door is
completely closed after
charging the vehicle.
Charging Stopped.
Check the AC charger These warning messages are
displayed when charging is
stopped for the reasons below:
• There is a problem with the
external AC charger or DC
charger.
• The external AC charger stopped the charging.
• The charging cable is damaged. • Check whether there is any
problem with the external AC
or DC charger and charging
cable.
• Charge the vehicle with an AC charger that has been
approved for proper operation
or a genuine HYUNDAI
portable charger.
• If the same problem occurs, have the vehicle inspected by
an authorized HYUNDAI
dealer.
Warning MessageCauseMeasure
4 U P Q T B G F M Z B O E
D I F D L Q P X F S T V Q Q M Z
6 O Q M V H W F I J D M F U P T U B S U
$ I B S H J O H E P P S P Q F O
$ I B S H J O H T U P Q Q F E 1 M F B T F D I F D L
U I F " $ D I B S H F S
Hyundai_CE_en_US.book Page 63
Page 70 of 582

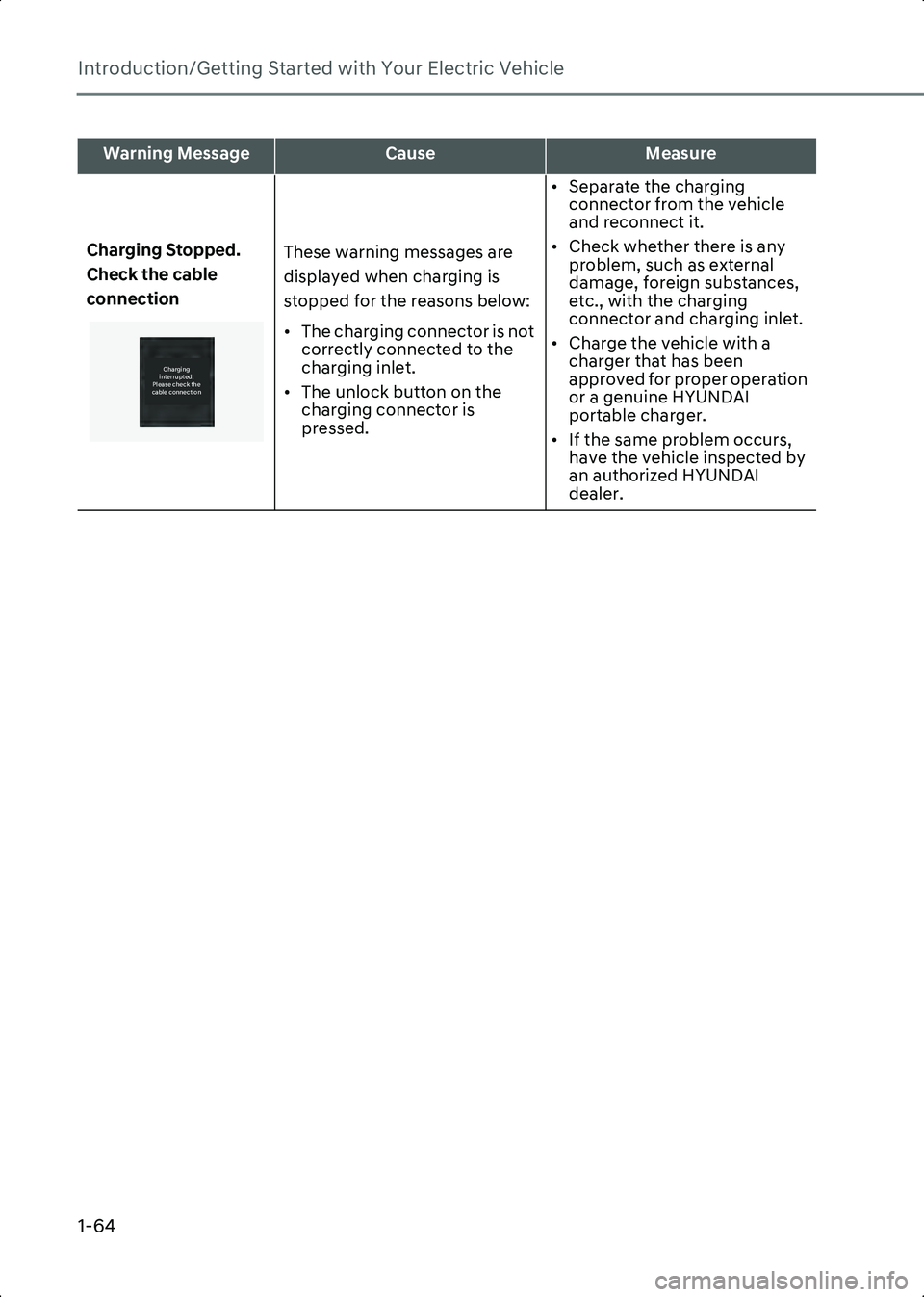

Introduction/Getting Started with Your Electric Vehicle
1-64
Charging Stopped.
Check the cable
connectionThese warning messages are
displayed when charging is
stopped for the reasons below:
• The charging connector is not
correctly connected to the
charging inlet.
• The unlock button on the charging connector is
pressed. • Separate the charging
connector from the vehicle
and reconnect it.
• Check whether there is any problem, such as external
damage, foreign substances,
etc., with the charging
connector and charging inlet.
• Charge the vehicle with a charger that has been
approved for proper operation
or a genuine HYUNDAI
portable charger.
• If the same problem occurs, have the vehicle inspected by
an authorized HYUNDAI
dealer.
Warning MessageCauseMeasure
$ I B S H J O H
J O U F S S V Q U F E
1 M F B T F D I F D L U I F
D B C M F D P O O F D U J P O
Hyundai_CE_en_US.book Page 64
