2
2-7
Steering Wheel Control Overview
A1000701The actual shape may differ from the illustration.
(1) Lighting control lever ............................................................................................... 5-67
(2) Wiper and washer control lever .............................................................................. 5-77
(3) Rotary shifter(Rotary gearshift dial) .........................................................................6-8
(4) Paddle shifter ........................................................................................................... 6-14
(5) Voice recognition button ....................................................................................... 5-109
(6) Steering wheel audio controls .............................................................................. 5-108
(7) Bluetooth® wireless technology hands-free button ............................................. 5-110
(8) Cluster display control............................................................................................. 4-23
(9) Lane Driving Assist button ...................................................................................... 7-29
(10) Driving Assist button .............................................................................................. 7-64
(11) Vehicle Distance button .......................................................................................... 7-65
(12) Drive mode button ..................................................................................................6-39
5
7
108
11
12
9
1244
3
6
Hyundai_CE_en_US.book Page 7

Vehicle Information, Consumer Information, and Reporting Safety Defects
2-8

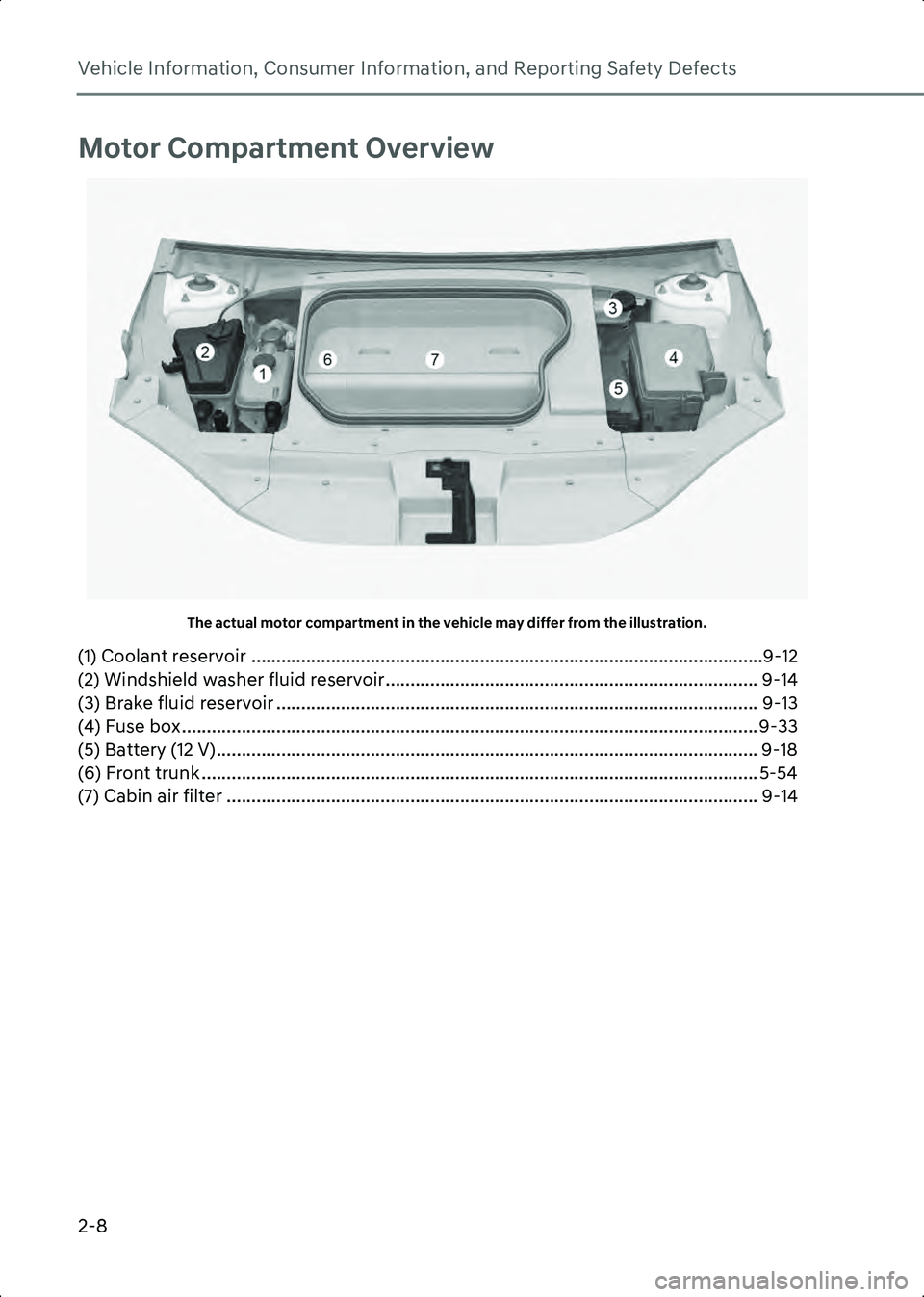

Motor Compartment Overview
A1000901The actual motor compartment in the vehicle may differ from the illustration.
(1) Coolant reservoir .......................................................................................................9-12
(2) Windshield washer fluid reservoir........................................................................... 9-14
(3) Brake fluid reservoir ................................................................................................. 9-13
(4) Fuse box.................................................................................................................... 9-33
(5) Battery (12 V)............................................................................................................. 9-18
(6) Front trunk ................................................................................................................ 5-54
(7) Cabin air filter ........................................................................................................... 9-14
Hyundai_CE_en_US.book Page 8

2
2-9

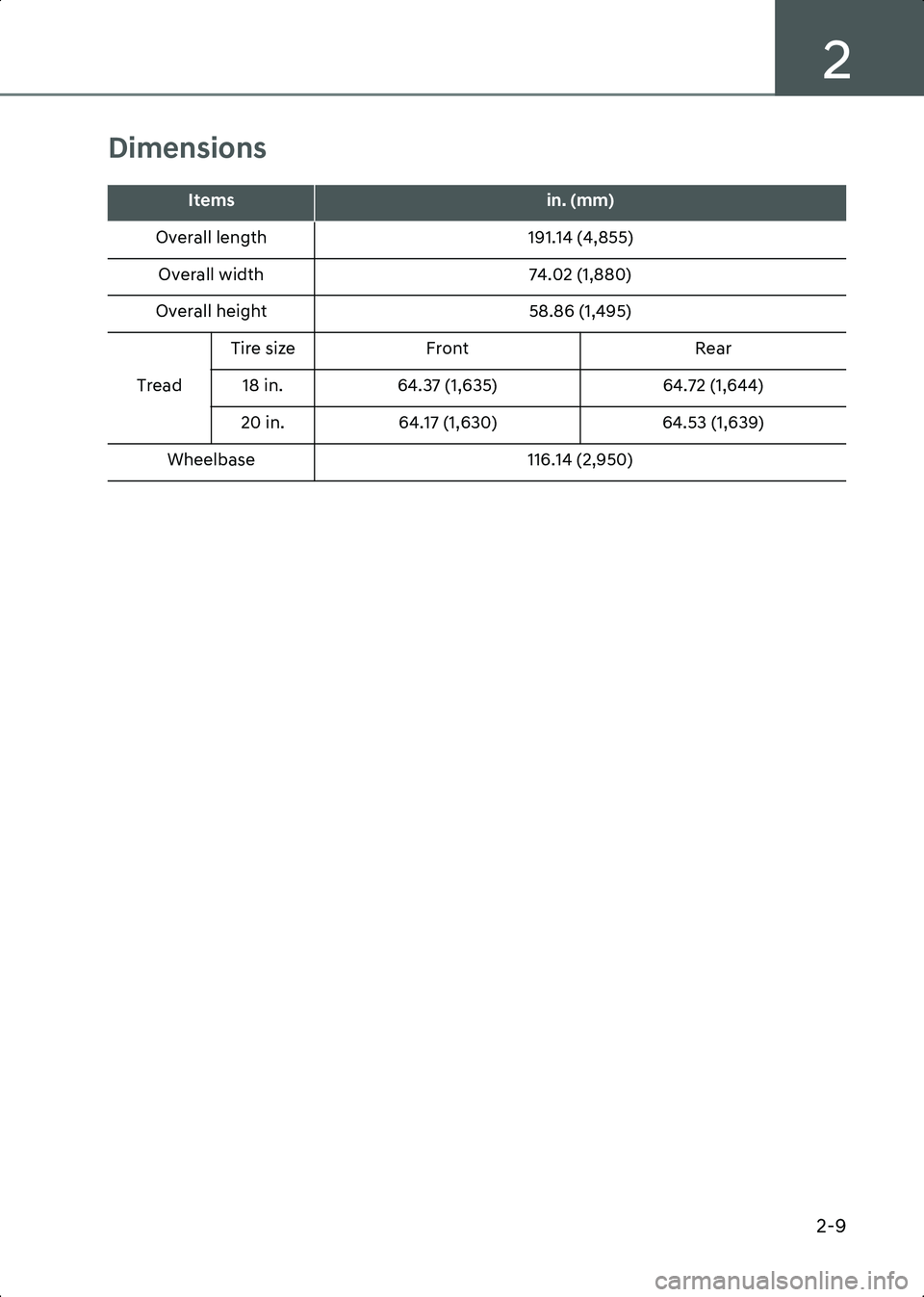

Dimensions
Itemsin. (mm)
Overall length 191.14 (4,855)
Overall width 74.02 (1,880)
Overall height 58.86 (1,495)
Tread Tire size
Front Rear
18 in. 64.37 (1,635) 64.72 (1,644)
20 in. 64.17 (1,630) 64.53 (1,639)
Wheelbase 116.14 (2,950)
Hyundai_CE_en_US.book Page 9

Vehicle Information, Consumer Information, and Reporting Safety Defects
2-10

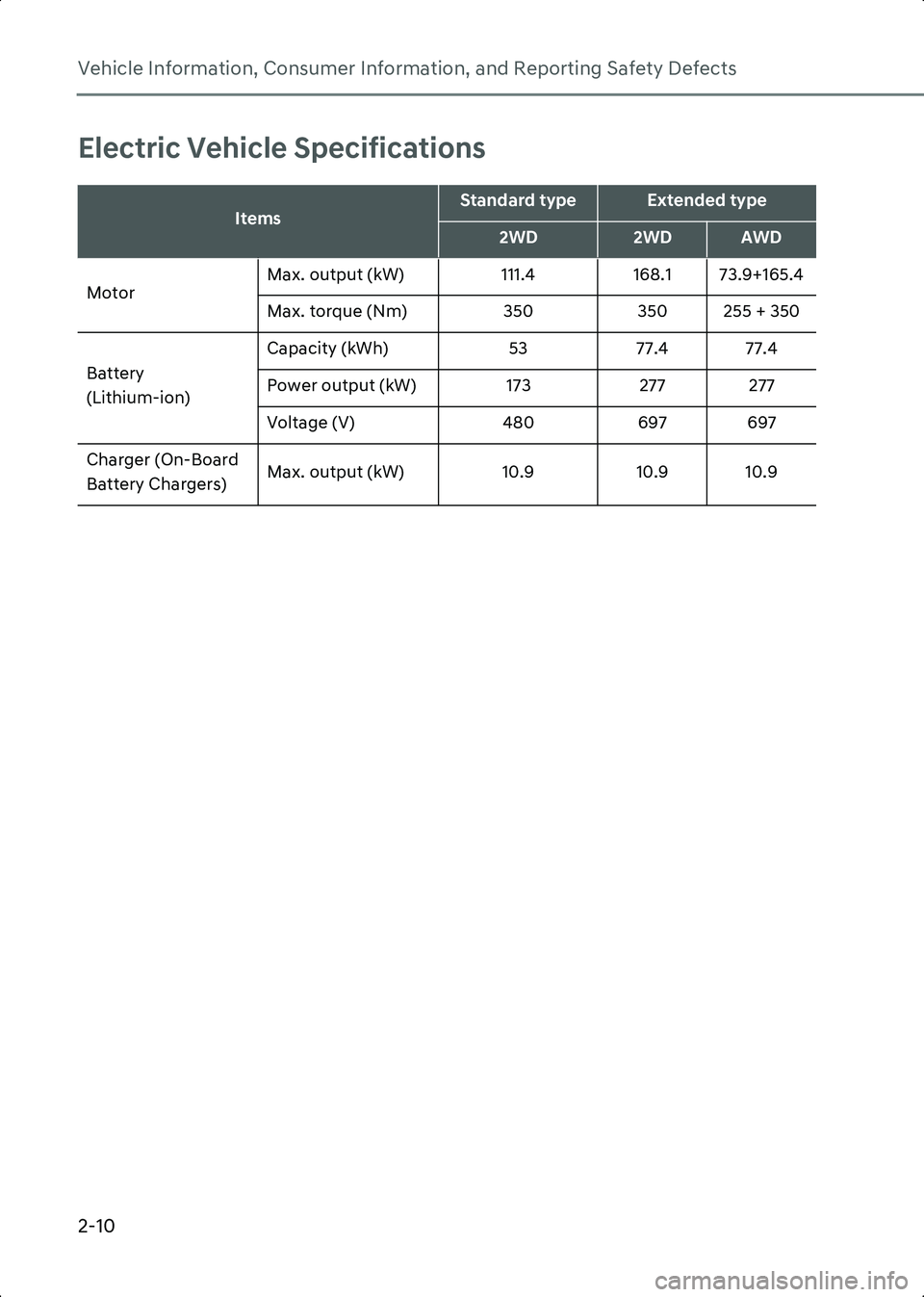

Electric Vehicle Specifications
ItemsStandard typeExtended type
2WD2WDAWD
Motor Max. output (kW)
111.4168.1 73.9+165.4
Max. torque (Nm) 350350 255 + 350
Battery
(Lithium-ion) Capacity (kWh)
5377.4 77.4
Power output (kW) 173 277 277
Voltage (V) 480697 697
Charger (On-Board
Battery Chargers) Max. output (kW)
10.910.9 10.9
Hyundai_CE_en_US.book Page 10

2
2-11

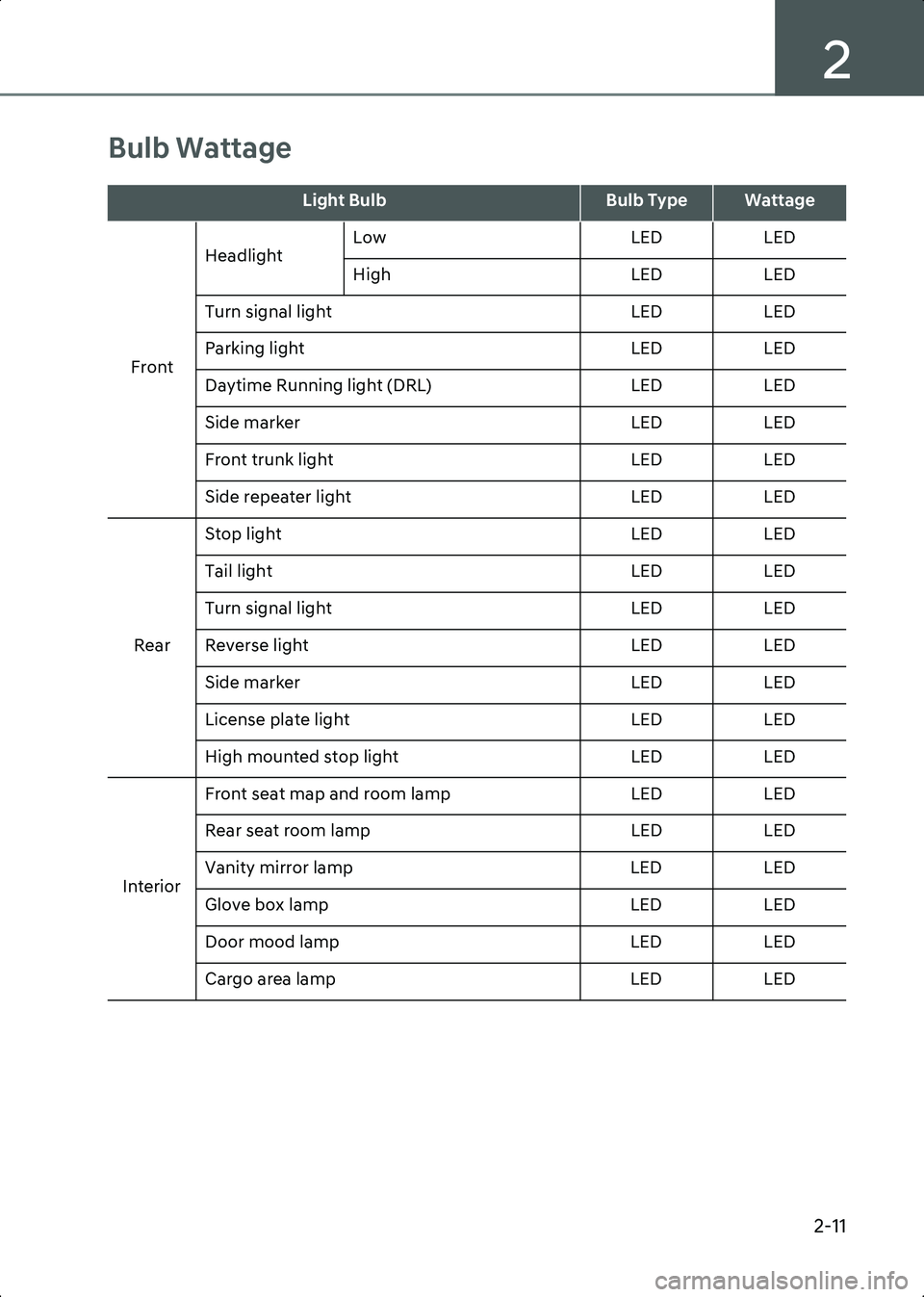

Bulb Wattage
Light BulbBulb TypeWattage
Front Headlight
Low
LEDLED
High LEDLED
Turn signal light LEDLED
Parking light LEDLED
Daytime Running light (DRL) LEDLED
Side marker LEDLED
Front trunk light LEDLED
Side repeater light LEDLED
Rear Stop light
LEDLED
Tail light LEDLED
Turn signal light LEDLED
Reverse light LEDLED
Side marker LEDLED
License plate light LEDLED
High mounted stop light LEDLED
Interior Front seat map and room lamp
LEDLED
Rear seat room lamp LEDLED
Vanity mirror lamp LEDLED
Glove box lamp LEDLED
Door mood lamp LEDLED
Cargo area lamp LEDLED
Hyundai_CE_en_US.book Page 11

Vehicle Information, Consumer Information, and Reporting Safety Defects
2-12

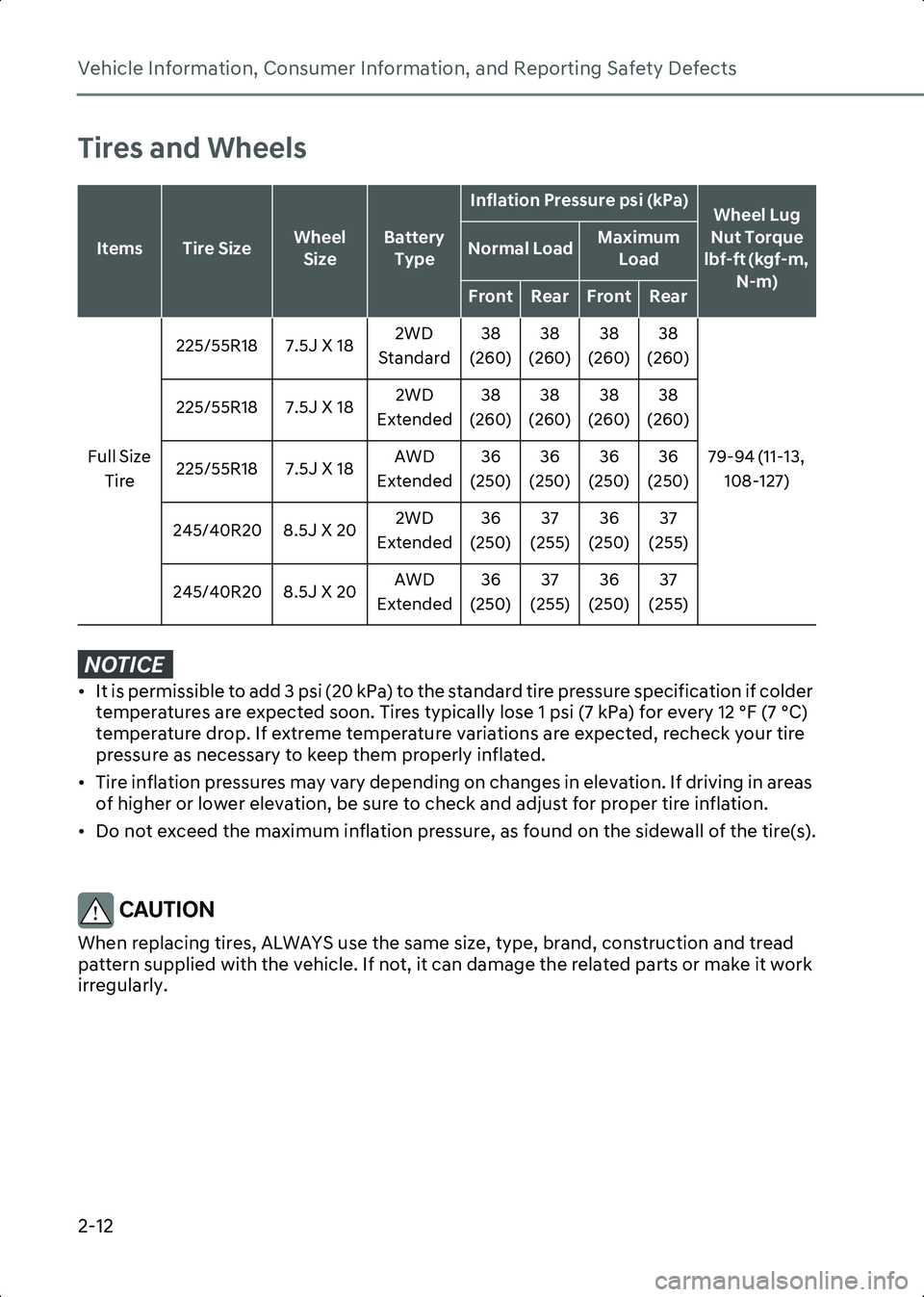

Tires and Wheels
NOTICE • It is permissible to add 3 psi (20 kPa) to the standard tire pressure specification if colder temperatures are expected soon. Tires typically lose 1 psi (7 kPa) for every 12 °F (7 °C)
temperature drop. If extreme temperature variations are expected, recheck your tire
pressure as necessary to keep them properly inflated.
• Tire inflation pressures may vary depending on changes in elevation. If driving in areas of higher or lower elevation, be sure to check and adjust for proper tire inflation.
• Do not exceed the maximum inflation pressure, as found on the sidewall of the tire(s).

CAUTION When replacing tires, ALWAYS use the same size, type, brand, construction and tread
pattern supplied with the vehicle. If not, it can damage the related parts or make it work
irregularly.

ItemsTire SizeWheel SizeBattery Type
Inflation Pressure psi (kPa)Wheel Lug
Nut Torque
lbf-ft (kgf-m, N-m)
Normal LoadMaximum Load
FrontRearFrontRear
Full Size Tire 225/55R18 7.5J X 18
2WD
Standard 38
(260) 38
(260) 38
(260) 38
(260)
79-94 (11-13, 108-127)
225/55R18 7.5J X 18
2WD
Extended 38
(260) 38
(260) 38
(260) 38
(260)
225/55R18 7.5J X 18 AWD
Extended 36
(250) 36
(250) 36
(250) 36
(250)
245/40R20 8.5J X 20 2WD
Extended 36
(250) 37
(255) 36
(250) 37
(255)
245/40R20 8.5J X 20 AWD
Extended 36
(250) 37
(255) 36
(250) 37
(255)
Hyundai_CE_en_US.book Page 12

2
2-13

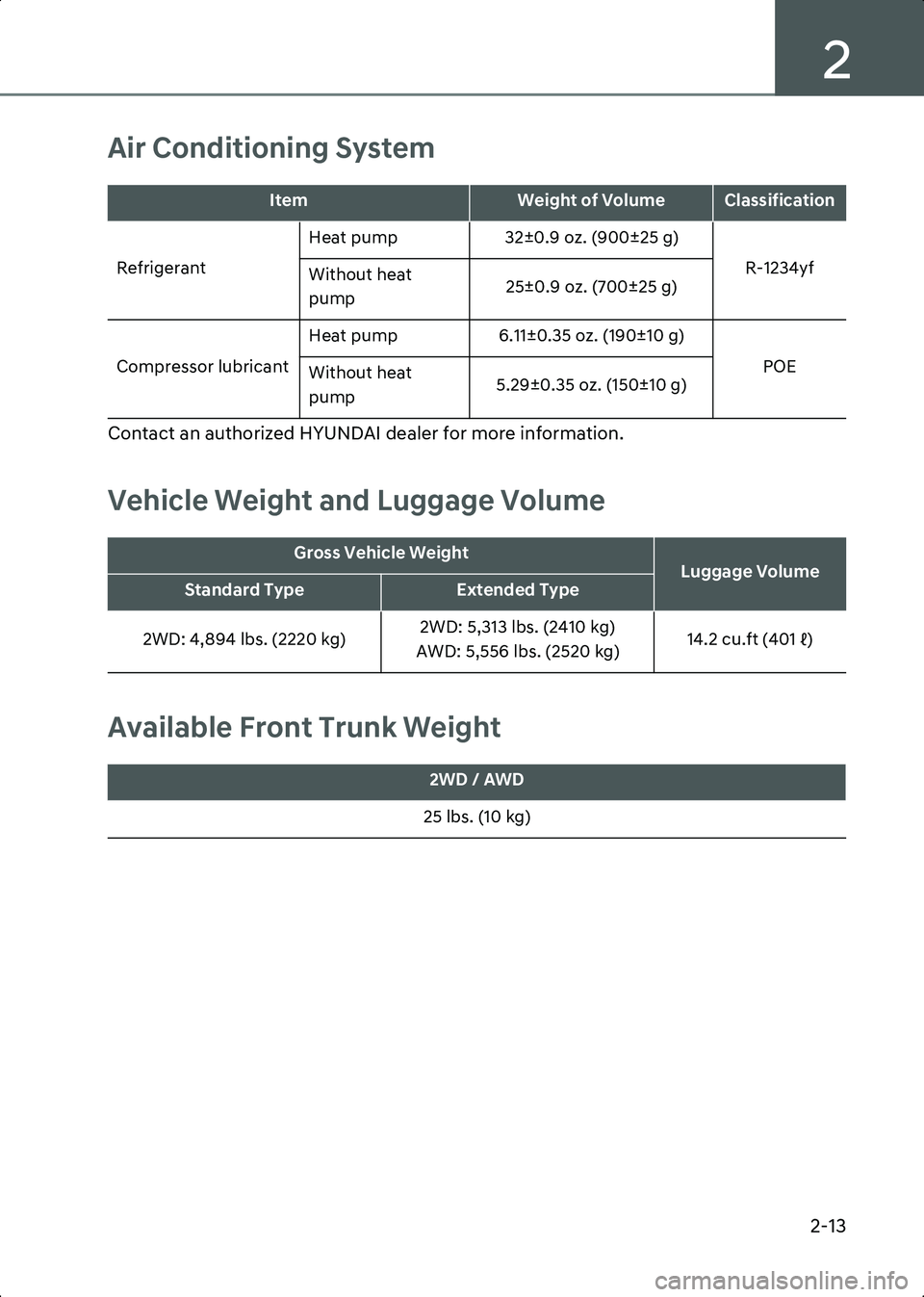

Air Conditioning System
Contact an authorized HYUNDAI dealer for more information.
Vehicle Weight and Luggage Volume
Available Front Trunk Weight
ItemWeight of VolumeClassification
Refrigerant Heat pump
32±0.9 oz. (900±25 g)
R-1234yf
Without heat
pump 25±0.9 oz. (700±25 g)
Compressor lubricant Heat pump
6.11±0.35 oz. (190±10 g)
POE
Without heat
pump 5.29±0.35 oz. (150±10 g)
Gross Vehicle WeightLuggage VolumeStandard TypeExtended Type
2WD: 4,894 lbs. (2220 kg) 2WD: 5,313 lbs. (2410 kg)
AWD: 5,556 lbs. (2520 kg) 14.2 cu.ft (401 ℓ)
2WD / AWD
25 lbs. (10 kg)
Hyundai_CE_en_US.book Page 13

Vehicle Information, Consumer Information, and Reporting Safety Defects
2-14

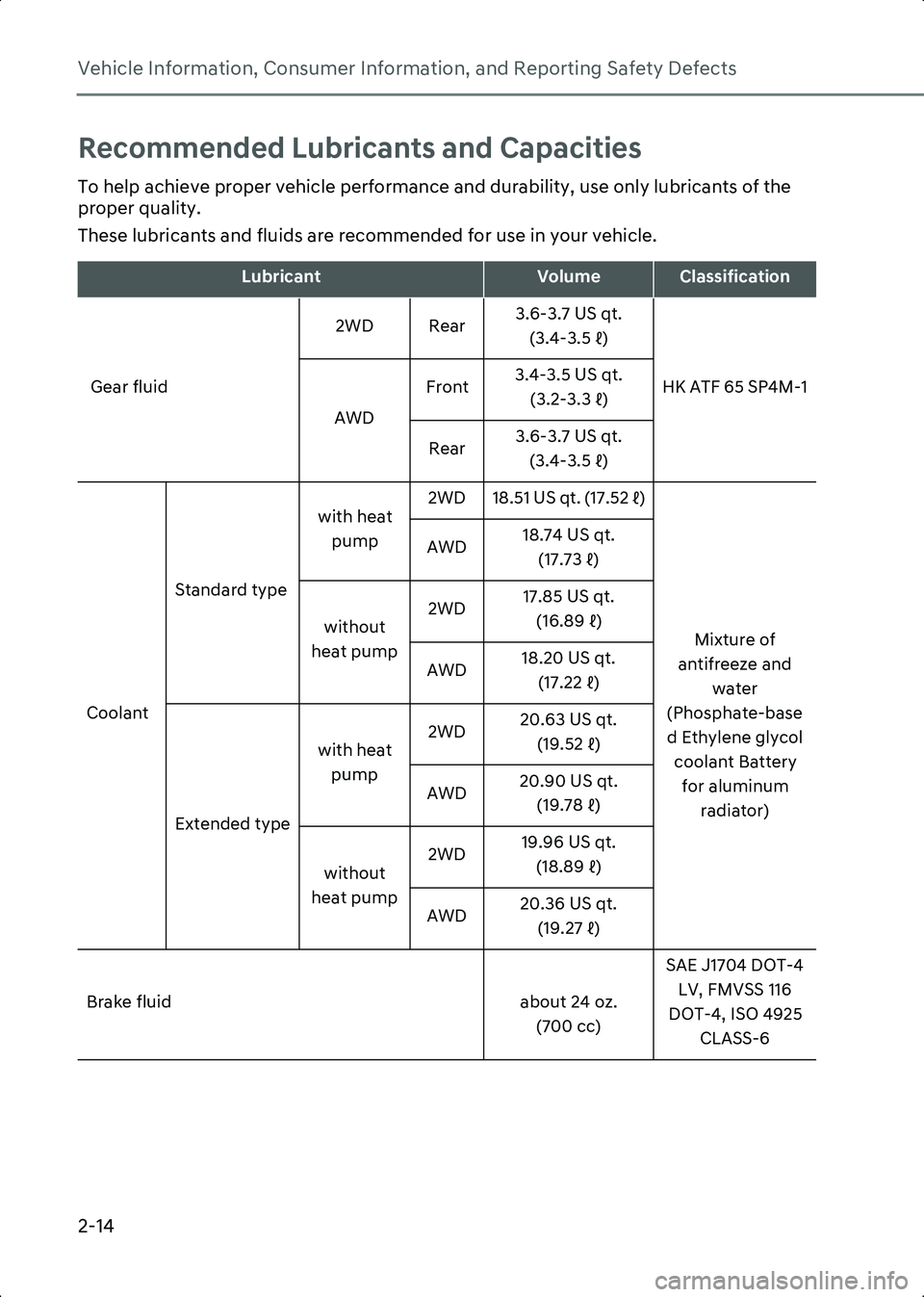

Recommended Lubricants and Capacities
To help achieve proper vehicle performance and durability, use only lubricants of the
proper quality.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolumeClassification
Gear fluid 2WD Rear
3.6-3.7 US qt.
(3.4-3.5 ℓ)
HK ATF 65 SP4M-1
AWD Front
3.4-3.5 US qt.
(3.2-3.3 ℓ)
Rear 3.6-3.7 US qt.
(3.4-3.5 ℓ)
Coolant Standard type
with heat
pump 2WD 18.51 US qt. (17.52 ℓ)

Mixture of
antifreeze and water
(Phosphate-base
d Ethylene glycol coolant Battery for aluminum radiator)
AWD
18.74 US qt.
(17.73 ℓ)
without
heat pump 2WD
17.85 US qt.
(16.89 ℓ)
AWD 18.20 US qt.
(17.22 ℓ)
Extended type with heat
pump 2WD
20.63 US qt.
(19.52 ℓ)
AWD 20.90 US qt.
(19.78 ℓ)
without
heat pump 2WD
19.96 US qt.
(18.89 ℓ)
AWD 20.36 US qt.
(19.27 ℓ)
Brake fluid
about 24 oz. (700 cc) SAE J1704 DOT-4
LV, FMVSS 116
DOT-4, ISO 4925 CLASS-6
Hyundai_CE_en_US.book Page 14

2
2-15

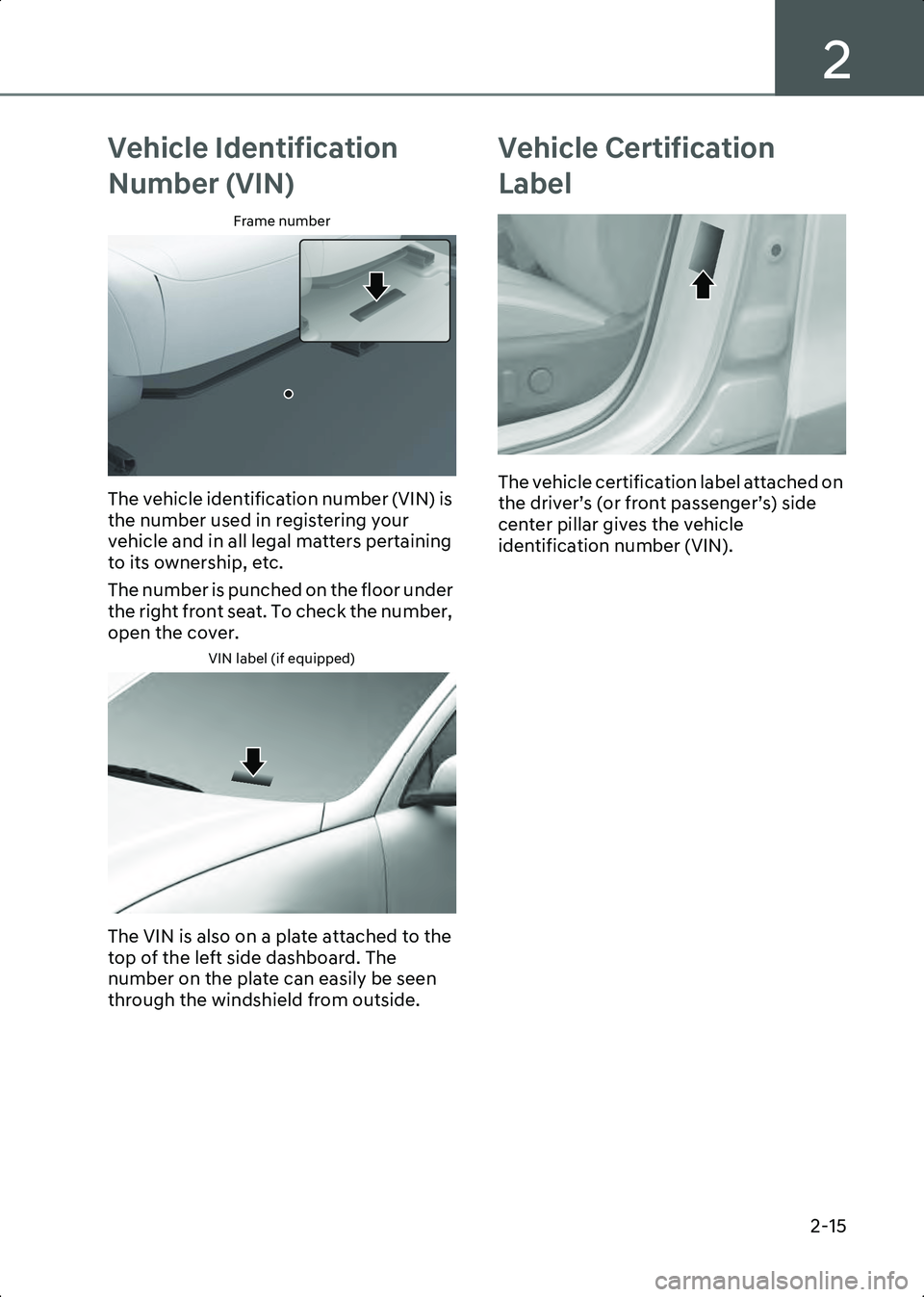

Vehicle Identification
Number (VIN)
Frame number
B1002101
The vehicle identification number (VIN) is
the number used in registering your
vehicle and in all legal matters pertaining
to its ownership, etc.
The number is punched on the floor under
the right front seat. To check the number,
open the cover.
VIN label (if equipped)
ONE1011021
The VIN is also on a plate attached to the
top of the left side dashboard. The
number on the plate can easily be seen
through the windshield from outside.
Vehicle Certification
Label
ONE1011022
The vehicle certification label attached on
the driver’s (or front passenger’s) side
center pillar gives the vehicle
identification number (VIN).
Hyundai_CE_en_US.book Page 15

Vehicle Information, Consumer Information, and Reporting Safety Defects
2-16

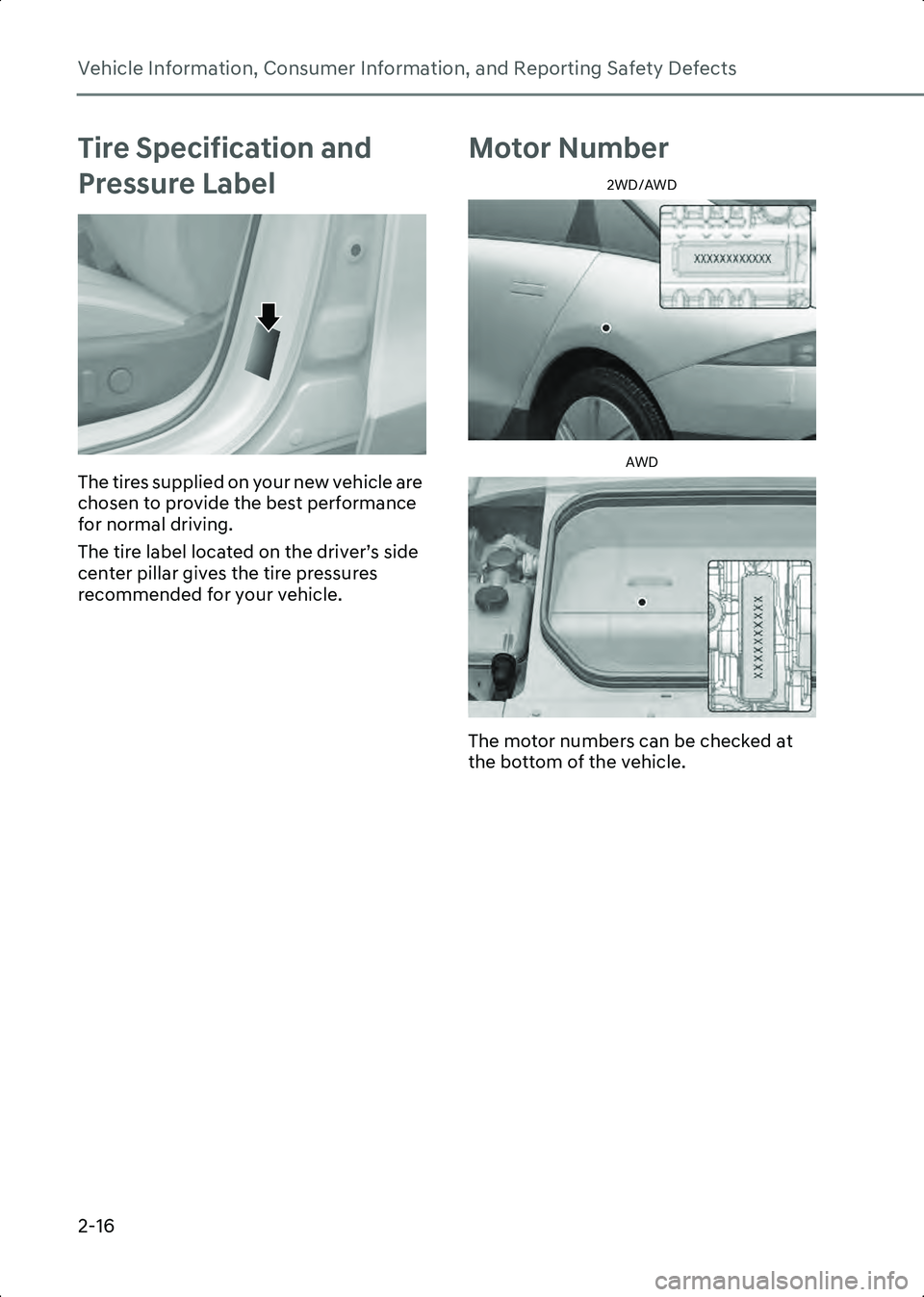

Tire Specification and
Pressure Label
ONE1011025L
The tires supplied on your new vehicle are
chosen to provide the best performance
for normal driving.
The tire label located on the driver’s side
center pillar gives the tire pressures
recommended for your vehicle.
Motor Number
2WD/AWD
B1002401AWD
B1002402
The motor numbers can be checked at
the bottom of the vehicle.
