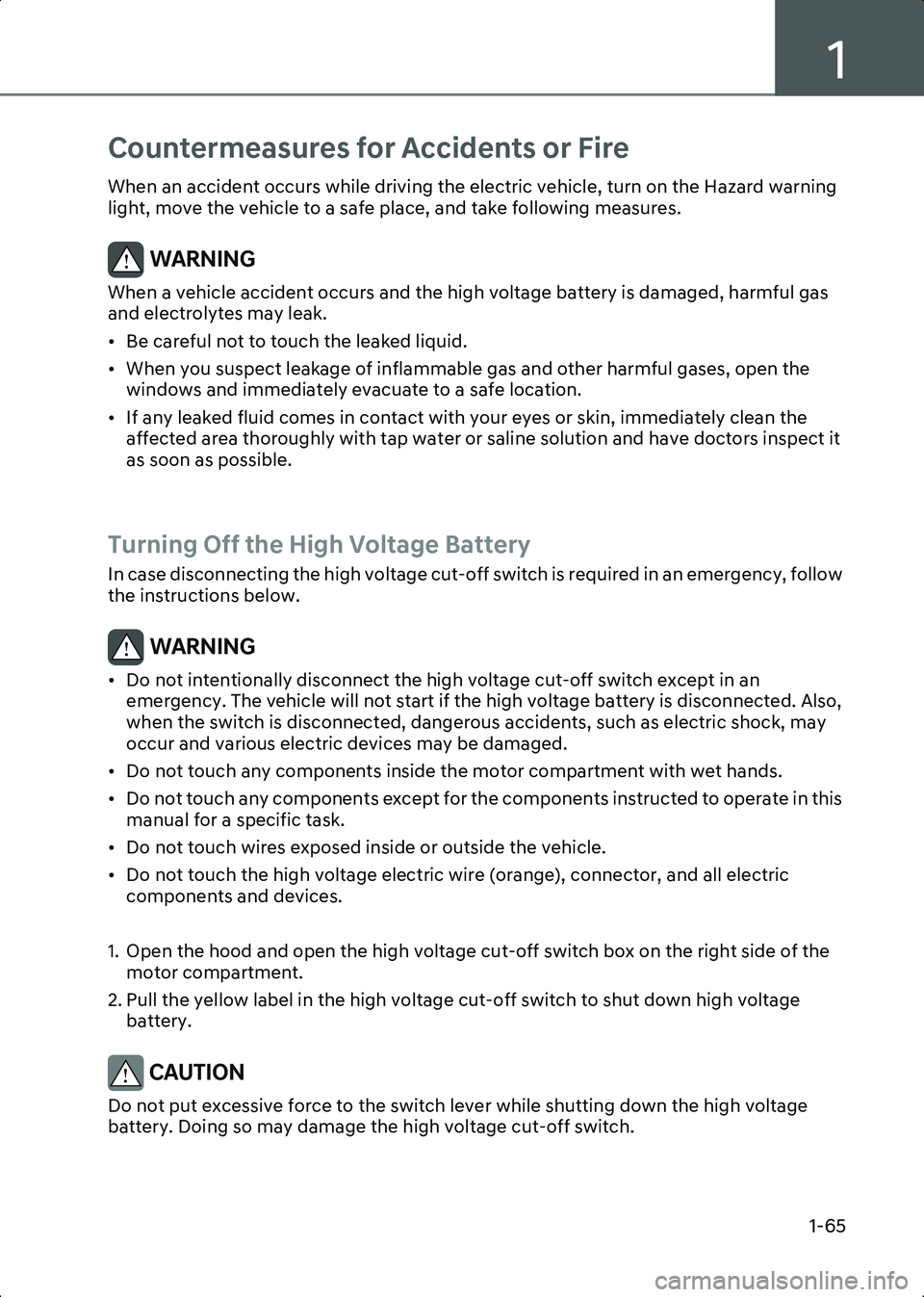

Countermeasures for Accidents or Fire
When an accident occurs while driving the electric vehicle, turn on the Hazard warning
light, move the vehicle to a safe place, and take following measures.
WARNING When a vehicle accident occurs and the high voltage battery is damaged, harmful gas
and electrolytes may leak.
• Be careful not to touch the leaked liquid.
• When you suspect leakage of inflammable gas and other harmful gases, open the windows and immediately evacuate to a safe location.
• If any leaked fluid comes in contact with your eyes or skin, immediately clean the affected area thoroughly with tap water or saline solution and have doctors inspect it
as soon as possible.

Turning Off the High Voltage Battery
In case disconnecting the high voltage cut-off switch is required in an emergency, follow
the instructions below.
WARNING • Do not intentionally disconnect the high voltage cut-off switch except in an emergency. The vehicle will not start if the high voltage battery is disconnected. Also,
when the switch is disconnected, dangerous accidents, such as electric shock, may
occur and various electric devices may be damaged.
• Do not touch any components inside the motor compartment with wet hands.
• Do not touch any components except for the components instructed to operate in this manual for a specific task.
• Do not touch wires exposed inside or outside the vehicle.
• Do not touch the high voltage electric wire (orange), connector, and all electric components and devices.

1. Open the hood and open the high voltage cut-off switch box on the right side of the motor compartment.
2. Pull the yellow label in the high voltage cut-off switch to shut down high voltage battery.
CAUTION Do not put excessive force to the switch lever while shutting down the high voltage
battery. Doing so may damage the high voltage cut-off switch.

Hyundai_CE_en_US.book Page 65

Introduction/Getting Started with Your Electric Vehicle
1-66
B0003101

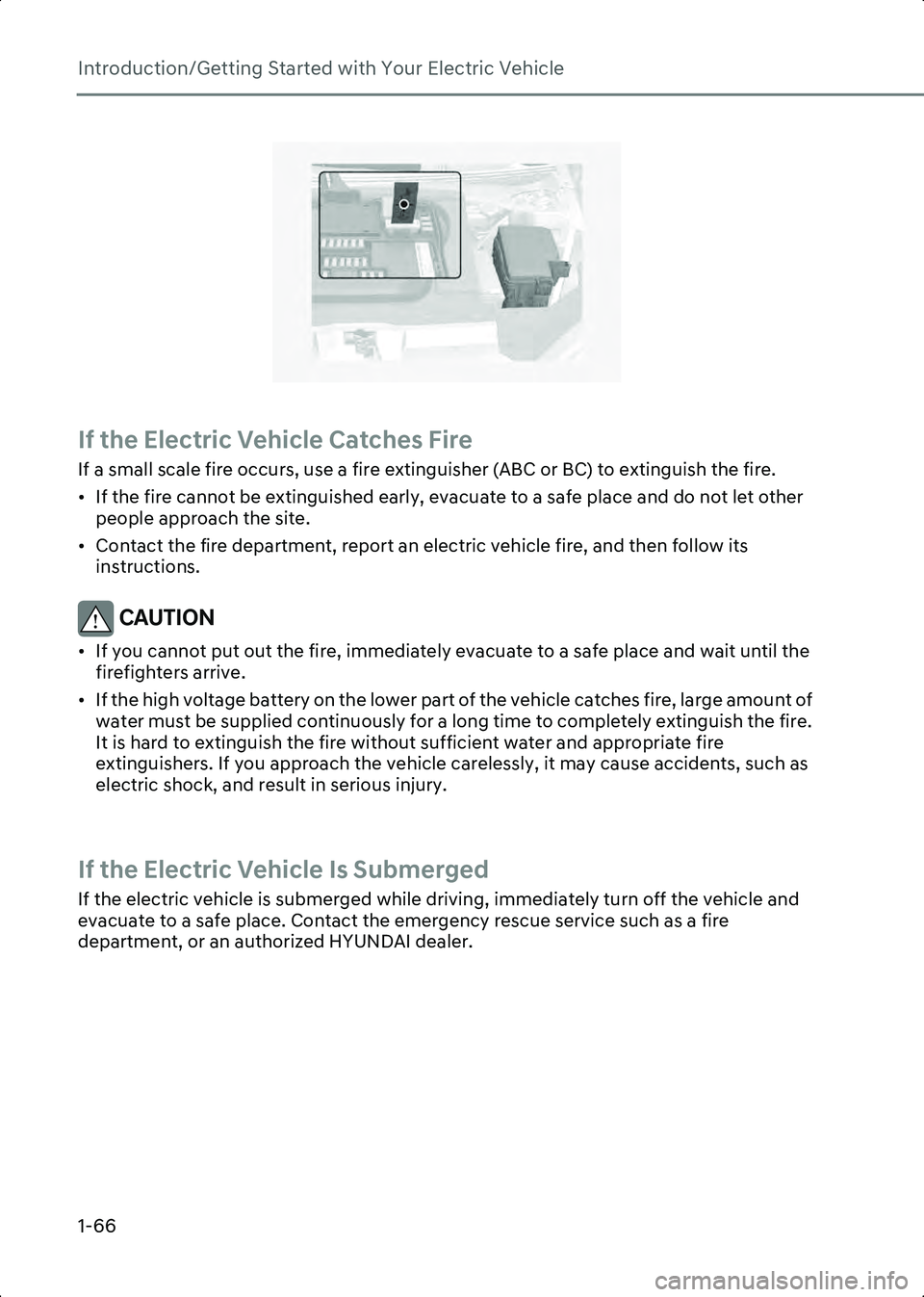

If the Electric Vehicle Catches Fire
If a small scale fire occurs, use a fire extinguisher (ABC or BC) to extinguish the fire.
• If the fire cannot be extinguished early, evacuate to a safe place and do not let other people approach the site.
• Contact the fire department, report an electric vehicle fire, and then follow its instructions.
CAUTION • If you cannot put out the fire, immediately evacuate to a safe place and wait until the firefighters arrive.
• If the high voltage battery on the lower part of the vehicle catches fire, large amount of water must be supplied continuously for a long time to completely extinguish the fire.
It is hard to extinguish the fire without sufficient water and appropriate fire
extinguishers. If you approach the vehicle carelessly, it may cause accidents, such as
electric shock, and result in serious injury.

If the Electric Vehicle Is Submerged
If the electric vehicle is submerged while driving, immediately turn off the vehicle and
evacuate to a safe place. Contact the emergency rescue service such as a fire
department, or an authorized HYUNDAI dealer.
Hyundai_CE_en_US.book Page 66

1
1-67

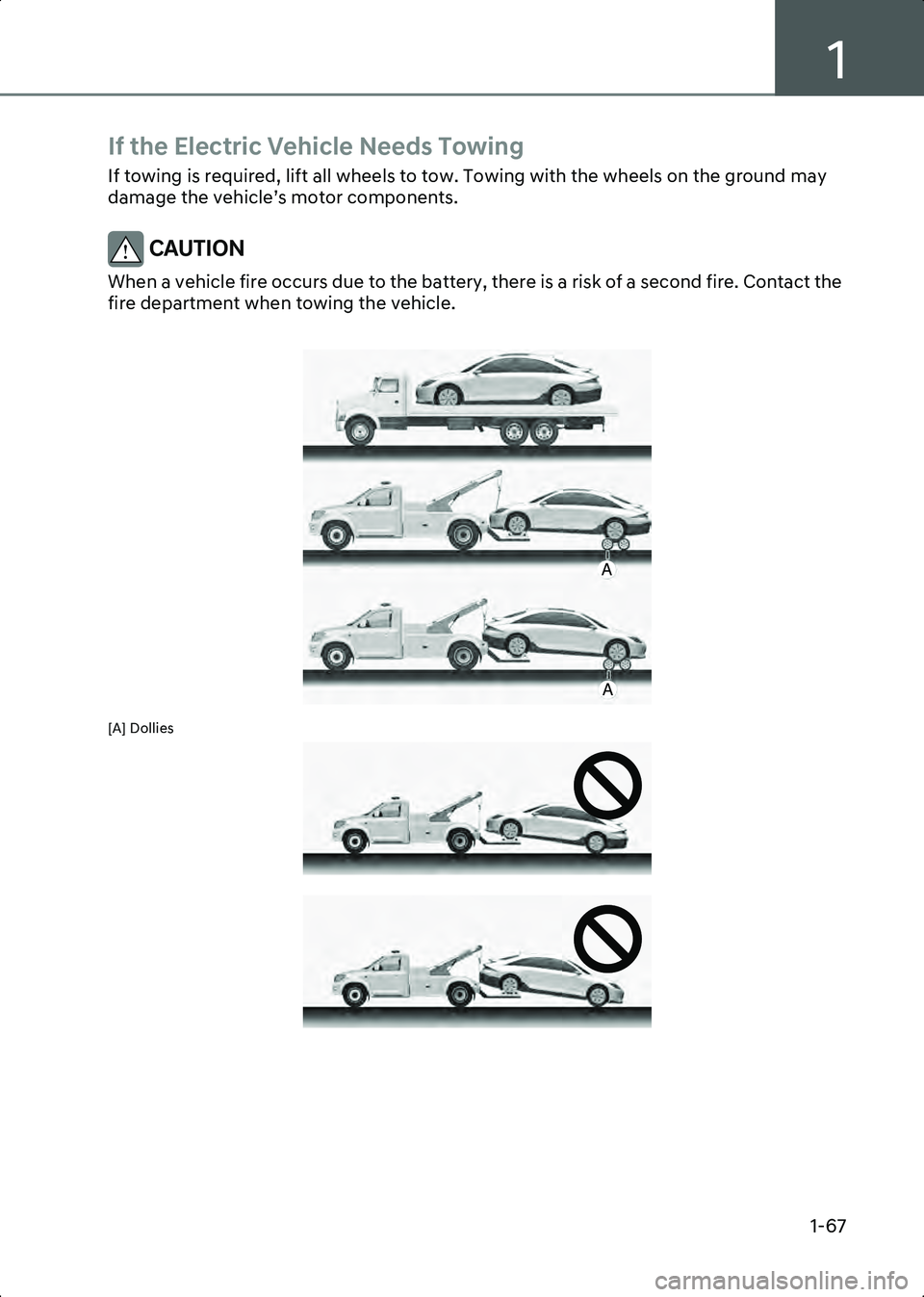

If the Electric Vehicle Needs Towing
If towing is required, lift all wheels to tow. Towing with the wheels on the ground may
damage the vehicle’s motor components.
CAUTION When a vehicle fire occurs due to the battery, there is a risk of a second fire. Contact the
fire department when towing the vehicle.

B0003401[A] Dollies
B0003402
B0003403
A
A
Hyundai_CE_en_US.book Page 67

Introduction/Getting Started with Your Electric Vehicle
1-68

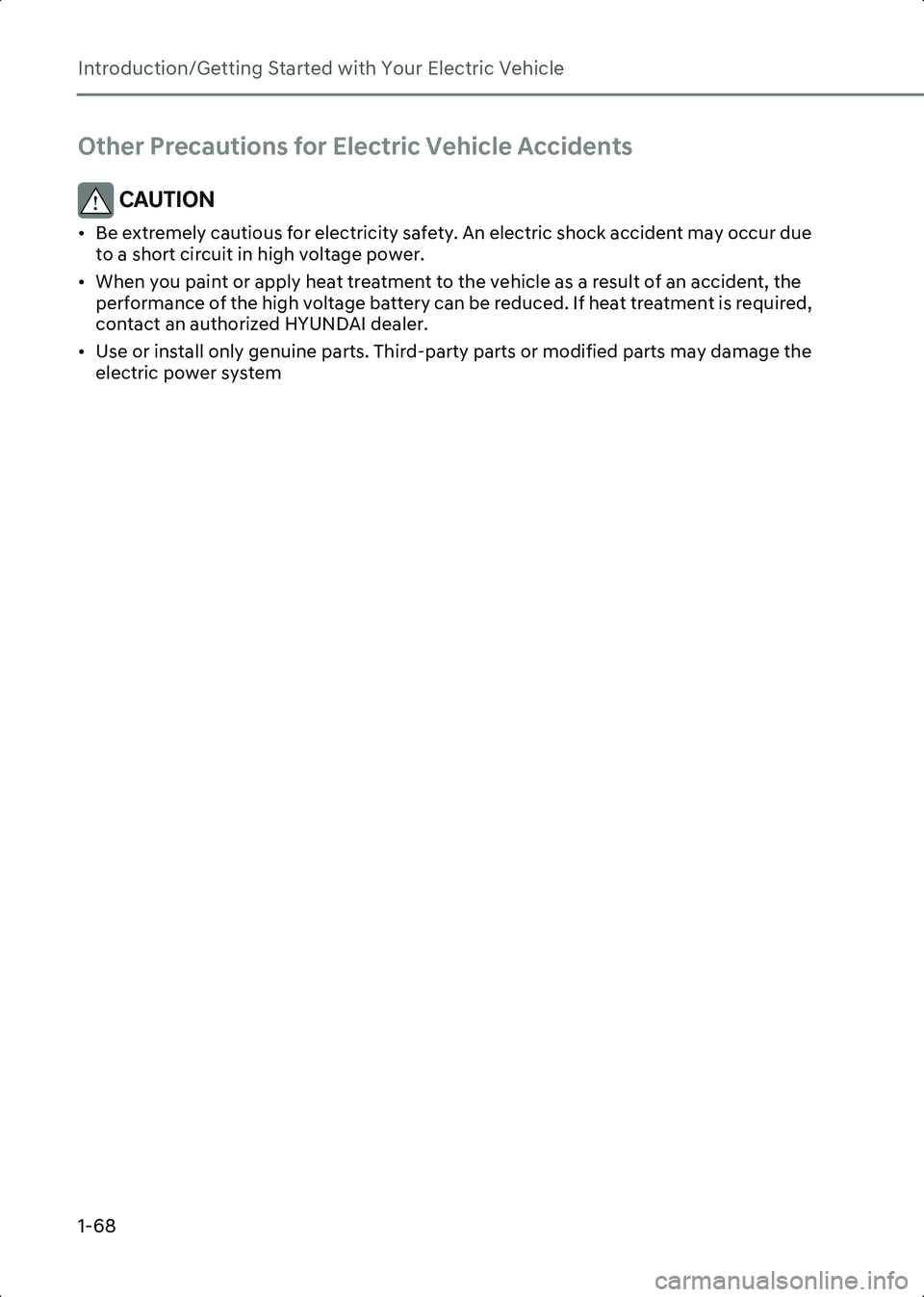

Other Precautions for Electric Vehicle Accidents
CAUTION • Be extremely cautious for electricity safety. An electric shock accident may occur due to a short circuit in high voltage power.
• When you paint or apply heat treatment to the vehicle as a result of an accident, the performance of the high voltage battery can be reduced. If heat treatment is required,
contact an authorized HYUNDAI dealer.
• Use or install only genuine parts. Third-party parts or modified parts may damage the electric power system

Hyundai_CE_en_US.book Page 68

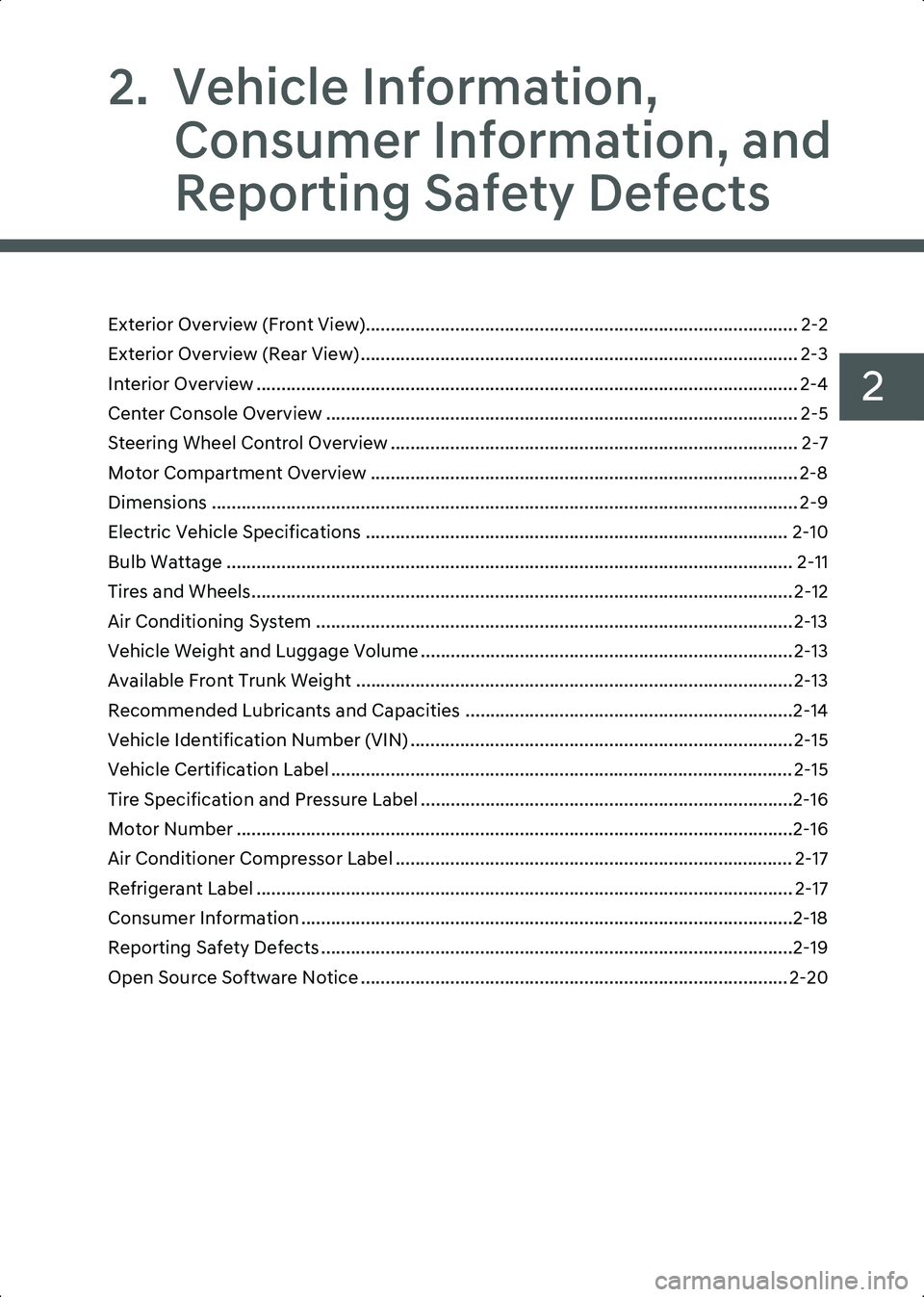

2
2. Vehicle Information, Consumer Information, and
Reporting Safety Defects
Exterior Overview (Front View)....................................................................................... 2-2
Exterior Overview (Rear View) ........................................................................................ 2-3
Interior Overview ............................................................................................................. 2-4
Center Console Overview ............................................................................................... 2-5
Steering Wheel Control Overview .................................................................................. 2-7
Motor Compartment Overview ...................................................................................... 2-8
Dimensions ...................................................................................................................... 2-9
Electric Vehicle Specifications ..................................................................................... 2-10
Bulb Wattage .................................................................................................................. 2-11
Tires and Wheels............................................................................................................. 2-12
Air Conditioning System ................................................................................................2-13
Vehicle Weight and Luggage Volume ...........................................................................2-13
Available Front Trunk Weight ........................................................................................2-13
Recommended Lubricants and Capacities ..................................................................2-14
Vehicle Identification Number (VIN) ............................................................................. 2-15
Vehicle Certification Label ............................................................................................. 2-15
Tire Specification and Pressure Label ...........................................................................2-16
Motor Number ................................................................................................................2-16
Air Conditioner Compressor Label ................................................................................ 2-17
Refrigerant Label ............................................................................................................ 2-17
Consumer Information ...................................................................................................2-18
Reporting Safety Defects ...............................................................................................2-19
Open Source Software Notice ...................................................................................... 2-20
Hyundai_CE_en_US.book Page 1

Vehicle Information, Consumer Information, and Reporting Safety Defects
2-2

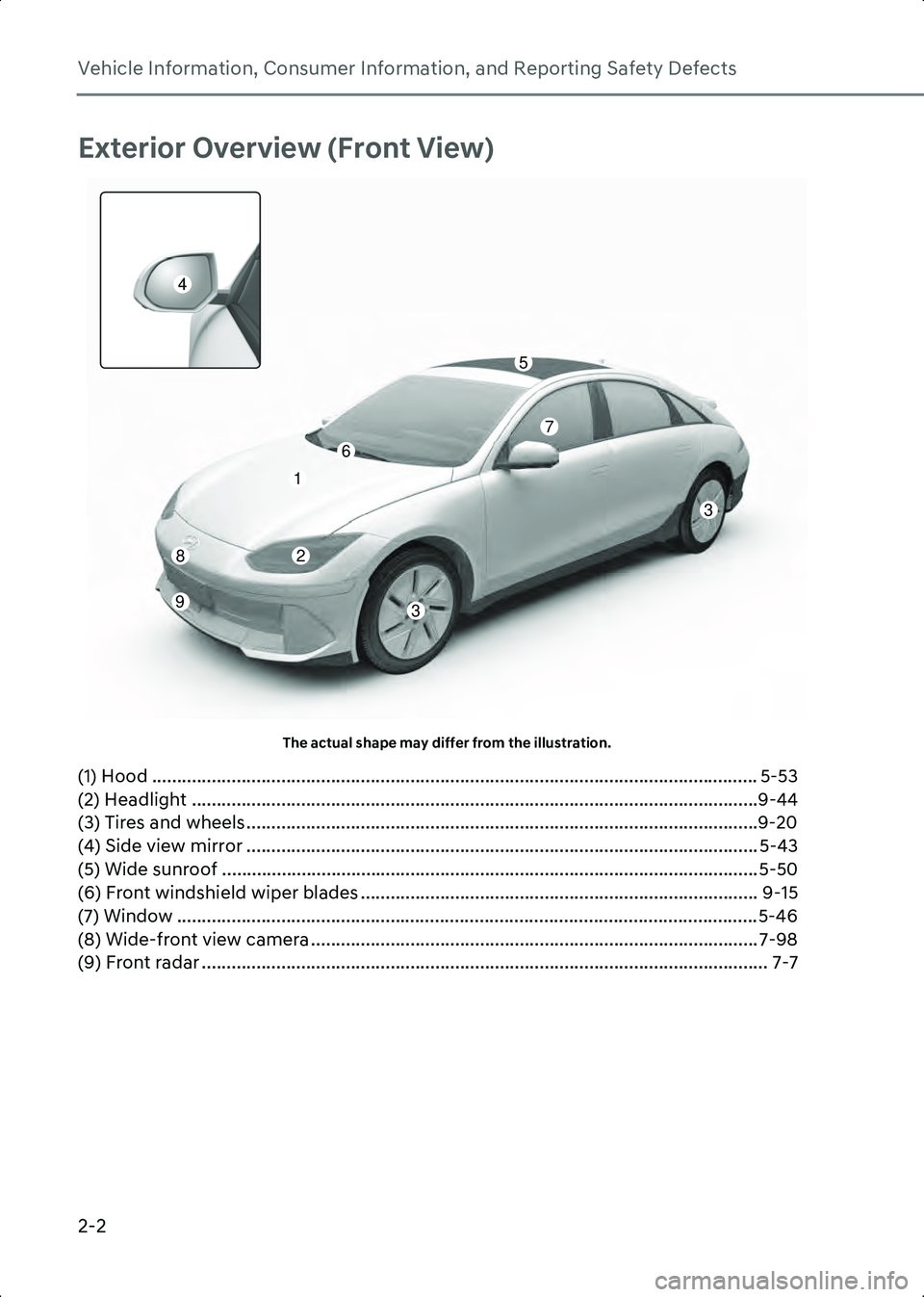

Exterior Overview (Front View)
A1000201The actual shape may differ from the illustration.
(1) Hood .......................................................................................................................... 5-53
(2) Headlight ..................................................................................................................9-44
(3) Tires and wheels .......................................................................................................9-20
(4) Side view mirror ....................................................................................................... 5-43
(5) Wide sunroof ............................................................................................................5-50
(6) Front windshield wiper blades ................................................................................ 9-15
(7) Window ..................................................................................................................... 5-46
(8) Wide-front view camera .......................................................................................... 7-98
(9) Front radar .................................................................................................................. 7-7
1
2
3
3
5
6
7
8
9
4
Hyundai_CE_en_US.book Page 2

2
2-3

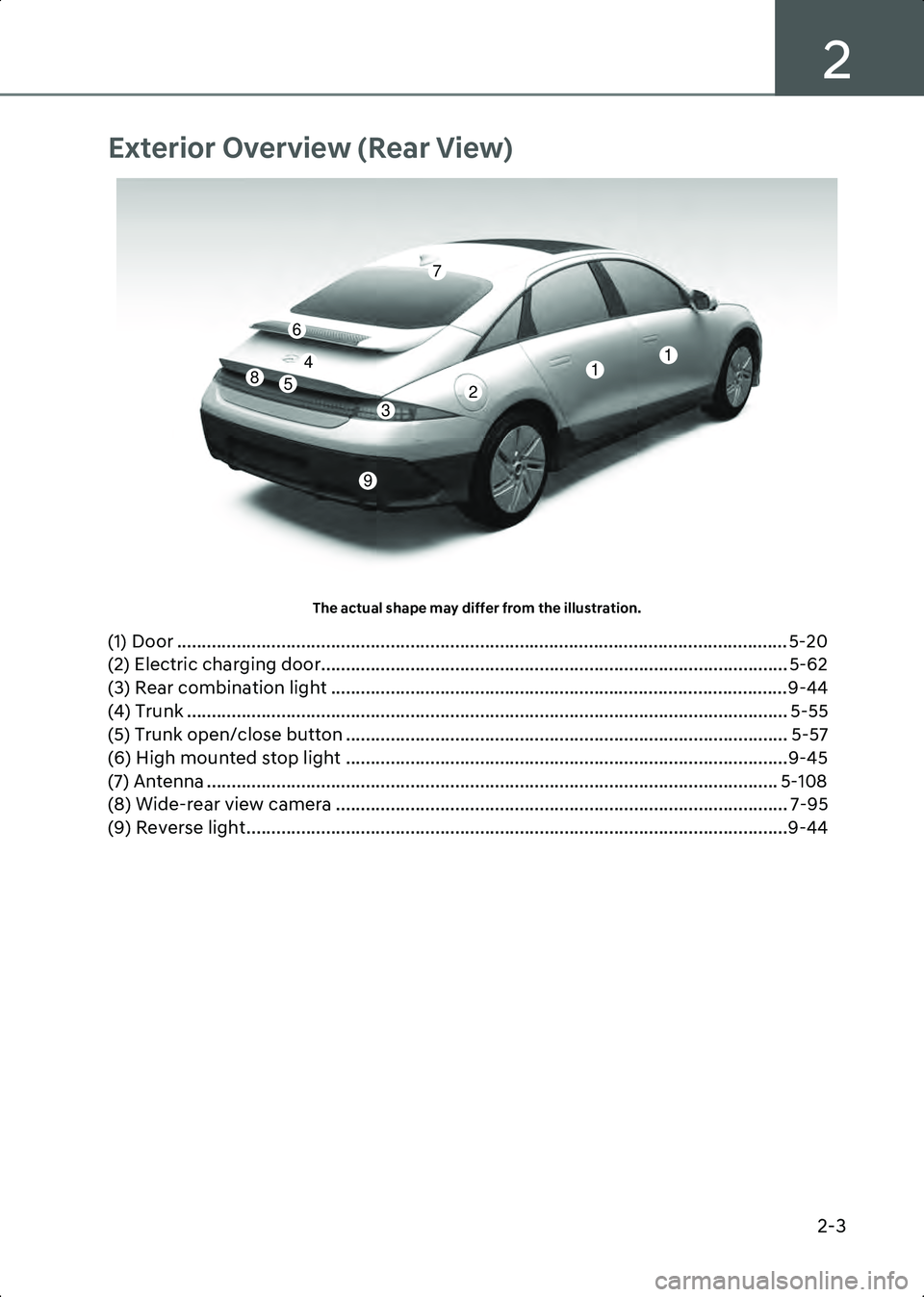

Exterior Overview (Rear View)
A1000301The actual shape may differ from the illustration.
(1) Door ........................................................................................................................... 5-20
(2) Electric charging door.............................................................................................. 5-62
(3) Rear combination light ............................................................................................9-44
(4) Trunk ......................................................................................................................... 5-55
(5) Trunk open/close button ......................................................................................... 5-57
(6) High mounted stop light ......................................................................................... 9-45
(7) Antenna ................................................................................................................... 5-108
(8) Wide-rear view camera ........................................................................................... 7-95
(9) Reverse light.............................................................................................................9-44
4
5
11
23
9
8
6
7
Hyundai_CE_en_US.book Page 3

Vehicle Information, Consumer Information, and Reporting Safety Defects
2-4

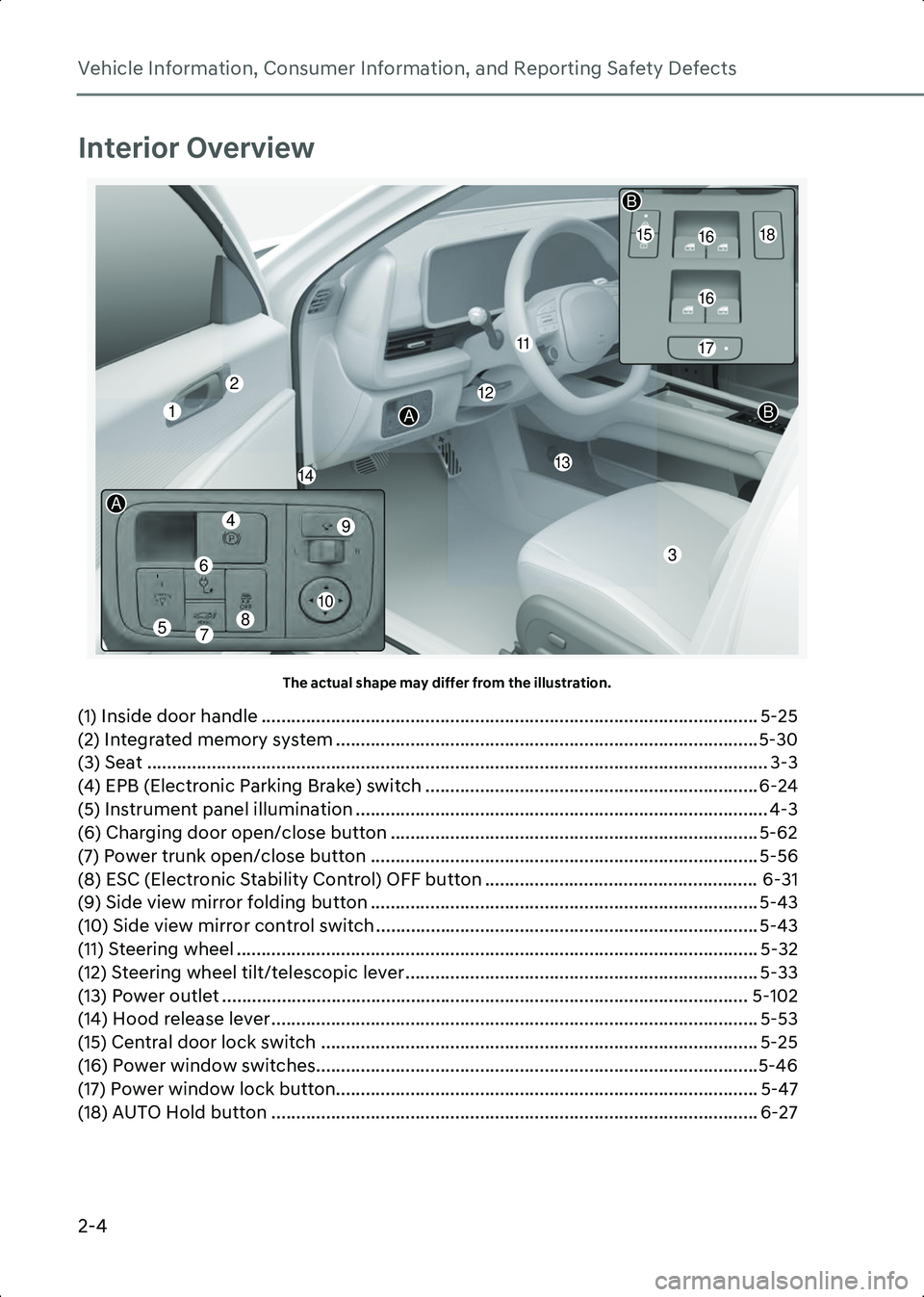

Interior Overview
A1000501The actual shape may differ from the illustration.
(1) Inside door handle .................................................................................................... 5-25
(2) Integrated memory system .....................................................................................5-30
(3) Seat ............................................................................................................................. 3-3
(4) EPB (Electronic Parking Brake) switch ................................................................... 6-24
(5) Instrument panel illumination ................................................................................... 4-3 (6) Charging door open/close button .......................................................................... 5-62
(7) Power trunk open/close button .............................................................................. 5-56
(8) ESC (Electronic Stability Control) OFF button ....................................................... 6-31
(9) Side view mirror folding button .............................................................................. 5-43
(10) Side view mirror control switch ............................................................................. 5-43
(11) Steering wheel ......................................................................................................... 5-32
(12) Steering wheel tilt/telescopic lever ....................................................................... 5-33
(13) Power outlet .......................................................................................................... 5-102 (14) Hood release lever .................................................................................................. 5-53
(15) Central door lock switch ........................................................................................ 5-25 (16) Power window switches.........................................................................................5-46
(17) Power window lock button..................................................................................... 5-47
(18) AUTO Hold button .................................................................................................. 6-27
112
1314
16
16
17
1518
11
2
3
B
B
A
10
7
6
49
8
A
5
Hyundai_CE_en_US.book Page 4

2
2-5

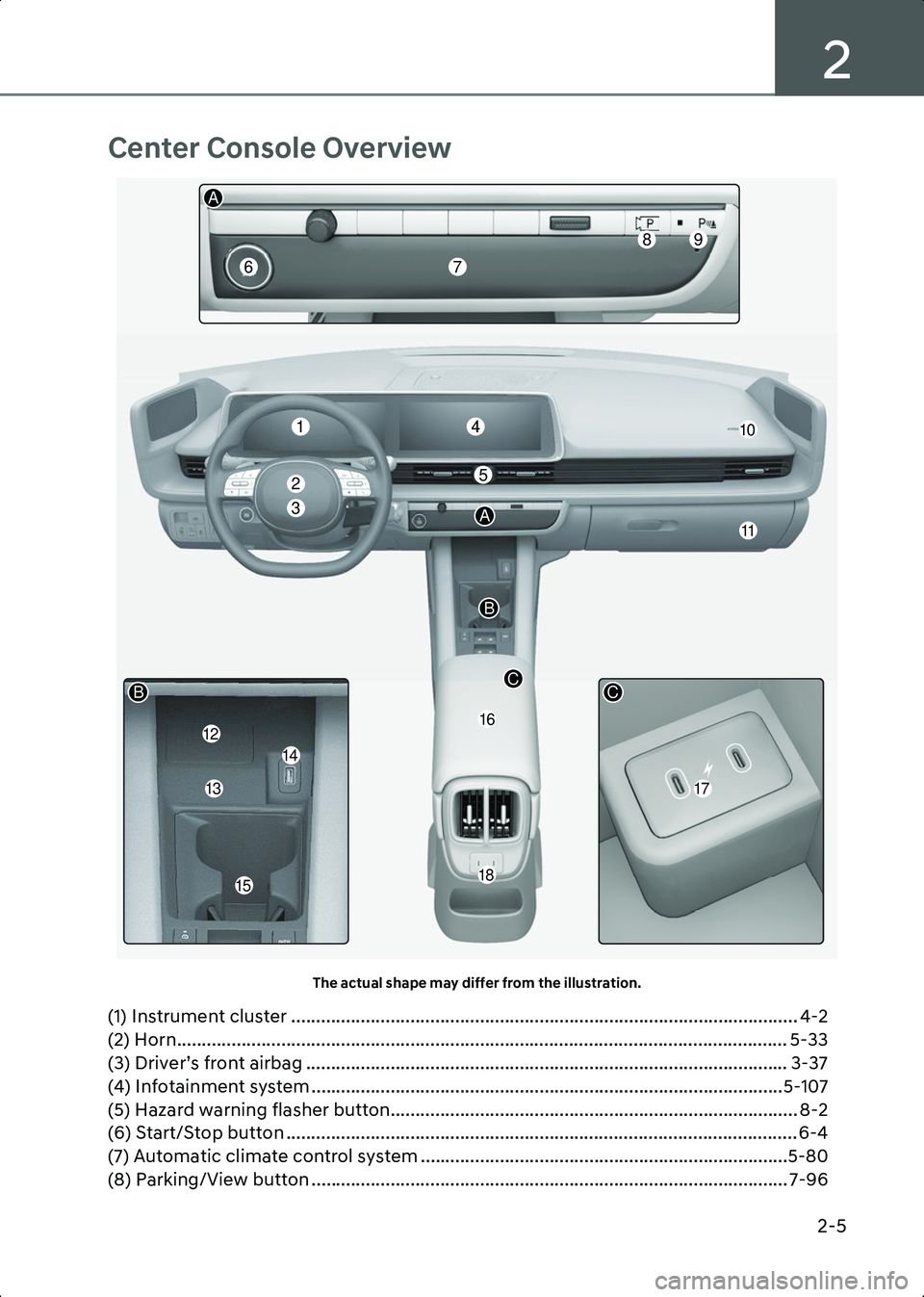

Center Console Overview
A1000601The actual shape may differ from the illustration.
(1) Instrument cluster ...................................................................................................... 4-2
(2) Horn........................................................................................................................... 5-33
(3) Driver’s front airbag ................................................................................................. 3-37
(4) Infotainment system ...............................................................................................5-107
(5) Hazard warning flasher button.................................................................................. 8-2
(6) Start/Stop button ....................................................................................................... 6-4
(7) Automatic climate control system ..........................................................................5-80
(8) Parking/View button ................................................................................................ 7-96
14
5
67
12
13
14
1815
10
11
16
2
3
A
A
B
B
CC
17
89
Hyundai_CE_en_US.book Page 5

Vehicle Information, Consumer Information, and Reporting Safety Defects
2-6

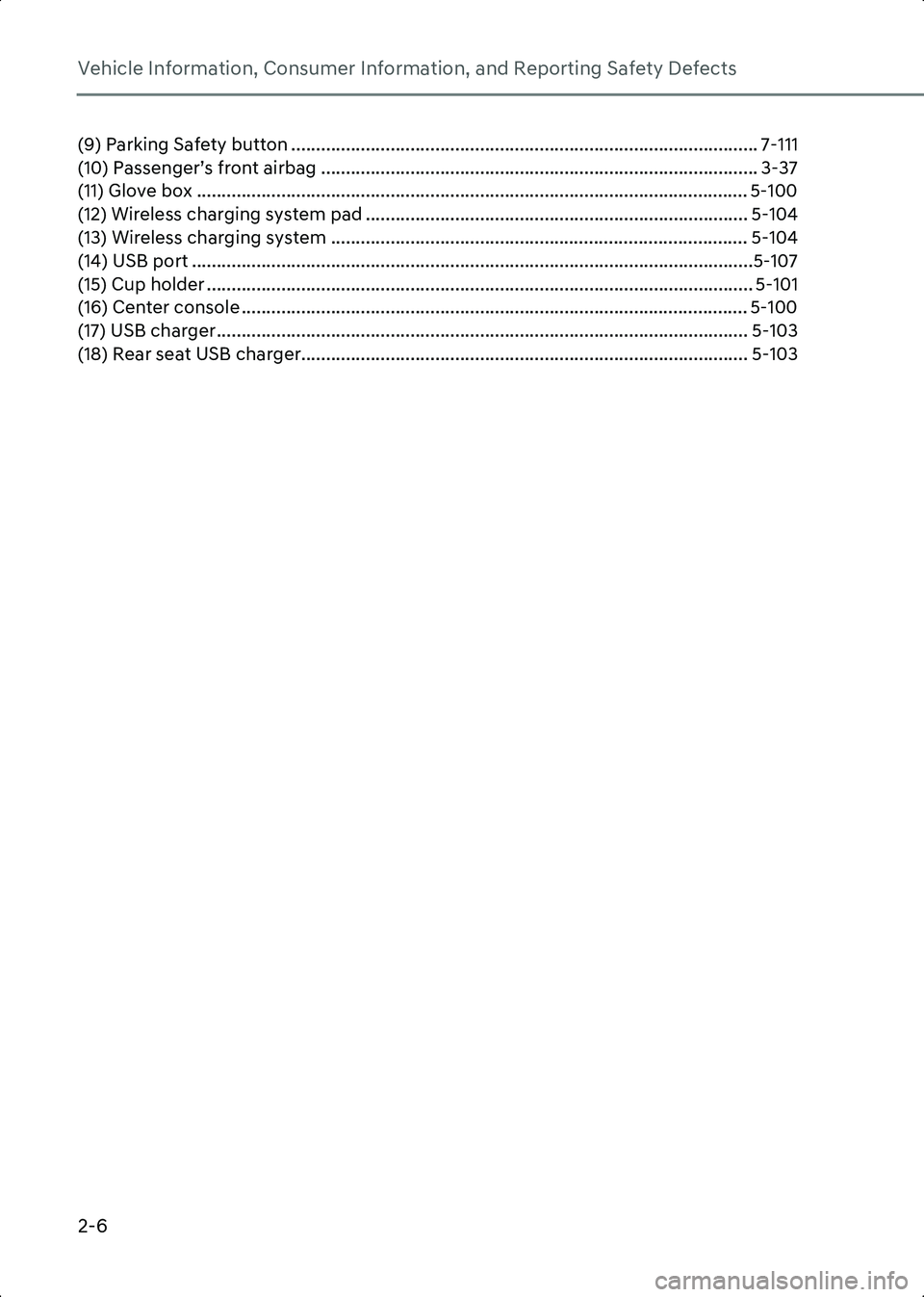

(9) Parking Safety button .............................................................................................. 7-111
