HYUNDAI IONIQ 6 2023 Owners Manual
Manufacturer: HYUNDAI, Model Year: 2023, Model line: IONIQ 6, Model: HYUNDAI IONIQ 6 2023Pages: 582, PDF Size: 10.77 MB
Page 221 of 582
5
5-43

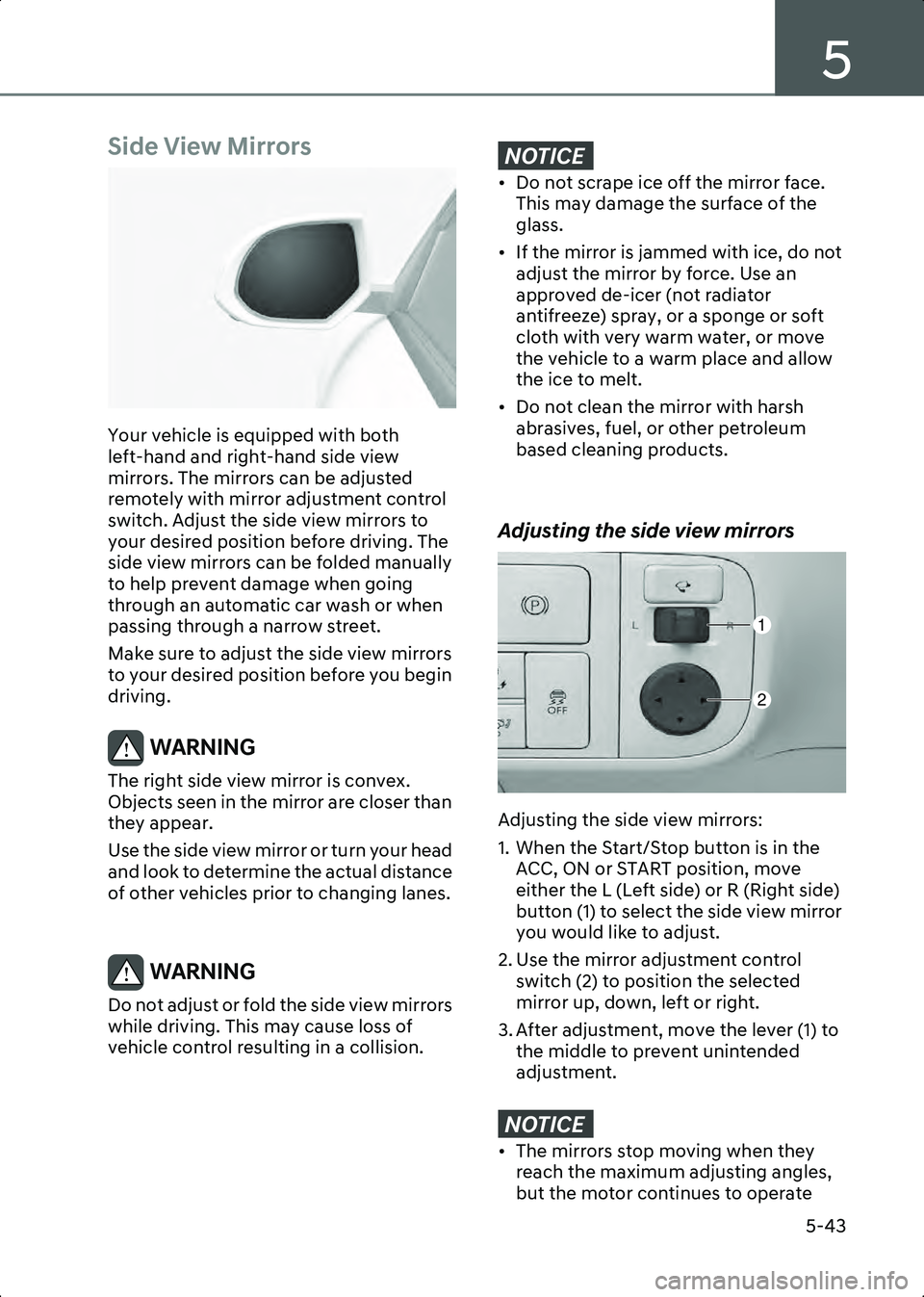

Side View Mirrors
B5007001
Your vehicle is equipped with both
left-hand and right-hand side view
mirrors. The mirrors can be adjusted
remotely with mirror adjustment control
switch. Adjust the side view mirrors to
your desired position before driving. The
side view mirrors can be folded manually
to help prevent damage when going
through an automatic car wash or when
passing through a narrow street.
Make sure to adjust the side view mirrors
to your desired position before you begin
driving.
WARNING The right side view mirror is convex.
Objects seen in the mirror are closer than
they appear.
Use the side view mirror or turn your head
and look to determine the actual distance
of other vehicles prior to changing lanes.
WARNING Do not adjust or fold the side view mirrors
while driving. This may cause loss of
vehicle control resulting in a collision.
NOTICE [ ' R Q R W V F U D S H L F H R I I W K H P L U U R U I D F H 7 K L V P D \ G D P D J H W K H V X U I D F H R I W K H
J O D V V
[ , I W K H P L U U R U L V M D P P H G Z L W K L F H G R Q R W D G M X V W W K H P L U U R U E \ I R U F H 8 V H D Q
D S S U R Y H G G H L F H U Q R W U D G L D W R U
D Q W L I U H H ] H \f V S U D \ R U D V S R Q J H R U V R I W
F O R W K Z L W K Y H U \ Z D U P Z D W H U R U P R Y H
W K H Y H K L F O H W R D Z D U P S O D F H D Q G D O O R Z
W K H L F H W R P H O W
[ ' R Q R W F O H D Q W K H P L U U R U Z L W K K D U V K D E U D V L Y H V I X H O R U R W K H U S H W U R O H X P
E D V H G F O H D Q L Q J S U R G X F W V
Adjusting the side view mirrors
B5007002
Adjusting the side view mirrors:
1. When the Start/Stop button is in the ACC, ON or START position, move
either the L (Left side) or R (Right side)
button (1) to select the side view mirror
you would like to adjust.
2. Use the mirror adjustment control switch (2) to position the selected
mirror up, down, left or right.
3. After adjustment, move the lever (1) to the middle to prevent unintended
adjustment.
NOTICE [ 7 K H P L U U R U V V W R S P R Y L Q J Z K H Q W K H \ U H D F K W K H P D [ L P X P D G M X V W L Q J D Q J O H V
E X W W K H P R W R U F R Q W L Q X H V W R R S H U D W H
1
2
Hyundai_CE_en_US.book Page 43

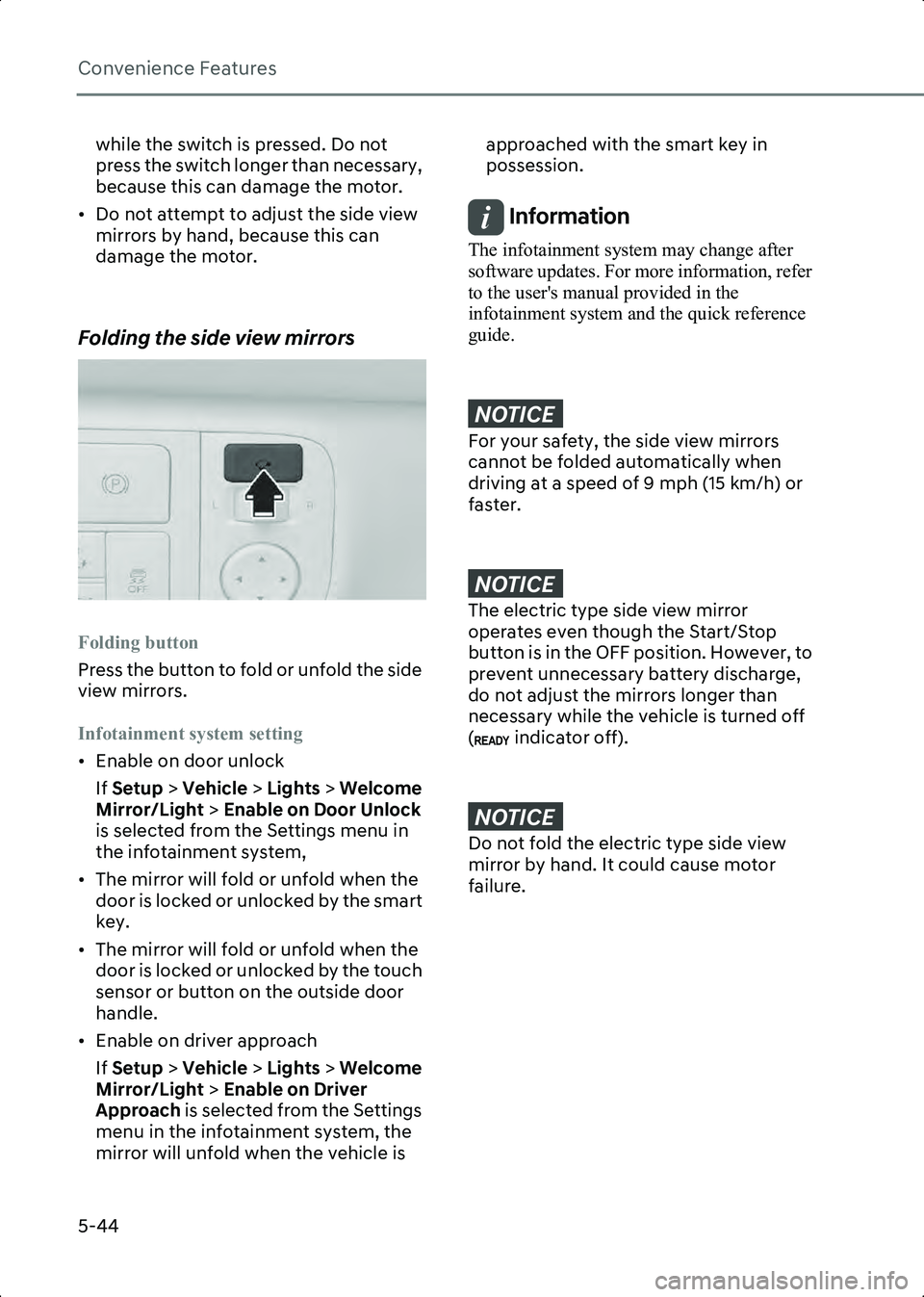

Page 222 of 582
Convenience Features
5-44
while the switch is pressed. Do not
press the switch longer than necessary,
because this can damage the motor.
• Do not attempt to adjust the side view mirrors by hand, because this can
damage the motor.
Folding the side view mirrors
B5007003
Folding button
Press the button to fold or unfold the side
view mirrors.
Infotainment system setting
• Enable on door unlock If Setup > Vehicle > Lights > Welcome
Mirror/Light > Enable on Door Unlock
is selected from the Settings menu in
the infotainment system,
• The mirror will fold or unfold when the door is locked or unlocked by the smart
key.
• The mirror will fold or unfold when the door is locked or unlocked by the touch
sensor or button on the outside door
handle.
• Enable on driver approach If Setup > Vehicle > Lights > Welcome
Mirror/Light > Enable on Driver
Approach is selected from the Settings
menu in the infotainment system, the
mirror will unfold when the vehicle is approached with the smart key in
possession.
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.
NOTICE ) R U \ R X U V D I H W \ W K H V L G H Y L H Z P L U U R U V
F D Q Q R W E H I R O G H G D X W R P D W L F D O O \ Z K H Q
G U L Y L Q J D W D V S H H G R I P S K N P K \f R U
I D V W H U
NOTICE 7 K H H O H F W U L F W \ S H V L G H Y L H Z P L U U R U
R S H U D W H V H Y H Q W K R X J K W K H 6 W D U W 6 W R S
E X W W R Q L V L Q W K H 2 ) ) S R V L W L R Q + R Z H Y H U W R
S U H Y H Q W X Q Q H F H V V D U \ E D W W H U \ G L V F K D U J H
G R Q R W D G M X V W W K H P L U U R U V O R Q J H U W K D Q
Q H F H V V D U \ Z K L O H W K H Y H K L F O H L V W X U Q H G R I I
L Q G L F D W R U R I I \f
NOTICE ' R Q R W I R O G W K H H O H F W U L F W \ S H V L G H Y L H Z
P L U U R U E \ K D Q G , W F R X O G F D X V H P R W R U
I D L O X U H
Hyundai_CE_en_US.book Page 44

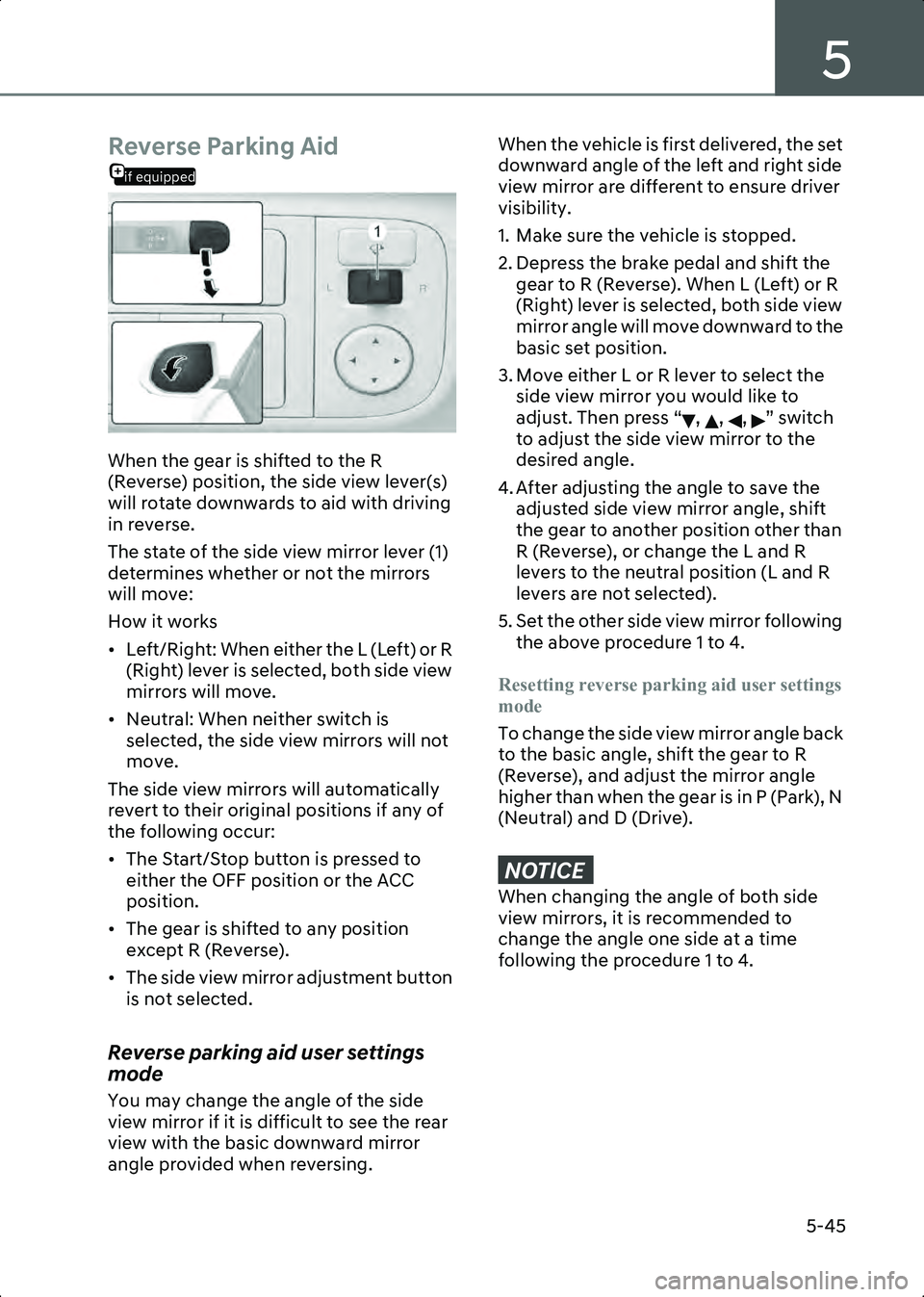

Page 223 of 582
5
5-45
if equipped
Reverse Parking Aid
B5007004
When the gear is shifted to the R
(Reverse) position, the side view lever(s)
will rotate downwards to aid with driving
in reverse.
The state of the side view mirror lever (1)
determines whether or not the mirrors
will move:
How it works
• Left/Right: When either the L (Left) or R (Right) lever is selected, both side view
mirrors will move.
• Neutral: When neither switch is selected, the side view mirrors will not
move.
The side view mirrors will automatically
revert to their original positions if any of
the following occur:
• The Start/Stop button is pressed to either the OFF position or the ACC
position.
• The gear is shifted to any position except R (Reverse).
• The side view mirror adjustment button is not selected.
Reverse parking aid user settings
mode
You may change the angle of the side
view mirror if it is difficult to see the rear
view with the basic downward mirror
angle provided when reversing. When the vehicle is first delivered, the set
downward angle of the left and right side
view mirror are different to ensure driver
visibility.
1. Make sure the vehicle is stopped.
2. Depress the brake pedal and shift the
gear to R (Reverse). When L (Left) or R
(Right) lever is selected, both side view
mirror angle will move downward to the
basic set position.
3. Move either L or R lever to select the side view mirror you would like to
adjust. Then press “ , , , ” switch
to adjust the side view mirror to the
desired angle.
4. After adjusting the angle to save the adjusted side view mirror angle, shift
the gear to another position other than
R (Reverse), or change the L and R
levers to the neutral position (L and R
levers are not selected).
5. Set the other side view mirror following the above procedure 1 to 4.
Resetting reverse parking aid user settings
mode
To change the side view mirror angle back
to the basic angle, shift the gear to R
(Reverse), and adjust the mirror angle
higher than when the gear is in P (Park), N
(Neutral) and D (Drive).
NOTICE : K H Q F K D Q J L Q J W K H D Q J O H R I E R W K V L G H
Y L H Z P L U U R U V L W L V U H F R P P H Q G H G W R
F K D Q J H W K H D Q J O H R Q H V L G H D W D W L P H
I R O O R Z L Q J W K H S U R F H G X U H W R
Hyundai_CE_en_US.book Page 45

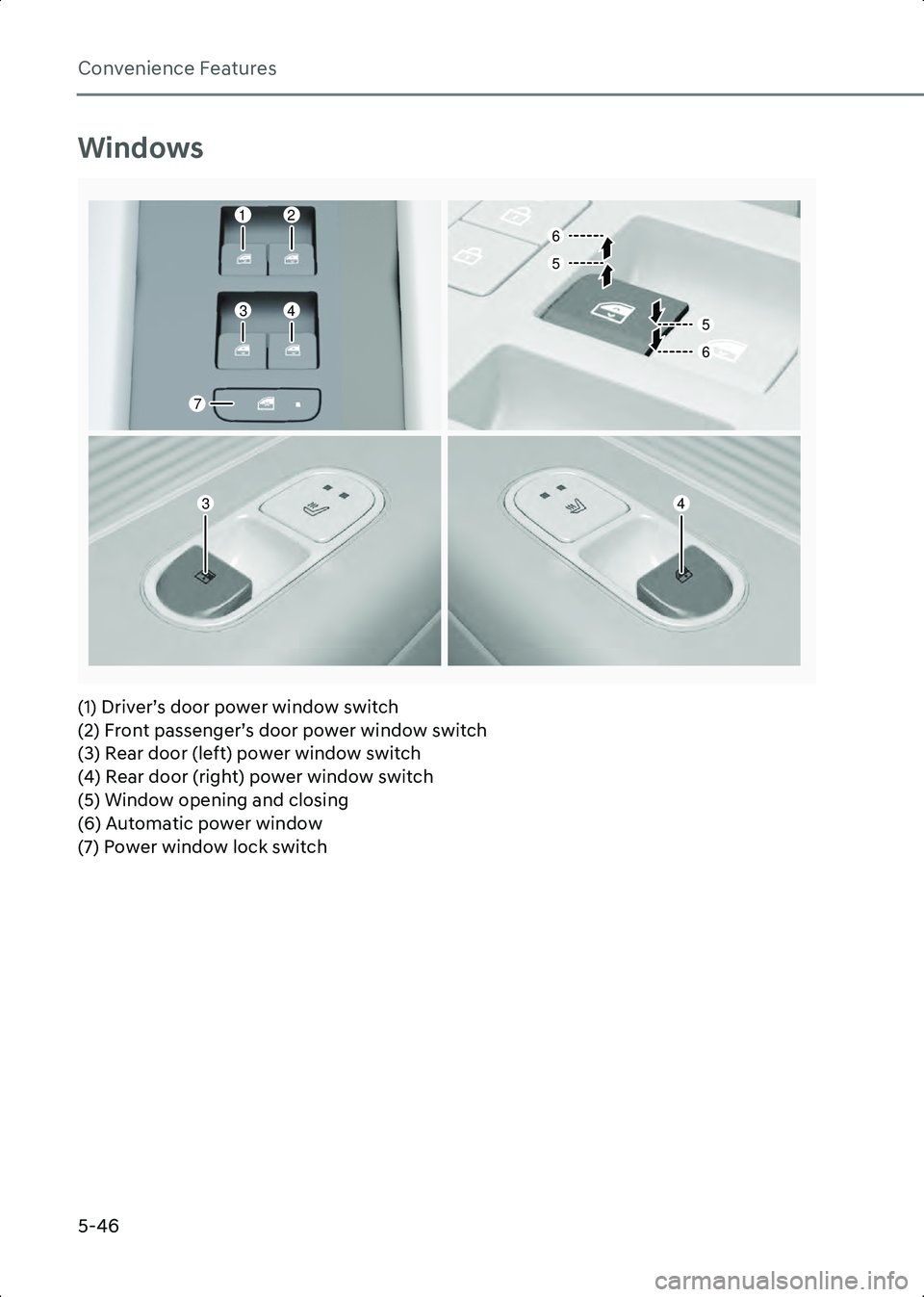

Page 224 of 582
Convenience Features
5-46
Windows
A5008101(1) Driver’s door power window switch
(2) Front passenger’s door power window switch
(3) Rear door (left) power window switch
(4) Rear door (right) power window switch
(5) Window opening and closing
(6) Automatic power window
(7) Power window lock switch
12
3
3
7
6
5
5
6
4
4
Hyundai_CE_en_US.book Page 46

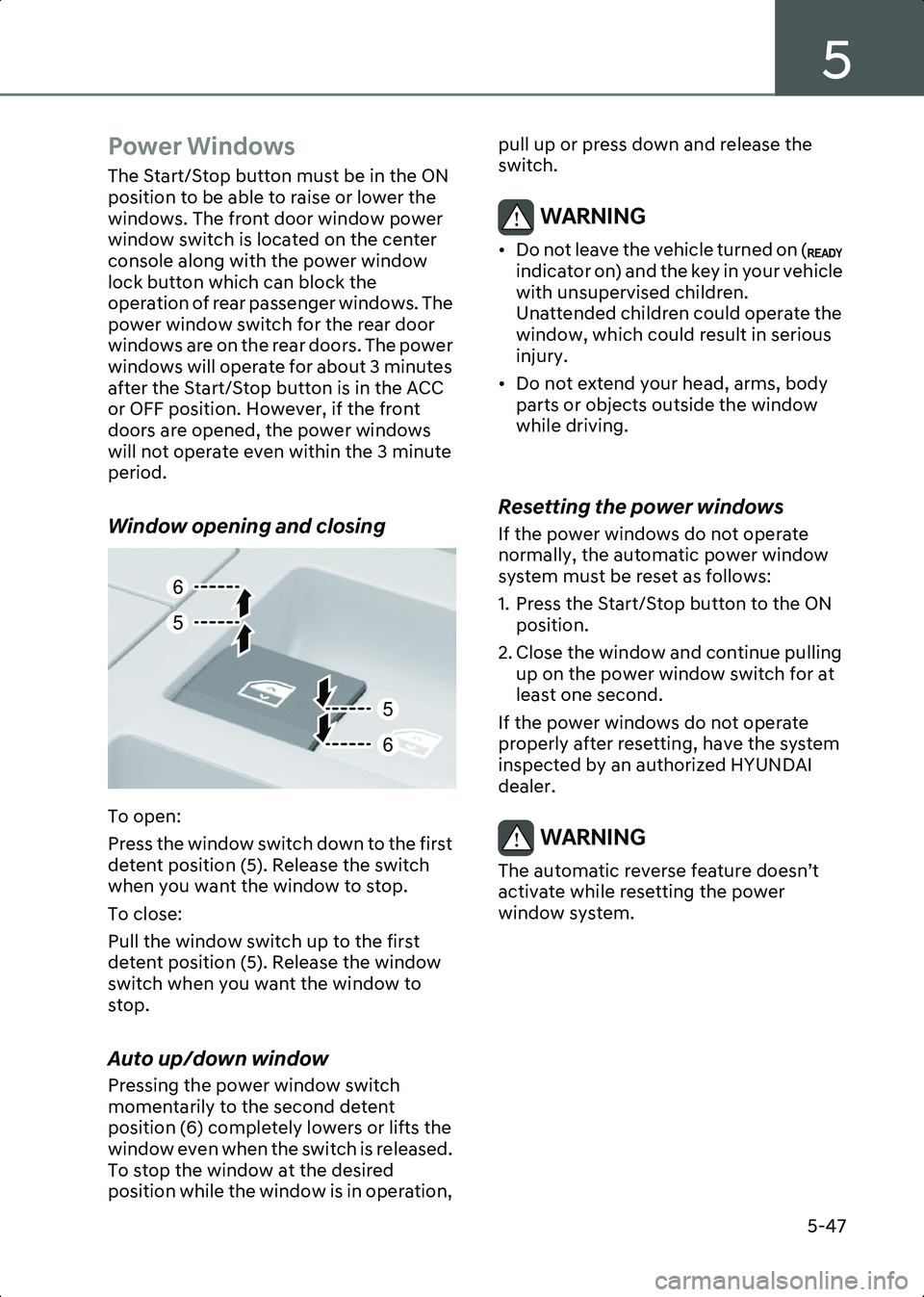

Page 225 of 582
5
5-47
Power Windows
The Start/Stop button must be in the ON
position to be able to raise or lower the
windows. The front door window power
window switch is located on the center
console along with the power window
lock button which can block the
operation of rear passenger windows. The
power window switch for the rear door
windows are on the rear doors. The power
windows will operate for about 3 minutes
after the Start/Stop button is in the ACC
or OFF position. However, if the front
doors are opened, the power windows
will not operate even within the 3 minute
period.
Window opening and closing
B5008201
To open:
Press the window switch down to the first
detent position (5). Release the switch
when you want the window to stop.
To close:
Pull the window switch up to the first
detent position (5). Release the window
switch when you want the window to
stop.
Auto up/down window
Pressing the power window switch
momentarily to the second detent
position (6) completely lowers or lifts the
window even when the switch is released.
To stop the window at the desired
position while the window is in operation, pull up or press down and release the
switch.
WARNING • Do not leave the vehicle turned on (
indicator on) and the key in your vehicle
with unsupervised children.
Unattended children could operate the
window, which could result in serious
injury.
• Do not extend your head, arms, body parts or objects outside the window
while driving.
Resetting the power windows
If the power windows do not operate
normally, the automatic power window
system must be reset as follows:
1. Press the Start/Stop button to the ON position.
2. Close the window and continue pulling up on the power window switch for at
least one second.
If the power windows do not operate
properly after resetting, have the system
inspected by an authorized HYUNDAI
dealer.
WARNING The automatic reverse feature doesn’t
activate while resetting the power
window system.
6
5
5
6
Hyundai_CE_en_US.book Page 47

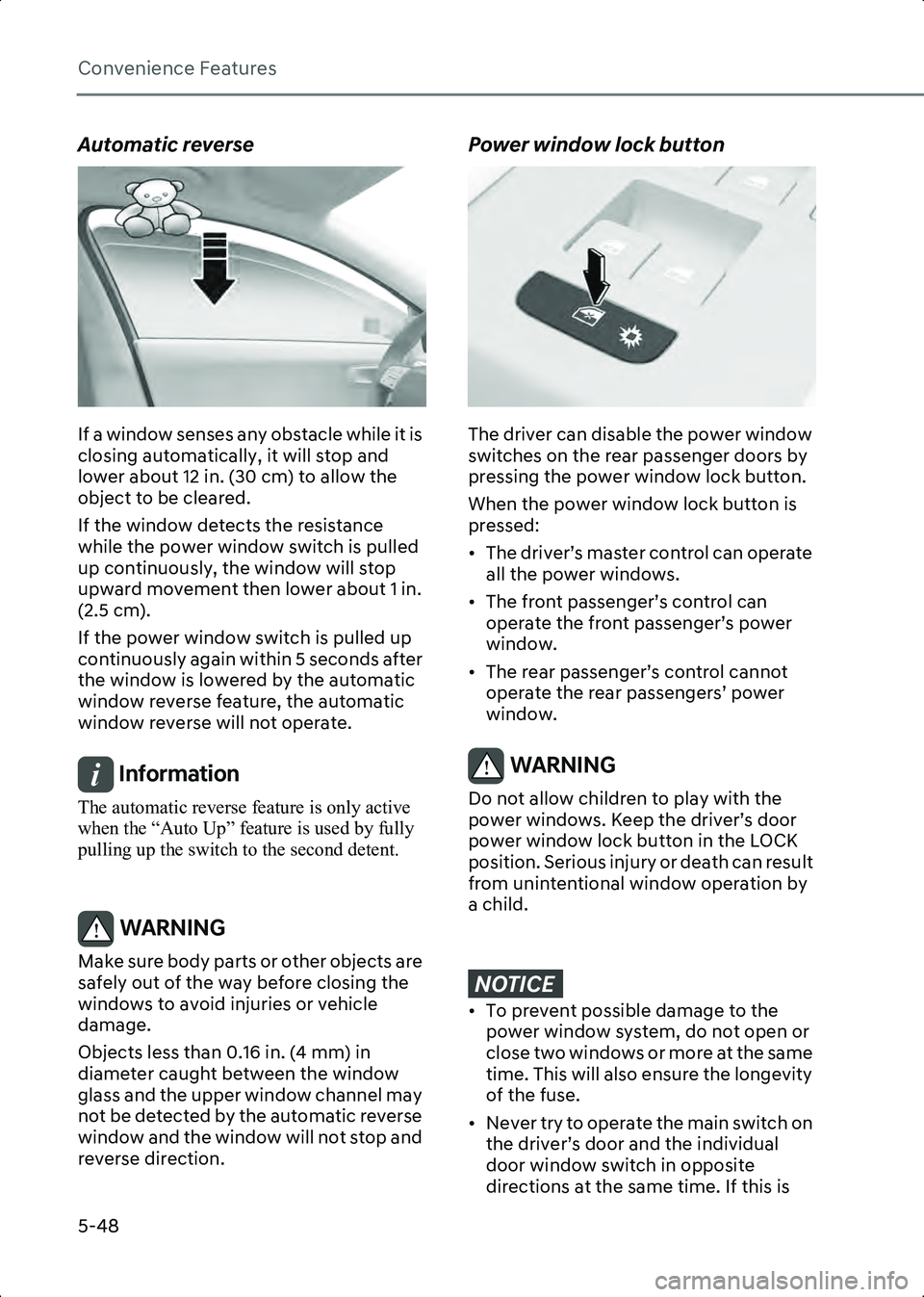

Page 226 of 582
Convenience Features
5-48
Automatic reverse
B5008202
If a window senses any obstacle while it is
closing automatically, it will stop and
lower about 12 in. (30 cm) to allow the
object to be cleared.
If the window detects the resistance
while the power window switch is pulled
up continuously, the window will stop
upward movement then lower about 1 in.
(2.5 cm).
If the power window switch is pulled up
continuously again within 5 seconds after
the window is lowered by the automatic
window reverse feature, the automatic
window reverse will not operate.
Information The automatic reverse feature is only active
when the “Auto Up” feature is used by fully
pulling up the switch to the second detent.
WARNING Make sure body parts or other objects are
safely out of the way before closing the
windows to avoid injuries or vehicle
damage.
Objects less than 0.16 in. (4 mm) in
diameter caught between the window
glass and the upper window channel may
not be detected by the automatic reverse
window and the window will not stop and
reverse direction.
Power window lock button
B5008203
The driver can disable the power window
switches on the rear passenger doors by
pressing the power window lock button.
When the power window lock button is
pressed:
• The driver’s master control can operate all the power windows.
• The front passenger’s control can operate the front passenger’s power
window.
• The rear passenger’s control cannot operate the rear passengers’ power
window.
WARNING Do not allow children to play with the
power windows. Keep the driver’s door
power window lock button in the LOCK
position. Serious injury or death can result
from unintentional window operation by
a child.
NOTICE [ 7 R S U H Y H Q W S R V V L E O H G D P D J H W R W K H S R Z H U Z L Q G R Z V \ V W H P G R Q R W R S H Q R U
F O R V H W Z R Z L Q G R Z V R U P R U H D W W K H V D P H
W L P H 7 K L V Z L O O D O V R H Q V X U H W K H O R Q J H Y L W \
R I W K H I X V H
[ 1 H Y H U W U \ W R R S H U D W H W K H P D L Q V Z L W F K R Q W K H G U L Y H UT V G R R U D Q G W K H L Q G L Y L G X D O
G R R U Z L Q G R Z V Z L W F K L Q R S S R V L W H
G L U H F W L R Q V D W W K H V D P H W L P H , I W K L V L V
Hyundai_CE_en_US.book Page 48
Page 227 of 582
5
5-49

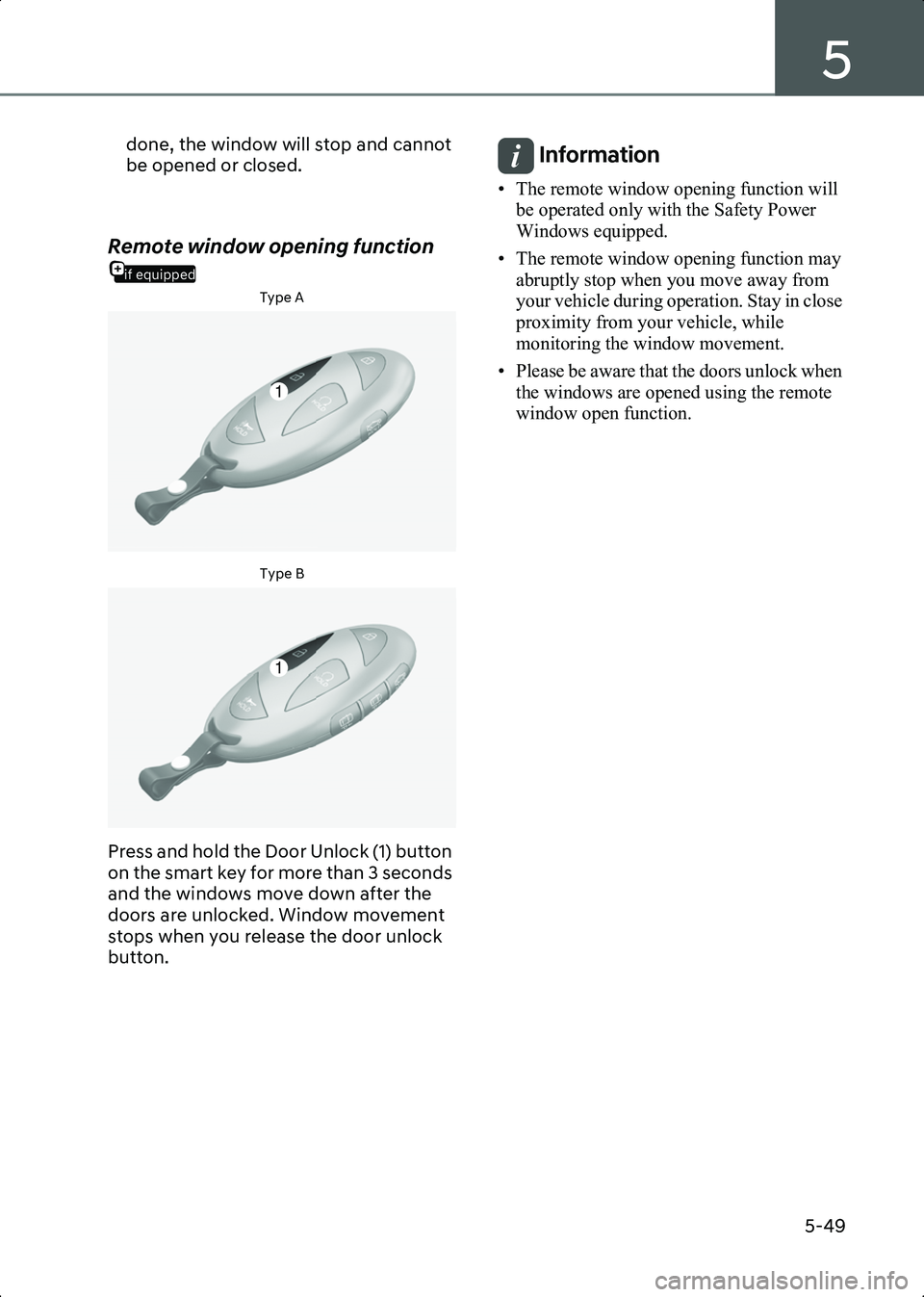

done, the window will stop and cannot
be opened or closed.
if equipped
Remote window opening function
Type A
B5008301Type B
B5008302
Press and hold the Door Unlock (1) button
on the smart key for more than 3 seconds
and the windows move down after the
doors are unlocked. Window movement
stops when you release the door unlock
button.
Information • The remote window opening function will be operated only with the Safety Power
Windows equipped.
• The remote window opening function may abruptly stop when you move away from
your vehicle during operation. Stay in close
proximity from your vehicle, while
monitoring the window movement.
• Please be aware that the doors unlock when the windows are opened using the remote
window open function.
1
1
Hyundai_CE_en_US.book Page 49
Page 228 of 582
Convenience Features
5-50
if equipped

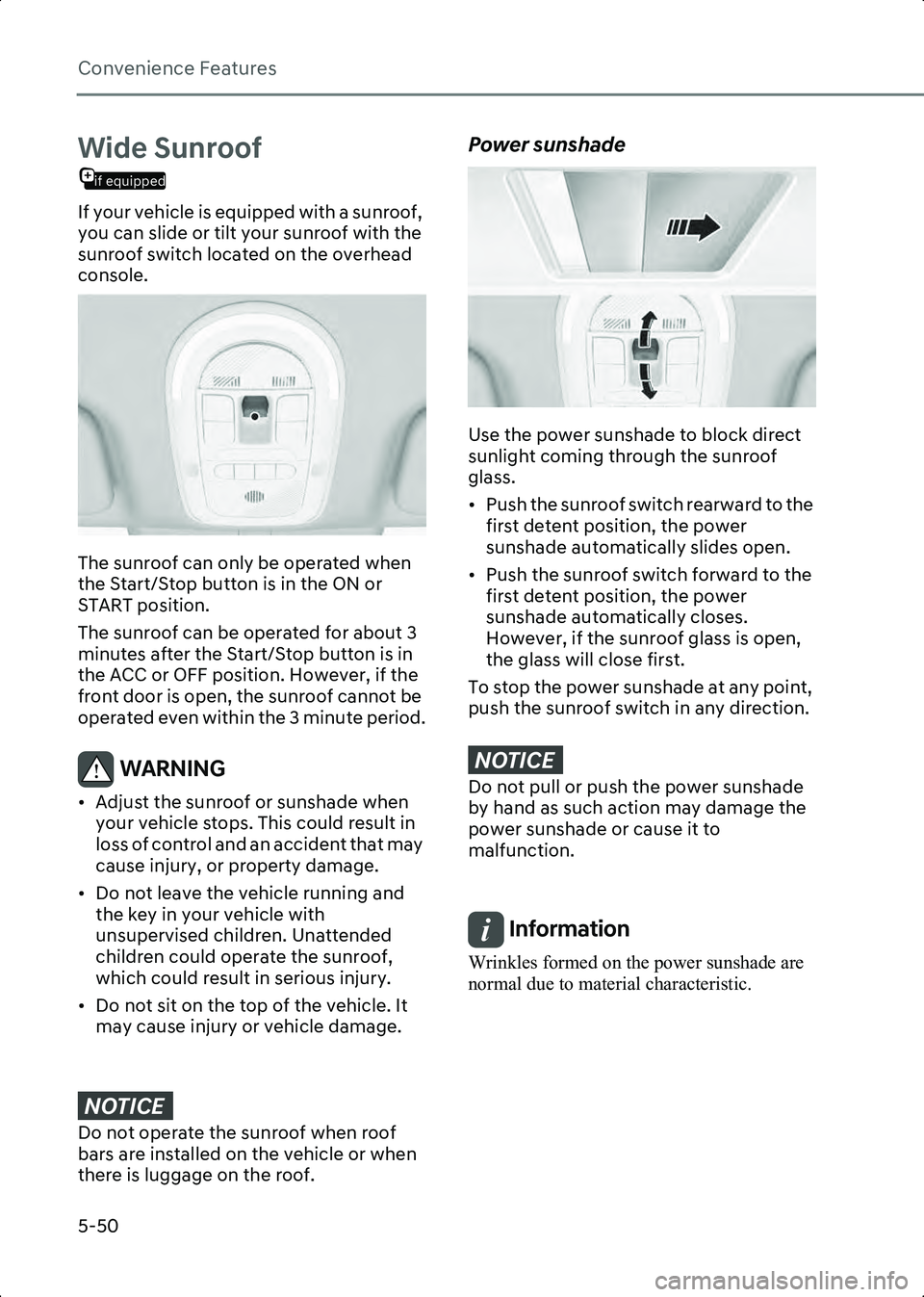

Wide Sunroof
If your vehicle is equipped with a sunroof,
you can slide or tilt your sunroof with the
sunroof switch located on the overhead
console.
B5027301
The sunroof can only be operated when
the Start/Stop button is in the ON or
START position.
The sunroof can be operated for about 3
minutes after the Start/Stop button is in
the ACC or OFF position. However, if the
front door is open, the sunroof cannot be
operated even within the 3 minute period.
WARNING • Adjust the sunroof or sunshade when your vehicle stops. This could result in
loss of control and an accident that may
cause injury, or property damage.
• Do not leave the vehicle running and the key in your vehicle with
unsupervised children. Unattended
children could operate the sunroof,
which could result in serious injury.
• Do not sit on the top of the vehicle. It may cause injury or vehicle damage.
NOTICE ' R Q R W R S H U D W H W K H V X Q U R R I Z K H Q U R R I
E D U V D U H L Q V W D O O H G R Q W K H Y H K L F O H R U Z K H Q
W K H U H L V O X J J D J H R Q W K H U R R I
Power sunshade
B5027401
Use the power sunshade to block direct
sunlight coming through the sunroof
glass.
• Push the sunroof switch rearward to the first detent position, the power
sunshade automatically slides open.
• Push the sunroof switch forward to the first detent position, the power
sunshade automatically closes.
However, if the sunroof glass is open,
the glass will close first.
To stop the power sunshade at any point,
push the sunroof switch in any direction.
NOTICE ' R Q R W S X O O R U S X V K W K H S R Z H U V X Q V K D G H
E \ K D Q G D V V X F K D F W L R Q P D \ G D P D J H W K H
S R Z H U V X Q V K D G H R U F D X V H L W W R
P D O I X Q F W L R Q
Information Wrinkles formed on the power sunshade are
normal due to material characteristic.
Hyundai_CE_en_US.book Page 50
Page 229 of 582
5
5-51

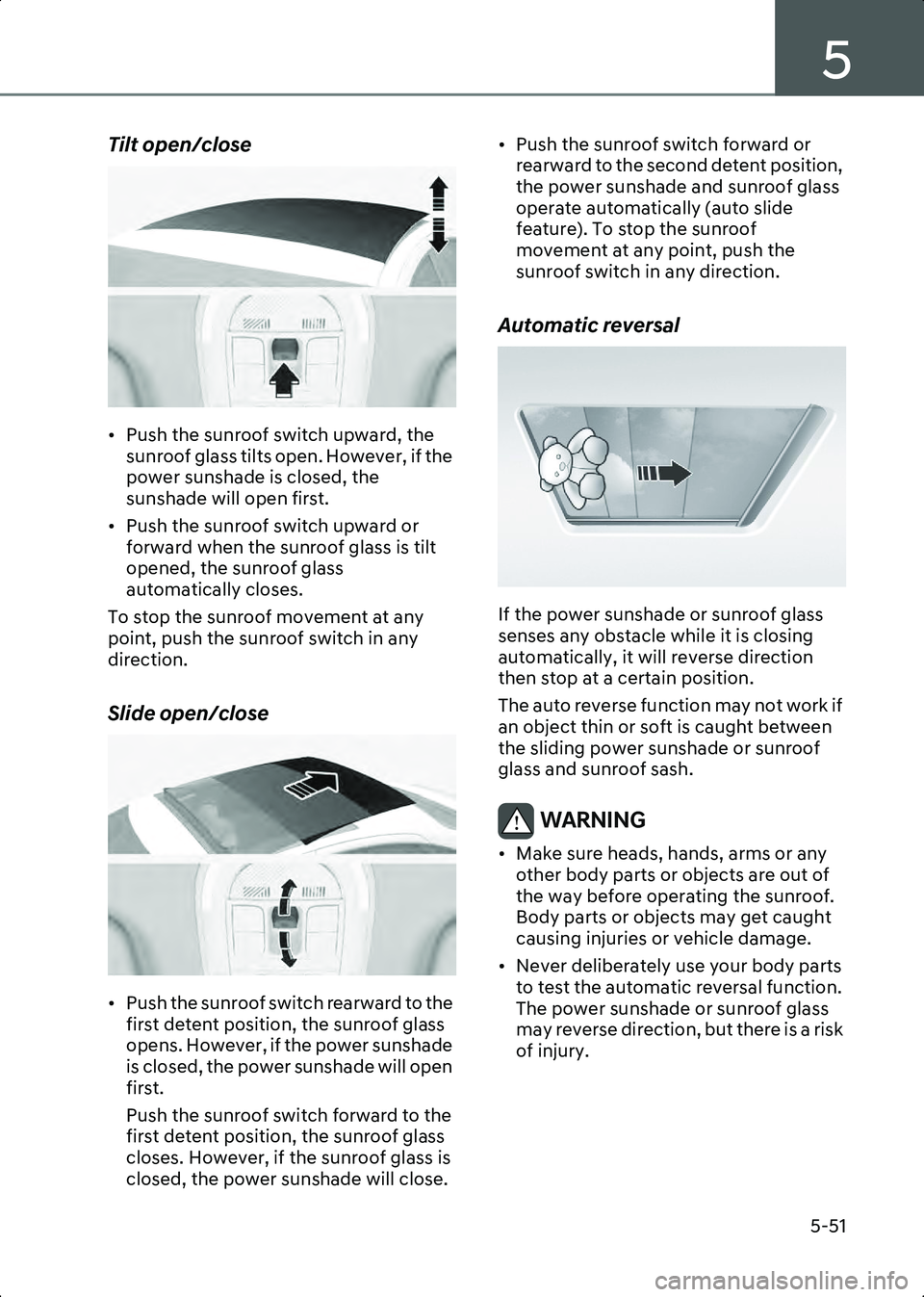

Tilt open/close
B5027501
• Push the sunroof switch upward, the sunroof glass tilts open. However, if the
power sunshade is closed, the
sunshade will open first.
• Push the sunroof switch upward or forward when the sunroof glass is tilt
opened, the sunroof glass
automatically closes.
To stop the sunroof movement at any
point, push the sunroof switch in any
direction.
Slide open/close
B5027601
• Push the sunroof switch rearward to the first detent position, the sunroof glass
opens. However, if the power sunshade
is closed, the power sunshade will open
first.
Push the sunroof switch forward to the
first detent position, the sunroof glass
closes. However, if the sunroof glass is
closed, the power sunshade will close. • Push the sunroof switch forward or
rearward to the second detent position,
the power sunshade and sunroof glass
operate automatically (auto slide
feature). To stop the sunroof
movement at any point, push the
sunroof switch in any direction.
Automatic reversal
B5027701
If the power sunshade or sunroof glass
senses any obstacle while it is closing
automatically, it will reverse direction
then stop at a certain position.
The auto reverse function may not work if
an object thin or soft is caught between
the sliding power sunshade or sunroof
glass and sunroof sash.
WARNING • Make sure heads, hands, arms or any other body parts or objects are out of
the way before operating the sunroof.
Body parts or objects may get caught
causing injuries or vehicle damage.
• Never deliberately use your body parts to test the automatic reversal function.
The power sunshade or sunroof glass
may reverse direction, but there is a risk
of injury.
Hyundai_CE_en_US.book Page 51
Page 230 of 582
Convenience Features
5-52

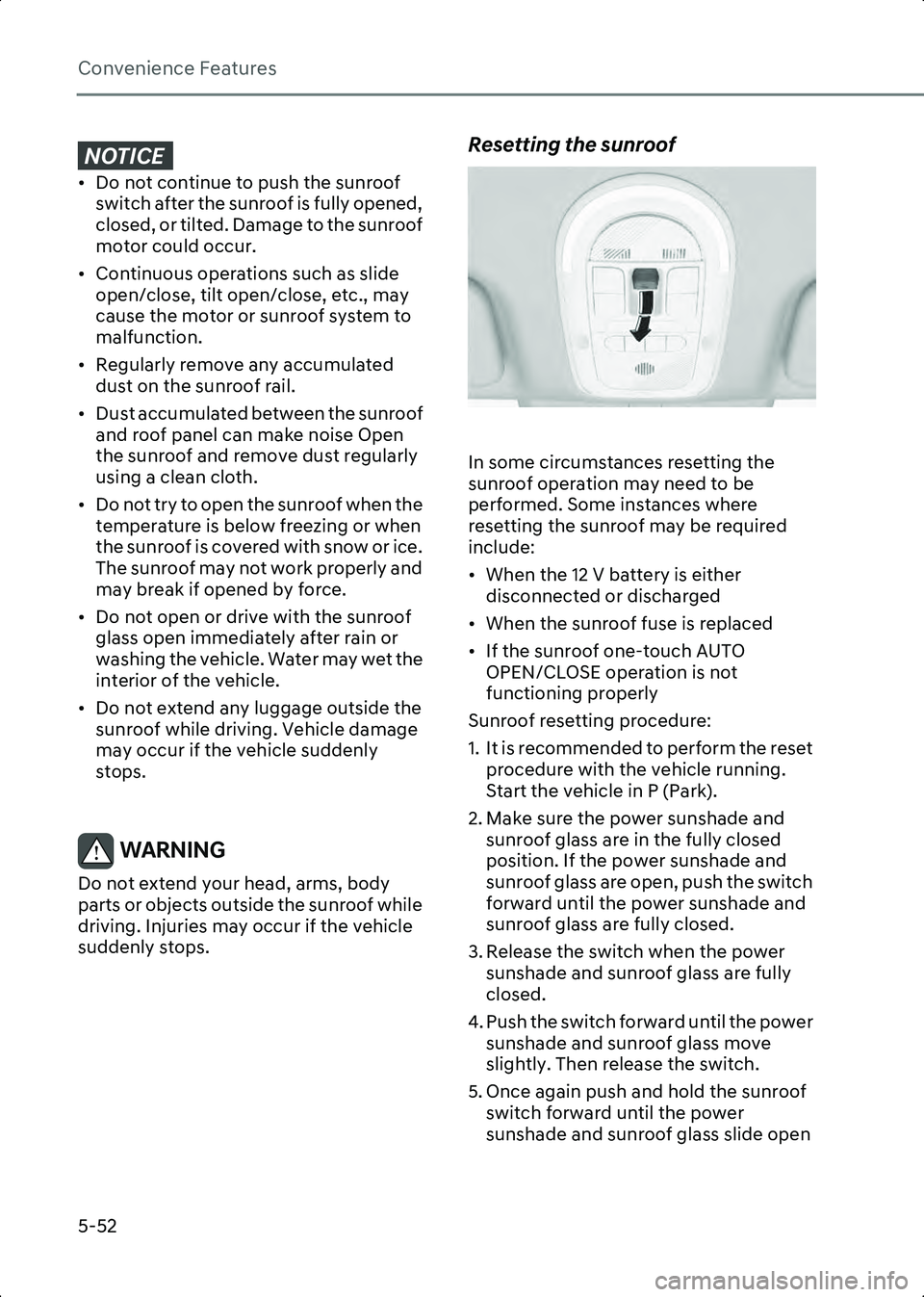

NOTICE [ ' R Q R W F R Q W L Q X H W R S X V K W K H V X Q U R R I V Z L W F K D I W H U W K H V X Q U R R I L V I X O O \ R S H Q H G
F O R V H G R U W L O W H G ' D P D J H W R W K H V X Q U R R I
P R W R U F R X O G R F F X U
[ & R Q W L Q X R X V R S H U D W L R Q V V X F K D V V O L G H R S H Q F O R V H W L O W R S H Q F O R V H H W F P D \
F D X V H W K H P R W R U R U V X Q U R R I V \ V W H P W R
P D O I X Q F W L R Q
[ 5 H J X O D U O \ U H P R Y H D Q \ D F F X P X O D W H G G X V W R Q W K H V X Q U R R I U D L O
[ ' X V W D F F X P X O D W H G E H W Z H H Q W K H V X Q U R R I D Q G U R R I S D Q H O F D Q P D N H Q R L V H 2 S H Q
W K H V X Q U R R I D Q G U H P R Y H G X V W U H J X O D U O \
X V L Q J D F O H D Q F O R W K
[ ' R Q R W W U \ W R R S H Q W K H V X Q U R R I Z K H Q W K H W H P S H U D W X U H L V E H O R Z I U H H ] L Q J R U Z K H Q
W K H V X Q U R R I L V F R Y H U H G Z L W K V Q R Z R U L F H
7 K H V X Q U R R I P D \ Q R W Z R U N S U R S H U O \ D Q G
P D \ E U H D N L I R S H Q H G E \ I R U F H
[ ' R Q R W R S H Q R U G U L Y H Z L W K W K H V X Q U R R I J O D V V R S H Q L P P H G L D W H O \ D I W H U U D L Q R U
Z D V K L Q J W K H Y H K L F O H : D W H U P D \ Z H W W K H
L Q W H U L R U R I W K H Y H K L F O H
[ ' R Q R W H [ W H Q G D Q \ O X J J D J H R X W V L G H W K H V X Q U R R I Z K L O H G U L Y L Q J 9 H K L F O H G D P D J H
P D \ R F F X U L I W K H Y H K L F O H V X G G H Q O \
V W R S V
WARNING Do not extend your head, arms, body
parts or objects outside the sunroof while
driving. Injuries may occur if the vehicle
suddenly stops.
Resetting the sunroof
B5027801
In some circumstances resetting the
sunroof operation may need to be
performed. Some instances where
resetting the sunroof may be required
include:
• When the 12 V battery is either disconnected or discharged
• When the sunroof fuse is replaced
• If the sunroof one-touch AUTO OPEN/CLOSE operation is not
functioning properly
Sunroof resetting procedure:
1. It is recommended to perform the reset procedure with the vehicle running.
Start the vehicle in P (Park).
2. Make sure the power sunshade and sunroof glass are in the fully closed
position. If the power sunshade and
sunroof glass are open, push the switch
forward until the power sunshade and
sunroof glass are fully closed.
3. Release the switch when the power sunshade and sunroof glass are fully
closed.
4. Push the switch forward until the power sunshade and sunroof glass move
slightly. Then release the switch.
5. Once again push and hold the sunroof switch forward until the power
sunshade and sunroof glass slide open
Hyundai_CE_en_US.book Page 52
