HYUNDAI IONIQ 6 2023 Owners Manual
Manufacturer: HYUNDAI, Model Year: 2023, Model line: IONIQ 6, Model: HYUNDAI IONIQ 6 2023Pages: 582, PDF Size: 10.77 MB
Page 201 of 582

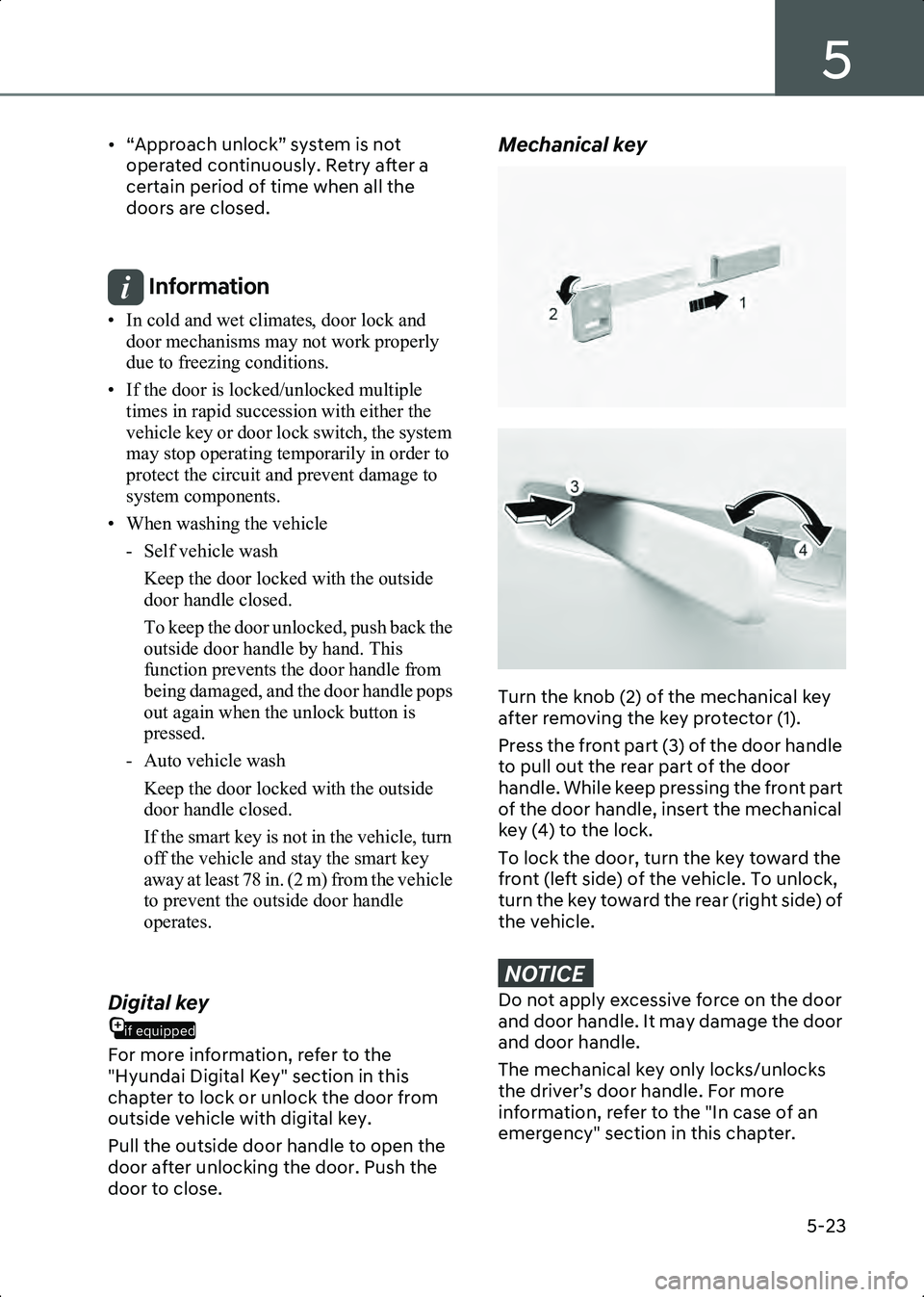

5
5-23
• “Approach unlock” system is not operated continuously. Retry after a
certain period of time when all the
doors are closed.
Information • In cold and wet climates, door lock and door mechanisms may not work properly
due to freezing conditions.
• If the door is locked/unlocked multiple times in rapid succession with either the
vehicle key or door lock switch, the system
may stop operating temporarily in order to
protect the circuit and prevent damage to
system components.
• When washing the vehicle - Self vehicle washKeep the door locked with the outside
door handle closed.
To keep the door unlocked, push back the
outside door handle by hand. This
function prevents the door handle from
being damaged, and the door handle pops
out again when the unlock button is
pressed.
- Auto vehicle wash Keep the door locked with the outside
door handle closed.
If the smart key is not in the vehicle, turn
off the vehicle and stay the smart key
away at least 78 in. (2 m) from the vehicle
to prevent the outside door handle
operates.
if equipped
Digital key
For more information, refer to the
"Hyundai Digital Key" section in this
chapter to lock or unlock the door from
outside vehicle with digital key.
Pull the outside door handle to open the
door after unlocking the door. Push the
door to close.
Mechanical key
B5002903
B5002904
Turn the knob (2) of the mechanical key
after removing the key protector (1).
Press the front part (3) of the door handle
to pull out the rear part of the door
handle. While keep pressing the front part
of the door handle, insert the mechanical
key (4) to the lock.
To lock the door, turn the key toward the
front (left side) of the vehicle. To unlock,
turn the key toward the rear (right side) of
the vehicle.
NOTICE ' R Q R W D S S O \ H [ F H V V L Y H I R U F H R Q W K H G R R U
D Q G G R R U K D Q G O H , W P D \ G D P D J H W K H G R R U
D Q G G R R U K D Q G O H
7 K H P H F K D Q L F D O N H \ R Q O \ O R F N V X Q O R F N V
W K H G U L Y H UT V G R R U K D Q G O H ) R U P R U H
L Q I R U P D W L R Q U H I H U W R W K H , Q F D V H R I D Q
H P H U J H Q F \ V H F W L R Q L Q W K L V F K D S W H U
Hyundai_CE_en_US.book Page 23
Page 202 of 582

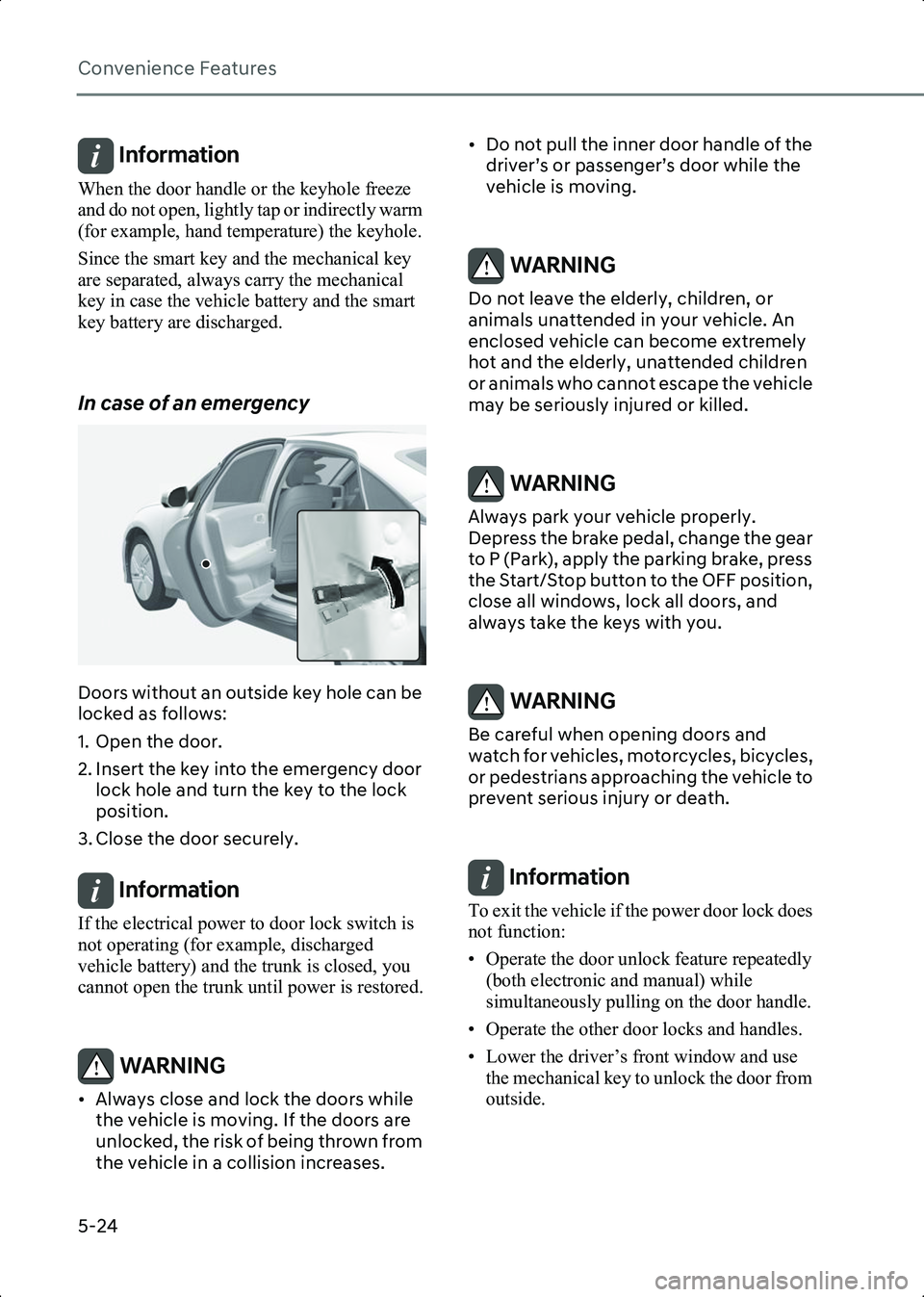

Convenience Features
5-24
Information When the door handle or the keyhole freeze
and do not open, lightly tap or indirectly warm
(for example, hand temperature) the keyhole.
Since the smart key and the mechanical key
are separated, always carry the mechanical
key in case the vehicle battery and the smart
key battery are discharged.
In case of an emergency
B5003103
Doors without an outside key hole can be
locked as follows:
1. Open the door.
2. Insert the key into the emergency door lock hole and turn the key to the lock
position.
3. Close the door securely.
Information If the electrical power to door lock switch is
not operating (for example, discharged
vehicle battery) and the trunk is closed, you
cannot open the trunk until power is restored.
WARNING • Always close and lock the doors while the vehicle is moving. If the doors are
unlocked, the risk of being thrown from
the vehicle in a collision increases. • Do not pull the inner door handle of the
driver’s or passenger’s door while the
vehicle is moving.
WARNING Do not leave the elderly, children, or
animals unattended in your vehicle. An
enclosed vehicle can become extremely
hot and the elderly, unattended children
or animals who cannot escape the vehicle
may be seriously injured or killed.
WARNING Always park your vehicle properly.
Depress the brake pedal, change the gear
to P (Park), apply the parking brake, press
the Start/Stop button to the OFF position,
close all windows, lock all doors, and
always take the keys with you.
WARNING Be careful when opening doors and
watch for vehicles, motorcycles, bicycles,
or pedestrians approaching the vehicle to
prevent serious injury or death.
Information To exit the vehicle if the power door lock does
not function:
• Operate the door unlock feature repeatedly (both electronic and manual) while
simultaneously pulling on the door handle.
• Operate the other door locks and handles.
• Lower the driver’s front window and use the mechanical key to unlock the door from
outside.
Hyundai_CE_en_US.book Page 24
Page 203 of 582
5
5-25
Operating Door Lock/Unlock
from Inside the Vehicle
With the inside door handle
B5003101
Front door
If the inner door handle is pulled when the
door is locked, the door is unlocked and
opened.
Rear door - Two pull operation
If the inner door handle is pulled once
when the door is locked, the door is
unlocked. If the inner door handle is
pulled once more, the door is opened.
With the central door lock switch
B5003102
Driver’s and front passenger’s door
The central door lock switch is located on
the center console. The lock switch is
indicated by a symbol. The unlock
switch is indicated by a symbol.When the lock switch (1) is pressed (door
indicator light ON), all the vehicle doors
will lock.
When the unlock switch (2) is pressed, all
the vehicle doors will unlock.
If any door is opened, the doors will not
lock even though the central door lock
button (1) is pressed.
NOTICE , I W K H V P D U W N H \ L V L Q W K H Y H K L F O H D Q G W K H
I U R Q W G R R U L V R S H Q H G W K H F H Q W U D O G R R U O R F N
E X W W R Q \f F D Q Q R W O R F N W K H G R R U V
Automatic Door Lock and
Unlock Features
Your vehicle is equipped with features
that will automatically lock or unlock your
vehicle based on settings you select in the
infotainment system.
Auto Lock Enable on speed
When this feature is set in the
infotainment system, all the doors will be
locked automatically when the vehicle
exceeds 9 mph (15 km/h).
Auto Lock Enable on shift
When this feature is set in the
infotainment system, all the doors will be
locked automatically when the vehicle is
shifted out of P (Park) while the vehicle is
running.
Auto Unlock Enable on shift to P
When this feature is set in the
infotainment system, all the doors will be
unlocked automatically when the vehicle
is shifted back into P (Park) while the
vehicle is running.
1
2
Hyundai_CE_en_US.book Page 25
Page 204 of 582
Convenience Features
5-26
Auto Unlock Enable at Vehicle Off
When this feature is set in the
infotainment system, all the doors will be
unlocked automatically when the vehicle
is turned off.
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.
Additional unlock safety feature
airbag deployment
As an additional safety feature, all doors
will be automatically unlocked when an
impact causes the airbags to deploy.
Child-Protector Rear Door
Locks
B5003601
The child safety lock is provided to help
prevent children seated in the rear from
accidentally opening the rear doors. The
rear door safety locks should be used
whenever children are in the vehicle.
The child safety lock is located on the
edge of each rear door. When the child
safety lock is in the lock position, the rear
door will not open if the inner door handle
is pulled.
To lock the child safety lock, insert a small
flat blade tool (like a screwdriver or similar) (1) into the slot and turn it to the
lock position as shown.
To allow a rear door to be opened from
inside the vehicle, unlock the child safety
lock.
WARNING Never allow children to open the rear
doors while the vehicle is moving. They
may fall out of the vehicle. Be sure to use
the rear door safety locks whenever
children are in the vehicle.
1
Hyundai_CE_en_US.book Page 26
Page 205 of 582
5
5-27

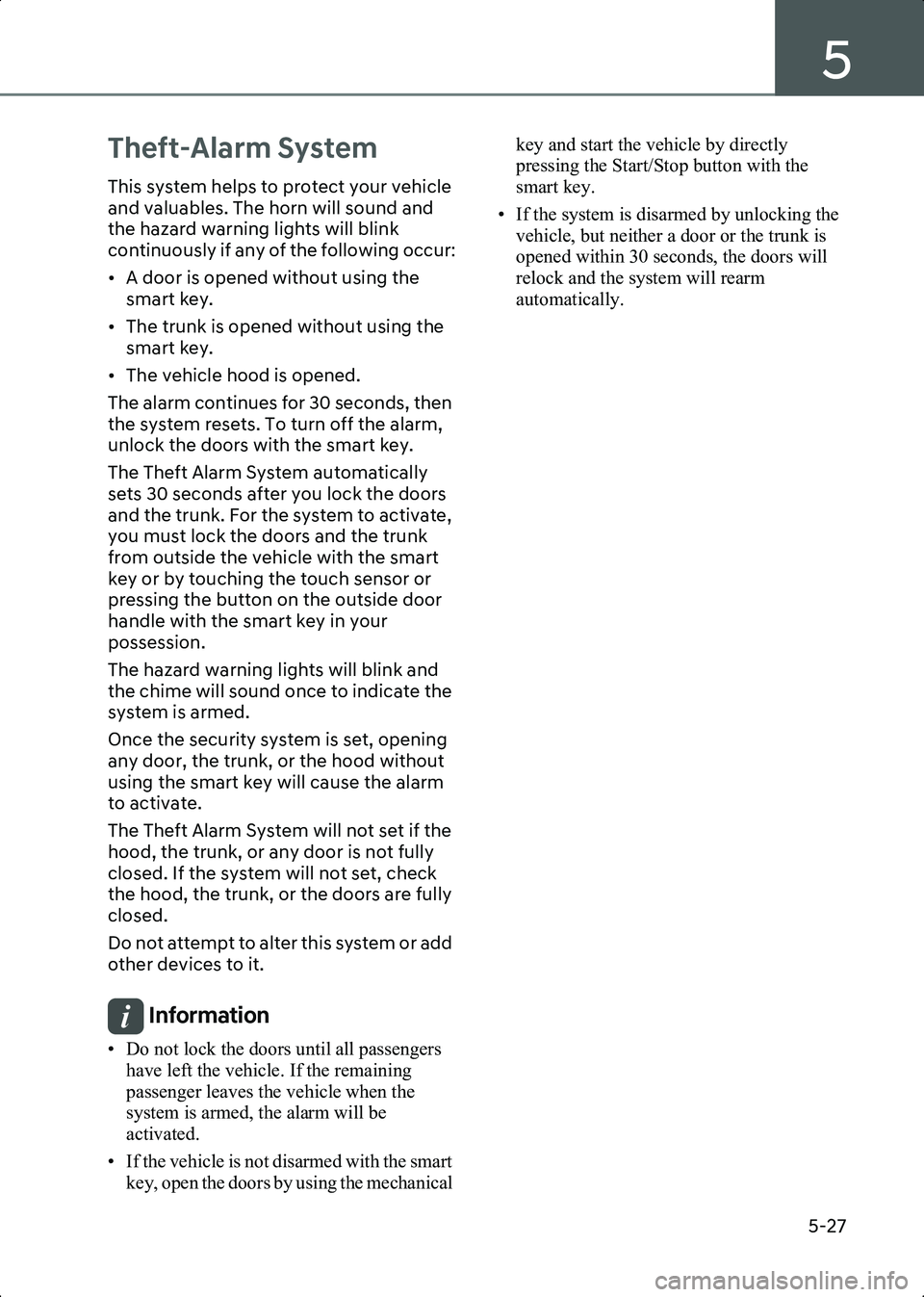

Theft-Alarm System
This system helps to protect your vehicle
and valuables. The horn will sound and
the hazard warning lights will blink
continuously if any of the following occur:
• A door is opened without using the smart key.
• The trunk is opened without using the smart key.
• The vehicle hood is opened.
The alarm continues for 30 seconds, then
the system resets. To turn off the alarm,
unlock the doors with the smart key.
The Theft Alarm System automatically
sets 30 seconds after you lock the doors
and the trunk. For the system to activate,
you must lock the doors and the trunk
from outside the vehicle with the smart
key or by touching the touch sensor or
pressing the button on the outside door
handle with the smart key in your
possession.
The hazard warning lights will blink and
the chime will sound once to indicate the
system is armed.
Once the security system is set, opening
any door, the trunk, or the hood without
using the smart key will cause the alarm
to activate.
The Theft Alarm System will not set if the
hood, the trunk, or any door is not fully
closed. If the system will not set, check
the hood, the trunk, or the doors are fully
closed.
Do not attempt to alter this system or add
other devices to it.
Information • Do not lock the doors until all passengers have left the vehicle. If the remaining
passenger leaves the vehicle when the
system is armed, the alarm will be
activated.
• If the vehicle is not disarmed with the smart key, open the doors by using the mechanical key and start the vehicle by directly
pressing the Start/Stop button with the
smart key.
• If the system is disarmed by unlocking the vehicle, but neither a door or the trunk is
opened within 30 seconds, the doors will
relock and the system will rearm
automatically.
Hyundai_CE_en_US.book Page 27
Page 206 of 582
Convenience Features
5-28

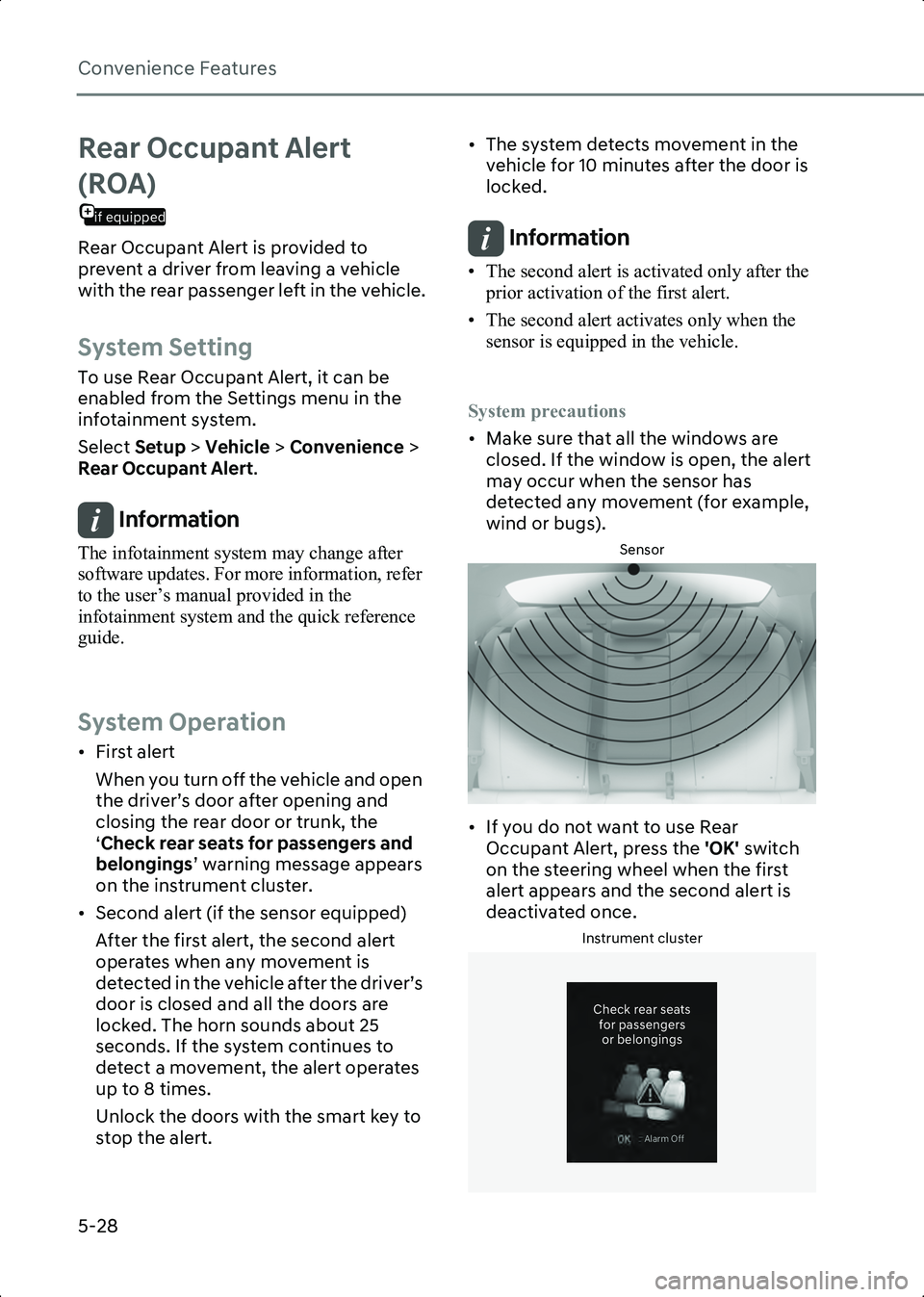

Rear Occupant Alert
if equipped
(ROA)
Rear Occupant Alert is provided to
prevent a driver from leaving a vehicle
with the rear passenger left in the vehicle.
System Setting
To use Rear Occupant Alert, it can be
enabled from the Settings menu in the
infotainment system.
Select Setup > Vehicle > Convenience >
Rear Occupant Alert .
Information The infotainment system may change after
software updates. For more information, refer
to the user’s manual provided in the
infotainment system and the quick reference
guide.
System Operation
• First alert
When you turn off the vehicle and open
the driver’s door after opening and
closing the rear door or trunk, the
‘Check rear seats for passengers and
belongings ’ warning message appears
on the instrument cluster.
• Second alert (if the sensor equipped) After the first alert, the second alert
operates when any movement is
detected in the vehicle after the driver’s
door is closed and all the doors are
locked. The horn sounds about 25
seconds. If the system continues to
detect a movement, the alert operates
up to 8 times.
Unlock the doors with the smart key to
stop the alert. • The system detects movement in the
vehicle for 10 minutes after the door is
locked.
Information • The second alert is activated only after the prior activation of the first alert.
• The second alert activates only when the sensor is equipped in the vehicle.
System precautions
• Make sure that all the windows are closed. If the window is open, the alert
may occur when the sensor has
detected any movement (for example,
wind or bugs).
Sensor
B5003803
• If you do not want to use Rear Occupant Alert, press the 'OK' switch
on the steering wheel when the first
alert appears and the second alert is
deactivated once.
Instrument cluster
OJX1059019L
$ I F D L S F B S T F B U T
G P S Q B T T F O H F S T P S C F M P O H J O H T
" M B S N 0 G G
Hyundai_CE_en_US.book Page 28
Page 207 of 582
5
5-29

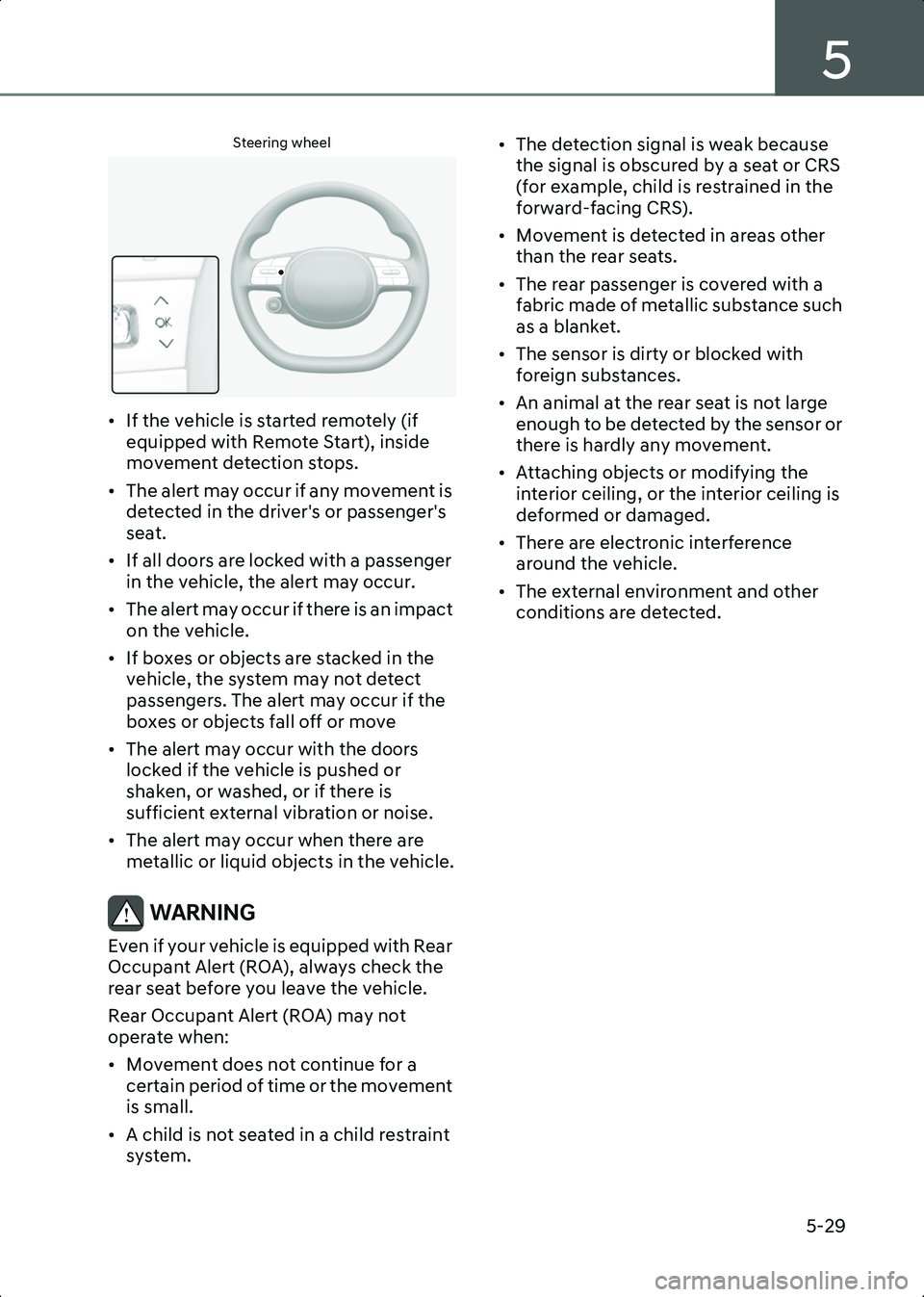

Steering wheel
B5003802
• If the vehicle is started remotely (if equipped with Remote Start), inside
movement detection stops.
• The alert may occur if any movement is detected in the driver's or passenger's
seat.
• If all doors are locked with a passenger in the vehicle, the alert may occur.
• The alert may occur if there is an impact on the vehicle.
• If boxes or objects are stacked in the vehicle, the system may not detect
passengers. The alert may occur if the
boxes or objects fall off or move
• The alert may occur with the doors locked if the vehicle is pushed or
shaken, or washed, or if there is
sufficient external vibration or noise.
• The alert may occur when there are metallic or liquid objects in the vehicle.
WARNING Even if your vehicle is equipped with Rear
Occupant Alert (ROA), always check the
rear seat before you leave the vehicle.
Rear Occupant Alert (ROA) may not
operate when:
• Movement does not continue for a certain period of time or the movement
is small.
• A child is not seated in a child restraint system. • The detection signal is weak because
the signal is obscured by a seat or CRS
(for example, child is restrained in the
forward-facing CRS).
• Movement is detected in areas other than the rear seats.
• The rear passenger is covered with a fabric made of metallic substance such
as a blanket.
• The sensor is dirty or blocked with foreign substances.
• An animal at the rear seat is not large enough to be detected by the sensor or
there is hardly any movement.
• Attaching objects or modifying the interior ceiling, or the interior ceiling is
deformed or damaged.
• There are electronic interference around the vehicle.
• The external environment and other conditions are detected.
Hyundai_CE_en_US.book Page 29
Page 208 of 582
Convenience Features
5-30

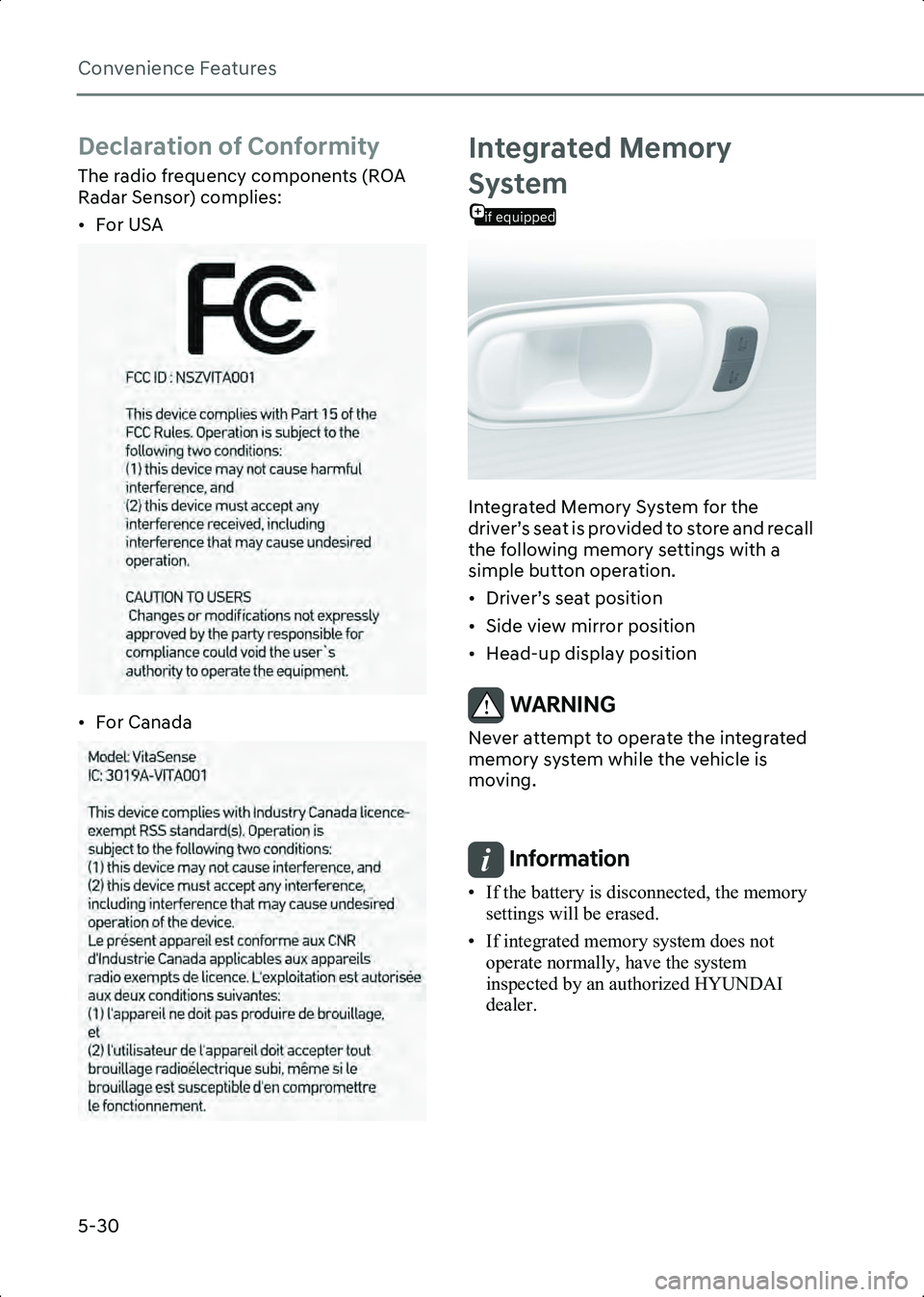

Declaration of Conformity
The radio frequency components (ROA
Radar Sensor) complies:
• For USA
OANATEL323
• For Canada
OANATEL324
Integrated Memory
if equipped
System
B5005201
Integrated Memory System for the
driver’s seat is provided to store and recall
the following memory settings with a
simple button operation.
• Driver’s seat position
• Side view mirror position
• Head-up display position
WARNING Never attempt to operate the integrated
memory system while the vehicle is
moving.
Information • If the battery is disconnected, the memory settings will be erased.
• If integrated memory system does not operate normally, have the system
inspected by an authorized HYUNDAI
dealer.
Hyundai_CE_en_US.book Page 30
Page 209 of 582
5
5-31

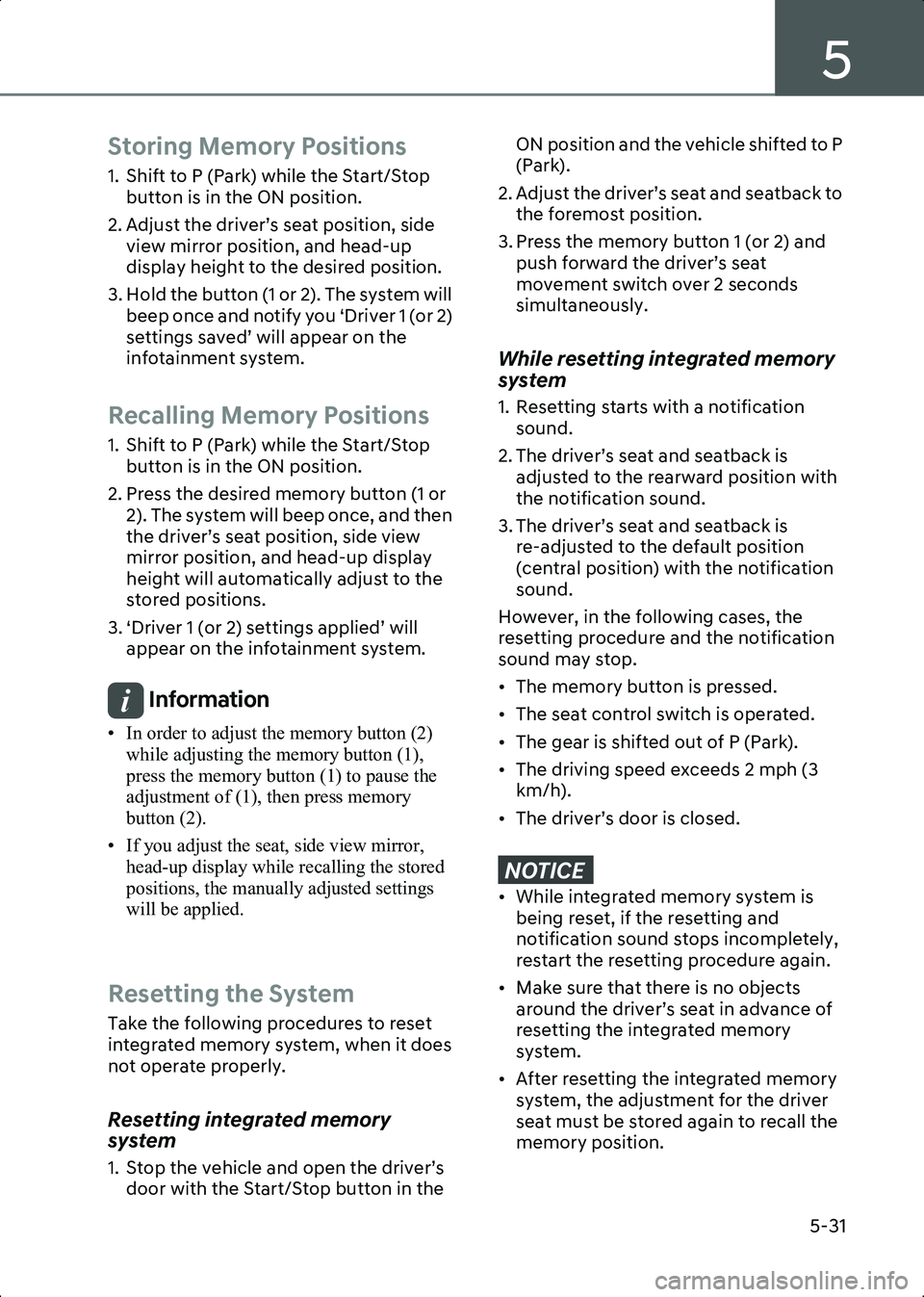

Storing Memory Positions
1. Shift to P (Park) while the Start/Stop button is in the ON position.
2. Adjust the driver’s seat position, side view mirror position, and head-up
display height to the desired position.
3. Hold the button (1 or 2). The system will beep once and notify you ‘Driver 1 (or 2)
settings saved’ will appear on the
infotainment system.
Recalling Memory Positions
1. Shift to P (Park) while the Start/Stop button is in the ON position.
2. Press the desired memory button (1 or 2). The system will beep once, and then
the driver’s seat position, side view
mirror position, and head-up display
height will automatically adjust to the
stored positions.
3. ‘Driver 1 (or 2) settings applied’ will appear on the infotainment system.
Information • In order to adjust the memory button (2) while adjusting the memory button (1),
press the memory button (1) to pause the
adjustment of (1), then press memory
button (2).
• If you adjust the seat, side view mirror, head-up display while recalling the stored
positions, the manually adjusted settings
will be applied.
Resetting the System
Take the following procedures to reset
integrated memory system, when it does
not operate properly.
Resetting integrated memory
system
1. Stop the vehicle and open the driver’s door with the Start/Stop button in the ON position and the vehicle shifted to P
(Park).
2. Adjust the driver’s seat and seatback to the foremost position.
3. Press the memory button 1 (or 2) and push forward the driver’s seat
movement switch over 2 seconds
simultaneously.
While resetting integrated memory
system
1. Resetting starts with a notification sound.
2. The driver’s seat and seatback is adjusted to the rearward position with
the notification sound.
3. The driver’s seat and seatback is re-adjusted to the default position
(central position) with the notification
sound.
However, in the following cases, the
resetting procedure and the notification
sound may stop.
• The memory button is pressed.
• The seat control switch is operated.
• The gear is shifted out of P (Park).
• The driving speed exceeds 2 mph (3 km/h).
• The driver’s door is closed.
NOTICE [ : K L O H L Q W H J U D W H G P H P R U \ V \ V W H P L V E H L Q J U H V H W L I W K H U H V H W W L Q J D Q G
Q R W L I L F D W L R Q V R X Q G V W R S V L Q F R P S O H W H O \
U H V W D U W W K H U H V H W W L Q J S U R F H G X U H D J D L Q
[ 0 D N H V X U H W K D W W K H U H L V Q R R E M H F W V D U R X Q G W K H G U L Y H UT V V H D W L Q D G Y D Q F H R I
U H V H W W L Q J W K H L Q W H J U D W H G P H P R U \
V \ V W H P
[ $ I W H U U H V H W W L Q J W K H L Q W H J U D W H G P H P R U \ V \ V W H P W K H D G M X V W P H Q W I R U W K H G U L Y H U
V H D W P X V W E H V W R U H G D J D L Q W R U H F D O O W K H
P H P R U \ S R V L W L R Q
Hyundai_CE_en_US.book Page 31
Page 210 of 582
Convenience Features
5-32

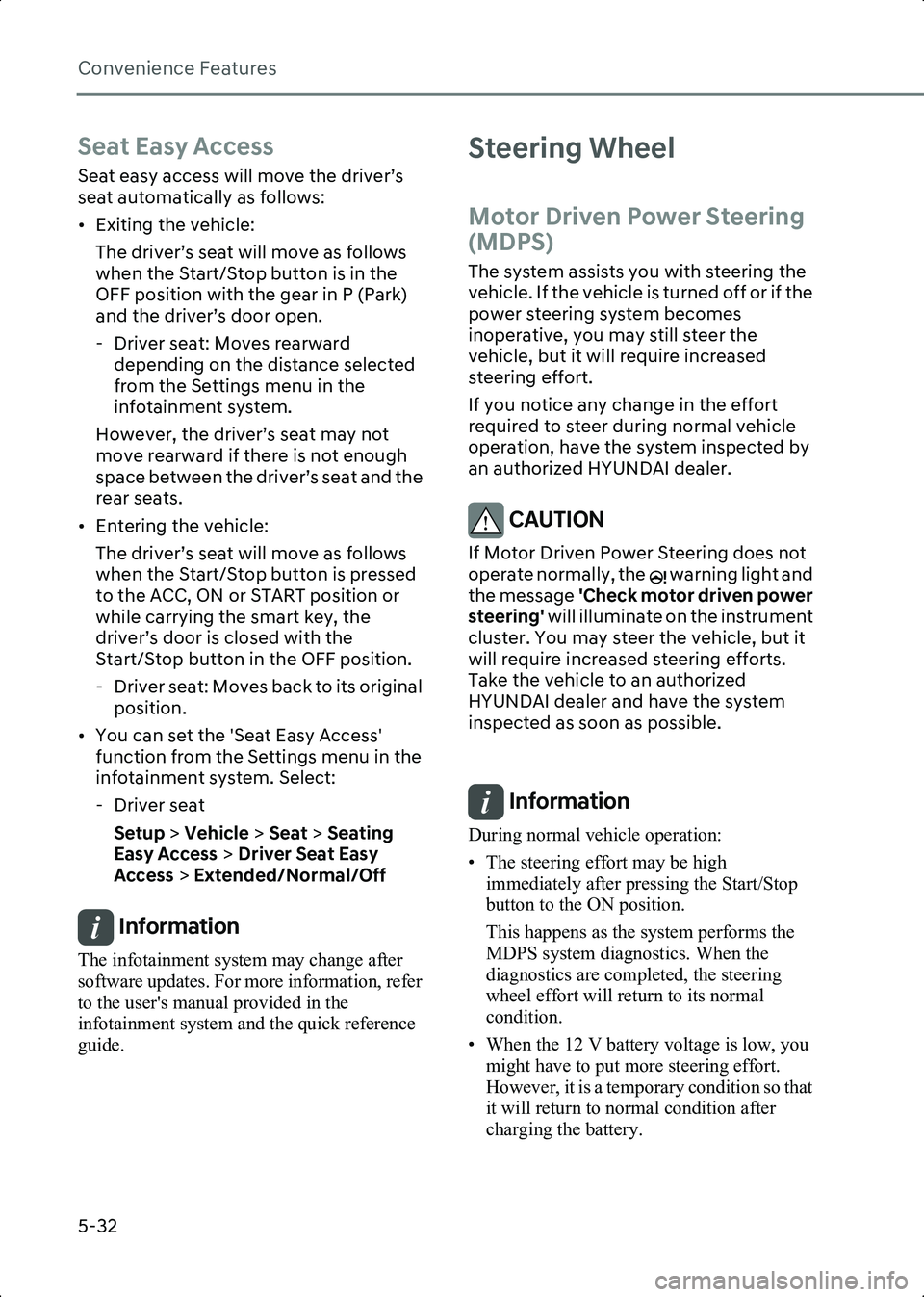

Seat Easy Access
Seat easy access will move the driver’s
seat automatically as follows:
• Exiting the vehicle:The driver’s seat will move as follows
when the Start/Stop button is in the
OFF position with the gear in P (Park)
and the driver’s door open.
- Driver seat: Moves rearward depending on the distance selected
from the Settings menu in the
infotainment system.
However, the driver’s seat may not
move rearward if there is not enough
space between the driver’s seat and the
rear seats.
• Entering the vehicle: The driver’s seat will move as follows
when the Start/Stop button is pressed
to the ACC, ON or START position or
while carrying the smart key, the
driver’s door is closed with the
Start/Stop button in the OFF position.
- Driver seat: Moves back to its original position.
• You can set the 'Seat Easy Access' function from the Settings menu in the
infotainment system. Select:
- Driver seat
Setup > Vehicle > Seat > Seating
Easy Access > Driver Seat Easy
Access > Extended/Normal/Off
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.
Steering Wheel
Motor Driven Power Steering
(MDPS)
The system assists you with steering the
vehicle. If the vehicle is turned off or if the
power steering system becomes
inoperative, you may still steer the
vehicle, but it will require increased
steering effort.
If you notice any change in the effort
required to steer during normal vehicle
operation, have the system inspected by
an authorized HYUNDAI dealer.
CAUTION If Motor Driven Power Steering does not
operate normally, the warning light and
the message 'Check motor driven power
steering' will illuminate on the instrument
cluster. You may steer the vehicle, but it
will require increased steering efforts.
Take the vehicle to an authorized
HYUNDAI dealer and have the system
inspected as soon as possible.
Information During normal vehicle operation:
• The steering effort may be high immediately after pressing the Start/Stop
button to the ON position.
This happens as the system performs the
MDPS system diagnostics. When the
diagnostics are completed, the steering
wheel effort will return to its normal
condition.
• When the 12 V battery voltage is low, you might have to put more steering effort.
However, it is a temporary condition so that
it will return to normal condition after
charging the battery.
Hyundai_CE_en_US.book Page 32
