7
7-147

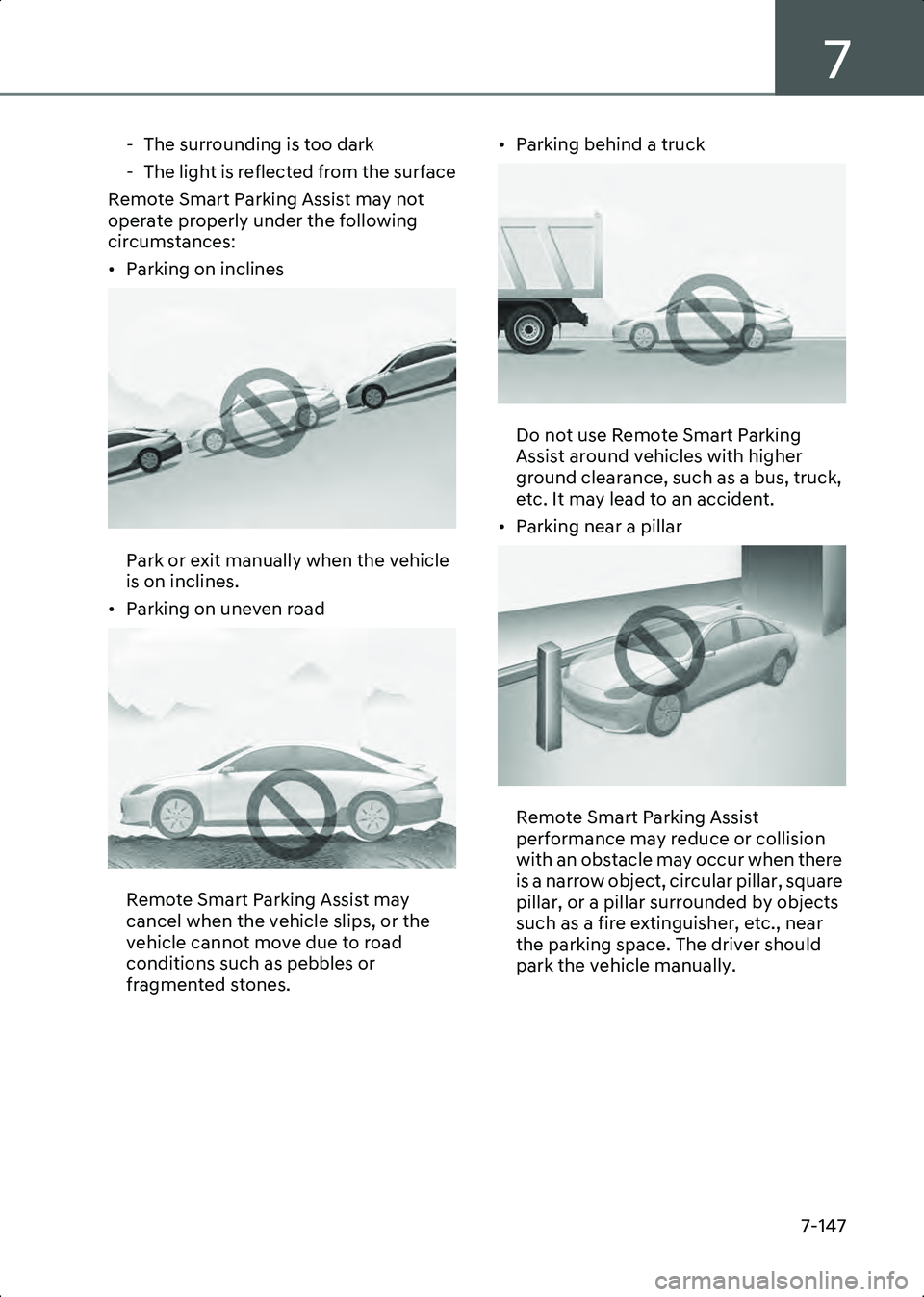

- The surrounding is too dark
- The light is reflected from the surface
Remote Smart Parking Assist may not
operate properly under the following
circumstances:
• Parking on inclines
B7009504
Park or exit manually when the vehicle
is on inclines.
• Parking on uneven road
B7009505
Remote Smart Parking Assist may
cancel when the vehicle slips, or the
vehicle cannot move due to road
conditions such as pebbles or
fragmented stones. • Parking behind a truck
B7009506
Do not use Remote Smart Parking
Assist around vehicles with higher
ground clearance, such as a bus, truck,
etc. It may lead to an accident.
• Parking near a pillar
B7009507
Remote Smart Parking Assist
performance may reduce or collision
with an obstacle may occur when there
is a narrow object, circular pillar, square
pillar, or a pillar surrounded by objects
such as a fire extinguisher, etc., near
the parking space. The driver should
park the vehicle manually.
Hyundai_CE_en_US.book Page 147
Page 492 of 582
Driver Assistance System
7-148

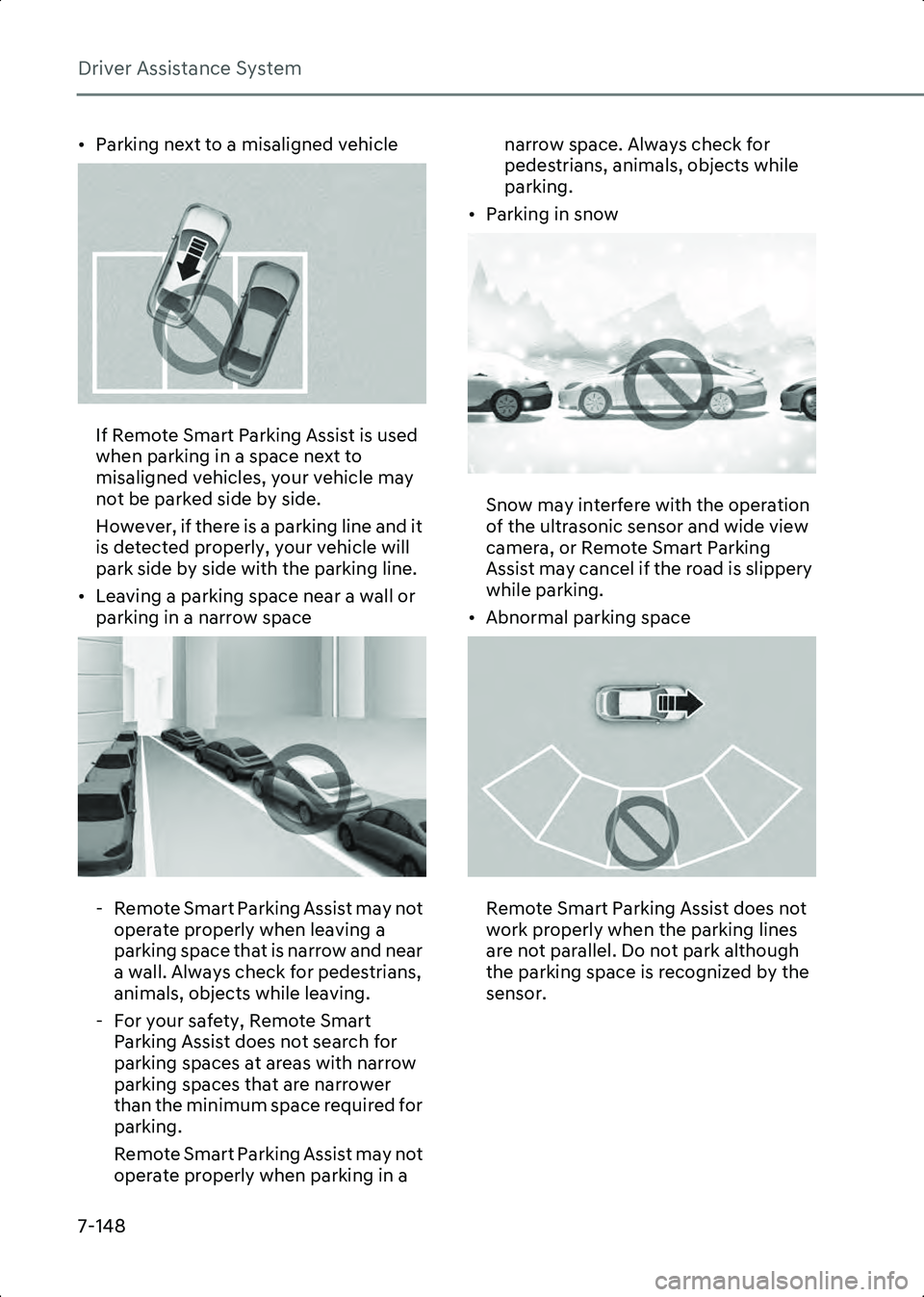

• Parking next to a misaligned vehicle
B7009508
If Remote Smart Parking Assist is used
when parking in a space next to
misaligned vehicles, your vehicle may
not be parked side by side.
However, if there is a parking line and it
is detected properly, your vehicle will
park side by side with the parking line.
• Leaving a parking space near a wall or parking in a narrow space
B7009509
- Remote Smart Parking Assist may not operate properly when leaving a
parking space that is narrow and near
a wall. Always check for pedestrians,
animals, objects while leaving.
- For your safety, Remote Smart Parking Assist does not search for
parking spaces at areas with narrow
parking spaces that are narrower
than the minimum space required for
parking.
Remote Smart Parking Assist may not
operate properly when parking in a narrow space. Always check for
pedestrians, animals, objects while
parking.
• Parking in snow
B7009511
Snow may interfere with the operation
of the ultrasonic sensor and wide view
camera, or Remote Smart Parking
Assist may cancel if the road is slippery
while parking.
• Abnormal parking space
B7009512
Remote Smart Parking Assist does not
work properly when the parking lines
are not parallel. Do not park although
the parking space is recognized by the
sensor.
Hyundai_CE_en_US.book Page 148
Page 493 of 582
7
7-149

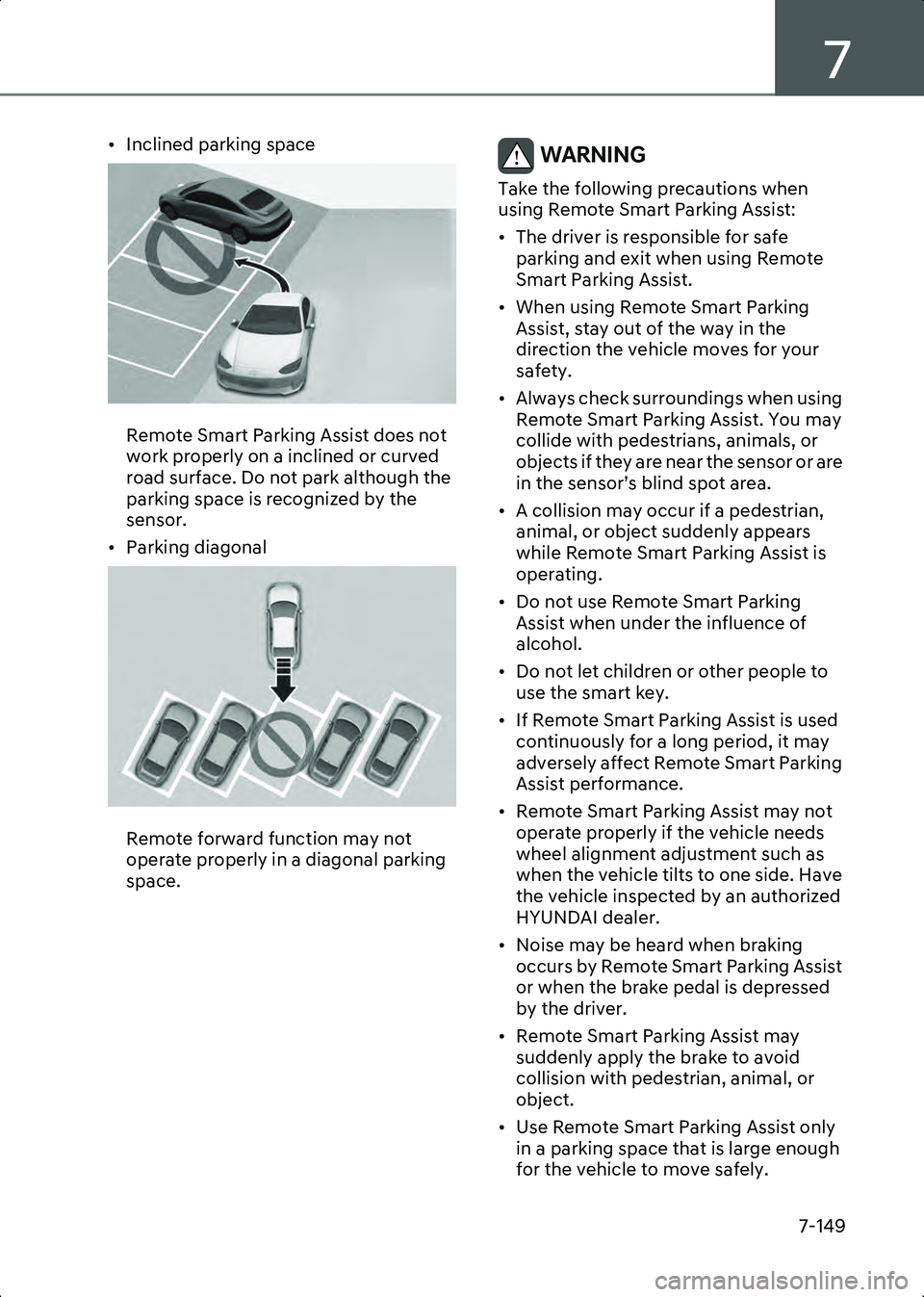

• Inclined parking space
B7009513
Remote Smart Parking Assist does not
work properly on a inclined or curved
road surface. Do not park although the
parking space is recognized by the
sensor.
• Parking diagonal
B7009514
Remote forward function may not
operate properly in a diagonal parking
space.
WARNING Take the following precautions when
using Remote Smart Parking Assist:
• The driver is responsible for safe parking and exit when using Remote
Smart Parking Assist.
• When using Remote Smart Parking Assist, stay out of the way in the
direction the vehicle moves for your
safety.
• Always check surroundings when using Remote Smart Parking Assist. You may
collide with pedestrians, animals, or
objects if they are near the sensor or are
in the sensor’s blind spot area.
• A collision may occur if a pedestrian, animal, or object suddenly appears
while Remote Smart Parking Assist is
operating.
• Do not use Remote Smart Parking Assist when under the influence of
alcohol.
• Do not let children or other people to use the smart key.
• If Remote Smart Parking Assist is used continuously for a long period, it may
adversely affect Remote Smart Parking
Assist performance.
• Remote Smart Parking Assist may not operate properly if the vehicle needs
wheel alignment adjustment such as
when the vehicle tilts to one side. Have
the vehicle inspected by an authorized
HYUNDAI dealer.
• Noise may be heard when braking occurs by Remote Smart Parking Assist
or when the brake pedal is depressed
by the driver.
• Remote Smart Parking Assist may suddenly apply the brake to avoid
collision with pedestrian, animal, or
object.
• Use Remote Smart Parking Assist only in a parking space that is large enough
for the vehicle to move safely.
Hyundai_CE_en_US.book Page 149
Page 494 of 582
Driver Assistance System
7-150

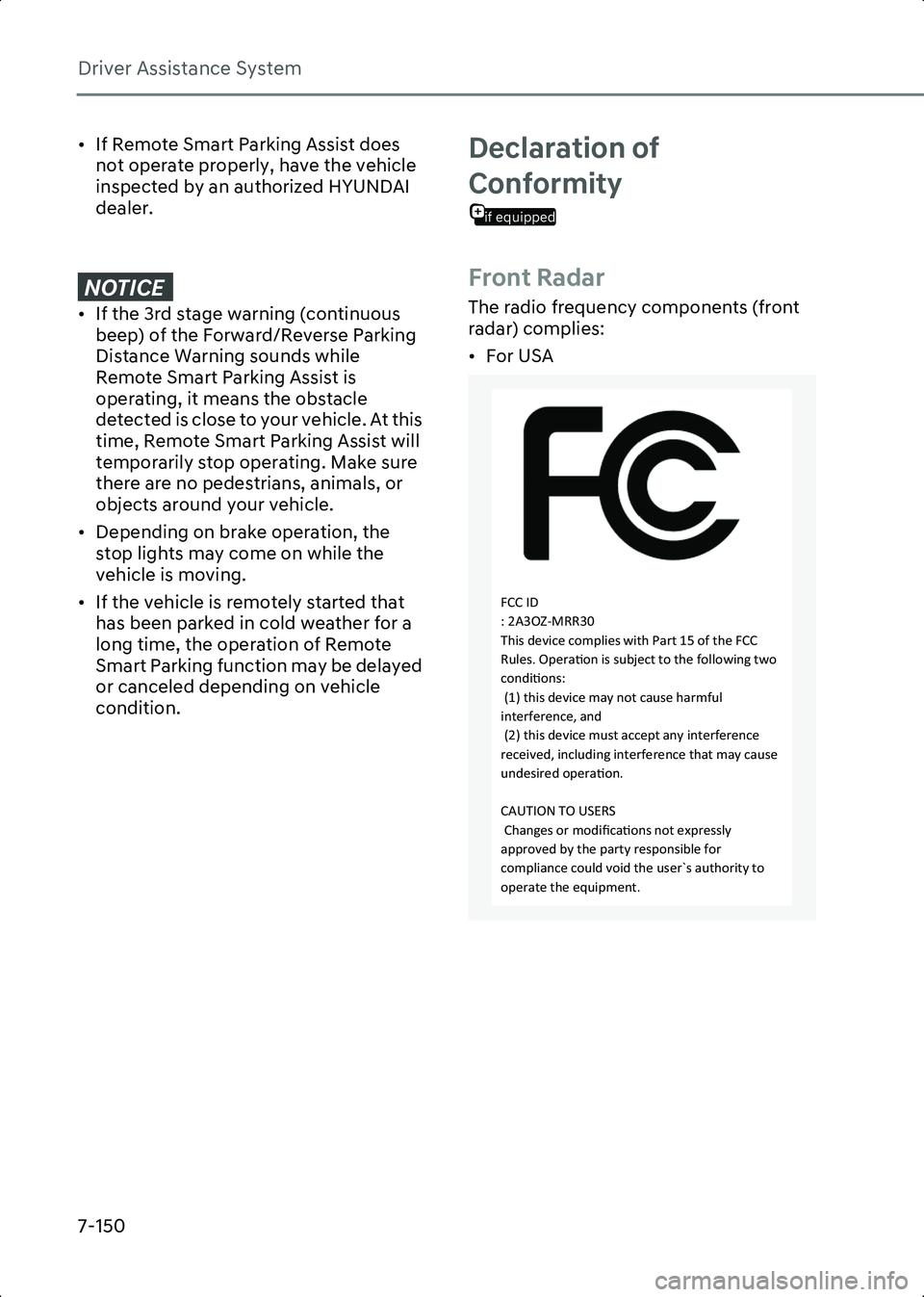

• If Remote Smart Parking Assist does not operate properly, have the vehicle
inspected by an authorized HYUNDAI
dealer.
NOTICE [ , I W K H U G V W D J H Z D U Q L Q J F R Q W L Q X R X V E H H S \f R I W K H ) R U Z D U G 5 H Y H U V H 3 D U N L Q J
' L V W D Q F H : D U Q L Q J V R X Q G V Z K L O H
5 H P R W H 6 P D U W 3 D U N L Q J $ V V L V W L V
R S H U D W L Q J L W P H D Q V W K H R E V W D F O H
G H W H F W H G L V F O R V H W R \ R X U Y H K L F O H $ W W K L V
W L P H 5 H P R W H 6 P D U W 3 D U N L Q J $ V V L V W Z L O O
W H P S R U D U L O \ V W R S R S H U D W L Q J 0 D N H V X U H
W K H U H D U H Q R S H G H V W U L D Q V D Q L P D O V R U
R E M H F W V D U R X Q G \ R X U Y H K L F O H
[ ' H S H Q G L Q J R Q E U D N H R S H U D W L R Q W K H V W R S O L J K W V P D \ F R P H R Q Z K L O H W K H
Y H K L F O H L V P R Y L Q J
[ , I W K H Y H K L F O H L V U H P R W H O \ V W D U W H G W K D W K D V E H H Q S D U N H G L Q F R O G Z H D W K H U I R U D
O R Q J W L P H W K H R S H U D W L R Q R I 5 H P R W H
6 P D U W 3 D U N L Q J I X Q F W L R Q P D \ E H G H O D \ H G
R U F D Q F H O H G G H S H Q G L Q J R Q Y H K L F O H
F R Q G L W L R Q
Declaration of
if equipped
Conformity
Front Radar
The radio frequency components (front
radar) complies:
• For USA
OANATEL351
FCC ID: 2A3OZ-MRR30
This device complies with Part 15 of the FCC
Rules. Operaon is subject to the following two
condions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference
received, including interference that may cause
undesired operaon.
CAUTION TO USERSChanges or modificaons not expressly
approved by the party responsible for
compliance could void the user`s authority to
operate the equipment.
Hyundai_CE_en_US.book Page 150
Page 495 of 582
7
7-151

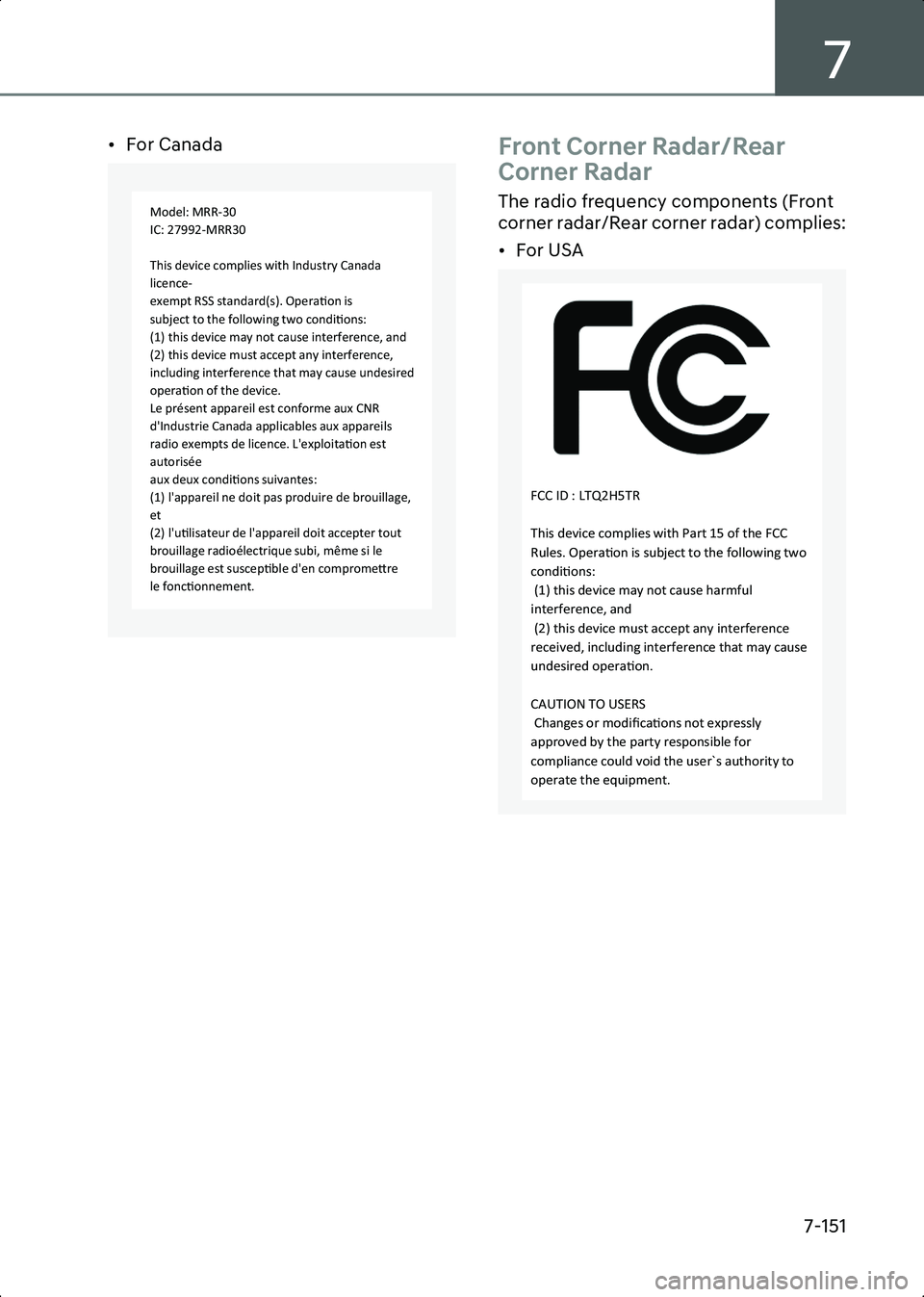

• For Canada
OANATEL327
Front Corner Radar/Rear
Corner Radar
The radio frequency components (Front
corner radar/Rear corner radar) complies:
• For USA
OANATEL320
Model: MRR-30
IC: 27992-MRR30
This device complies with Industry Canada
licence-
exempt RSS standard(s). Operaon is
subject to the following two condions:
(1) this device may not cause interference, and
(2) this device must accept any interference,including interference that may cause undesired
operaon of the device.
Le présent appareil est conforme aux CNR
d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitaon est
autorisée
aux deux condions suivantes:
(1) l'appareil ne doit pas produire de brouillage,
et
(2) l'ulisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si lebrouillage est suscepble d'en compromere
le fonconnement.
FCC ID :LTQ2H5TR
This device complies with Part 15 of the FCC
Rules. Operaon is subject to the following two
condions: (1) this device may not cause harmful
interference, and
(2) this device must accept any interference
received, including interference that may cause
undesired operaon.
CAUTION TO USERS
Changes or modificaons not expressly
approved by the party responsible forcompliance could void the user`s authority to
operate the equipment.
Hyundai_CE_en_US.book Page 151
Page 496 of 582
Driver Assistance System
7-152
OANATEL320_1
• For Canada
OANATEL317
OANATEL317
FCC ID : LTQH5TR
This device complies with Part 15 of the FCC
Rules. Operaon is subject to the following two
condions:(1) this device may not cause harmful
interference, and (2) this device must accept any interference
received, including interference that may cause
undesired operaon.
CAUTION TO USERS Changes or modificaons not expressly
approved by the party responsible for
compliance could void the user`s authority tooperate the equipment.
Model: 2H5TR
IC: 3659A-2H5TR
This device complies with Industry Canada
licence-
exempt RSS standard(s). Operaon is
subject to the following two condions:
(1) this device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause undesiredoperaon of the device.
Le présent appareil est conforme aux CNR
d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitaon est
autorisée
aux deux condions suivantes:
(1) l'appareil ne doit pas produire de brouillage,
et
(2) l'ulisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le
brouillage est suscepble d'en compromerele fonconnement.
Model: H5TRIC: 3659A-H5TR
This device complies with Industry Canada
licence-
exempt RSS standard(s). Operaon is
subject to the following two condions:
(1) this device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause undesired
operaon of the device.Le présent appareil est conforme aux CNR
d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitaon est
autorisée
aux deux condions suivantes:
(1) l'appareil ne doit pas produire de brouillage,
et
(2) l'ulisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le
brouillage est suscepble d'en compromere
le fonconnement.
Hyundai_CE_en_US.book Page 152
Page 497 of 582
8

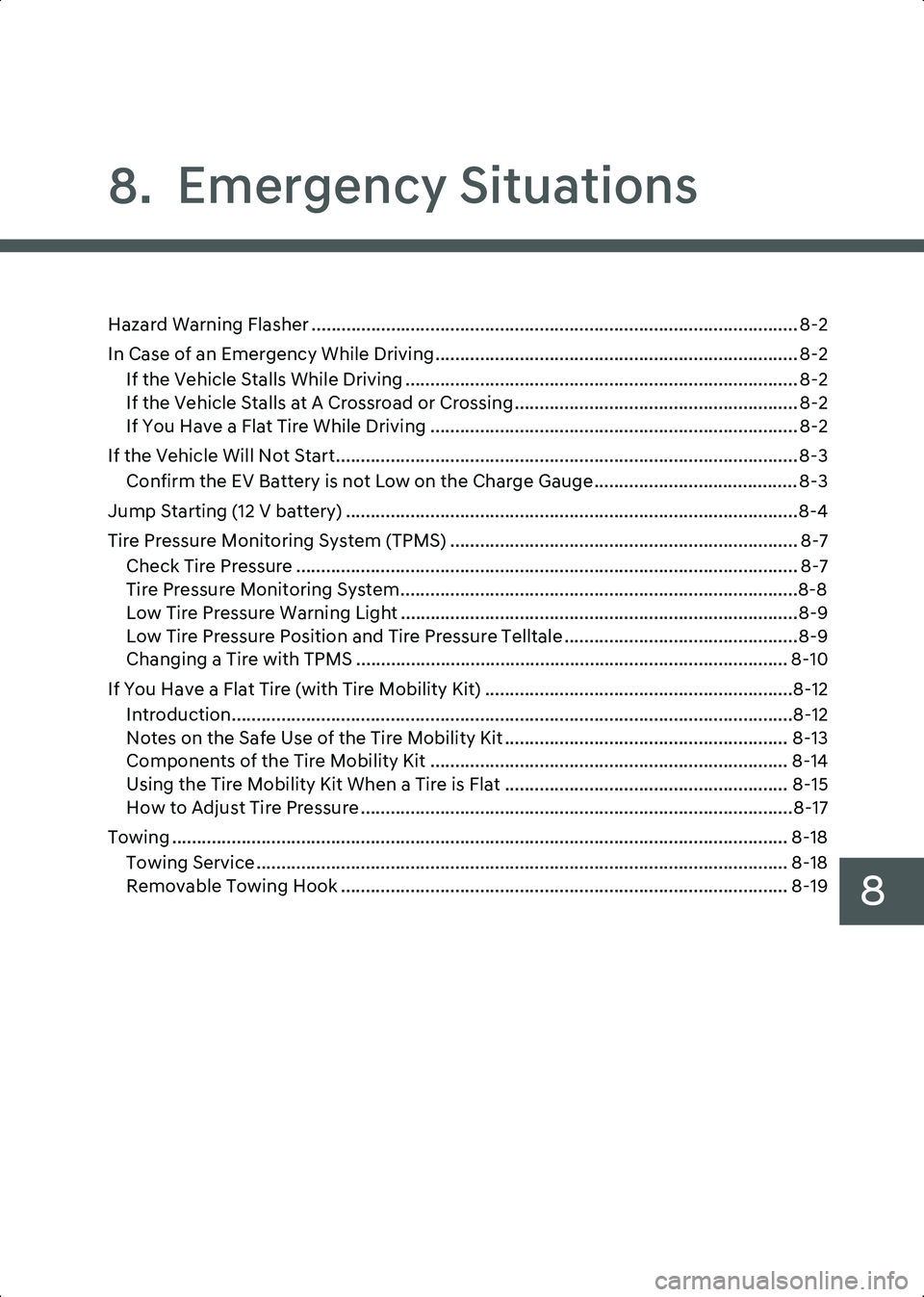

8. Emergency Situations
Hazard Warning Flasher .................................................................................................. 8-2
In Case of an Emergency While Driving......................................................................... 8-2If the Vehicle Stalls While Driving ............................................................................... 8-2
If the Vehicle Stalls at A Crossroad or Crossing......................................................... 8-2
If You Have a Flat Tire While Driving .......................................................................... 8-2

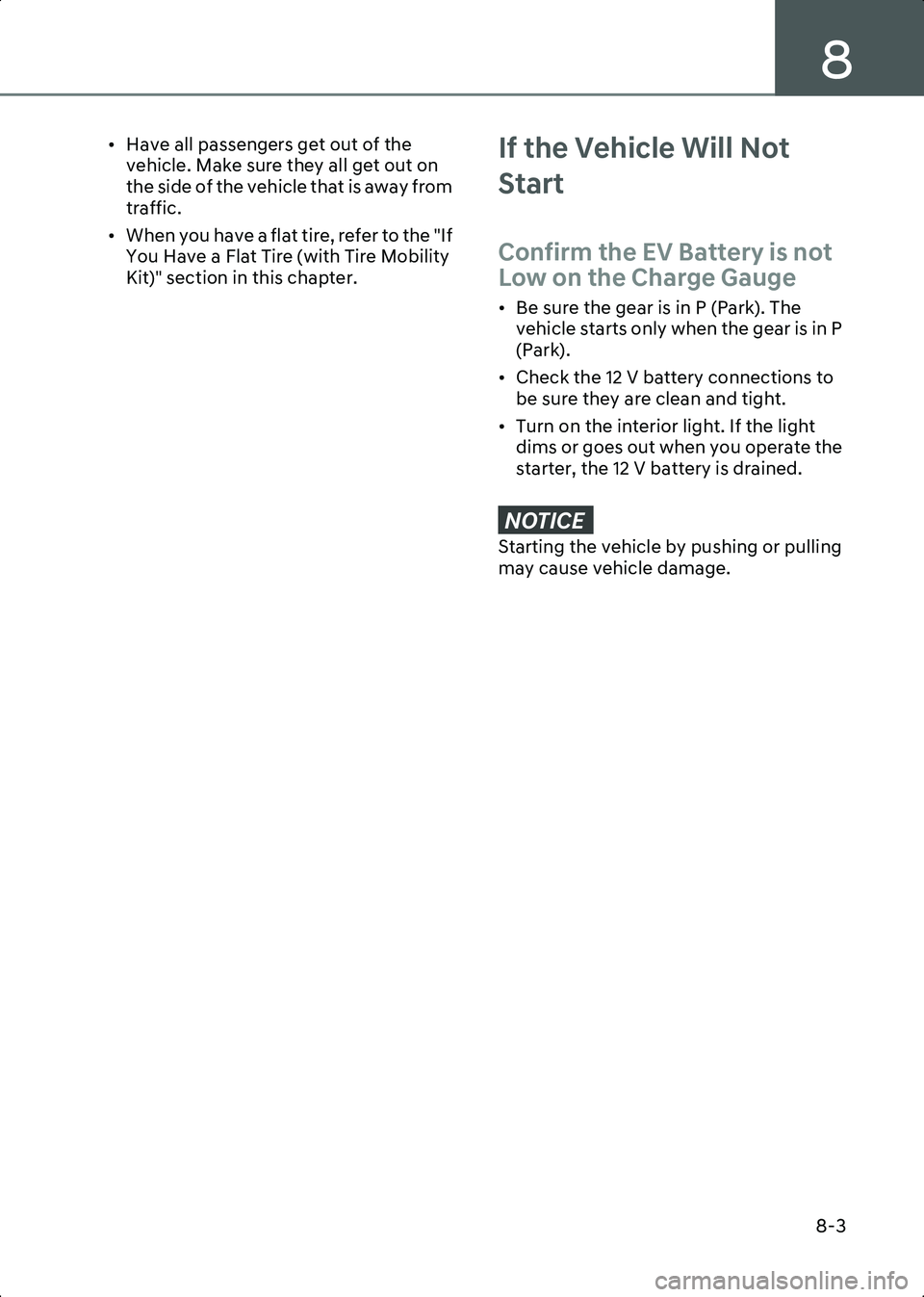

If the Vehicle Will Not Start............................................................................................. 8-3 Confirm the EV Battery is not Low on the Charge Gauge......................................... 8-3

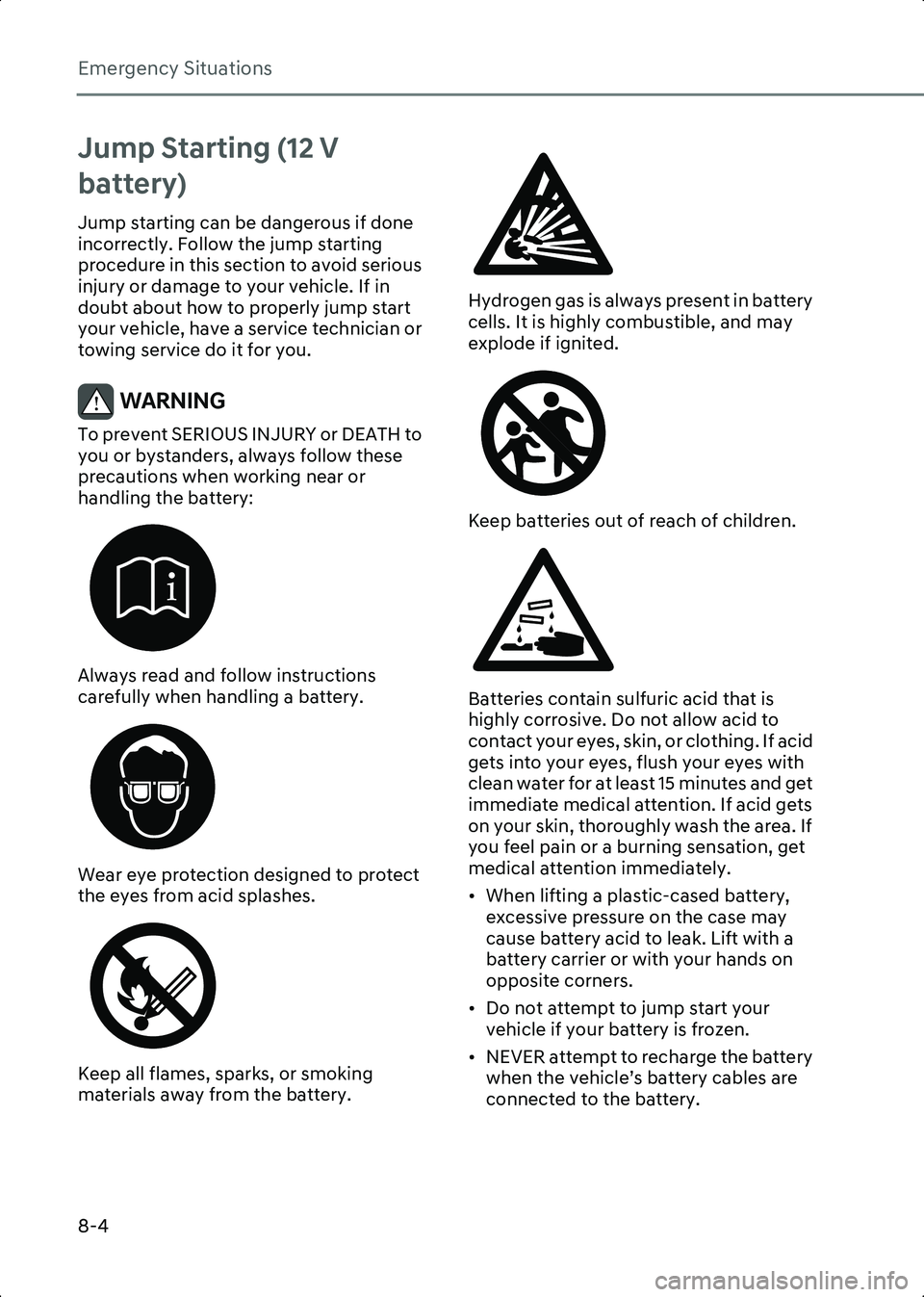

Jump Starting (12 V battery) ...........................................................................................8-4
Tire Pressure Monitoring System (TPMS) ...................................................................... 8-7 Check Tire Pressure ..................................................................................................... 8-7
Tire Pressure Monitoring System................................................................................8-8Low Tire Pressure Warning Light ................................................................................8-9Low Tire Pressure Position and Tire Pressure Telltale ...............................................8-9Changing a Tire with TPMS ....................................................................................... 8-10
If You Have a Flat Tire (with Tire Mobility Kit) ..............................................................8-12 Introduction.................................................................................................................8-12
Notes on the Safe Use of the Tire Mobility Kit ......................................................... 8-13
Components of the Tire Mobility Kit ........................................................................ 8-14
Using the Tire Mobility Kit When a Tire is Flat ......................................................... 8-15
How to Adjust Tire Pressure .......................................................................................8-17
Towing ............................................................................................................................ 8-18 Towing Service ........................................................................................................... 8-18
Removable Towing Hook .......................................................................................... 8-19
Hyundai_CE_en_US.book Page 1
Page 498 of 582
Emergency Situations
8-2

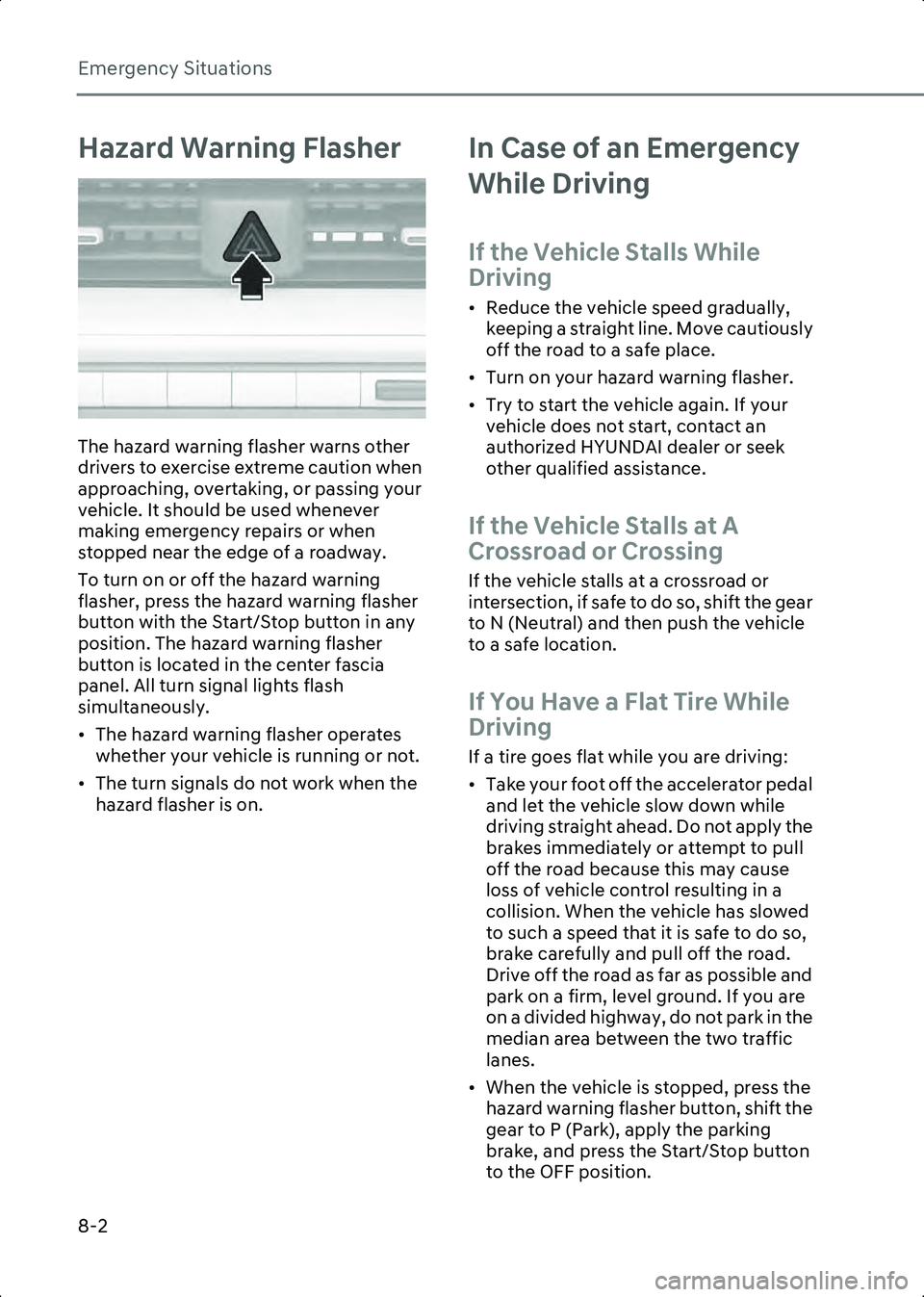

Hazard Warning Flasher
B8000201
The hazard warning flasher warns other
drivers to exercise extreme caution when
approaching, overtaking, or passing your
vehicle. It should be used whenever
making emergency repairs or when
stopped near the edge of a roadway.
To turn on or off the hazard warning
flasher, press the hazard warning flasher
button with the Start/Stop button in any
position. The hazard warning flasher
button is located in the center fascia
panel. All turn signal lights flash
simultaneously.
• The hazard warning flasher operates whether your vehicle is running or not.
• The turn signals do not work when the hazard flasher is on.
In Case of an Emergency
While Driving
If the Vehicle Stalls While
Driving
• Reduce the vehicle speed gradually, keeping a straight line. Move cautiously
off the road to a safe place.
• Turn on your hazard warning flasher.
• Try to start the vehicle again. If your vehicle does not start, contact an
authorized HYUNDAI dealer or seek
other qualified assistance.
If the Vehicle Stalls at A
Crossroad or Crossing
If the vehicle stalls at a crossroad or
intersection, if safe to do so, shift the gear
to N (Neutral) and then push the vehicle
to a safe location.
If You Have a Flat Tire While
Driving
If a tire goes flat while you are driving:
• Take your foot off the accelerator pedal and let the vehicle slow down while
driving straight ahead. Do not apply the
brakes immediately or attempt to pull
off the road because this may cause
loss of vehicle control resulting in a
collision. When the vehicle has slowed
to such a speed that it is safe to do so,
brake carefully and pull off the road.
Drive off the road as far as possible and
park on a firm, level ground. If you are
on a divided highway, do not park in the
median area between the two traffic
lanes.
• When the vehicle is stopped, press the hazard warning flasher button, shift the
gear to P (Park), apply the parking
brake, and press the Start/Stop button
to the OFF position.
Hyundai_CE_en_US.book Page 2
Page 499 of 582
8
8-3
• Have all passengers get out of the vehicle. Make sure they all get out on
the side of the vehicle that is away from
traffic.
• When you have a flat tire, refer to the "If You Have a Flat Tire (with Tire Mobility
Kit)" section in this chapter.If the Vehicle Will Not
Start
Confirm the EV Battery is not
Low on the Charge Gauge
• Be sure the gear is in P (Park). The vehicle starts only when the gear is in P
(Park).
• Check the 12 V battery connections to be sure they are clean and tight.
• Turn on the interior light. If the light dims or goes out when you operate the
starter, the 12 V battery is drained.
NOTICE 6 W D U W L Q J W K H Y H K L F O H E \ S X V K L Q J R U S X O O L Q J
P D \ F D X V H Y H K L F O H G D P D J H
Hyundai_CE_en_US.book Page 3
Page 500 of 582
Emergency Situations
8-4
Jump Starting (12 V
battery)
Jump starting can be dangerous if done
incorrectly. Follow the jump starting
procedure in this section to avoid serious
injury or damage to your vehicle. If in
doubt about how to properly jump start
your vehicle, have a service technician or
towing service do it for you.
WARNING To prevent SERIOUS INJURY or DEATH to
you or bystanders, always follow these
precautions when working near or
handling the battery:
Always read and follow instructions
carefully when handling a battery.
Wear eye protection designed to protect
the eyes from acid splashes.
Keep all flames, sparks, or smoking
materials away from the battery.Hydrogen gas is always present in battery
cells. It is highly combustible, and may
explode if ignited.
Keep batteries out of reach of children.
Batteries contain sulfuric acid that is
highly corrosive. Do not allow acid to
contact your eyes, skin, or clothing. If acid
gets into your eyes, flush your eyes with
clean water for at least 15 minutes and get
immediate medical attention. If acid gets
on your skin, thoroughly wash the area. If
you feel pain or a burning sensation, get
medical attention immediately.
• When lifting a plastic-cased battery,
excessive pressure on the case may
cause battery acid to leak. Lift with a
battery carrier or with your hands on
opposite corners.
• Do not attempt to jump start your vehicle if your battery is frozen.
• NEVER attempt to recharge the battery when the vehicle’s battery cables are
connected to the battery.
Hyundai_CE_en_US.book Page 4
