HYUNDAI IONIQ 6 2023 Owners Manual
Manufacturer: HYUNDAI, Model Year: 2023, Model line: IONIQ 6, Model: HYUNDAI IONIQ 6 2023Pages: 582, PDF Size: 10.77 MB
Page 521 of 582
9
9-5

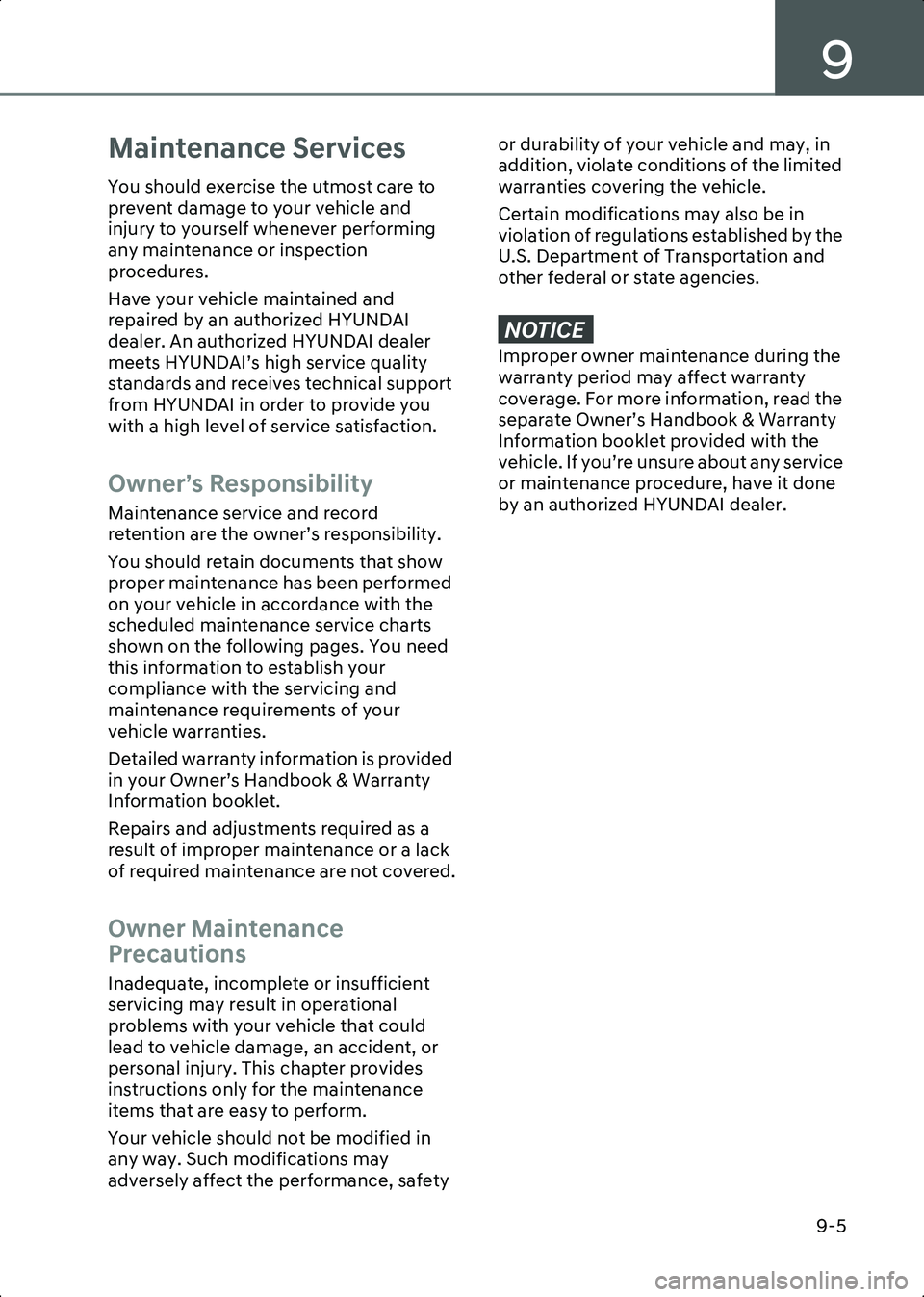

Maintenance Services
You should exercise the utmost care to
prevent damage to your vehicle and
injury to yourself whenever performing
any maintenance or inspection
procedures.
Have your vehicle maintained and
repaired by an authorized HYUNDAI
dealer. An authorized HYUNDAI dealer
meets HYUNDAI’s high service quality
standards and receives technical support
from HYUNDAI in order to provide you
with a high level of service satisfaction.
Owner’s Responsibility
Maintenance service and record
retention are the owner’s responsibility.
You should retain documents that show
proper maintenance has been performed
on your vehicle in accordance with the
scheduled maintenance service charts
shown on the following pages. You need
this information to establish your
compliance with the servicing and
maintenance requirements of your
vehicle warranties.
Detailed warranty information is provided
in your Owner’s Handbook & Warranty
Information booklet.
Repairs and adjustments required as a
result of improper maintenance or a lack
of required maintenance are not covered.
Owner Maintenance
Precautions
Inadequate, incomplete or insufficient
servicing may result in operational
problems with your vehicle that could
lead to vehicle damage, an accident, or
personal injury. This chapter provides
instructions only for the maintenance
items that are easy to perform.
Your vehicle should not be modified in
any way. Such modifications may
adversely affect the performance, safety or durability of your vehicle and may, in
addition, violate conditions of the limited
warranties covering the vehicle.
Certain modifications may also be in
violation of regulations established by the
U.S. Department of Transportation and
other federal or state agencies.
NOTICE , P S U R S H U R Z Q H U P D L Q W H Q D Q F H G X U L Q J W K H
Z D U U D Q W \ S H U L R G P D \ D I I H F W Z D U U D Q W \
F R Y H U D J H ) R U P R U H L Q I R U P D W L R Q U H D G W K H
V H S D U D W H 2 Z Q H UT V + D Q G E R R N : D U U D Q W \
, Q I R U P D W L R Q E R R N O H W S U R Y L G H G Z L W K W K H
Y H K L F O H , I \ R XT U H X Q V X U H D E R X W D Q \ V H U Y L F H
R U P D L Q W H Q D Q F H S U R F H G X U H K D Y H L W G R Q H
E \ D Q D X W K R U L ] H G + < 8 1 ' $ , G H D O H U
Hyundai_CE_en_US.book Page 5
Page 522 of 582
Maintenance
9-6

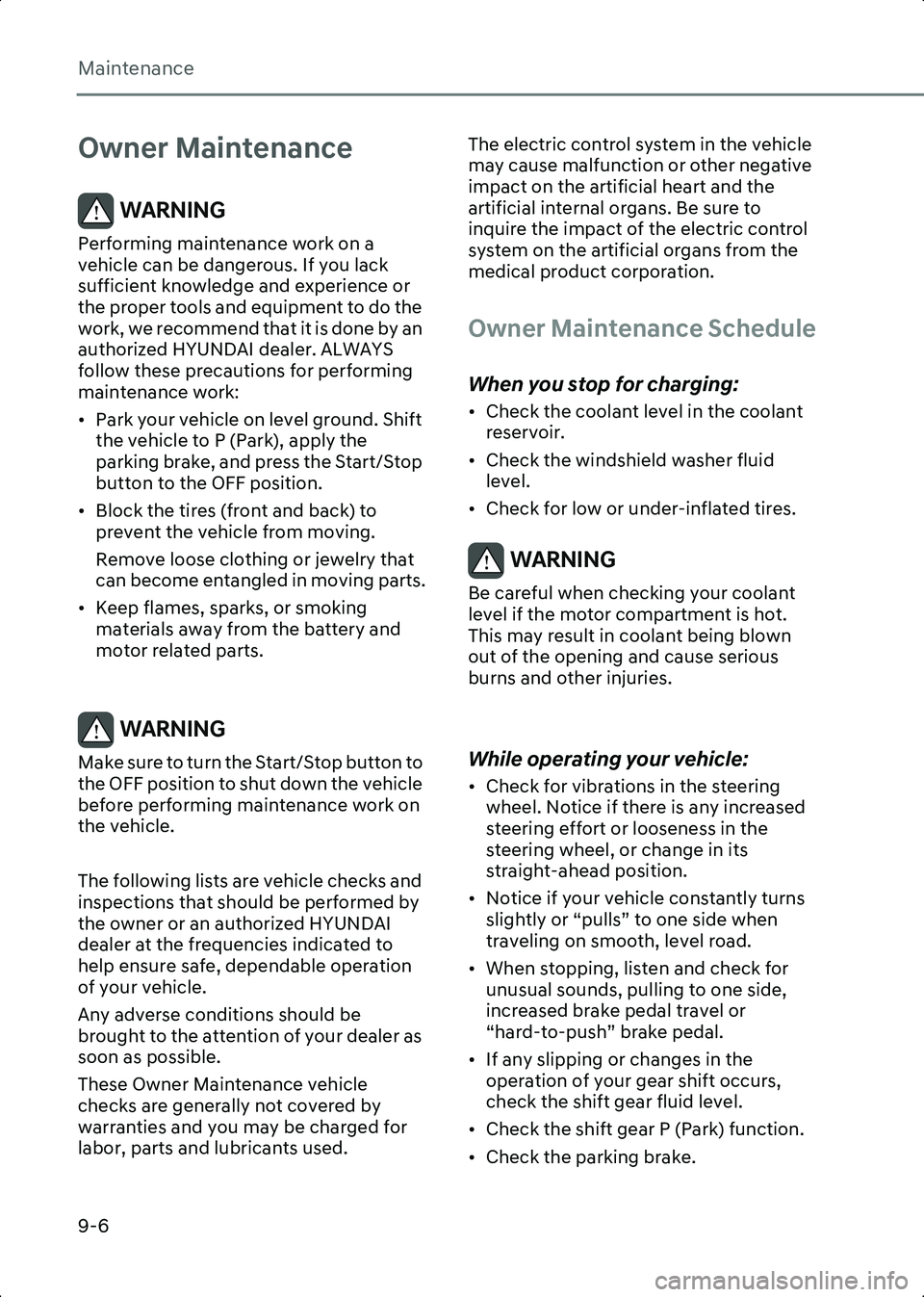

Owner Maintenance
WARNING Performing maintenance work on a
vehicle can be dangerous. If you lack
sufficient knowledge and experience or
the proper tools and equipment to do the
work, we recommend that it is done by an
authorized HYUNDAI dealer. ALWAYS
follow these precautions for performing
maintenance work:
• Park your vehicle on level ground. Shift the vehicle to P (Park), apply the
parking brake, and press the Start/Stop
button to the OFF position.
• Block the tires (front and back) to prevent the vehicle from moving.
Remove loose clothing or jewelry that
can become entangled in moving parts.
• Keep flames, sparks, or smoking materials away from the battery and
motor related parts.
WARNING Make sure to turn the Start/Stop button to
the OFF position to shut down the vehicle
before performing maintenance work on
the vehicle.
The following lists are vehicle checks and
inspections that should be performed by
the owner or an authorized HYUNDAI
dealer at the frequencies indicated to
help ensure safe, dependable operation
of your vehicle.
Any adverse conditions should be
brought to the attention of your dealer as
soon as possible.
These Owner Maintenance vehicle
checks are generally not covered by
warranties and you may be charged for
labor, parts and lubricants used. The electric control system in the vehicle
may cause malfunction or other negative
impact on the artificial heart and the
artificial internal organs. Be sure to
inquire the impact of the electric control
system on the artificial organs from the
medical product corporation.
Owner Maintenance Schedule
When you stop for charging:
• Check the coolant level in the coolant
reservoir.
• Check the windshield washer fluid level.
• Check for low or under-inflated tires.
WARNING Be careful when checking your coolant
level if the motor compartment is hot.
This may result in coolant being blown
out of the opening and cause serious
burns and other injuries.
While operating your vehicle:
• Check for vibrations in the steering wheel. Notice if there is any increased
steering effort or looseness in the
steering wheel, or change in its
straight-ahead position.
• Notice if your vehicle constantly turns slightly or “pulls” to one side when
traveling on smooth, level road.
• When stopping, listen and check for unusual sounds, pulling to one side,
increased brake pedal travel or
“hard-to-push” brake pedal.
• If any slipping or changes in the operation of your gear shift occurs,
check the shift gear fluid level.
• Check the shift gear P (Park) function.
• Check the parking brake.
Hyundai_CE_en_US.book Page 6
Page 523 of 582
9
9-7
• Check for fluid leaks under your vehicle (water dripping from the air
conditioning system during or after use
is normal).
At least monthly:
• Check coolant level in the coolant reservoir.
• Check the operation of all exterior lights, including the stoplights, turn
signals and hazard warning flashers.
• Check the inflation pressures of all tires including the spare for tires that are
worn, show uneven wear, or are
damaged.
• Check for loose wheel lug nuts.
At least twice a year: (for example,
every Spring and Autumn)
• Check radiator, heater and air conditioning hoses for leaks or
damage.
• Check windshield washer spray and wiper operation. Clean wiper blades
with a clean cloth dampened with
washer fluid.
• Check headlight alignment.
• Check the seat belts for wear and function.
At least once a year:
• Clean body and door drain holes.
• Lubricate door hinges and hood hinges.
• Lubricate door and hood locks and latches.
• Lubricate door rubber weather strips.
• Check the air conditioning system.
• Inspect and lubricate shift gear linkage and controls.
• Clean the battery (12 V) and terminals.
• Check the brake fluid level.
Scheduled Maintenance
Services
Follow Normal Maintenance Schedule if
the vehicle is usually operated where
none of the following conditions apply. If
any of the following conditions apply, you
must follow the Maintenance Under
Severe Usage Conditions.
• Repeated driving short distance of less than 5 mi. (8 km) in normal temperature
or less than 10 mi. (16 km) in freezing
temperature
• Driving on rough, dusty, muddy, unpaved, graveled or salt-spread roads
• Driving in areas using salt or other corrosive materials or in very cold
weather
• Driving in heavy dust condition
• Driving in heavy traffic area with the ambient temperature higher than 90 ºF
(32 ºC) while consuming more than 50%
of electric energy.
• Driving on uphill, downhill, or mountain roads repeatedly
• Towing a trailer or using a camper, or driving with loads on the roof
• Driving as a patrol car, taxi, other commercial use or vehicle towing
• Frequently driving under high speed or rapid acceleration/deceleration
• Frequently driving in stop-and-go conditions
If your vehicle is operated under the
above conditions, you should inspect,
replace or refill more frequently than the
following Normal Maintenance Schedule.
After the periods or distance shown in the
chart, continue to follow the prescribed
maintenance intervals.
Hyundai_CE_en_US.book Page 7
Page 524 of 582
Maintenance
9-8

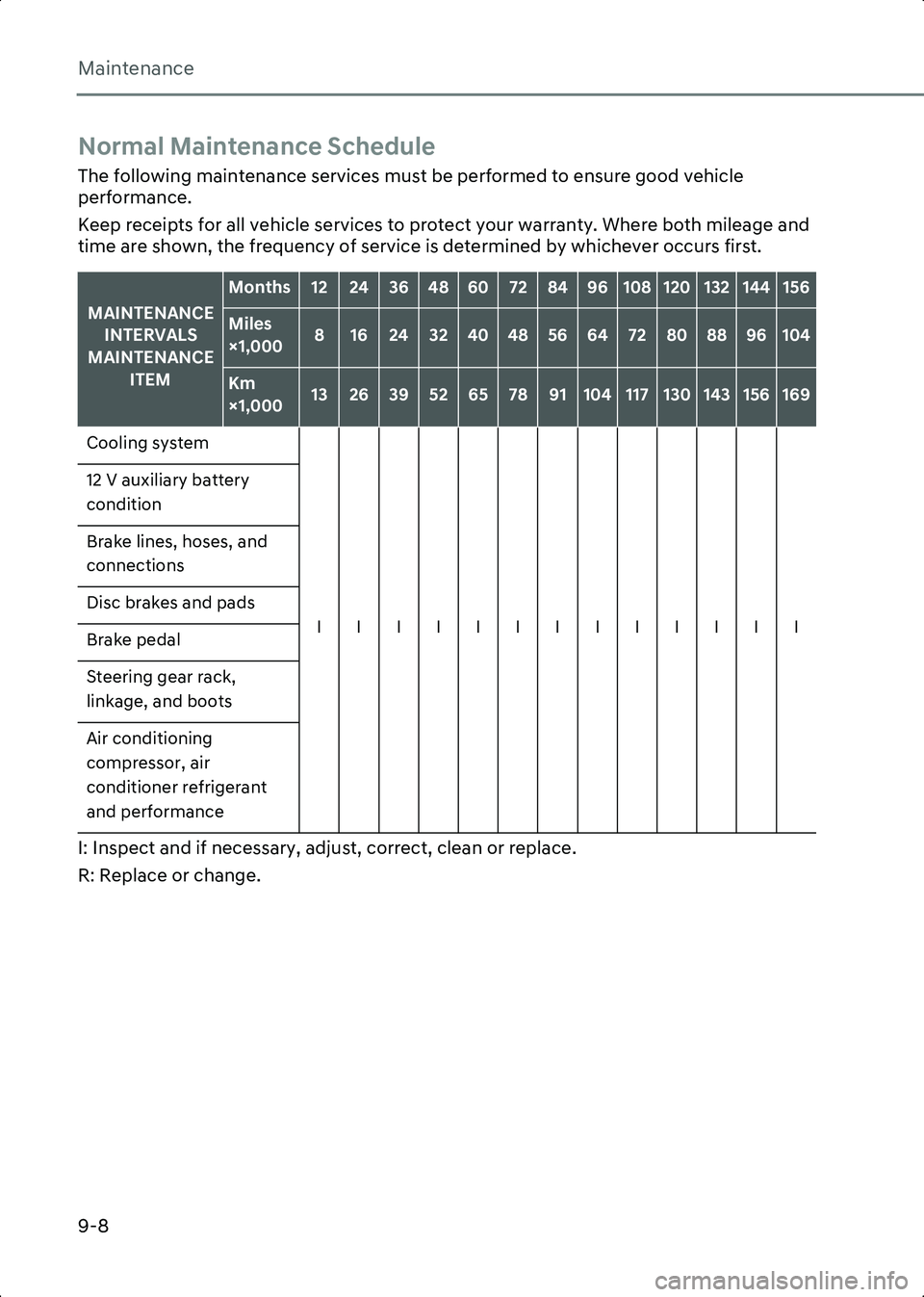

Normal Maintenance Schedule
The following maintenance services must be performed to ensure good vehicle
performance.
Keep receipts for all vehicle services to protect your warranty. Where both mileage and
time are shown, the frequency of service is determined by whichever occurs first.
I: Inspect and if necessary, adjust, correct, clean or replace.
R: Replace or change.
MAINTENANCE INTERVALS
MAINTENANCE ITEM
Months1224364860728496108120132144156
Miles
×1,00081624324048566472808896104
Km
×1,00013263952657891104117130143156169
Cooling system
I I I I I I I I I I I I I
12 V auxiliary battery
condition
Brake lines, hoses, and
connections
Disc brakes and pads
Brake pedal
Steering gear rack,
linkage, and boots
Air conditioning
compressor, air
conditioner refrigerant
and performance
Hyundai_CE_en_US.book Page 8
Page 525 of 582
9
9-9

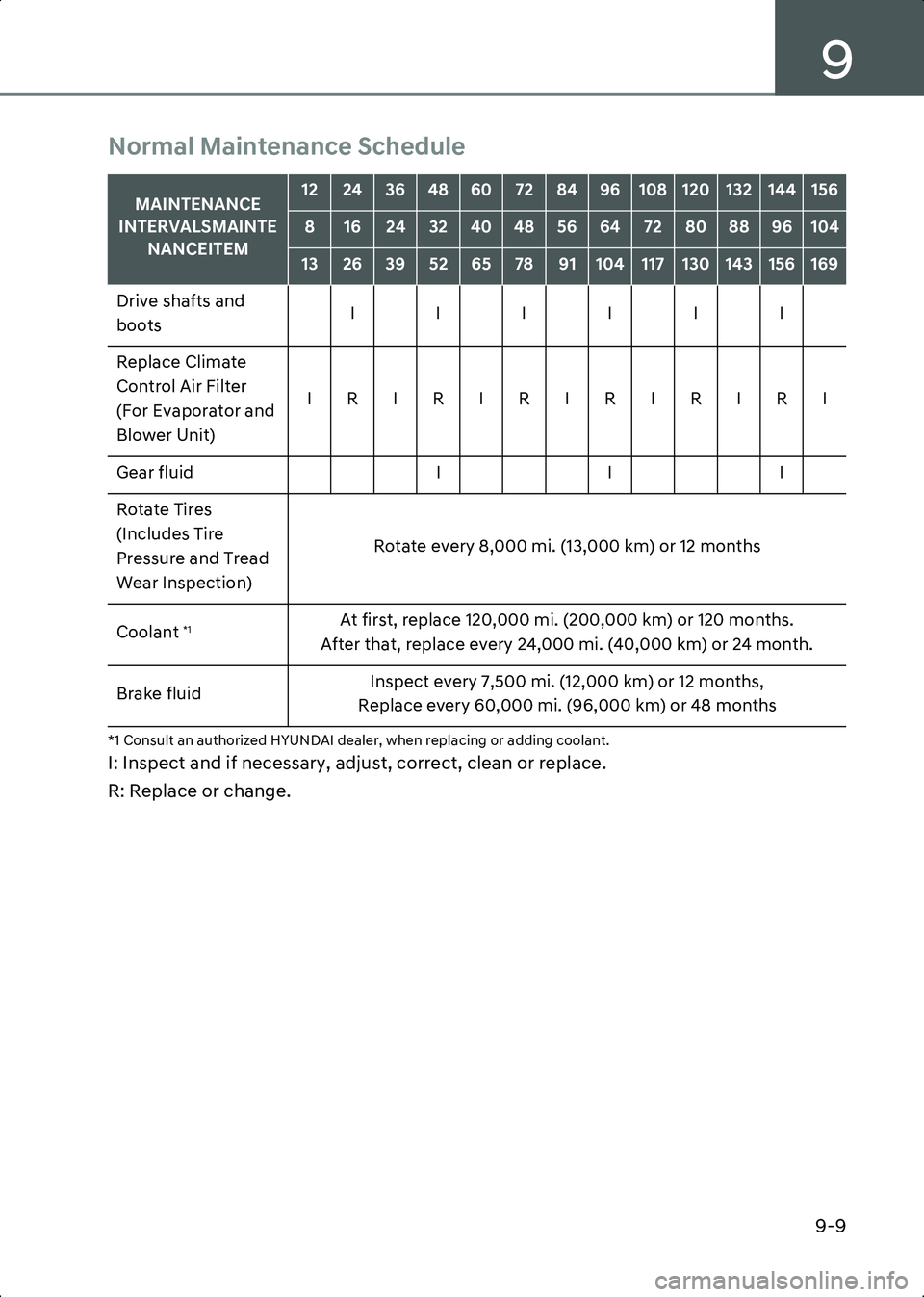

Normal Maintenance Schedule
*1 Consult an authorized HYUNDAI dealer, when replacing or adding coolant.
I: Inspect and if necessary, adjust, correct, clean or replace.
R: Replace or change.
MAINTENANCE
INTERVALSMAINTE NANCEITEM1224364860728496108120132144156
81624324048566472808896104
13263952657891104117130143156169
Drive shafts and
boots I I I I I I
Replace Climate
Control Air Filter
(For Evaporator and
Blower Unit) I R I R I R I R I R I R I
Gear fluid III
Rotate Tires
(Includes Tire
Pressure and Tread
Wear Inspection) Rotate every 8,000 mi. (13,000 km) or 12 months
Coolant
*1At first, replace 120,000 mi. (200,000 km) or 120 months.
After that, replace every 24,000 mi. (40,000 km) or 24 month.
Brake fluid Inspect every 7,500 mi. (12,000 km) or 12 months,
Replace every 60,000 mi. (96,000 km) or 48 months
Hyundai_CE_en_US.book Page 9
Page 526 of 582
Maintenance
9-10

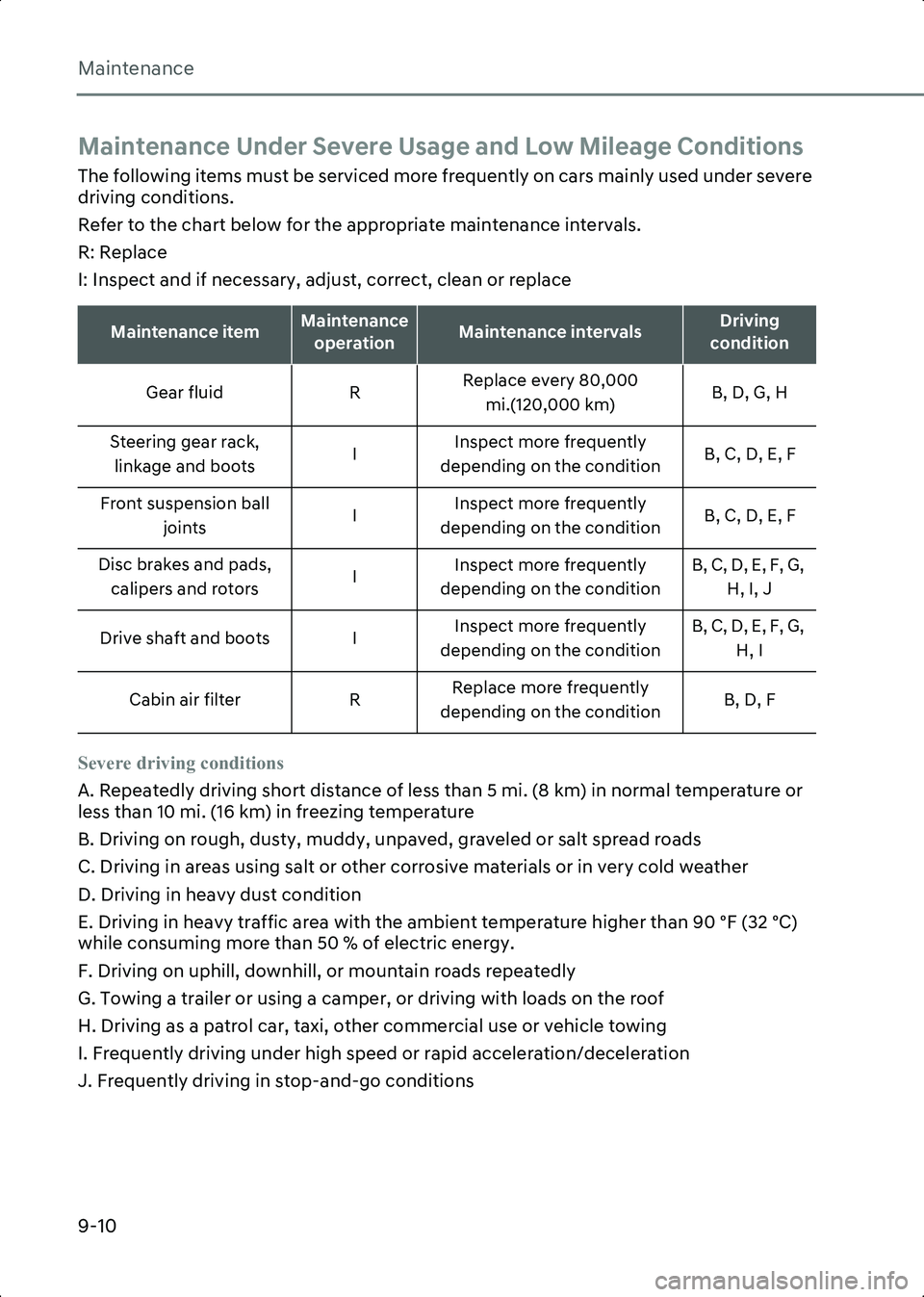

Maintenance Under Severe Usage and Low Mileage Conditions
The following items must be serviced more frequently on cars mainly used under severe
driving conditions.
Refer to the chart below for the appropriate maintenance intervals.
R: Replace
I: Inspect and if necessary, adjust, correct, clean or replace
Severe driving conditions
A. Repeatedly driving short distance of less than 5 mi. (8 km) in normal temperature or
less than 10 mi. (16 km) in freezing temperature
B. Driving on rough, dusty, muddy, unpaved, graveled or salt spread roads
C. Driving in areas using salt or other corrosive materials or in very cold weather
D. Driving in heavy dust condition
E. Driving in heavy traffic area with the ambient temperature higher than 90 ºF (32 ºC)
while consuming more than 50 % of electric energy.
F. Driving on uphill, downhill, or mountain roads repeatedly
G. Towing a trailer or using a camper, or driving with loads on the roof
H. Driving as a patrol car, taxi, other commercial use or vehicle towing
I. Frequently driving under high speed or rapid acceleration/deceleration
J. Frequently driving in stop-and-go conditions
Maintenance itemMaintenance operationMaintenance intervalsDriving
condition
Gear fluid RReplace every 80,000
mi.(120,000 km) B, D, G, H
Steering gear rack, linkage and boots IInspect more frequently
depending on the condition B, C, D, E, F
Front suspension ball joints IInspect more frequently
depending on the condition B, C, D, E, F
Disc brakes and pads, calipers and rotors IInspect more frequently
depending on the condition B, C, D, E, F, G,
H, I, J
Drive shaft and boots I Inspect more frequently
depending on the condition B, C, D, E, F, G,
H, I
Cabin air filter RReplace more frequently
depending on the condition B, D, F
Hyundai_CE_en_US.book Page 10
Page 527 of 582
9
9-11

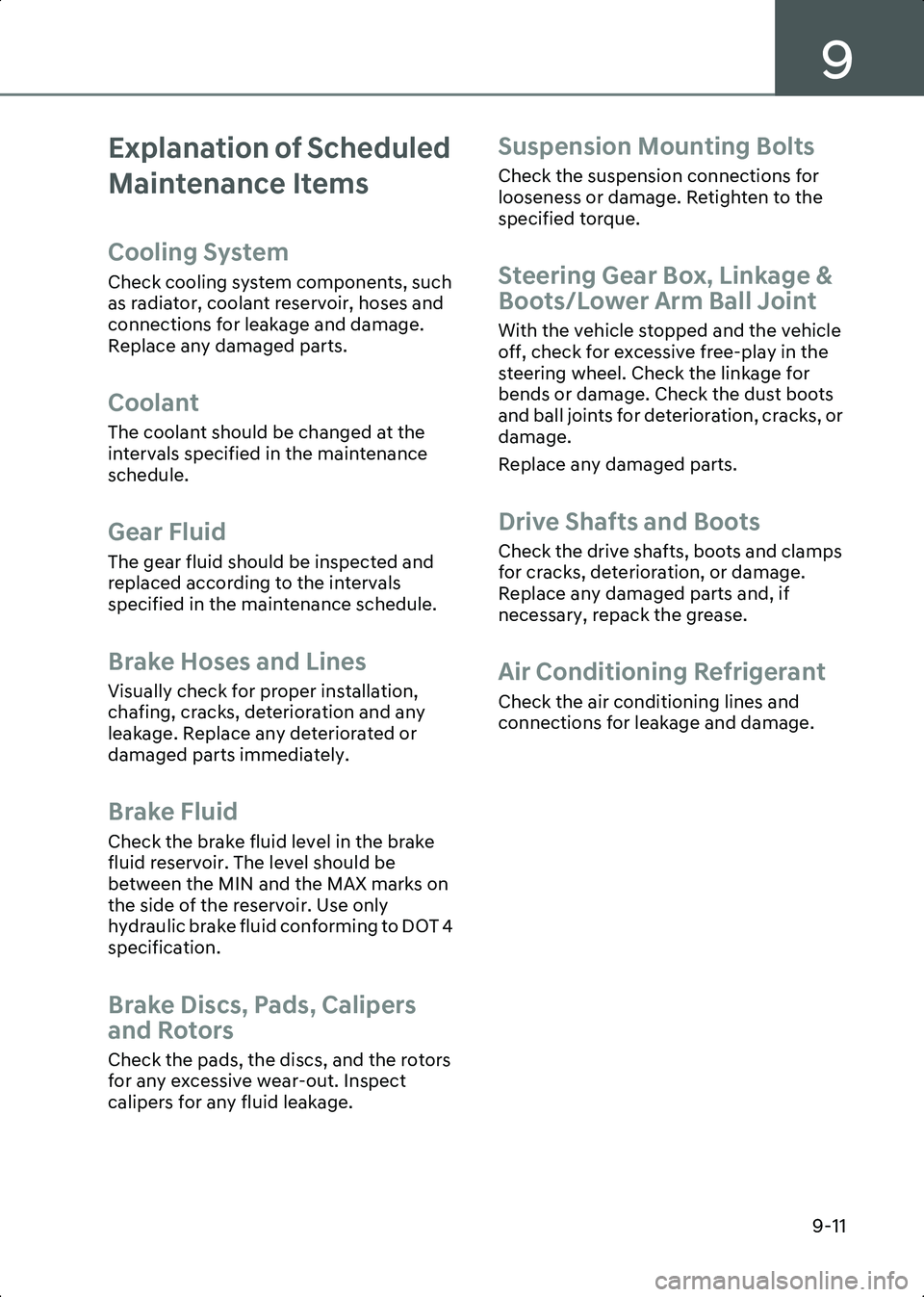

Explanation of Scheduled
Maintenance Items
Cooling System
Check cooling system components, such
as radiator, coolant reservoir, hoses and
connections for leakage and damage.
Replace any damaged parts.
Coolant
The coolant should be changed at the
intervals specified in the maintenance
schedule.
Gear Fluid
The gear fluid should be inspected and
replaced according to the intervals
specified in the maintenance schedule.
Brake Hoses and Lines
Visually check for proper installation,
chafing, cracks, deterioration and any
leakage. Replace any deteriorated or
damaged parts immediately.
Brake Fluid
Check the brake fluid level in the brake
fluid reservoir. The level should be
between the MIN and the MAX marks on
the side of the reservoir. Use only
hydraulic brake fluid conforming to DOT 4
specification.
Brake Discs, Pads, Calipers
and Rotors
Check the pads, the discs, and the rotors
for any excessive wear-out. Inspect
calipers for any fluid leakage.
Suspension Mounting Bolts
Check the suspension connections for
looseness or damage. Retighten to the
specified torque.
Steering Gear Box, Linkage &
Boots/Lower Arm Ball Joint
With the vehicle stopped and the vehicle
off, check for excessive free-play in the
steering wheel. Check the linkage for
bends or damage. Check the dust boots
and ball joints for deterioration, cracks, or
damage.
Replace any damaged parts.
Drive Shafts and Boots
Check the drive shafts, boots and clamps
for cracks, deterioration, or damage.
Replace any damaged parts and, if
necessary, repack the grease.
Air Conditioning Refrigerant
Check the air conditioning lines and
connections for leakage and damage.
Hyundai_CE_en_US.book Page 11
Page 528 of 582

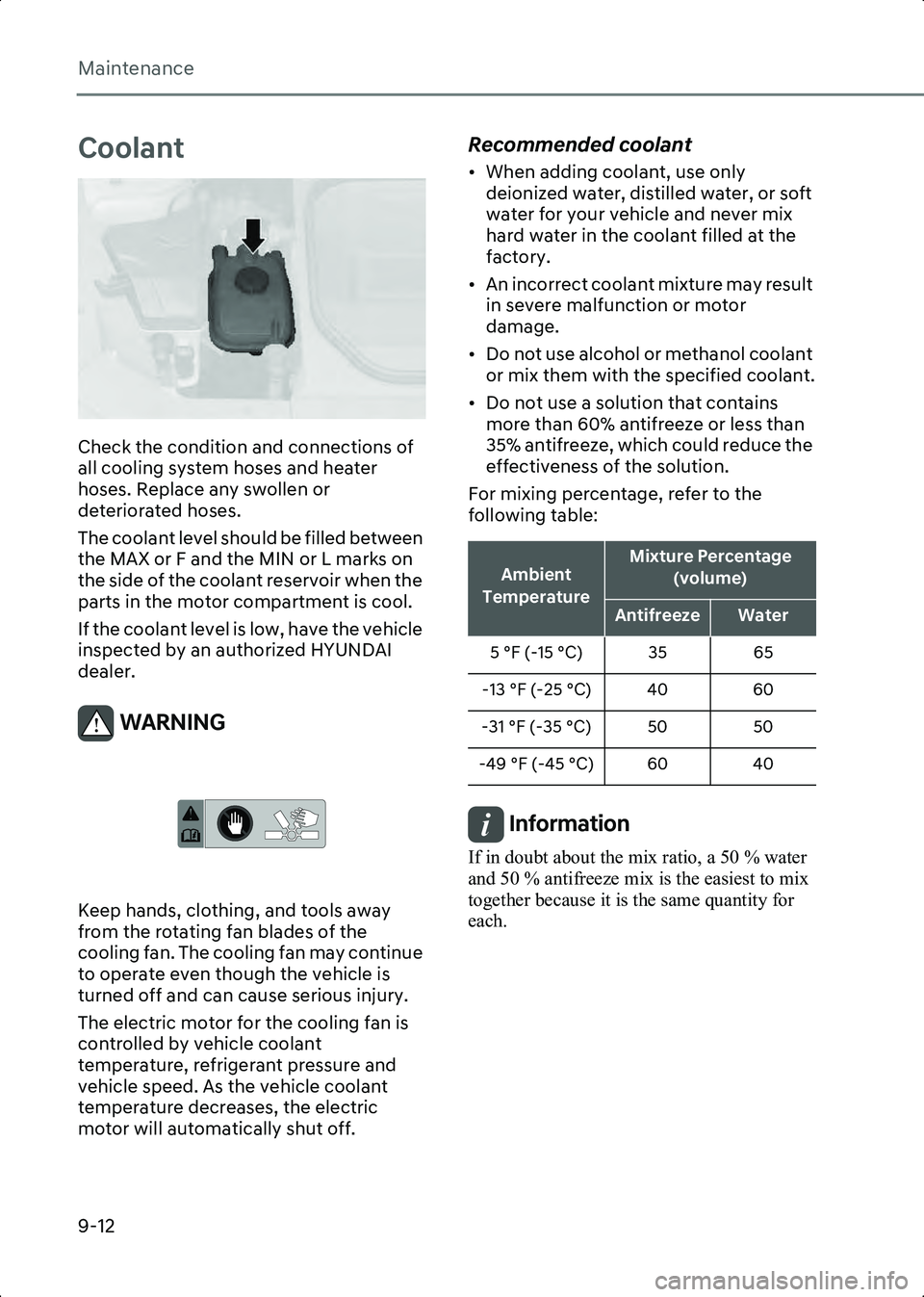

Maintenance
9-12
Coolant
B9001901
Check the condition and connections of
all cooling system hoses and heater
hoses. Replace any swollen or
deteriorated hoses.
The coolant level should be filled between
the MAX or F and the MIN or L marks on
the side of the coolant reservoir when the
parts in the motor compartment is cool.
If the coolant level is low, have the vehicle
inspected by an authorized HYUNDAI
dealer.
WARNING
Keep hands, clothing, and tools away
from the rotating fan blades of the
cooling fan. The cooling fan may continue
to operate even though the vehicle is
turned off and can cause serious injury.
The electric motor for the cooling fan is
controlled by vehicle coolant
temperature, refrigerant pressure and
vehicle speed. As the vehicle coolant
temperature decreases, the electric
motor will automatically shut off.
Recommended coolant
• When adding coolant, use only deionized water, distilled water, or soft
water for your vehicle and never mix
hard water in the coolant filled at the
factory.
• An incorrect coolant mixture may result in severe malfunction or motor
damage.
• Do not use alcohol or methanol coolant or mix them with the specified coolant.
• Do not use a solution that contains more than 60% antifreeze or less than
35% antifreeze, which could reduce the
effectiveness of the solution.
For mixing percentage, refer to the
following table:
Information If in doubt about the mix ratio, a 50 % water
and 50 % antifreeze mix is the easiest to mix
together because it is the same quantity for
each.
Ambient
TemperatureMixture Percentage (volume)
AntifreezeWater
5 °F (-15 °C) 35 65
-13 °F (-25 °C) 40 60
-31 °F (-35 °C) 50 50
-49 °F (-45 °C) 60 40
Hyundai_CE_en_US.book Page 12
Page 529 of 582

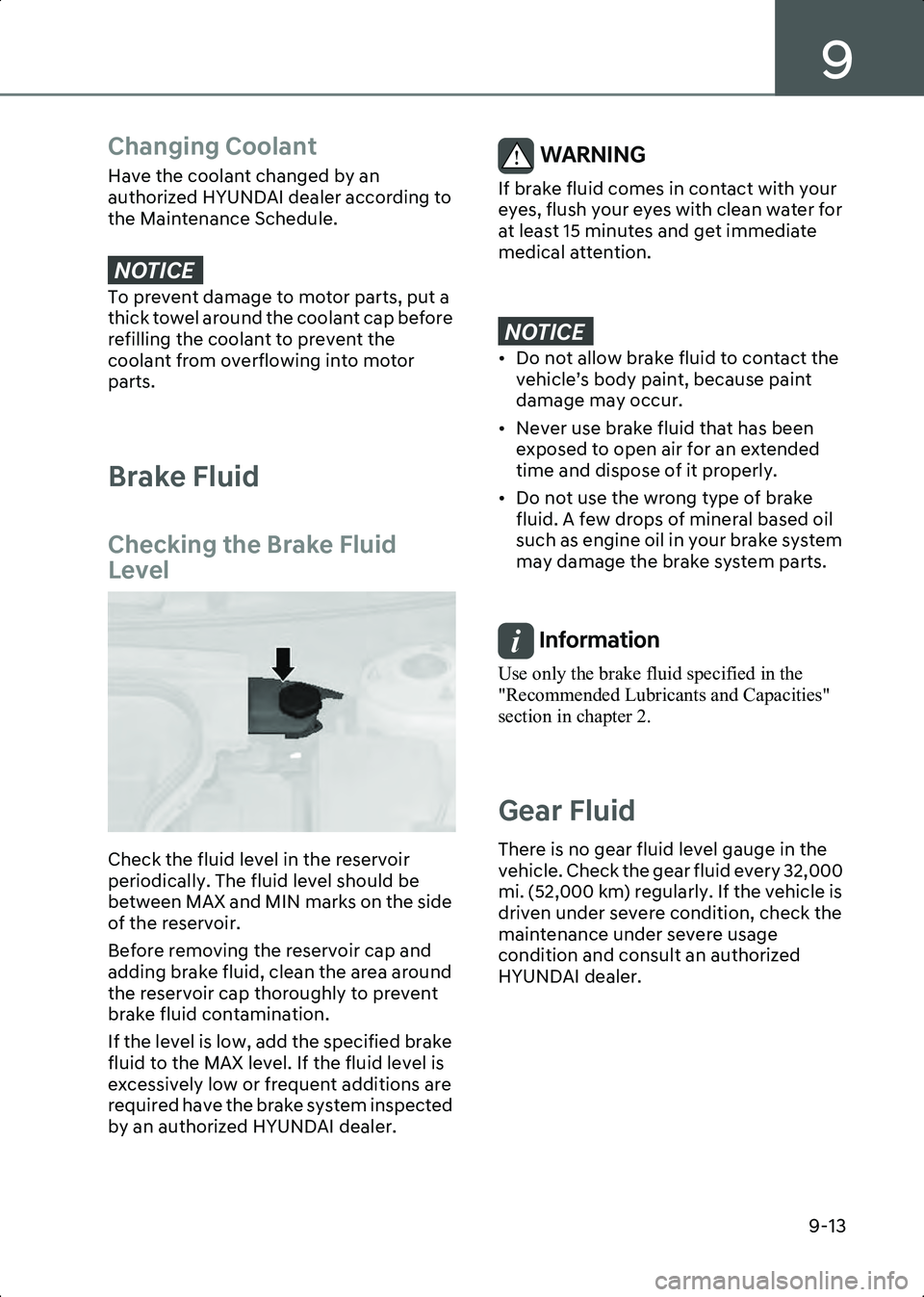

9
9-13
Changing Coolant
Have the coolant changed by an
authorized HYUNDAI dealer according to
the Maintenance Schedule.
NOTICE 7 R S U H Y H Q W G D P D J H W R P R W R U S D U W V S X W D
W K L F N W R Z H O D U R X Q G W K H F R R O D Q W F D S E H I R U H
U H I L O O L Q J W K H F R R O D Q W W R S U H Y H Q W W K H
F R R O D Q W I U R P R Y H U I O R Z L Q J L Q W R P R W R U
S D U W V
Brake Fluid
Checking the Brake Fluid
Level
B9002301
Check the fluid level in the reservoir
periodically. The fluid level should be
between MAX and MIN marks on the side
of the reservoir.
Before removing the reservoir cap and
adding brake fluid, clean the area around
the reservoir cap thoroughly to prevent
brake fluid contamination.
If the level is low, add the specified brake
fluid to the MAX level. If the fluid level is
excessively low or frequent additions are
required have the brake system inspected
by an authorized HYUNDAI dealer.
WARNING If brake fluid comes in contact with your
eyes, flush your eyes with clean water for
at least 15 minutes and get immediate
medical attention.
NOTICE [ ' R Q R W D O O R Z E U D N H I O X L G W R F R Q W D F W W K H Y H K L F O HT V E R G \ S D L Q W E H F D X V H S D L Q W
G D P D J H P D \ R F F X U
[ 1 H Y H U X V H E U D N H I O X L G W K D W K D V E H H Q H [ S R V H G W R R S H Q D L U I R U D Q H [ W H Q G H G
W L P H D Q G G L V S R V H R I L W S U R S H U O \
[ ' R Q R W X V H W K H Z U R Q J W \ S H R I E U D N H I O X L G $ I H Z G U R S V R I P L Q H U D O E D V H G R L O
V X F K D V H Q J L Q H R L O L Q \ R X U E U D N H V \ V W H P
P D \ G D P D J H W K H E U D N H V \ V W H P S D U W V
Information Use only the brake fluid specified in the
"Recommended Lubricants and Capacities"
section in chapter 2.
Gear Fluid
There is no gear fluid level gauge in the
vehicle. Check the gear fluid every 32,000
mi. (52,000 km) regularly. If the vehicle is
driven under severe condition, check the
maintenance under severe usage
condition and consult an authorized
HYUNDAI dealer.
Hyundai_CE_en_US.book Page 13
Page 530 of 582

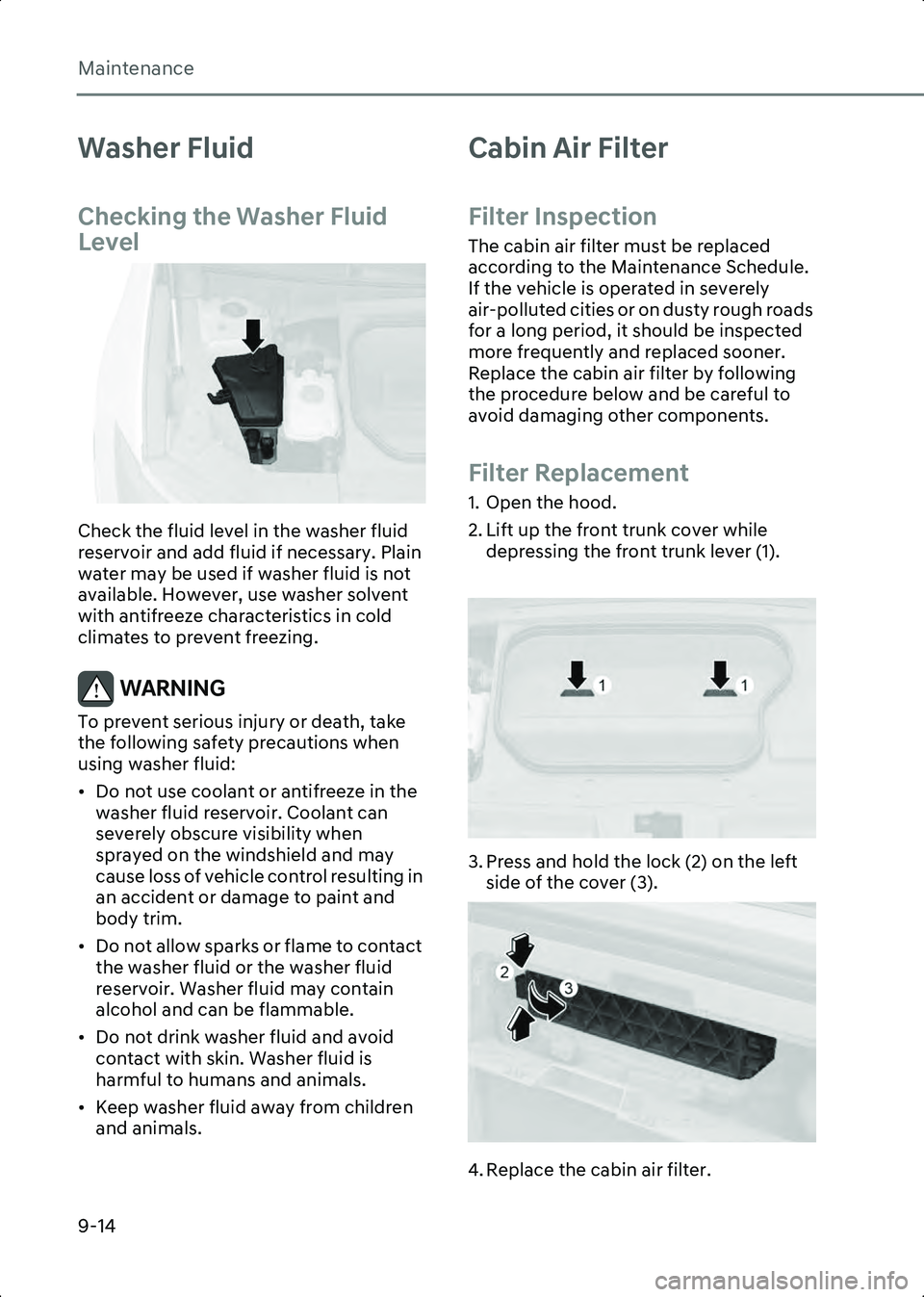

Maintenance
9-14
Washer Fluid
Checking the Washer Fluid
Level
B9002701
Check the fluid level in the washer fluid
reservoir and add fluid if necessary. Plain
water may be used if washer fluid is not
available. However, use washer solvent
with antifreeze characteristics in cold
climates to prevent freezing.
WARNING To prevent serious injury or death, take
the following safety precautions when
using washer fluid:
• Do not use coolant or antifreeze in the washer fluid reservoir. Coolant can
severely obscure visibility when
sprayed on the windshield and may
cause loss of vehicle control resulting in
an accident or damage to paint and
body trim.
• Do not allow sparks or flame to contact the washer fluid or the washer fluid
reservoir. Washer fluid may contain
alcohol and can be flammable.
• Do not drink washer fluid and avoid contact with skin. Washer fluid is
harmful to humans and animals.
• Keep washer fluid away from children and animals.
Cabin Air Filter
Filter Inspection
The cabin air filter must be replaced
according to the Maintenance Schedule.
If the vehicle is operated in severely
air-polluted cities or on dusty rough roads
for a long period, it should be inspected
more frequently and replaced sooner.
Replace the cabin air filter by following
the procedure below and be careful to
avoid damaging other components.
Filter Replacement
1. Open the hood.
2. Lift up the front trunk cover while depressing the front trunk lever (1).
B9003602
3. Press and hold the lock (2) on the left side of the cover (3).
B9003603
4. Replace the cabin air filter.
Hyundai_CE_en_US.book Page 14
