8
8-15
WARNING Do not use the tire sealant after the
sealant has expired (the expiration date is
pasted on the sealant container). This can
increase the risk of tire failure.
WARNING Sealant
• Keep out of reach of children.
• Avoid contact with eyes.
• Do not swallow.

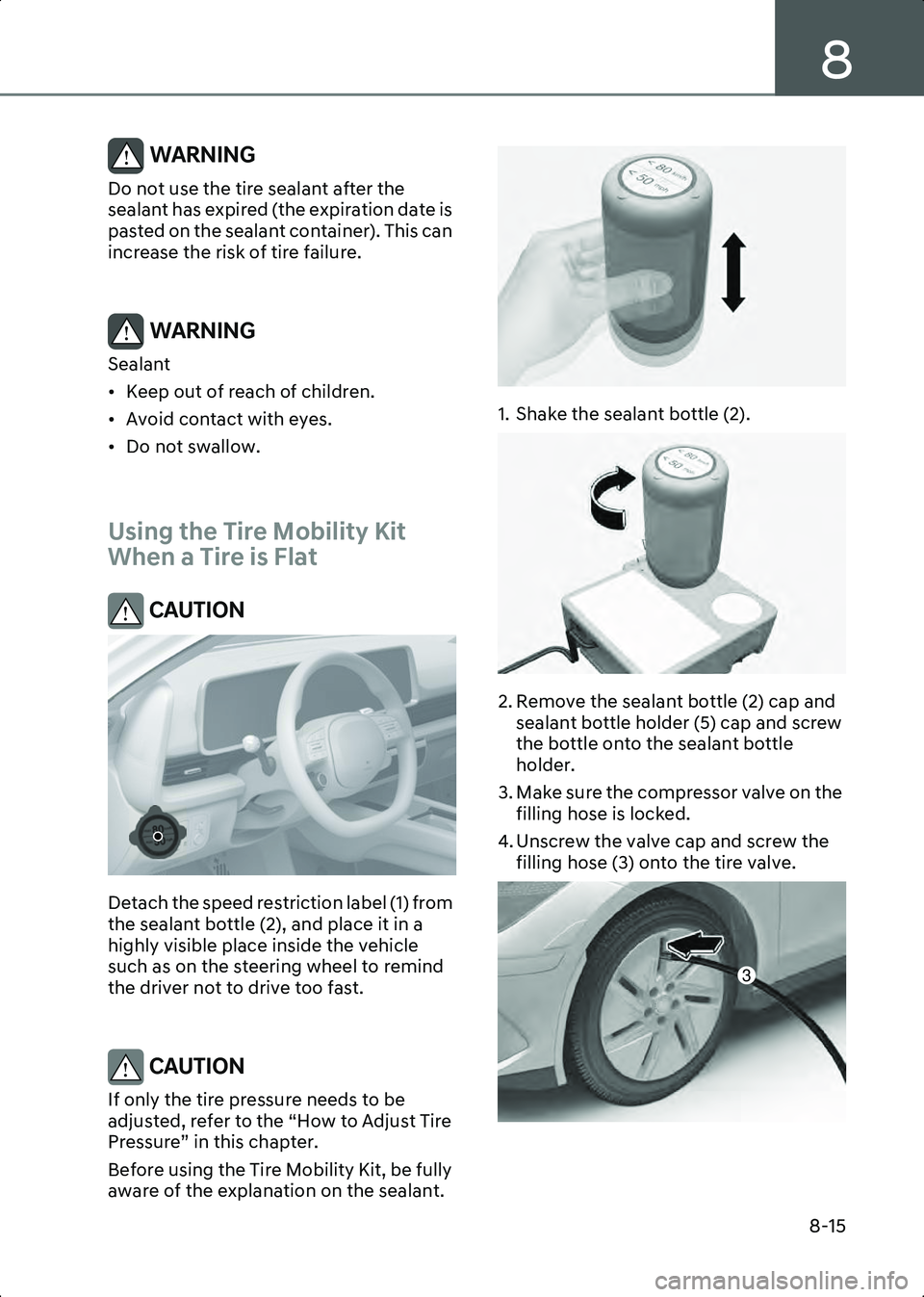

Using the Tire Mobility Kit
When a Tire is Flat
CAUTION
B8002503
Detach the speed restriction label (1) from
the sealant bottle (2), and place it in a
highly visible place inside the vehicle
such as on the steering wheel to remind
the driver not to drive too fast.
CAUTION If only the tire pressure needs to be
adjusted, refer to the “How to Adjust Tire
Pressure” in this chapter.
Before using the Tire Mobility Kit, be fully
aware of the explanation on the sealant.
B8002504
1. Shake the sealant bottle (2).
B8002505
2. Remove the sealant bottle (2) cap and sealant bottle holder (5) cap and screw
the bottle onto the sealant bottle
holder.
3. Make sure the compressor valve on the filling hose is locked.
4. Unscrew the valve cap and screw the filling hose (3) onto the tire valve.
B8002506
3
Hyundai_CE_en_US.book Page 15
Page 512 of 582
Emergency Situations
8-16

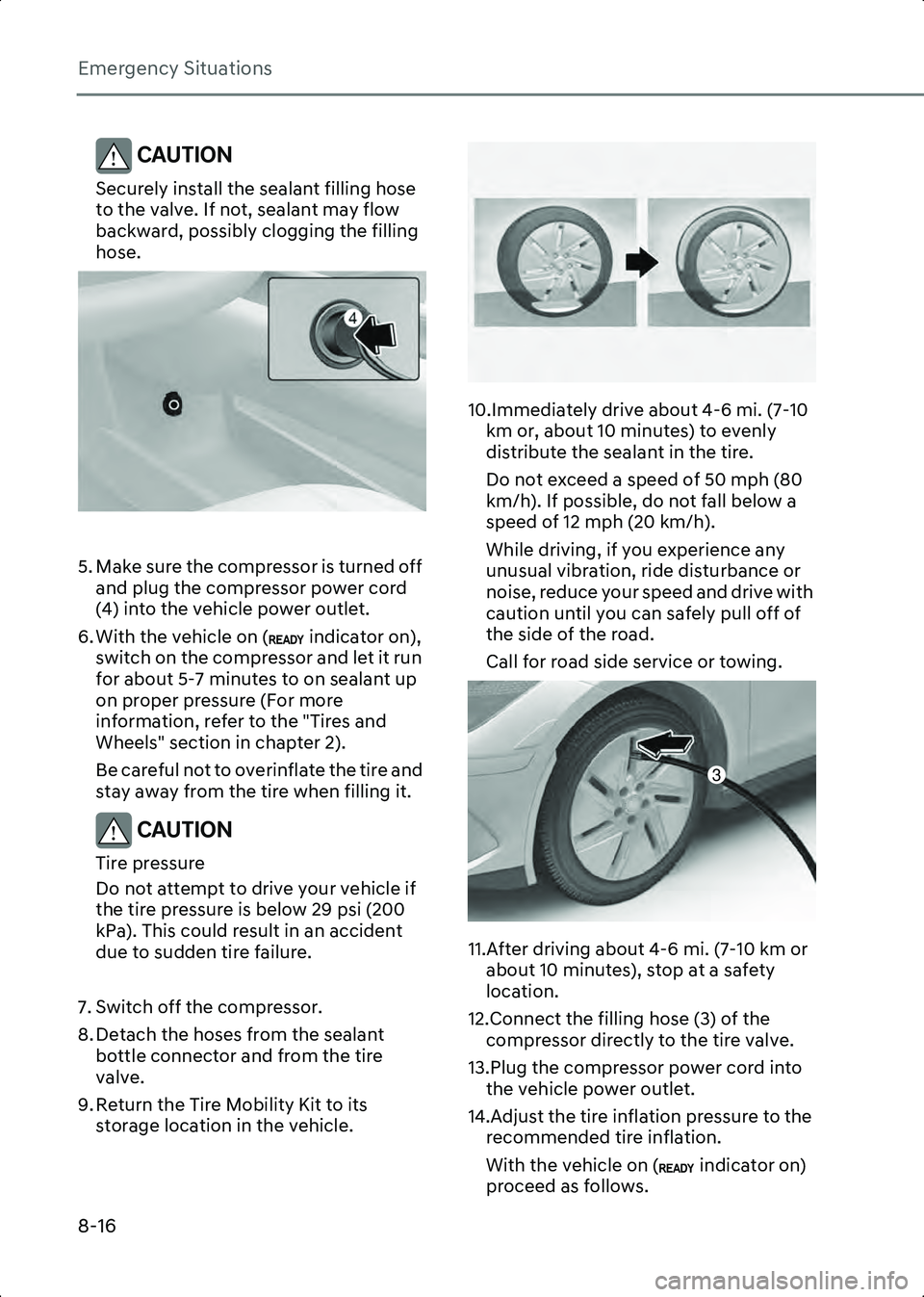

CAUTION Securely install the sealant filling hose
to the valve. If not, sealant may flow
backward, possibly clogging the filling
hose.
B8002507
5. Make sure the compressor is turned off and plug the compressor power cord
(4) into the vehicle power outlet.
6. With the vehicle on ( indicator on), switch on the compressor and let it run
for about 5-7 minutes to on sealant up
on proper pressure (For more
information, refer to the "Tires and
Wheels" section in chapter 2).
Be careful not to overinflate the tire and
stay away from the tire when filling it.
CAUTION Tire pressure
Do not attempt to drive your vehicle if
the tire pressure is below 29 psi (200
kPa). This could result in an accident
due to sudden tire failure.
7. Switch off the compressor.
8. Detach the hoses from the sealant bottle connector and from the tire
valve.
9. Return the Tire Mobility Kit to its storage location in the vehicle.
B8002508
10.Immediately drive about 4-6 mi. (7-10 km or, about 10 minutes) to evenly
distribute the sealant in the tire.
Do not exceed a speed of 50 mph (80
km/h). If possible, do not fall below a
speed of 12 mph (20 km/h).
While driving, if you experience any
unusual vibration, ride disturbance or
noise, reduce your speed and drive with
caution until you can safely pull off of
the side of the road.
Call for road side service or towing.
B8002509
11.After driving about 4-6 mi. (7-10 km or about 10 minutes), stop at a safety
location.
12.Connect the filling hose (3) of the compressor directly to the tire valve.
13.Plug the compressor power cord into the vehicle power outlet.
14.Adjust the tire inflation pressure to the recommended tire inflation.
With the vehicle on ( indicator on)
proceed as follows.
3
Hyundai_CE_en_US.book Page 16
Page 513 of 582
8
8-17

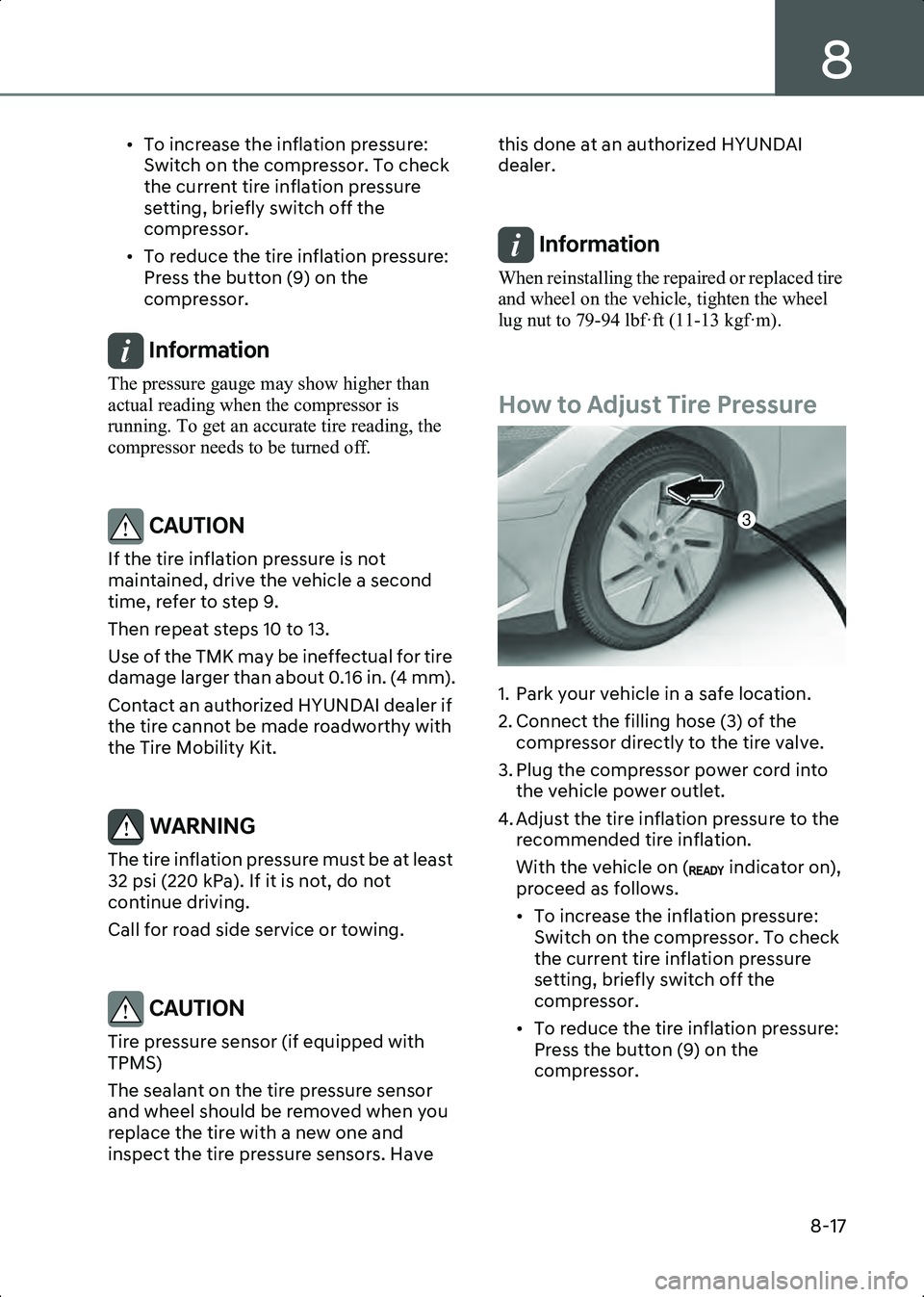

• To increase the inflation pressure: Switch on the compressor. To check
the current tire inflation pressure
setting, briefly switch off the
compressor.
• To reduce the tire inflation pressure: Press the button (9) on the
compressor.
Information The pressure gauge may show higher than
actual reading when the compressor is
running. To get an accurate tire reading, the
compressor needs to be turned off.
CAUTION If the tire inflation pressure is not
maintained, drive the vehicle a second
time, refer to step 9.
Then repeat steps 10 to 13.
Use of the TMK may be ineffectual for tire
damage larger than about 0.16 in. (4 mm).
Contact an authorized HYUNDAI dealer if
the tire cannot be made roadworthy with
the Tire Mobility Kit.
WARNING The tire inflation pressure must be at least
32 psi (220 kPa). If it is not, do not
continue driving.
Call for road side service or towing.
CAUTION Tire pressure sensor (if equipped with
TPMS)
The sealant on the tire pressure sensor
and wheel should be removed when you
replace the tire with a new one and
inspect the tire pressure sensors. Have this done at an authorized HYUNDAI
dealer.
Information When reinstalling the repaired or replaced tire
and wheel on the vehicle, tighten the wheel
lug nut to 79-94 lbf·ft (11-13 kgf·m).
How to Adjust Tire Pressure
B8002510
1. Park your vehicle in a safe location.
2. Connect the filling hose (3) of the
compressor directly to the tire valve.
3. Plug the compressor power cord into the vehicle power outlet.
4. Adjust the tire inflation pressure to the recommended tire inflation.
With the vehicle on ( indicator on),
proceed as follows.
• To increase the inflation pressure: Switch on the compressor. To check
the current tire inflation pressure
setting, briefly switch off the
compressor.
• To reduce the tire inflation pressure: Press the button (9) on the
compressor.
3
Hyundai_CE_en_US.book Page 17
Page 514 of 582
Emergency Situations
8-18

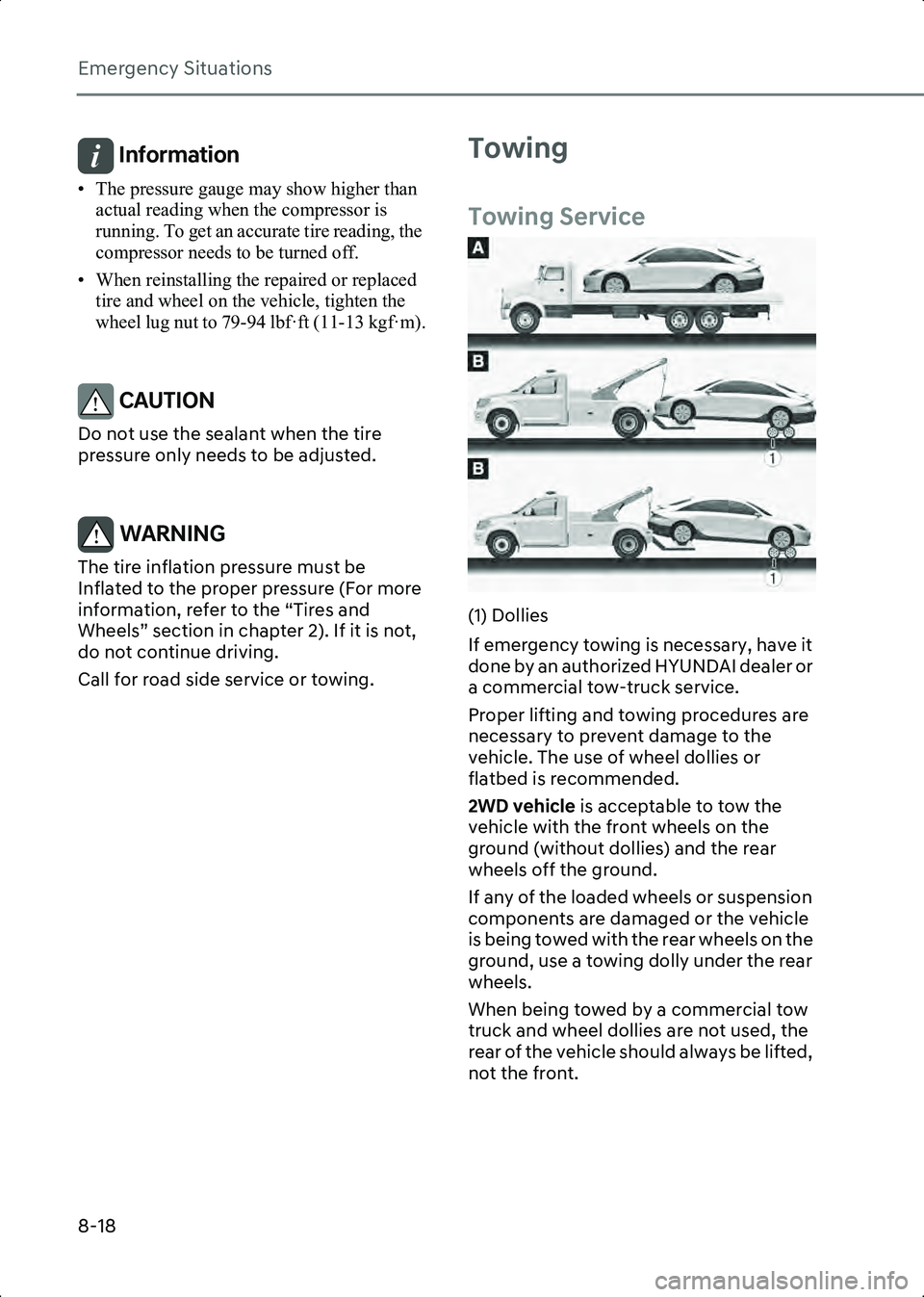

Information • The pressure gauge may show higher than actual reading when the compressor is
running. To get an accurate tire reading, the
compressor needs to be turned off.
• When reinstalling the repaired or replaced tire and wheel on the vehicle, tighten the
wheel lug nut to 79-94 lbf·ft (11-13 kgf·m).
CAUTION Do not use the sealant when the tire
pressure only needs to be adjusted.
WARNING The tire inflation pressure must be
Inflated to the proper pressure (For more
information, refer to the “Tires and
Wheels” section in chapter 2). If it is not,
do not continue driving.
Call for road side service or towing.
Towing
Towing Service
B8002701(1) Dollies
If emergency towing is necessary, have it
done by an authorized HYUNDAI dealer or
a commercial tow-truck service.
Proper lifting and towing procedures are
necessary to prevent damage to the
vehicle. The use of wheel dollies or
flatbed is recommended.
2WD vehicle is acceptable to tow the
vehicle with the front wheels on the
ground (without dollies) and the rear
wheels off the ground.
If any of the loaded wheels or suspension
components are damaged or the vehicle
is being towed with the rear wheels on the
ground, use a towing dolly under the rear
wheels.
When being towed by a commercial tow
truck and wheel dollies are not used, the
rear of the vehicle should always be lifted,
not the front.
Hyundai_CE_en_US.book Page 18
Page 515 of 582
8
8-19
CAUTION
B8002705
Do not tow the vehicle with the rear
wheels on the ground as this may cause
damage to the vehicle.
AWD vehicle must be towed with a wheel
lift and dollies or flatbed equipment with
all the wheels off the ground.
Precautions when moving a short
distance before towing a vehicle
Move short distances within 33 ft. (10 m)
at a speed of 3 mph (5 km/h) or less only
when loading on a tow truck or if the
vehicle needs to be repositioned.
At this time, the gear must be in the N
(Neutral) position and the parking brake
must be released. If it is impossible to
operate the gear and parking brake, move
the vehicle with the rear wheel lifted.
NOTICE ' R Q R W O L I W W K H Y H K L F O H E \ W K H W R Z I L W W L Q J R U
E R G \ D Q G F K D V V L V S D U W V 2 W K H U Z L V H W K H
Y H K L F O H P D \ E H G D P D J H G
CAUTION Do not tow with sling-type equipment.
Use wheel lift or flatbed equipment.
B8002704
Removable Towing Hook
1. Open the trunk, and remove the towing hook from the tool case.
2. Remove the hole cover.
Front
B8002801
3. Push the lower part of the bumper hole cover.
Rear
B8002802
• Push the upper part of the bumper hole cover.
• Pull the lower part of the bumper hole cover.
4. Install the towing hook by turning it clockwise into the hole until it is fully
secured.
5. Remove the towing hook and install the cover after use.
NOTICE ) D L O X U H W R S U R S H U O \ W L J K W H Q W K H W R Z L Q J
K R R N P D \ U H V X O W L Q Y H K L F O H G D P D J H D Q G
G H I R U P D W L R Q R I U H O D W H G S D U W V
Hyundai_CE_en_US.book Page 19
Page 516 of 582
Emergency Situations
8-20

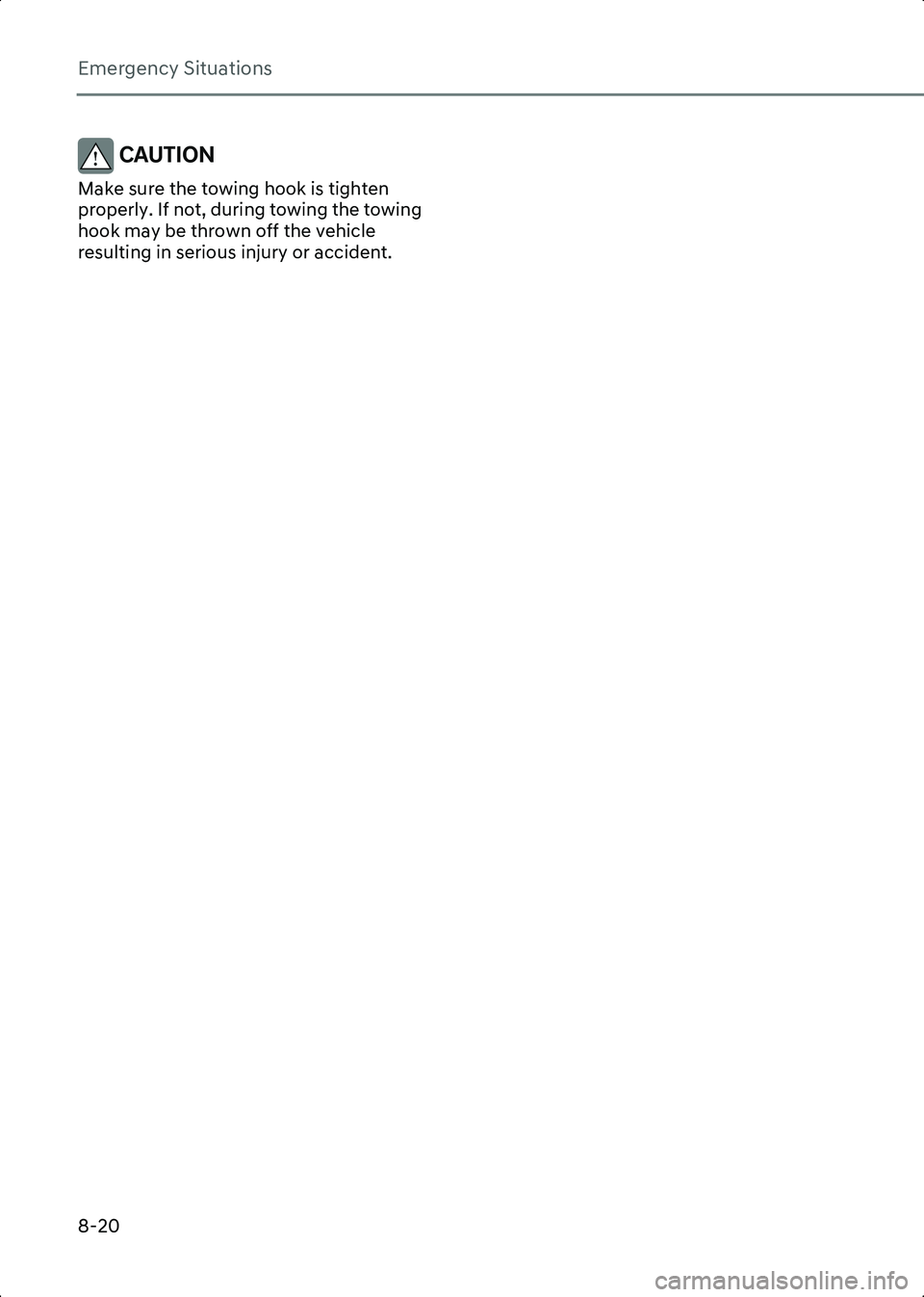

CAUTION Make sure the towing hook is tighten
properly. If not, during towing the towing
hook may be thrown off the vehicle
resulting in serious injury or accident.
Hyundai_CE_en_US.book Page 20
Page 517 of 582
9
9. Maintenance
Motor Compartment ....................................................................................................... 9-4
Maintenance Services ..................................................................................................... 9-5Owner’s Responsibility ................................................................................................ 9-5
Owner Maintenance Precautions ............................................................................... 9-5
Owner Maintenance ........................................................................................................9-6 Owner Maintenance Schedule....................................................................................9-6
Scheduled Maintenance Services .................................................................................. 9-7 Normal Maintenance Schedule ..................................................................................9-8
Normal Maintenance Schedule ..................................................................................9-9
Maintenance Under Severe Usage and Low Mileage Conditions .......................... 9-10
Explanation of Scheduled Maintenance Items............................................................. 9-11 Cooling System ........................................................................................................... 9-11
Coolant ........................................................................................................................ 9-11
Gear Fluid .................................................................................................................... 9-11
Brake Hoses and Lines................................................................................................ 9-11
Brake Fluid ................................................................................................................... 9-11
Brake Discs, Pads, Calipers and Rotors ..................................................................... 9-11
Suspension Mounting Bolts ....................................................................................... 9-11
Steering Gear Box, Linkage & Boots/Lower Arm Ball Joint ..................................... 9-11
Drive Shafts and Boots ............................................................................................... 9-11
Air Conditioning Refrigerant ...................................................................................... 9-11
Coolant ............................................................................................................................9-12 Changing Coolant ...................................................................................................... 9-13
Brake Fluid ..................................................................................................................... 9-13 Checking the Brake Fluid Level................................................................................. 9-13
Gear Fluid ....................................................................................................................... 9-13
Washer Fluid .................................................................................................................. 9-14 Checking the Washer Fluid Level ............................................................................. 9-14
Cabin Air Filter ............................................................................................................... 9-14 Filter Inspection ......................................................................................................... 9-14
Filter Replacement..................................................................................................... 9-14
Wiper Blades .................................................................................................................. 9-15 Blade Inspection ........................................................................................................ 9-15
Blade Replacement.................................................................................................... 9-15
Battery (12 V) ...................................................................................................................9-17
Hyundai_CE_en_US.book Page 1
Page 518 of 582
9
For Best Battery Service ............................................................................................ 9-18
Battery Capacity Label ............................................................................................... 9-19
Battery Recharging .................................................................................................... 9-19
Reset Items ................................................................................................................ 9-20
Tires and Wheels ........................................................................................................... 9-20 Tire Care ...................................................................................................................... 9-21
Recommended Cold Tire Inflation Pressures........................................................... 9-21
Check Tire Inflation Pressure.....................................................................................9-22
Tire Rotation ...............................................................................................................9-22
Wheel Alignment and Tire Balance .......................................................................... 9-23
Tire Replacement ...................................................................................................... 9-23
Wheel Replacement .................................................................................................. 9-24
Tire Traction ............................................................................................................... 9-24
Tire Maintenance....................................................................................................... 9-24
Tire Sidewall Labeling ............................................................................................... 9-24
Tire Terminology and Definitions .............................................................................. 9-27
All Season Tires .......................................................................................................... 9-30
Summer Tires ............................................................................................................. 9-30
Snow Tires .................................................................................................................. 9-30
Radial-Ply Tires .......................................................................................................... 9-30
Low Aspect Ratio Tires ............................................................................................... 9-31
Fuses .............................................................................................................................. 9-32
Blade type...................................................................................................................... 9-32
Cartridge type ............................................................................................................... 9-32
Multi type....................................................................................................................... 9-32 Instrument Panel Fuse Replacement....................................................................... 9-33
Motor compartment.................................................................................................. 9-33
Motor Compartment Panel Fuse Replacement ...................................................... 9-33
Fuse/Relay Panel Description .................................................................................. 9-35
Light Bulbs ..................................................................................................................... 9-43 Headlight, Parking Light, Turn Signal Light, Daytime Running Light (DRL)
Replacement.............................................................................................................. 9-44
Side Repeater Light Replacement ........................................................................... 9-44Rear Combination Light Replacement .................................................................... 9-44
High Mounted Stop Light Replacement .................................................................. 9-45
License Plate Light Replacement ............................................................................. 9-45
Front Trunk Light Replacement ............................................................................... 9-45
Hyundai_CE_en_US.book Page 2
Page 519 of 582
9
9. Maintenance
Interior Light Replacement ...................................................................................... 9-46
Appearance Care ........................................................................................................... 9-47 Exterior Care............................................................................................................... 9-47
Interior Care ............................................................................................................... 9-51
California Perchlorate Notice ....................................................................................... 9-53
Hyundai_CE_en_US.book Page 3
Page 520 of 582
Maintenance
9-4

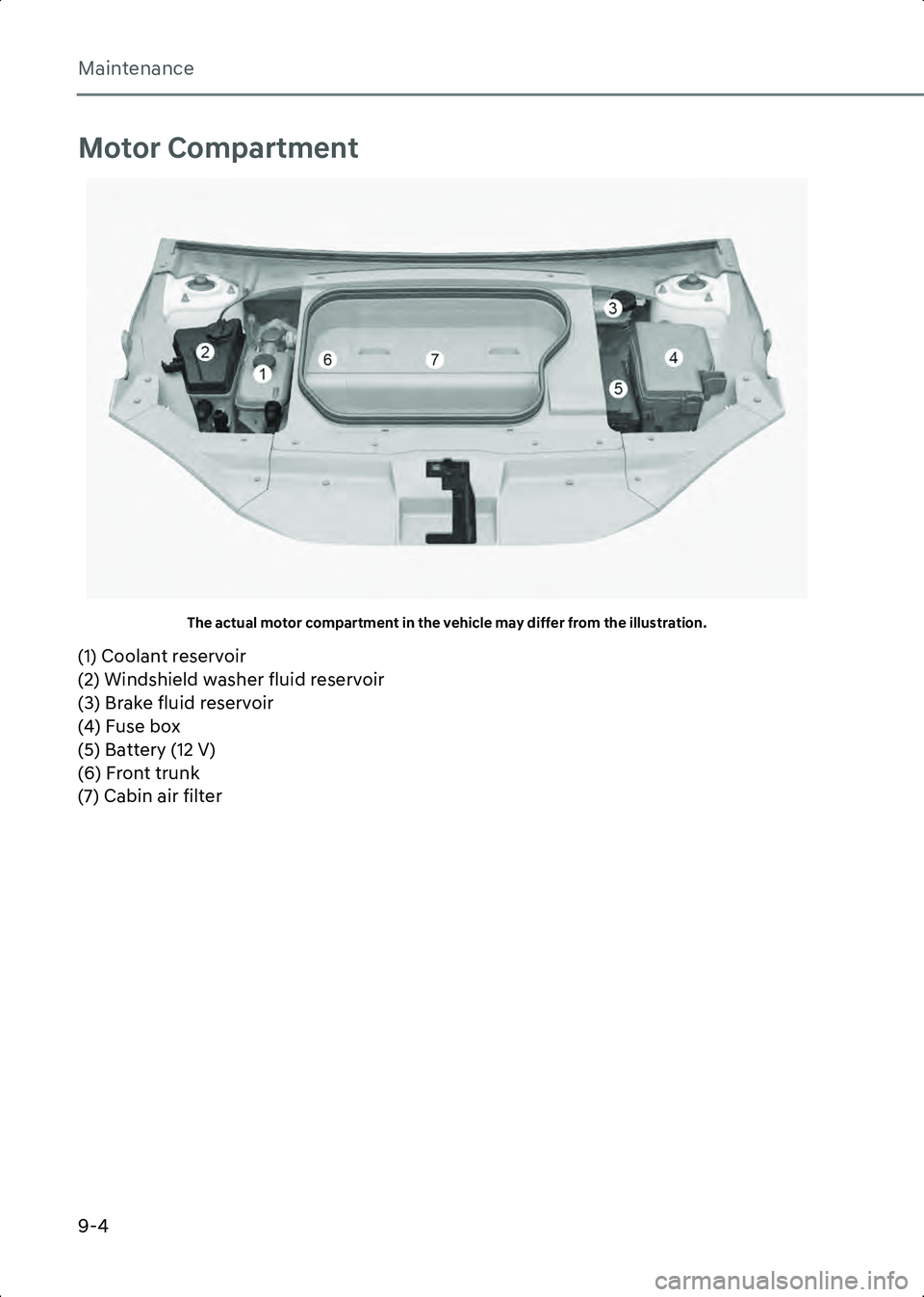

Motor Compartment
A1000901The actual motor compartment in the vehicle may differ from the illustration.
(1) Coolant reservoir
(2) Windshield washer fluid reservoir
(3) Brake fluid reservoir
(4) Fuse box
(5) Battery (12 V)
(6) Front trunk
(7) Cabin air filter
Hyundai_CE_en_US.book Page 4
