• The electrical ignition system works with high voltage.
NEVER touch these components with
the vehicle running or when the
Start/Stop button is in the ON position.
• The electrical ignition system works with high voltage. NEVER touch these
components Start/Stop button in the
ON or START position.
• Do not allow the (+) and (-) jumper cables to touch. It may cause sparks.
• The battery may rupture or explode when you jump start with a low or
frozen battery.
• Do not directly connect the (-) to the jump cable. Connect the (-) to the one
of the metallic parts located far from
the jump cable in the vehicle. The direct
(-) connection to the jump cable may
cause an explosion.
Jump starting procedure
Information When you jump start your vehicle, use the
jumper terminal in the motor compartment.
1. Position the vehicles close enough that the jumper cables will reach. Do not
allow the vehicle body parts to contact.
2. Avoid fans or any moving parts in the motor compartment at all times, even
when the vehicles are turned off.
3. Turn off all electrical devices such as radios, lights, air conditioning, etc. Put
the vehicles in P (Park) and apply the
parking brake. Turn both vehicles OFF.
4. Open the hood.
5. Remove the battery cover located inside of the front trunk.
6. Remove the motor compartment fuse box cover.
CAUTION Before jump starting, make sure to
correctly identify the positive (+) and
negative (-) terminals to avoid reverse
polarity connections.
B8001501

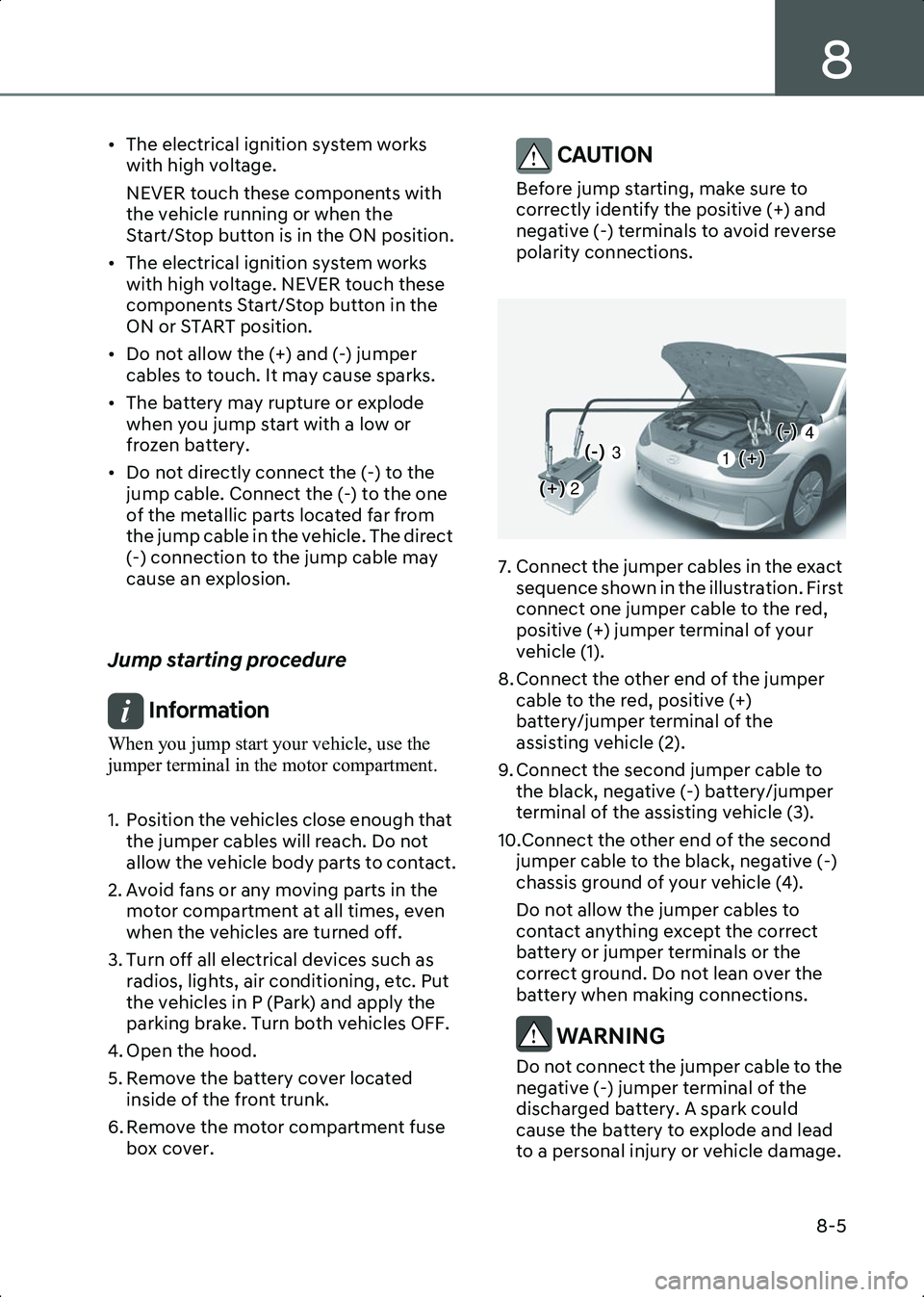

7. Connect the jumper cables in the exact sequence shown in the illustration. First
connect one jumper cable to the red,
positive (+) jumper terminal of your
vehicle (1).
8. Connect the other end of the jumper cable to the red, positive (+)
battery/jumper terminal of the
assisting vehicle (2).
9. Connect the second jumper cable to the black, negative (-) battery/jumper
terminal of the assisting vehicle (3).
10.Connect the other end of the second jumper cable to the black, negative (-)
chassis ground of your vehicle (4).
Do not allow the jumper cables to
contact anything except the correct
battery or jumper terminals or the
correct ground. Do not lean over the
battery when making connections.
WARNING Do not connect the jumper cable to the
negative (-) jumper terminal of the
discharged battery. A spark could
cause the battery to explode and lead
to a personal injury or vehicle damage.
1
4
2
3
Hyundai_CE_en_US.book Page 5
Page 502 of 582
Emergency Situations
8-6
11.Start the assisting vehicle and let it run for a few minutes. Then start your
vehicle.
12.Keep your vehicle operating for at least 30 minutes at idle or driving to assure
your battery receives enough charge to
be able to start on its own after the
vehicle is shut off. A completely
discharged battery may require as long
as 60 minutes runtime to fully recharge
it. If the vehicle is run for less, battery
may not restart.
If your vehicle does not start after a few
attempts, it probably requires service.
Have your vehicle inspected by an
authorized HYUNDAI dealer.
Disconnect the jumper cables in the exact
reverse order you connected them:
1. Disconnect the jumper cable from the chassis ground of your vehicle (4).
2. Disconnect the other end of the jumper cable from battery/chassis ground of
the assisting vehicle (3).
3. Disconnect the second jumper cable from the red, positive (+)
battery/jumper terminal of the
assisting vehicle (2).
4. Disconnect the other end of the jumper cable from the red, positive (+) jumper
terminal of your vehicle (1).Information
An inappropriately disposed battery can be
harmful to the environment and human health.
Dispose of the battery according to your local
law(s) or regulations.
NOTICE 7 R S U H Y H Q W G D P D J H W R \ R X U Y H K L F O H
[ 2 Q O \ X V H D 9 S R Z H U V X S S O \ E D W W H U \ R U M X P S H U V \ V W H P \f W R M X P S V W D U W \ R X U
Y H K L F O H
[ ' R Q R W D W W H P S W W R M X P S V W D U W \ R X U Y H K L F O H E \ S X V K V W D U W L Q J
Hyundai_CE_en_US.book Page 6
Page 503 of 582
8
8-7

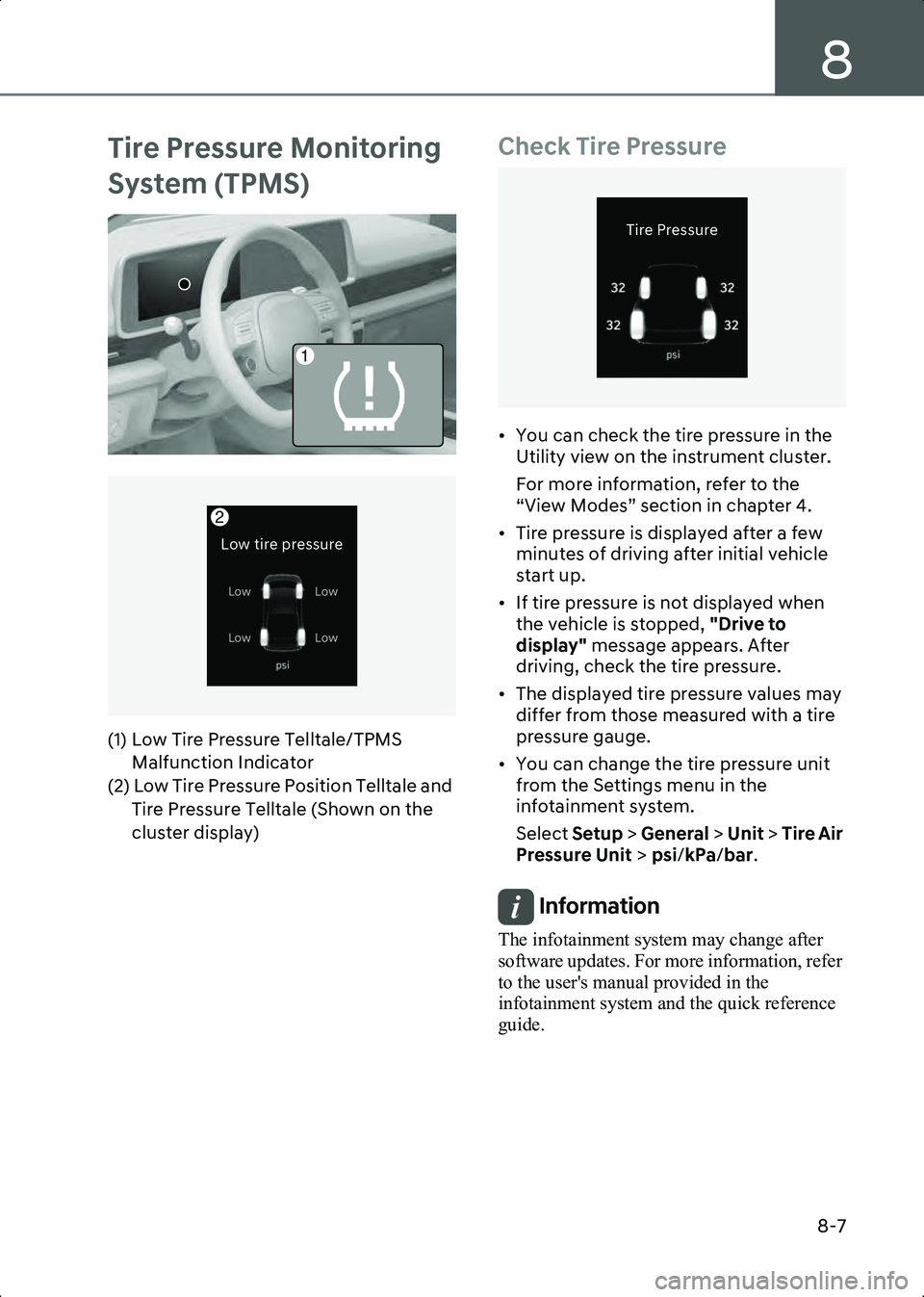

Tire Pressure Monitoring
System (TPMS)
B8001801
B8001802
(1) Low Tire Pressure Telltale/TPMS Malfunction Indicator
(2) Low Tire Pressure Position Telltale and Tire Pressure Telltale (Shown on the
cluster display)
Check Tire Pressure
B8002001
• You can check the tire pressure in the Utility view on the instrument cluster.
For more information, refer to the
“View Modes” section in chapter 4.
• Tire pressure is displayed after a few minutes of driving after initial vehicle
start up.
• If tire pressure is not displayed when the vehicle is stopped, "Drive to
display" message appears. After
driving, check the tire pressure.
• The displayed tire pressure values may differ from those measured with a tire
pressure gauge.
• You can change the tire pressure unit from the Settings menu in the
infotainment system.
Select Setup > General > Unit > Tire Air
Pressure Unit > psi /kPa /bar .
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.
1
2
- P X U J S F Q S F T T V S F
- P X
- P X - P X
- P X
5 J S F 1 S F T T V S F
Hyundai_CE_en_US.book Page 7
Page 504 of 582
Emergency Situations
8-8
Tire Pressure Monitoring
System
WARNING Over-inflation or under-inflation can
reduce tire life, adversely affect vehicle
handling, and lead to sudden tire failure
that may cause loss of vehicle control
resulting in an accident.
Each tire, including the spare (if
provided), should be checked monthly
when cold and inflated to the inflation
pressure recommended by the vehicle
manufacturer on the vehicle placard or
tire inflation pressure label. (If your
vehicle has tires of a different size than
the size indicated on the vehicle placard
or tire inflation pressure label, you should
determine the proper tire inflation
pressure for those tires.)
As an added safety feature, your vehicle
has been equipped with a tire pressure
monitoring system (TPMS) that
illuminates a low tire pressure telltale
when one or more of your tires is
significantly under-inflated. Accordingly,
when the low tire pressure telltale
illuminates, you should stop and check
your tires as soon as possible, and inflate
them to the proper pressure. Driving on a
significantly under-inflated tire causes
the tire to overheat and can lead to tire
failure.
Under-inflation also reduces fuel
efficiency and tire tread life, and may
affect the vehicle’s handling and stopping
ability.
Please note that the TPMS is not a
substitute for proper tire maintenance,
and it is the driver’s responsibility to
maintain correct tire pressure, even if
under-inflation has not reached the level
to trigger illumination of the TPMS low
tire pressure telltale.
Your vehicle has also been equipped with
a TPMS malfunction indicator to indicate when the system is not operating
properly. The TPMS malfunction indicator
is combined with the low tire pressure
telltale. When the system detects a
malfunction, the telltale will flash for
about one minute and then remain
continuously illuminated. This sequence
will continue upon subsequent vehicle
start-ups as long as the malfunction
exists.
When the malfunction indicator is
illuminated, the system may not be able
to detect or signal low tire pressure as
intended. TPMS malfunctions may occur
for a variety of reasons, including the
installation of replacement or alternate
tires or wheels on the vehicle that prevent
the TPMS from functioning properly.
Always check the TPMS malfunction
telltale after replacing one or more tires or
wheels on your vehicle to ensure that the
replacement or alternate tires and wheels
allow the TPMS to continue to function
properly.
NOTICE , I D Q \ R I W K H E H O R Z K D S S H Q V K D Y H W K H
V \ V W H P L Q V S H F W H G E \ D Q D X W K R U L ] H G
+ < 8 1 ' $ , G H D O H U
7 K H / R Z 7 L U H 3 U H V V X U H 7 H O O W D O H 7 3 0 6
0 D O I X Q F W L R Q , Q G L F D W R U G R H V Q R W
L O O X P L Q D W H I R U V H F R Q G V Z K H Q W K H
6 W D U W 6 W R S E X W W R Q L V S U H V V H G W R W K H 2 1
S R V L W L R Q R U Z K H Q W K H Y H K L F O H L V U X Q Q L Q J
7 K H 7 3 0 6 0 D O I X Q F W L R Q , Q G L F D W R U U H P D L Q V L O O X P L Q D W H G D I W H U E O L Q N L Q J I R U
D E R X W P L Q X W H
7 K H / R Z 7 L U H 3 U H V V X U H 3 R V L W L R Q 7 H O O W D O H U H P D L Q V L O O X P L Q D W H G
Hyundai_CE_en_US.book Page 8
Page 505 of 582
8
8-9

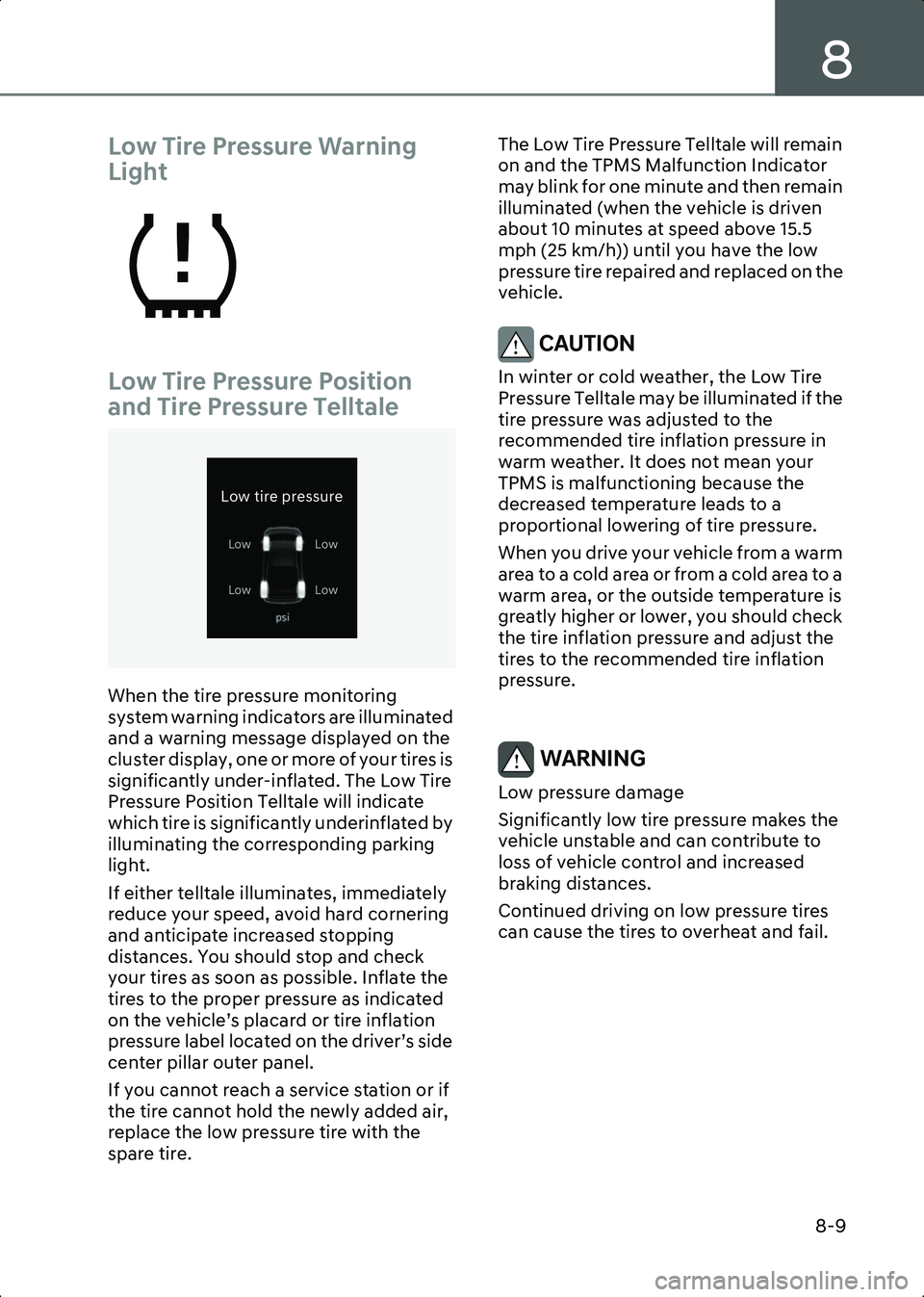

Low Tire Pressure Warning
Light
Low Tire Pressure Position
and Tire Pressure Telltale
B8002102
When the tire pressure monitoring
system warning indicators are illuminated
and a warning message displayed on the
cluster display, one or more of your tires is
significantly under-inflated. The Low Tire
Pressure Position Telltale will indicate
which tire is significantly underinflated by
illuminating the corresponding parking
light.
If either telltale illuminates, immediately
reduce your speed, avoid hard cornering
and anticipate increased stopping
distances. You should stop and check
your tires as soon as possible. Inflate the
tires to the proper pressure as indicated
on the vehicle’s placard or tire inflation
pressure label located on the driver’s side
center pillar outer panel.
If you cannot reach a service station or if
the tire cannot hold the newly added air,
replace the low pressure tire with the
spare tire.The Low Tire Pressure Telltale will remain
on and the TPMS Malfunction Indicator
may blink for one minute and then remain
illuminated (when the vehicle is driven
about 10 minutes at speed above 15.5
mph (25 km/h)) until you have the low
pressure tire repaired and replaced on the
vehicle.
CAUTION In winter or cold weather, the Low Tire
Pressure Telltale may be illuminated if the
tire pressure was adjusted to the
recommended tire inflation pressure in
warm weather. It does not mean your
TPMS is malfunctioning because the
decreased temperature leads to a
proportional lowering of tire pressure.
When you drive your vehicle from a warm
area to a cold area or from a cold area to a
warm area, or the outside temperature is
greatly higher or lower, you should check
the tire inflation pressure and adjust the
tires to the recommended tire inflation
pressure.
WARNING Low pressure damage
Significantly low tire pressure makes the
vehicle unstable and can contribute to
loss of vehicle control and increased
braking distances.
Continued driving on low pressure tires
can cause the tires to overheat and fail.
- P X U J S F Q S F T T V S F
- P X
- P X
- P X
- P X
Hyundai_CE_en_US.book Page 9
Page 506 of 582
Emergency Situations
8-10

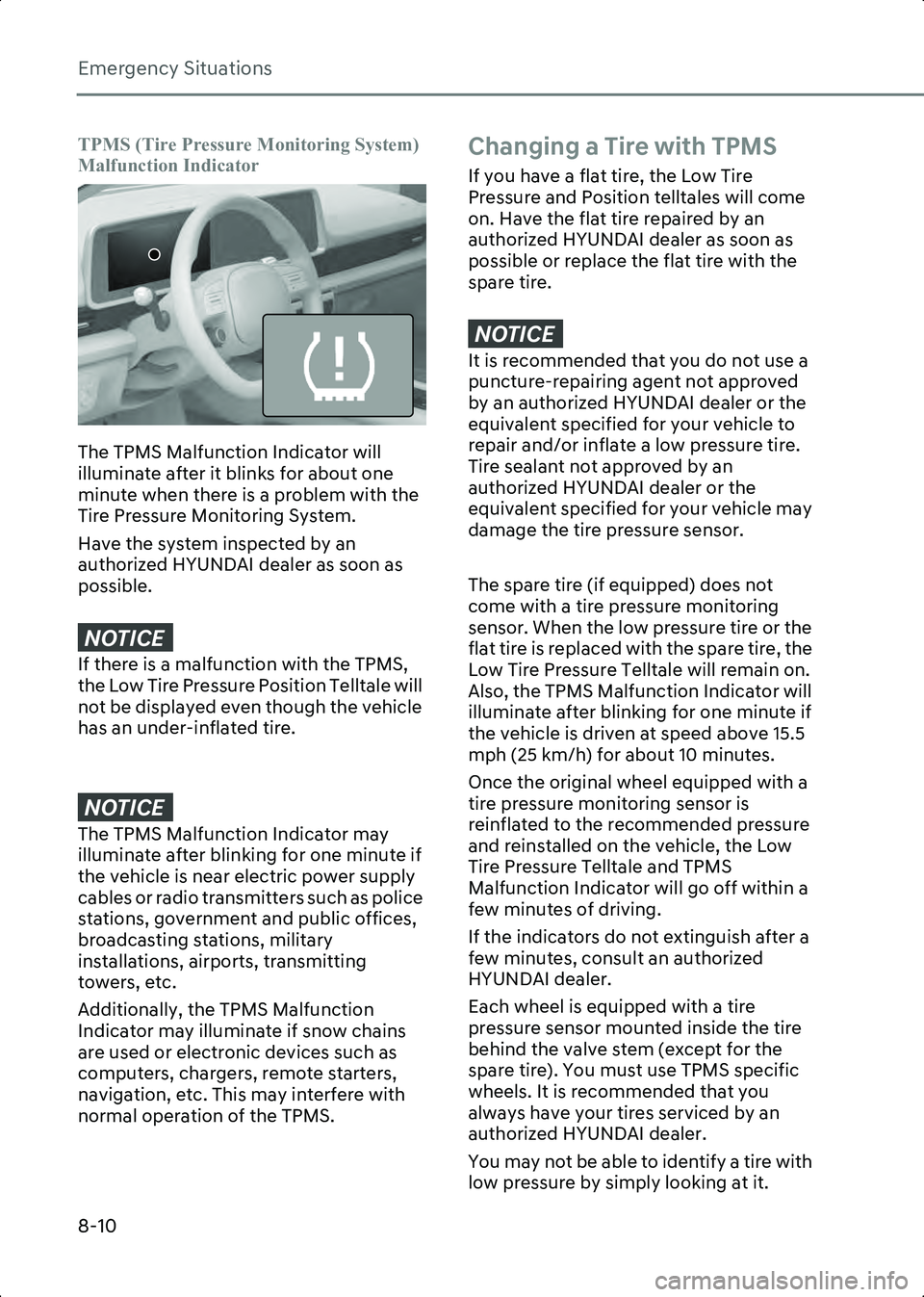

TPMS (Tire Pressure Monitoring System)
Malfunction Indicator
B8001801_1
The TPMS Malfunction Indicator will
illuminate after it blinks for about one
minute when there is a problem with the
Tire Pressure Monitoring System.
Have the system inspected by an
authorized HYUNDAI dealer as soon as
possible.
NOTICE , I W K H U H L V D P D O I X Q F W L R Q Z L W K W K H 7 3 0 6
W K H / R Z 7 L U H 3 U H V V X U H 3 R V L W L R Q 7 H O O W D O H Z L O O
Q R W E H G L V S O D \ H G H Y H Q W K R X J K W K H Y H K L F O H
K D V D Q X Q G H U L Q I O D W H G W L U H
NOTICE 7 K H 7 3 0 6 0 D O I X Q F W L R Q , Q G L F D W R U P D \
L O O X P L Q D W H D I W H U E O L Q N L Q J I R U R Q H P L Q X W H L I
W K H Y H K L F O H L V Q H D U H O H F W U L F S R Z H U V X S S O \
F D E O H V R U U D G L R W U D Q V P L W W H U V V X F K D V S R O L F H
V W D W L R Q V J R Y H U Q P H Q W D Q G S X E O L F R I I L F H V
E U R D G F D V W L Q J V W D W L R Q V P L O L W D U \
L Q V W D O O D W L R Q V D L U S R U W V W U D Q V P L W W L Q J
W R Z H U V H W F
$ G G L W L R Q D O O \ W K H 7 3 0 6 0 D O I X Q F W L R Q
, Q G L F D W R U P D \ L O O X P L Q D W H L I V Q R Z F K D L Q V
D U H X V H G R U H O H F W U R Q L F G H Y L F H V V X F K D V
F R P S X W H U V F K D U J H U V U H P R W H V W D U W H U V
Q D Y L J D W L R Q H W F 7 K L V P D \ L Q W H U I H U H Z L W K
Q R U P D O R S H U D W L R Q R I W K H 7 3 0 6
Changing a Tire with TPMS
If you have a flat tire, the Low Tire
Pressure and Position telltales will come
on. Have the flat tire repaired by an
authorized HYUNDAI dealer as soon as
possible or replace the flat tire with the
spare tire.
NOTICE , W L V U H F R P P H Q G H G W K D W \ R X G R Q R W X V H D
S X Q F W X U H U H S D L U L Q J D J H Q W Q R W D S S U R Y H G
E \ D Q D X W K R U L ] H G + < 8 1 ' $ , G H D O H U R U W K H
H T X L Y D O H Q W V S H F L I L H G I R U \ R X U Y H K L F O H W R
U H S D L U D Q G R U L Q I O D W H D O R Z S U H V V X U H W L U H
7 L U H V H D O D Q W Q R W D S S U R Y H G E \ D Q
D X W K R U L ] H G + < 8 1 ' $ , G H D O H U R U W K H
H T X L Y D O H Q W V S H F L I L H G I R U \ R X U Y H K L F O H P D \
G D P D J H W K H W L U H S U H V V X U H V H Q V R U
7 K H V S D U H W L U H L I H T X L S S H G \f G R H V Q R W
F R P H Z L W K D W L U H S U H V V X U H P R Q L W R U L Q J
V H Q V R U : K H Q W K H O R Z S U H V V X U H W L U H R U W K H
I O D W W L U H L V U H S O D F H G Z L W K W K H V S D U H W L U H W K H
/ R Z 7 L U H 3 U H V V X U H 7 H O O W D O H Z L O O U H P D L Q R Q
$ O V R W K H 7 3 0 6 0 D O I X Q F W L R Q , Q G L F D W R U Z L O O
L O O X P L Q D W H D I W H U E O L Q N L Q J I R U R Q H P L Q X W H L I
W K H Y H K L F O H L V G U L Y H Q D W V S H H G D E R Y H
P S K N P K \f I R U D E R X W P L Q X W H V
2 Q F H W K H R U L J L Q D O Z K H H O H T X L S S H G Z L W K D
W L U H S U H V V X U H P R Q L W R U L Q J V H Q V R U L V
U H L Q I O D W H G W R W K H U H F R P P H Q G H G S U H V V X U H
D Q G U H L Q V W D O O H G R Q W K H Y H K L F O H W K H / R Z
7 L U H 3 U H V V X U H 7 H O O W D O H D Q G 7 3 0 6
0 D O I X Q F W L R Q , Q G L F D W R U Z L O O J R R I I Z L W K L Q D
I H Z P L Q X W H V R I G U L Y L Q J
, I W K H L Q G L F D W R U V G R Q R W H [ W L Q J X L V K D I W H U D
I H Z P L Q X W H V F R Q V X O W D Q D X W K R U L ] H G
+ < 8 1 ' $ , G H D O H U
( D F K Z K H H O L V H T X L S S H G Z L W K D W L U H
S U H V V X U H V H Q V R U P R X Q W H G L Q V L G H W K H W L U H
E H K L Q G W K H Y D O Y H V W H P H [ F H S W I R U W K H
V S D U H W L U H \f < R X P X V W X V H 7 3 0 6 V S H F L I L F
Z K H H O V , W L V U H F R P P H Q G H G W K D W \ R X
D O Z D \ V K D Y H \ R X U W L U H V V H U Y L F H G E \ D Q
D X W K R U L ] H G + < 8 1 ' $ , G H D O H U
< R X P D \ Q R W E H D E O H W R L G H Q W L I \ D W L U H Z L W K
O R Z S U H V V X U H E \ V L P S O \ O R R N L Q J D W L W
Hyundai_CE_en_US.book Page 10
Page 507 of 582
8

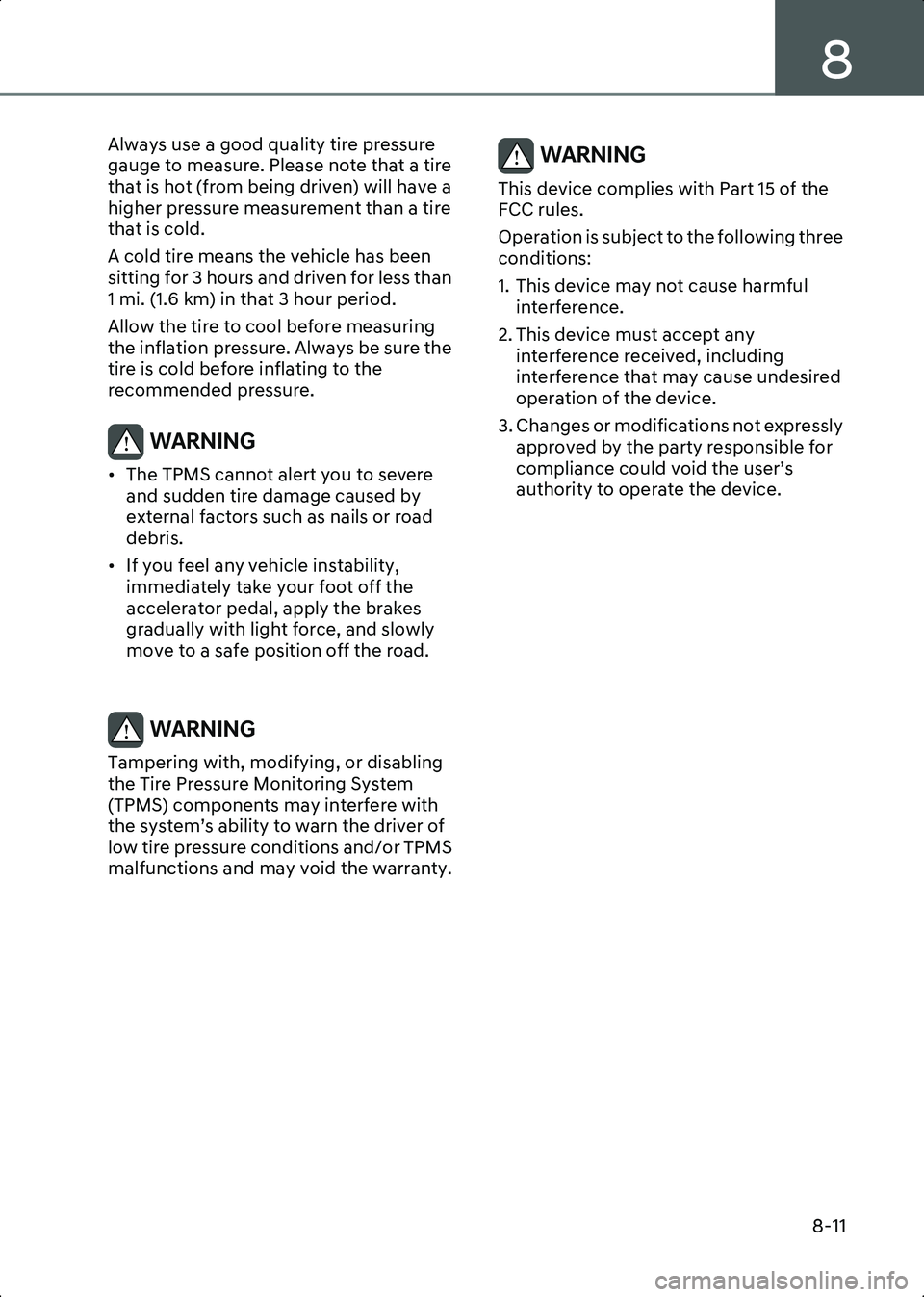

8-11
Always use a good quality tire pressure
gauge to measure. Please note that a tire
that is hot (from being driven) will have a
higher pressure measurement than a tire
that is cold.
A cold tire means the vehicle has been
sitting for 3 hours and driven for less than
1 mi. (1.6 km) in that 3 hour period.
Allow the tire to cool before measuring
the inflation pressure. Always be sure the
tire is cold before inflating to the
recommended pressure.
WARNING • The TPMS cannot alert you to severe and sudden tire damage caused by
external factors such as nails or road
debris.
• If you feel any vehicle instability, immediately take your foot off the
accelerator pedal, apply the brakes
gradually with light force, and slowly
move to a safe position off the road.
WARNING Tampering with, modifying, or disabling
the Tire Pressure Monitoring System
(TPMS) components may interfere with
the system’s ability to warn the driver of
low tire pressure conditions and/or TPMS
malfunctions and may void the warranty.
WARNING This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired
operation of the device.
3. Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s
authority to operate the device.
Hyundai_CE_en_US.book Page 11
Page 508 of 582
Emergency Situations
8-12

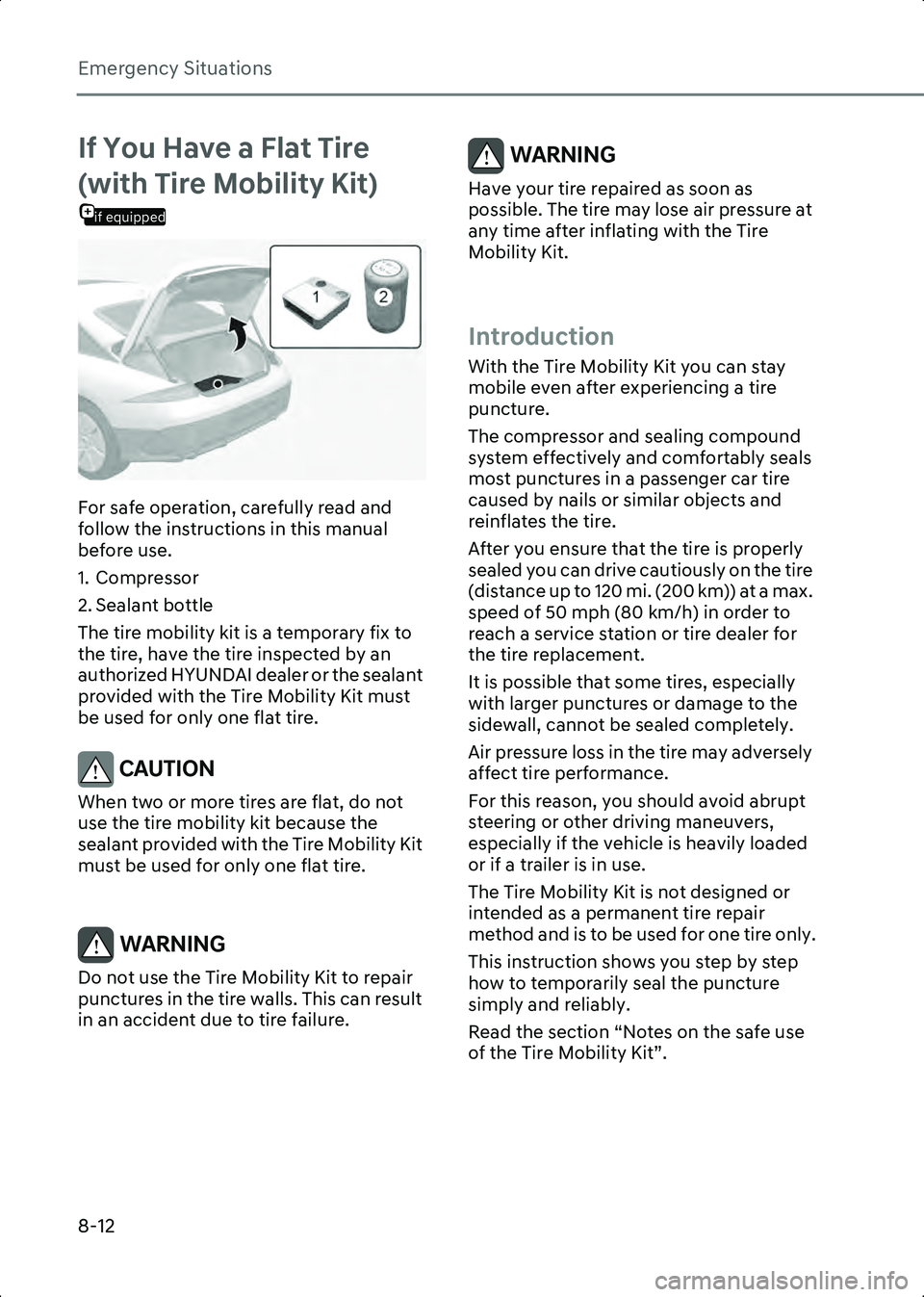

If You Have a Flat Tire
if equipped
(with Tire Mobility Kit)
B8002501
For safe operation, carefully read and
follow the instructions in this manual
before use.
1. Compressor
2. Sealant bottle
The tire mobility kit is a temporary fix to
the tire, have the tire inspected by an
authorized HYUNDAI dealer or the sealant
provided with the Tire Mobility Kit must
be used for only one flat tire.
CAUTION When two or more tires are flat, do not
use the tire mobility kit because the
sealant provided with the Tire Mobility Kit
must be used for only one flat tire.
WARNING Do not use the Tire Mobility Kit to repair
punctures in the tire walls. This can result
in an accident due to tire failure.
WARNING Have your tire repaired as soon as
possible. The tire may lose air pressure at
any time after inflating with the Tire
Mobility Kit.
Introduction
With the Tire Mobility Kit you can stay
mobile even after experiencing a tire
puncture.
The compressor and sealing compound
system effectively and comfortably seals
most punctures in a passenger car tire
caused by nails or similar objects and
reinflates the tire.
After you ensure that the tire is properly
sealed you can drive cautiously on the tire
(distance up to 120 mi. (200 km)) at a max.
speed of 50 mph (80 km/h) in order to
reach a service station or tire dealer for
the tire replacement.
It is possible that some tires, especially
with larger punctures or damage to the
sidewall, cannot be sealed completely.
Air pressure loss in the tire may adversely
affect tire performance.
For this reason, you should avoid abrupt
steering or other driving maneuvers,
especially if the vehicle is heavily loaded
or if a trailer is in use.
The Tire Mobility Kit is not designed or
intended as a permanent tire repair
method and is to be used for one tire only.
This instruction shows you step by step
how to temporarily seal the puncture
simply and reliably.
Read the section “Notes on the safe use
of the Tire Mobility Kit”.
Hyundai_CE_en_US.book Page 12
Page 509 of 582
8
8-13

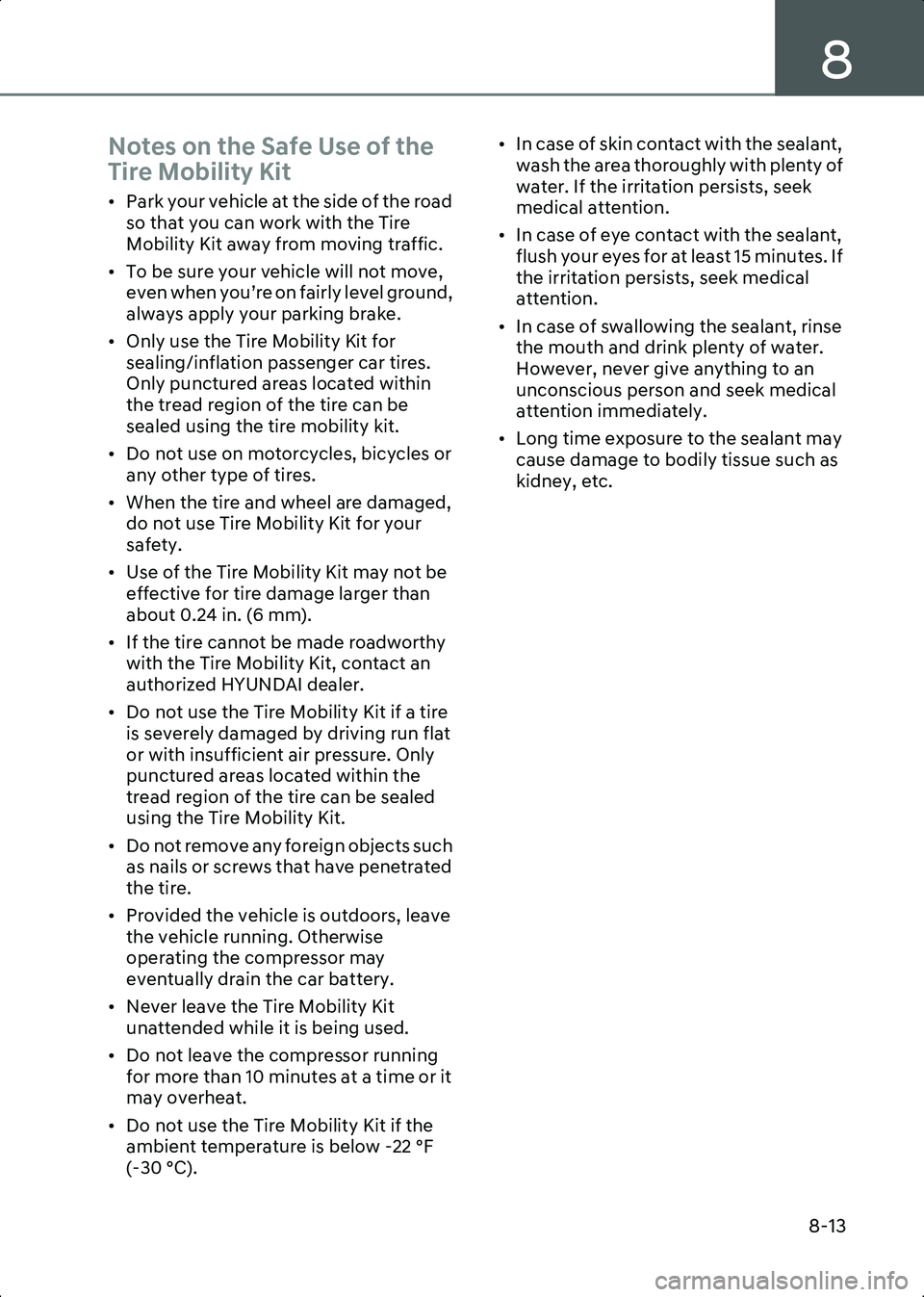

Notes on the Safe Use of the
Tire Mobility Kit
• Park your vehicle at the side of the road so that you can work with the Tire
Mobility Kit away from moving traffic.
• To be sure your vehicle will not move, even when you’re on fairly level ground,
always apply your parking brake.
• Only use the Tire Mobility Kit for sealing/inflation passenger car tires.
Only punctured areas located within
the tread region of the tire can be
sealed using the tire mobility kit.
• Do not use on motorcycles, bicycles or any other type of tires.
• When the tire and wheel are damaged, do not use Tire Mobility Kit for your
safety.
• Use of the Tire Mobility Kit may not be effective for tire damage larger than
about 0.24 in. (6 mm).
• If the tire cannot be made roadworthy with the Tire Mobility Kit, contact an
authorized HYUNDAI dealer.
• Do not use the Tire Mobility Kit if a tire is severely damaged by driving run flat
or with insufficient air pressure. Only
punctured areas located within the
tread region of the tire can be sealed
using the Tire Mobility Kit.
• Do not remove any foreign objects such as nails or screws that have penetrated
the tire.
• Provided the vehicle is outdoors, leave the vehicle running. Otherwise
operating the compressor may
eventually drain the car battery.
• Never leave the Tire Mobility Kit unattended while it is being used.
• Do not leave the compressor running for more than 10 minutes at a time or it
may overheat.
• Do not use the Tire Mobility Kit if the ambient temperature is below -22 °F
(-30 °C). • In case of skin contact with the sealant,
wash the area thoroughly with plenty of
water. If the irritation persists, seek
medical attention.
• In case of eye contact with the sealant, flush your eyes for at least 15 minutes. If
the irritation persists, seek medical
attention.
• In case of swallowing the sealant, rinse the mouth and drink plenty of water.
However, never give anything to an
unconscious person and seek medical
attention immediately.
• Long time exposure to the sealant may cause damage to bodily tissue such as
kidney, etc.
Hyundai_CE_en_US.book Page 13
Page 510 of 582
Emergency Situations
8-14

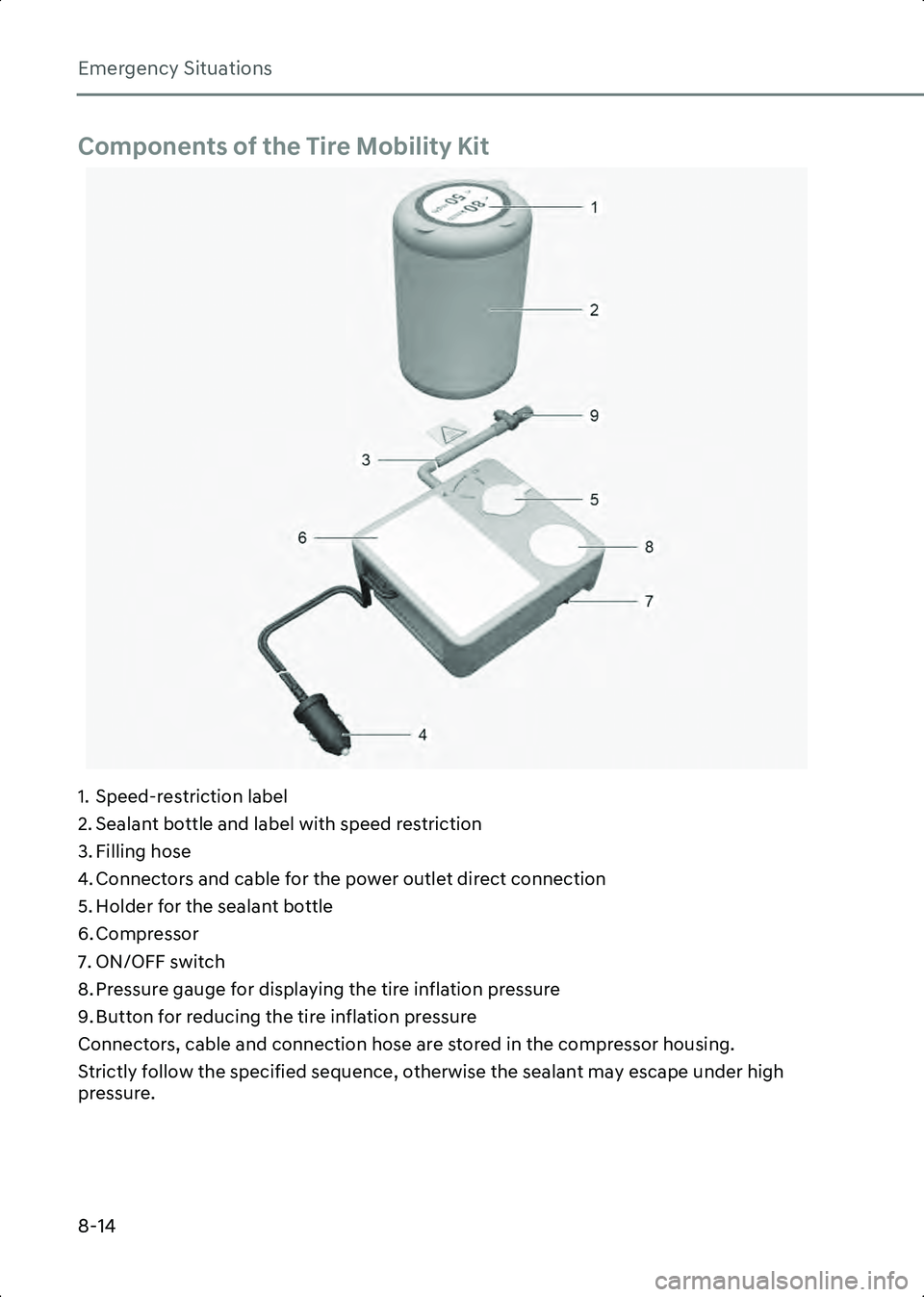

Components of the Tire Mobility Kit
A8002501
1. Speed-restriction label
2. Sealant bottle and label with speed restriction
3. Filling hose
4. Connectors and cable for the power outlet direct connection
5. Holder for the sealant bottle
6. Compressor
7. ON/OFF switch
8. Pressure gauge for displaying the tire inflation pressure
9. Button for reducing the tire inflation pressure
Connectors, cable and connection hose are stored in the compressor housing.
Strictly follow the specified sequence, otherwise the sealant may escape under high
pressure.
Hyundai_CE_en_US.book Page 14
