Hyundai Ioniq Electric 2019 Owner's Manual - RHD (UK, Australia)

8-4
Specifications & Consumer information
T
TY
Y R
RE
ES
S
A
A N
N D
D
W
W H
HE
EE
EL
LS
S

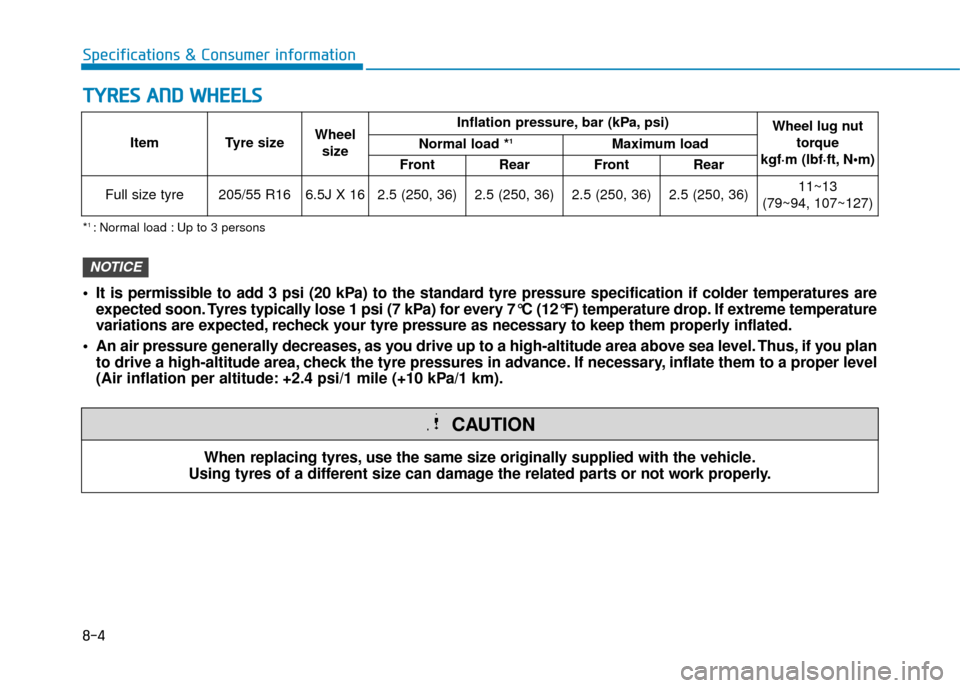

Item Tyre size Wheel
size Inflation pressure, bar (kPa, psi)
Wheel lug nut
torque
kgf·m (lbf·ft, N
Normal load *1Maximum load
Front Rear Front Rear
Full size tyre 205/55 R16 6.5J X 16 2.5 (250, 36) 2.5 (250, 36) 2.5 (250, 36) 2.5 (250, 36) 11~13
(79~94, 107~127)
When replacing tyres, use the same size originally supplied with the vehicle.
Using tyres of a different size can damage the related parts or not work properly.
CAUTION
*1 : Normal load : Up to 3 persons
It is permissible to add 3 psi (20 kPa) to the standard tyre pressure specification if colder temperatures are expected soon. Tyres typically lose 1 psi (7 kPa) for every 7°C (12°F) temperature drop. If extreme temperature
variations are expected, recheck your tyre pressure as necessary to keep them properly inflated.
An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you plan to drive a high-altitude area, check the tyre pressures in advance. If necessary, inflate them to a proper level
(Air inflation per altitude: +2.4 psi/1 mile (+10 kPa/1 km).
NOTICE

8-5
8
Specifications & Consumer information
T
TY
Y R
RE
E
L
L O
O A
AD
D
A
A N
N D
D
S
S P
P E
EE
ED
D
C
C A
A P
PA
A C
CI
IT
T Y
Y

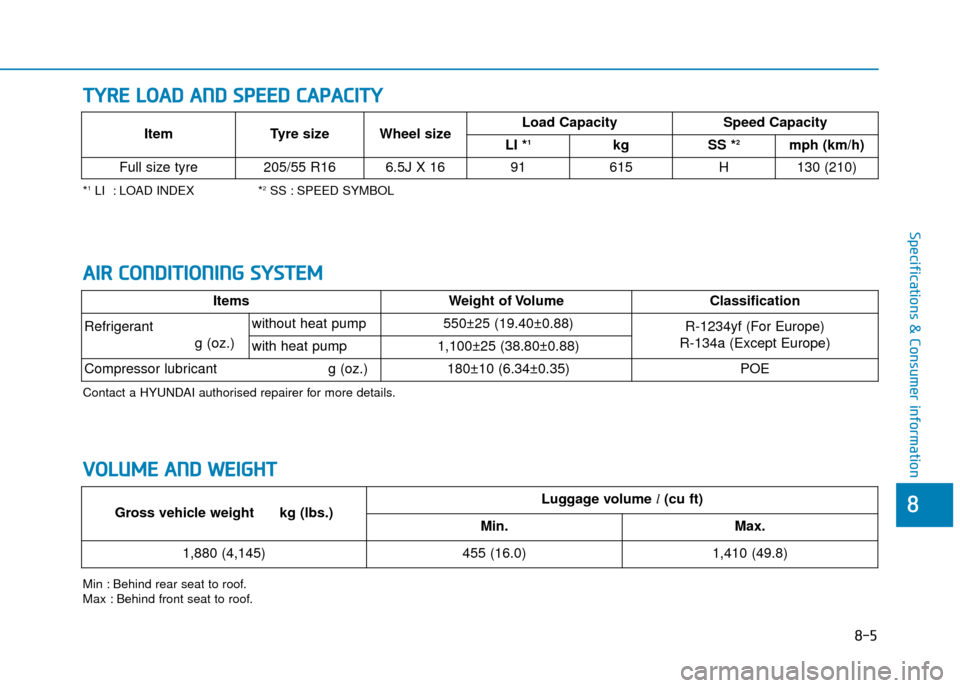

*1LI : LOAD INDEX *2SS : SPEED SYMBOL
Min : Behind rear seat to roof.
Max : Behind front seat to roof.
Item Tyre size Wheel size Load Capacity
Speed Capacity
LI *1kg SS *2mph (km/h)
Full size tyre 205/55 R16 6.5J X 16 91 615 H 130 (210)
V V O
O L
LU
U M
M E
E
A
A N
N D
D
W
W E
EI
IG
G H
H T
T
Gross vehicle weight kg (lbs.)Luggage volume l (cu ft)
Min.Max.
1,880 (4,145)455 (16.0)1,410 (49.8)
A
AI
IR
R
C
C O
O N
ND
DI
IT
T I
IO
O N
NI
IN
N G
G
S
S Y
Y S
ST
T E
EM
M
ItemsWeight of Volume Classification
Refrigerant
g (oz.)without heat pump550±25 (19.40±0.88)R-1234yf (For Europe)
R-134a (Except Europe)
with heat pump1,100±25 (38.80±0.88)
Compressor lubricant g (oz.)180±10 (6.34±0.35)POE
Contact a HYUNDAI authorised repairer for more details.

8-6
Specifications & Consumer information
R
RE
EC
CO
O M
M M
ME
EN
N D
DE
ED
D
L
L U
U B
BR
RI
IC
C A
A N
N T
TS
S
A
A N
N D
D
C
C A
A P
PA
A C
CI
IT
T I
IE
E S
S

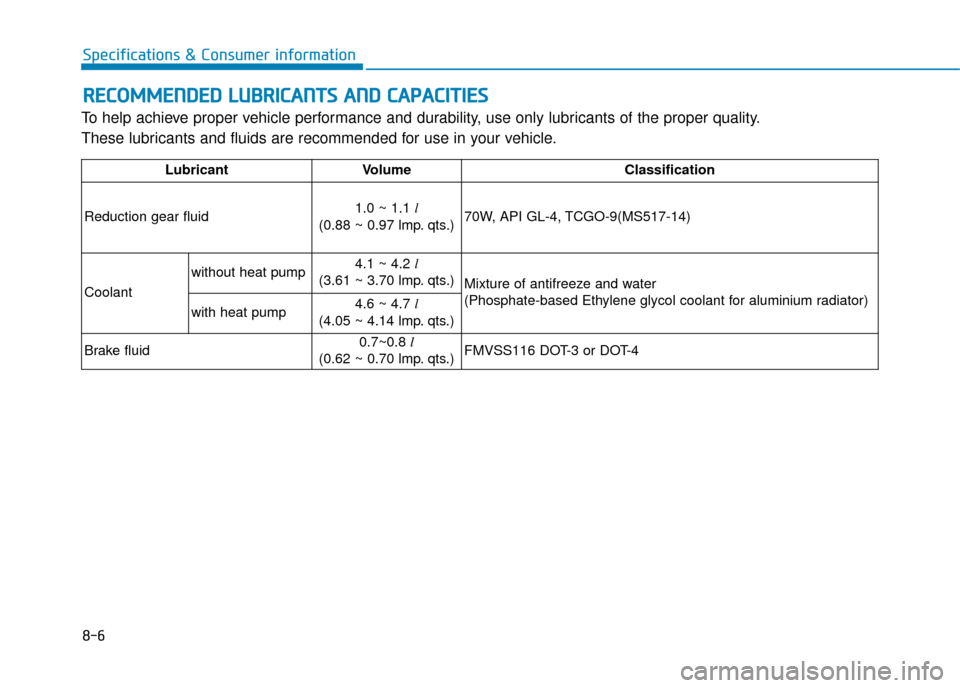

To help achieve proper vehicle performance and durability, use only lubricants of the proper quality.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Reduction gear fluid 1.0 ~ 1.1 l
(0.88 ~ 0.97 lmp. qts.) 70W, API GL-4, TCGO-9(MS517-14)
Coolant without heat pump
4.1 ~ 4.2 l
(3.61 ~ 3.70 lmp. qts.) Mixture of antifreeze and water
(Phosphate-based Ethylene glycol coolant for aluminium radiator)
with heat pump 4.6 ~ 4.7 l
(4.05 ~ 4.14 lmp. qts.)
Brake fluid 0.7~0.8
l
(0.62 ~ 0.70 lmp. qts.) FMVSS116 DOT-3 or DOT-4

8-7
8
Specifications & Consumer information

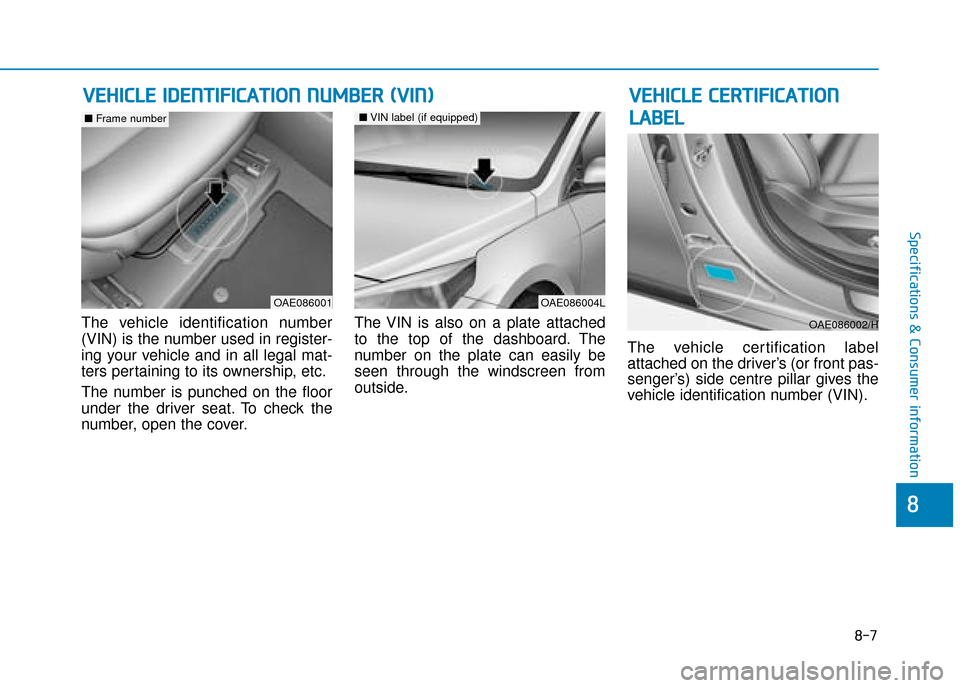

The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched on the floor
under the driver seat. To check the
number, open the cover.The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windscreen from
outside.
The vehicle certification label
attached on the driver’s (or front pas-
senger’s) side centre pillar gives the
vehicle identification number (VIN).
V V
E
EH
H I
IC
C L
LE
E
I
ID
D E
EN
N T
TI
IF
F I
IC
C A
A T
TI
IO
O N
N
N
N U
U M
M B
BE
ER
R
(
( V
V I
IN
N )
) V
VE
EH
H I
IC
C L
LE
E
C
C E
E R
R T
TI
IF
F I
IC
C A
A T
TI
IO
O N
N
L
L A
A B
BE
EL
L
OAE086001
■ Frame number
OAE086002/H
OAE086004L
■VIN label (if equipped)

8-8
Specifications & Consumer information
The tyres supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tyre label located on the driver's
side centre pillar gives the tyre pres-
sures recommended for your vehicle. The motor number is stamped on the
motor block as shown in the drawing.
The motor number can be seen from
under the vehicle.
A compressor label informs you the
type of compressor your vehicle is
equipped with such as model, suppli-
er part number, production number,
refrigerant (1) and refrigerant oil (2).
T T
Y
Y R
RE
E
S
S P
P E
EC
CI
IF
F I
IC
C A
A T
TI
IO
O N
N
A
A N
N D
D
P
P R
R E
ES
SS
SU
U R
RE
E
L
L A
A B
BE
EL
L M
M
O
OT
TO
O R
R
N
N U
U M
M B
BE
ER
R
OHC081001
A
A I
IR
R
C
C O
O N
ND
DI
IT
T I
IO
O N
NE
ER
R

C
C O
O M
M P
PR
R E
ES
SS
SO
O R
R
L
L A
A B
BE
EL
L
OAEE086001
OAE086002R

8-9
8
Specifications & Consumer information

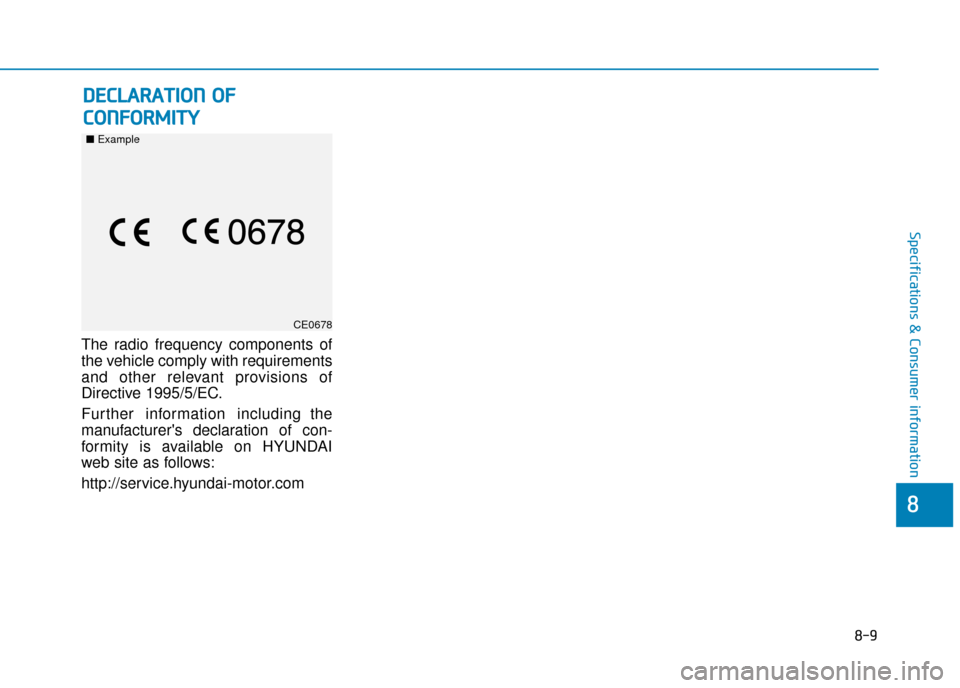

The radio frequency components of
the vehicle comply with requirements
and other relevant provisions of
Directive 1995/5/EC.
Further information including the
manufacturer's declaration of con-
formity is available on HYUNDAI
web site as follows:
http://service.hyundai-motor.com
CE0678
D
DE
EC
CL
LA
A R
RA
A T
TI
IO
O N
N
O
O F
F

C
C O
O N
NF
FO
O R
RM
M I
IT
T Y
Y
■ Example
