Hyundai Matrix 2003 Owner's Manual

OWNER MAINTENANCE
6-6 the level again, allow several minutes for the oil to drain into the sump. Replace the oil fillercap rotating it in a clockwise direction untiltight. The quantity of oil required to raise the level from the minimum to maximum level is approx-imately 1 litre. The distance between the "F" and "L" marks is equal to about 1 liter(Gasoline Engine)/1.2liter(Diesel Engine) of oil.
o The engine oil consumption is strongly
effected by the viscosity and quality of oil,engine rpm and driving condition etc. The engine oil is more consumed under severe driving conditions such as highspeeds and frequent acceleration and de-celeration than normal driving condition.
ZG030E1-A
ENGINE OIL CONSUMPTION Function of engine oil
Engine oil has the primary function of lubricat-
ing and cooling the inside of the engine. Engine oil consumption
It is normal that an engine should consume
some engine oil while normal driving. The cause of oil consumption in a normal engine are asfollows;
o Engine oil is used to lubricate pistons, piston rings and cylinders. A thin film of oil is left on the cylinder wallwhen a piston moves downwards in thecylinder. High negative pressure generatedduring engine operation sucks some of theoil into the combustion chamber. This oil with some oil of the cylinder wall is burned by the high temperature combustiongases during the combustion process. SG040A1-E
ENGINE OIL AND FILTER
REPLACEMENT
SSA6040A
Oil filler cap
Drain plug
Oil filter The engine oil and filter must be changed at
the time or mileage interval specified in the maintenance schedule. If the vehicle is oper-ated under severe or adverse conditions, theoil and filter must be replaced more frequently.
To replace the oil and filter, proceed as fol-
lows:
1. Ensure that the engine is at normal operat- ing temperature and park the vehicle on level ground with the parking brake se-curely applied and the engine turned off.
2. Open the bonnet and remove the oil filler cap.
3. Prepare a suitable receptacle to collect the displaced oil and remove the drain plugfrom the sump.
CAUTION: The oil being drained from the engine will
be hot. Care should be exercised to pre- vent scalding.
Diesel engine
Gasoline engine Drain plug
Oil filter
KCHB001A-1

OWNER MAINTENANCE 6-7
SG050A1-E
ENGINE COOLANT CHECKING AND REPLACING WARNING: Do not remove the radiator cap when the
engine is hot, since the system is pressur- ized and coolant may be ejected from theradiator resulting in scalding.
SG050B1-E
Coolant recommendations
G050B01FC
G050B02FC
Gasoline engine Diesel engine
Only ethylene glycol based coolant with a
corrosion inhibitor suited to aluminium alloy engine components should be used in thecooling system. No further additives or inhibi- tors should be used. The coolant specific gravity should be checked as prescribed inthe maintenance schedule to ensure adequatefrost and corrosion protection. In addition, theengine coolant must be replaced at the speci-fied interval since the corrosion inhibitor prop-erties deteriorate with time.
It is important to note that whilst an increase
in the concentration of anti freeze gives anincrease in the level of frost protection, asolution which is in excess of 65% anti freezewill result in reduced frost protection andengine overheating. Therefore the recom-mended concentration of 50% should not beexceeded for general use.
The use of methanol based anti freeze com-
pounds may result in engine overheating andwill invalidate the vehicle warranty.
4. When the oil has drained from the sump,
replace the drain plug using a new washerensuring that the plug is not over tight-ened.
5. Remove the oil filter by rotating counter- clockwise, using a proprietary oil filter re-moval tool if necessary. Note that the oilfilter will contain approximately 0.5 litres ofoil and this should be collected in a suit-able receptacle.
6. Install a new oil filter having smeared the sealing ring with clean oil and rotatingclockwise until the filter contacts the mount-ing and then a further one half turn. Do notover-tighten Tightening torque: 2.3 ~ 2.5 kgf.m
7. Pour the specified quantity of the recom- mended oil into the engine and replace the filler cap. Start the engine and ensure thatno oil leaks exist. Turn off the engine andafter a couple minutes, recheck the oillevel.
WARNING:Prolonged and repeated contact with used
engine oils may result in serious skin dis-orders including dermatitis and cancer.Avoid contact with skin as far as possibleand always wash thoroughly after any con-tact. Keep used oils out of reach of chil-dren. It is illegal to pollute drains, watercourses and soil. Use only authorized wastecollection facilities including civic amenity sites and garages for the disposal of usedoil and oil filters. If in doubt, contact thelocal authority for disposal instructions.

OWNER MAINTENANCE
6-8 SG050C1-E
Engine Coolant Level
SG050D1-E
To Change the Engine Coolant The engine coolant should be changed at
those intervals specified in the vehicle main- tenance schedule in Section 5.
NOTE:Care should be taken to ensure that cool-
ant is not allowed to spill onto thepaintwork since the finish may becomedamaged. If coolant spillage occurs, theaffected area should be rinsed thoroughlywith water. The engine coolant level may be observed
through the side of the plastic coolant reservoir(expansion tank) when the engine is cold. If thelevel is below the "LOW" mark, add coolant ofthe correct concentration until the level is be-tween the "LOW" and "Full" marks. If the levelfalls below the "LOW" mark on a regular basisdespite being topped up, consult a Hyundaidealer. 1. Park the vehicle on level ground and en-
sure that the parking brake is firmly ap-plied, and the engine allowed to cool. DO NOT ATTEMPT THIS OPERATION WHILST THE ENGINE IS HOT SINCEBURNING OR SCALDING MAY RESULT.
2. Prepare a suitable receptacle to collect the displaced coolant and position this under theradiator drain tap.
3. With the heater temperature control set to the "HOT" position, remove the radiator capand open the radiator drain tap.
4. When the engine coolant has drained com- pletely, close the drain tap ensuring that thisis not over tightened.
5. Prepare a suitable quantity of new engine coolant (refer to section 9) and pour thisinto the radiator.
6. Start the engine with the radiator cap still removed and continue to add coolant as thelevel decreases as air is expelled from thesystem. When the level remains constant,replace the radiator cap and replenish thecoolant reservoir.
7. When the engine is hot, check to ensure that no coolant leaks are present.
WARNING: The cooling fan is controlled by engine coolant temperature and may sometimesoperate even when the engine is not run-ning. Use extreme caution when workingnear the blades of the cooling fan so that
G050C01FC
G050C02FC
Diesel engine
Gasoline engine
NOTE: It is imperative that vehicles fitted with an
air conditioning system have a coolant concentration of the recommended strengthat all times. The use of the air conditioningsystem when the cooling system is filledwith water only will result in the heatermatrix freezing and subsequently bursting.

OWNER MAINTENANCE 6-9
SG060A1-E
SPARKING PLUG REPLACEMENT
SSA6060A
0.039 ~ 0.043 in. (1.0 ~ 1.1 mm)
This operation should only be performed when
the engine is cold.
1. Remove the centre cover from the engine rocker cover.
2. Remove plug lead from the sparking plug to be replaced, pulling the lead by the rubber cap. (Pulling the lead may damage the car-bon conductor).SSA6061CSSA6060B
Prior to installing a sparking plug, the gap between the centre and outer electrodes mustbe checked and adjusted as necessary.Adjustment is facilitated by bending the outerelectrode towards or away from the centreelectrode. Under no circumstances should at-tempts be made to adjust the position of thecentre electrode.
4. Insert the sparking plug into the cylinder head and screw by the wrench and until theplug contacts the seating area. Tighten theplug with the socket by a further 1/2 to 3/4 ofa turn only.
3. Clean around the base of the plug to be
removed, and install the plug socket ensur-ing that the ceramic insulator does not be-come damaged. Turn the socket counter-clockwise to remove the plug.
CAUTION: Sparking plugs must only be cleaned using
purpose designed equipment. Wire brush- ing may damage the centre electrodein-sulator causing misfiring to occur. Only thecorrect grade of sparking plug should beused. Use of an incorrect grade may resultin serious engine damage.
you are not injured by a rotating fan blade.As the engine coolant temperature decreas-es, the fan will automatically shut off. Thisis a normal condition.

OWNER MAINTENANCE
6-10 G080A01A-EAT
WINDSCREEN WIPER BLADES
SG070A1-E
AIR CLEANER ELEMENT REPLACEMENT ment. Replacement of the element is the reverse of the above. CAUTION: The air flow sensor is a precision engi- neered electronic measuring device andtherefore care should be exercised that theair flow sensor is not damaged during re-placement of the element. To ensure maximum filtration performance and continued engine performance, only genuineHyundai replacements should be used.
SSA6062A
5. Replace the plug lead ensuring that the cap is pushed firmly into place. Confirm that the cap is correctly seated by lightlypulling upon it.
NOTE:When replacing the spark plug, alwaysuse the genuine parts recommended. Recommended Spark Plugs
RC10YC4
BKR5ES-11
NGK
CHAMPION
To replace the air cleaner element, remove the air intake ducting from the air flow sensorbody and unfasten the spring clips holding theair flow sensor top to the body. Lift out the airflow sensor followed by the air cleaner ele- The wiper blades should be carefully inspectedfrom time to time and cleaned to removeaccumulations of road film or other debris. Toclean the wiper blades and arms, use a cleansponge or cloth with a mild soap or detergent
HFC5003
G070A02FC
Gasoline engine
Diesel engineHEF-119

OWNER MAINTENANCE 6-11
specified in the maintenance schedule. Only those lubricants specified below should beused in order to prevent gear shifting difficul-ties or transaxle damage.
WARNING: The transaxle lubricant level should only
be checked when the engine is cold to preclude the possibility of personal injuryby contact with hot components. Recommended Oil
Use only the approved transaxle lubricant.
The recommended lubricants are complete in themselves and the use of additives is neitherrequired nor recommended. The use of addi-tives may invalidate the vehicle warranty. Transaxle Lubricant Level
Checking
SSA6100B
SG090A2-E
WINDSCREEN WASHER RESERVOIR REPLENISHMENT
and water. If the wipers continue to streak or smear the glass, replace them with genuineHyundai replacement.
CAUTION:
o Do not operate the wipers on dry glass since rapid wear and damage to thewindscreen glass may result.
o Keep the blade rubber out of contact with petroleum products such as en-gine oil, gasoline, etc.
The level of windscreen washer fluid available
should be checked on a daily basis. The levelof fluid will be visible through the side of thereservoir. When the fluid is to be replenished,only a proprietary screen wash additive shouldbe used and in the concentration recommended SG100A1-E
MANUAL TRANSAXLE LUBRICANT The manual transaxle lubricant must be
checked and or changed at the intervals
G110A01EDrain plug
Filler plug
HFC5010 by the manufacturer. The windscreen washer reservoir has a total capacity of 3 litres.
CAUTION: Engine coolant anti freeze must not be
used in the windscreen washer system since damage to the paintwork may result.
Undiluted windscreen washer additive must
not be allowed to come into contact with thepaintwork. If spillage occurs, flush the af-fected area immediately with water. Do notoperate the windscreen washer for morethan 15 seconds continuously or whenthe reservoir is empty since damage tothe washer pump will result.

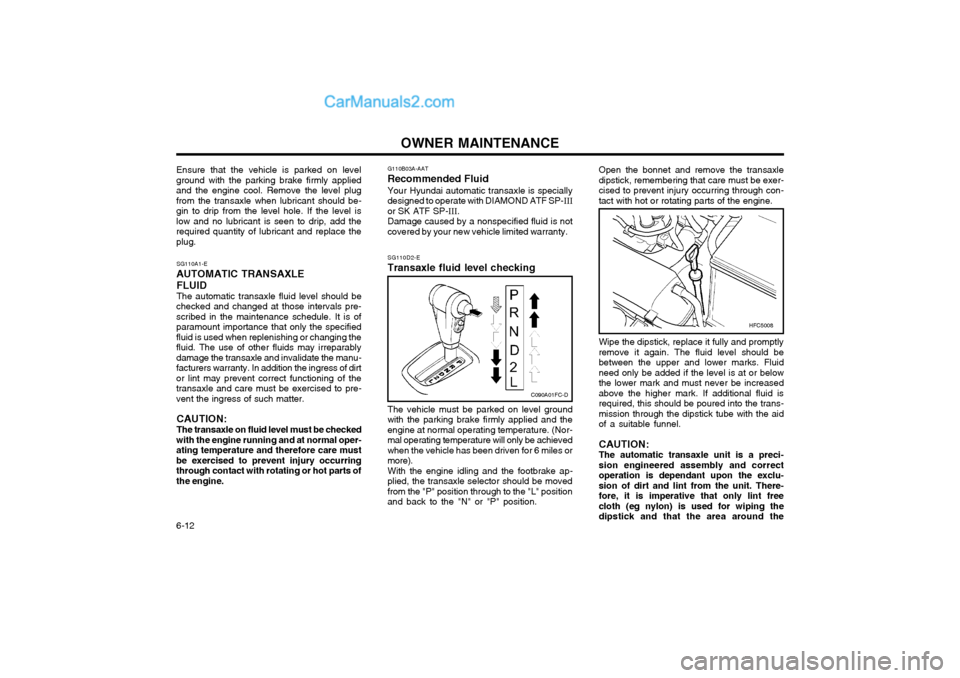

OWNER MAINTENANCE
6-12 SG110D2-E
Transaxle fluid level checking
The vehicle must be parked on level ground
with the parking brake firmly applied and the engine at normal operating temperature. (Nor-mal operating temperature will only be achievedwhen the vehicle has been driven for 6 miles ormore). With the engine idling and the footbrake ap-
plied, the transaxle selector should be movedfrom the "P" position through to the "L" positionand back to the "N" or "P" position.
C090A01FC-D
SG110A1-E
AUTOMATIC TRANSAXLE FLUID The automatic transaxle fluid level should be
checked and changed at those intervals pre- scribed in the maintenance schedule. It is ofparamount importance that only the specifiedfluid is used when replenishing or changing thefluid. The use of other fluids may irreparablydamage the transaxle and invalidate the manu-facturers warranty. In addition the ingress of dirtor lint may prevent correct functioning of thetransaxle and care must be exercised to pre-vent the ingress of such matter.
CAUTION: The transaxle on fluid level must be checked
with the engine running and at normal oper- ating temperature and therefore care mustbe exercised to prevent injury occurringthrough contact with rotating or hot parts ofthe engine. G110B03A-AAT
Recommended Fluid Your Hyundai automatic transaxle is specially designed to operate with DIAMOND ATF SP- III
or SK ATF SP- III.
Damage caused by a nonspecified fluid is notcovered by your new vehicle limited warranty.
Wipe the dipstick, replace it fully and promptlyremove it again. The fluid level should bebetween the upper and lower marks. Fluidneed only be added if the level is at or belowthe lower mark and must never be increasedabove the higher mark. If additional fluid isrequired, this should be poured into the trans-mission through the dipstick tube with the aidof a suitable funnel. CAUTION: The automatic transaxle unit is a preci-sion engineered assembly and correctoperation is dependant upon the exclu-sion of dirt and lint from the unit. There-fore, it is imperative that only lint freecloth (eg nylon) is used for wiping thedipstick and that the area around the
HFC5008
Ensure that the vehicle is parked on level ground with the parking brake firmly appliedand the engine cool. Remove the level plugfrom the transaxle when lubricant should be-gin to drip from the level hole. If the level islow and no lubricant is seen to drip, add therequired quantity of lubricant and replace theplug. Open the bonnet and remove the transaxledipstick, remembering that care must be exer-cised to prevent injury occurring through con-tact with hot or rotating parts of the engine.

OWNER MAINTENANCE 6-13
dipstick is thoroughly clean prior to level checking or adding fluid.
SG120D1-E
Brake Fluid Level
The fluid level in the brake fluid reservoir
should be checked periodically. The levelshould be between the "MIN" and "MAX"marks on the side of the reservoir. If the levelis at or below the "MIN" mark, fluid should beadded having carefully cleaned the area sur-rounding the reservoir cap to ensure that dirtis not allowed to enter the system. It shouldbe borne in mind that the brake fluid level willdecrease slightly as the friction linings of thepads and shoes become worn and that this isa normal condition.
SG120A1-E
BRAKE SYSTEM CHECKING CAUTION:
Correct operation of the braking system is
essential to the safe operation of the vehicle and therefore, any maintenance operationsother than those listed below should beentrusted to a Hyundai dealer.
SG120C2-E
Brake Fluid Recommendations Only brake fluid conforming to DOT 3 or
DOT 4 specifications or higher may be usedin the braking system. Care should be takento observe the instructions and precautionsprinted upon the container.
Fluid level should be within this range
C090A03FC
ÎÎ
HFC5005
Gasoline engine
WARNING: The cooling fan is controlled by engine
coolant temperature and may sometimesoperate even when the engine is not run-ning. Use extreme caution when workingnear the blades of the cooling fan so thatyou are not injured by a rotating fan blade.As the engine coolant temperature de-creases, the fan will automatically shutoff. This is a normal condition.
WARNING (Diesel only): Never work on injection system with en-
gine running or within 30 seconds after shutting off engine. High pressure pump,rail, injectors and high pressure pipes aresubject to high pressure even after theengine stopped. The fuel jet produced byfuel leaks may cause serious injury, if it touch the body. People using pacemak-ers should not move than 30cm closer tothe ECU or wiring harness within theengine room while engine is running,since the high currents in the CommonRail system produce considerable mag-netic fields. Fluid Capacity
The total fluid capacity of the transmission unit
is 6.1 litres (1.6 DOHC)/6.7 litres(1.8 DOHC).

OWNER MAINTENANCE

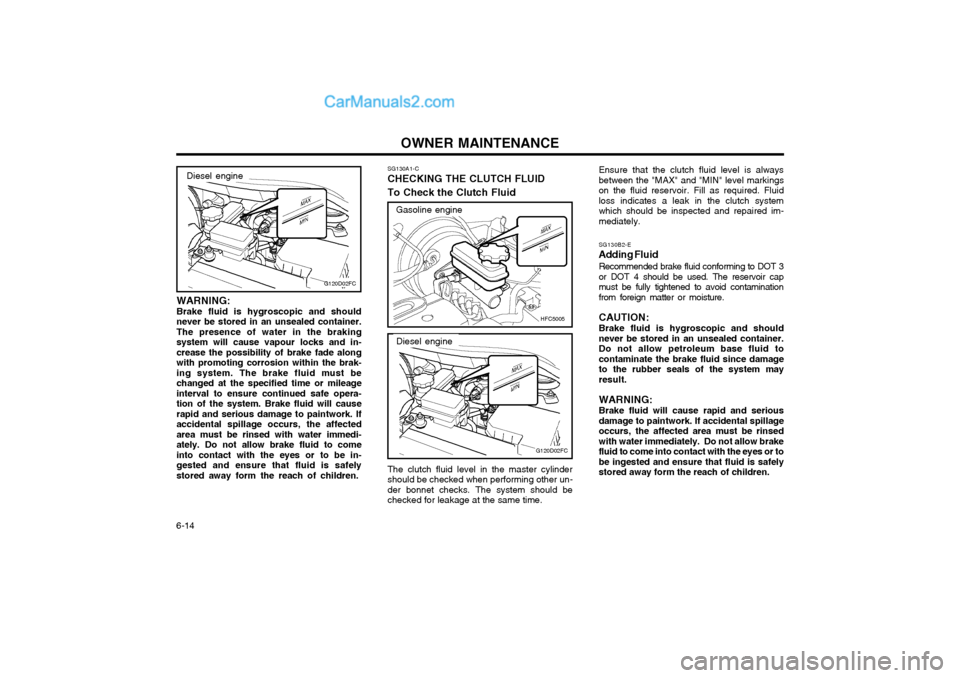

6-14 SG130A1-C CHECKING THE CLUTCH FLUID To Check the Clutch Fluid
SG130B2-E
Adding Fluid
Recommended brake fluid conforming to DOT 3 or DOT 4 should be used. The reservoir capmust be fully tightened to avoid contaminationfrom foreign matter or moisture. CAUTION: Brake fluid is hygroscopic and should never be stored in an unsealed container.Do not allow petroleum base fluid tocontaminate the brake fluid since damageto the rubber seals of the system mayresult. WARNING: Brake fluid will cause rapid and serious damage to paintwork. If accidental spillageoccurs, the affected area must be rinsedwith water immediately. Do not allow brakefluid to come into contact with the eyes or tobe ingested and ensure that fluid is safelystored away form the reach of children.
HFC5005
Gasoline engine
The clutch fluid level in the master cylinder should be checked when performing other un-der bonnet checks. The system should bechecked for leakage at the same time.
G120D02FC
Diesel engine
WARNING: Brake fluid is hygroscopic and should never be stored in an unsealed container.The presence of water in the brakingsystem will cause vapour locks and in-crease the possibility of brake fade alongwith promoting corrosion within the brak-ing system. The brake fluid must bechanged at the specified time or mileageinterval to ensure continued safe opera-tion of the system. Brake fluid will causerapid and serious damage to paintwork. Ifaccidental spillage occurs, the affectedarea must be rinsed with water immedi-ately. Do not allow brake fluid to comeinto contact with the eyes or to be in-gested and ensure that fluid is safelystored away form the reach of children.
G120D02FC
Diesel engine
Ensure that the clutch fluid level is always between the "MAX" and "MIN" level markingson the fluid reservoir. Fill as required. Fluidloss indicates a leak in the clutch systemwhich should be inspected and repaired im-mediately.

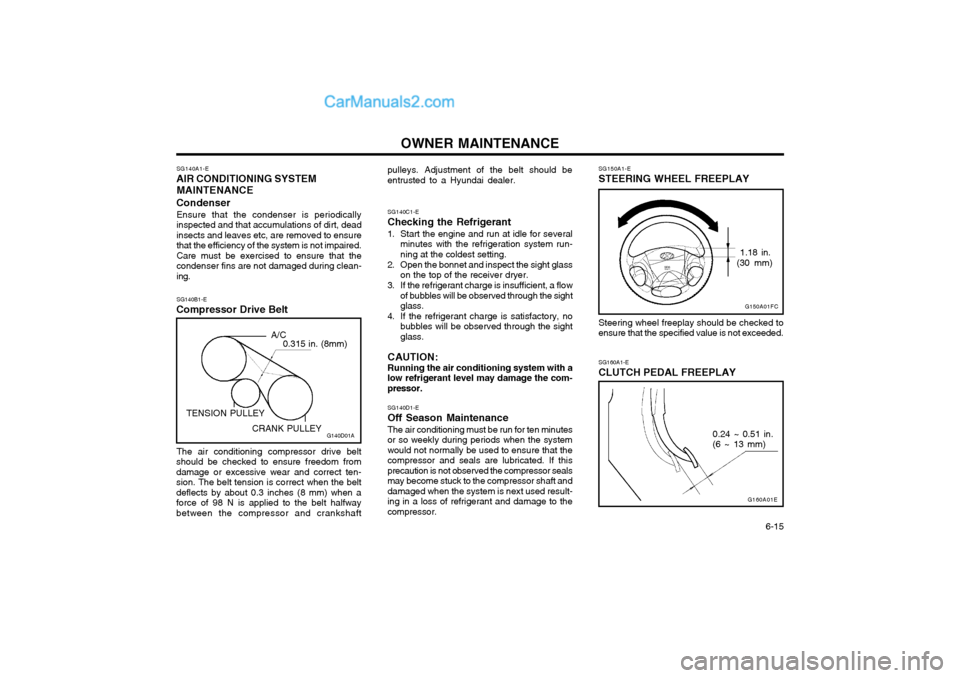

OWNER MAINTENANCE 6-15
SG140C1-E
Checking the Refrigerant
1. Start the engine and run at idle for several minutes with the refrigeration system run- ning at the coldest setting.
2. Open the bonnet and inspect the sight glass on the top of the receiver dryer.
3. If the refrigerant charge is insufficient, a flow of bubbles will be observed through the sightglass.
4. If the refrigerant charge is satisfactory, no bubbles will be observed through the sightglass.
CAUTION: Running the air conditioning system with a
low refrigerant level may damage the com- pressor.
SG140D1-E
Off Season Maintenance The air conditioning must be run for ten minutes
or so weekly during periods when the systemwould not normally be used to ensure that thecompressor and seals are lubricated. If thisprecaution is not observed the compressor sealsmay become stuck to the compressor shaft anddamaged when the system is next used result-ing in a loss of refrigerant and damage to thecompressor. SG150A1-E STEERING WHEEL FREEPLAY
Steering wheel freeplay should be checked to
ensure that the specified value is not exceeded.
SG160A1-E
CLUTCH PEDAL FREEPLAY
SG140B1-E
Compressor Drive Belt
The air conditioning compressor drive belt
should be checked to ensure freedom from damage or excessive wear and correct ten-sion. The belt tension is correct when the beltdeflects by about 0.3 inches (8 mm) when aforce of 98 N is applied to the belt halfwaybetween the compressor and crankshaft SG140A1-E
AIR CONDITIONING SYSTEM
MAINTENANCE
Condenser Ensure that the condenser is periodicallyinspected and that accumulations of dirt, deadinsects and leaves etc, are removed to ensurethat the efficiency of the system is not impaired.Care must be exercised to ensure that thecondenser fins are not damaged during clean-ing.
G160A01E
0.24 ~ 0.51 in. (6 ~ 13 mm)
G150A01FC
G140D01A
A/C
CRANK PULLEY
TENSION PULLEY
1.18 in. (30 mm)
0.315 in. (8mm) pulleys. Adjustment of the belt should be entrusted to a Hyundai dealer.
