warning Hyundai Matrix 2005 Owners Manual

1FEATURES OF YOUR HYUNDAI
20
B140A01FC
B140A01B-GAT For the safety of all passengers, lug- gage or other cargo should not be piled higher than the top of the seatback. REAR SEAT WARNING
B100A01FC-GAT (If Installed) The seat warmer is provided to warm the front seats during cold weather. When the engine is running, push ei- ther of the switches to warm the driver'sseat or the passenger's seat. During mild weather or under condi- tions where the operation of the seatwarmer is not needed, keep the switches in the "OFF" position.
B100A01FC
SEAT WARMER
o When you return the folded down seatback to its upright position, always be sure to install the head- rests in their proper positions. Headrests are important to thesafety of occupants in a rear col- lision. If the headrests are not installed in their proper position,serious injury or death could re- sult if a rear end collision occurs.

1FEATURES OF YOUR HYUNDAI
22

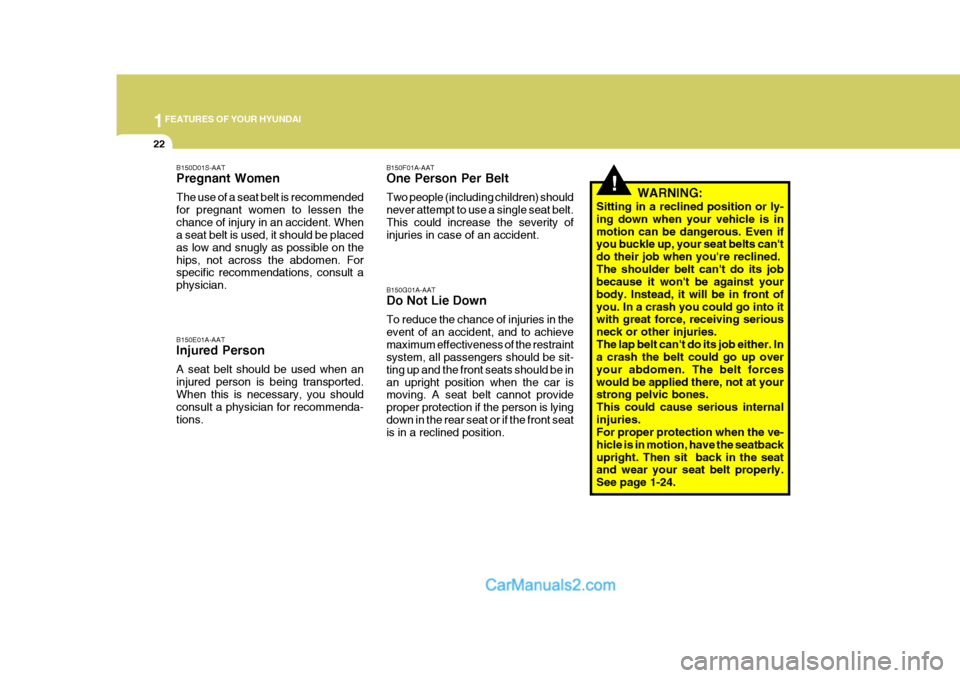

B150F01A-AAT One Person Per Belt Two people (including children) should never attempt to use a single seat belt.This could increase the severity of injuries in case of an accident. B150G01A-AAT Do Not Lie Down To reduce the chance of injuries in the event of an accident, and to achievemaximum effectiveness of the restraint system, all passengers should be sit- ting up and the front seats should be inan upright position when the car is moving. A seat belt cannot provide proper protection if the person is lyingdown in the rear seat or if the front seat is in a reclined position.
!WARNING:
Sitting in a reclined position or ly- ing down when your vehicle is inmotion can be dangerous. Even if you buckle up, your seat belts can't do their job when you're reclined.The shoulder belt can't do its job because it won't be against your body. Instead, it will be in front ofyou. In a crash you could go into it with great force, receiving serious neck or other injuries.The lap belt can't do its job either. In a crash the belt could go up over your abdomen. The belt forceswould be applied there, not at your strong pelvic bones. This could cause serious internalinjuries. For proper protection when the ve- hicle is in motion, have the seatbackupright. Then sit back in the seat and wear your seat belt properly. See page 1-24.
B150D01S-AAT Pregnant Women The use of a seat belt is recommended for pregnant women to lessen thechance of injury in an accident. When a seat belt is used, it should be placed as low and snugly as possible on thehips, not across the abdomen. For specific recommendations, consult a physician. B150E01A-AAT Injured Person A seat belt should be used when an injured person is being transported. When this is necessary, you should consult a physician for recommenda-tions.

1
FEATURES OF YOUR HYUNDAI
23

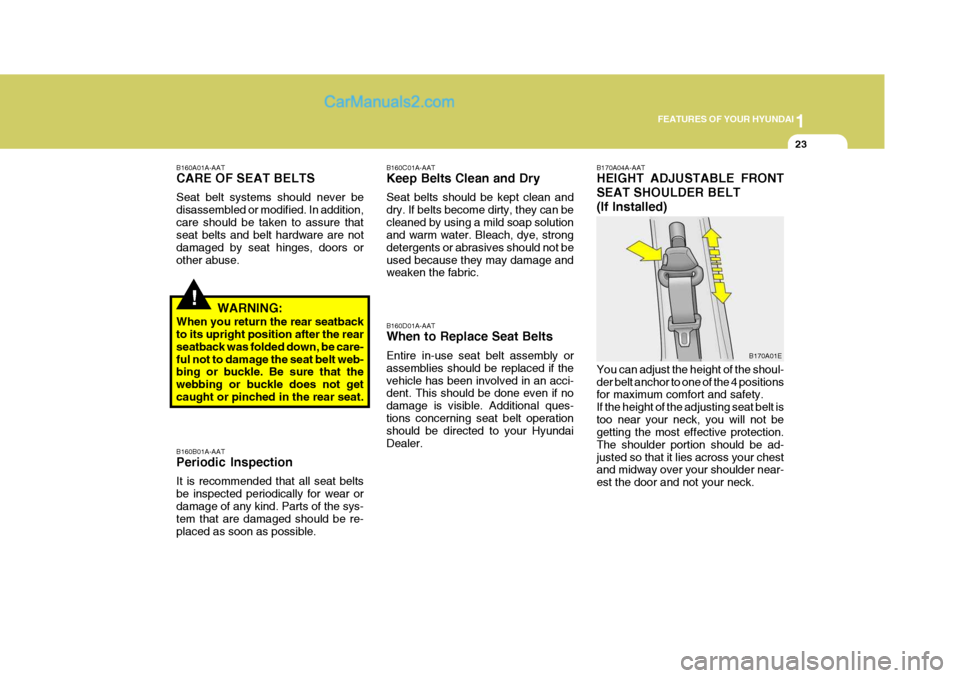

B160B01A-AAT Periodic Inspection It is recommended that all seat belts be inspected periodically for wear ordamage of any kind. Parts of the sys- tem that are damaged should be re- placed as soon as possible.
B160A01A-AAT CARE OF SEAT BELTS Seat belt systems should never be disassembled or modified. In addition,care should be taken to assure that seat belts and belt hardware are not damaged by seat hinges, doors orother abuse.
!WARNING:
When you return the rear seatback to its upright position after the rear seatback was folded down, be care- ful not to damage the seat belt web- bing or buckle. Be sure that the webbing or buckle does not getcaught or pinched in the rear seat. You can adjust the height of the shoul-der belt anchor to one of the 4 positions for maximum comfort and safety. If the height of the adjusting seat belt istoo near your neck, you will not be getting the most effective protection. The shoulder portion should be ad-justed so that it lies across your chest and midway over your shoulder near- est the door and not your neck.B170A01E
B170A04A-AAT HEIGHT ADJUSTABLE FRONT SEAT SHOULDER BELT(If Installed)
B160D01A-AAT When to Replace Seat Belts Entire in-use seat belt assembly or assemblies should be replaced if thevehicle has been involved in an acci- dent. This should be done even if no damage is visible. Additional ques-tions concerning seat belt operation should be directed to your Hyundai Dealer.
B160C01A-AAT Keep Belts Clean and Dry Seat belts should be kept clean and dry. If belts become dirty, they can becleaned by using a mild soap solution and warm water. Bleach, dye, strong detergents or abrasives should not beused because they may damage and weaken the fabric.

1FEATURES OF YOUR HYUNDAI
24

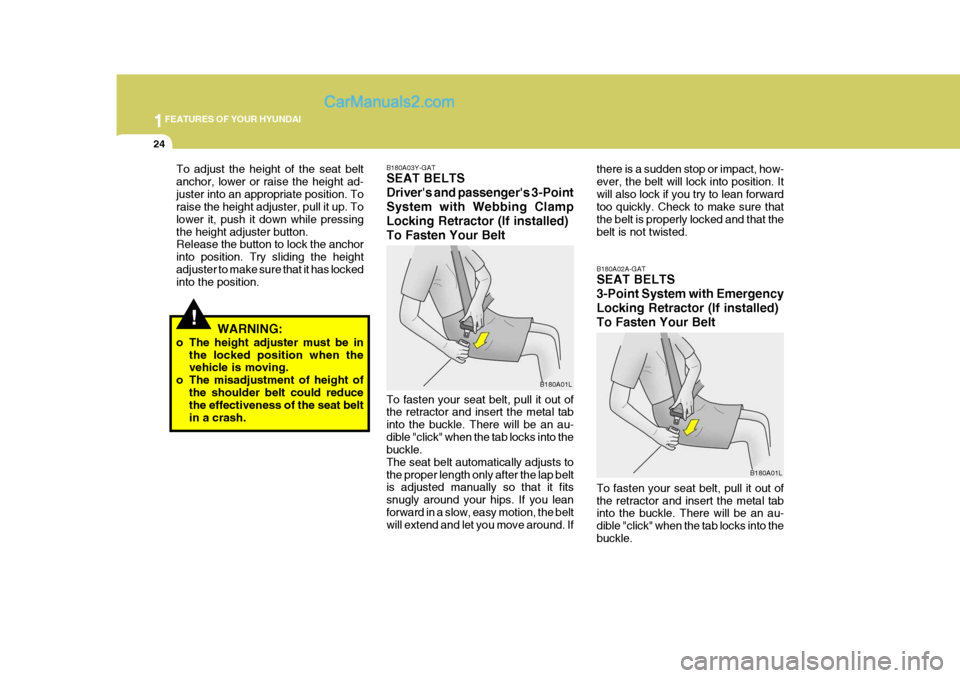

B180A03Y-GAT SEAT BELTS Driver's and passenger's 3-PointSystem with Webbing ClampLocking Retractor (If installed)To Fasten Your Belt To fasten your seat belt, pull it out of the retractor and insert the metal tab into the buckle. There will be an au-dible "click" when the tab locks into the buckle. The seat belt automatically adjusts tothe proper length only after the lap belt is adjusted manually so that it fits snugly around your hips. If you leanforward in a slow, easy motion, the belt will extend and let you move around. If B180A02A-GAT SEAT BELTS 3-Point System with Emergency Locking Retractor (If installed) To Fasten Your Belt
B180A01L
B180A01L there is a sudden stop or impact, how- ever, the belt will lock into position. Itwill also lock if you try to lean forward too quickly. Check to make sure that the belt is properly locked and that thebelt is not twisted.
!
To adjust the height of the seat belt anchor, lower or raise the height ad-juster into an appropriate position. To raise the height adjuster, pull it up. To lower it, push it down while pressingthe height adjuster button. Release the button to lock the anchor into position. Try sliding the heightadjuster to make sure that it has locked into the position.
WARNING:
o The height adjuster must be in the locked position when thevehicle is moving.
o The misadjustment of height of
the shoulder belt could reducethe effectiveness of the seat belt in a crash.
To fasten your seat belt, pull it out ofthe retractor and insert the metal tab into the buckle. There will be an au- dible "click" when the tab locks into thebuckle.

1FEATURES OF YOUR HYUNDAI
26
!
B220C01FC
B220C01A-AAT To Release the Seat Belt
When you want to release the seat belt, press the button in the locking buckle. WARNING:
The center lap belt latching mecha- nism is different from those for therear seat shoulder belts. When fas- tening the rear seat shoulder belts or the center lap belt, make surethey are inserted into the correct buckles to obtain maximum protec- tion from the seat belt system andassure proper operation.

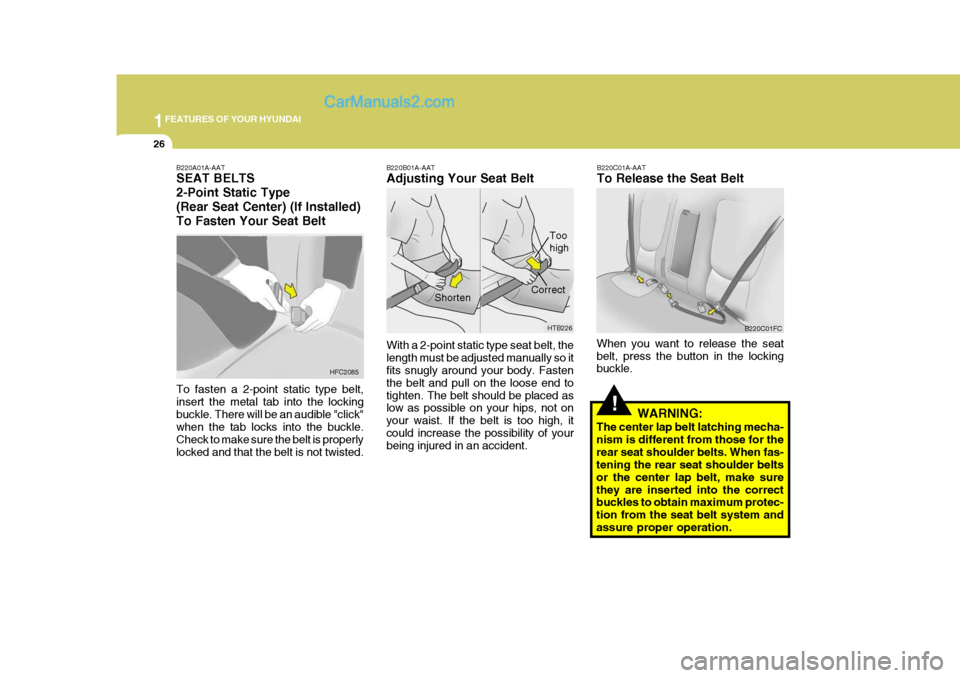

B220B01A-AAT Adjusting Your Seat Belt With a 2-point static type seat belt, the length must be adjusted manually so it fits snugly around your body. Fasten the belt and pull on the loose end totighten. The belt should be placed as low as possible on your hips, not on your waist. If the belt is too high, itcould increase the possibility of your being injured in an accident. Shorten
HTB226Too high
CorrectB220A01A-AAT SEAT BELTS 2-Point Static Type(Rear Seat Center) (If Installed)To Fasten Your Seat Belt To fasten a 2-point static type belt, insert the metal tab into the lockingbuckle. There will be an audible "click" when the tab locks into the buckle. Check to make sure the belt is properlylocked and that the belt is not twisted. HFC2085

1
FEATURES OF YOUR HYUNDAI
27
!

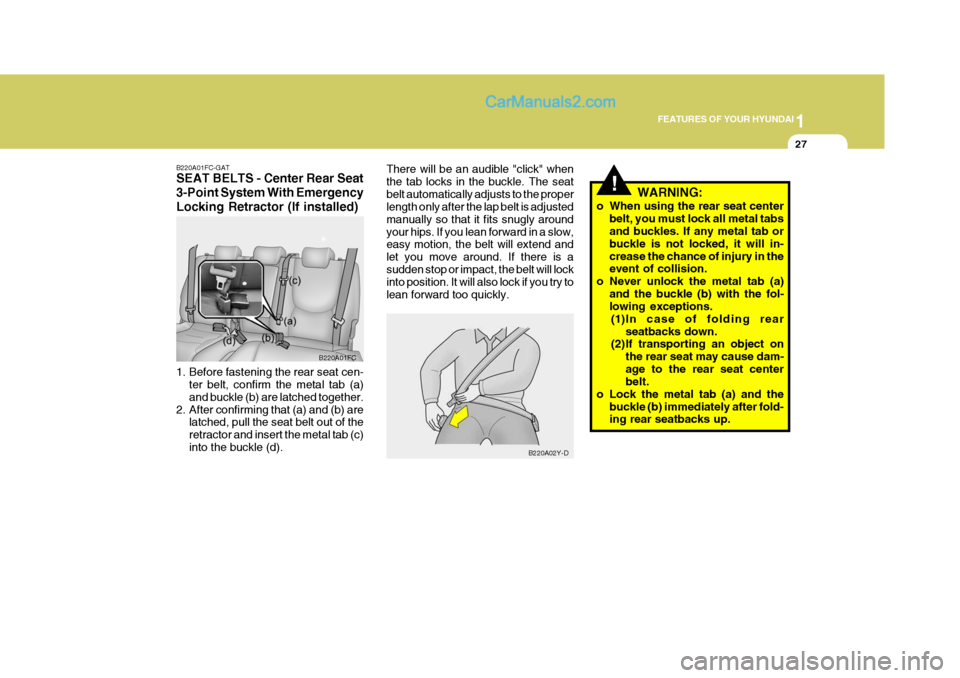

B220A01FC-GAT SEAT BELTS - Center Rear Seat 3-Point System With EmergencyLocking Retractor (If installed)
1. Before fastening the rear seat cen-
ter belt, confirm the metal tab (a) and buckle (b) are latched together.
2. After confirming that (a) and (b) are latched, pull the seat belt out of theretractor and insert the metal tab (c)into the buckle (d). There will be an audible "click" whenthe tab locks in the buckle. The seatbelt automatically adjusts to the proper length only after the lap belt is adjusted manually so that it fits snugly aroundyour hips. If you lean forward in a slow, easy motion, the belt will extend and let you move around. If there is asudden stop or impact, the belt will lock into position. It will also lock if you try to lean forward too quickly.
WARNING:
o When using the rear seat center belt, you must lock all metal tabs and buckles. If any metal tab or buckle is not locked, it will in-crease the chance of injury in the event of collision.
o Never unlock the metal tab (a)
and the buckle (b) with the fol-lowing exceptions.(1)In case of folding rear
seatbacks down.
(2)If transporting an object on
the rear seat may cause dam- age to the rear seat center belt.
o Lock the metal tab (a) and the
buckle (b) immediately after fold-ing rear seatbacks up.
B220A01FC
B220A02Y-D

1FEATURES OF YOUR HYUNDAI
28CHILD RESTRAINT SYSTEM

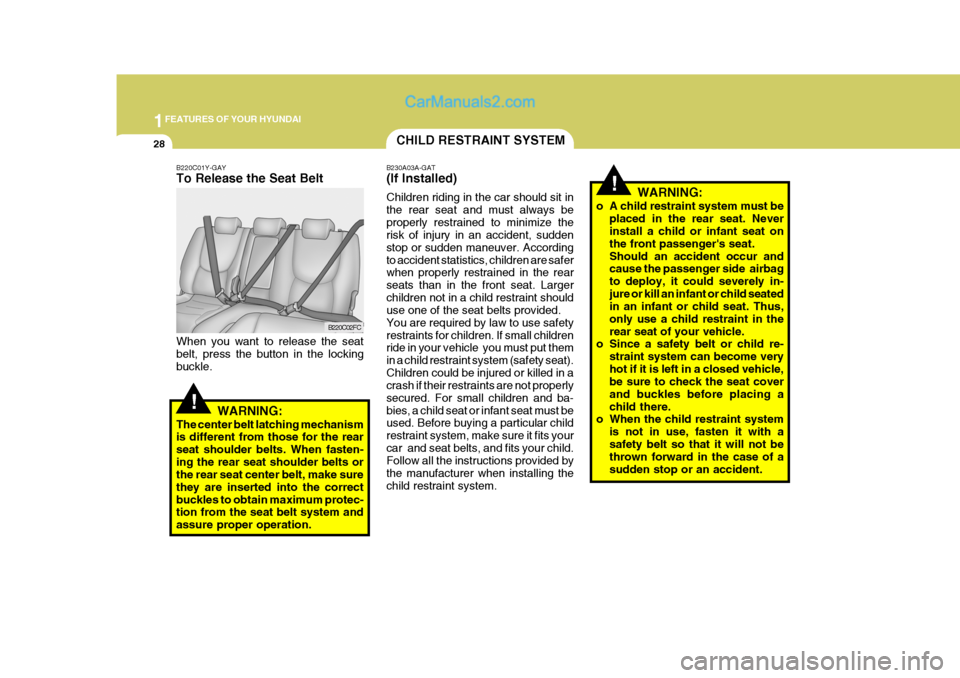

B230A03A-GAT (If Installed) Children riding in the car should sit in the rear seat and must always beproperly restrained to minimize the risk of injury in an accident, sudden stop or sudden maneuver. Accordingto accident statistics, children are safer when properly restrained in the rear seats than in the front seat. Largerchildren not in a child restraint should use one of the seat belts provided. You are required by law to use safetyrestraints for children. If small children ride in your vehicle you must put them in a child restraint system (safety seat).Children could be injured or killed in a crash if their restraints are not properly secured. For small children and ba-bies, a child seat or infant seat must be used. Before buying a particular child restraint system, make sure it fits yourcar and seat belts, and fits your child. Follow all the instructions provided by the manufacturer when installing thechild restraint system.
!WARNING:
o A child restraint system must be placed in the rear seat. Never install a child or infant seat on the front passenger's seat.Should an accident occur and cause the passenger side airbag to deploy, it could severely in-jure or kill an infant or child seated in an infant or child seat. Thus, only use a child restraint in therear seat of your vehicle.
o Since a safety belt or child re-
straint system can become veryhot if it is left in a closed vehicle, be sure to check the seat cover and buckles before placing achild there.
o When the child restraint system
is not in use, fasten it with asafety belt so that it will not be thrown forward in the case of a sudden stop or an accident.
!
B220C02FC
B220C01Y-GAY To Release the Seat Belt When you want to release the seat belt, press the button in the locking buckle.
WARNING:
The center belt latching mechanism is different from those for the rear seat shoulder belts. When fasten-ing the rear seat shoulder belts or the rear seat center belt, make sure they are inserted into the correctbuckles to obtain maximum protec- tion from the seat belt system and assure proper operation.

1FEATURES OF YOUR HYUNDAI
30
!
If you need to tighten the belt, pull more webbing toward the retractor.When you unbuckle the seat belt and allow it to retract, the retractor will automatically revert back to its normalseated passenger emergency locking usage condition. NOTE:
o Before installing the child re-
straint system, read the instruc- tions supplied by the child re- straint system manufacturer.
o If the seat belt does not operate as described, have the systemchecked immediately by yourauthorized Hyundai dealer.
WARNING:
Do not install any child restraintsystem in the front passenger seat.Should an accident occur and cause the passenger's side airbag to de- ploy, it could severely injure or killan infant or child seated in an infant or child seat. Therefore, only use a child restraint system in the rearseat of your vehicle.

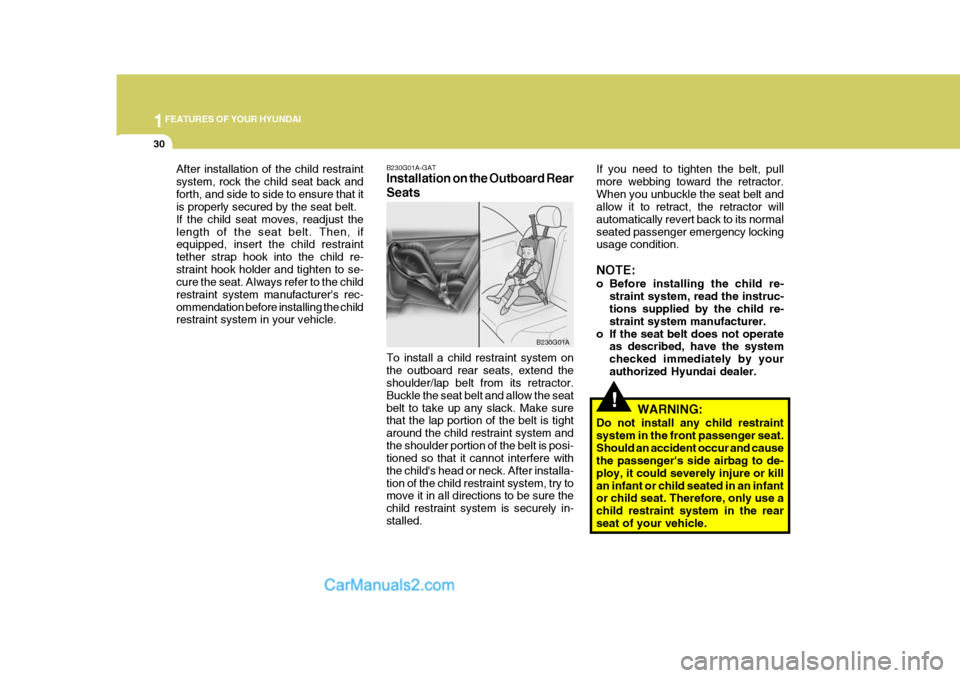

B230G01A-GAT Installation on the Outboard Rear Seats To install a child restraint system on the outboard rear seats, extend the shoulder/lap belt from its retractor. Buckle the seat belt and allow the seatbelt to take up any slack. Make sure that the lap portion of the belt is tight around the child restraint system andthe shoulder portion of the belt is posi- tioned so that it cannot interfere with the child's head or neck. After installa-tion of the child restraint system, try to move it in all directions to be sure the child restraint system is securely in-stalled.
B230G01A
After installation of the child restraintsystem, rock the child seat back andforth, and side to side to ensure that it is properly secured by the seat belt. If the child seat moves, readjust thelength of the seat belt. Then, if equipped, insert the child restraint tether strap hook into the child re-straint hook holder and tighten to se- cure the seat. Always refer to the child restraint system manufacturer's rec-ommendation before installing the child restraint system in your vehicle.

1FEATURES OF YOUR HYUNDAI
32
Römer ISOFIX GR1 and the Römer Duo ISOFIX / Britax Duo ISOFIX isapproved according to the requirement ECE-R44. This seat has been tested extensively by Hyundai and is recom-mended for your Hyundai. NOTE: At present, this seat is the only one complying with that provision. Incase that other manufacturers will furnish proof of a respective certifi- cation, Hyundai is going to evalu-ate this seat carefully and will give a recommendation provided that seat complies to the law. Please askyour Hyundai dealer in this respect.
!
B230D02FC-GAT Securing a Child Restraint Sys- tem with "ISOFIX" System and"Tether Anchorage" System ISOFIX is a standardised method of fitting child seats that eliminates the need to use the standard adult seatbelt to secure the seat in the vehicle. This enables a much more secure and positive location with the added benefitof easier and quicker installation. An ISOFIX-seat can only be installed if it has vehicle-specific approval in ac- cordance with the requirements of ECE-R44. For your Hyundai, theHyundai ISOFIX GR1 / Hyundai Duo / B230F01FC
WARNING:
To install the child restraint seat,for safety reasons the Seat shouldbe positioned rearmost with the seatback in a vertical position, not reclined.

1
FEATURES OF YOUR HYUNDAI
33

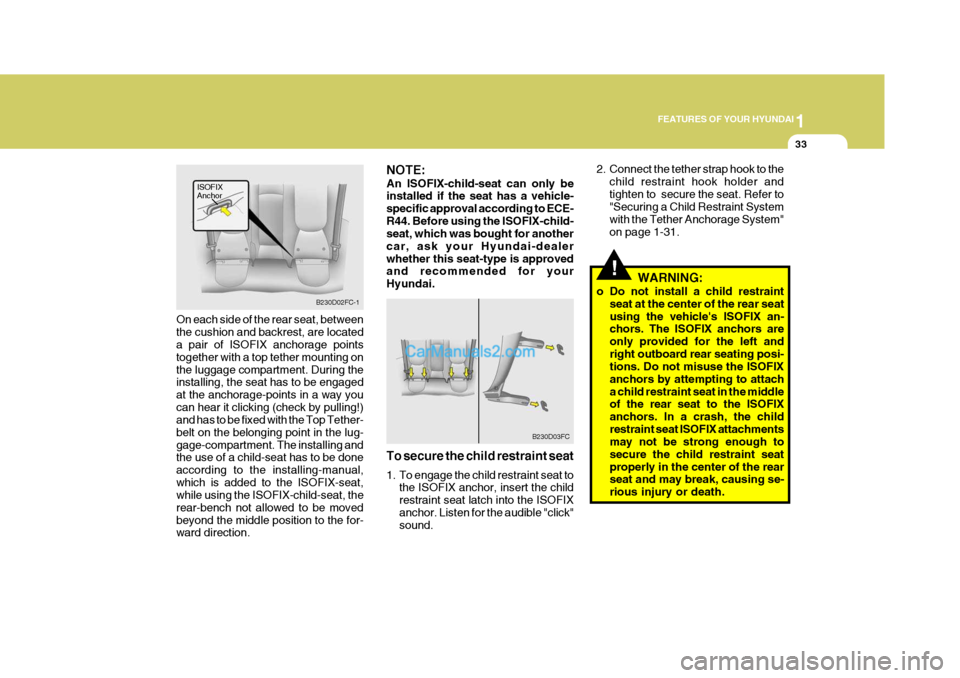

2. Connect the tether strap hook to the
child restraint hook holder and tighten to secure the seat. Refer to "Securing a Child Restraint System with the Tether Anchorage System"on page 1-31.
B230D02FC-1
B230D03FC
On each side of the rear seat, betweenthe cushion and backrest, are located a pair of ISOFIX anchorage points together with a top tether mounting onthe luggage compartment. During the installing, the seat has to be engaged at the anchorage-points in a way youcan hear it clicking (check by pulling!) and has to be fixed with the Top Tether- belt on the belonging point in the lug-gage-compartment. The installing and the use of a child-seat has to be done according to the installing-manual,which is added to the ISOFIX-seat, while using the ISOFIX-child-seat, the rear-bench not allowed to be movedbeyond the middle position to the for- ward direction. ISOFIX Anchor
!WARNING:
o Do not install a child restraint seat at the center of the rear seat using the vehicle's ISOFIX an- chors. The ISOFIX anchors are only provided for the left andright outboard rear seating posi- tions. Do not misuse the ISOFIX anchors by attempting to attacha child restraint seat in the middle of the rear seat to the ISOFIX anchors. In a crash, the childrestraint seat ISOFIX attachments may not be strong enough to secure the child restraint seatproperly in the center of the rear seat and may break, causing se- rious injury or death.
NOTE: An ISOFIX-child-seat can only be installed if the seat has a vehicle- specific approval according to ECE-R44. Before using the ISOFIX-child- seat, which was bought for another car, ask your Hyundai-dealerwhether this seat-type is approved and recommended for your Hyundai. To secure the child restraint seat
1. To engage the child restraint seat tothe ISOFIX anchor, insert the child restraint seat latch into the ISOFIXanchor. Listen for the audible "click" sound.
