Hyundai Matrix 2006 Owner's Manual

1
CONTROLS AND EQUIPMENT
51
!
B310B01FC-EAT ODOMETER/TRIP ODOMETER Function of digital odometer/ Trip odometer
Pushing in the reset switch when the ignition switch is turned "ON" will dis- play the following sequence:
B310B01FC
CAUTION:
The maximum safe engine operatingspeed is indicated by the red zone of the tachometer scale. The engine should not be operated beyond thebeginning of this zone or serious engine damage may result.
HFC2090
B310B02FC 1. Odometer The odometer records the total driving distance in miles, and is useful for keeping a record for maintenance inter-vals. NOTE: Any alteration of the odometer may void your warranty coverage.
Without Trip Computer With Trip Computer
Reset switchReset switch

1CONTROLS AND EQUIPMENT
52
2,3 Trip odometer Records the distance of 2 trips in miles. TRIP A: First distance you have traveled from your originationpoint to a first destination.
TRIP B: Second distance from thefirst destination to the finaldestination.
To shift from TRIP A to TRIP B, pressthe reset switch. When pressed for 1second, it will reset to 0.TRIP COMPUTER
B400B01FC-EAT (Not all models) The trip computer is the microcom- puter-controlled driver information gauge that displays information related to driv-ing, such as distance to empty, aver- age speed and drive time on the LCD. DISTANCE TO EMPTY
AVERAGE SPEED DRIVE TIME
B310B02FC Reset switch
o The reset switch is used to zero the
multi-functional display mode.
o Pushing in the reset switch changes the display as follows;
Reset switch

1
CONTROLS AND EQUIPMENT
53

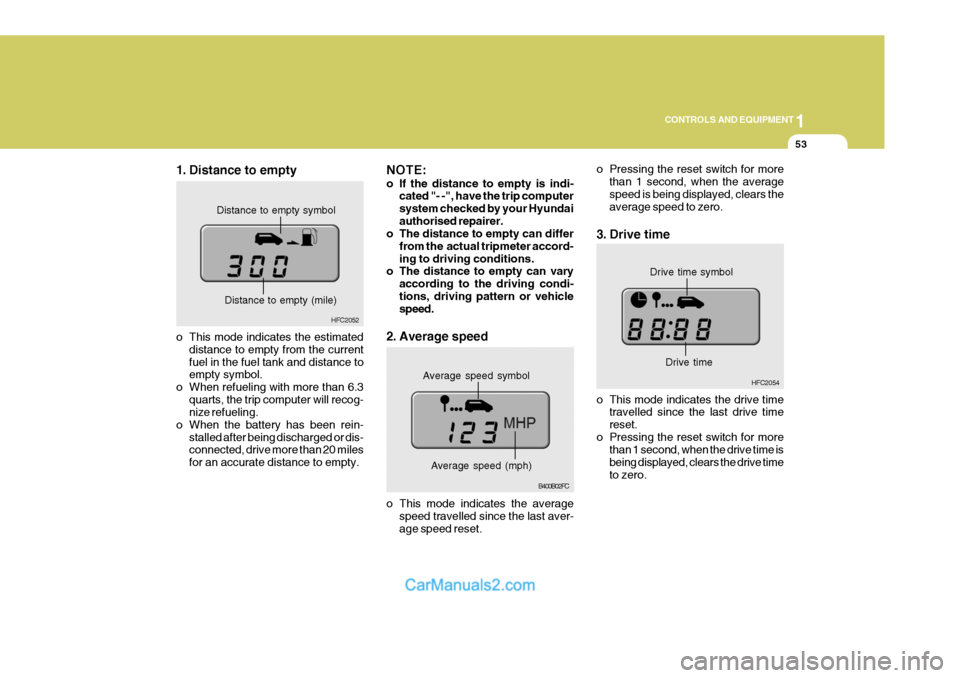

1. Distance to empty
HFC2052
o This mode indicates the estimated distance to empty from the current fuel in the fuel tank and distance to empty symbol.
o When refueling with more than 6.3 quarts, the trip computer will recog-nize refueling.
o When the battery has been rein- stalled after being discharged or dis-connected, drive more than 20 miles for an accurate distance to empty.
B400B02FC
HFC2054
NOTE:
o If the distance to empty is indi-
cated "- -", have the trip computer system checked by your Hyundaiauthorised repairer.
o The distance to empty can differ
from the actual tripmeter accord-ing to driving conditions.
o The distance to empty can vary
according to the driving condi-tions, driving pattern or vehicle speed.
2. Average speed
o This mode indicates the average speed travelled since the last aver- age speed reset. o Pressing the reset switch for more
than 1 second, when the averagespeed is being displayed, clears the average speed to zero.
3. Drive time
o This mode indicates the drive time travelled since the last drive time reset.
o Pressing the reset switch for more than 1 second, when the drive time isbeing displayed, clears the drive timeto zero.
Distance to empty symbol
Distance to empty (mile)Average speed symbol Average speed (mph)
Drive time symbol
Drive time

1CONTROLS AND EQUIPMENT
54
B340C02FC-EAT Lighting Switch The vehicle sidelights and headlights are operated by rotating the end of the turn signal switch barrel. To operate the parking lights, rotating the switch to thefirst detent with ignition switch at the"OFF" position will cause the lights toilluminate. To operate the headlights,the turn signal switch barrel should be rotated to the second detent. The head- lights will only operate when the ignitionswitch is at the "ON" position. If theignition switch is turned to the "OFF" position, only the parking lights will function. NOTE: The ignition must be in the "ON" position to turn on the headlights.MULTI-FUNCTION SWITCH
SB220A1-E Turn Signal Operation To signal an intention to turn right, the switch lever should be pressed down.To signal an intention to turn left, the switch lever should be pushed upwards. In both instances, the turn signal lightson one side of the car will flash and the warning light located in the instrument cluster will flash in sympathy. Uponcompletion of the manoeuvre, the lever will, under normal circumstances, re-
turn to the "OFF" position. However, ifthe manoeuvre involved only a small movement of the steering wheel, the signal may need to be cancelled manu-ally. If either turn signal indicator flashes more rapidly than normal or refuses to flash at all, a malfunction of the turnsignal system may exist. SB220B1-E Lane Change Signal To indicate an intention to change lanes, moving the lever slightly towards the direction of the relevant turn signal will cause the turn signal lights to flash.When the lever is released, it will return to the "OFF" position.
B340B01FC-DB340C01FC-D

1
CONTROLS AND EQUIPMENT
55
Sidelight auto cut (Not all models) If you do not turn the sidelight "OFF" after driving, the sidelight will automati-cally shut "OFF" when the driver's door is opened. To turn them "ON" again you mustsimply turn the ignition key to the "ON" position. SB220E1-E Headlight Flash
The headlights may be flashed by pull- ing the turn signal switch lever towards the steering wheel. The headlights will be extinguished when the switch isreleased.
SB220D1-E High And Low Beam To turn on the headlight high beams, push the lever forward (away from you). For low beams, pull the lever back(toward you). The appropriate headlight beam indicator light will come on at the same time.
B340E01FC-D
WINDSCREEN WIPER/ WASHER SWITCH
SB230A1-E The windscreen wiper switch, depen- dent upon model, has three operating positions.
1.Intermittent wiper operation
(Not all models)
2.Low speed operation
3.High speed operation NOTE: To prevent damage to the wiper sys- tem, do not attempt to wipe away heavy accumulations of snow or ice. Accumulated snow and ice should be removed manually. If there is onlya light layer of snow or ice, operate the heater in the defrost mode to melt the snow or ice before using the wiper.
B350A01FC-D
(1)
(2)
(3)

1CONTROLS AND EQUIPMENT
56
B350B01O-EAT Windscreen Washer Operation To use the windscreen washer, pull the wiper/washer lever toward the steering wheel. When the washer lever is oper- ated, the wipers automatically maketwo passes across the windscreen. The washer continues to operate until the lever is released.
B350B01FC-D
B350B02FC-D
NOTE:
o Do not operate the washer more
than 15 seconds at a time or when the fluid reservoir is empty.
o In icy or freezing weather, be sure the wiper blades are not frozen tothe glass prior to operating thewipers.
o In areas where water freezes in
winter, use windscreen washer an-tifreeze.
Mist Wiper Operation If a single wipe is desired to clear mist, push the windscreen wiper and washercontrol lever upwards. B350C01FC-DAT Adjustable Intermittent Wiper Operation
B350C01FC-D
To use the intermittent wiper feature, place the wiper switch in the "INT" position. With the switch in this posi- tion, the interval between wipes can bevaried from approximately 1 to 18 sec- onds by turning the interval adjuster barrel.

1
CONTROLS AND EQUIPMENT
57
B350D01FC-D
B350A01O-EAT Hatchback Door Wiper And Washer Switch
1. :The washer fluid will be
sprayed onto the rear window and the wiper operates whilst the rear window wiper barrel isplaced in this position.
2.OFF
3.INT :To use the intermittent wiper
feature, place the rear window wiper barrel in the "INT" posi- tion.
4.ON :When the point indicates "ON",
the rear window wiper oper-ates continuously. SB240A1-EThe hazard warning system should be used whenever it becomes necessaryto stop the car in a hazardous location. The hazard warning system is operated by depressing the switch at which timeall turn signal lights will flash simulta- neously and the turn signal warning lights located within the instrument clus-ter will flash simultaneously. The hazard warning system may be turned off by depressing the switchagain.
HEATED REAR WINDOW
SB250A1-E To operate the heated rear window de- press the switch shown. The heatedrear window will automatically turn off after 20 minutes or when the ignition is turned off.The system may be turned off manually by depressing the switch again.
HAZARD WARNING SYSTEM
HFC2080-DHFC2078-D

1CONTROLS AND EQUIPMENT
58
B360A01Y-GAT Rear Fog Light Switch To turn on the rear fog lights, push the switch. They will come on when the headlight switch is in the second posi- tion and the key is in the "ON" position.
B360A01FC-D
NOTE: The ignition must be in the "ON" position for the rear window defroster to operate.
!
B360B01FC-EAT Front Fog Light Switch (Not all models)
B360B01FC-D
To turn on the front fog lights, push the switch in the "ON" position. They will come on when the headlight switch is in the first or second position.
CAUTION:
The inside of the rear windscreenshould never be cleaned with a hard or sharp implement since damage to the heating element may occur. Theglass should only be cleaned with a soft cloth or chamois leather with the use only of a mild detergent or pro-prietary glass cleaner where neces- sary. Only horizontal movement of the cloth should be made when clean-ing the glass and care should be exercised to ensure that the heating elements are not damaged by ringsor jewellery whilst the glass is being cleaned. FOG LIGHT SWITCH

1
CONTROLS AND EQUIPMENT
59
B340G01FC-EAT To adjust the headlight beam level ac- cording to the number of the passen- gers and the loading weight in the lug- gage area, turn the beam leveling switch.The higher the number of the switch position, the lower the headlight beam level. Always keep the headlight beamat the proper leveling position, or head- lights may dazzle other road users. Listed below are the examples of rec-ommended switch settings. For loading conditions other than those listed be- low, adjust the switch position so thatthe beam level may be the nearest as the condition obtained according to the list.
HEADLIGHT LEVELING DEVICE
SYSTEM
Switch
PositionLoading Condition
Driver only Driver + front passengerFull passengers (including driver) Full passengers (including driver) + Maximum
permissible loading
Driver + Maximum permis-
sible loading 0 0 1 2 3
B340G01FC-D
DIGITAL CLOCK
HFC2091
B400A01A-AAT There are three control buttons for the digital clock. Their functions are: HOUR
- Push "H" to advance the hour
indicated. MIN - Push "M" to advance the minute
indicated. RESET - Push "R" to reset minutes to
":00" to facilitate resetting the clock tothe correct time. When this is done: Pressing "R" between 10 : 30 and 11 : 29 changes the readout to 11 : 00.Pressing "R" between 11 : 30 and 12 : 29 changes the readout to 12 : 00.

1CONTROLS AND EQUIPMENT
60POWER OUTLETCIGAR LIGHTER
SB290A02-F For the cigar lighter to work, the key must be in the "ACC" or the "ON"position. To use the cigar lighter, push the lighter all the way into its socket. When theelement is heated, the lighter will pop out into the "ready" position. Do not hold the cigar lighter at thedepressed position which may result in damage to the vehicle wiring or an electrical fire.If it is necessary to replace the ciga- rette lighter, use only a genuine Hyundai replacement part.
B420A01FC-D
! CAUTION:
Do not use electric accessories or equipment other than the Hyundai genuine parts in the socket. B500D08O-EAT (Not all models) These supply 12V electric power to operate electric accessories or equip- ment only when the key is in the "ON"or "ACC" position.
HFC2042-D
