CONTROLS AND EQUIPMENT
91
B980F02E-EAT Defrost Switch When the "Defrost" button is pressed, the " " mode will be automatically selected and the air will be dischargedthrough the windshield defroster nozzle, side defroster nozzle and side ventila- tor. To assist in defrosting, the airconditioning will operate if ambient tem- perature is higher than 38.3°F (3.5°C) and automatically turns off if the ambi-ent temperature drops below 38.3°F (3.5°C). HFC241
Floor-Defrost Level
When selecting the "Floor-Defrost Level"mode, the indicator light will come on and the air will be discharged throughthe windscreen defroster nozzle, the floor vents, side defroster nozzle and side ventilator.
HFC234-DHFC233-D
Floor-Level
When selecting the "Floor-Level", the indicator light will come on and the air will be discharged through the floorvents, windscreen defroster nozzle, side defroster nozzle and side ventila- tor.

1CONTROLS AND EQUIPMENT
92POLLEN FILTER (IN FRONT OF BLOWER UNIT)
B760A04FC-EAT
!
The pollen filter is located in front of the blower unit behind the glove box. It operates to decrease pollutants en- tering the car and to filter the air.To replace the pollen filter, refer to page 6-26. CAUTION:
o Replace the filter every 10,000 miles or once a year. If the car is being driven in severe conditionssuch as dusty, rough roads, more frequent air filter inspections and changes are required.
o When the air flow rate is suddenly decreased, it must be checked atan Hyundai authorised repairer.
B760A01E
Evaporator core Filter
Heater core
Outside air
Inside air Inside air
Blower fan
B750A02A-AAT How Car Audio Works AM and FM radio signals are broadcast from transmitter towers located around your city. They are intercepted by theradio antenna on your car. This signal is then received by the radio and sent to your car speakers.When a strong radio signal has reached your vehicle, the precise engineering of your audio system ensures high qualityreproduction. However, in some cases the signal coming to your vehicle is not strong and clear. This can be dueto factors such as the distance from the radio station, closeness of other strong radio stations or the presence of build-ings, bridges and other large obstruc- tions in the area.STEREO SOUND SYSTEM
Ionosphere
FM reception
B750A01L

1
CONTROLS AND EQUIPMENT
93
o Fading - As your car moves away from the radio station, the signal will weaken and sound will begin to fade. When this occurs, we suggest that you select another stronger station.
o Flutter/Static - Weak FM signals or large obstructions between the trans-mitter and your radio can disturb thesignal causing static or fluttering noises to occur. Reducing the treble level may lessen this effect until thedisturbance clears.
AM broadcasts can be received atgreater distances than FM broadcasts. This is because AM radio waves are transmitted at low frequency. Theselong, low frequency radio waves can follow the curvature of the earth rather than travelling straight out into the at-mosphere. In addition, they curve around obstructions so that they can provide better signal coverage.
FM broadcasts are transmitted at highfrequency and do not bend to follow the earth's surface. Because of this, FM broadcasts generally begin to fade at short distances from the station. Also, FM signals are easily affected by build-ings, mountains, or other obstructions. These can result in certain listening conditions which might lead you tobelieve a problem exists with your ra- dio. The following conditions are normal and do not indicate radio trouble:
AM reception
Ionosphere
B750A02L Mountains
Buildings Unobstructed
area
FM radio station
B750A03L
Obstructed area Iron bridgesB750A04L

1CONTROLS AND EQUIPMENT
94
o Station Swapping - As a FM signalweakens, another more powerful sig- nal near the same frequency may begin to play. This is because your radio is designed to lock onto the clearest signal. If this occurs, selectanother station with a stronger sig- nal.
o Multi-Path Cancellation - Radio sig- nals being received from several di-rections can cause distortion or flut- tering. This can be caused by adirect and a reflected signal from the same station, or by signals from two stations with close frequencies. Ifthis occurs, select another station until the condition has passed. B750B02Y-AAT Using a cellular phone or a two- way radio When a cellular phone is used inside the vehicle, noise may be produced from the audio equipment. This doesnot mean that something is wrong with the audio equipment. In such a case, use the cellular phone at a place as faras possible from the audio equipment.
!
CAUTION:
When using a communication sys- tem such as a mobile phone or aradio inside the vehicle, a separate external antenna must be fitted. When a mobile phone or a radio set isused with an internal antenna alone, it may interfere with the vehicle's electrical system and adversely affectsafe operation of the vehicle.
!WARNING:
Don't use a mobile phone when you are driving, you must stop at a safe place to use a mobile phone.
B750A05L

1
CONTROLS AND EQUIPMENT
95
!
CAUTION:
o Be sure to remove the antenna before washing the car in an auto- matic car wash or it may be dam- aged.
o Before entering a place with a low height clearance, be sure to adjustthe roof antenna low.
o When reinstalling your antenna, it is important that it is fully tight-ened to ensure proper reception.

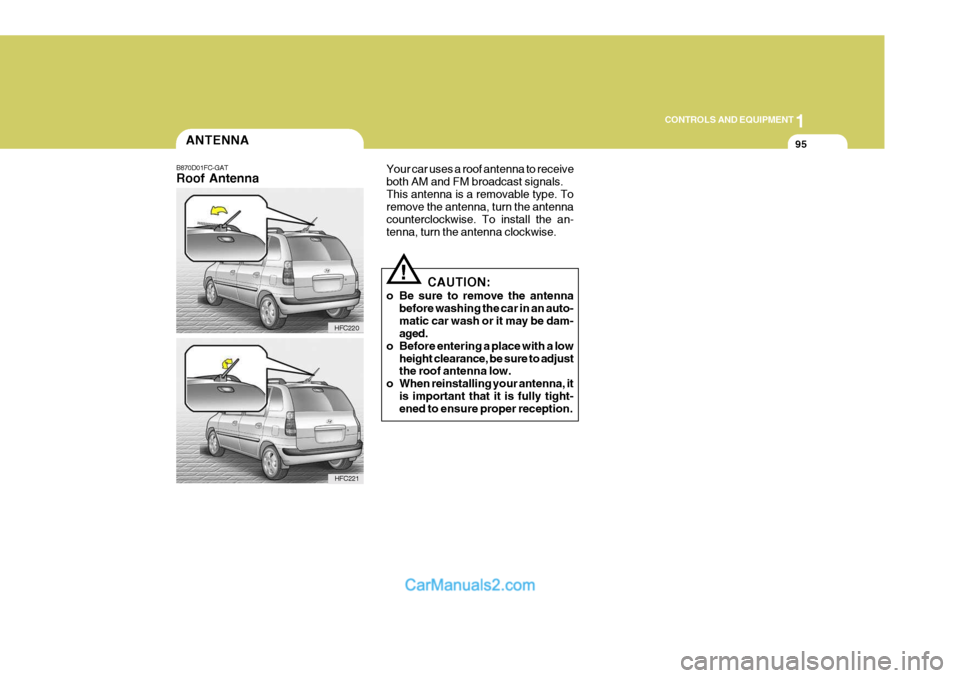

ANTENNA
B870D01FC-GAT Roof Antenna
HFC220 Your car uses a roof antenna to receive both AM and FM broadcast signals.This antenna is a removable type. To remove the antenna, turn the antenna counterclockwise. To install the an-tenna, turn the antenna clockwise.
HFC221

2
Before Starting the Engine ........................................... 2-3
Key Positions ................................................................ 2-4Starting......................................................................... 2-5
Manual Transaxle ......................................................... 2-8Automatic Transaxle .................................................... 2-10
Anti-Lock Brake System (ABS) ................................... 2-14
Brake Traction Control System (BTCS) ...................... 2-14
Electronic Stability Program (ESP) ..............................2-16
Driving for Economy .................................................... 2-18
Smooth Cornering ........................................................ 2-19
Winter Motoring ............................................................ 2-19
Trailer and Caravan Towing .......... ..............................2-21
DRIVING YOUR HYUNDAI
2

2 DRIVING YOUR HYUNDAI
2
SC020A1-E
WARNING: ENGINE EXHAUST CAN BE DANGEROUS!
Engine exhaust gases are potentially lethal. If at any time engine exhaust gas is detected within the passenger compartment, move the vehicle to an open area and open all windows. o Never inhale exhaust gas Exhaust gases contain Carbon Monoxide which is colourless and odourless. Carbon Monoxide is poisonous andcan cause unconsciousness and death by asphyxiation. o Exhaust System Maintenance Ensure that the exhaust system is maintained in good condition and is free from excessive corrosion and damage which may result in leakage. If the vehicle is driven over an object which strikes the exhaust system, ensure that the exhaust system is inspected at the first available opportunity to ensure that no leakage exists. o Confined Areas Do not run the engine in confined spaces, allowing the engine to idle in a garage, even when the doors are open is dangerous practice. Only start the engine immediately prior to moving the vehicle out of the garage. o Prolonged Idling If it is necessary to allow the vehicle to idle for prolonged periods, ensure that the heating system air intake controlis set to the "Fresh" position, the blower is set to high speed operation and that the vehicle is standing in an open area. o Load Carrying If it is necessary to carry long objects which do not permit the boot lid to be fully closed, the side windows must remain closed and the heating air intake control set to the "Fresh" position with the blower running at the highest speed setting. To ensure correct operation of the heater system, the air intake grilles at the base of the windscreen must not be obstructed by snow leaves etc..
!

2
DRIVING YOUR HYUNDAI
3
!
TO START THE ENGINEBEFORE STARTING THE ENGINE
C020A01O-EAT Before you start the engine, you should always:
1. Look around the vehicle to be sure
there are no flat tyres, puddles of oil or water or other indications of pos- sible trouble.
2. After entering the car check to be
sure the parking brake is engaged.
3. Check that all windows, and lights
are clean.
4. Check that the interior and exterior mirrors are clean and in position.
5. Check your seat, seatback and headrestraint to be sure they are intheir proper positions.
6. Close all doors.
7. Fasten your seat belt and be sure that all other occupants have fas-tened theirs.
8. Turn off all lights and accessories that are not needed. SC040A1-F COMBINATION IGNITION SWITCH AND STEERING LOCK
o If your Hyundai is equipped with a
manual transaxle, place the shift lever in neutral and depress the clutch pedal fully.
o If your Hyundai has an automatic
transaxle, place the shift lever in "P"(park).
o To start the engine, insert the ignition key and turn it to the "START" posi-tion. Release it as soon as the en- gine starts. Do not hold the key in the"START" position for more that 15 seconds.
NOTE: For safety, the engine will not start if the shift lever is not in "P" or "N" Position (automatic transaxle).
9. When you turn the ignition switch to
"ON" check that all appropriate warn- ing lights are operating and that you have sufficient fuel.
10.Check the operation of warning lights
and all bulbs when key is in the "ON"position.
WARNING (DIESEL ENGINE):
To ensure that sufficient vacuum ex- ists within the brake system during cold weather start-up conditions, it is necessary to run the engine at idle for several seconds after starting theengine.

2 DRIVING YOUR HYUNDAI
4
!
KEY POSITIONS
SB050B1-E STEERING WHEEL LOCK When the key is removed, the steering column lock will be activated and willengage when the steering wheel is turned to the appropriate position. It is not necessary to turn the wheel until lockedeach time the key is removed since in the event of any unauthorised attempt at removal, the lock will become effec-tive as soon as the steering wheel is turned. To unlock the steering, insert the key and turn to the "ACC" position.If the steering is locked, it may be necessary to rock the steering wheel slightly to facilitate turning the key.Under no circumstances should the key be forced since breakage of the key will occur.
NOTE: Do not hold the key in the "START" position for more than 15 seconds.
o "ON" When the key is at the "ON" position, the ignition and all accessories are available for use. If the engine is not running, the keyshould not be left at this position since the battery will become discharged and damage to the ignition system mayalso result. For information regarding engine starting, refer to "STARTING THE ENGINE".
o "ACC" When the ignition key is at the "ACC" position, the radio and other accesso- ries may be used.
o "LOCK" The ignition key may only be inserted or removed at this position.
SC050A2-E
C040A01E
LOCK
ACC
ON
START
WARNING:
The engine must never be turned offand the key removed from the igni- tion key cylinder whilst the vehicle is in motion since the steering lock willoperate and control of the vehicle will be lost.
o "START" The engine is started in this position. It will crank until you release the key.

2
DRIVING YOUR HYUNDAI
5STARTING
SC060A1-E Starting The Petrol Engine
C050A01E
1. Ensure that the transaxle is in neu- tral and that the clutch pedal is held depressed (manual transaxle) or the transaxle selector is at the "P" posi-tion (automatic transaxle vehicle).
2. Turn the ignition key to and hold at
the "Start" position until the enginestarts. When the engine has started, release the key. NOTE: Do not operate the starter for more than 15 seconds continuously or continue to operate the starter afterthe engine has started to avoid dam- aging the starter motor. If the engine makes a false start, allow it and thestarter motor to come to rest before attempting to start the engine again. Never attempt to start the engine withthe transaxle in gear. Do not depress the accelerator pedal whilst starting the engine. Allow theengine to idle for 20 seconds or so before driving the vehicle.
CAUTION:
Do not leave the vehicle unattended whilst idling. Never allow the vehicleto idle or warm up in a confined space (ie garage) longer than is nec- essary to move the vehicle into anopen area.
!
SC090D1-F To Remove the Ignition Key
C070C01E
1. Turn the ignition key to the "ACC" position.
2. Simultaneously push and turn the
ignition key counterclockwise from the "ACC" position to the "LOCK" position.
3. The key can be removed in the
"LOCK" position.LOCK
ACC
ON
START
