CONTROLS AND EQUIPMENT
81
HFC2111
B700A01S-AAT Your Hyundai is equipped with bi-level heating controls. This makes it pos- sible to have cooler air from the dash- board vents and warmer air from thefloor outlets at the same time. To use this feature:
o Set the air intake control to "Fresh"
mode (
).
o Set the air flow control at the "Bi- Level" position.
o Adjust the fan speed control to the
desired speed.
o Set the temperature control between "Cool" and "Warm". B720A02FC-EAT
HFC2107
BI-LEVEL HEATING
DEFROSTING/DEFOGGING
Use the heating/ventilation system to defrost or defog the windscreen: To remove interior fog on the windscreen;
o Set the air flow control to the defrost (
) position. (The A/C will turn on
automatically and "Fresh" mode will be activated.)
o Set the temperature control to the desired position.
o Set the fan speed control between "1" and "4" position.
VENTILATION
B710A01S-AAT To operate the ventilation system:
o Set the air intake control to "Fresh" mode ( ).
o To direct all intake air to the dash- board vents, set the airflow control to "Face" ( ).
o Adjust the fan speed control to the desired speed.
o Set the temperature control between "Cool" and "Warm". B710A01FC

1CONTROLS AND EQUIPMENT
82
B730A01L-EAT Operation Tips
o To keep dust or unpleasant fumesfrom entering the car through the ventilation system, temporarily set the air intake control at "Recircula- tion". Be sure to return the control to"Fresh" when the irritation has passed to keep fresh air in the ve- hicle. This will help keep the driveralert and comfortable.
o Air for the heating/cooling system is
drawn in through the grilles just aheadof the windscreen. Care should be taken that these are not blocked by leaves, snow, ice or other obstruc-tions.
o To prevent interior fog on the
windscreen, set the air intake controlto the fresh air ( ) position, and fan speed to the desired position, turn on the air conditioning system,and adjust temperature control to desired temperature.AIR CONDITIONING SYSTEM
B740A01S-EAT Air Conditioning Switch (Not all models)
HFC2069
To remove the frost or exterior fog on the windscreen;
o Set the air flow control to the defrost (
) position. (The A/C will turn on
automatically and "Fresh" mode will be activated.)
o Set the temperature control to warm.
o Set the fan speed control to position
"3" or "4".
NOTE: When the A/C is operated continu- ously on the floor-defrost level (
) or
defrost level (
), it may cause fog to
form on the exterior windscreen. If this occurs, set the air flow control tothe face level position (
)and fan
speed control to the low position. HFC2108
The air conditioning is turned on or off by pushing the A/C button on the heat- ing/air conditioning control panel.

1
CONTROLS AND EQUIPMENT
83

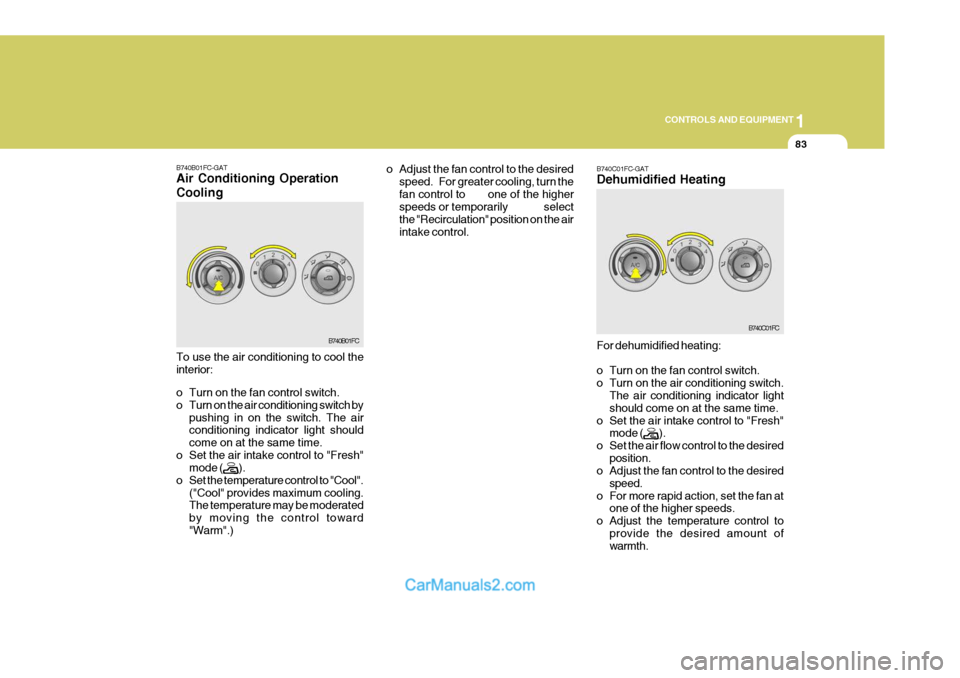

B740B01FC-GAT Air Conditioning Operation Cooling
B740B01FC
To use the air conditioning to cool the interior:
o Turn on the fan control switch.
o Turn on the air conditioning switch by pushing in on the switch. The air conditioning indicator light should come on at the same time.
o Set the air intake control to "Fresh" mode (
).
o Set the temperature control to "Cool". ("Cool" provides maximum cooling. The temperature may be moderated by moving the control toward"Warm".) o Adjust the fan control to the desired
speed. For greater cooling, turn thefan control to one of the higher speeds or temporarily select the "Recirculation" position on the airintake control. B740C01FC-GAT Dehumidified Heating
B740C01FC
For dehumidified heating:
o Turn on the fan control switch.
o Turn on the air conditioning switch. The air conditioning indicator lightshould come on at the same time.
o Set the air intake control to "Fresh" mode (
).
o Set the air flow control to the desired
position.
o Adjust the fan control to the desired
speed.
o For more rapid action, set the fan at one of the higher speeds.
o Adjust the temperature control to
provide the desired amount of warmth.

1CONTROLS AND EQUIPMENT
84
B740D01A-AAT Operation Tips
o If the interior of the car is hot whenyou first get in, open the windows for a few minutes to expel the hot air.
o When you are using the air condition-
ing system, keep all windows closedto keep hot air out.
o When moving slowly, as in heavy
traffic, shift to a lower gear. Thisincreases engine speed, which in turn increases the speed of the air conditioning compressor.
o On steep grades, turn the air condi- tioning off to avoid the possibility ofthe engine over-heating.
o During winter months or in periods when the air conditioning is not usedregularly, run the air conditioning onceevery month for a few minutes. This will help circulate the lubricants and keep your system in peak operatingcondition.

1
CONTROLS AND EQUIPMENT
85AUTOMATIC HEATING AND COOLING CONTROL SYSTEM
B970A01FC-EAT (Not aII models) Your Hyundai is equipped with an auto- matic heating and cooling control sys-tem controlled by simply setting the desired temperature. B970B01FC-EAT Heating and Cooling Controls
1. Temperature Control
2. Display Window
3. Blower Fan Control
4. AUTO (Automatic Control) Switch
5. Air Flow Control Switch
6. Air Conditioning Switch
7. Air Intake Control Switch
8. Air Quality System Switch (Not all models)
9. Defroster Switch
10. OFF Switch TYPE B (With Air Quality System)
HFC224-3 HFC224-2
TYPE A (Without Air Quality System)

1CONTROLS AND EQUIPMENT
86
B970C01NF-EAT Automatic Operation The FATC (Full Automatic Tempera- ture Control) system automatically con- trols the heating and cooling by doing as follows:
1. Push the "AUTO" switch. The indi-
cator light will illuminate confirming that the Face, Floor and/or Bi-Level modes as well as the blower speed and air conditioner will be controlledautomatically. 2. Turn the "TEMP" knob to set the
desired temperature.The temperature will increase to the maximum 90°F(32°C) by turning the knob clockwise.The temperature will decrease to the minimum 62°F(17°C) by turning the knob counterclockwise.
NOTE:
o If the battery has been discharged or disconnected, the temperature mode will reset to Centigrade de- gree. This is a normal condition andyou can adjust the temperature mode from Centigrade to Fahren- heit as follows; Press the "OFF" and "AUTO" but-ton simultaneously for 3 seconds.The display shows that the unit of temperature is adjusted to Centi- grade or Fahrenheit.(°C


°F or °F


°C)
HFC227 HFC229
B970C01FC-D
Photo Sensor
o Never place anything covering the photo sensor which is located inthe car on the instrument panel toensure better control of the heat- ing and cooling system.

1
CONTROLS AND EQUIPMENT
87
B980B01NF-AAT Fan Speed Control Switch The fan speed can be set to the desired speed by turning the appropriate fan speed control knob. The higher the fan speed is, the more air is delivered.Pressing the "OFF" button turns off the fan. B670C02Y-EAT Air Intake Control Switch (Without A.Q.S) This is used to select fresh outside air or recirculation inside air. To change the air intake control mode,(Fresh mode, Recirculation mode) push the control button. FRESH MODE
( ) : The indicator
light on the button comes on when the air intake control is fresh mode. RECIRCULATION MODE ( ) : T h e
indicator light on the button is illumi- nated when the air intake control is recirculation mode. HFC240
HFC225
B980A01Y-AAT MANUAL OPERATION The heating and cooling system can be controlled manually as well as by push- ing buttons other than the "AUTO" but-ton. In this state, the system sequen- tially works according to the order of buttons selected.The function of the buttons which are not selected will be controlled automati- cally.Press the "AUTO" button in order to convert to automatic control of the sys- tem.

1CONTROLS AND EQUIPMENT
88
B980C04Y-EAT Air Intake Control Switch (With A.Q.S) (Not all models) This is used to select fresh outside air or recirculate inside air automatically.
: OFF
:ONFresh mode :
Air enters the vehicle from the outside and is heated or cooled according to the function selected.
HFC240-1
With the "Fresh" mode selected, air enters the vehicle from the outside andis heated or cooled according to the function selected. With the "Recirculation" mode selected, and air from within the passenger com- partment will be drawn through the heat-ing system and heated or cooled ac- cording to the function selected. NOTE:
o It should be noted that prolonged
operation of the heating system in "recirculation" mode will give rise to fogging of the windscreen andside windows and the air within the passenger compartment will become stale. In addition, pro-longed use of the air conditioning with the "Recirculation" mode se- lected may result in the air withinthe passenger compartment be- coming excessively dry. o When the ignition switch is turned
"ON" the air intake control will change to " " mode (regardless of switch position). This is normal operation. The air intake controloperates in "AUTO" mode when turning the ignition to the ON po- sition if the "AUTO" mode wasused before shutting off the en- gine.

1
CONTROLS AND EQUIPMENT
89
!
CAUTION:
If the windows fog up with the Recir- culation or A.Q.S mode selected, set the air intake control to the Fresh airposition or A.Q.S control to "OFF". B980D01Y-AAT Heating and Cooling System Off
Recirculation mode :
Air from within the passenger compart- ment will be drawn through the heating system and heated or cooled accordingto the function selected.
Exhaust gas cutoff mode :
Air enters the vehicle from the outside.But if exhaust gas enters the vehiclefrom the outside, the exhaust gas cut- off mode ( ) is automatically conv- erted to the ( ) mode, to preventexhaust gas from entering the vehicle. NOTE: It should be noted that prolonged operation of the heating system inrecirculation mode ( ) will give rise to misting of the windscreen and side windows and the air within thepassenger compartment will become stale. In addition, prolonged use of the air conditioning with the recircu-lation mode ( ) selected may result in the air within the passenger compartment becoming excessivelydry.
Press the "OFF" button to stop the operation of the heating and cooling system. HFC239

1CONTROLS AND EQUIPMENT
90
B980E01FC-EAT Air Flow Control This is used to direct the flow of air. Air can be directed to the floor, dashboard outlets, or windscreen. Four symbolsare used to represent Face, Bi-Level, Floor and Floor-Defrost position. Face-Level
When selecting the "Face-Level", theindicator light will come on, causing air to be discharged through the face levelvents.
HFC230 HFC231-D
Bi-Level
When selecting the "Bi-Level", the indi- cator light will come on and the air will be discharged through the face ventsand the floor vents. This makes it pos- sible to have cooler air from the dash- board vents and warmer air from thefloor outlets at the same time. HFC232-D
