Hyundai Santa Fe 2009 - RHD (UK, Australia) Manual Online

1FEATURES OF YOUR HYUNDAI
70
These supply 12V electric power to operate electric accessories or equip-ment only when the key is in the "ON" or "ACC" position.
OCM052123CAUTION:
o Only use the power outlet when the engine is running. The use of this outlet with the engine not running may cause the battery tobe discharged.
o Do not use the power outlet to
connect electric accessories orequipment other than those de- signed to operate on 12 volts.
o Some electronic devices can cause
electronic interference whenplugged into the power outlet. These devices may cause exces-sive audio noise and malfunctions in other electronic systems or de- vices used in your vehicle.
!
POWER OUTLET
B500D01CM-DAT (If installed)
OCM052121R
OCM052122L
CM-aust-1a.p65 5/21/2008, 2:08 PM
70

1
FEATURES OF YOUR HYUNDAI
71
B430A01E-AAT Front Ashtray
The front ashtray may be opened by pushing and releasing the ashtray lid.To remove the ashtray to empty or clean it, lift the ashtray upward and pull it out. The ashtray light will only illumi-nate when the external lights are on (if installed). ASHTRAY
OCM052127R
B450A02O-AAT Front Drink Holder
The drink holder is located on the main console for holding cups or cans. DRINK HOLDER
OCM052131
B440A01CM-GAT Rear Ashtray (If installed) The rear ashtray may be opened by pulling it out by its top edge. To removethe ashtray to empty or clean it, grasp the both side of the ashtray and pull it out.OCM052142L
CM-aust-1a.p65
5/21/2008, 2:08 PM
71

1FEATURES OF YOUR HYUNDAI
72
!WARNING:
o Use caution when using the drink holders. A spilled beverage that is very hot can injure you or yourpassengers. Spilled liquids can damage interior trim and electri- cal components.
o Do not place objects other than cups or cans in the drink holder.These objects can be thrown outin the event of a sudden stop or an accident, possibly injuring the pas- sengers in the vehicle.
SEATBACK POCKET
B540B01E-GAT (If Installed) The seatback pockets are located on the backside of the front seats for holding papers.
! CAUTION:
Place the drink holder in its closed position while not in use. OCM052132
B450B01NF-DAT Rear Drink Holder The rear drink holder for holding cups or cans is located in the centre of the rearseat armrest.
OFD037040
CM-aust-1a.p65
5/21/2008, 2:08 PM
72

1
FEATURES OF YOUR HYUNDAI
73
!
SUNROOF
B460A02Y-AAT (If Installed) Sun Shade
OCM051023L
Your HYUNDAI is equipped with a slid- ing sunshade which you can manuallyadjust to let in light with the sunroof closed, or to block sunlight.
WARNING:
Never adjust the sunshade while driv-ing. This could result in loss of con- trol and an accident that may causedeath, serious injury, or property damage. Auto slide open To use the auto slide feature, momen- tarily (more than 1 second) press theOPEN button on the overhead console. The sunroof will slide all the way open. To stop the sunroof sliding at any point,press any sunroof control button. Manual slide open Press the OPEN button on the over- head console for less than 0.5 second. Auto slide close To close the sunroof, press the CLOSE button on the overhead console formore than 1 second. The sunroof will slide all the way close. To stop at the desired point, press anysunroof control button.
B460B01CM-GAT Opening the Sunroof System If your vehicle is equipped with this feature, you can slide or tilt your sunroofwith the sunroof control buttons located on the overhead console. The sunroof can only be opened, closed,or tilted when the ignition switch is in the "ON" position.
OCM051024L
CM-aust-1a.p65
5/21/2008, 2:08 PM
73

1FEATURES OF YOUR HYUNDAI
74
!
Close To close the sunroof, press the CLOSE button on the overhead console andhold it until the sunroof is closed. NOTE: After washing the car or after there is rain, be sure to wipe off any water that is on the sunroof before operat- ing it.
WARNING:
o Do not close a sunroof if anyone's hands, arms or body are between the sliding glass and the sunroof sash, as this could result in injury.
o Do not place your head or arms out of the sunroof opening at anytime.
o While the vehicle is moving, al- ways keep the head, hands andother parts of the body of all occu-pants away from the roof opening. Otherwise, you could be seriously injured if the vehicle stops sud-denly or if the vehicle is involved in an accident.B460C01CM-GAT Tilting the Sunroof System
Auto tilt open To use the autotilt feature, momentarily (more than 1 second) press the TILT UP button on the overhead console.The sunroof will tilt all the way open. To stop the sunroof tilting at any point, press any sunroof control button. Manual tilt open Press the TILT UP button on the over- head console for less than 0.5 second. OCM051025L
Manual slide close Press the CLOSE button on the over- head console for less than 0.5 second.
!WARNING:
Be careful that someone’s head, hands and body are not trapped by a closing sunroof.
Auto reverse If an object or part of the body is detected while the sunroof is closing automatically, it will reverse direction, and then stop. Auto reverse function does not work if a tiny obstacle is blocked between the sliding glass and the sunroof sash. You should always check that all passen- gers and objects are away from the sunroof before closing it.
CM-aust-1a.p65
5/21/2008, 2:08 PM
74

1
FEATURES OF YOUR HYUNDAI
75
!
CAUTION:
o Do not open the sunroof in se- verely cold temperature or when it is covered with ice or snow.
o Periodically remove any dirt that may have accumulated on theguide rails.
o Do not press any sunroof control button longer than necessary.Damage to the motor or system components could occur.!
B460E01CM-GAT Resetting the sunroof Whenever the vehicle battery is discon- nected or discharged, you have to resetyour sunroof system as follows:
1. Turn the ignition key to the "ON"
position.
2. Press the TILT UP button for more
than 1 second to tilt up the sunroof completely when the sunroof is fully closed. Then, release the button.
3. Press and hold the TILT UP button
once again until the sunroof hasreturned to the original position of TILT UP after it is raised a little higher than the maximum TILT UP position. Then, release the button.
4. Press and hold the TILT UP button within 5 seconds until the sunroof isoperated as follows; TILT DOWN SLIDE OPEN
SLIDE CLOSEThen, release the button. CAUTION:
If the sunroof is not reset, it may not operate properly.
CM-aust-1a.p65 5/21/2008, 2:08 PM
75

1FEATURES OF YOUR HYUNDAI
76

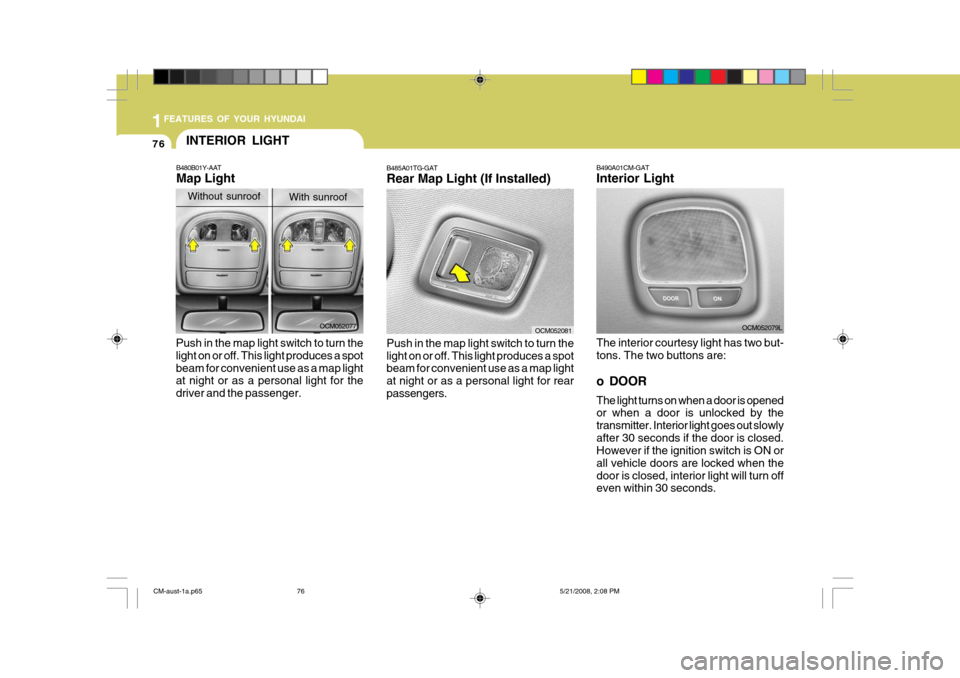

B485A01TG-GAT Rear Map Light (If Installed) Push in the map light switch to turn the light on or off. This light produces a spot beam for convenient use as a map light at night or as a personal light for rearpassengers. OCM052081B490A01CM-GAT Interior Light The interior courtesy light has two but- tons. The two buttons are: o DOOR The light turns on when a door is opened or when a door is unlocked by the transmitter. Interior light goes out slowlyafter 30 seconds if the door is closed. However if the ignition switch is ON or all vehicle doors are locked when thedoor is closed, interior light will turn off even within 30 seconds.OCM052079L
INTERIOR LIGHT
B480B01Y-AAT Map Light
Push in the map light switch to turn the light on or off. This light produces a spotbeam for convenient use as a map light at night or as a personal light for the driver and the passenger. OCM052077
Without sunroof
With sunroof
CM-aust-1a.p65 5/21/2008, 2:08 PM
76

1
FEATURES OF YOUR HYUNDAI
77
o ON In the "ON" position, the light stays on at all times.
CAUTION:
Do not leave this button pressed for an extended period of time when the vehicle is not running.
!
SPECTACLE CASE
B491A03O-GAT The spectacle case is located on the front overhead console. Push the end of the cover to open thespectacle case.
!WARNING:
o Do not keep objects such as sharp or unsuitable things inside the spec- tacle case. Such objects can be thrown out in the event of a sudden stop or an accident, possibly injur-ing the passengers in the vehicle.
o Do not open the spectacle case while
the vehicle is moving. The rear viewmirror of the vehicle can be blocked by an open spectacle case.
OCM052130
B540C01JM-GAT Luggage Compartment Light (If Installed) Luggage compartment light has a 3- position switch. The three positionsare:
o In the "DOOR" position, the luggagecompartment light comes on when the tail gate is opened, then goes out when it is closed.
o In the "ON" position, the light stays on at all times.
o In the "OFF" position, the light stays off at all times.
OCM052078L
CM-aust-1a.p65 5/21/2008, 2:08 PM
77

1FEATURES OF YOUR HYUNDAI
78
!

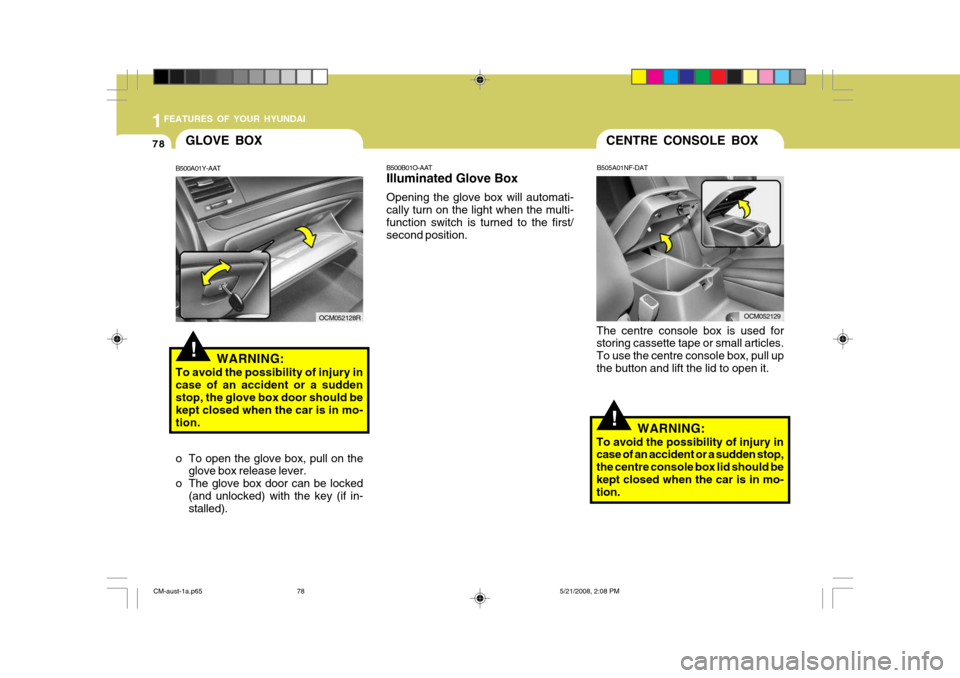

GLOVE BOX
B500A01Y-AAT
WARNING:
To avoid the possibility of injury in case of an accident or a suddenstop, the glove box door should be kept closed when the car is in mo- tion.
o To open the glove box, pull on the glove box release lever.
o The glove box door can be locked (and unlocked) with the key (if in- stalled).
OCM052128R B500B01O-AAT Illuminated Glove Box Opening the glove box will automati- cally turn on the light when the multi-function switch is turned to the first/ second position.
!
B505A01NF-DAT
The centre console box is used for storing cassette tape or small articles. To use the centre console box, pull upthe button and lift the lid to open it. WARNING:
To avoid the possibility of injury in case of an accident or a sudden stop, the centre console box lid should bekept closed when the car is in mo- tion. OCM052129
CENTRE CONSOLE BOX
CM-aust-1a.p65
5/21/2008, 2:08 PM
78

1
FEATURES OF YOUR HYUNDAI
79
!WARNING:
o Do not store cigarette lighters, propane cylinders, or other flam- mable/explosive materials in the vehicle. These items may catch fire and/or explode if the vehicle isexposed to hot temperatures for extended periods.
o To avoid the possibility of injury in case of an accident or a suddenstop, the centre facia upper tray lid should be kept closed when thecar is in motion.
OCM052053R

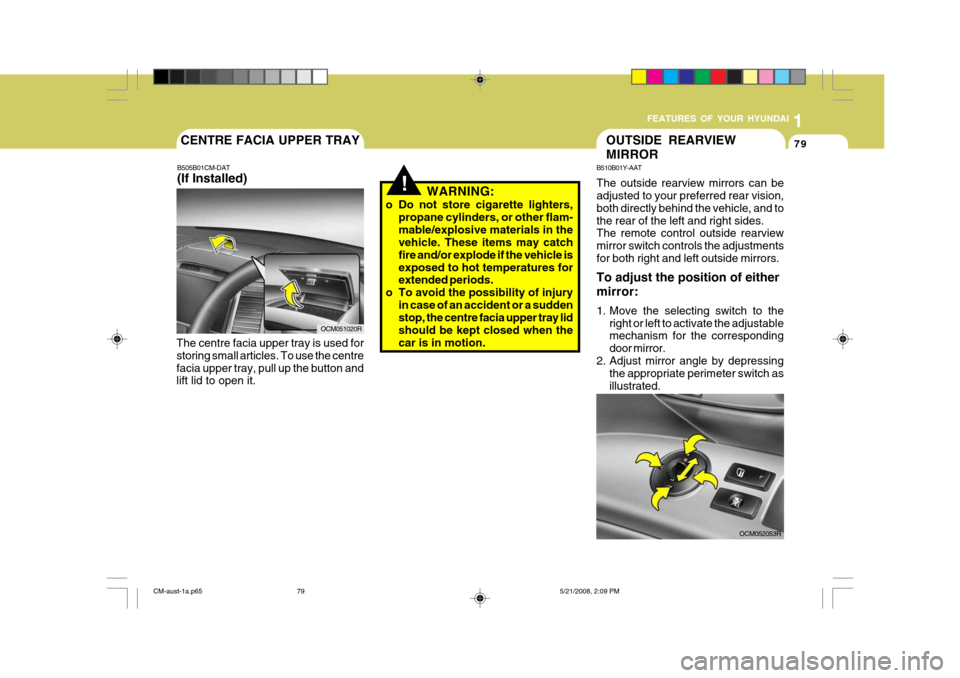

OUTSIDE REARVIEW MIRROR
B510B01Y-AAT The outside rearview mirrors can be adjusted to your preferred rear vision, both directly behind the vehicle, and tothe rear of the left and right sides. The remote control outside rearview mirror switch controls the adjustmentsfor both right and left outside mirrors. To adjust the position of either mirror:
1. Move the selecting switch to the
right or left to activate the adjustable mechanism for the corresponding door mirror.
2. Adjust mirror angle by depressing the appropriate perimeter switch asillustrated.CENTRE FACIA UPPER TRAY
B505B01CM-DAT (If Installed)
The centre facia upper tray is used for storing small articles. To use the centrefacia upper tray, pull up the button and lift lid to open it.
OCM051020R
CM-aust-1a.p65 5/21/2008, 2:09 PM
79
