1FEATURES OF YOUR HYUNDAI
90
!
BONNET RELEASE
B570A01HP-DAT
1. Pull the release knob to unlatch the bonnet.
2. Push the secondary latch lever side- ways and lift the bonnet.
3. Raise the bonnet by hand.
OCM052018R
OCM052019 When closing the bonnet, slowly close the bonnet and make sure it locks intoplace.
WARNING:
o Always double check to be sure that the bonnet is firmly latchedbefore driving away. If it is not latched, the bonnet could open while the vehicle is being driven,causing a total loss of visibility, which might result in an accident.
o Do not move the vehicle with the
bonnet in the raised position, asvision is obstructed and the bon- net could fall or be damaged.
OCM051026L
SUN VISOR
B580A01CM-GAT Your Hyundai is equipped with sun visors to give the driver and front pas- senger either frontal or sideward shade. To reduce glare or to shut out direct rays of the sun, turn the sun visor down.Vanity mirrors are provided on the back of the sun visor for the driver and front passenger. NOTE: The Supplemental Restraint System (SRS) label containing useful infor- mation can be found on the front ofeach sun visor. OCM052124R
CM-aust-1a.p65
5/21/2008, 2:10 PM
90

1
FEATURES OF YOUR HYUNDAI
91
B580C01LZ-AAT Ticket Holder (If installed) The ticket holder is provided on the front of the sun visor for holding a tollgate ticket.
OCM052125R
B580B01B-GAT Illuminated Vanity Mirror (If installed)
Opening the lid of the vanity mirror will automatically turn on the mirror light.
B580C01JM-AAT Sun Visor Extender (If installed)
Your vehicle is equipped with sun visor extenders that may be used when thevisor is in the side glass position.
OCM051201R
OCM052126R
!WARNING:
Do not place the sun visor in such a manner that it obscures visibility of the roadway, traffic or other objects.
CM-aust-1a.p65 5/21/2008, 2:10 PM
91

1FEATURES OF YOUR HYUNDAI
92
B620A01S-AAT (If installed) A red light comes on when the front door is opened. The purpose of this light is to assist when you get in or out, and alsoto warn passing vehicles.FRONT DOOR EDGE WARNING LIGHT
HORN
B610B01A-DAT Press the centre hub of the steering wheel to sound the horn.
OCM052052
REAR SEAT ARM REST
B611A01Y-DAT The rear seat arm rest is located in the centre of the rear seat back.
OCM052035
OCM051027R
CM-aust-1a.p65 5/21/2008, 2:10 PM
92

1
FEATURES OF YOUR HYUNDAI
93
!
CAUTION:
After adjusting the steering wheel, try moving it up and down to make sure it is locked in position.!
WARNING:
Do not attempt to adjust the steering wheel while driving as this may re-sult in loss of control of the vehicle and serious injury or death.
B600B01NF-GAT Tilt and telescopic type (If Installed)
To adjust the steering wheel:
1. Push the lever downward fully to
unlock.
2. Adjust upward or downward and for- ward or backward to set the steering wheel to the desired position.
3. After adjustment, securely tighten
the lever by pulling it upward. OCM052051R
STEERING WHEEL COLUMN
B600A01NF-GAT Tilt type
To adjust the steering wheel:
1. Pull the lever toward you and hold it to unlock.
2. Raise or lower the steering wheel to the desired position.
3. After adjustment, release the lever.
OCM052050R
CM-aust-1a.p65 5/21/2008, 2:10 PM
93

1FEATURES OF YOUR HYUNDAI
94HEADLIGHT LEVELLING DEVICE SYSTEM
B340G01Y-DAT (If installed) To adjust the headlight beam level ac- cording to the number of the passen-gers and the loading weight in the lug- gage area, turn the beam levelling switch.The higher the number of the switch position, the lower the headlight beam level. Always keep the headlight beamat the proper levelling position, or head- lights may dazzle other road users. Listed below are the examples of recommeneded switch settings. For loading conditions other than those listed below, adjust the switch position sothat the beam level may be the nearest as the condition obtained according to the list.
Switch position0 0 1 2 3
Loading condition Driver only Driver + front passengerFull passengers (including driver) Full passengers (includ-ing driver) + full luggage loading (or light trailer loading)
Driver + full luggage
loading (or maximum
trailer loading)
OCM051028R
CRUISE CONTROL
B660A02S-GAT (If Installed) The cruise control system provides automatic speed control for your com- fort when driving on freeways, toll roads,or other noncongested highways. This is designed to function above approxi- mately 40 km/h (25 mph). NOTE: Cruise control is not recommended for city driving, winding roads, slip- pery roads, heavy rain, or other bad weather conditions.
CM-aust-1a.p65 5/21/2008, 2:10 PM
94

1
FEATURES OF YOUR HYUNDAI
95
NOTE: If the vehicle speed decreases more than 15 km/h (9 mph) below the set speed or decreases below 40 km/h(25 mph), the cruise control system will automatically cancel the set speed.
B660C01NF-DAT To Cancel the Cruise Speed To disengage the cruise control sys- tem, push the control switch "CAN- CEL".
OCM051031L
B660B01NF-GAT To Set the Cruise Speed
1. Push the cruise control ON/OFF
switch. The "CRUISE" indicator light in the instrument cluster will illumi- nate. This turns the system on.
2. Accelerate to desired cruising speed above 40 km/h (25 mph). 3. Push the "SET" (COAST) switch
after you have set the vehicle speed at the desired speed. If the "SET (COAST)" switch is se- lected, the cruise "SET" indicatorlight in the instrument cluster will illuminate.
4. Remove your foot from the accelera- tor pedal and the desired speed willautomatically be maintained.
5. To increase speed, temporarily de- press the accelerator pedal enoughfor the vehicle to exceed the preset speed. When you remove your footfrom the accelerator pedal, the ve- hicle will return to the speed you have set.
OCM051029L
OCM051030L
CM-aust-1a.p65 5/21/2008, 2:10 PM
95

1FEATURES OF YOUR HYUNDAI
96
B660D01NF-GAT To Resume the Preset Speed The vehicle will automatically resume the speed set prior to cancellation whenyou push the control switch "RESUME (ACCEL)" and release it to return (when travelling above 40 km/h).If the control switch "RESUME (ACCEL)" is selected, the cruise "SET" indicator in the instrument cluster willilluminate.
OCM051032L
Additionally, the following actions will disengage the system:
o Depress the brake pedal.
o Depress the clutch pedal (Manual
transaxle).
o Shift the selector lever to "N" posi-
tion (Automatic transaxle) not at high-way speeds.
o Decrease the vehicle speed lower
than the memory speed by 15 km/h(9 mph).
o Decrease the vehicle speed to less
than 40 km/h (25 mph).
o Release the cruise control ON/OFF switch. B660E01NF-GAT To Reset at a Faster Speed
1. Push the control switch "RESUME
(ACCEL)" and hold it. If the control switch "RESUME (ACCEL)" is selected, the cruise "SET" indicator in the instrumentcluster will illuminate.
2. Accelerate to desired speed and re-
lease the control switch. While thecontrol switch is held, the vehicle will gradually gain speed.
CM-aust-1a.p65 5/21/2008, 2:10 PM
96

1
FEATURES OF YOUR HYUNDAI
97

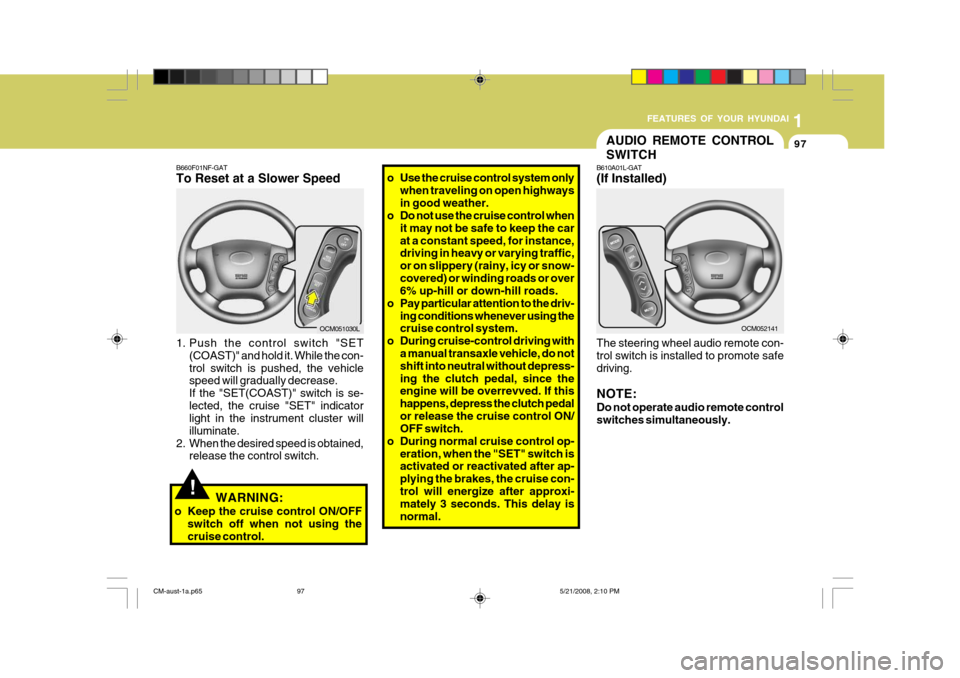

o Use the cruise control system only
when traveling on open highways in good weather.
o Do not use the cruise control when
it may not be safe to keep the carat a constant speed, for instance, driving in heavy or varying traffic, or on slippery (rainy, icy or snow-covered) or winding roads or over 6% up-hill or down-hill roads.
o Pay particular attention to the driv-
ing conditions whenever using thecruise control system.
o During cruise-control driving with a manual transaxle vehicle, do not shift into neutral without depress-ing the clutch pedal, since the engine will be overrevved. If this happens, depress the clutch pedalor release the cruise control ON/ OFF switch.
o During normal cruise control op-
eration, when the "SET" switch isactivated or reactivated after ap- plying the brakes, the cruise con-trol will energize after approxi- mately 3 seconds. This delay is normal.
!WARNING:
o Keep the cruise control ON/OFF switch off when not using the cruise control.
B660F01NF-GAT To Reset at a Slower Speed
1. Push the control switch "SET (COAST)" and hold it. While the con- trol switch is pushed, the vehicle speed will gradually decrease. If the "SET(COAST)" switch is se-lected, the cruise "SET" indicator light in the instrument cluster will illuminate.
2. When the desired speed is obtained, release the control switch.
OCM051030L
AUDIO REMOTE CONTROL SWITCH
B610A01L-GAT (If Installed) The steering wheel audio remote con- trol switch is installed to promote safedriving. NOTE: Do not operate audio remote control switches simultaneously. OCM052141
CM-aust-1a.p65
5/21/2008, 2:10 PM
97

1FEATURES OF YOUR HYUNDAI
98
Press the SEEK switch 1 sec. or more.
1. RADIO mode When the SEEK (
) is pressed, the unit
will automatically tune to the next higher frequency and when the SEEK (
)
switch is pressed, it will automatically tune to the next lower frequency.

MODE Switch Press the MODE switch to select Ra- dio, Tape, CD (Compact Disc) and CDC (Compact Disc Changer).Each press of the switch changes the display as follows:
RADIO (FM1 FM2 AM) TAPE CD CDC
SEEK ( / ) Switch 2. TAPE mode
o Pressing the SEEK (
) will play the
beginning of the next music seg- ment.
o Pressing the SEEK (
) will start
replay at the beginning of the music just listened to.
3. CD (Compact Disc)/CDC (Compact Disc Changer) mode
o Press the SEEK (
) once to skip
forward to the beginning of the next track.
o Press the SEEK (
) once to skip
back to the beginning of the track.
MUTE Switch
o Press the MUTE switch to disappear the sound.
o Press the MUTE switch again to
reproduce the sound.
VOL (
/ ) Switch
o Press the VOL (
) switch to in-
crease volume.
o Press the VOL (
) switch to de-
cease volume.
B700A01CM-GAT (If Installed) If your vehicle has an aux and/or USB(universal serial bus) port or iPod port, you can use an aux port to connectaudio devices and an USB port to plug in an USB and also an iPod port to plug in an iPod. ❈ iPod is a trademark of Apple Inc.
NOTE: When using a portable audio device connected to the power outlet, noise may occur during playback. If thishappens, use the power source of the portable audio device.
OCM029134
AUX, USB AND iPod
CM-aust-1a.p65
5/21/2008, 2:10 PM
98

1
FEATURES OF YOUR HYUNDAI
99HEATING AND COOLING CONTROL
B710A01TB-DAT (If installed)
1. Side Demister Nozzle
2. Side Ventilator
3. Windshield Demister Nozzle
4. Centre Ventilator B710B02O-DAT CENTRE VENTILATOR The centre ventilators are located in the middle of the dashboard. To change the direction of the air flow, move the knobin the centre of the vent up-and-down and side-to-side. The vents are opened when the vent knob is moved to " "position. The vents are closed when the vent knob is moved to " ". Keep these vents clear of any obstructions.
B710C01HP-DAT SIDE VENTILATOR The side ventilators are located on each side of the dashboard. To change the direction of the air flow, move the knob in the centre of the vent up-and-down and side-to-side. The vents are opened when the vent knob is moved to " " position. The vents are closedwhen the vent knob is moved to " ". Keep these vents clear of any obstruc- tions.
OCM052147R
