1FEATURES OF YOUR HYUNDAI
60
B340B01A-DAT Lane Change Signal To indicate a lane change, move the lever up or down to a point where itbegins flashing. The lever will automatically return to the centre position when released.
OCM029065R
MULTI-FUNCTION LIGHT SWITCH
B340A01A-DAT COMBINATION TURN SIGNAL, HEADLIGHT AND HIGH-BEAMSWITCHTurn Signal Operation Pulling down on the lever causes the turn signals on the right side of the car to blink. Pushing upwards on the levercauses the turn signals on the left side of the car to blink. As the turn is com- pleted, the lever will automatically re-turn to the centre position and turn off the turn signals at the same time. If either turn signal indicator light blinksmore rapidly than usual or goes on but does not blink, or does not go on at all, there is a malfunction in the system.Check for a burned-out fuse or bulb or see your Hyundai dealer.
OCM052210LK
Outside temperature
Odometer
5. Outside temperature
(°C) (If installed)
This mode indicates the outside tem- perature between -40°C and 75°C.
CM-aust-1a.p65 5/21/2008, 2:07 PM
60

1
FEATURES OF YOUR HYUNDAI
61
B340C01CM-DAT Headlight Switch To operate the headlights, turn the bar- rel on the end of the multi-functionswitch. The first position turns on the parking lights, sidelights, tail lights and instrument panel lights. The secondposition turns on the headlights. NOTE: The ignition must be in the "ON" position to turn on the headlights. Parking Light Auto Cut
o The purpose of this feature is to
prevent the battery from being dis- charged. The system automatically turns off the headlights and parking lights when the driver removes theignition key and opens the driver- side door.
o With this feature, the parking light will be turned off automatically if thedriver parks on the side of road at night.If necessary, to keep the lights on when the ignition key is removed, perform the following :
1) Open the driver-side door.
2) Turn the parking lights OFF andON again using the light switch on the steering column.
OCM029060R B340D01S-DAT High-beam and Low-beam Switch To turn on the headlight high beams, firstly operate the low beam by turning the barrel to the low beam position then push the lever forward (away from you). The High Beam Indicator Light will come on at the same time. For low beams, pull the lever back toward you.OCM029063R
CM-aust-1a.p65
5/21/2008, 2:07 PM
61

1FEATURES OF YOUR HYUNDAI
62
B340E01A-DAT Passing Switch
B340G01LZ-GAT Auto Light (If installed)
OCM052061R
To operate the automatic light feature, turn the barrel on the end of the multi- function switch. If you set the multi-function switch to "AUTO", the tail lights and headlights will be turned au- tomatically on or off according to exter-nal illumination. NOTE: Switch on car light manually in foggy, cloudy and rainy conditions.
NOTE:
o Never place anything over sensor located on the instrument panel, this will ensure better auto light system control.
o Don't clean the sensor using a window cleaner.
o If your vehicle has window tint or
other types of coating on the front windshield, the AUTO light sys- tem may not work properly. OCM052062R
Auto light sensor
To flash the headlights, pull the switch lever toward you, then release it. Theheadlights can be flashed even though the headlight switch is in the "OFF" position.
OCM029064R
CM-aust-1a.p65 5/21/2008, 2:07 PM
62

1
FEATURES OF YOUR HYUNDAI
63WINDSHIELD WIPER AND WASHER SWITCH
A : Wiper speed control
·
(MIST) – Single wipe
· OFF – Off · INT – Intermittent wipe · LO – Low wiper speed· HI – High wiper speed
B : Intermittent wipe time adjustment
C : Wash with brief wipes
D : Rear wiper/washer control ·
- Spraying washer fluid
· ON - Continuous wipe
· OFF - Off ·
- Wash with brief wipes
Windshield wiper/washer
OCM0280904R/OTQ048900R/OCM028091R/OTQ048909R
Type A
Type B
Type ARear window wiper/washer (if installed)
Type B
CM-aust-1a.p65
5/21/2008, 2:07 PM
63

1FEATURES OF YOUR HYUNDAI
64
B350B01O-GAT Windshield Washer Operation To use the windshield washer, pull the wiper/washer lever toward the steeringwheel.
B350A01A-AAT
(MIST) : For a single wiping cycle,
push the lever upward and re- lease it with the lever in the OFF position. The wipers will operatecontinuously if the lever is pushed upward and held.
OFF : Wiper is not in operation
INT : Wiper operates intermittently at the same wiping intervals. Usethis mode in a light rain or mist.To vary the speed setting, turn the speed control knob(1). In this position, the wiping inter-vals are also varied automati- cally depending on your vehicle speed. (If installed)
LO : Normal wiper speed HI : Fast wiper speed NOTE: To prevent damage to the wiper sys- tem, do not attempt to wipe away heavy accumulations of snow or ice.Accumulated snow and ice should be removed manually. If there is only a light layer of snow or ice, operatethe heater in the defrost mode to melt the snow or ice before using the wipers.Type A
Type B
OCM028067R
OTQ048904R
Operates as follows when the ignition switch is turned ON.
Type A
Type B
OCM027069R
OTQ048907R
1
1
CM-aust-1a.p65 5/21/2008, 2:07 PM
64

1
FEATURES OF YOUR HYUNDAI
65
When the washer lever is operated, the wipers automatically make two passesacross the windshield. The washer con- tinues to operate until the lever is re- leased. NOTE:
o Do not operate the washer more than 15 seconds at a time or when the fluid reservoir is empty.
o In icy or freezing weather, be sure the wiper blades are not frozen tothe glass prior to operating thewipers.
o In areas where water freezes in
winter, use windshield washerantifreeze. Mist Wiper Operation If a single wipe is desired in mist, push the windshield wiper and washer control lever upwards.
Type A
Type B
OCM027070R
OCM049906R
B350C01CM-AAT Adjustable Intermittent Wiper Operation (If installed) To use the intermittent wiper feature, place the wiper switch in the "INT" posi- tion. With the switch in this position, theinterval between wipes can be varied by turning the interval adjuster barrel.
OCM027072R
Type A
Type B
OCM029072R
CM-aust-1a.p65
5/21/2008, 2:07 PM
65

1FEATURES OF YOUR HYUNDAI
66FOG LIGHT SWITCH
B360A01FC-AAT Front Fog Light Switch (If installed) To turn on the front fog lights, push the switch in the "ON" position. They willlight when the headlight switch is in the first or second position.
OCM052074R
B390A02CM-AAT Rear Window Wiper and Washer (If installed) : Wash with brief wipes
ON : Normal wiper operation OFF : Wiper is not in operation
: Spraying washer fluid and wiping
NOTE: Do not operate the washer continu- ously for more than 15 seconds or when the fluid reservoir is empty; this could damage the system. Donot operate the wiper when the win- dow is dry; this can result in scratch- ing as well as premature wiper bladewear. For the reason stated above,do not operate the washer when the washerfluid reservoir is empty.
OTQ048058R
Type A
Type B
OTQ048905R
Turn the switch to desired position to operate the rear wiper and washer.
CM-aust-1a.p65 5/21/2008, 2:07 PM
66

1
FEATURES OF YOUR HYUNDAI
67
B360A01CM-GAT Rear Fog Light Switch To turn on the rear fog lights, push the switch. They will come on when theheadlight switch is in the second posi- tion or the front fog light switch is "ON" position and the key is in the "ON"position.
OCM051019R
REAR WINDOW DEMISTER SWITCH
B380A01CM-DAT The rear window demister and heated outside rearview mirrors are turned onby pushing in the switch. To turn the demister off, push the switch a second time. The rear window demister auto-matically turns itself off after about 20 minutes. To restart the demister cycle, push in the switch again after it hasturned itself off.
OCM052080R
HAZARD WARNING SYSTEM
B370A01A-AAT
The hazard warning system should be used whenever you find it necessary tostop the car in a hazardous location. When you must make such an emer- gency stop, always pull off the road asfar as possible. The hazard warning lights are turned on by pushing in the hazard switch. This causes all turnsignal lights to blink. The hazard warn- ing lights will operate even though the key is not in the ignition. To turn thehazard warning lights off, push the switch a second time.
OCM052075R
CM-aust-1a.p65 5/21/2008, 2:08 PM
67

1FEATURES OF YOUR HYUNDAI
68
!
CAUTION:
Do not clean the inner side of the rear window glass with an abrasive typeof glass cleaner or use a scraper to remove the foreign deposits from the inner surface of the glass as thismay cause damage to the demister elements. NOTE: The engine must be running for the rear window demister to operate.
DIGITAL CLOCK
B400A01NF-AAT
There are three control buttons for the digital clock. Their functions are: H - Push "H" to advance the hour indi-
cated.
M - Push "M" to advance the minute
indicated.
R - Push "R" to reset minutes to ":00"
to facilitate resetting the clock to the correct time. When this is done:
Pressing "R" between 11 : 01 and 11 :29 changes the readout to 11 : 00.Pressing "R" between 11 : 30 and 11 : 59 changes the readout to 12 : 00.
Push the "R" button for 5 seconds todisplay a 12 or 24-hour clock.
OCM052116R
Front Windshield Deicer (If Installed) If your vehicle is installed with the front windshield deicer, it will be operating atthe same time when you operate the rear window demister. This function helps release stuck wind-shield wipers especially in winter time and cold regions. Outside Rearview Mirror Heater (If Installed) If your vehicle is installed with the outside rearview mirror heater, it will be operating at the same time when youoperate the rear window demister.
CM-aust-1a.p65
5/21/2008, 2:08 PM
68

1
FEATURES OF YOUR HYUNDAI

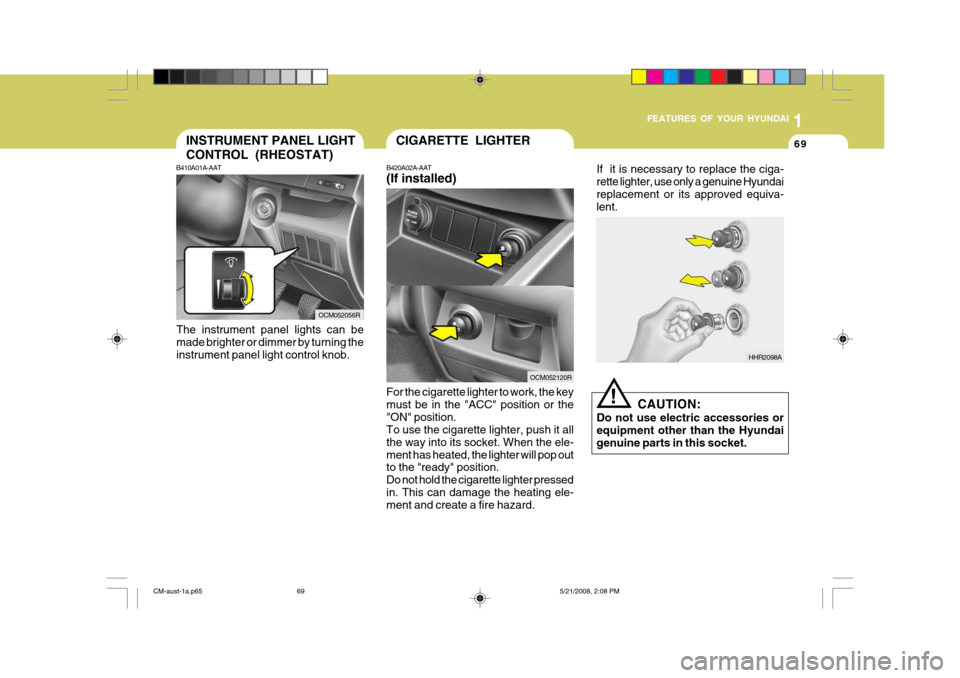

69INSTRUMENT PANEL LIGHT CONTROL (RHEOSTAT)
B410A01A-AAT
The instrument panel lights can be made brighter or dimmer by turning theinstrument panel light control knob.
OCM052056R
! CAUTION:
Do not use electric accessories or equipment other than the Hyundai genuine parts in this socket.
HHR2098A
If it is necessary to replace the ciga- rette lighter, use only a genuine Hyundaireplacement or its approved equiva- lent.
CIGARETTE LIGHTER
B420A02A-AAT (If installed) For the cigarette lighter to work, the key must be in the "ACC" position or the"ON" position. To use the cigarette lighter, push it all the way into its socket. When the ele-ment has heated, the lighter will pop out to the "ready" position. Do not hold the cigarette lighter pressedin. This can damage the heating ele- ment and create a fire hazard.
OCM052120R
CM-aust-1a.p65 5/21/2008, 2:08 PM
69
