1FEATURES OF YOUR HYUNDAI
80
CAUTION:
o Do not operate the switch continu- ously for an unnecessary length of time.
o Scraping ice from the mirror face could cause permanent damage.To remove any ice, use a sponge,soft cloth or approved de-icer.
!
!WARNING:
Be careful when judging the size or distance of any object seen in the passenger side rearview mirror. It isa convex mirror with a curved sur- face. Any objects seen in this mirror are closer than they appear.
!

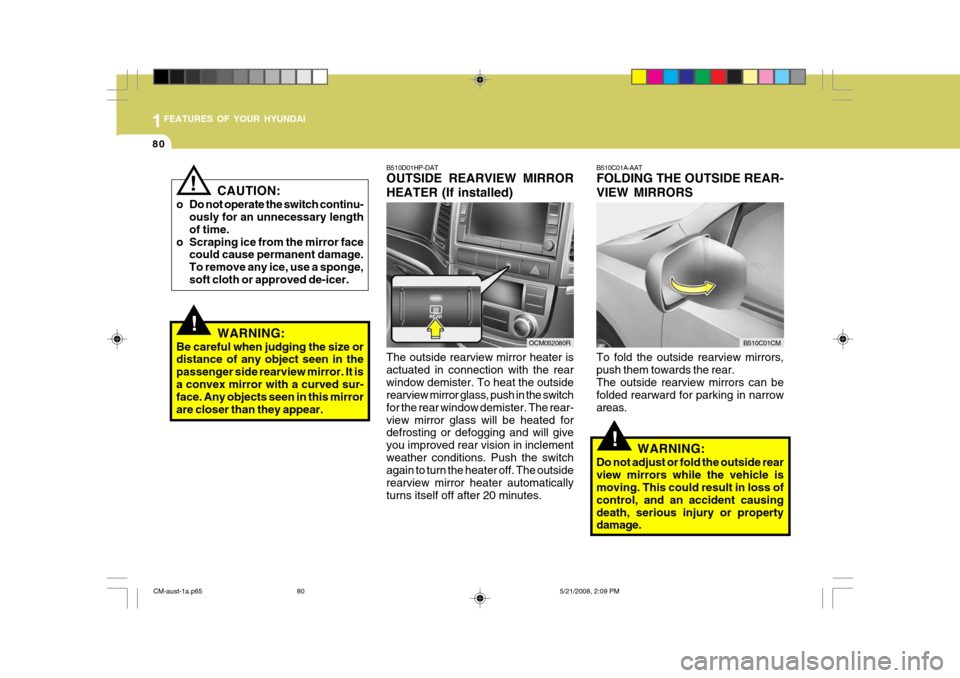

B510D01HP-DAT OUTSIDE REARVIEW MIRROR HEATER (If installed) The outside rearview mirror heater is actuated in connection with the rearwindow demister. To heat the outside rearview mirror glass, push in the switch for the rear window demister. The rear-view mirror glass will be heated for defrosting or defogging and will give you improved rear vision in inclementweather conditions. Push the switch again to turn the heater off. The outside rearview mirror heater automaticallyturns itself off after 20 minutes. B510C01A-AAT FOLDING THE OUTSIDE REAR- VIEW MIRRORS To fold the outside rearview mirrors, push them towards the rear.The outside rearview mirrors can be folded rearward for parking in narrow areas.
WARNING:
Do not adjust or fold the outside rearview mirrors while the vehicle is moving. This could result in loss of control, and an accident causingdeath, serious injury or property damage.
OCM052080RB510C01CM
CM-aust-1a.p65 5/21/2008, 2:09 PM
80

1
FEATURES OF YOUR HYUNDAI
81
B520C01CM-DAT Automatic Dimming Rearview Mirror with Compass (If installed) 1. Status Indicator LED 2. Feature Control Button3. Rear Light Sensor 4. Display Window Automatic dimming rearview mirror au- tomatically controls the reduce glare from headlights behind you when thefunction is turned on by pressing and holding the Feature Control Button for more than 3 but less than 6 seconds.This feature can be turned off by press- ing and holding the button for the same amount of time once more.
B520C08JM 1. To operate Compass feature Press and release the button, then the vehicle's directional heading will be dis-played. Pressing and releasing the but- ton again will turn off the display. Heading display - E : East - W : West - S : South - N : North ex) NE : North East
2. Calibration procedure Press and hold the
button(2) between
9 and 12 seconds. Release the button when a “C” appears in the display, which indicates the compass needs calibration.
1. Drive the vehicle in 2 complete circles at less than 8km/h or until the com- pass heading appears.
2. Circle can be driven clockwise or
counterclockwise.
3. Keep driving in a circle until a com- pass heading appears.
DAY/NIGHT INSIDE REAR- VIEW MIRROR
B520A01A-AAT Manual type Your Hyundai is equipped with a day/ night inside rearview mirror. The "night"position is selected by flipping the tab at the bottom of the mirror toward you. In the "night" position, the glare ofheadlights of cars behind you is re- duced.
B520A01CM
CM-aust-1a.p65 5/21/2008, 2:09 PM
81

1FEATURES OF YOUR HYUNDAI
82
3. Setting the compass zone 1. Determine the Zone Number based
on your current location in the Zone Map.
2. Press and hold the button for more than 6 but less than 9 seconds. Thecurrent zone number will appear inthe display.
3. Release then press the button to
increment to your Zone Number.
4. Drive the vehicle in 2 complete circles at less than 8km/h or until the com-pass heading appears. B520C02JM
!
CAUTION:
1. Do not install the ski rack, an- tenna, etc. which are attached to the vehicle by means of a magnet.They affect the operation of the compass.
2. If the compass deviates from the
correct indication soon after re-peated adjustment, have the com- pass checked at an authoriseddealer.
3. The compass may not indicate the
correct compass point in tunnelsor while driving up or down a steep hill. (The compass returns to the cor-rect compass point when the ve- hicle moves to an area where the geomagnetism is stabilised.)
4. When cleaning the mirror, use a paper towel or similar materialdampened with glass cleaner. Donot spray glass cleaner directly on the mirror as that may cause the liquid cleaner to enter the mirrorhousing.
4. Changing Mirror Angle setting
(If Installed):
Due to mirror positions being angledtowards the driver, the compass mirrorcan also compensate for drivers seated on the Left Hand side of the vehicle (steering wheel on the LH side of thevehicle) or Right Hand side of the ve- hicle (steering wheel on the RH side of the vehicle). To adjust the Left Hand, “L” or Right Hand, “R”, setting: 1. Press and hold the button for more than 12 seconds.
2. Release then press the button to
toggle between “L” and “R”.
NOTE: This procedure also causes the com- pass to be de-calibrated.
4. To re-calibrate the compass, drive the vehicle in 2 complete circles at less than 8km/h.
CM-aust-1a.p65 5/21/2008, 2:09 PM
82

1
FEATURES OF YOUR HYUNDAI

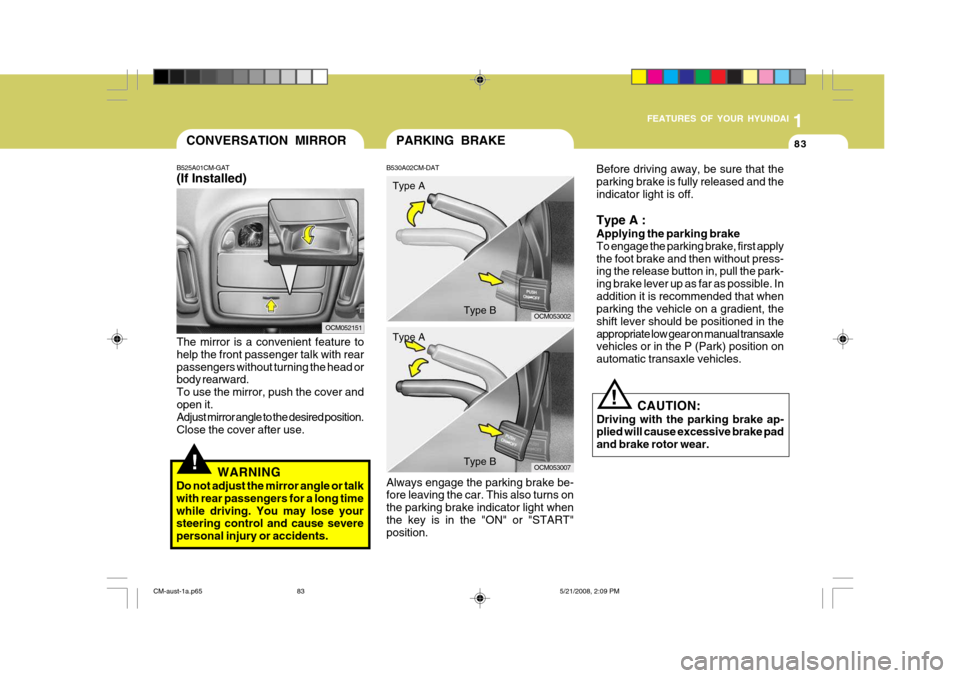

83PARKING BRAKE
B530A02CM-DAT Always engage the parking brake be- fore leaving the car. This also turns on the parking brake indicator light whenthe key is in the "ON" or "START" position. Type A
Type B
Type AType B
OCM053002
OCM053007Before driving away, be sure that the parking brake is fully released and theindicator light is off. Type A : Applying the parking brake To engage the parking brake, first applythe foot brake and then without press- ing the release button in, pull the park- ing brake lever up as far as possible. Inaddition it is recommended that when parking the vehicle on a gradient, the shift lever should be positioned in theappropriate low gear on manual transaxle vehicles or in the P (Park) position on automatic transaxle vehicles.!
The mirror is a convenient feature to help the front passenger talk with rearpassengers without turning the head or body rearward. To use the mirror, push the cover andopen it. Adjust mirror angle to the desired position. Close the cover after use.
WARNING
Do not adjust the mirror angle or talkwith rear passengers for a long timewhile driving. You may lose your steering control and cause severe personal injury or accidents.
CONVERSATION MIRROR
B525A01CM-GAT (If Installed)
OCM052151
CAUTION:
Driving with the parking brake ap- plied will cause excessive brake pad and brake rotor wear.
!
CM-aust-1a.p65 5/21/2008, 2:09 PM
83

1FEATURES OF YOUR HYUNDAI
84
!
TAIL GATE
B540A01CM-AAT
WARNING:
The tail gate should always be kept completely closed while the vehicleis in motion. If it is left open or ajar, poisonous exhaust gases may enter the car resulting in serious illness ordeath to the occupants. See addi- tional warnings concerning exhaust gases on page 2-2.
o The tail gate is opened by pulling the outside handle up, raising the tail gate manually.
o To close, lower the tail gate, then
press down on it until it is closed. Tobe sure the tail gate is fully closed, always try to pull it up again without using the outside handle.
Releasing the parking brakeTo release the parking brake, first applythe foot brake and pull the praking brake lever slightly. Secondly, depress the release button and lower the parkingbrake lever while holding the button. Type B: Applying the parking brake To engage the parking brake, first applythe foot brake and then depress the parking brake pedal down as far as possible. In addition it is recommendedthat when parking the vehicle on a gradient, the shift lever should be in a low gear on manual transaxle vehiclesor in the P (Park) position on automatic transaxle vehicles.
B535A01CM-GAT Parking brake warning chime (if installed) The parking brake warning chime re- minds you that the parking brake isapplied when you are driving above 10km/h. Always release the parking brake before you drive.
Releasing the parking brakeTo release the parking brake, depressthe parking brake pedal a second time. If the parking brake pedal does not release or dose not release all the way,have the system checked by an authorised HYUNDAI dealer. NOTE: The parking brake pedal should be checked periodically for proper stroke.
!
CAUTION:
Driving with the parking brake ap- plied will cause excessive brake pad and brake rotor wear.
CM-aust-1a.p65 5/21/2008, 2:09 PM
84

1
FEATURES OF YOUR HYUNDAI
85
B650A01S-AAT Stowage Precautions
1. Do not place objects on the cargo security screen. Such objects may be thrown about inside the vehicle and possibly injure vehicle occu-pants during an accident or when braking.
2. For better fuel economy, do not carry
unnecessary weight.
3. Never allow anyone to ride in the
luggage compartment. It is designed for luggage only.
4. Try to maintain the balance of the
vehicle and locate the weight as far forward as possible.
!
B640A01S-AAT Cargo Security Screen (If installed) To use the security screen, pull it out of the retractor and hook it to the anchors as illustrated.
! CAUTION:
To prevent damage to the goods or the vehicle, care should be taken when carrying fragile or bulky ob- jects in the luggage compartment. WARNING:
Avoid eye injury. DO NOT over-
stretch the luggage net. ALWAYS keep your face and body out of its recoil path. DO NOT use when thestrap has visible signs of wear or damage.
OCM052123L
When loading objects in the luggage compartment, use the four rings lo-cated in the luggage compartment to attach the luggage net as shown illus- tration. This will help prevent the ob-jects from sliding.
LUGGAGE COMPARTMENT
B540D02O-DAT Luggage Net
OCM052133-1
CM-aust-1a.p65 5/21/2008, 2:09 PM
85

1FEATURES OF YOUR HYUNDAI

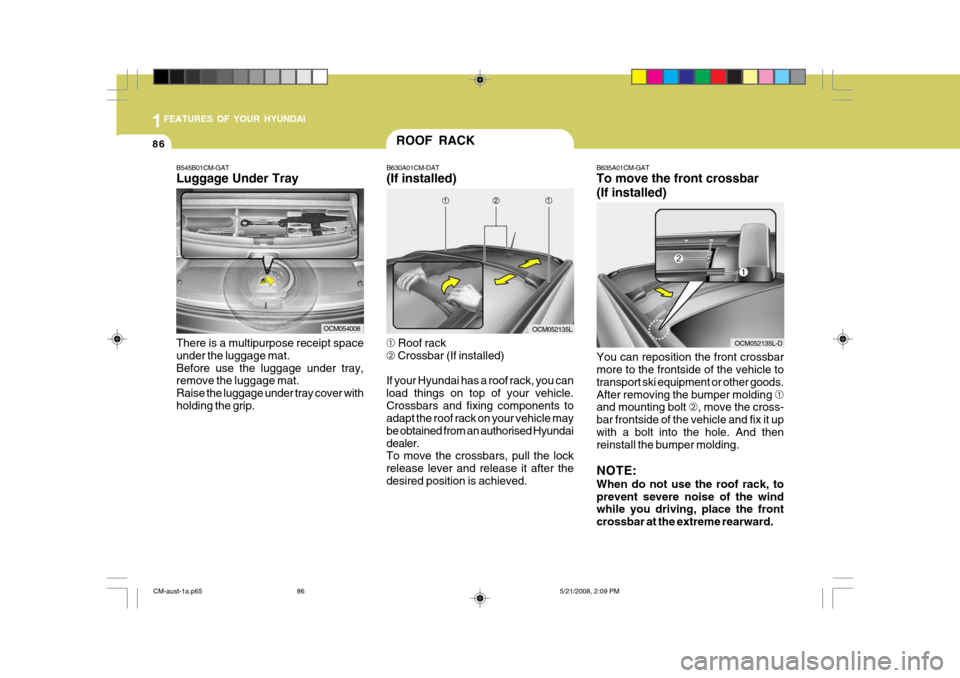

86ROOF RACK
B630A01CM-DAT (If installed)
➀ Roof rack
➁ Crossbar (If installed)
If your Hyundai has a roof rack, you can load things on top of your vehicle.Crossbars and fixing components to adapt the roof rack on your vehicle may be obtained from an authorised Hyundaidealer. To move the crossbars, pull the lock release lever and release it after thedesired position is achieved. OCM052135L
OCM054008
B545B01CM-GAT Luggage Under Tray There is a multipurpose receipt space under the luggage mat.Before use the luggage under tray, remove the luggage mat. Raise the luggage under tray cover withholding the grip.
B635A01CM-GAT To move the front crossbar (If installed) You can reposition the front crossbar more to the frontside of the vehicle to transport ski equipment or other goods.After removing the bumper molding
➀
and mounting bolt ➁, move the cross-
bar frontside of the vehicle and fix it upwith a bolt into the hole. And then reinstall the bumper molding. NOTE: When do not use the roof rack, to prevent severe noise of the wind while you driving, place the front crossbar at the extreme rearward. OCM052135L-D
CM-aust-1a.p65
5/21/2008, 2:09 PM
86

1
FEATURES OF YOUR HYUNDAI

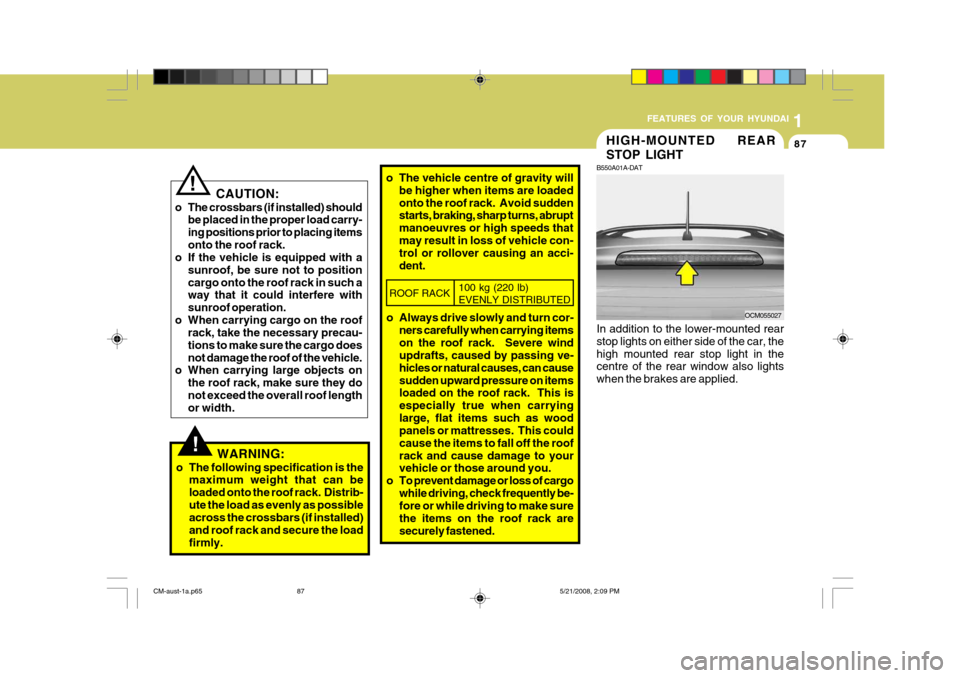

87HIGH-MOUNTED REAR STOP LIGHT
B550A01A-DAT In addition to the lower-mounted rear stop lights on either side of the car, the high mounted rear stop light in the centre of the rear window also lights when the brakes are applied. OCM055027
!WARNING:
o The following specification is the maximum weight that can be loaded onto the roof rack. Distrib-ute the load as evenly as possible across the crossbars (if installed) and roof rack and secure the loadfirmly. o The vehicle centre of gravity will
be higher when items are loadedonto the roof rack. Avoid sudden starts, braking, sharp turns, abrupt manoeuvres or high speeds thatmay result in loss of vehicle con- trol or rollover causing an acci- dent.
CAUTION:
o The crossbars (if installed) should be placed in the proper load carry-ing positions prior to placing itemsonto the roof rack.
o If the vehicle is equipped with a
sunroof, be sure not to positioncargo onto the roof rack in such a way that it could interfere with sunroof operation.
o When carrying cargo on the roof rack, take the necessary precau-tions to make sure the cargo doesnot damage the roof of the vehicle.
o When carrying large objects on
the roof rack, make sure they donot exceed the overall roof length or width.
!
ROOF RACK 100 kg (220 lb) EVENLY DISTRIBUTED
o Always drive slowly and turn cor-
ners carefully when carrying items on the roof rack. Severe wind updrafts, caused by passing ve- hicles or natural causes, can causesudden upward pressure on items loaded on the roof rack. This is especially true when carryinglarge, flat items such as wood panels or mattresses. This could cause the items to fall off the roofrack and cause damage to your vehicle or those around you.
o To prevent damage or loss of cargo while driving, check frequently be-fore or while driving to make sure the items on the roof rack aresecurely fastened.
CM-aust-1a.p65 5/21/2008, 2:09 PM
87

1FEATURES OF YOUR HYUNDAI
88
!WARNING:
o Fuel vapours are dangerous. Be- fore refuelling, always stop the engine and never allow sparks or open flames near the filler area. Ifyou need to replace the filler cap, use a genuine Hyundai replace- ment part.If you open the fuel filler cap dur- ing high ambient temperatures, a slight "pressure sound" may beheard. This is normal and not a cause for concern. Whenever you open the fuel fillercap, turn it slowly.
REMOTE FUEL-FILLER LID RELEASE
B560A01CM-DAT The fuel-filler lid may be opened from inside the vehicle by pulling up on thefuel-filler lid opener located on the driver side door. NOTE: If the fuel-filler lid will not open be- cause ice has formed around it, tap lightly or push on the lid to break theice and release the lid. Do not pry on the lid. If necessary, spray around the lid with an approved de-icer fluid(do not use radiator anti-freeze) or move the vehicle to a warm place and allow the ice to melt. OCM052014R
OCM052015
o Automotive fuels are flammable/
explosive materials. When refuel- ling, please note the followingguidelines carefully. Failure to follow these guidelines may re- sult in severe personal injury, se-vere burns or death by fire or explosion.
- Before refuelling always note the
location of the Emergency Petrol Shut-Off, if available, at the petrol station facility.
- Before touching the fuel nozzle or fuel filler cap, you shouldeliminate potentially dangerousstatic electricity discharge by touching another metal part of the front of the vehicle, a safedistance away from the fuel filler neck, nozzle, or other flammable source.
- Do not get back into a vehicle once you have begun refuelling.Do not touch, rub or slide againstany item or fabric (polyester, satin, nylon, etc.) capable of pro- ducing static electricity. Staticelectricity discharge can ignite fuel vapours resulting in explo- sion.
CM-aust-1a.p65 5/21/2008, 2:09 PM
88

1
FEATURES OF YOUR HYUNDAI
89

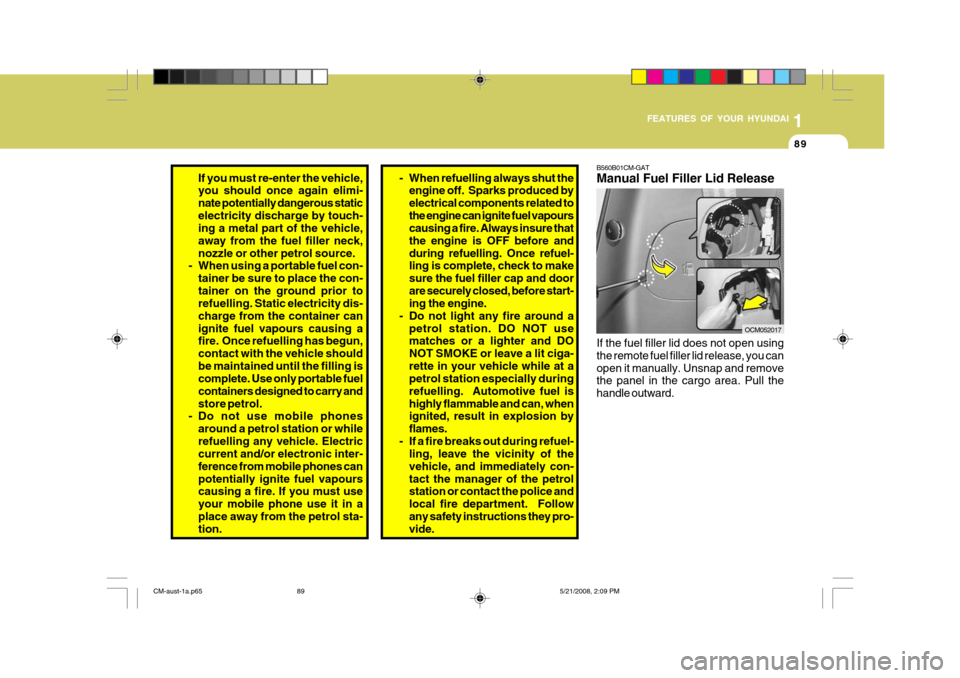

B560B01CM-GAT Manual Fuel Filler Lid Release If the fuel filler lid does not open using the remote fuel filler lid release, you canopen it manually. Unsnap and remove the panel in the cargo area. Pull the handle outward.
OCM052017
If you must re-enter the vehicle, you should once again elimi- nate potentially dangerous staticelectricity discharge by touch- ing a metal part of the vehicle, away from the fuel filler neck,nozzle or other petrol source.
- When using a portable fuel con-
tainer be sure to place the con-tainer on the ground prior to refuelling. Static electricity dis- charge from the container canignite fuel vapours causing a fire. Once refuelling has begun, contact with the vehicle shouldbe maintained until the filling is complete. Use only portable fuel containers designed to carry andstore petrol.
- Do not use mobile phones
around a petrol station or whilerefuelling any vehicle. Electric current and/or electronic inter- ference from mobile phones canpotentially ignite fuel vapours causing a fire. If you must use your mobile phone use it in aplace away from the petrol sta- tion.- When refuelling always shut theengine off. Sparks produced by electrical components related tothe engine can ignite fuel vapours causing a fire. Always insure that the engine is OFF before andduring refuelling. Once refuel- ling is complete, check to make sure the fuel filler cap and doorare securely closed, before start- ing the engine.
- Do not light any fire around a petrol station. DO NOT usematches or a lighter and DO NOT SMOKE or leave a lit ciga-rette in your vehicle while at a petrol station especially during refuelling. Automotive fuel ishighly flammable and can, when ignited, result in explosion by flames.
- If a fire breaks out during refuel- ling, leave the vicinity of thevehicle, and immediately con-tact the manager of the petrol station or contact the police and local fire department. Followany safety instructions they pro- vide.
