Page 11 of 711
Introduction
6 1

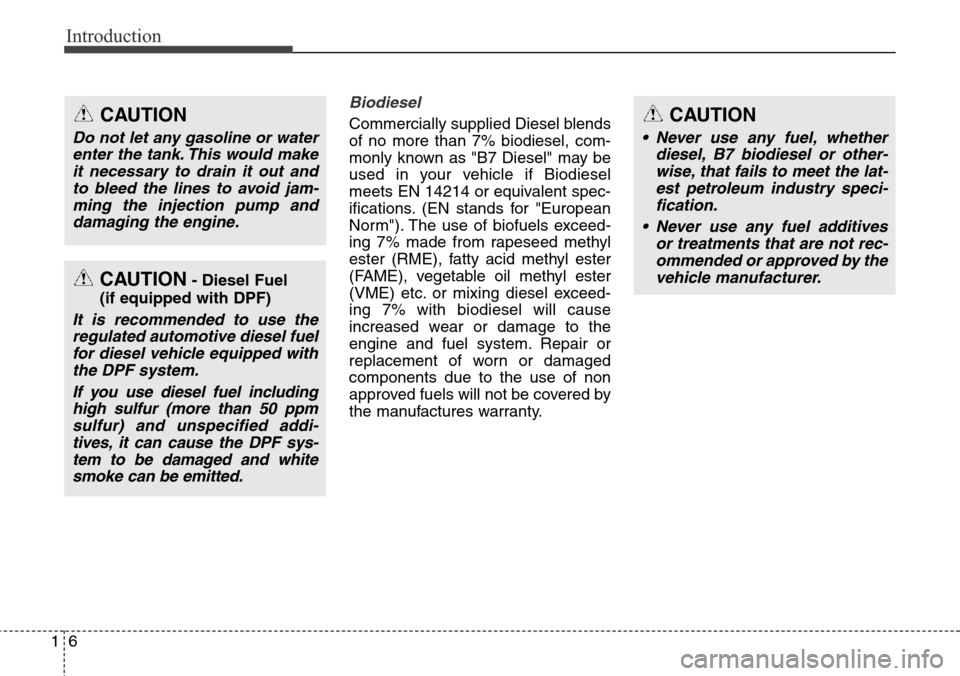

Biodiesel
Commercially supplied Diesel blends
of no more than 7% biodiesel, com-
monly known as "B7 Diesel" may be
used in your vehicle if Biodiesel
meets EN 14214 or equivalent spec-
ifications. (EN stands for "European
Norm"). The use of biofuels exceed-
ing 7% made from rapeseed methyl
ester (RME), fatty acid methyl ester
(FAME), vegetable oil methyl ester
(VME) etc. or mixing diesel exceed-
ing 7% with biodiesel will cause
increased wear or damage to the
engine and fuel system. Repair or
replacement of worn or damaged
components due to the use of non
approved fuels will not be covered by
the manufactures warranty.CAUTION
Do not let any gasoline or water
enter the tank. This would make
it necessary to drain it out and
to bleed the lines to avoid jam-
ming the injection pump and
damaging the engine.
CAUTION- Diesel Fuel
(if equipped with DPF)
It is recommended to use the
regulated automotive diesel fuel
for diesel vehicle equipped with
the DPF system.
If you use diesel fuel including
high sulfur (more than 50 ppm
sulfur) and unspecified addi-
tives, it can cause the DPF sys-
tem to be damaged and white
smoke can be emitted.
CAUTION
• Never use any fuel, whether
diesel, B7 biodiesel or other-
wise, that fails to meet the lat-
est petroleum industry speci-
fication.
• Never use any fuel additives
or treatments that are not rec-
ommended or approved by the
vehicle manufacturer.
Page 12 of 711
17
Introduction

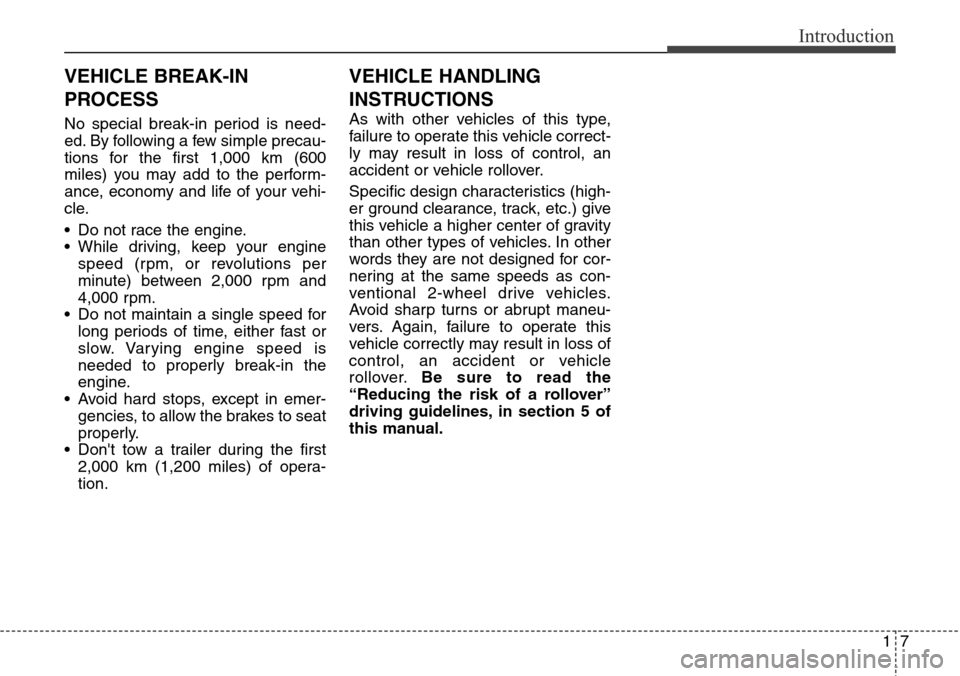

No special break-in period is need-
ed. By following a few simple precau-
tions for the first 1,000 km (600
miles) you may add to the perform-
ance, economy and life of your vehi-
cle.
• Do not race the engine.
• While driving, keep your engine
speed (rpm, or revolutions per
minute) between 2,000 rpm and
4,000 rpm.
• Do not maintain a single speed for
long periods of time, either fast or
slow. Varying engine speed is
needed to properly break-in the
engine.
• Avoid hard stops, except in emer-
gencies, to allow the brakes to seat
properly.
• Don't tow a trailer during the first
2,000 km (1,200 miles) of opera-
tion.As with other vehicles of this type,
failure to operate this vehicle correct-
ly may result in loss of control, an
accident or vehicle rollover.
Specific design characteristics (high-
er ground clearance, track, etc.) give
this vehicle a higher center of gravity
than other types of vehicles. In other
words they are not designed for cor-
nering at the same speeds as con-
ventional 2-wheel drive vehicles.
Avoid sharp turns or abrupt maneu-
vers. Again, failure to operate this
vehicle correctly may result in loss of
control, an accident or vehicle
rollover.Be sure to read the
“Reducing the risk of a rollover”
driving guidelines, in section 5 of
this manual.
VEHICLE HANDLING
INSTRUCTIONS VEHICLE BREAK-IN
PROCESS
Page 13 of 711

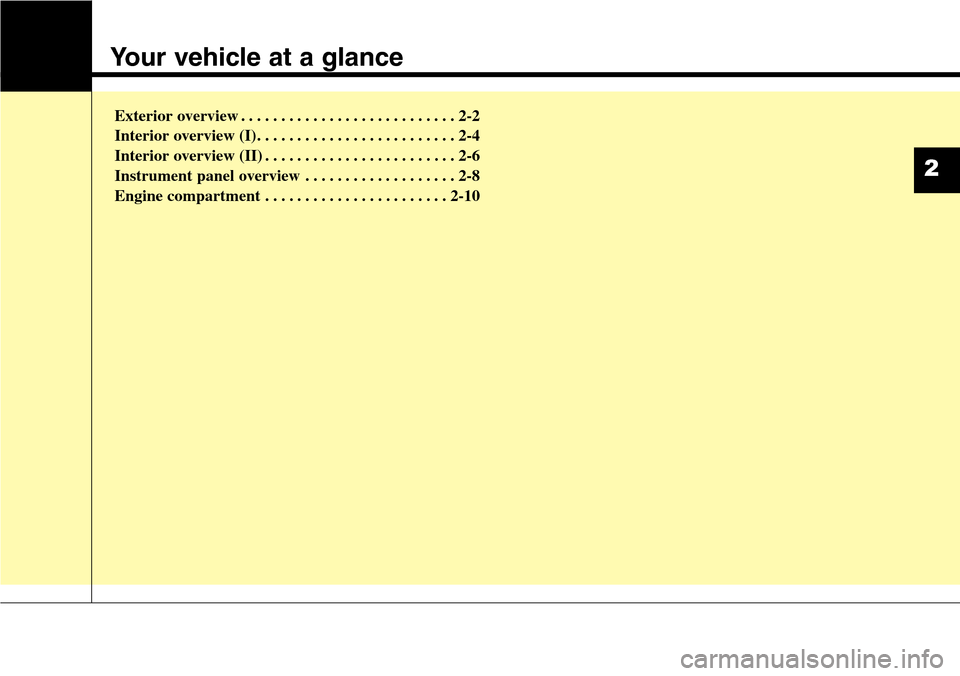

Your vehicle at a glance
Exterior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Interior overview (I) . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Interior overview (II) . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Instrument panel overview . . . . . . . . . . . . . . . . . . . 2-8
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . 2-10
2
Page 14 of 711
Your vehicle at a glance
2 2

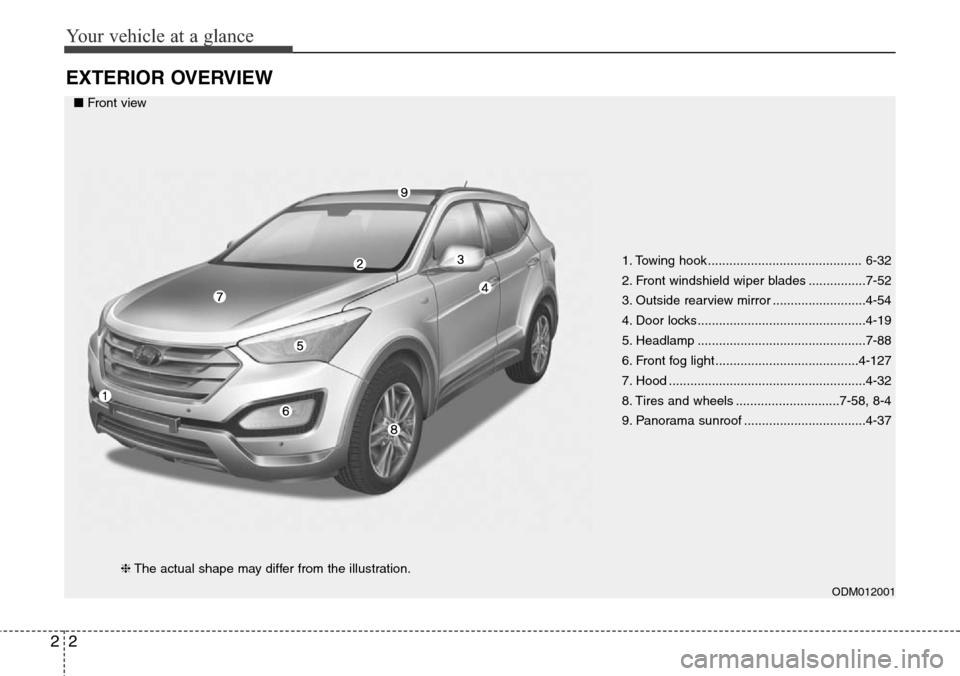

EXTERIOR OVERVIEW
1. Towing hook ........................................... 6-32
2. Front windshield wiper blades ................7-52
3. Outside rearview mirror ..........................4-54
4. Door locks...............................................4-19
5. Headlamp ...............................................7-88
6. Front fog light ........................................4-127
7. Hood .......................................................4-32
8. Tires and wheels .............................7-58, 8-4
9. Panorama sunroof ..................................4-37
ODM012001
■Front view
❈The actual shape may differ from the illustration.
Page 15 of 711
23
Your vehicle at a glance

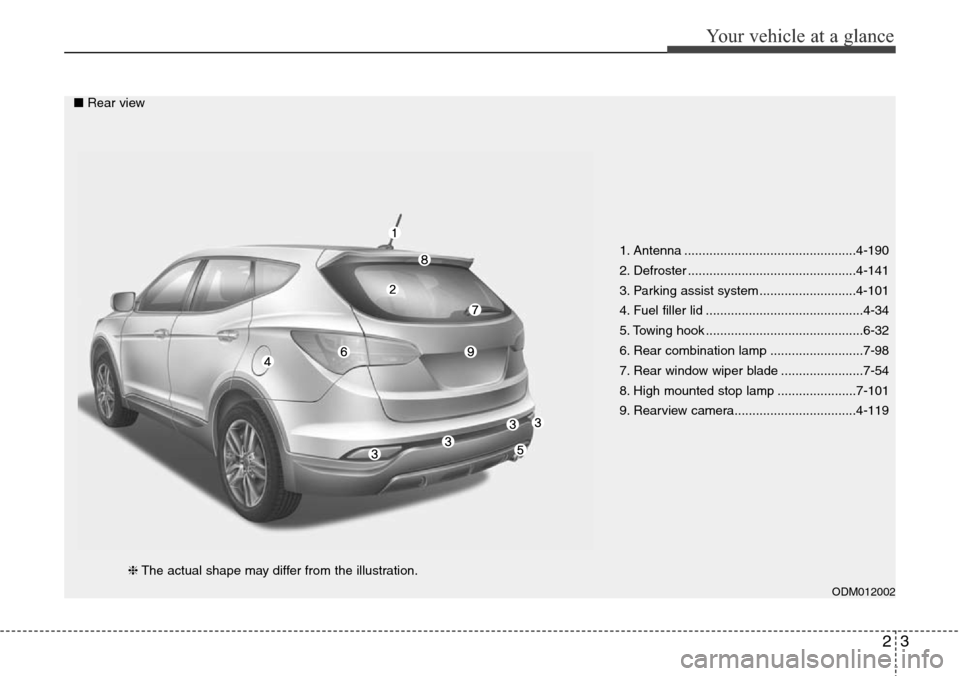

1. Antenna ................................................4-190
2. Defroster ...............................................4-141
3. Parking assist system ...........................4-101
4. Fuel filler lid ............................................4-34
5. Towing hook ............................................6-32
6. Rear combination lamp ..........................7-98
7. Rear window wiper blade .......................7-54
8. High mounted stop lamp ......................7-101
9. Rearview camera..................................4-119
ODM012002
■Rear view
❈The actual shape may differ from the illustration.
Page 16 of 711
Your vehicle at a glance
4 2

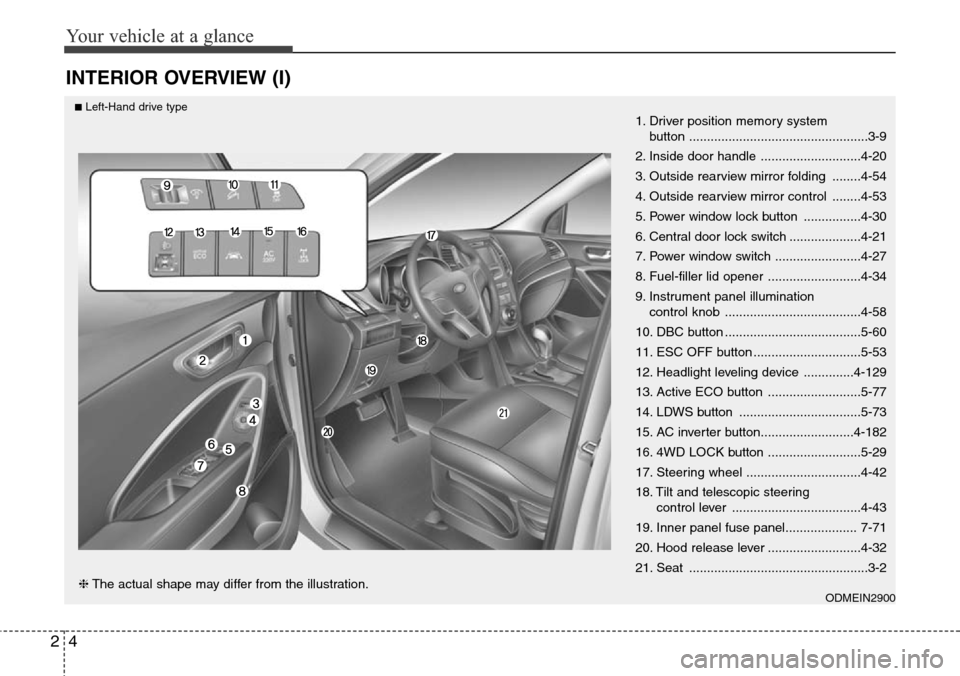

INTERIOR OVERVIEW (I)
1. Driver position memory system
button ..................................................3-9
2. Inside door handle ............................4-20
3. Outside rearview mirror folding ........4-54
4. Outside rearview mirror control ........4-53
5. Power window lock button ................4-30
6. Central door lock switch ....................4-21
7. Power window switch ........................4-27
8. Fuel-filler lid opener ..........................4-34
9. Instrument panel illumination
control knob ......................................4-58
10. DBC button ......................................5-60
11. ESC OFF button ..............................5-53
12. Headlight leveling device ..............4-129
13. Active ECO button ..........................5-77
14. LDWS button ..................................5-73
15. AC inverter button..........................4-182
16. 4WD LOCK button ..........................5-29
17. Steering wheel ................................4-42
18. Tilt and telescopic steering
control lever ....................................4-43
19. Inner panel fuse panel.................... 7-71
20. Hood release lever ..........................4-32
21. Seat ..................................................3-2
ODMEIN2900❈The actual shape may differ from the illustration.
■Left-Hand drive type
Page 17 of 711
25
Your vehicle at a glance

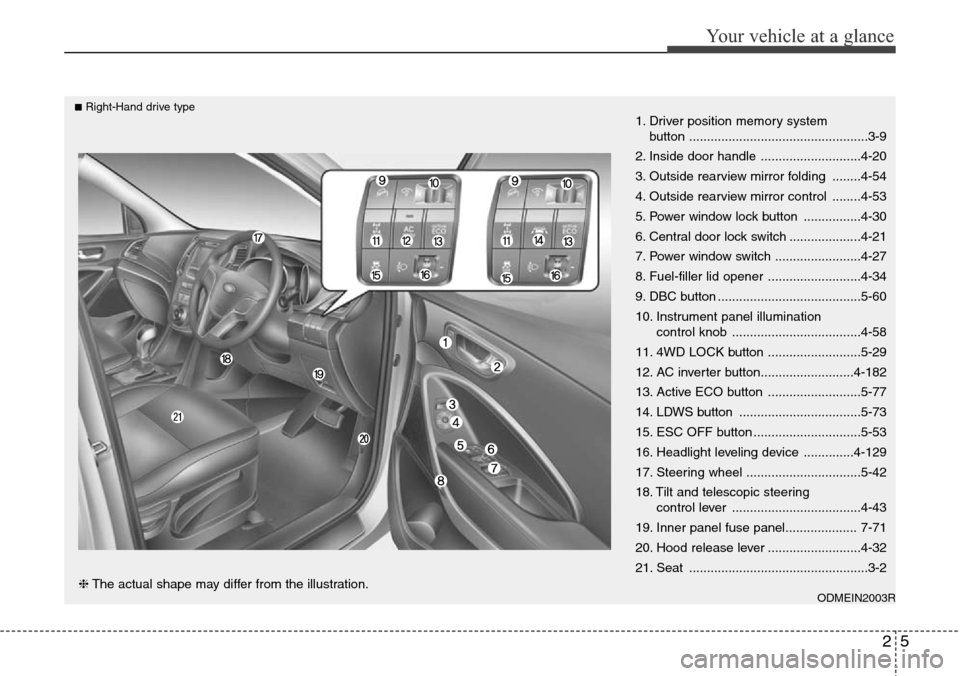

1. Driver position memory system
button ..................................................3-9
2. Inside door handle ............................4-20
3. Outside rearview mirror folding ........4-54
4. Outside rearview mirror control ........4-53
5. Power window lock button ................4-30
6. Central door lock switch ....................4-21
7. Power window switch ........................4-27
8. Fuel-filler lid opener ..........................4-34
9. DBC button ........................................5-60
10. Instrument panel illumination
control knob ....................................4-58
11. 4WD LOCK button ..........................5-29
12. AC inverter button..........................4-182
13. Active ECO button ..........................5-77
14. LDWS button ..................................5-73
15. ESC OFF button ..............................5-53
16. Headlight leveling device ..............4-129
17. Steering wheel ................................5-42
18. Tilt and telescopic steering
control lever ....................................4-43
19. Inner panel fuse panel.................... 7-71
20. Hood release lever ..........................4-32
21. Seat ..................................................3-2
ODMEIN2003R❈The actual shape may differ from the illustration.
■Right-Hand drive type
Page 18 of 711
Your vehicle at a glance
6 2

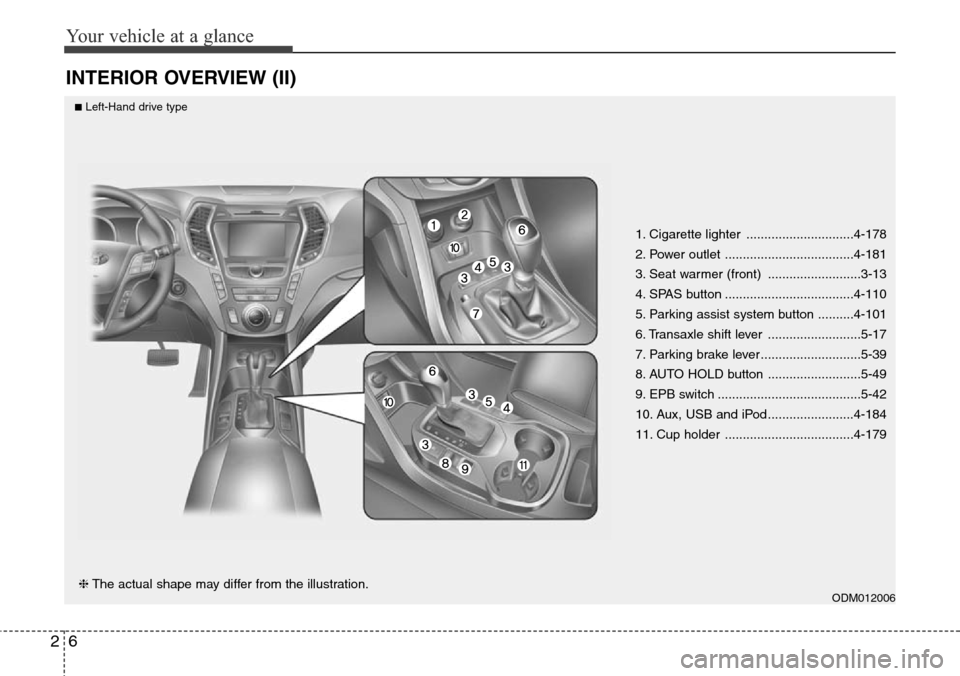

INTERIOR OVERVIEW (II)
1. Cigarette lighter ..............................4-178
2. Power outlet ....................................4-181
3. Seat warmer (front) ..........................3-13
4. SPAS button ....................................4-110
5. Parking assist system button ..........4-101
6. Transaxle shift lever ..........................5-17
7. Parking brake lever ............................5-39
8. AUTO HOLD button ..........................5-49
9. EPB switch ........................................5-42
10. Aux, USB and iPod ........................4-184
11. Cup holder ....................................4-179
ODM012006❈The actual shape may differ from the illustration.
■Left-Hand drive type
Page 19 of 711
27
Your vehicle at a glance

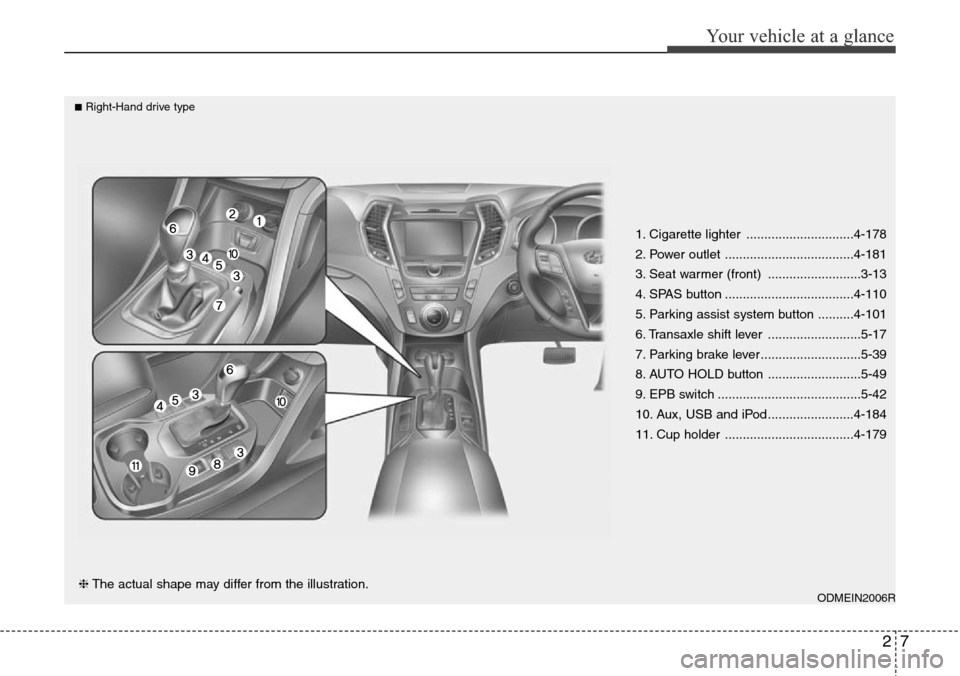

1. Cigarette lighter ..............................4-178
2. Power outlet ....................................4-181
3. Seat warmer (front) ..........................3-13
4. SPAS button ....................................4-110
5. Parking assist system button ..........4-101
6. Transaxle shift lever ..........................5-17
7. Parking brake lever ............................5-39
8. AUTO HOLD button ..........................5-49
9. EPB switch ........................................5-42
10. Aux, USB and iPod ........................4-184
11. Cup holder ....................................4-179
ODMEIN2006R❈The actual shape may differ from the illustration.
■Right-Hand drive type
Page 20 of 711
Your vehicle at a glance
8 2

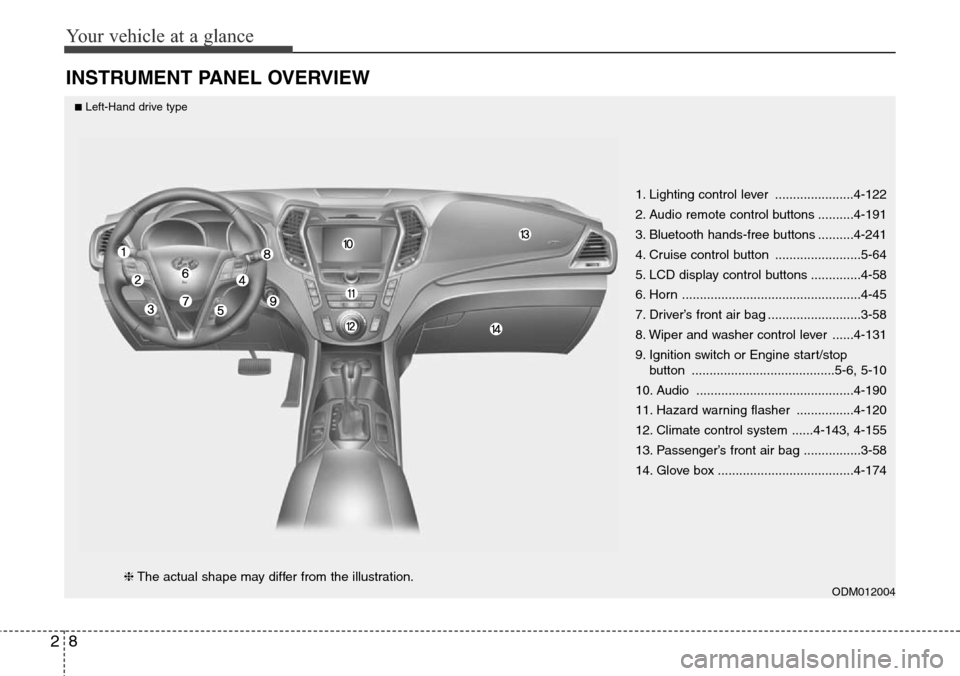

INSTRUMENT PANEL OVERVIEW
1. Lighting control lever ......................4-122
2. Audio remote control buttons ..........4-191
3. Bluetooth hands-free buttons ..........4-241
4. Cruise control button ........................5-64
5. LCD display control buttons ..............4-58
6. Horn ..................................................4-45
7. Driver’s front air bag ..........................3-58
8. Wiper and washer control lever ......4-131
9. Ignition switch or Engine start/stop
button ........................................5-6, 5-10
10. Audio ............................................4-190
11. Hazard warning flasher ................4-120
12. Climate control system ......4-143, 4-155
13. Passenger’s front air bag ................3-58
14. Glove box ......................................4-174
ODM012004❈The actual shape may differ from the illustration.
■Left-Hand drive type
