Hyundai Santa Fe 2013 Owner's Guide

29
Your vehicle at a glance

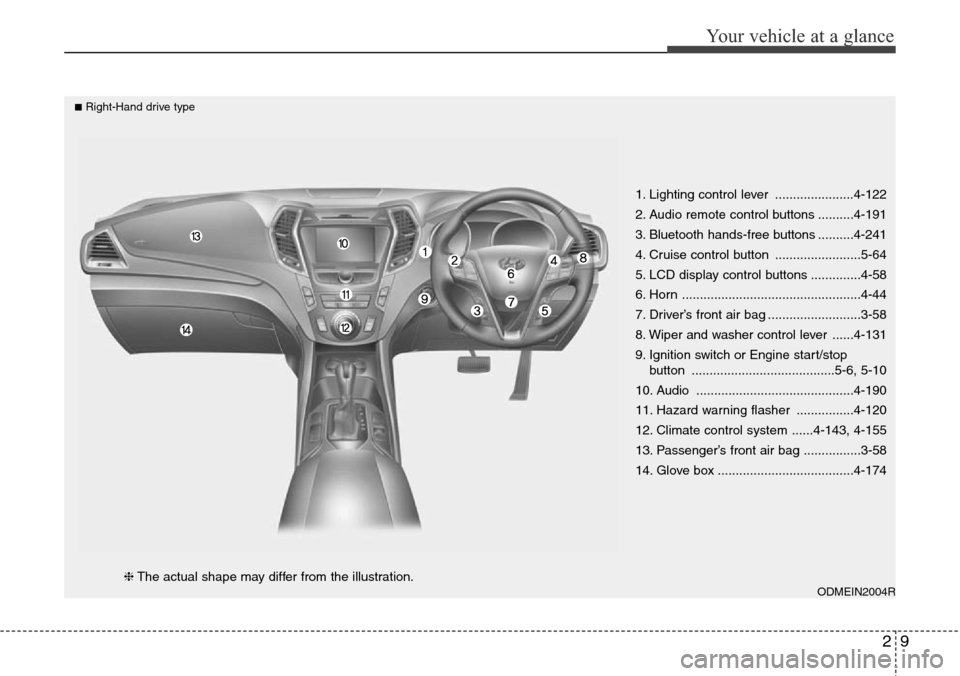

1. Lighting control lever ......................4-122
2. Audio remote control buttons ..........4-191
3. Bluetooth hands-free buttons ..........4-241
4. Cruise control button ........................5-64
5. LCD display control buttons ..............4-58
6. Horn ..................................................4-44
7. Driver’s front air bag ..........................3-58
8. Wiper and washer control lever ......4-131
9. Ignition switch or Engine start/stop
button ........................................5-6, 5-10
10. Audio ............................................4-190
11. Hazard warning flasher ................4-120
12. Climate control system ......4-143, 4-155
13. Passenger’s front air bag ................3-58
14. Glove box ......................................4-174
ODMEIN2004R❈The actual shape may differ from the illustration.
■Right-Hand drive type

Your vehicle at a glance
10 2
ENGINE COMPARTMENT

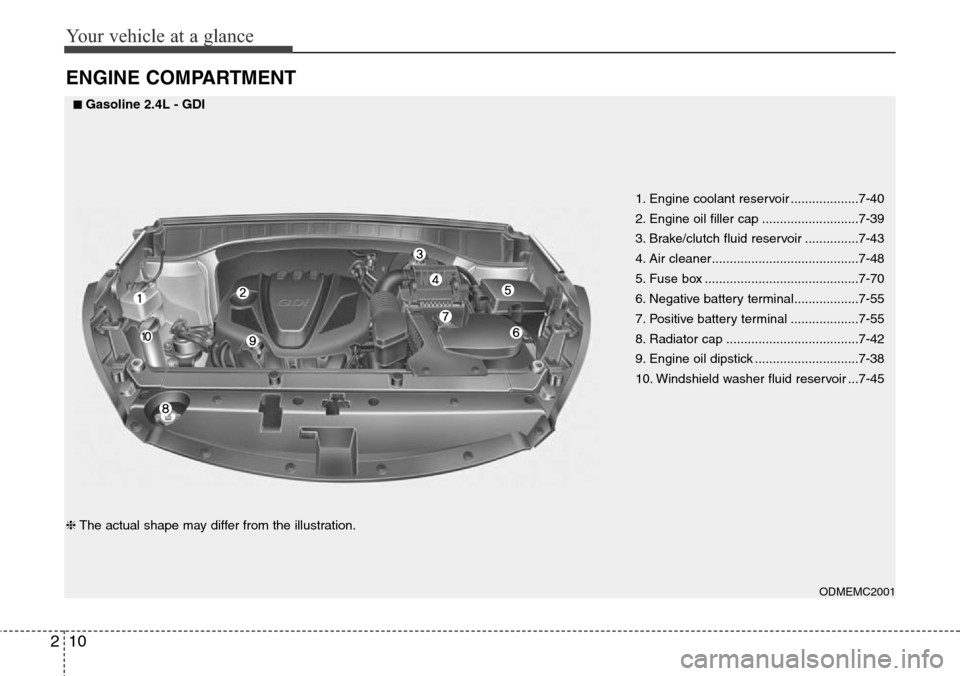

1. Engine coolant reservoir ...................7-40
2. Engine oil filler cap ...........................7-39
3. Brake/clutch fluid reservoir ...............7-43
4. Air cleaner.........................................7-48
5. Fuse box ...........................................7-70
6. Negative battery terminal..................7-55
7. Positive battery terminal ...................7-55
8. Radiator cap .....................................7-42
9. Engine oil dipstick .............................7-38
10. Windshield washer fluid reservoir ...7-45
ODMEMC2001
■Gasoline 2.4L - GDI
❈The actual shape may differ from the illustration.

211
Your vehicle at a glance

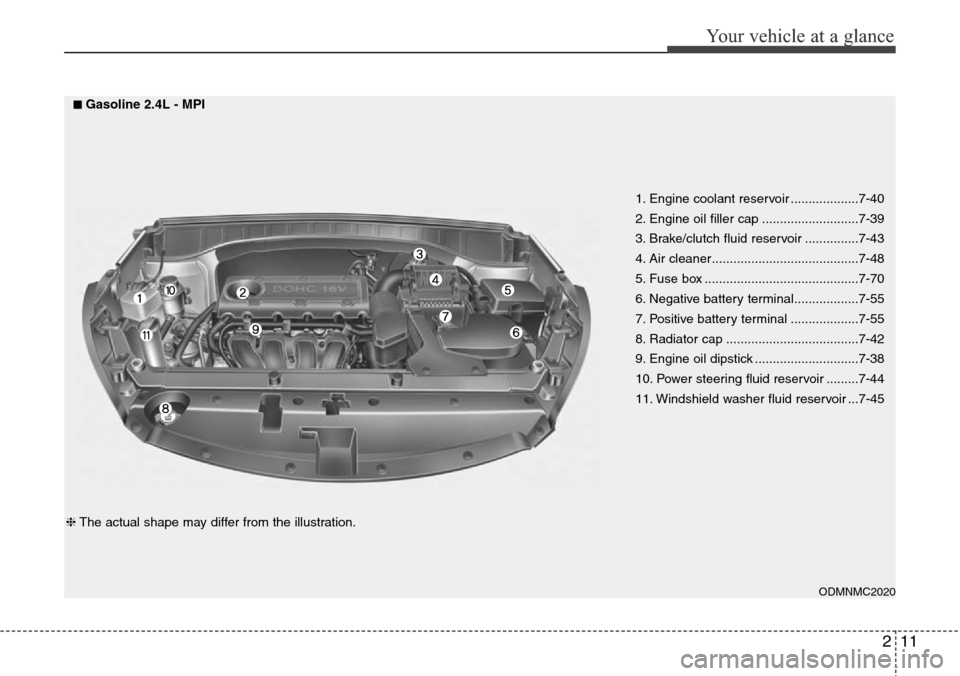

1. Engine coolant reservoir ...................7-40
2. Engine oil filler cap ...........................7-39
3. Brake/clutch fluid reservoir ...............7-43
4. Air cleaner.........................................7-48
5. Fuse box ...........................................7-70
6. Negative battery terminal..................7-55
7. Positive battery terminal ...................7-55
8. Radiator cap .....................................7-42
9. Engine oil dipstick .............................7-38
10. Power steering fluid reservoir .........7-44
11. Windshield washer fluid reservoir ...7-45
ODMNMC2020
■Gasoline 2.4L - MPI
❈The actual shape may differ from the illustration.

Your vehicle at a glance
12 2
OXM079100

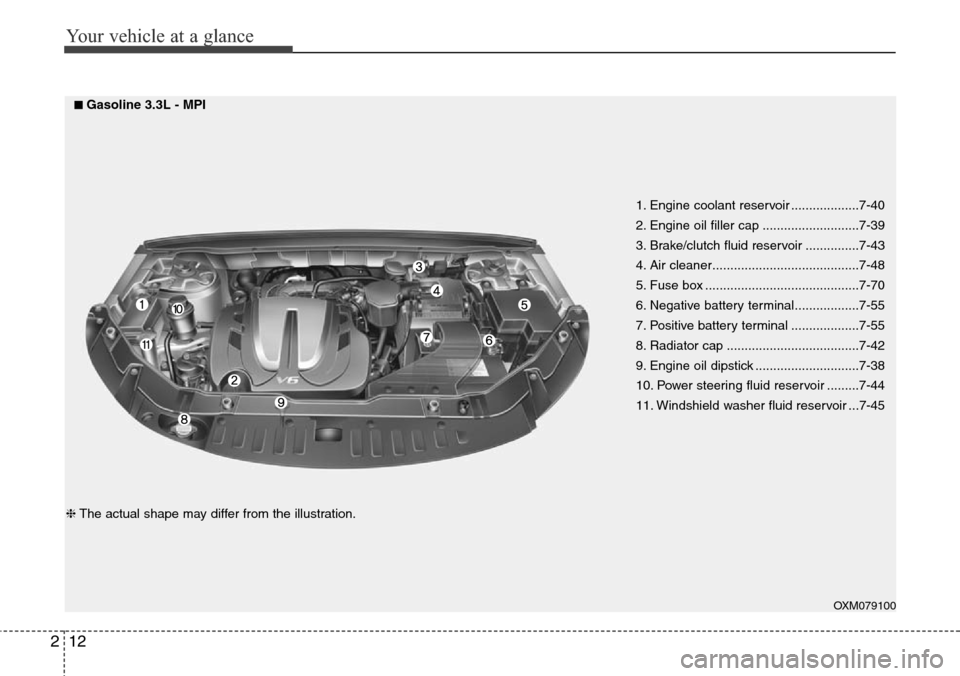

1. Engine coolant reservoir ...................7-40
2. Engine oil filler cap ...........................7-39
3. Brake/clutch fluid reservoir ...............7-43
4. Air cleaner.........................................7-48
5. Fuse box ...........................................7-70
6. Negative battery terminal..................7-55
7. Positive battery terminal ...................7-55
8. Radiator cap .....................................7-42
9. Engine oil dipstick .............................7-38
10. Power steering fluid reservoir .........7-44
11. Windshield washer fluid reservoir ...7-45
■Gasoline 3.3L - MPI
❈The actual shape may differ from the illustration.

213
Your vehicle at a glance
ODM012005
1. Engine coolant reservoir ...................7-40
2. Engine oil filler cap ...........................7-39
3. Brake/clutch fluid reservoir ...............7-43
4. Air cleaner.........................................7-48
5. Fuse box ...........................................7-70
6. Negative battery terminal..................7-55
7. Positive battery terminal ...................7-55
8. Radiator cap .....................................7-42
9. Engine oil dipstick .............................7-38
10. Windshield washer fluid reservoir ...7-45
11. Fuel filter .........................................7-47
■Diesel 2.0/2.2L
❈The actual shape may differ from the illustration.

Safety features of your vehicle

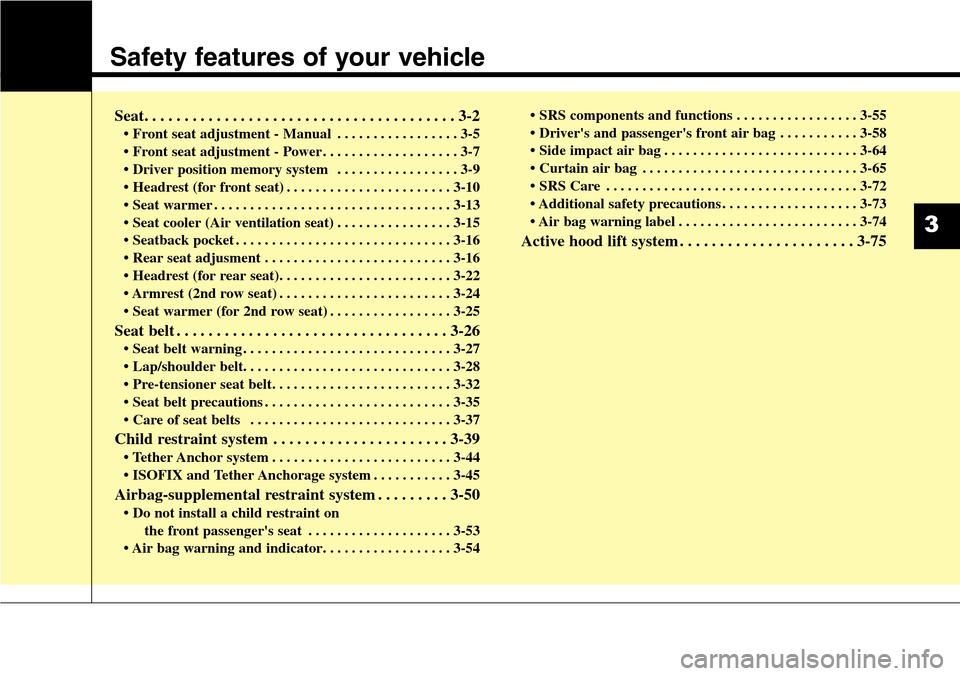

Seat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
• Front seat adjustment - Manual . . . . . . . . . . . . . . . . . 3-5
• Front seat adjustment - Power . . . . . . . . . . . . . . . . . . . 3-7
• Driver position memory system . . . . . . . . . . . . . . . . . 3-9
• Headrest (for front seat) . . . . . . . . . . . . . . . . . . . . . . . 3-10
• Seat warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
• Seat cooler (Air ventilation seat) . . . . . . . . . . . . . . . . 3-15
• Seatback pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
• Rear seat adjusment . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
• Headrest (for rear seat). . . . . . . . . . . . . . . . . . . . . . . . 3-22
• Armrest (2nd row seat) . . . . . . . . . . . . . . . . . . . . . . . . 3-24
• Seat warmer (for 2nd row seat) . . . . . . . . . . . . . . . . . 3-25
Seat belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-26
• Seat belt warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27
• Lap/shoulder belt. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-28
• Pre-tensioner seat belt. . . . . . . . . . . . . . . . . . . . . . . . . 3-32
• Seat belt precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 3-35
• Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-37
Child restraint system . . . . . . . . . . . . . . . . . . . . . . 3-39
• Tether Anchor system . . . . . . . . . . . . . . . . . . . . . . . . . 3-44
• ISOFIX and Tether Anchorage system . . . . . . . . . . . 3-45
Airbag-supplemental restraint system . . . . . . . . . 3-50
• Do not install a child restraint on
the front passenger's seat . . . . . . . . . . . . . . . . . . . . 3-53
• Air bag warning and indicator. . . . . . . . . . . . . . . . . . 3-54• SRS components and functions . . . . . . . . . . . . . . . . . 3-55
• Driver's and passenger's front air bag . . . . . . . . . . . 3-58
• Side impact air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-64
• Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-65
• SRS Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-72
• Additional safety precautions . . . . . . . . . . . . . . . . . . . 3-73
• Air bag warning label . . . . . . . . . . . . . . . . . . . . . . . . . 3-74
Active hood lift system . . . . . . . . . . . . . . . . . . . . . . 3-753

Safety features of your vehicle
2 3

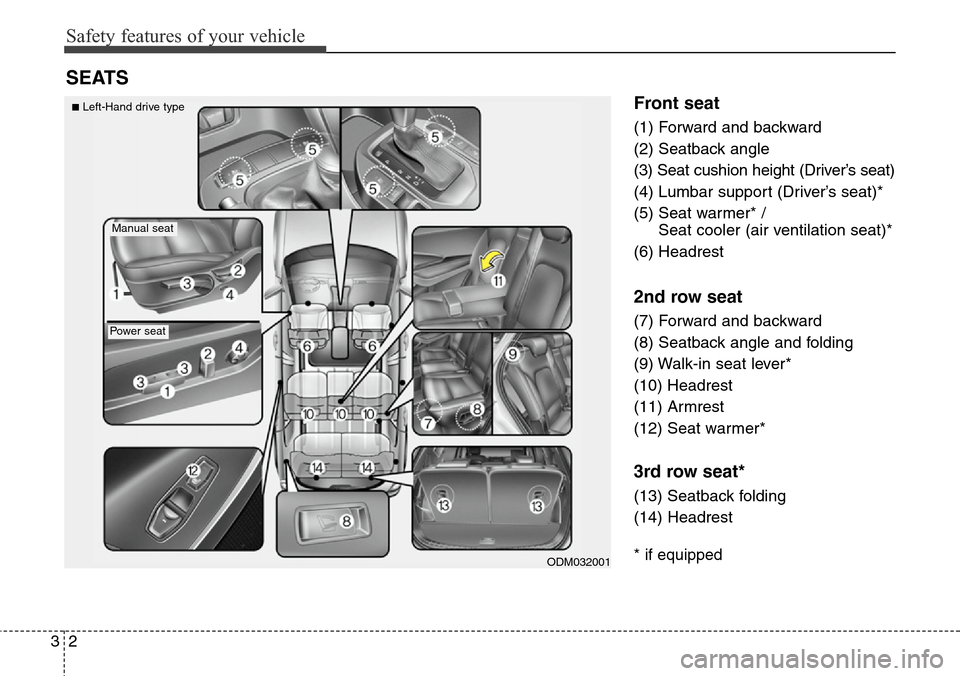

Front seat
(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height (Driver’s seat)
(4) Lumbar support (Driver’s seat)*
(5) Seat warmer* /
Seat cooler (air ventilation seat)*
(6) Headrest
2nd row seat
(7) Forward and backward
(8) Seatback angle and folding
(9) Walk-in seat lever*
(10) Headrest
(11) Armrest
(12) Seat warmer*
3rd row seat*
(13) Seatback folding
(14) Headrest
* if equipped
SEATS
ODM032001
Manual seat
Power seat
■Left-Hand drive type

33
Safety features of your vehicle

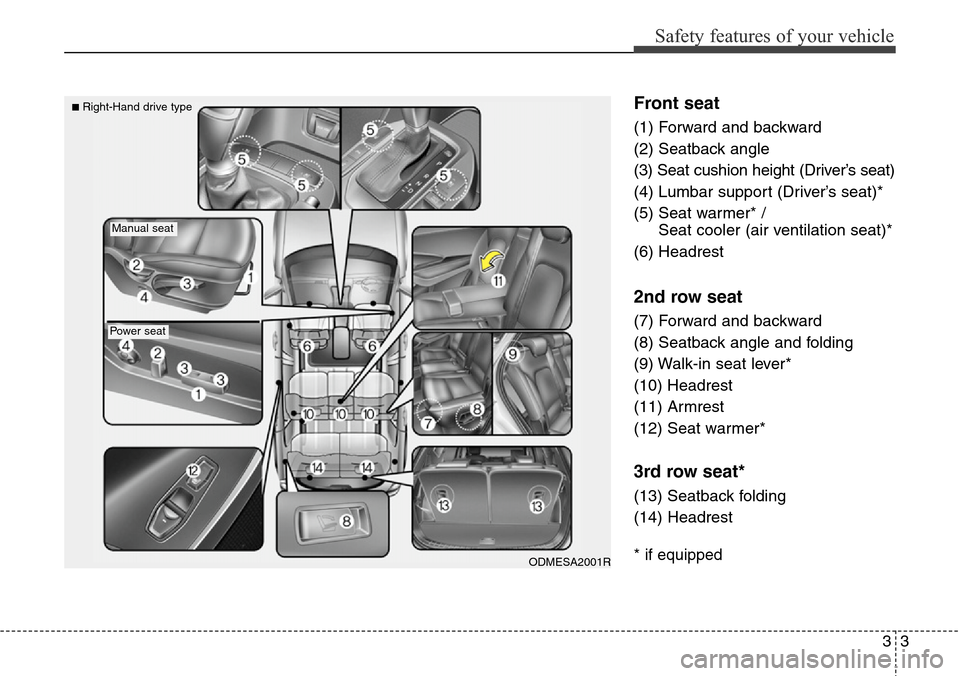

Front seat
(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height (Driver’s seat)
(4) Lumbar support (Driver’s seat)*
(5) Seat warmer* /
Seat cooler (air ventilation seat)*
(6) Headrest
2nd row seat
(7) Forward and backward
(8) Seatback angle and folding
(9) Walk-in seat lever*
(10) Headrest
(11) Armrest
(12) Seat warmer*
3rd row seat*
(13) Seatback folding
(14) Headrest
* if equippedODMESA2001R
Manual seat
Power seat
■Right-Hand drive type

Safety features of your vehicle
4 3
WARNING - Uprighting
seat
When you return the seatback
to its upright position, hold the
seatback and return it slowly
and be sure there are no other
occupants around the seat. If
the seatback is returned with-
out being held and controlled,
the back of the seat could
spring forward resulting in acci-
dental injury to a person struck
by the seatback.
WARNING- Loose
objects
Loose objects in the driver’s
foot area could interfere with
the operation of the foot pedals,
possibly causing an accident.
Do not place anything under the
front seats.WARNING- Driver
responsibility for front seat
passenger
Riding in a vehicle with a front
seatback reclined could lead to
serious or fatal injury in an acci-
dent. If a front seat is reclined
during an accident, the occu-
pant’s hips may slide under the
lap portion of the seat belt, apply-
ing great force to the unprotect-
ed abdomen. Serious or fatal
internal injuries could result. The
driver must advise the front pas-
senger to keep the seatback in
an upright position whenever the
vehicle is in motion.
WARNING
Do not use a sitting cushion that
reduces friction between the
seat and passenger. The passen-
ger's hips may slide under the
lap portion of the seat belt dur-
ing an accident or a sudden
stop. Serious or fatal internal
injuries could result because the
seat belt can't operate normally.
WARNING- Driver’s seat
• Never attempt to adjust seat
while the vehicle is moving.
This could result in loss of
control, and an accident caus-
ing death, serious injury, or
property damage.
• Do not allow anything to inter-
fere with the normal position
of the seatback. Storing items
against a seatback or in any
other way interfering with
proper locking of a seatback
could result in serious or fatal
injury in a sudden stop or col-
lision.
• Always drive and ride with
your seatback upright and the
lap portion of the seat belt
snug and low across the hips.
This is the best position to
protect you in case of an acci-
dent.
(Continued)

35
Safety features of your vehicle

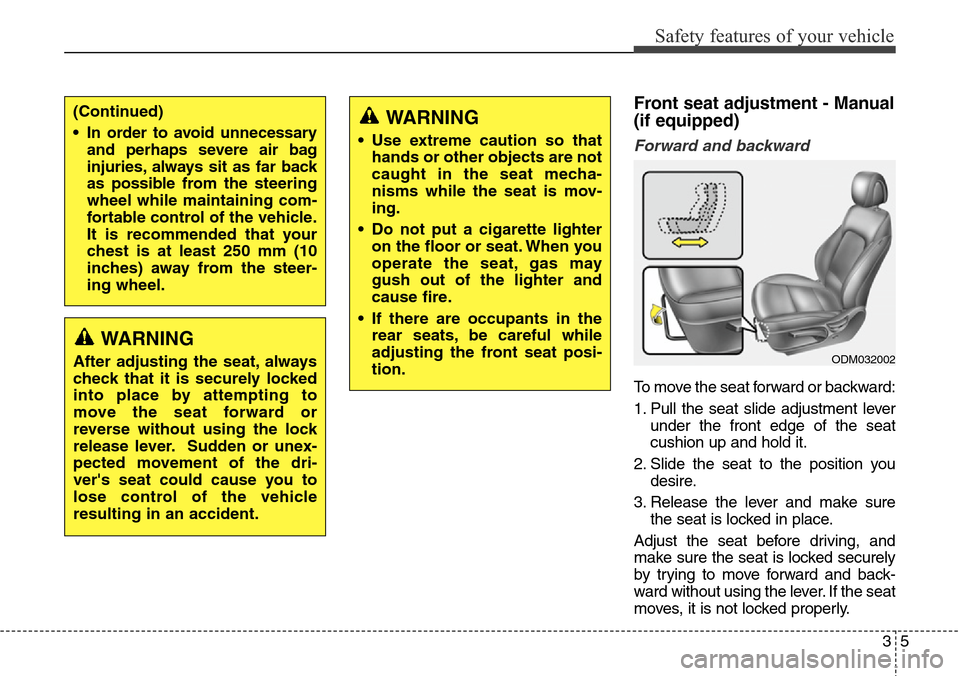

Front seat adjustment - Manual
(if equipped)
Forward and backward
To move the seat forward or backward:
1. Pull the seat slide adjustment lever
under the front edge of the seat
cushion up and hold it.
2. Slide the seat to the position you
desire.
3. Release the lever and make sure
the seat is locked in place.
Adjust the seat before driving, and
make sure the seat is locked securely
by trying to move forward and back-
ward without using the lever. If the seat
moves, it is not locked properly.
WARNING
After adjusting the seat, always
check that it is securely locked
into place by attempting to
move the seat forward or
reverse without using the lock
release lever. Sudden or unex-
pected movement of the dri-
ver's seat could cause you to
lose control of the vehicle
resulting in an accident.
(Continued)
• In order to avoid unnecessary
and perhaps severe air bag
injuries, always sit as far back
as possible from the steering
wheel while maintaining com-
fortable control of the vehicle.
It is recommended that your
chest is at least 250 mm (10
inches) away from the steer-
ing wheel.WARNING
• Use extreme caution so that
hands or other objects are not
caught in the seat mecha-
nisms while the seat is mov-
ing.
• Do not put a cigarette lighter
on the floor or seat. When you
operate the seat, gas may
gush out of the lighter and
cause fire.
• If there are occupants in the
rear seats, be careful while
adjusting the front seat posi-
tion.
ODM032002
