Hyundai Santa Fe 2016 Navigation Manual

51

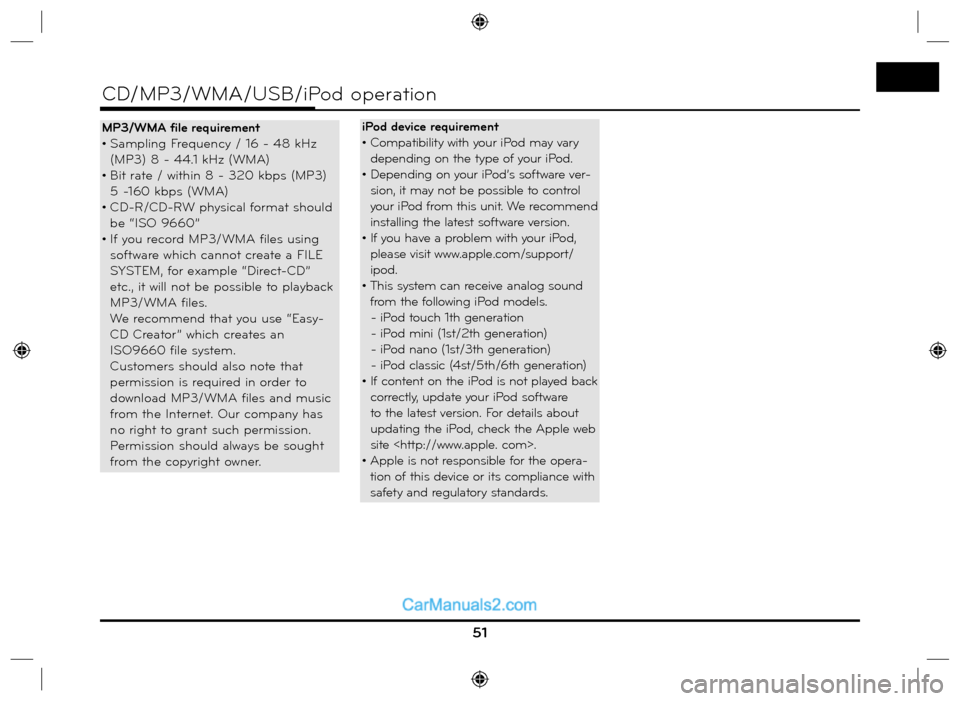

CD/MP3/WMA/USB/iPod operation
MP3/WMA file requirement
• Sampling Frequency / 16 - 48 kHz
(MP3) 8 - 44.1 kHz (WMA)
• Bit rate / within 8 - 320 kbps (MP3)
5 -160 kbps (WMA)
• CD-R/CD-RW physical format should
be “ISO 9660”
• If you record MP3/WMA files using
software which cannot create a FILE
SYSTEM, for example “Direct-CD”
etc., it will not be possible to playback
MP3/WMA files.
We recommend that you use “Easy-
CD Creator” which creates an
ISO9660 file system.
Customers should also note that
permission is required in order to
download MP3/WMA files and music
from the Internet. Our company has
no right to grant such permission.
Permission should always be sought
from the copyright owner. iPod device requirement
• Compatibility with your iPod may vary
depending on the type of your iPod.
• Depending on your iPod’s software ver-
sion, it may not be possible to control
your iPod from this unit. We recommend
installing the latest software version.
• If you have a problem with your iPod,
please visit www.apple.com/support/
ipod.
• This system can receive analog sound
from the following iPod models.
- iPod touch 1th generation
- iPod mini (1st/2th generation)
- iPod nano (1st/3th generation)
- iPod classic (4st/5th/6th generation)
• If content on the iPod is not played back
correctly, update your iPod software
to the latest version. For details about
updating the iPod, check the Apple web
site .
• Apple is not responsible for the opera-
tion of this device or its compliance with
safety and regulatory standards.

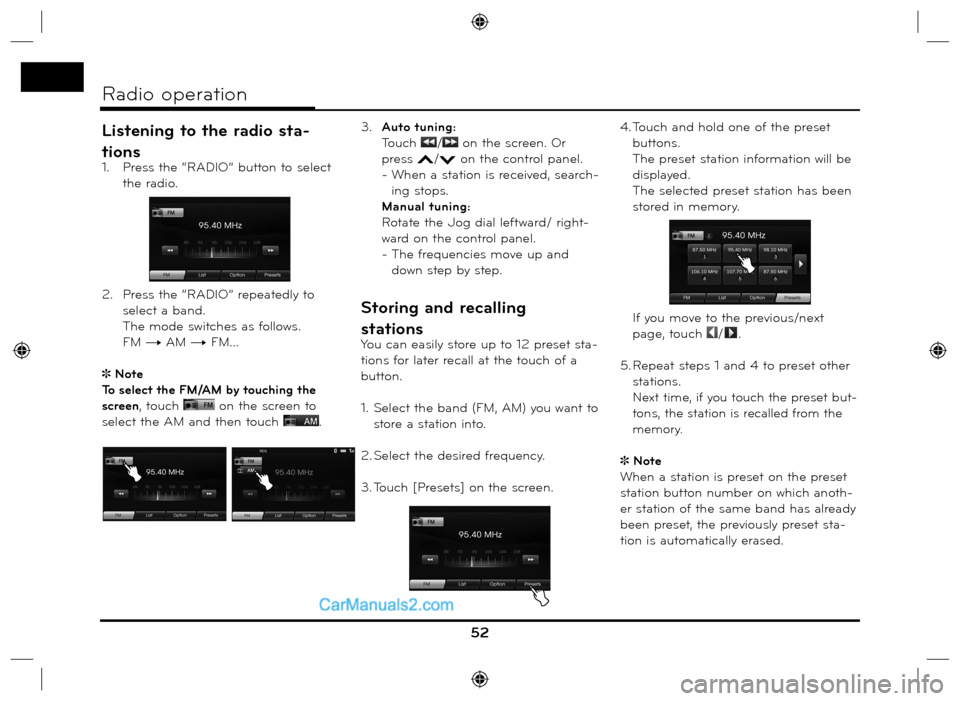

Listening to the radio sta-
tions
1. Press the “RADIO” button to select
the radio.
2. Press the “RADIO” repeatedly to
select a band.
The mode switches as follows.
FM t AM t FM...
Note
To select the FM/AM by touching the
screen, touch
on the screen to
select the AM and then touch
. 3. Auto tuning:
Touch
/ on the screen. Or
press
/ on the control panel.
- When a station is received, search-
ing stops.
Manual tuning:
Rotate the Jog dial leftward/ right-
ward on the control panel.
- The frequencies move up and
down step by step.
Storing and recalling
stations
You can easily store up to 12 preset sta-
tions for later recall at the touch of a
button.
1. Select the band (FM, AM) you want to
store a station into.
2. Select the desired frequency.
3. Touch [Presets] on the screen.4. Touch and hold one of the preset
buttons.
The preset station information will be
displayed.
The selected preset station has been
stored in memory.
If you move to the previous/next
page, touch /.
5. Repeat steps 1 and 4 to preset other
stations.
Next time, if you touch the preset but-
tons
, the station is recalled from the
memory.
Note
When a station is preset on the preset
station button number on which anoth-
er station of the same band has already
been preset, the previously preset sta-
tion is automatically erased.
52
Radio operation

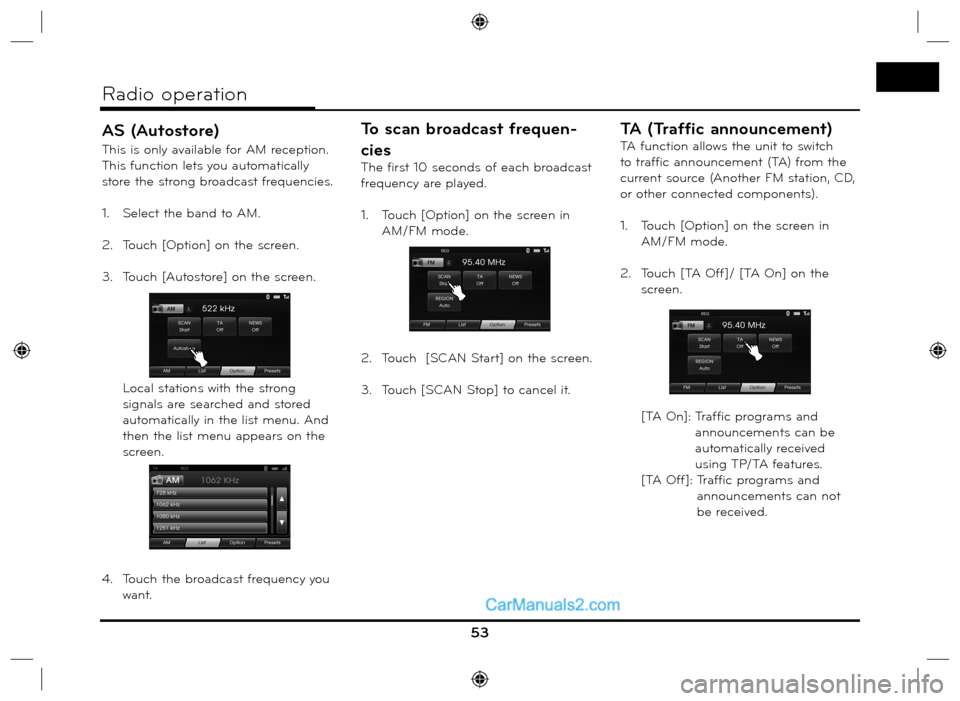

AS (Autostore)
This is only available for AM reception.
This function lets you automatically
store the strong broadcast frequencies.
1. Select the band to AM.
2. Touch [Option] on the screen.
3. Touch [Autostore] on the screen.
Local stations with the strong
signals are searched and stored
automatically in the list menu. And
then the list menu appears on the
screen.
4. Touch the broadcast frequency you
want.
To scan broadcast frequen-
cies
The first 10 seconds of each broadcast
frequency are played.
1. Touch [Option] on the screen in
AM/FM mode.
2. Touch [SCAN Start] on the screen.
3. Touch [SCAN Stop] to cancel it.
TA (Traffic announcement)
TA function allows the unit to switch
to traffic announcement (TA) from the
current source (Another FM station, CD,
or other connected components).
1. Touch [Option] on the screen in
AM/FM mode.
2. Touch [TA Off]/ [TA On] on the
screen.
[TA On]: Traffic programs and
announcements can be
automatically received
using TP/TA features.
[TA Off]: Traffic programs and
announcements can not
be received.
53
Radio operation

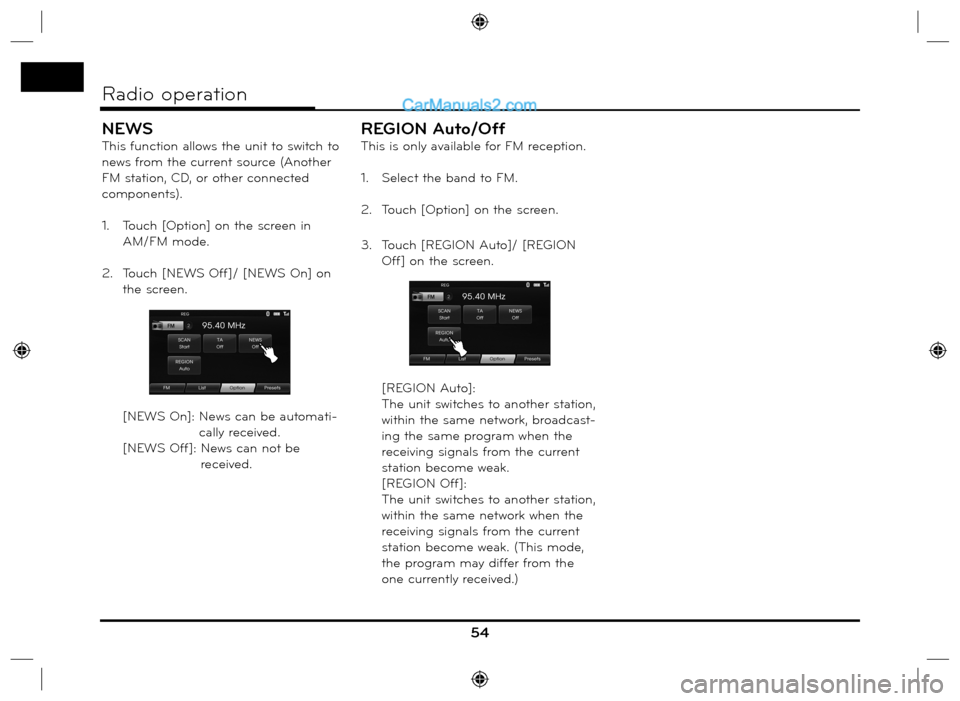

NEWS
This function allows the unit to switch to
news from the current source (Another
FM station, CD, or other connected
components).
1. Touch [Option] on the screen in
AM/FM mode.
2. Touch [NEWS Off]/ [NEWS On] on
the screen.
[NEWS On]: News can be automati-
cally received.
[NEWS Off]: News can not be
received.
REGION Auto/Off
This is only available for FM reception.
1. Select the band to FM.
2. Touch [Option] on the screen.
3. Touch [REGION Auto]/ [REGION
Off] on the screen.
[REGION Auto]:
The unit switches to another station,
within the same network, broadcast-
ing the same program when the
receiving signals from the current
station become weak.
[REGION Off]:
The unit switches to another station,
within the same network when the
receiving signals from the current
station become weak. (This mode,
the program may differ from the
one currently received.)
54
Radio operation

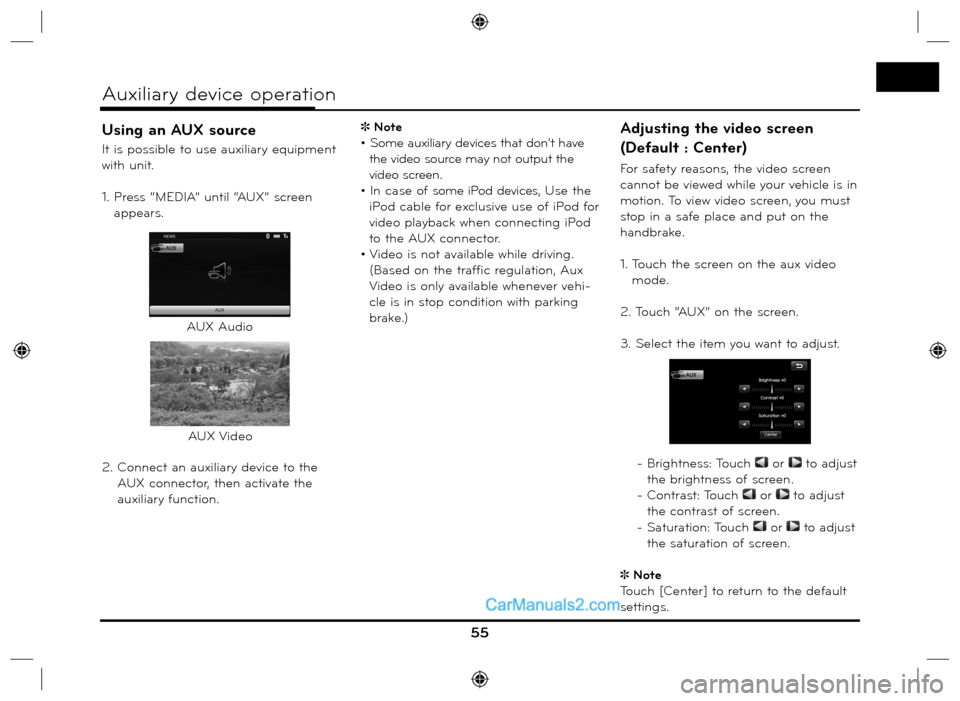

Using an AUX source
It is possible to use auxiliary equipment
with unit.
1. Press “MEDIA” until “AUX” screen
appears.
2. Connect an auxiliary device to the
AUX connector, then activate the
auxiliary function.Note
• Some auxiliary devices that don’t have
the video source may not output the
video screen.
• In case of some iPod devices, Use the
iPod cable for exclusive use of iPod for
video playback when connecting iPod
to the AUX connector.
• Video is not available while driving.
(Based on the traffic regulation, Aux
Video is only available whenever vehi-
cle is in stop condition with parking
brake.)
Adjusting the video screen
(Default : Center)
For safety reasons, the video screen
cannot be viewed while your vehicle is in
motion. To view video screen, you must
stop in a safe place and put on the
handbrake.
1. Touch the screen on the aux video
mode.
2. Touch “AUX” on the screen.
3. Select the item you want to adjust.
- Brightness: Touch
or to adjust
the brightness of screen.
- Contrast: Touch
or to adjust
the contrast of screen.
- Saturation: Touch
or to adjust
the saturation of screen.
Note
Touch [Center] to return to the default
settings.
55
Auxiliary device operation
AUX Audio
AUX Video

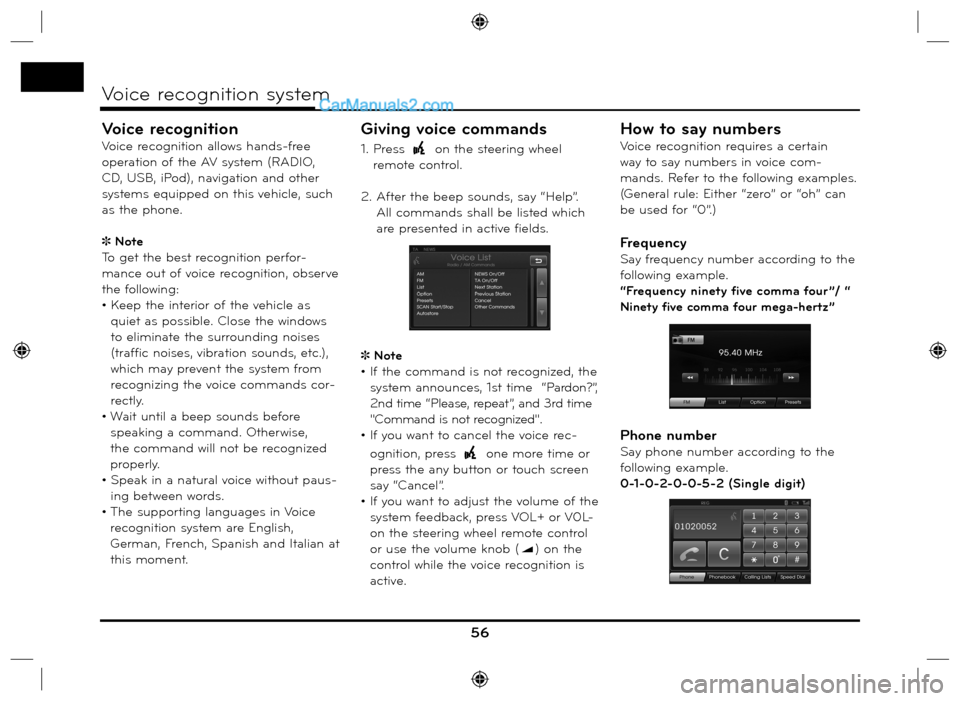

Voice recognition
Voice recognition allows hands-free
operation of the AV system (RADIO,
CD, USB, iPod), navigation and other
systems equipped on this vehicle, such
as the phone.
Note
To get the best recognition perfor-
mance out of voice recognition, observe
the following:
• Keep the interior of the vehicle as
quiet as possible. Close the windows
to eliminate the surrounding noises
(traffic noises, vibration sounds, etc.),
which may prevent the system from
recognizing the voice commands cor-
rectly.
• Wait until a beep sounds before
speaking a command. Otherwise,
the command will not be recognized
properly.
• Speak in a natural voice without paus-
ing between words.
• The supporting languages in Voice
recognition system are English,
German, French, Spanish and Italian at
this moment.
Giving voice commands
1. Press on the steering wheel
remote control.
2. After the beep sounds, say “Help”.
All commands shall be listed which
are presented in active fields.
Note
• If the command is not recognized, the
system announces, 1st time “Pardon?”,
2nd time “Please, repeat”, and 3rd time
"Command is not recognized".
• If you want to cancel the voice rec-
ognition, press
one more time or
press the any button or touch screen
say “Cancel”.
• If you want to adjust the volume of the
system feedback, press VOL+ or V0L-
on the steering wheel remote control
or use the volume knob (
) on the
control while the voice recognition is
active.
How to say numbers
Voice recognition requires a certain
way to say numbers in voice com-
mands. Refer to the following examples.
(General rule: Either “zero” or “oh” can
be used for “0”.)
Frequency
Say frequency number according to the
following example.
“Frequency ninety five comma four ”/ “
Ninety five comma four mega-hertz”
Phone number
Say phone number according to the
following example.
0-1-0-2-0-0-5-2 (Single digit)
56
Voice recognition system

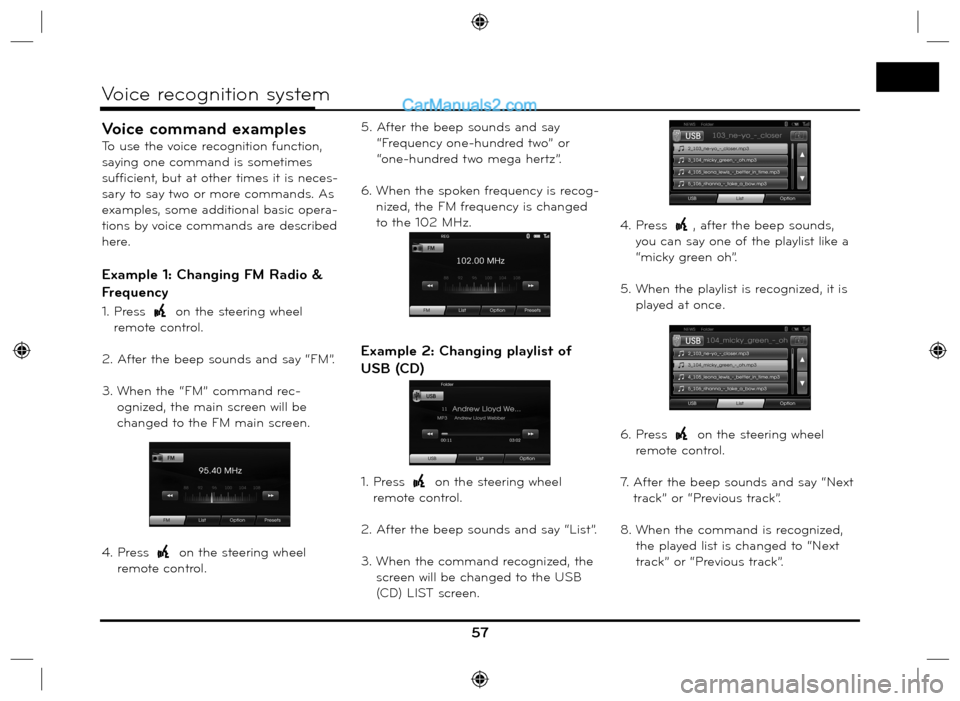

Voice command examples
To use the voice recognition function,
saying one command is sometimes
sufficient, but at other times it is neces-
sary to say two or more commands. As
examples, some additional basic opera-
tions by voice commands are described
here.
Example 1: Changing FM Radio &
Frequency
1. Press on the steering wheel
remote control.
2. After the beep sounds and say “FM”.
3. When the “FM” command rec-
ognized, the main screen will be
changed to the FM main screen.
4. Press
on the steering wheel
remote control.5. After the beep sounds and say
“Frequency one-hundred two” or
“one-hundred two mega hertz”.
6. When the spoken frequency is recog-
nized, the FM frequency is changed
to the 102 MHz.
Example 2: Changing playlist of
USB (CD)
1. Press on the steering wheel
remote control.
2. After the beep sounds and say “List”.
3. When the command recognized, the
screen will be changed to the USB
(CD) LIST screen.4. Press
, after the beep sounds,
you can say one of the playlist like a
“micky green oh”.
5. When the playlist is recognized, it is
played at once.
6. Press
on the steering wheel
remote control.
7. After the beep sounds and say “Next
track” or “Previous track”.
8. When the command is recognized,
the played list is changed to “Next
track” or “Previous track”.
57
Voice recognition system

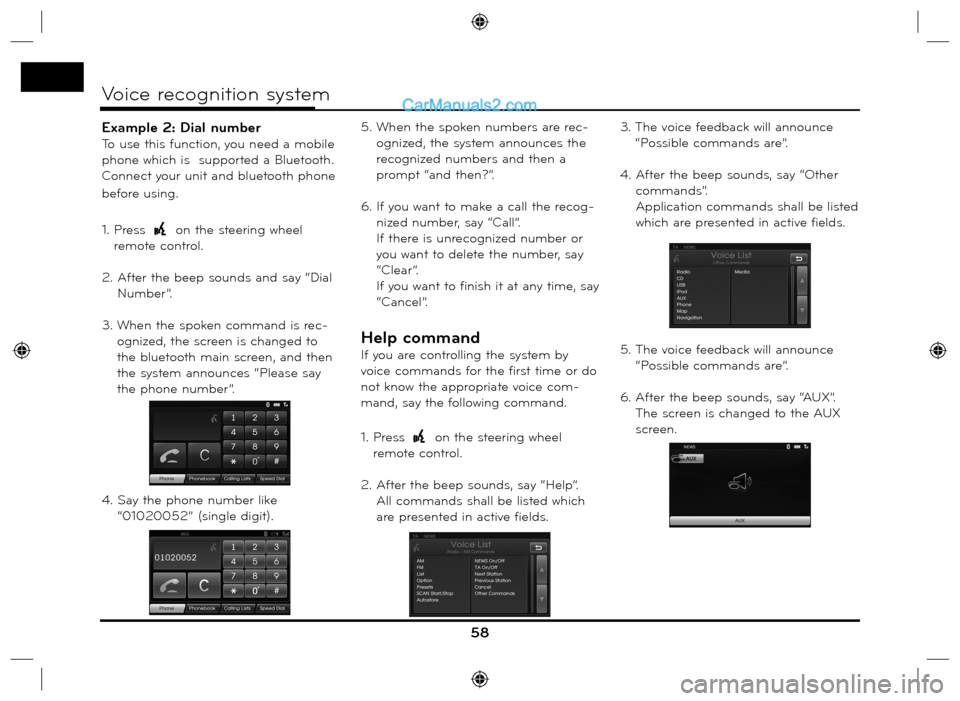

Example 2: Dial number
To use this function, you need a mobile
phone which is supported a Bluetooth.
Connect your unit and bluetooth phone
before using.
1. Press
on the steering wheel
remote control.
2. After the beep sounds and say “Dial
Number”.
3. When the spoken command is rec-
ognized, the screen is changed to
the bluetooth main screen, and then
the system announces “Please say
the phone number”.
4. Say the phone number like
“01020052” (single digit).5. When the spoken numbers are rec-
ognized, the system announces the
recognized numbers and then a
prompt “and then?”.
6. If you want to make a call the recog-
nized number, say “Call”.
If there is unrecognized number or
you want to delete the number, say
“Clear”.
If you want to finish it at any time, say
“Cancel”.
Help command
If you are controlling the system by
voice commands for the first time or do
not know the appropriate voice com-
mand, say the following command.
1. Press
on the steering wheel
remote control.
2. After the beep sounds, say “Help”.
All commands shall be listed which
are presented in active fields.3. The voice feedback will announce
“Possible commands are”.
4. After the beep sounds, say “Other
commands”.
Application commands shall be listed
which are presented in active fields.
5. The voice feedback will announce
“Possible commands are”.
6. After the beep sounds, say “AUX”.
The screen is changed to the AUX
screen.
58
Voice recognition system

Voice commands
59
Voice recognition system
Category
Application
commandVoice command
AUX
CD
iPod
Map
Radio
USB
Phone
Media
Category
General
functionsVoice command
Volume down
Volume up
Previous page
Next page
Help
Other commands
Cancel
No
Ye s
Category
RadioVoice command
News off
News on
Next station
Previous station
TA o f f
TA o n
Preset
Presets
AM
FM
List
Option
Scan Start
Scan Stop
Frequency “x” comma
“yy”
Frequency “xxxx”
Autostore
Region Auto
Region OffCategory
PhoneVoice command
Dial Number
Incoming
Missed
Outgoing
Phone Book
Call Name
Speed Dial
Call
Calling lists
Speed dial
Mobile
Private
Office
Clear
Correction

60
Voice recognition system
Voice commands
Category
iPodVoice command
Repeat Off
Repeat On
Scan Start
Scan Stop
Random Off
Random All
Random Album
Audio book Slow
Audio book Normal
Audio book Fast
Directory up
List
Option
Next Track
Previous Track
Track Info

Track
OKCategory
MP3
(CD, USB)Voice command
Directory up
List
Option
Repeat Folder
Repeat Off
Repeat Track
Scan Start
Scan Stop
Random All
Random Folder
Random Off
Track Info
Next Track
Previous Track

Track
Album
Artist
Folder
OKCategory
Audio CDVoice command
List
Option
Repeat Off
Repeat Track
Scan Start
Scan Stop
Random All
Random Off
Track Info
Next Track
Previous Track
Track
OK
Category
NavigationVoice command
Navigation
