Hyundai Santa Fe 2016 Navigation Manual

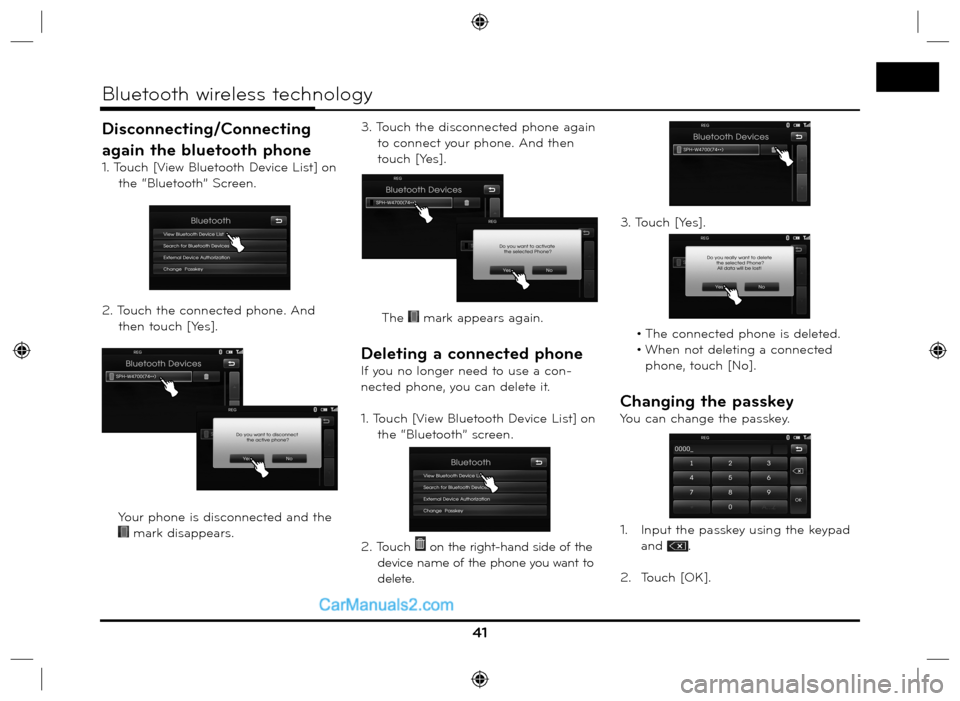

Disconnecting/Connecting
again the bluetooth phone
1. Touch [View Bluetooth Device List] on
the “Bluetooth” Screen.
2. Touch the connected phone. And
then touch [Yes].
Your phone is disconnected and the
mark disappears.3. Touch the disconnected phone again
to connect your phone. And then
touch [Yes].
The
mark appears again.
Deleting a connected phone
If you no longer need to use a con-
nected phone, you can delete it.
1. Touch [View Bluetooth Device List] on
the “Bluetooth” screen.
2. Touch
on the right-hand side of the
device name of the phone you want to
delete. 3. Touch [Yes].
• The connected phone is deleted.
• When not deleting a connected
phone, touch [No].
Changing the passkey
You can change the passkey.
1. Input the passkey using the keypad
and
.
2. Touch [OK].
41
Bluetooth wireless technology

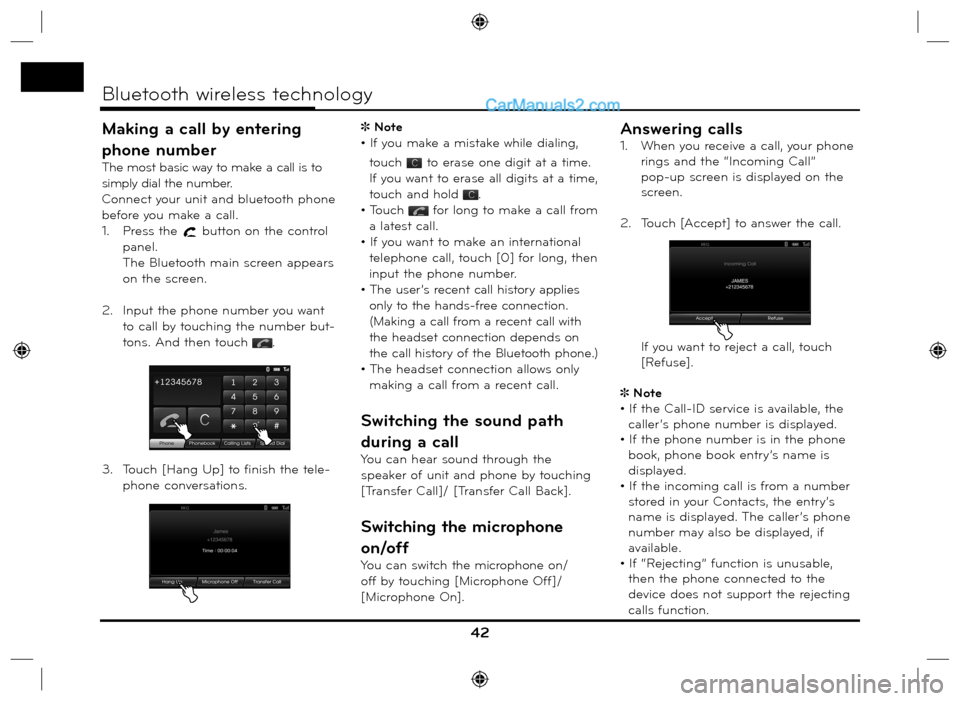

Making a call by entering
phone number
The most basic way to make a call is to
simply dial the number.
Connect your unit and bluetooth phone
before you make a call.
1. Press the
button on the control
panel.
The Bluetooth main screen appears
on the screen.
2. Input the phone number you want
to call by touching the number but-
tons. And then touch
.
3. Touch [Hang Up] to finish the tele-
phone conversations. Note
• If you make a mistake while dialing,
touch
to erase one digit at a time.
If you want to erase all digits at a time,
touch and hold
.
• Touch
for long to make a call from
a latest call.
• If you want to make an international
telephone call, touch [0] for long, then
input the phone number.
• The user’s recent call history applies
only to the hands-free connection.
(Making a call from a recent call with
the headset connection depends on
the call history of the Bluetooth phone.)
• The headset connection allows only
making a call from a recent call.
Switching the sound path
during a call
You can hear sound through the
speaker of unit and phone by touching
[Transfer Call]/ [Transfer Call Back].
Switching the microphone
on/off
You can switch the microphone on/
off by touching [Microphone Off]/
[Microphone On].
Answering calls
1. When you receive a call, your phone
rings and the “Incoming Call”
pop-up screen is displayed on the
screen.
2. Touch [Accept] to answer the call.
If you want to reject a call, touch
[Refuse].
 Note
• If the Call-ID service is available, the
caller’s phone number is displayed.
• If the phone number is in the phone
book, phone book entry’s name is
displayed.
• If the incoming call is from a number
stored in your Contacts, the entry’s
name is displayed. The caller’s phone
number may also be displayed, if
available.
• If “Rejecting” function is unusable,
then the phone connected to the
device does not support the rejecting
calls function.
42
Bluetooth wireless technology

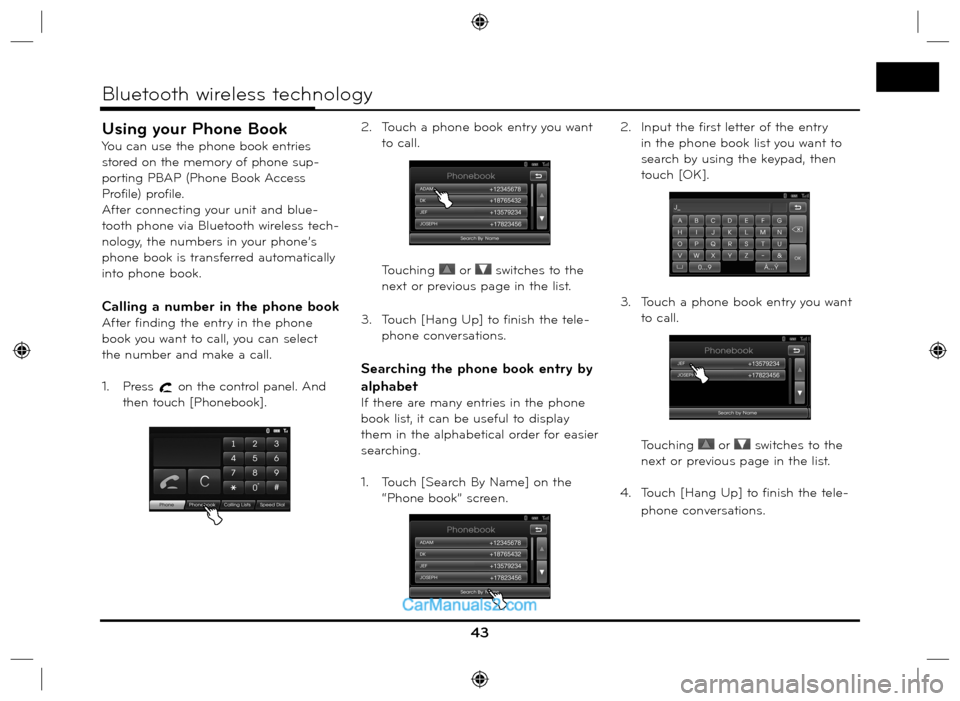

Using your Phone Book
You can use the phone book entries
stored on the memory of phone sup-
porting PBAP (Phone Book Access
Profile) profile.
After connecting your unit and blue-
tooth phone via Bluetooth wireless tech-
nology, the numbers in your phone’s
phone book is transferred automatically
into phone book.
Calling a number in the phone book
After finding the entry in the phone
book you want to call, you can select
the number and make a call.
1. Press
on the control panel. And
then touch [Phonebook].2. Touch a phone book entry you want
to call.
Touching
or switches to the
next or previous page in the list.
3. Touch [Hang Up] to finish the tele-
phone conversations.
Searching the phone book entry by
alphabet
If there are many entries in the phone
book list, it can be useful to display
them in the alphabetical order for easier
searching.
1. Touch [Search By Name] on the
“Phone book” screen.2. Input the first letter of the entry
in the phone book list you want to
search by using the keypad, then
touch [OK].
3. Touch a phone book entry you want
to call.
Touching
or switches to the
next or previous page in the list.
4. Touch [Hang Up] to finish the tele-
phone conversations.
43
Bluetooth wireless technology

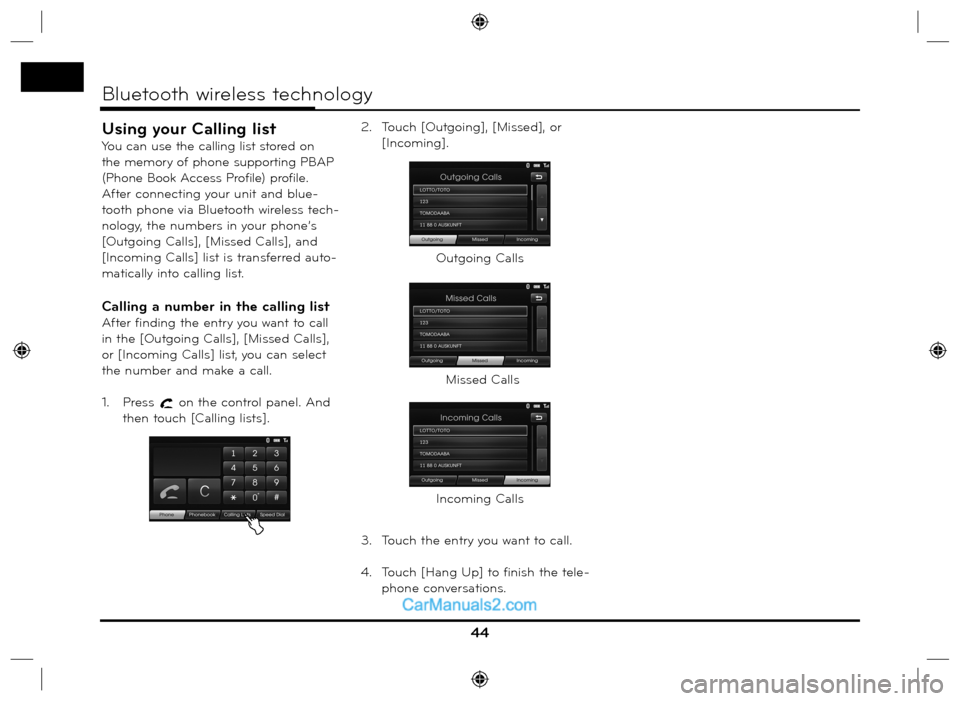

Using your Calling list
You can use the calling list stored on
the memory of phone supporting PBAP
(Phone Book Access Profile) profile.
After connecting your unit and blue-
tooth phone via Bluetooth wireless tech-
nology, the numbers in your phone’s
[Outgoing Calls], [Missed Calls], and
[Incoming Calls] list is transferred auto-
matically into calling list.
Calling a number in the calling list
After finding the entry you want to call
in the [Outgoing Calls], [Missed Calls],
or [Incoming Calls] list, you can select
the number and make a call.
1. Press
on the control panel. And
then touch [Calling lists].2. Touch [Outgoing], [Missed], or
[Incoming].
3. Touch the entry you want to call.
4. Touch [Hang Up] to finish the tele-
phone conversations.
44
Bluetooth wireless technology
Outgoing Calls
Missed Calls
Incoming Calls

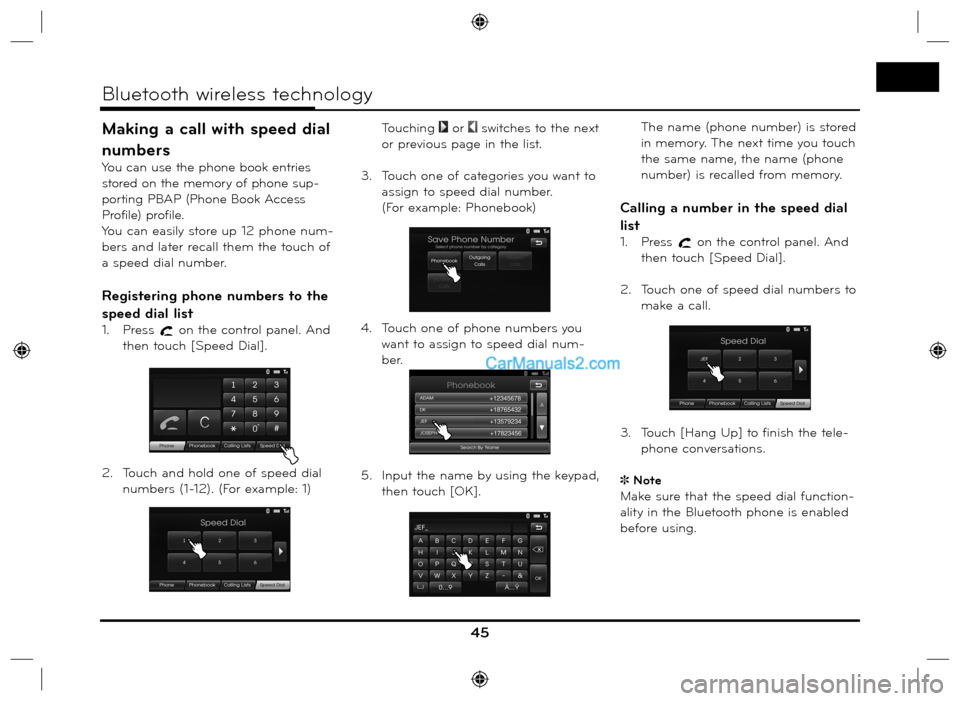

Making a call with speed dial
numbers
You can use the phone book entries
stored on the memory of phone sup-
porting PBAP (Phone Book Access
Profile) profile.
You can easily store up 12 phone num-
bers and later recall them the touch of
a speed dial number.
Registering phone numbers to the
speed dial list
1. Press on the control panel. And
then touch [Speed Dial].
2. Touch and hold one of speed dial
numbers (1-12). (For example: 1)
Touching
or switches to the next
or previous page in the list.
3. Touch one of categories you want to
assign to speed dial number.
(For example: Phonebook)
4. Touch one of phone numbers you
want to assign to speed dial num-
ber.
5. Input the name by using the keypad,
then touch [OK].
The name (phone number) is stored
in memory. The next time you touch
the same name, the name (phone
number) is recalled from memory.
Calling a number in the speed dial
list
1. Press on the control panel. And
then touch [Speed Dial].
2. Touch one of speed dial numbers to
make a call.
3. Touch [Hang Up] to finish the tele-
phone conversations.
Note
Make sure that the speed dial function-
ality in the Bluetooth phone is enabled
before using.
45
Bluetooth wireless technology

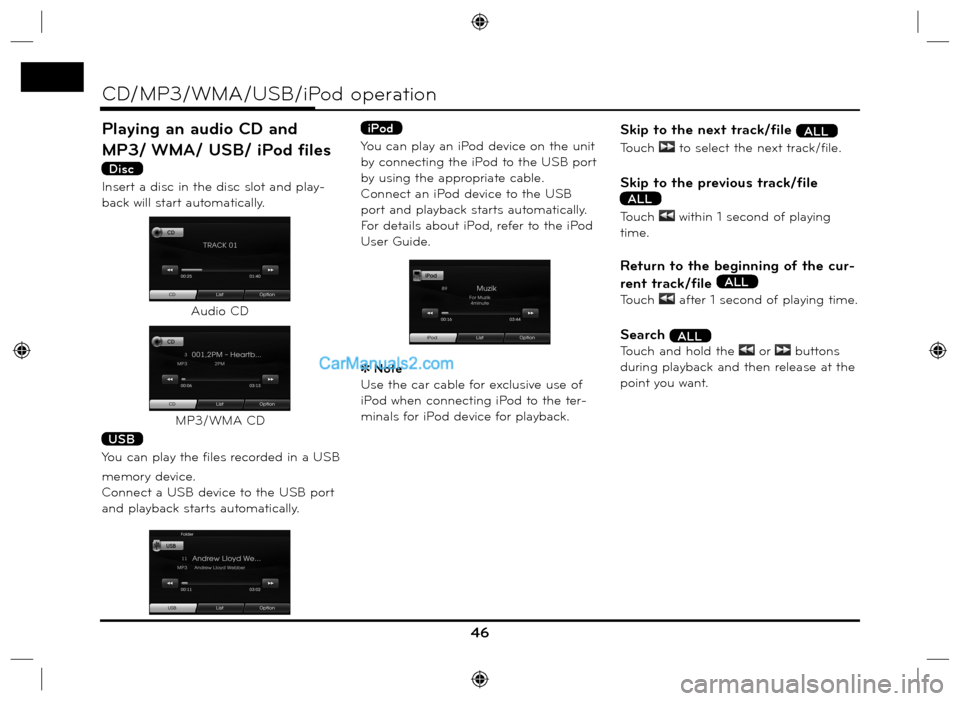

Playing an audio CD and
MP3/ WMA/ USB/ iPod files
Disc
Insert a disc in the disc slot and play-
back will start automatically.
USB
You can play the files recorded in a USB
memory device.
Connect a USB device to the USB port
and playback starts automatically.
iPod
You can play an iPod device on the unit
by connecting the iPod to the USB port
by using the appropriate cable.
Connect an iPod device to the USB
port and playback starts automatically.
For details about iPod, refer to the iPod
User Guide.
Note
Use the car cable for exclusive use of
iPod when connecting iPod to the ter-
minals for iPod device for playback.
Skip to the next track/file ALL
Touch to select the next track/file.
Skip to the previous track/file
ALL
Touch within 1 second of playing
time.
Return to the beginning of the cur-
rent track/file
ALL
Touch after 1 second of playing time.
Search ALL
Touch and hold the or buttons
during playback and then release at the
point you want.
46
CD/MP3/WMA/USB/iPod operation
Audio CD
MP3/WMA CD

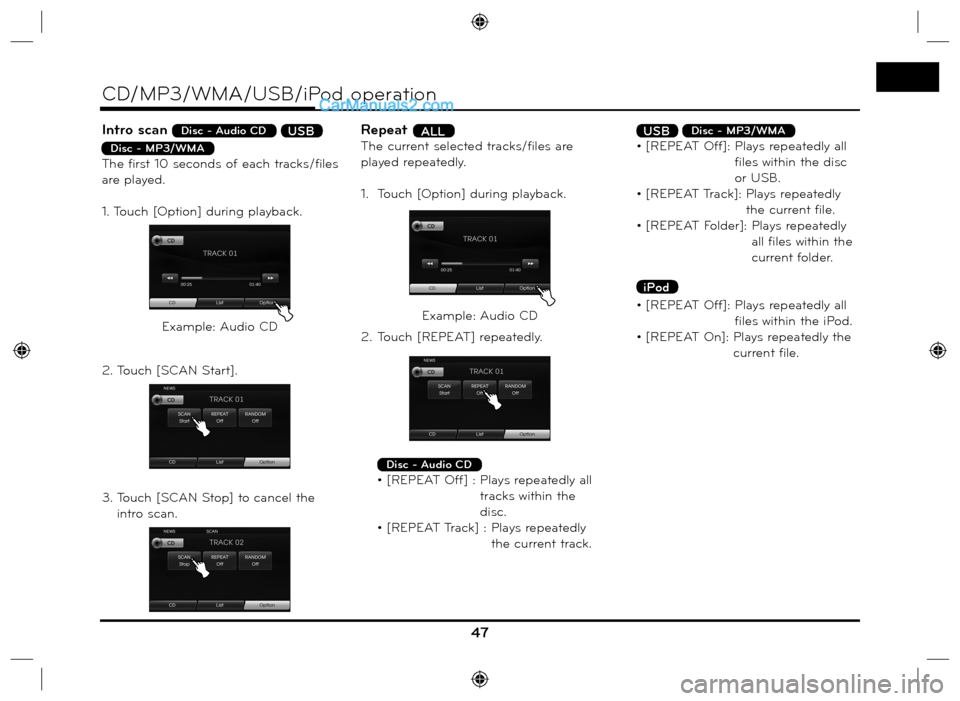

Intro scan Disc - Audio CD USB
Disc - MP3/WMA The first 10 seconds of each tracks/files
are played.
1. Touch [Option] during playback.
2. Touch [SCAN Start].
3. Touch [SCAN Stop] to cancel the
intro scan.
Repeat ALL
The current selected tracks/files are
played repeatedly.
1. Touch [Option] during playback.
2. Touch [REPEAT] repeatedly.

Disc - Audio CD
• [REPEAT Off] : Plays repeatedly all
tracks within the
disc.
• [REPEAT Track] : Plays repeatedly
the current track.
USB Disc - MP3/WMA
• [REPEAT Off]: Plays repeatedly all
files within the disc
or USB.
• [REPEAT Track]: Plays repeatedly
the current file.
• [REPEAT Folder]: Plays repeatedly
all files within the
current folder.

iPod
• [REPEAT Off]: Plays repeatedly all
files within the iPod.
• [REPEAT On]: Plays repeatedly the
current file.
47
CD/MP3/WMA/USB/iPod operation
Example: Audio CDExample: Audio CD

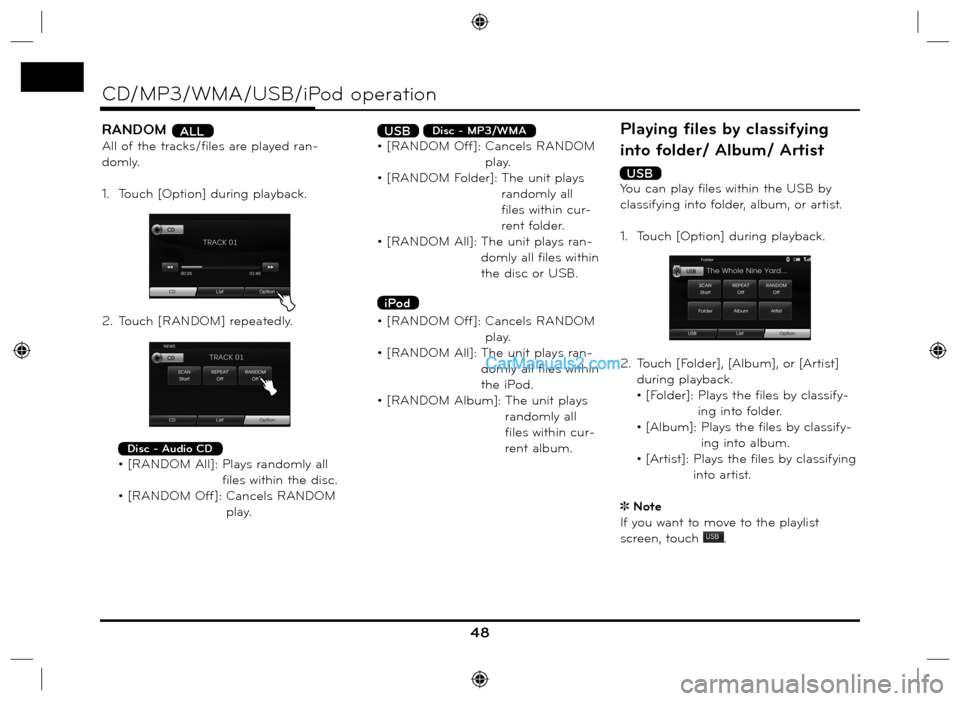

RANDOM ALL
All of the tracks/files are played ran-
domly.
1. Touch [Option] during playback.
2. Touch [RANDOM] repeatedly.

Disc - Audio CD
• [RANDOM All]: Plays randomly all
files within the disc.
• [RANDOM Off]: Cancels RANDOM
play.
USB Disc - MP3/WMA
• [RANDOM Off]: Cancels RANDOM
play.
• [RANDOM Folder]: The unit plays
randomly all
files within cur-
rent folder.
• [RANDOM All]: The unit plays ran-
domly all files within
the disc or USB.

iPod
• [RANDOM Off]: Cancels RANDOM
play.
• [RANDOM All]: The unit plays ran-
domly all files within
the iPod.
• [RANDOM Album]: The unit plays
randomly all
files within cur-
rent album.
Playing files by classifying
into folder/ Album/ Artist
USB
You can play files within the USB by
classifying into folder, album, or artist.
1. Touch [Option] during playback.
2. Touch [Folder], [Album], or [Artist]
during playback.
• [Folder]: Plays the files by classify-
ing into folder.
• [Album]:
Plays the files by classify-
ing into album.
• [Artist]:
Plays the files by classifying
into artist.
Note
If you want to move to the playlist
screen, touch
.
48
CD/MP3/WMA/USB/iPod operation

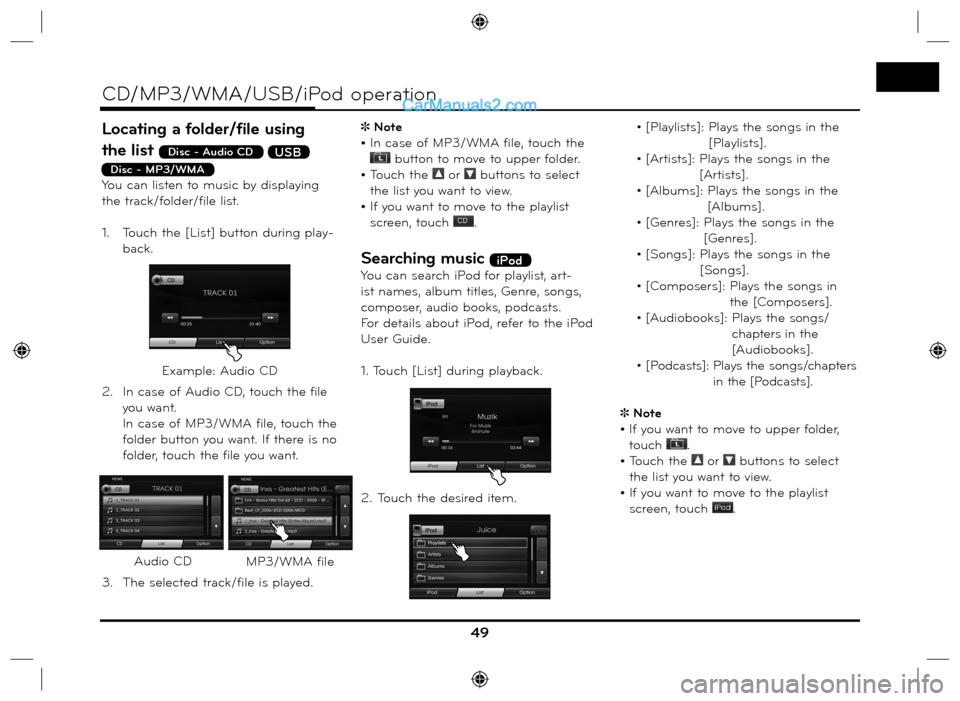

Locating a folder/file using
the list
Disc - Audio CD USB
Disc - MP3/WMA You can listen to music by displaying
the track/folder/file list.
1. Touch the [List] button during play-
back.
2. In case of Audio CD, touch the file
you want.
In case of MP3/WMA file, touch the
folder button you want. If there is no
folder, touch the file you want.
3. The selected track/file is played.Note

In case of MP3/WMA file, touch the
button to move to upper folder.
Touch the
or buttons to select
the list you want to view.
If you want to move to the playlist
screen, touch
.
Searching music iPod
You can search iPod for playlist, art-
ist names, album titles, Genre, songs,
composer, audio books, podcasts.
For details about iPod, refer to the iPod
User Guide.
1. Touch [List] during playback.
2. Touch the desired item.
• [Playlists]: Plays the songs in the
[Playlists].
• [Artists]: Plays the songs in the
[Artists].
• [Albums]: Plays the songs in the
[Albums].
• [Genres]: Plays the songs in the
[Genres].
• [Songs]: Plays the songs in the
[Songs].
• [Composers]: Plays the songs in
the [Composers].
• [Audiobooks]: Plays the songs/
chapters in the
[Audiobooks].
• [Podcasts]: Plays the songs/chapters
in the [Podcasts].
Note
If you want to move to upper folder,
touch
.
Touch the
or buttons to select
the list you want to view.
If you want to move to the playlist
screen, touch
.
49
CD/MP3/WMA/USB/iPod operation
Example: Audio CD
Audio CD
MP3/WMA file

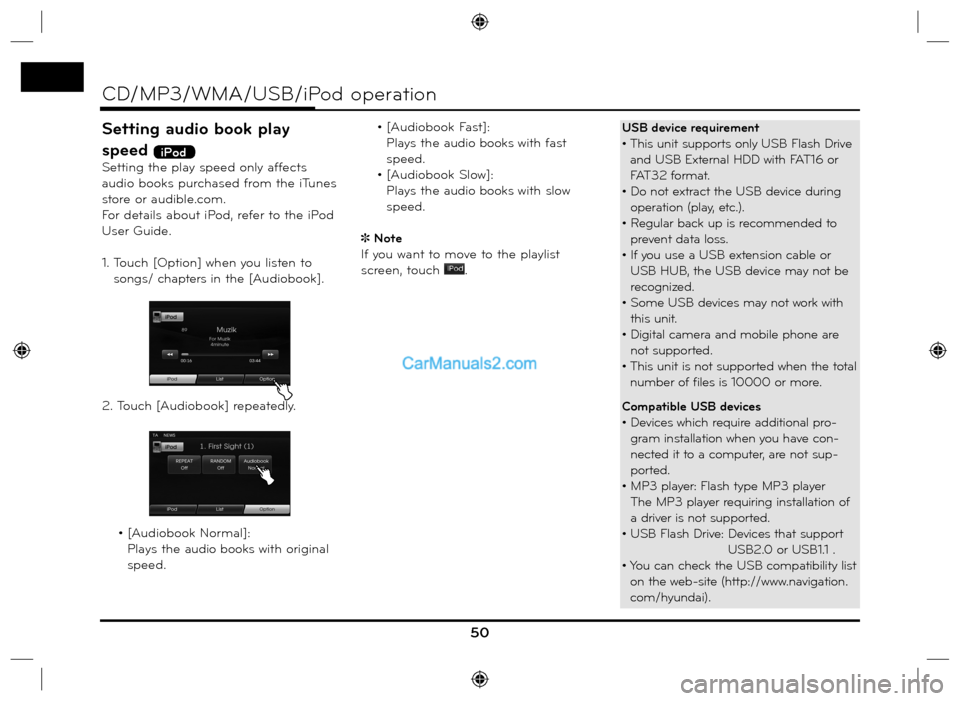

Setting audio book play
speed
iPod
Setting the play speed only affects
audio books purchased from the iTunes
store or audible.com.
For details about iPod, refer to the iPod
User Guide.
1. Touch [Option] when you listen to
songs/ chapters in the [Audiobook].
2. Touch [Audiobook] repeatedly.
• [Audiobook Normal]:
Plays the audio books with original
speed. • [Audiobook Fast]:
Plays the audio books with fast
speed.
• [Audiobook Slow]:
Plays the audio books with slow
speed.
Note
If you want to move to the playlist
screen, touch
.
50
CD/MP3/WMA/USB/iPod operation
USB device requirement
• This unit supports only USB Flash Drive
and USB External HDD with FAT16 or
FAT32 format.
• Do not extract the USB device during
operation (play, etc.).
• Regular back up is recommended to
prevent data loss.
• If you use a USB extension cable or
USB HUB, the USB device may not be
recognized.
• Some USB devices may not work with
this unit.
• Digital camera and mobile phone are
not supported.
• This unit is not supported when the total
number of files is 10000 or more.
Compatible USB devices
• Devices which require additional pro-
gram installation when you have con-
nected it to a computer, are not sup-
ported.
• MP3 player: Flash type MP3 player
The MP3 player requiring installation of
a driver is not supported.
• USB Flash Drive: Devices that support
USB2.0 or USB1.1 .
• You can check the USB compatibility list
on the web-site (http://www.navigation.
com/hyundai).
